Asus 90MB1LY0-M0EAY0 Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® X870
EAN:
Part number:
Item no:

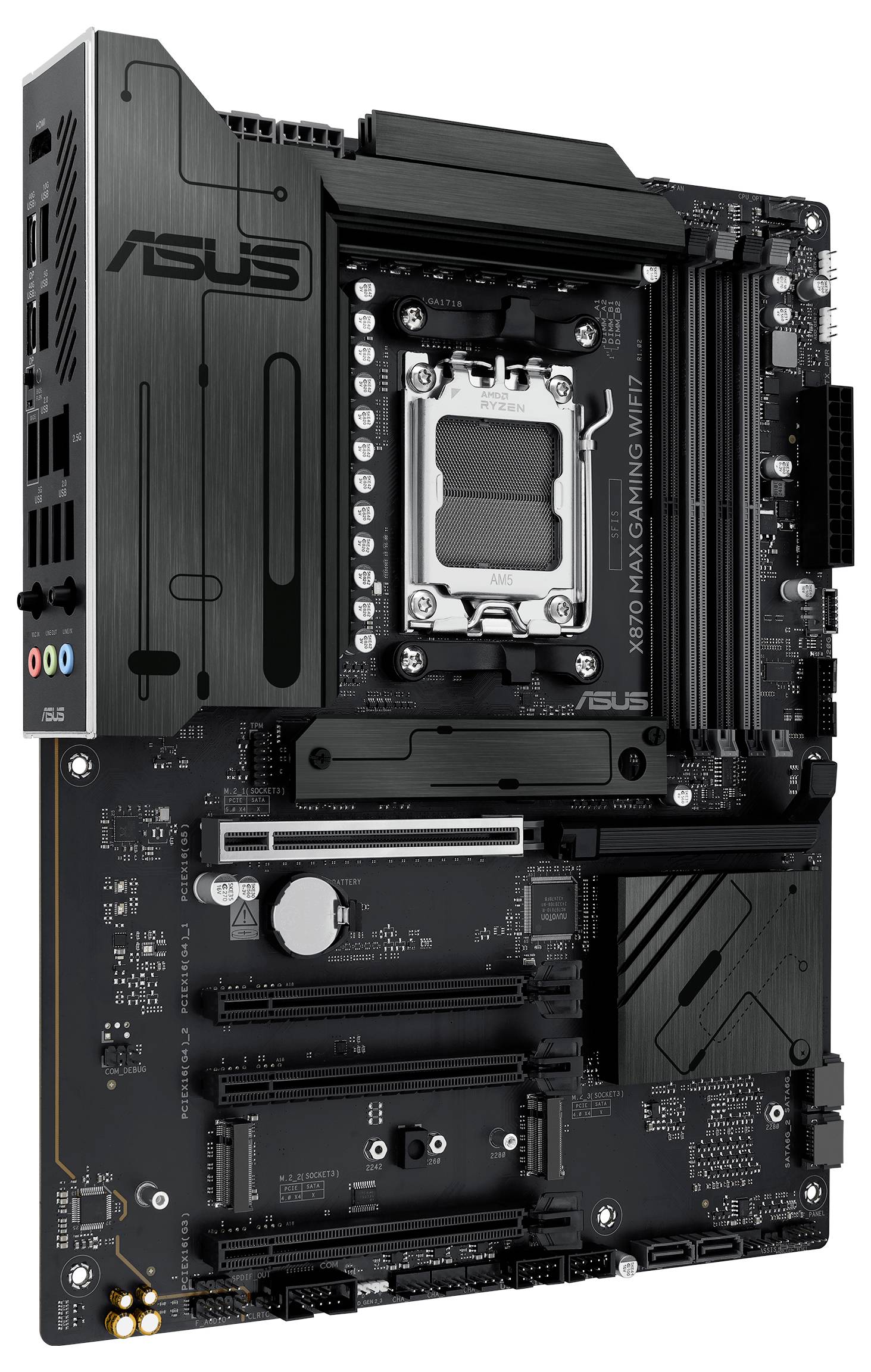

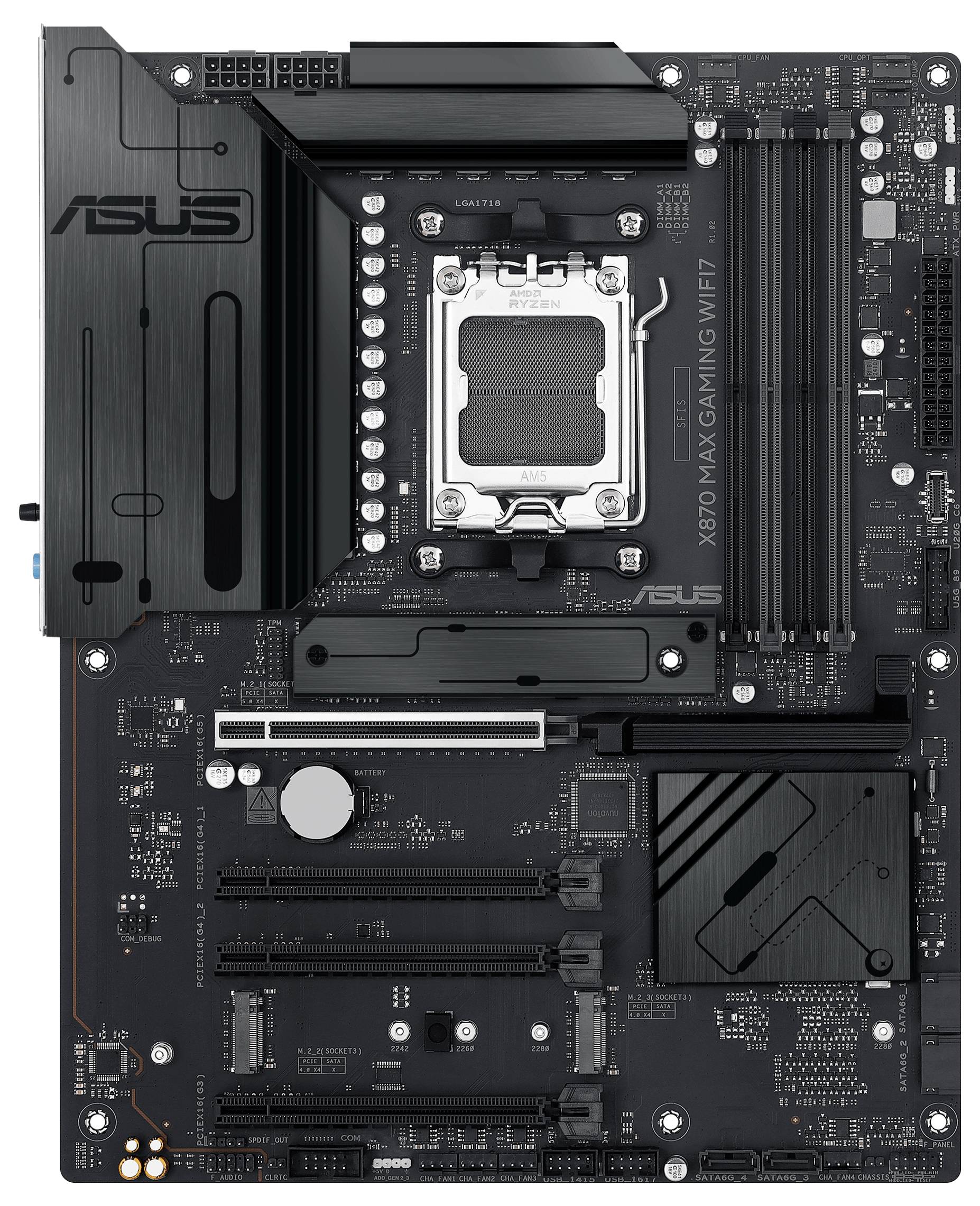

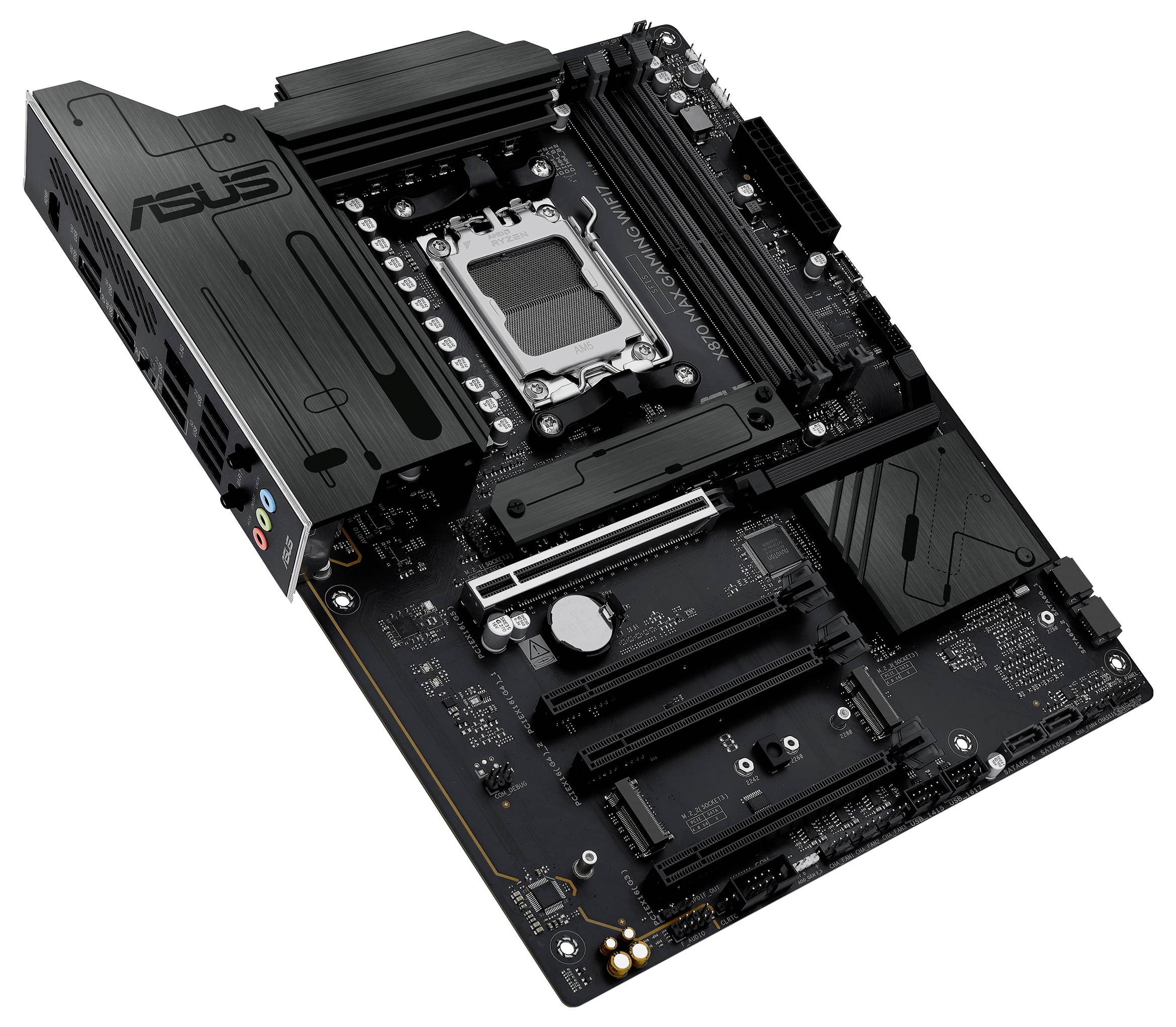

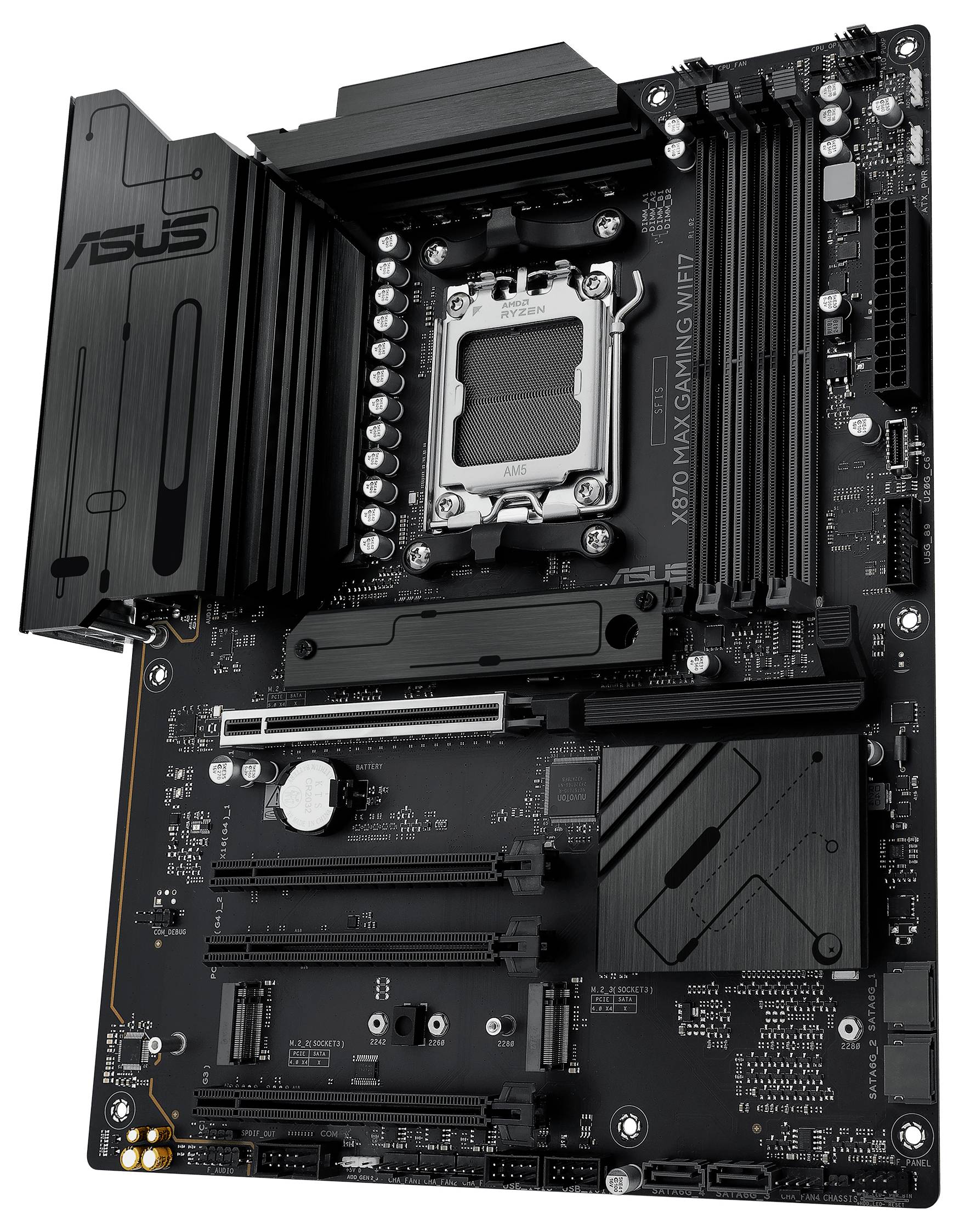

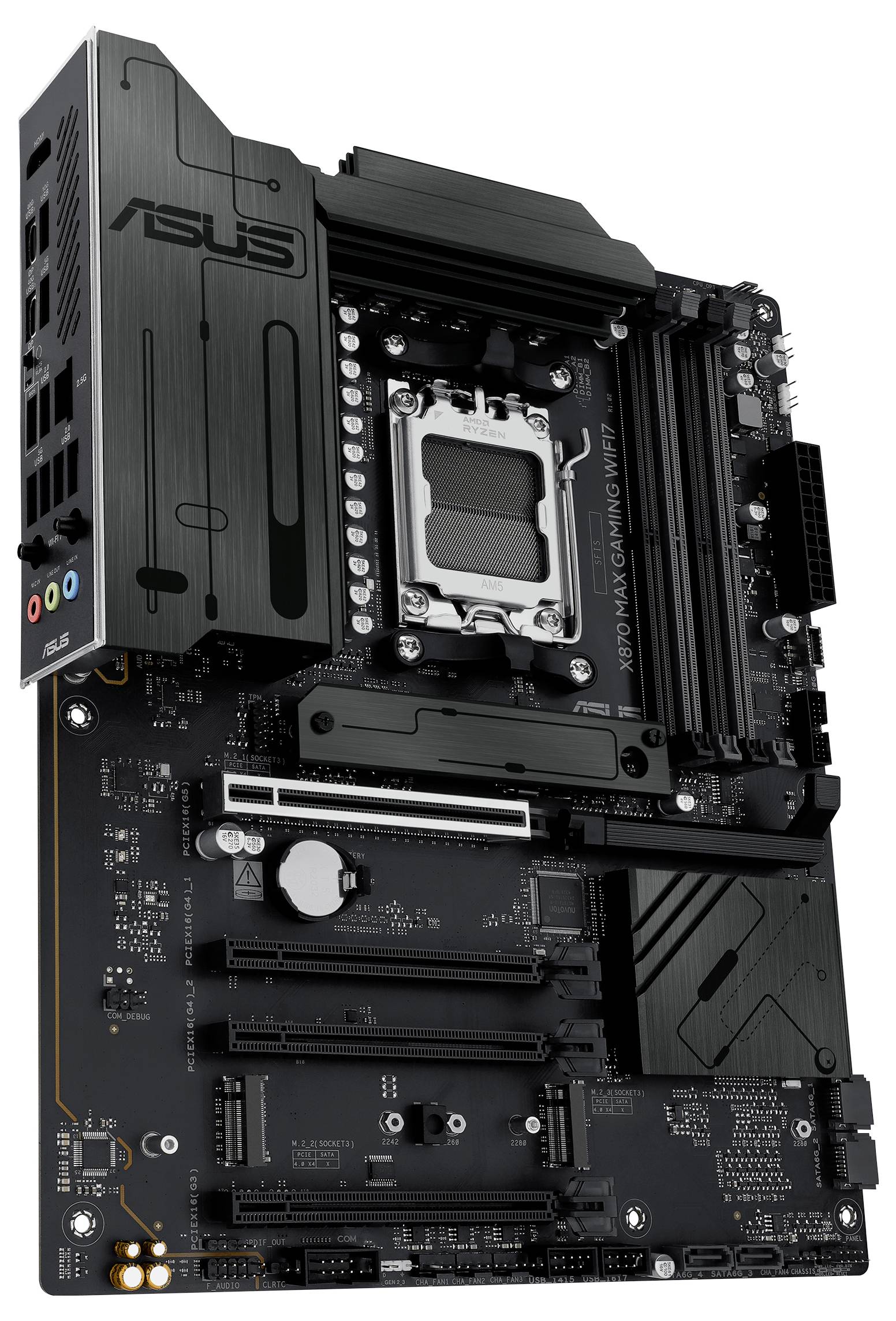

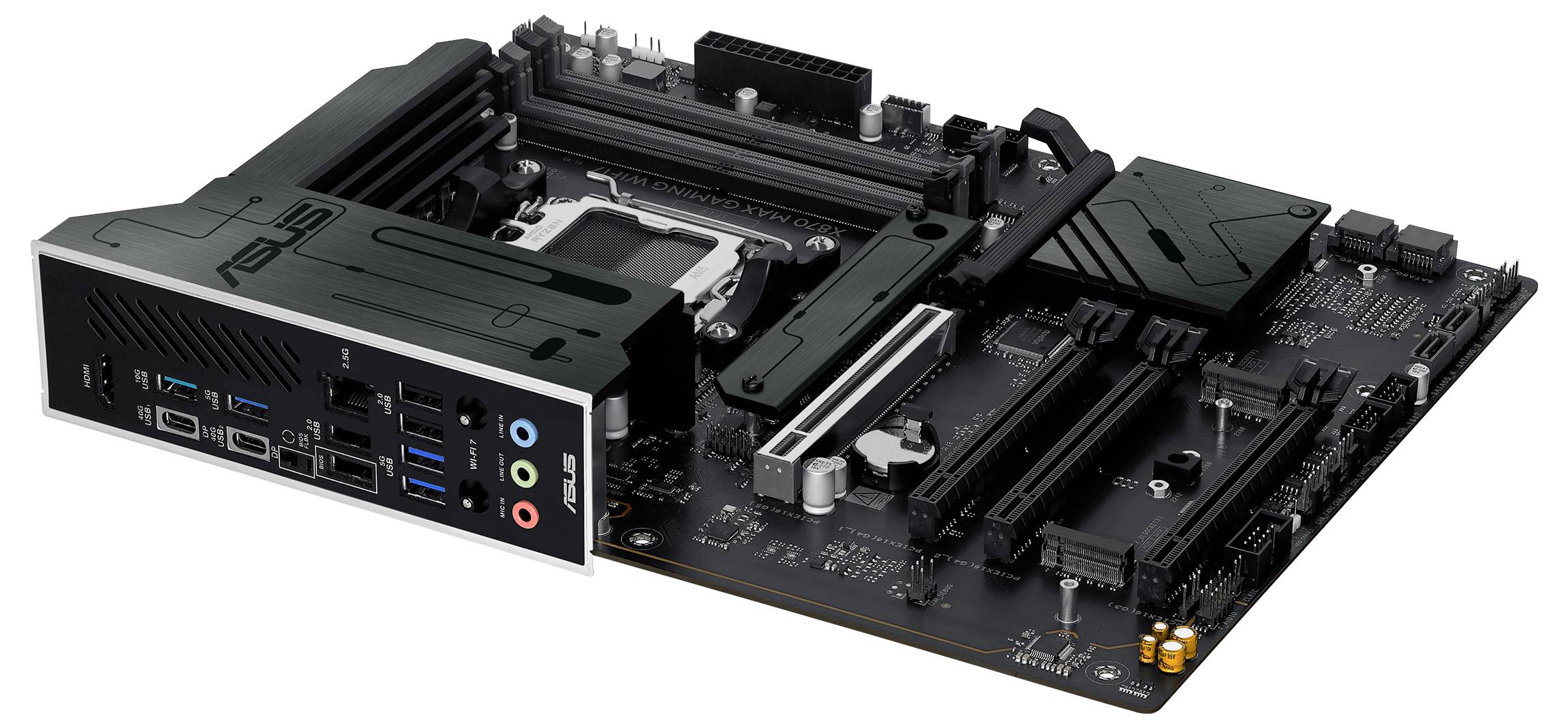

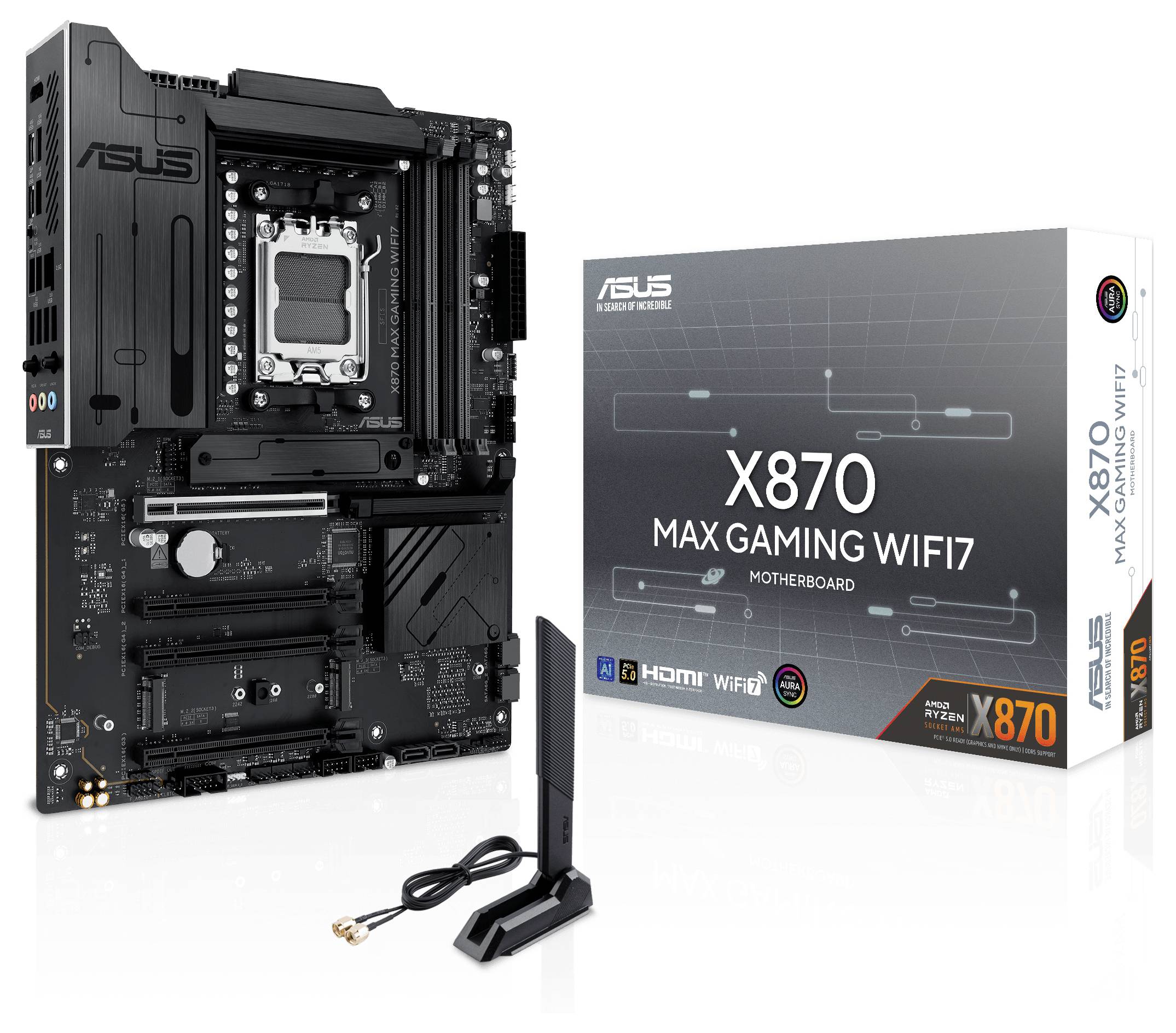

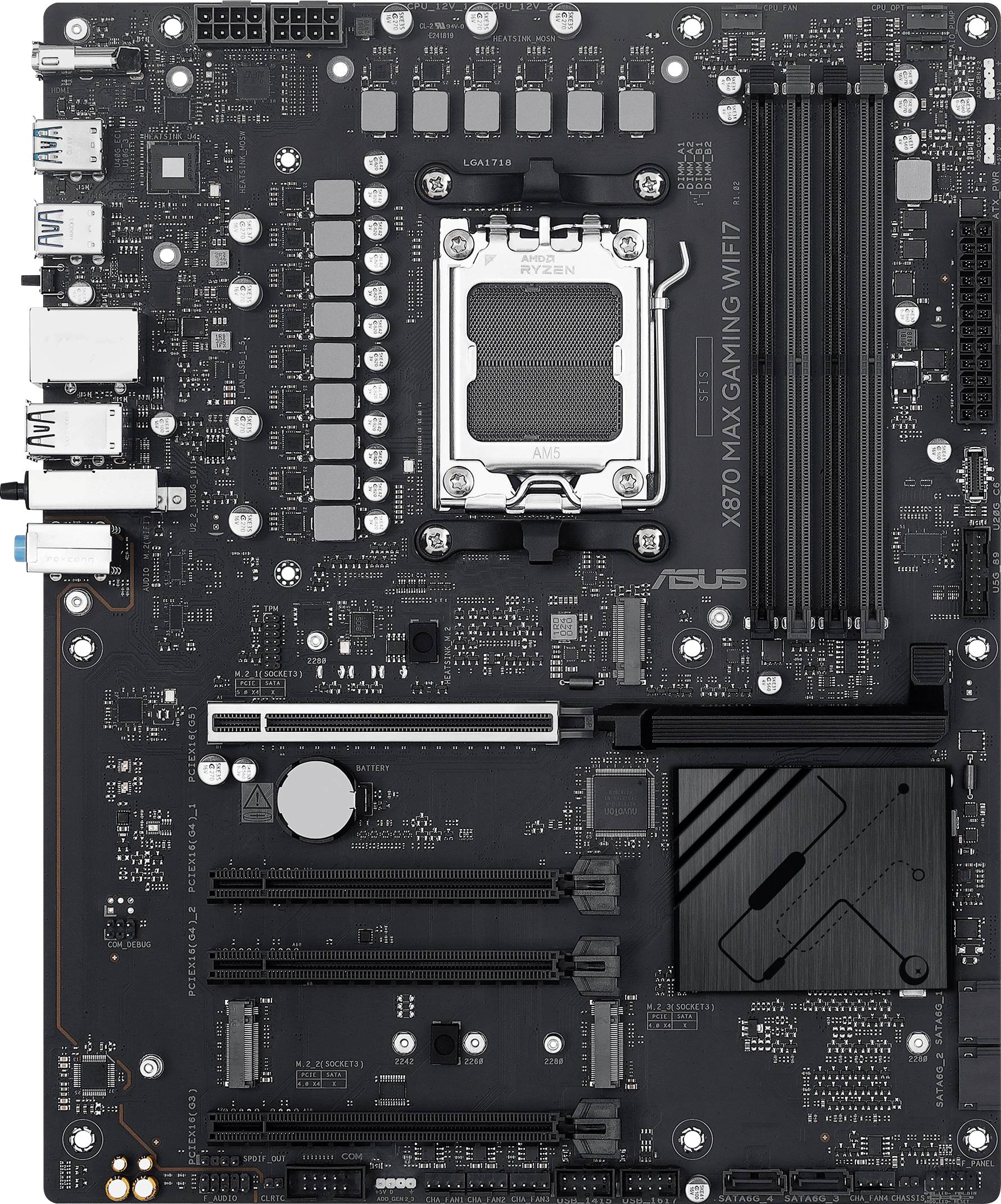

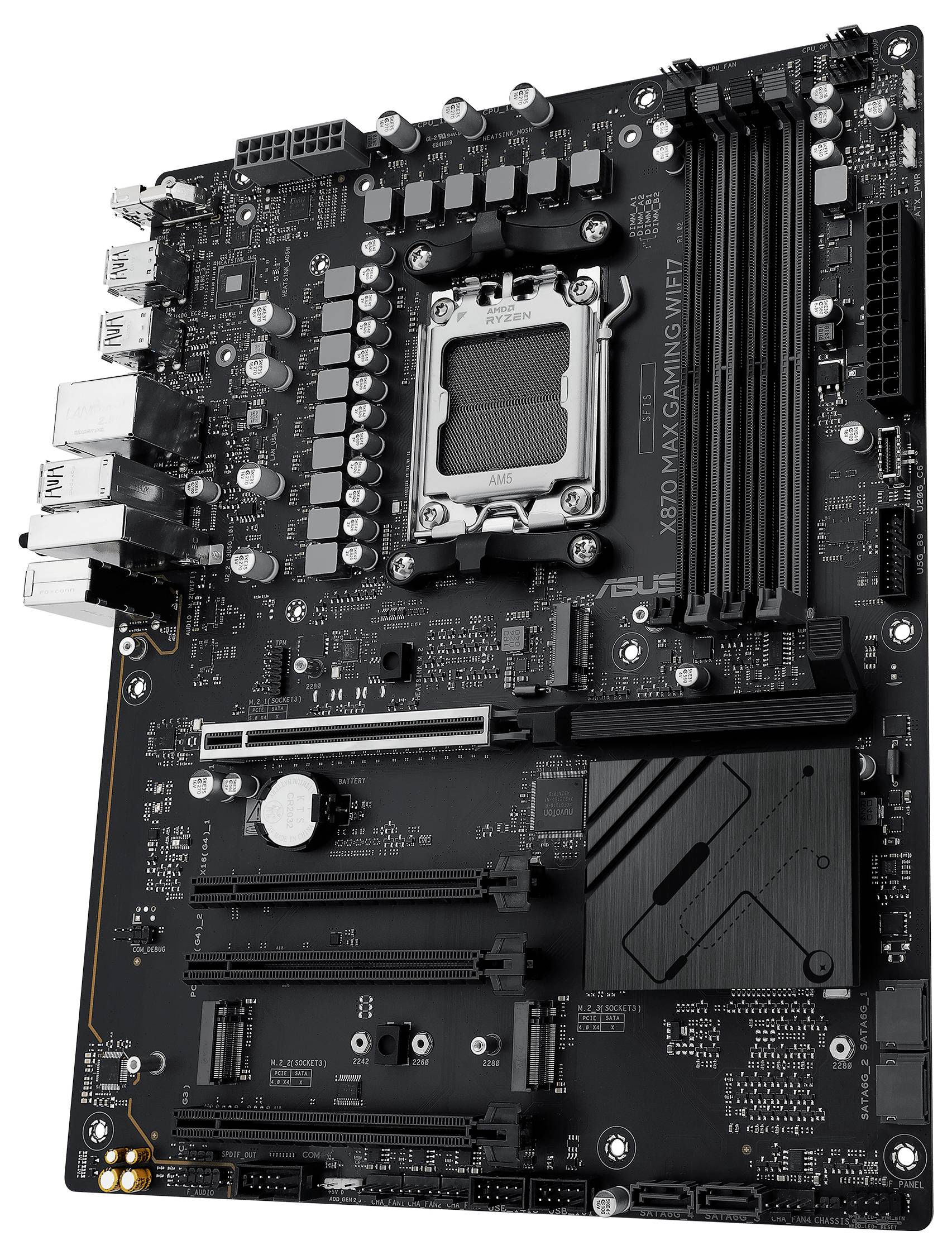

Asus 90MB1LY0-M0EAY0 Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD X870 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 7
- UEFI AMI 256 Mbit BIOS type
- 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
- This text is machine translated.
Technical specifications
- Socket AM5
- ECC compatibility: ECC and non-ECC
- Number of CPU fan ports: 1
- AMD X870 motherboard chipset
- Product type
Motherboard
- Chipset
AMD® X870
#####AMD AM5
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
256 GB

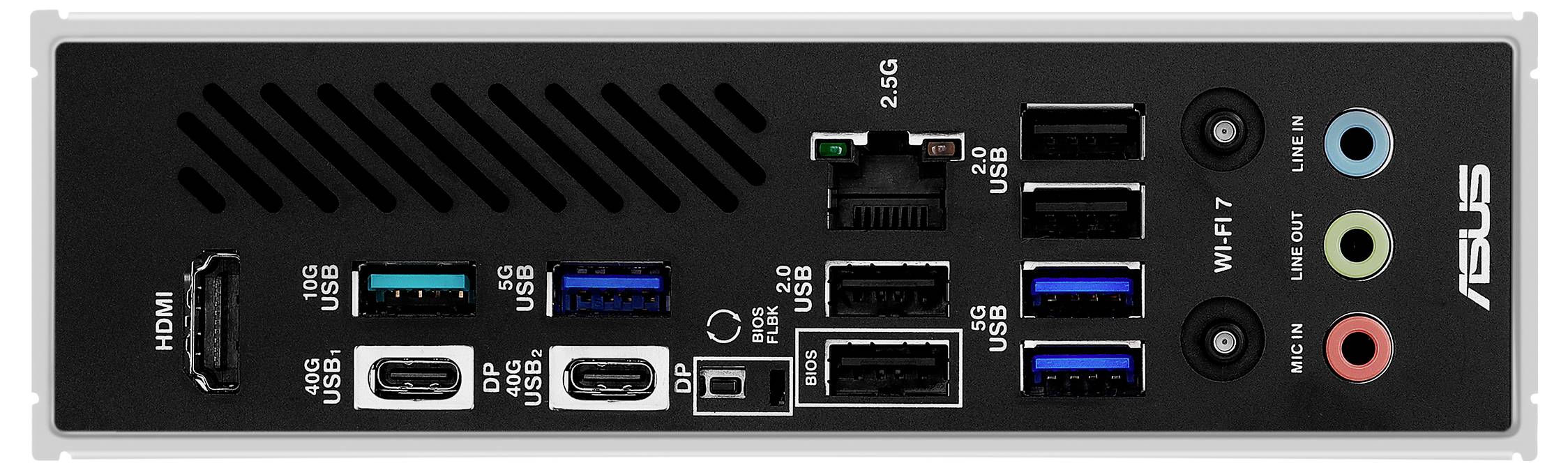

- Interfaces
HDMI™
PCIe 3.0 x16
PCIe 4.0 x16
SATA III
USB A (USB 2.0)
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
2 x
- No. of USB 2.0 ports
2 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Multicolour
- Depth
244 mm
- Height
48 mm
- Width
305 mm
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- No of. USB type A 3.1 /3.2 2nd gen
1 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Weight
1.36 kg
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Line-in
yes
- Ethernet LAN
yes

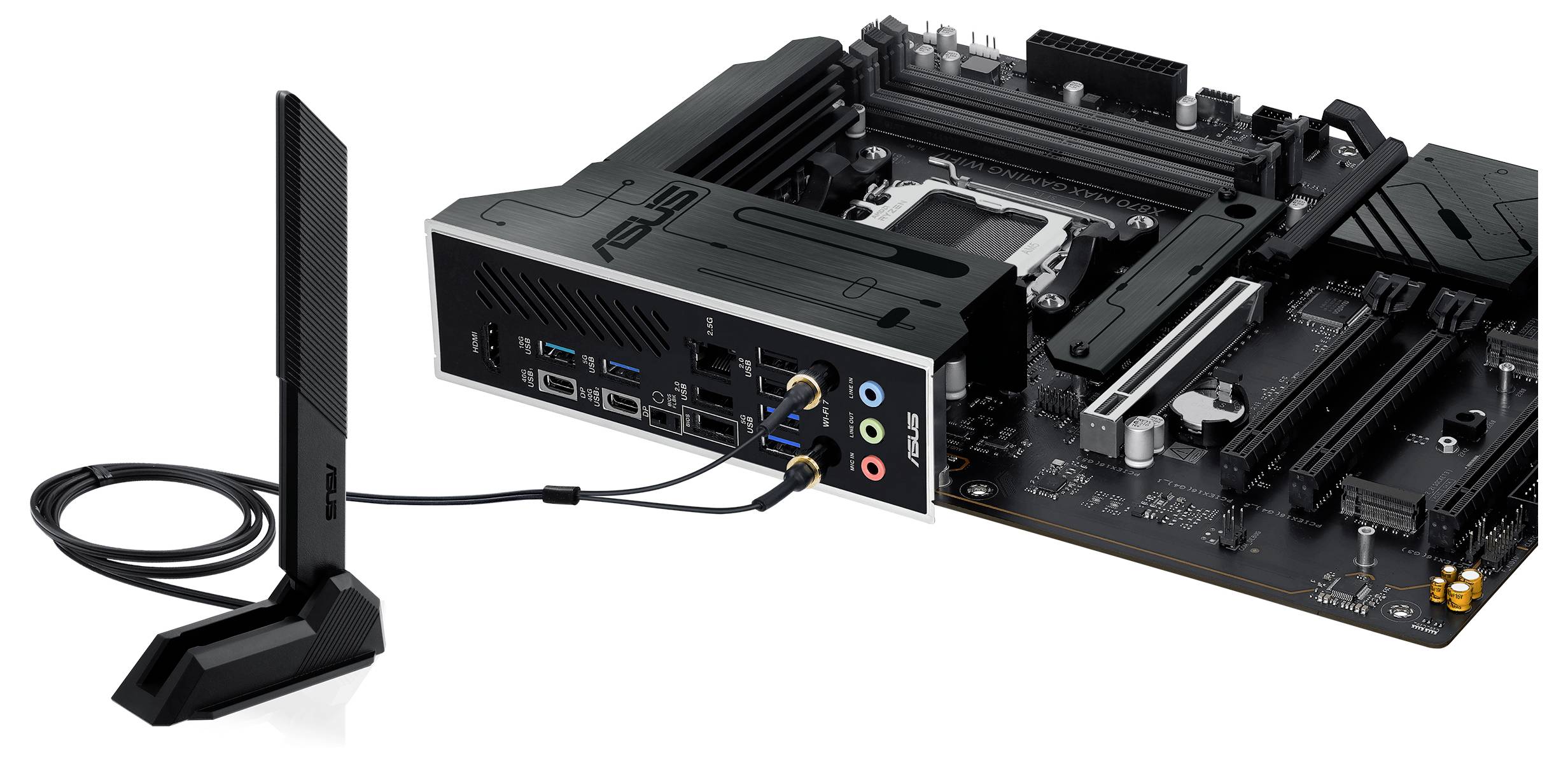

- Antenna included
yes
- Number of memory slots
4
- Number of M.2 (M) slots
3
- Microphone in
yes
- 12V power connector
yes
- S/PDIF out connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- WiFi-AP antenna jack
2
- TPM connector
yes
- USB4 Gen 3x2 ports quantity
2
- Supported memory clock speed (max)
8000 MHz
- USB 3.2 Gen 2x2 connectors
1
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
1.95 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Number of storage drives supported
7
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3405618 Asus 90MB1LY0-M0EAY0 Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® X870
Description
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications, AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series desktop processors,Improved power supply solution: 12+2+1 80A DrMOS power levels, 8-layer PCB, ProCool connections, alloy reactors and long-life capacitors for stable power output, ultra-fast connectivity: Wi-Fi 7, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, 2.5 GB Ethernet, USB4® (40Gbps) Type C® connectors, USB 20Gbps Type-C® connector on the front, Full cooling: large VRM heat sinks, M.2 and PCH heat sinks, hybrid fan headers and fan Xpert 4 with AI Cooling II, DIY-friendly design: pre-mounted I/O shielding, PCIe Slot Q-Release, BIOS Flashback™, Q-antenna, flexible M.2 heatsink, Q-Dashboard, Q-LED Core,Unmatched Personalization: Three addressable RGB Gen 2 headers, all configurable with Asus exclusive Aura Sync RGB lighting,Renowned software: Armoury Crate, Asus AI Advisor, Asus DriverHub, Asus GlideX,CEC Tier II-enabled
