Name: Asus 90MB1M00-M0EAY0 Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B650
Brand: Asus
SKU: 3405643

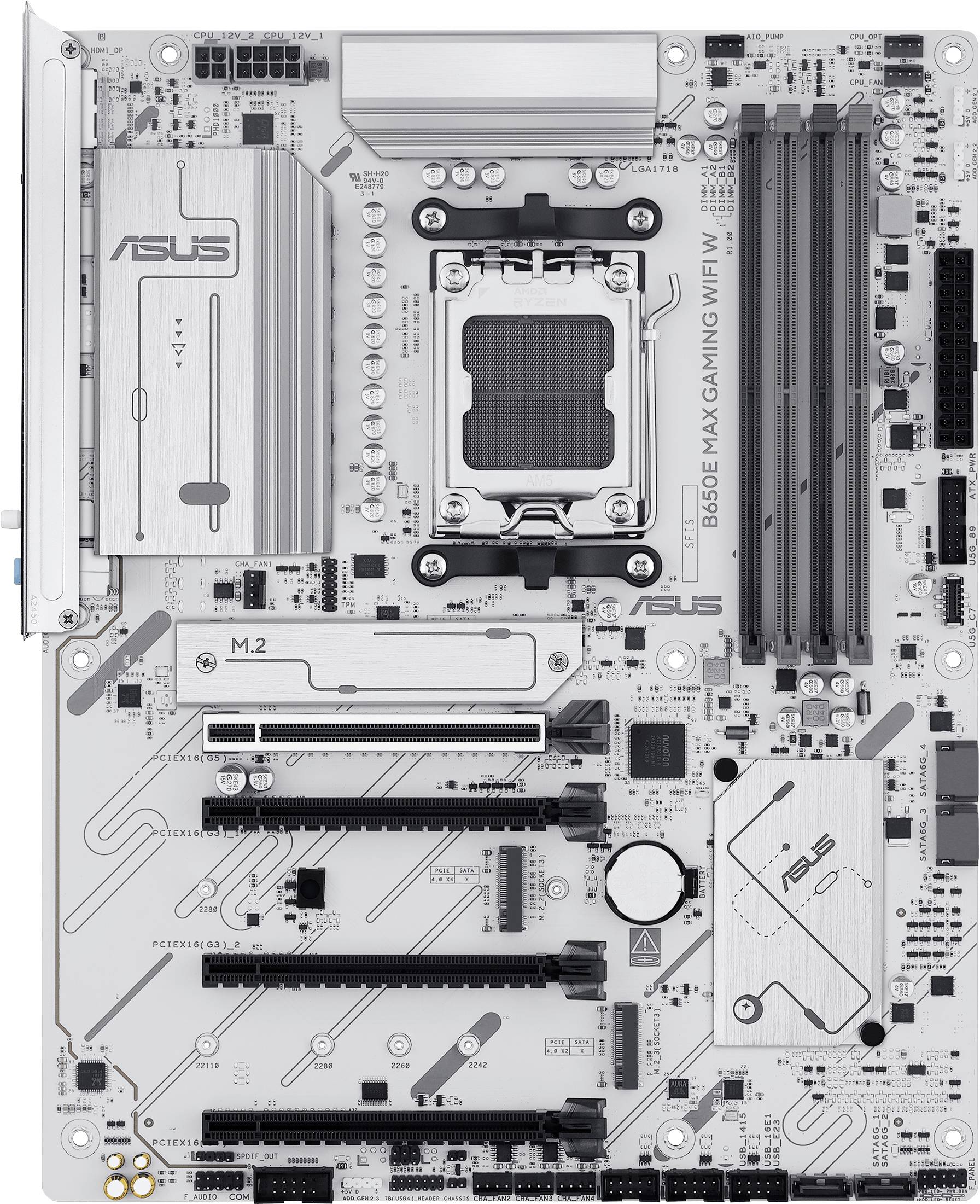

A computer motherboard showing various slots and ports for the CPU, RAM, and expansion cards.

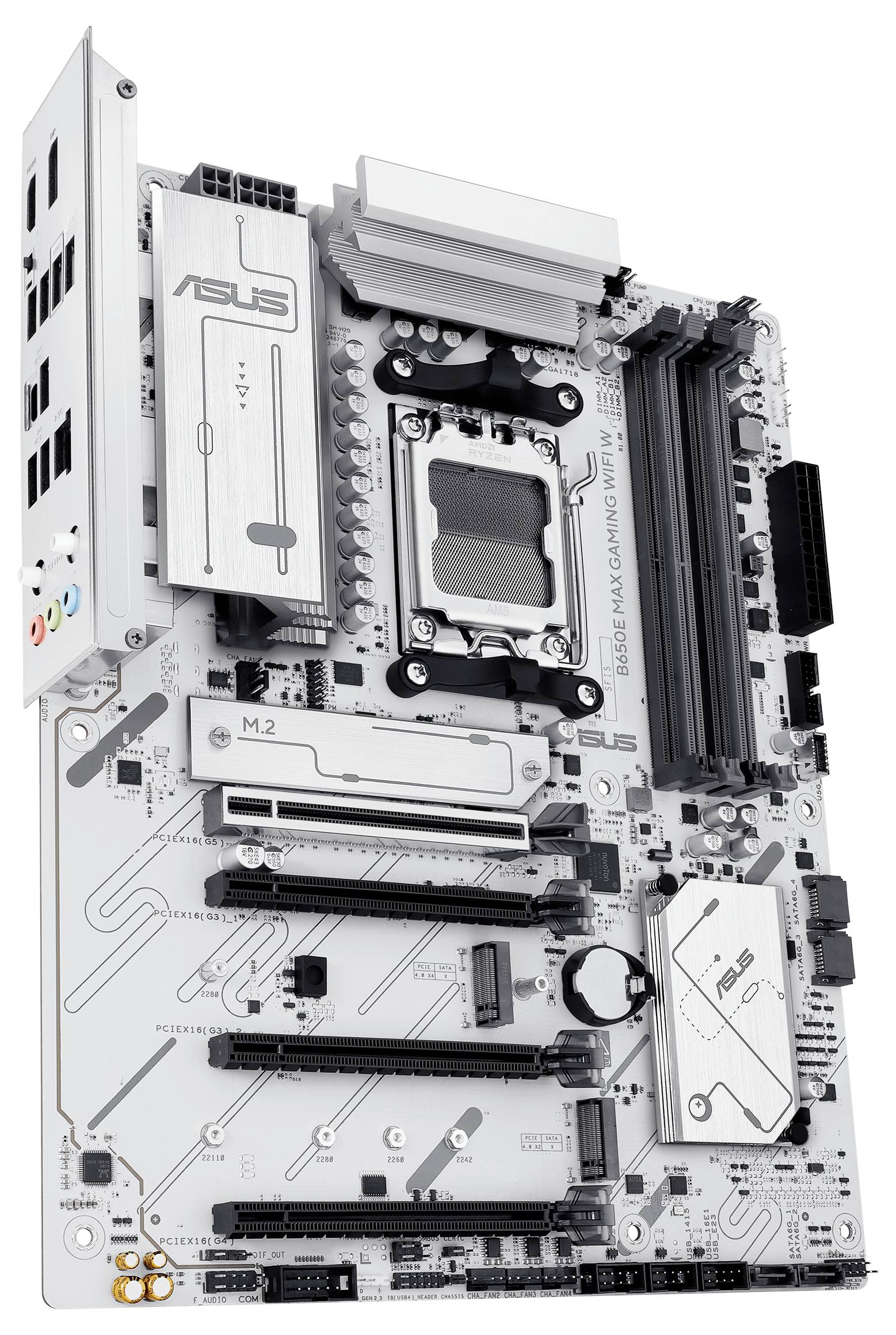

A silver motherboard with multiple PCIe slots, RAM slots, and heatsinks. 'ASUS' is written on two of the heatsinks.

A white ASUS motherboard with multiple expansion slots and connectors, suitable for building or upgrading a computer system.

Back of a computer case with various ports, including HDMI, DisplayPort, USB, and audio ports.

A white PC motherboard with multiple PCIe slots, USB ports, and audio connectors, suitable for computer assembly or repair.

Asus 90MB1M00-M0EAY0 Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B650-7

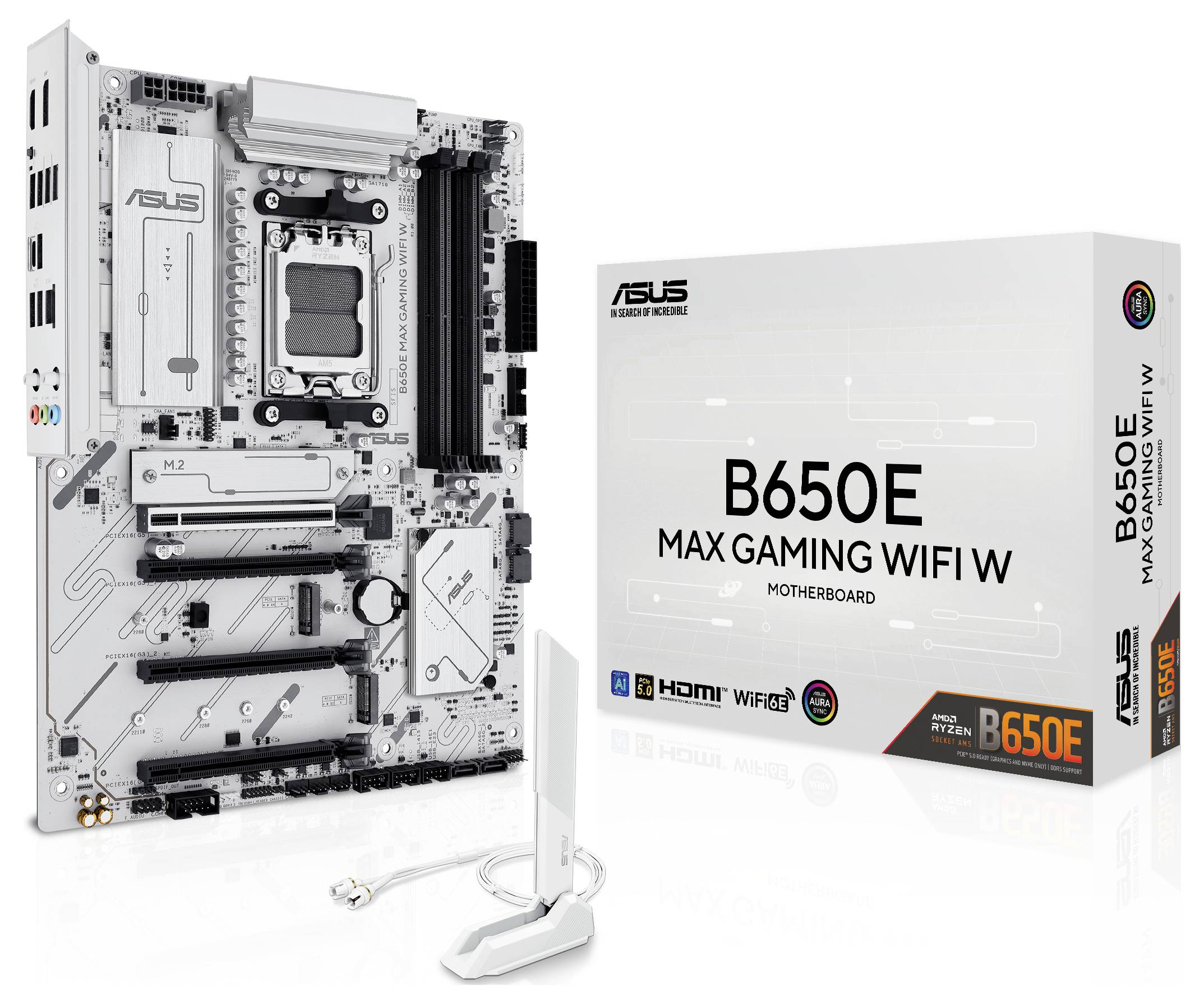

Motherboard model 'ASUS B650E Max Gaming WIFI W' next to packaging. Contains various ports and WiFi antenna. Designed for gaming.

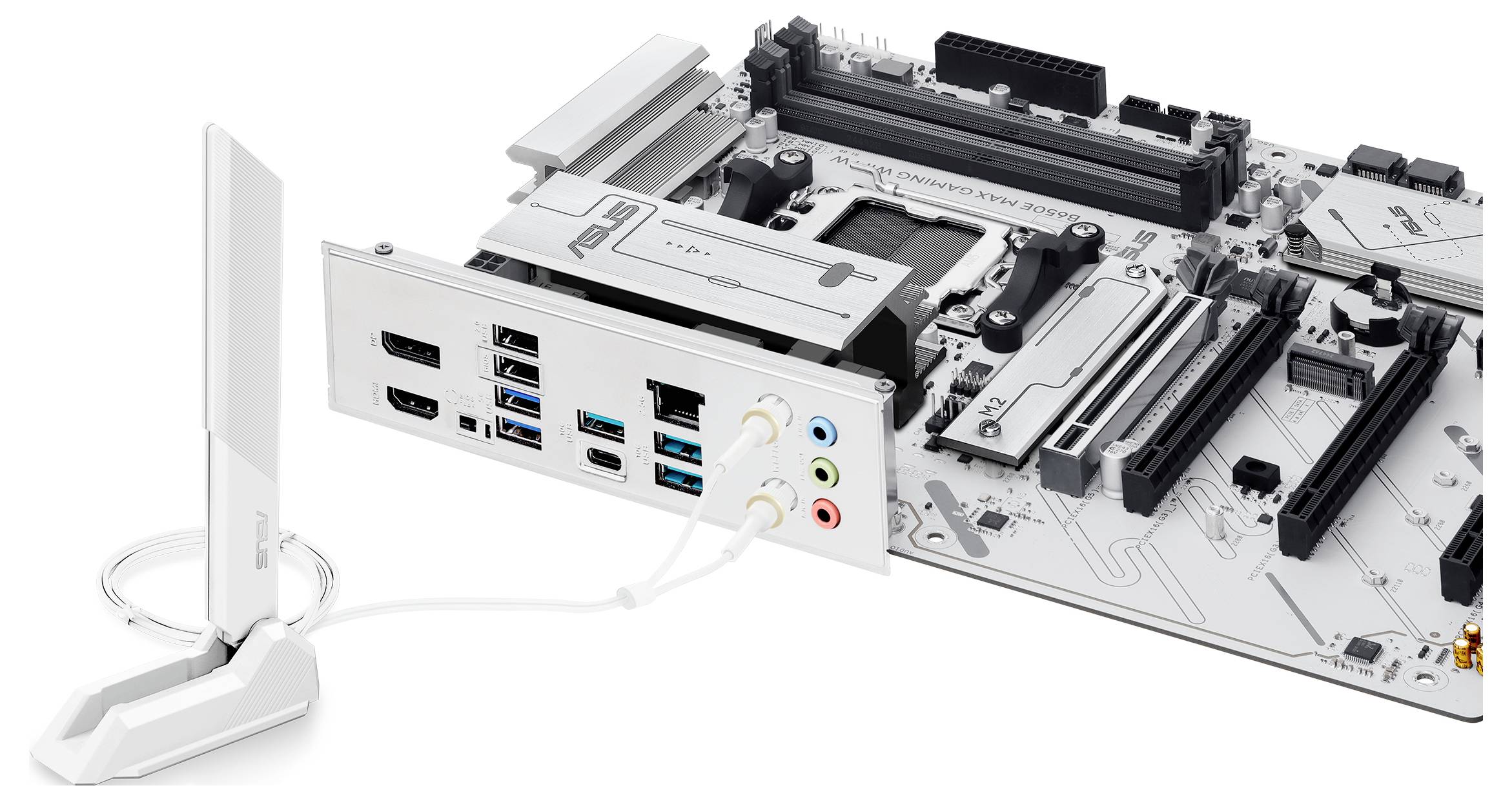

A white computer motherboard with multiple expansion slots and connectors. A cable is connected to one of the outputs.

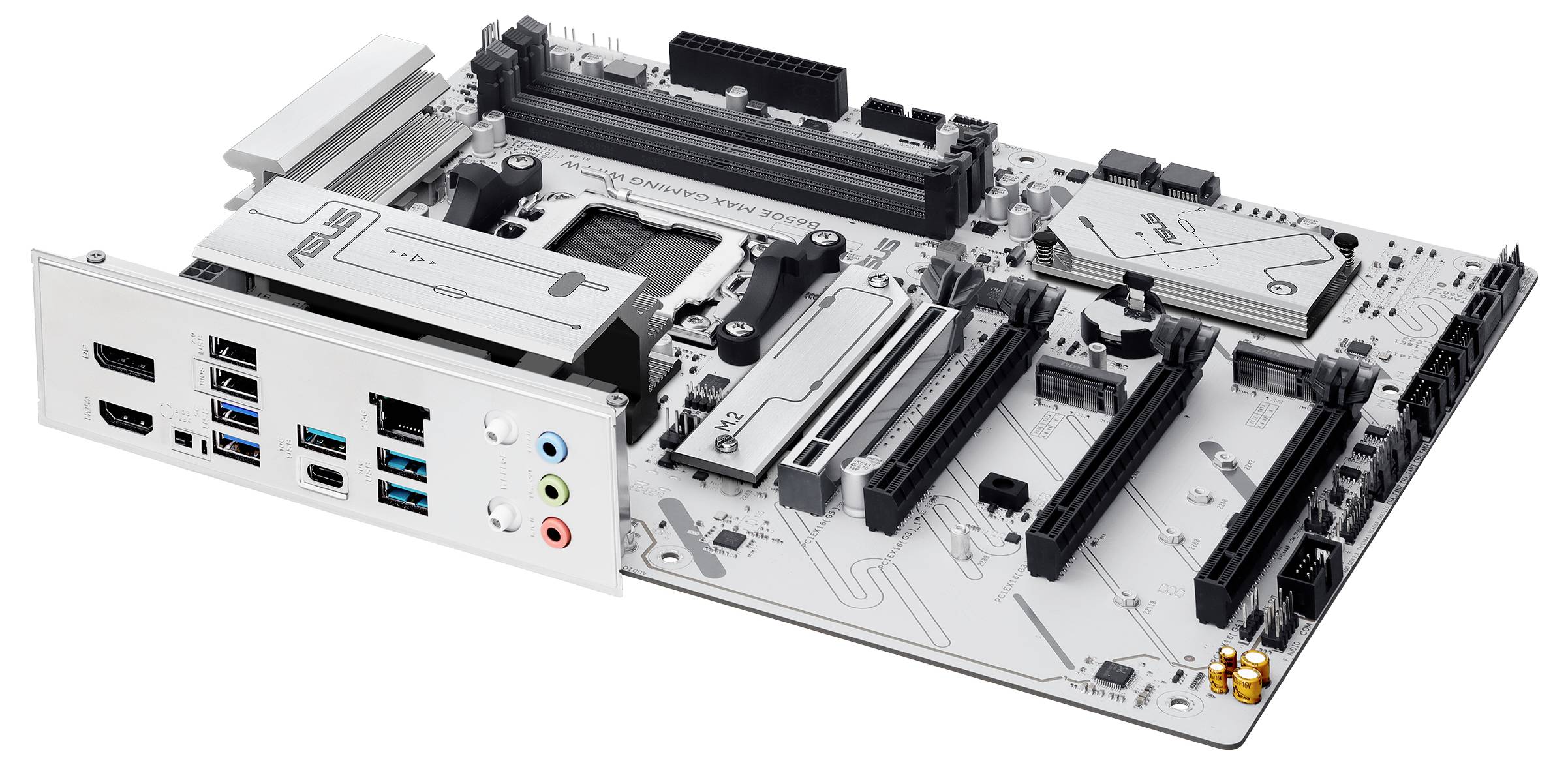

Computer motherboard with various ports and expansion slots. Visible are HDMI ports, USB connections, audio sockets, and expansion slots.

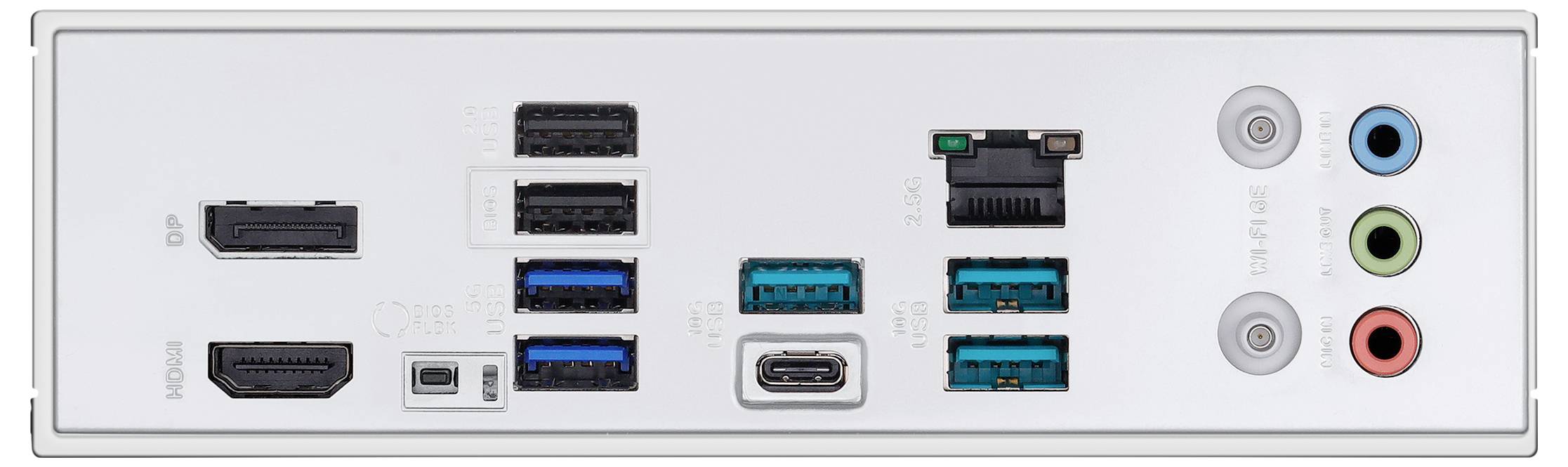

Back of a computer with ports: HDMI, DisplayPort, USB, Ethernet and audio ports in various colours.

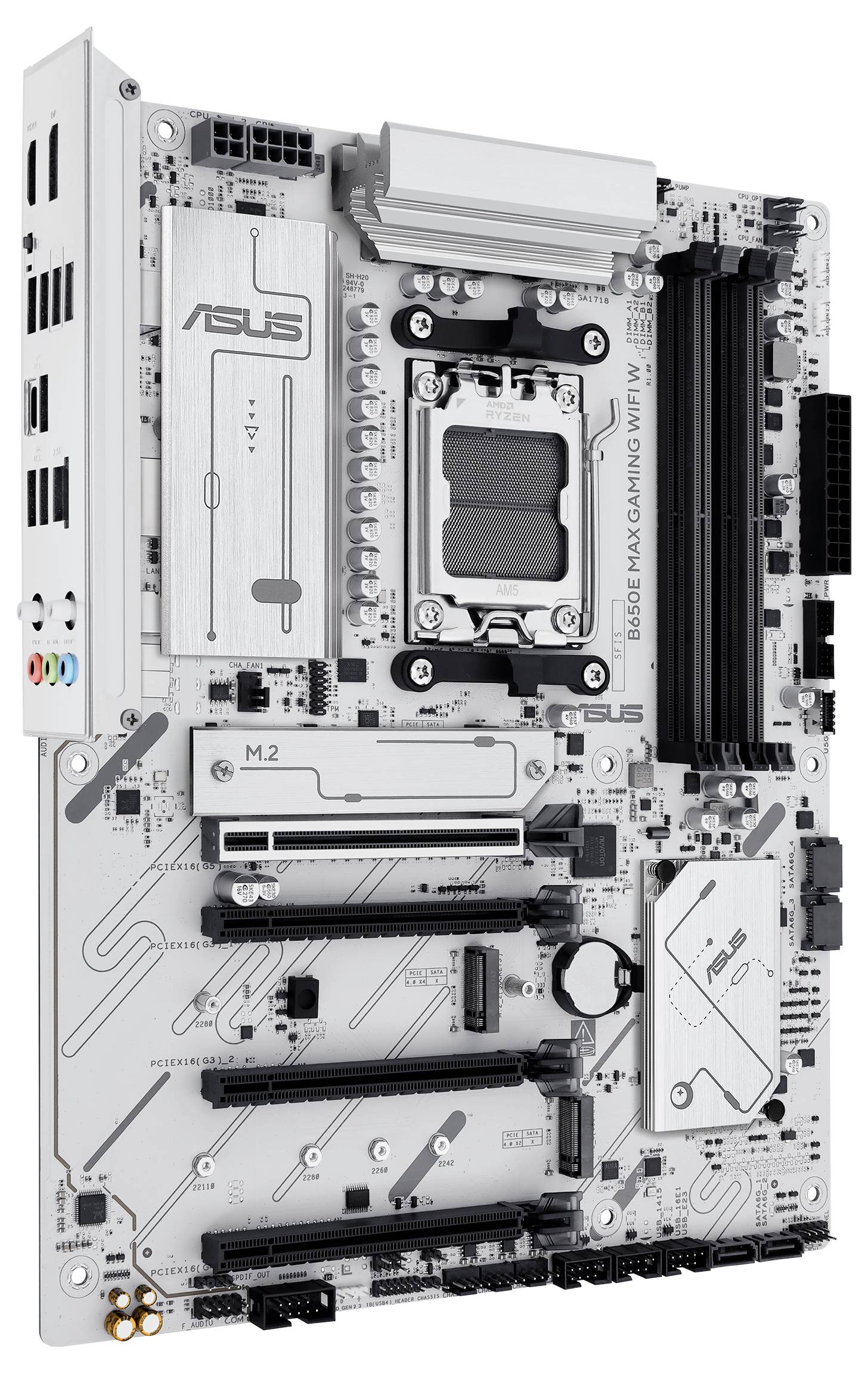

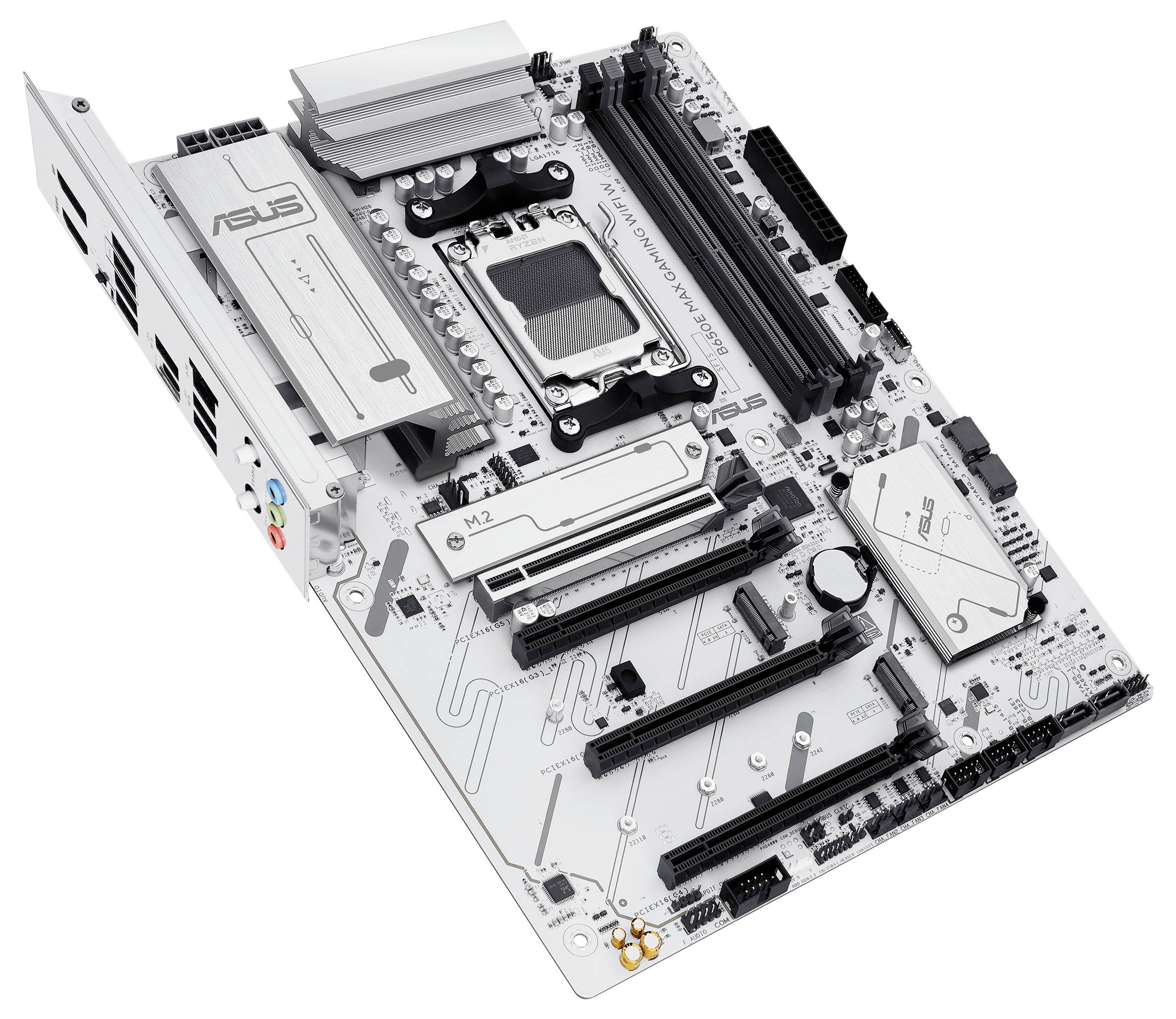

A white computer motherboard with multiple slots and connectors, including RAM banks, CPU socket, and PCIe slots.

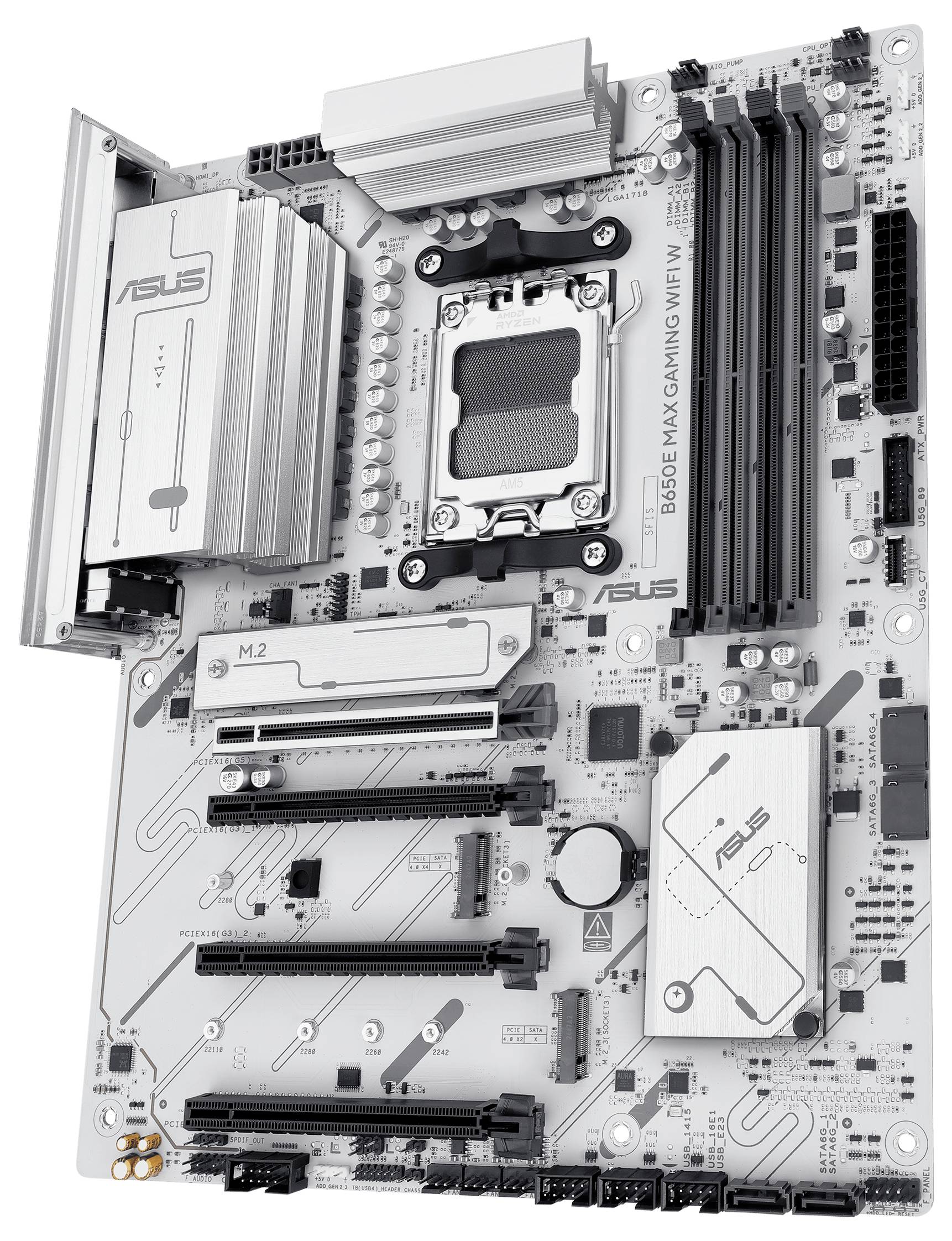

Computer motherboard with multiple PCIe slots, RAM slots, and cooling components; suitable for gaming setups.

A computer motherboard with multiple expansion slots and connectors, including an M.2 slot and RAM banks.

1/16

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Asus 90MB1M00-M0EAY0 Motherboard

AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
PC ATX AMD B650 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 7
UEFI AMI 256 Mbit BIOS type
2.5 Gigabit Ethernet WLAN Wi-Fi 6E (802.11ax) Bluetooth 5.3

Technical specifications

Socket AM5
Supported processor slots: Socket AM5
ECC compatibility: ECC and non-ECC
Number of CPU fan ports: 1
Number of RGB LED pin strips: 3
WLAN standards Wi-Fi 6E (802.11ax)
AMD B650 motherboard chipset
1. M.2 Largest key size: 2280
1. M.2 highest PCI Express generation: 5.0
2. M.2 Largest key size: 2280
2. M.2 highest PCI Express generation: 4.0
3. M.2 Largest key size: 22110
3. M.2 highest PCI Express generation: 4.0

Product type: Motherboard

Chipset: AMD® B650

: #####AMD AM5

Form factor: ATX

RAM type: DDR5 RAM

RAM / Max. upgrade: 256 GB

Interfaces: DisplayPort
HDMI™
PCIe 3.0 x16
PCIe 4.0 x16
PCIe 5.0 x16
SATA III
USB A (USB 2.0)
USB A (USB 3.2 1st gen)

No. of PCIe 3.0 x16: 2 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 3 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of SATA III ports: 4 x

Bluetooth: 5.3

Bluetooth: Yes

Depth: 244 mm

Width: 305 mm

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 3 x

10/100/1000 Mbps ports: 1 x

4-pin Molex: 1

Range of use: PC

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Screws included: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 3

Thunderbolt headers: 1

Front panel connector: yes

12V power connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Chassis intrusion connector: yes

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 1

TPM connector: yes

RGB LED pin header: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.26 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Number of storage drives supported: 7

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3405643 Asus 90MB1M00-M0EAY0 Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B650

Description

B650E MAX GAMING WI-FI, WHITE

The motherboards of the Asus B650E series were developed by experts in order to unleash the full potential of the AMD Ryzen 9000 & 8000 & processors of the 7000 series. With a robust performance design, comprehensive cooling solutions and intelligent tuning options, the B650E MAX GAMING WIFI W offers users and PC-DIY builders a range of performance enhancements via intuitive software and firmware features. This platform provides the performance and connectivity that advanced AI PC applications require.

This text is machine translated.

Features

AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors,Ultra-fast connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Rear USB 10Gbps Type-A & Type-C® ports and front USB 5Gbps Type-C® support,Comprehensive cooling: VRM and M.2 heat sinks, PCH heat sinks, hybrid fan headers and fan Xpert 2+,DIY friendly design: Pre-mounted I/O shield, BIOS Flashback™, Q-antenna, Q-LED core,Unsurpassed personalization: Three addressable RGB Gen 2 headers, all configurable with Asus exclusive Aura Sync RGB lighting,CEC Tier II ready
