Asus 90MB1M20-M0EAY0 Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B650
EAN:
Part number:
Item no:
Asus 90MB1M20-M0EAY0 Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD B650 Realtek ALC1220P 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 7
- UEFI AMI 256 Mbit BIOS type
- 2.5 Gigabit Ethernet WLAN Wi-Fi 6E (802.11ax) Bluetooth 5.3
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- ECC compatibility: ECC and non-ECC
- Number of CPU fan ports: 1
- WLAN standards Wi-Fi 6E (802.11ax)
- AMD B650 motherboard chipset
- 1. M.2 Largest key size: 2280
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 22110
- 2. M.2 highest PCI Express generation: 4.0
- 3. M.2 Largest key size: 2280
- 3. M.2 highest PCI Express generation: 4.0
- Product type
Motherboard
- Chipset
AMD® B650
#####AMD AM5
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
256 GB

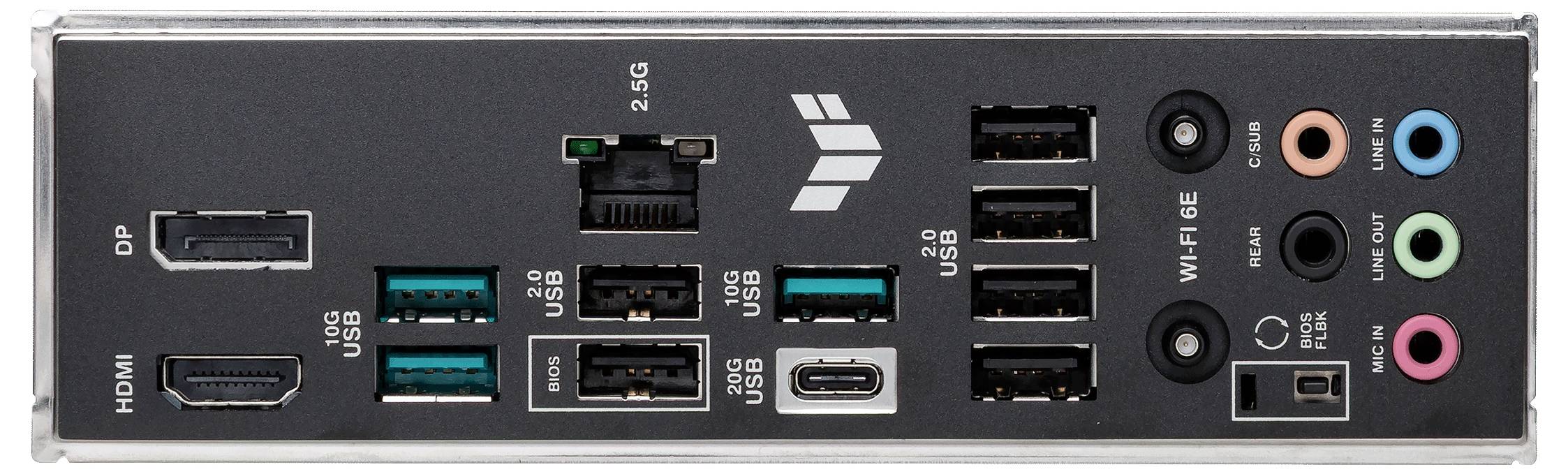

- Interfaces
DisplayPort
HDMI™
PCIe 4.0 x16
PCIe 5.0 x16
SATA III
USB A (USB 2.0)
USB C®
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Bluetooth
5.3
- Bluetooth
Yes
- Depth
244 mm
- Height
100 mm
- Width
305 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
6 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Ethernet LAN
yes
- Antenna included
yes
- Number of memory slots
4
- Number of M.2 (M) slots
3
- Thunderbolt headers
1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Front panel connector
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- WiFi-AP antenna jack
1
- PCI Express x1 (Gen 4.x) slots
2
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
1.39 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Number of storage drives supported
7
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3405641 Asus 90MB1M20-M0EAY0 Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B650
Description

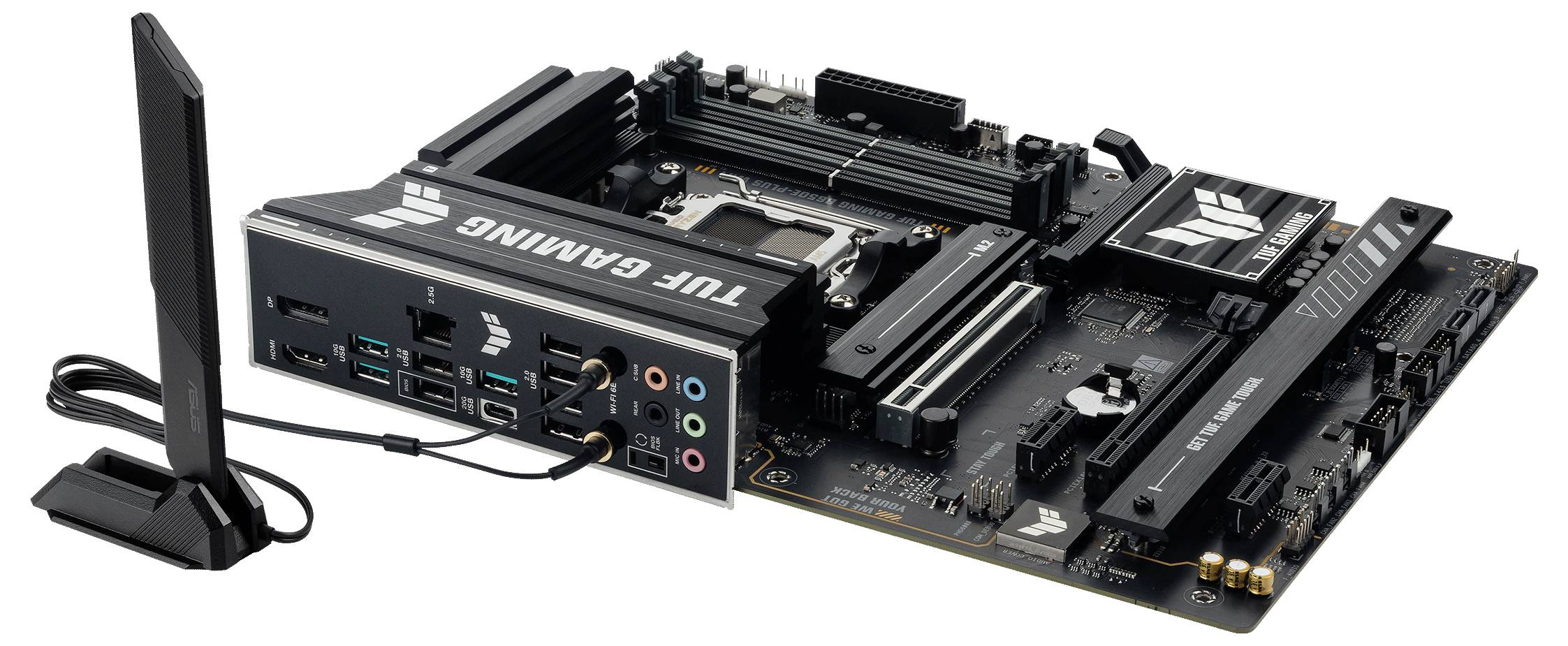

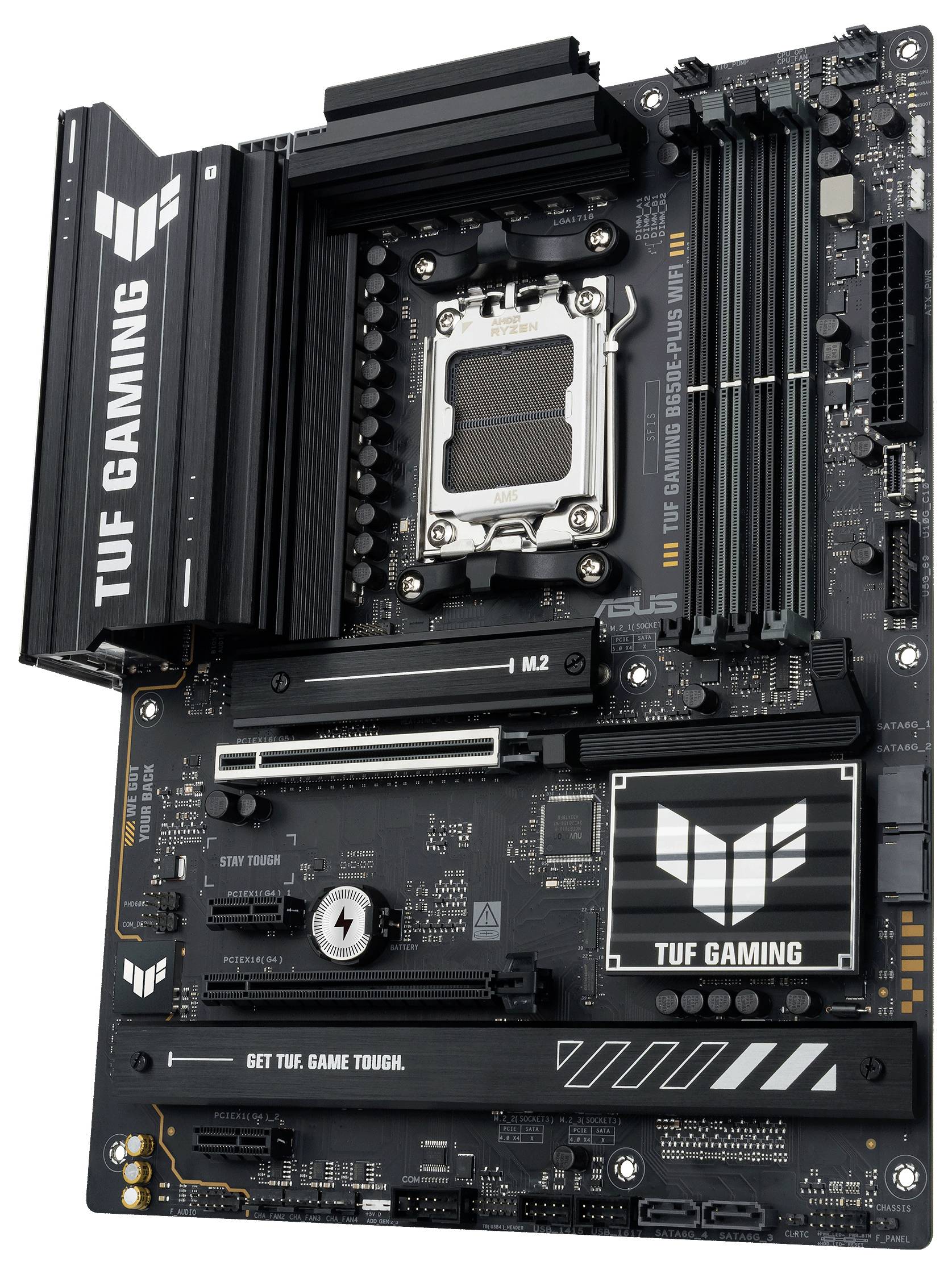

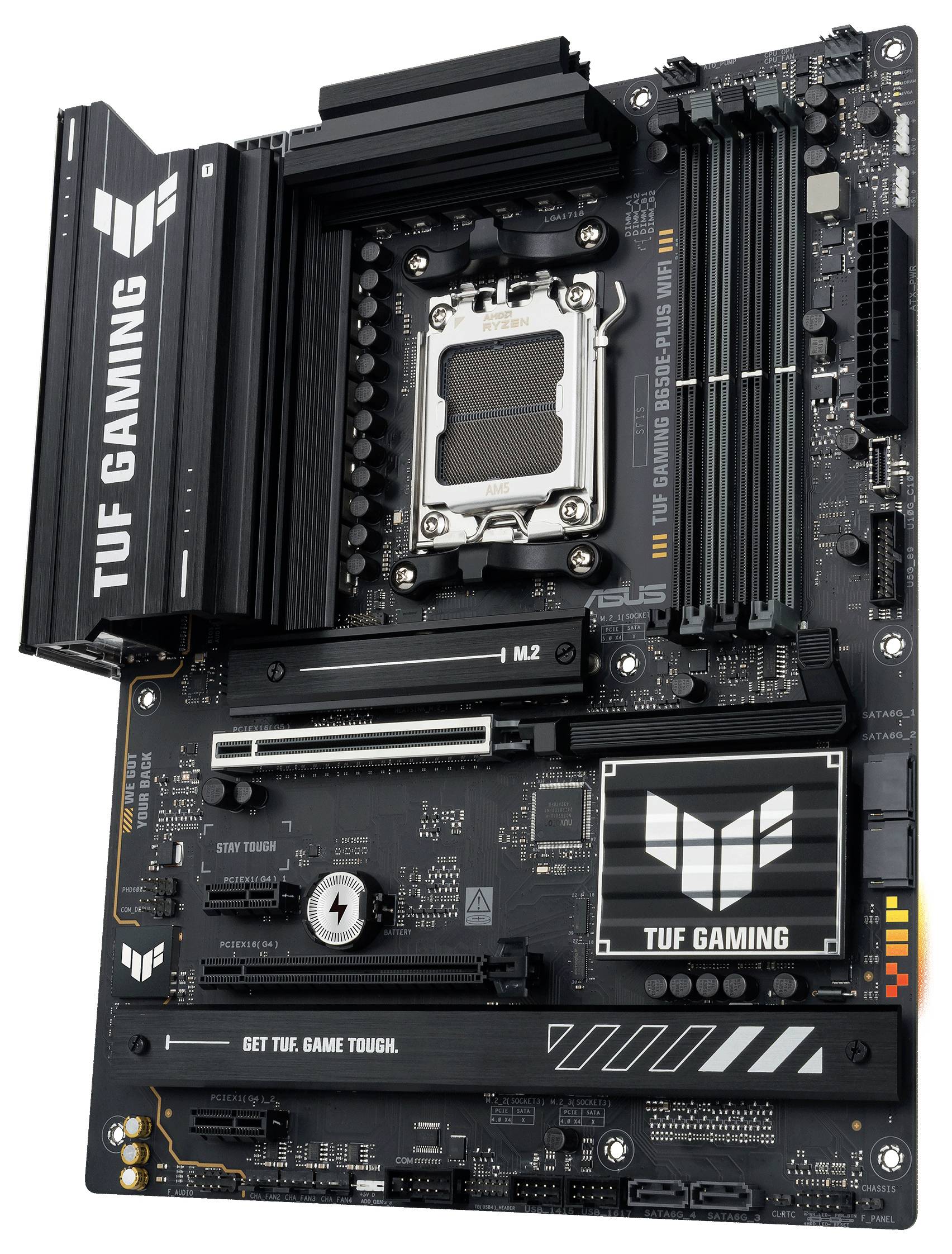

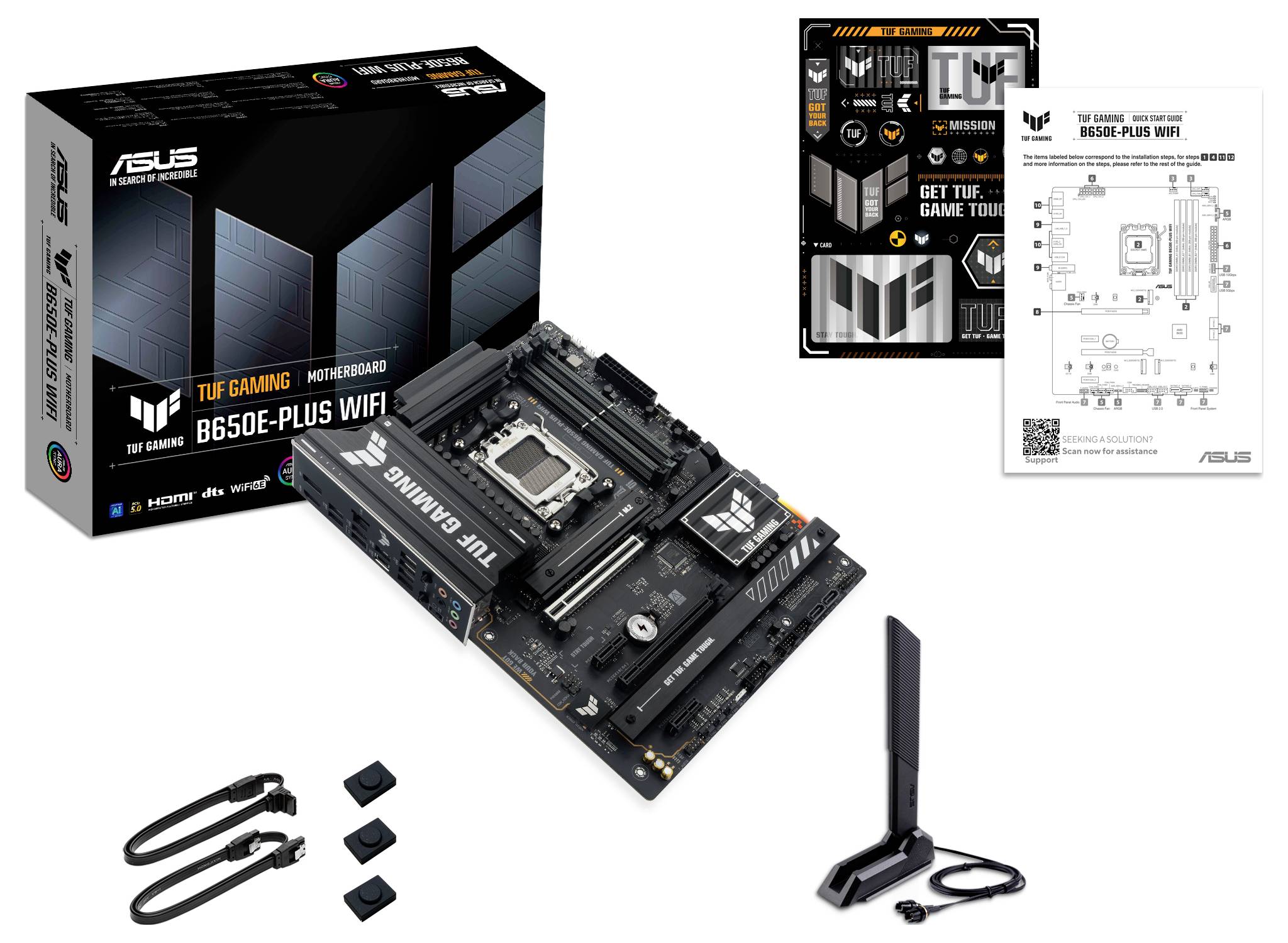

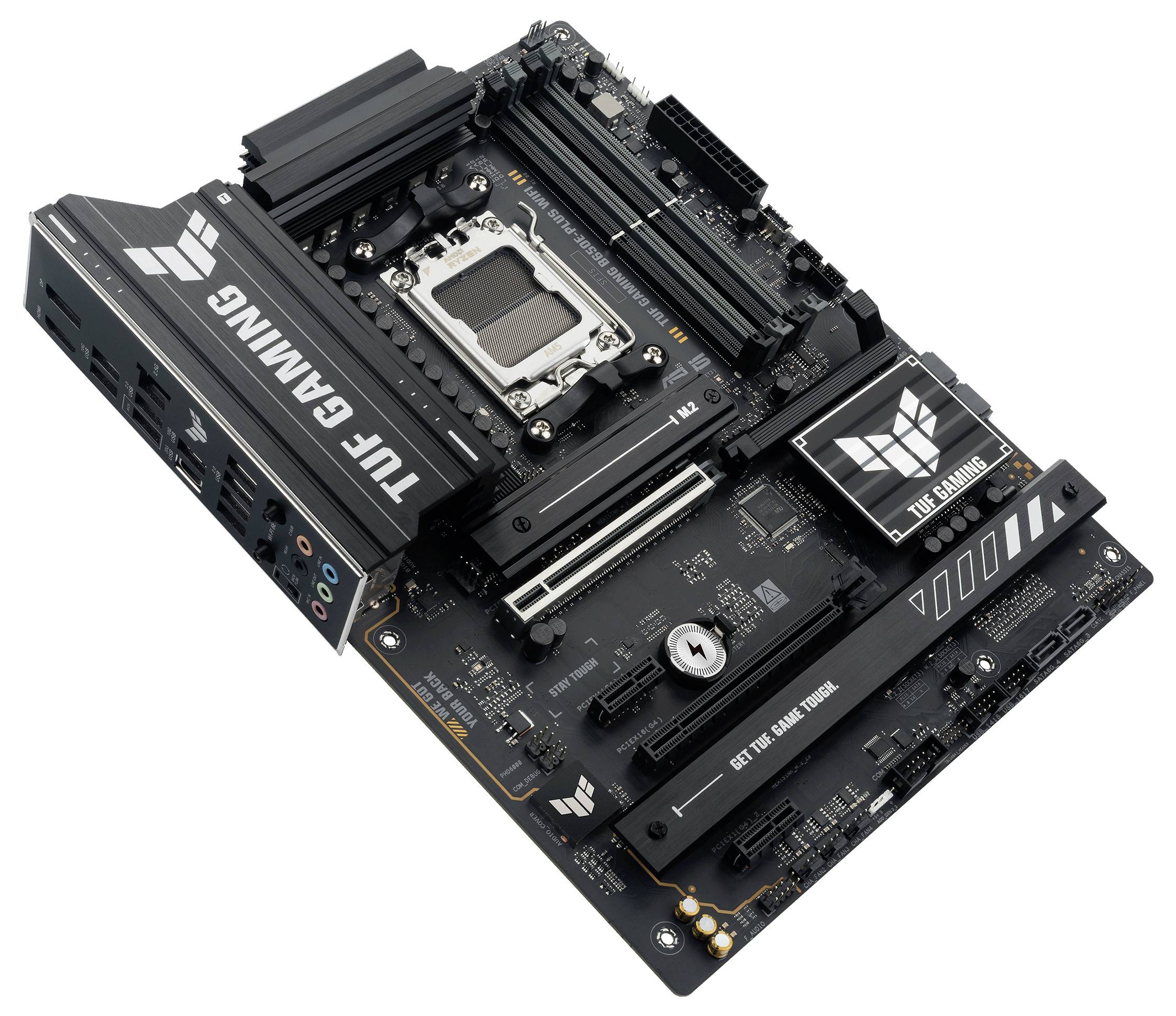

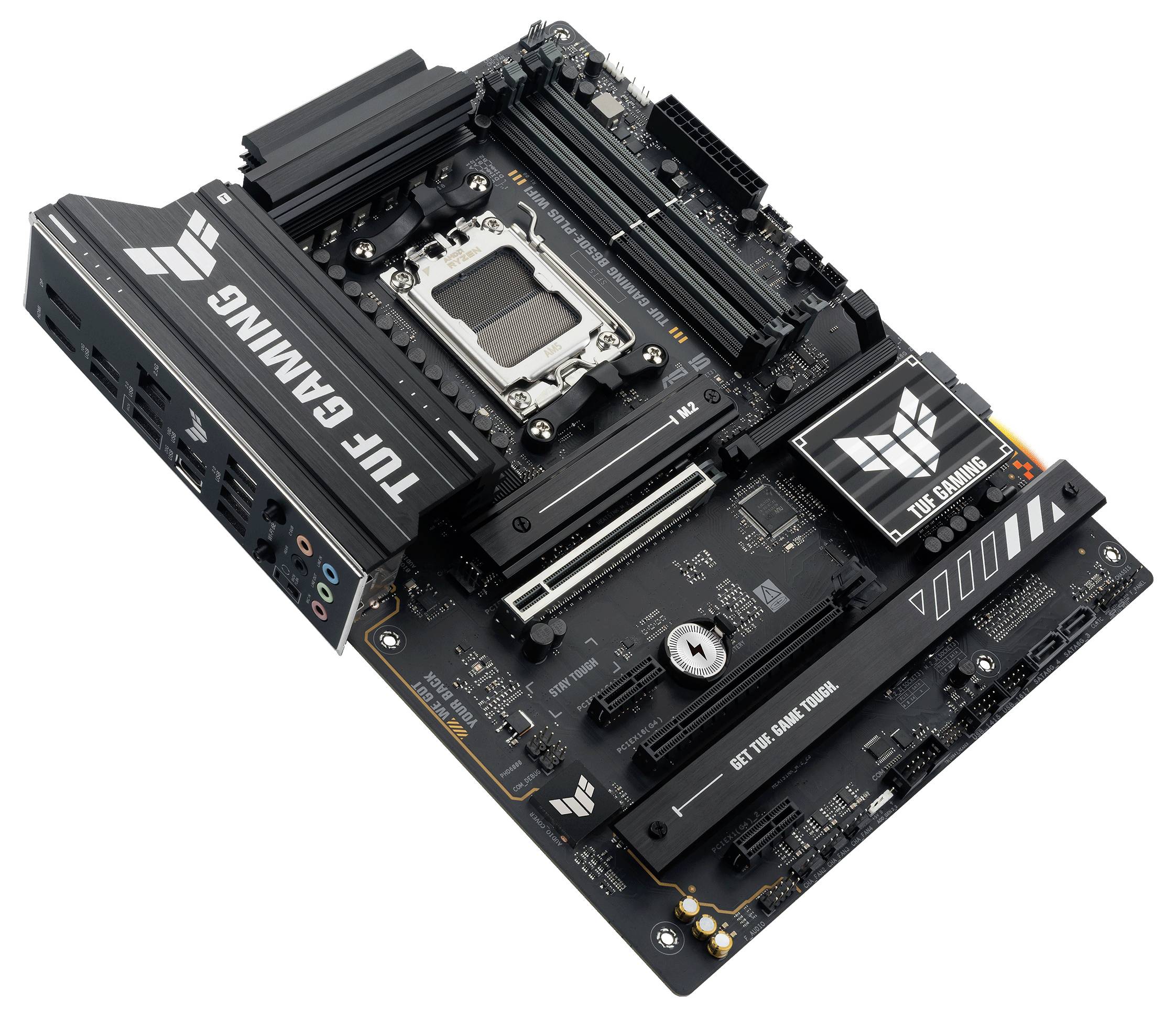

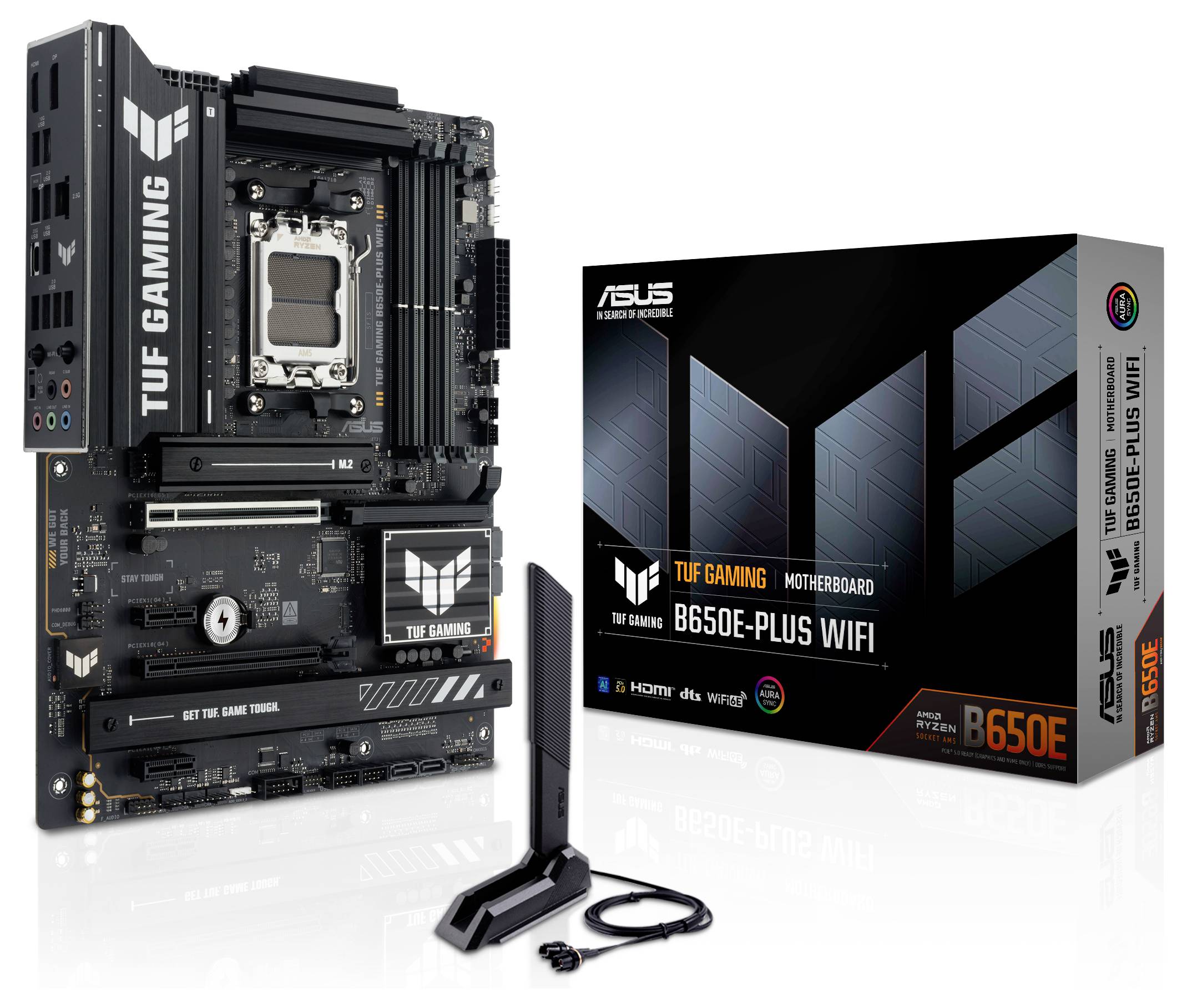

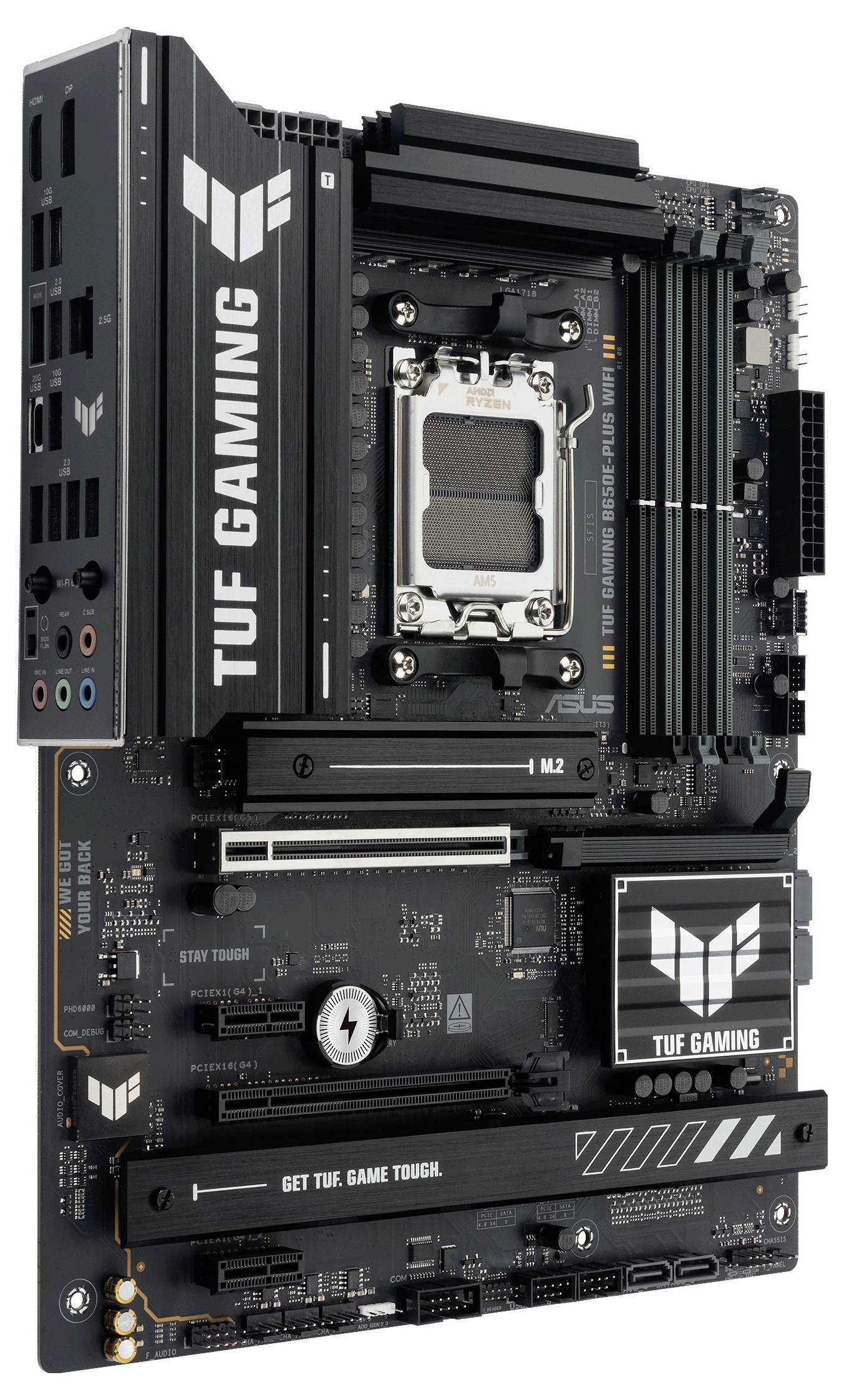

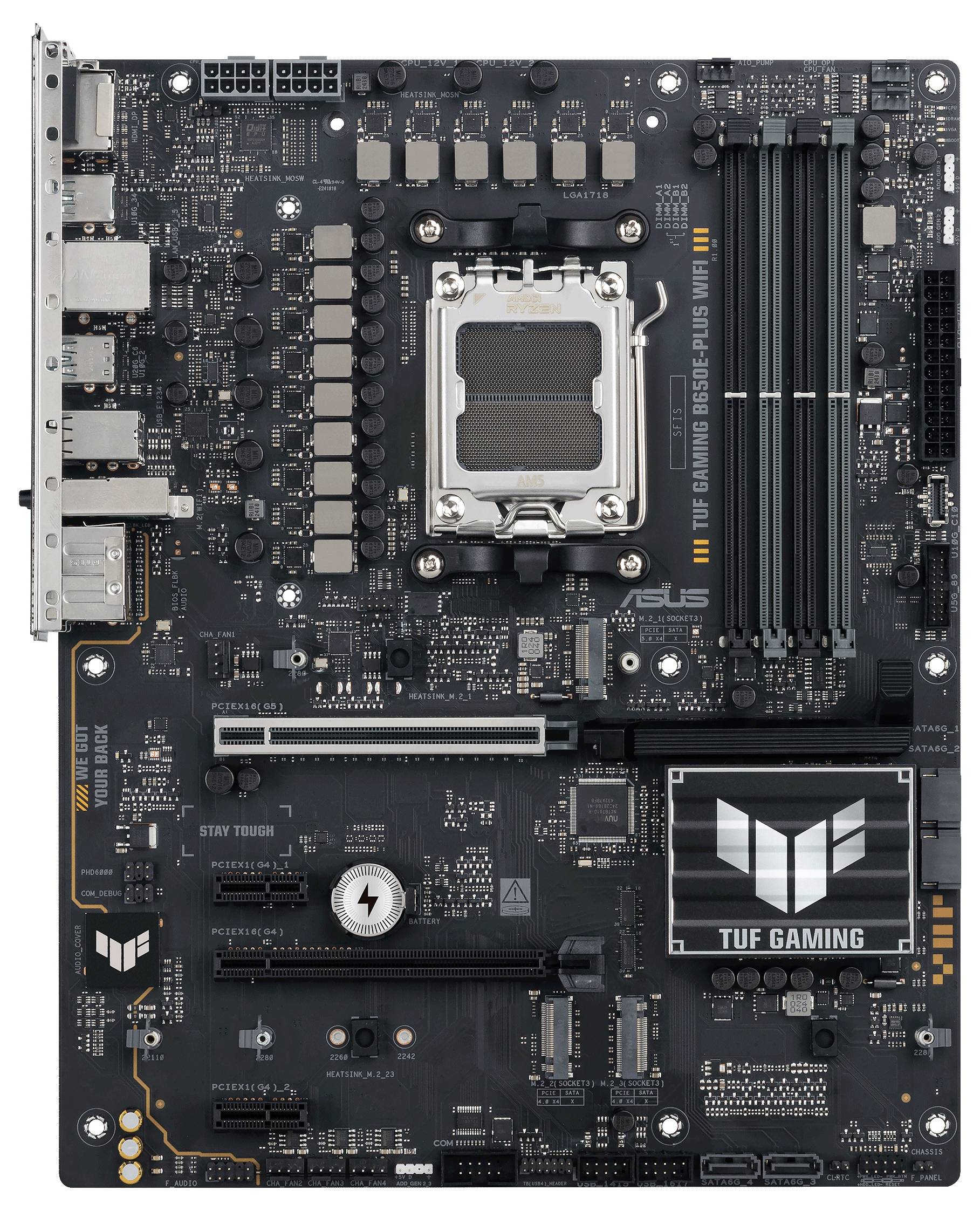

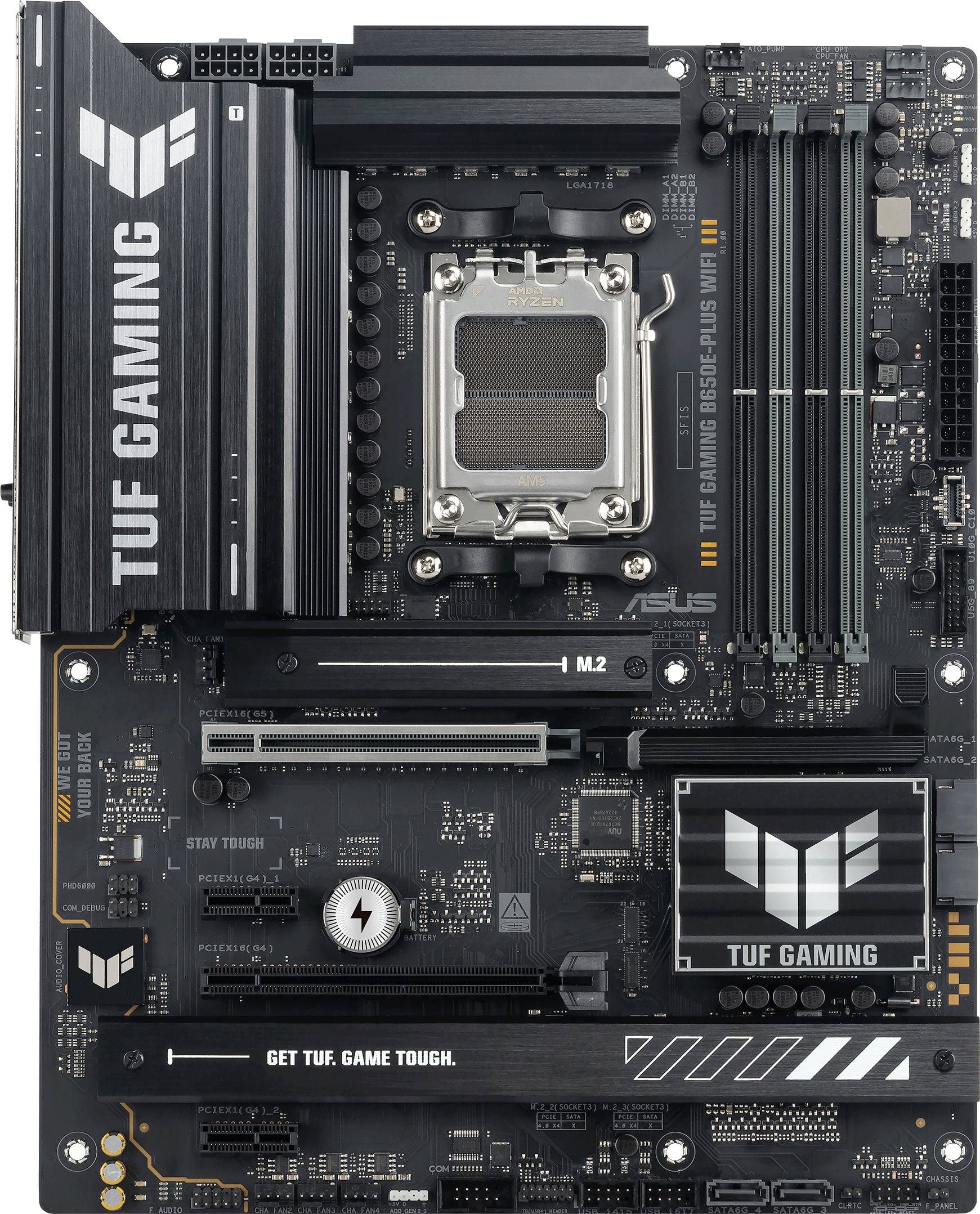

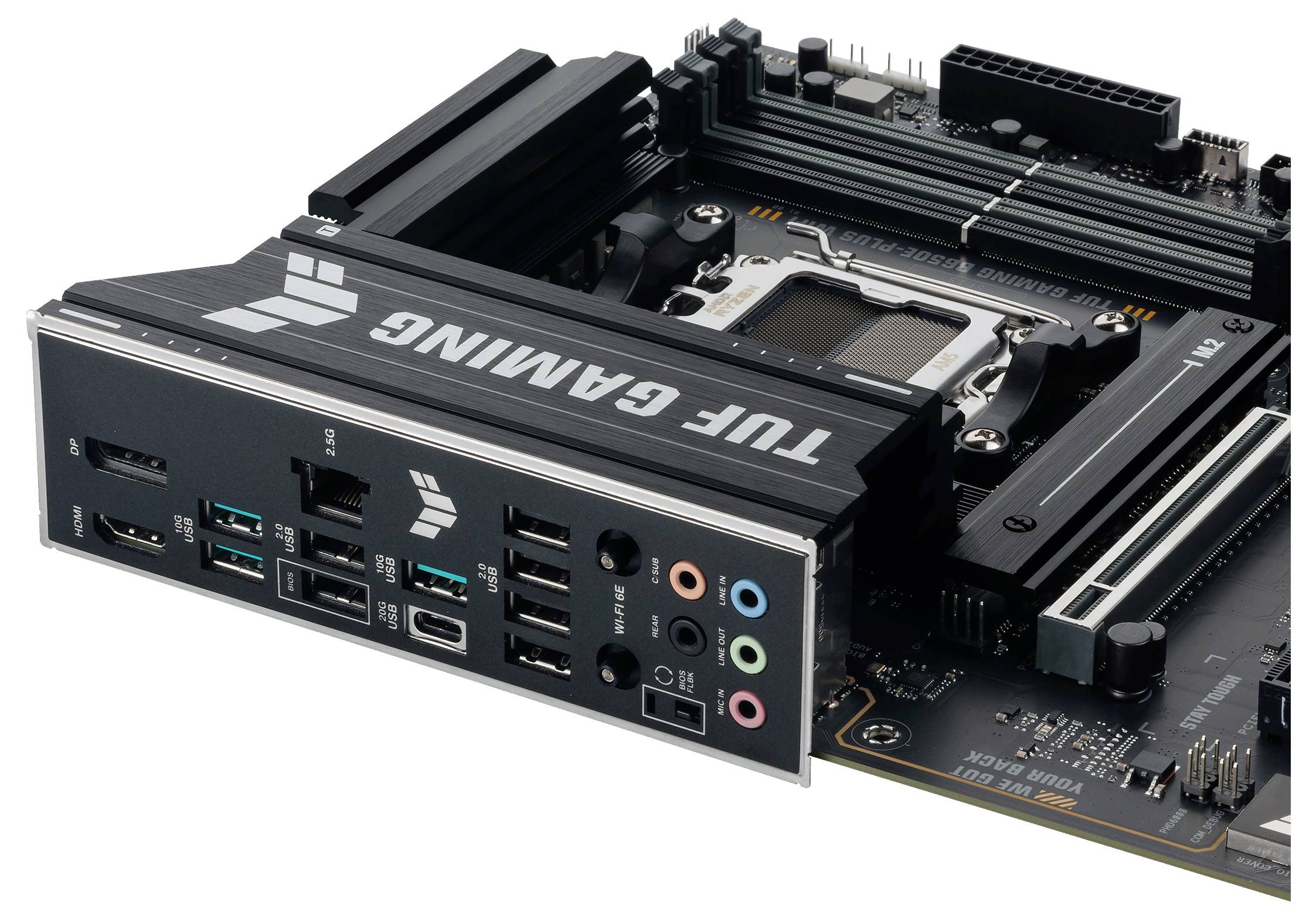

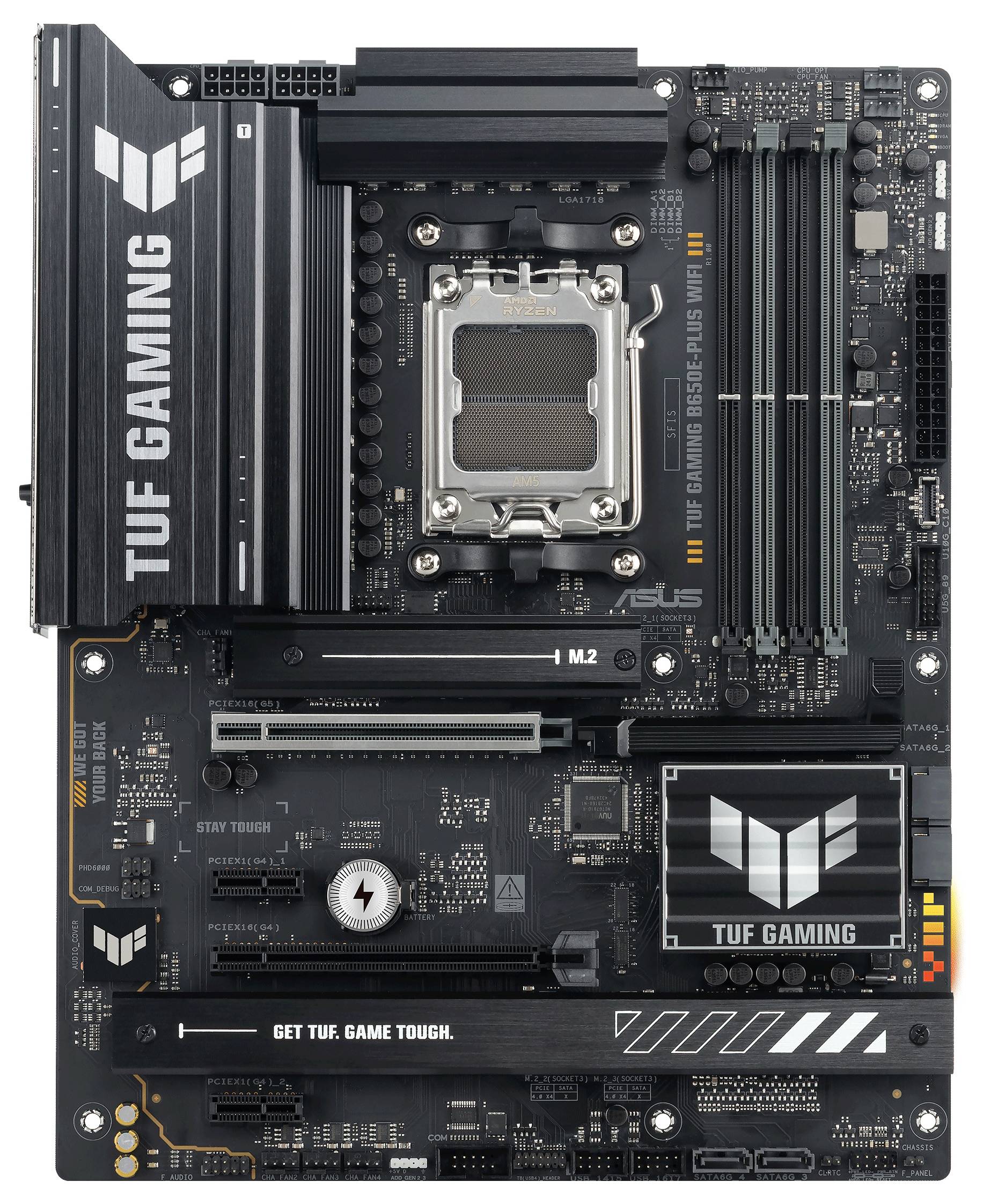

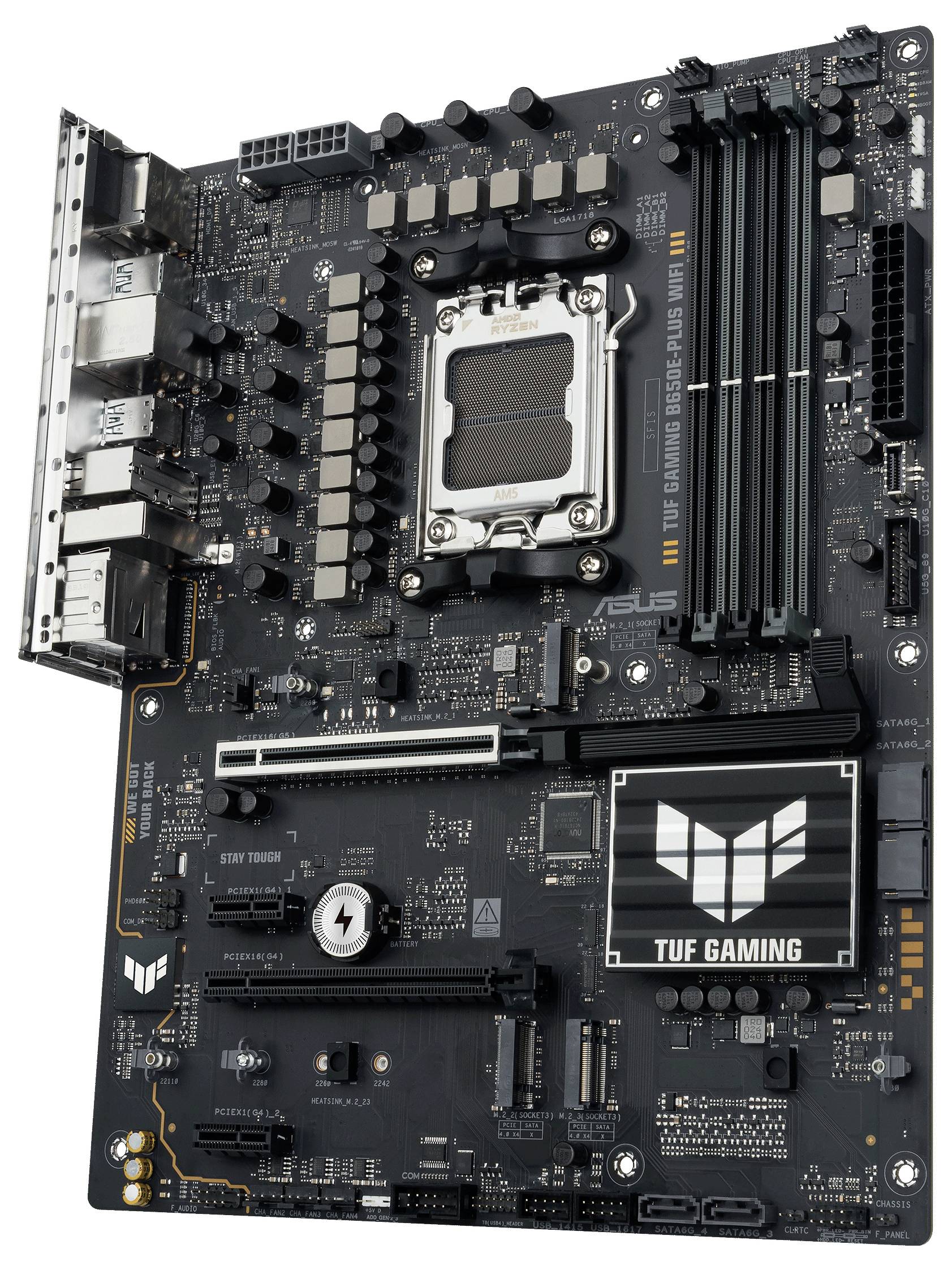

TUF GAMING B650E-PLUS WIFI
The Asus TUF GAMING B650E-PLUS WIFI incorporates all the essential elements of the latest AM5 socket for AMD Ryzen™ desktop processors and combines them with game-ready features and proven durability. With military-grade components, an improved power supply solution and a comprehensive cooling system, this motherboard exceeds all expectations and offers rock-solid and stable performance for gaming marathons. TUF GAMING boards are also subjected to rigorous endurance tests to ensure that they can withstand conditions where others may fail. Aesthetically, this model comes with robust, black and geometric design elements that reflect the reliability and stability of the TUF GAMING series. This platform provides the performance and connectivity that advanced AI PC applications require.
This text is machine translated.
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications, AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series desktop processors,Improved power supply solution: 12+2+1 80A DrMOS power stages, 8-layer PCB, 8+8 pin ProCool power connections, alloy reactors and long-life capacitors for a stable power supply. Latest M.2-support: One onboard PCIe 5.0-M.2-slot and two PCIe-4.0-M.2-slots, equipped with all M.2-heatsinks, Ultra-fast connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, Rear USB 20Gbps Type-C® connector, Front USB 10Gbps Type-C connector, Thunderbolt™ (USB4®) header support,Comprehensive cooling: Extended VRM heat sink, three M.2 heatsinks, PCH heat sink, hybrid fan header and fan Xpert 4,DIY friendly design: PCIe slot Q-latch, new release M.2 BIOS Flashback™ and pre-assembled I/O shield,Unmatched personalization: three addressable RGB Gen 2 headers, all configurable with Asus exclusive Aura Sync RGB lighting,Renowned software: TurboV EVO, Asus DriverHub, Asus TUF PROTECTION, DTS audio processing
