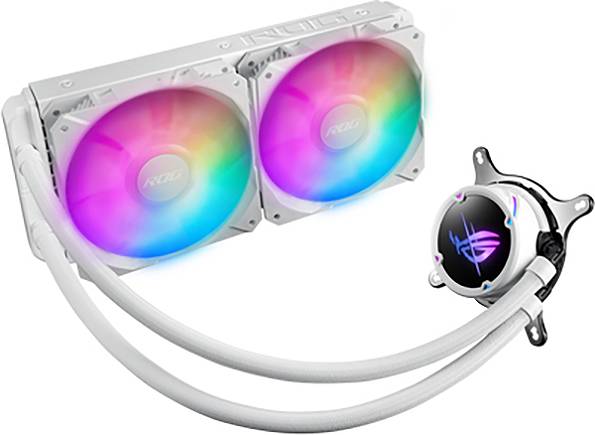

Asus 90RC00E2-M0UAY4 CPU cooler + fan
EAN:
Part number:
Item no:
Asus 90RC00E2-M0UAY4 CPU cooler + fan
Highlights & Details
- Processor All-in-One liquid cooler 12 cm
- Supported processor slots: LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4
- 80.95 cfm
- Support for pulse width modulation
- 120 x 120 x 25mm
- White
- This text is machine translated.
Technical specifications
- Heating-width 12.1 cm
- Heating depth 27.2 cm
- Heating height 2.7 cm
- Hose/pipe length 38 cm
- Cooler width 8 cm
- Cooler depth 8 cm
- Cooler height: 4.5 cm
- Dimensions (W x D x H) 120 x 120 x 25 mm
- Screws included: Yes
- Product Colour: White
- Radiator material: Aluminium
- Water block material: Copper
- Recommended placement: Processor
- Type: All-in-one liquid cooler
- Fan diameter 12 cm
- Supported processor slots: LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4
- Noise level 37.6 dB
- Support for pulse width modulation: Yes
- Fans speed (max): 2500 RPM
- Static fan pressure 5 mmH2O
- CPU bracket(s): Yes
- Fan control: Yes
- Maximum air flow: 80.95 cfm
- Air flow: 137.5 m³/h.
- Fans speed (min): 800 RPM
- Product type
CPU cooler + fan
- Weight
2.129
- Factory colour
White
- Heatsink material
Aluminium
- Air discharge
137.5 m³/h
- Material
Aluminium
Copper
- Type
All-in-one liquid cooler
- UKCA
yes
- Screws included
yes
- Fan thickness
2.5 cm
- Fan speed (max)
2500 RPM
- Fan speed (min)
800 RPM
- Radiator width
12.1 cm
- Radiator depth
27.2 cm
- Radiator height
2.7 cm
- Tube length
38 cm
- Fan dimensions (W x D x H)
120 x 120 x 25 mm
- Noise level
37.6 dB
- Waterblock width
8 cm
- Waterblock depth
8 cm
- Waterblock height
4.5 cm
- Pulse-width modulation (PWM) support
yes
- CPU bracket(s)
yes
- Fan static pressure
5 mmwc
- Fan controller
yes
- Maximum airflow
80.95 cfm
