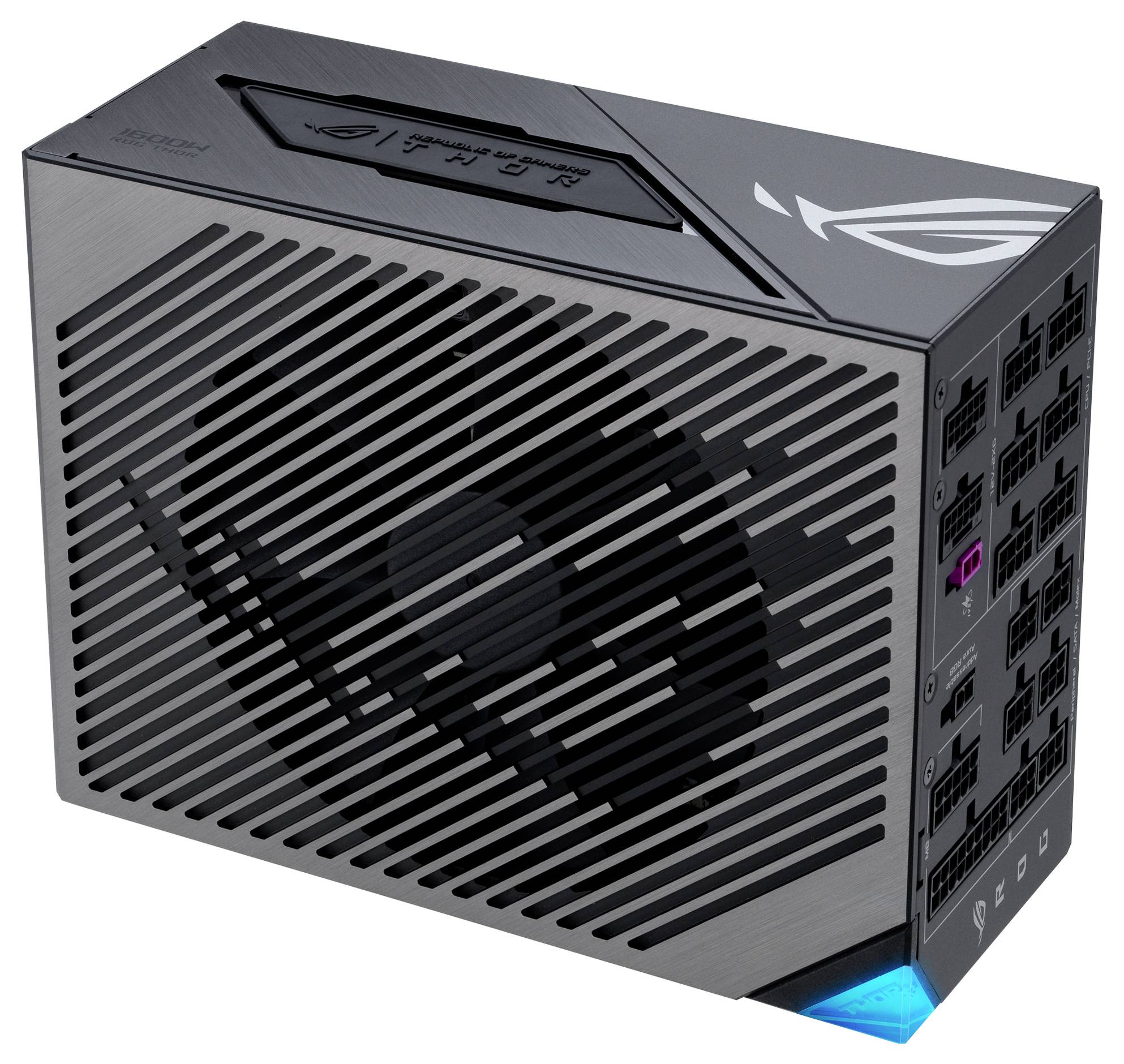

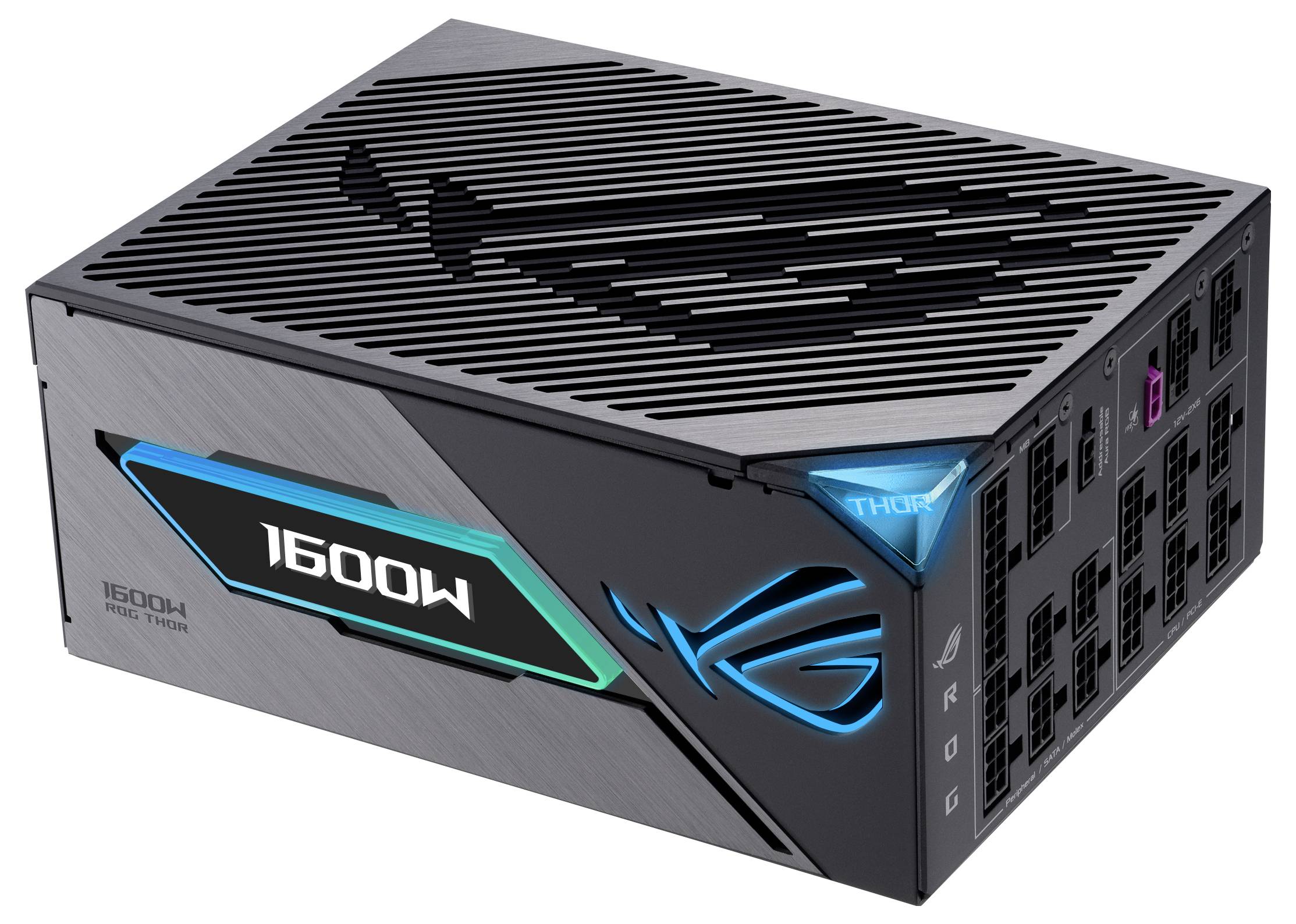

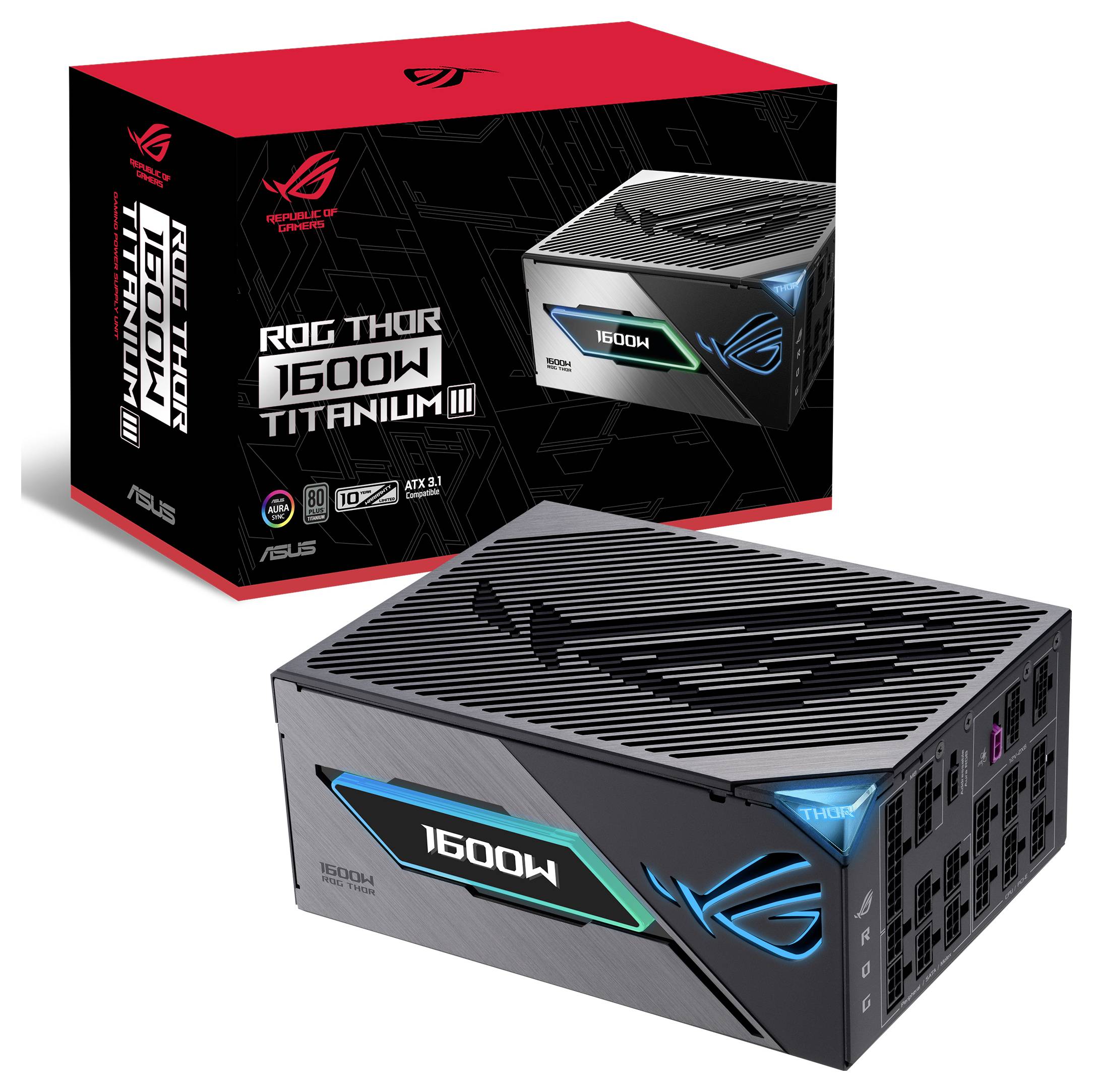

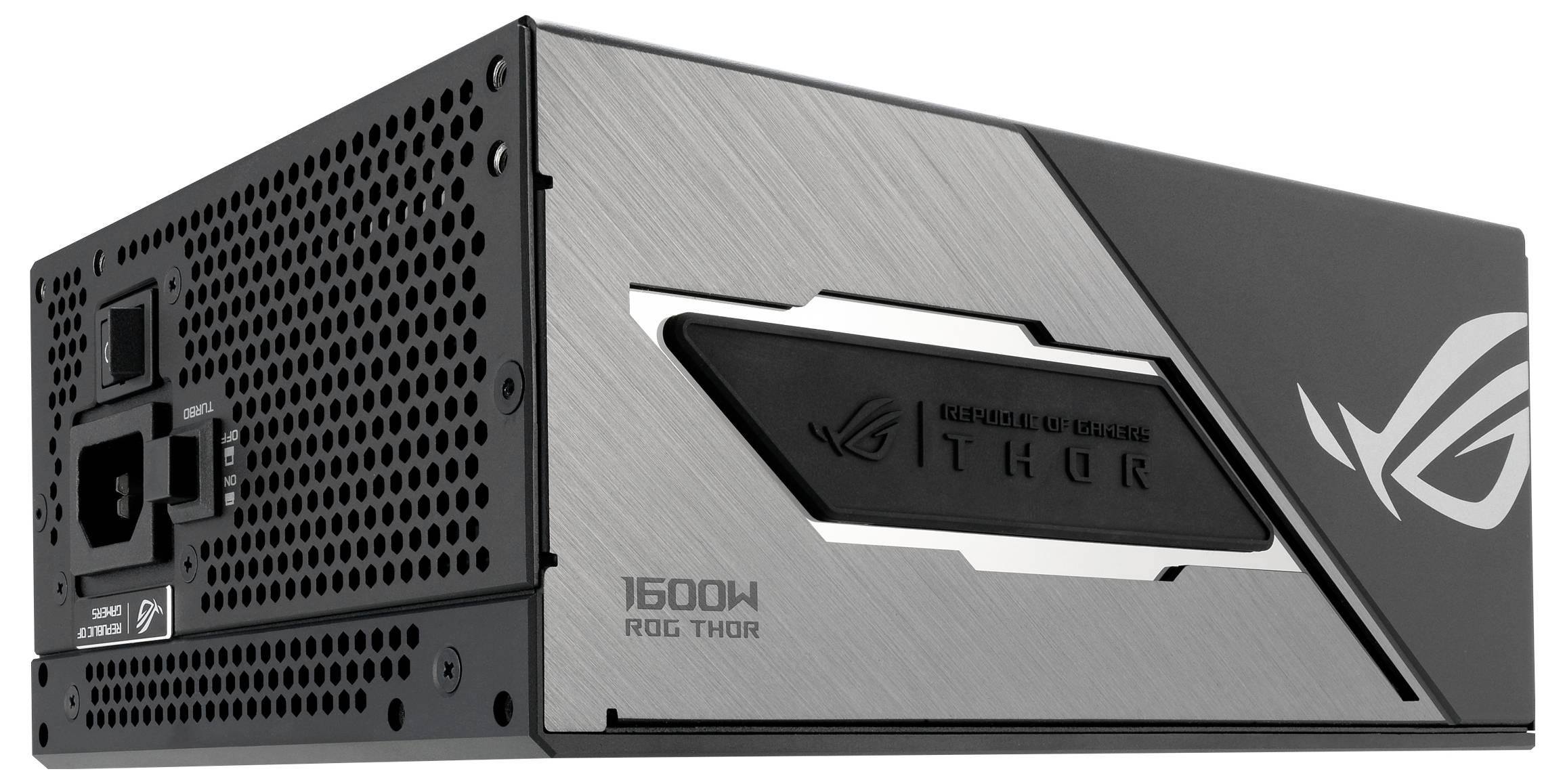

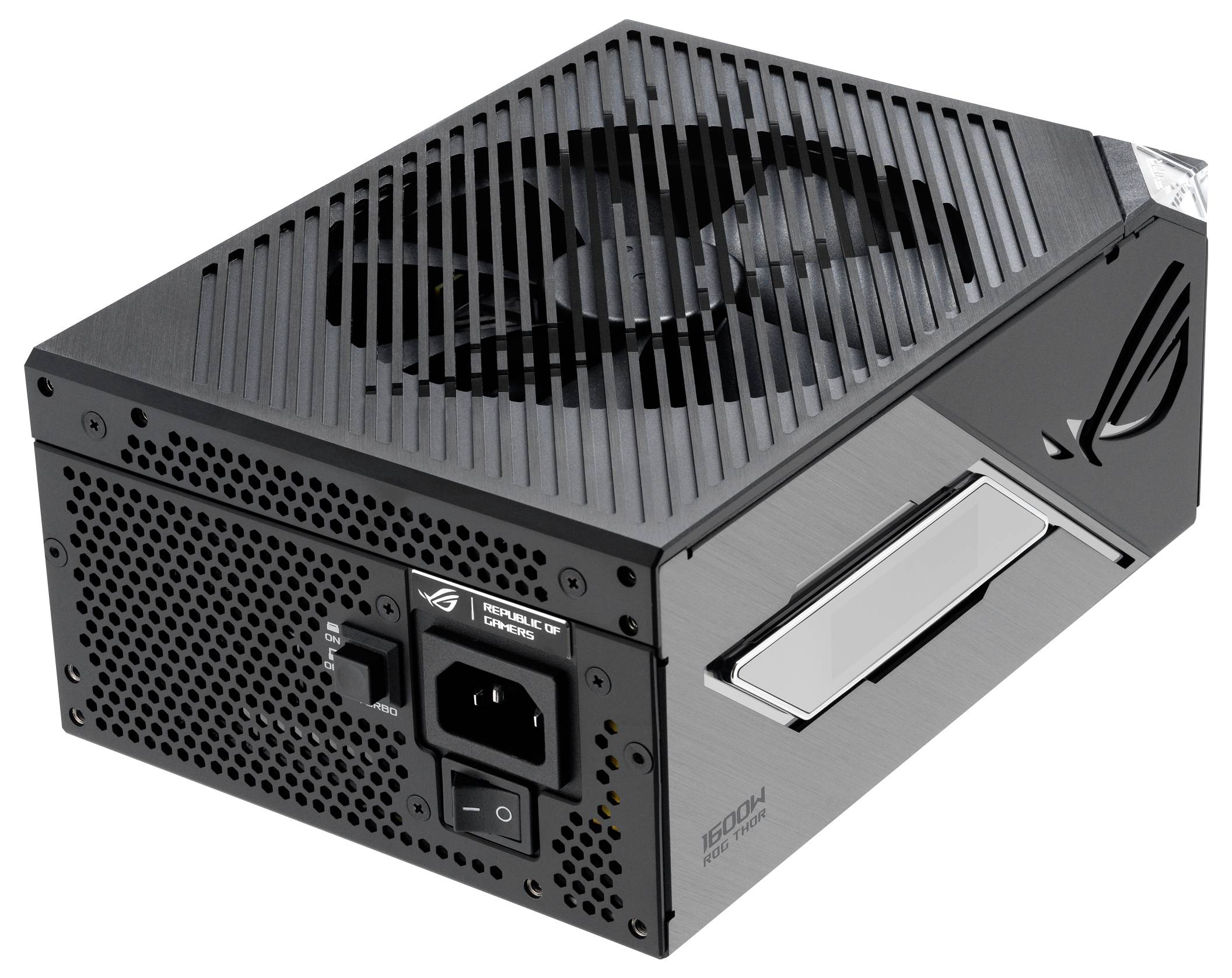

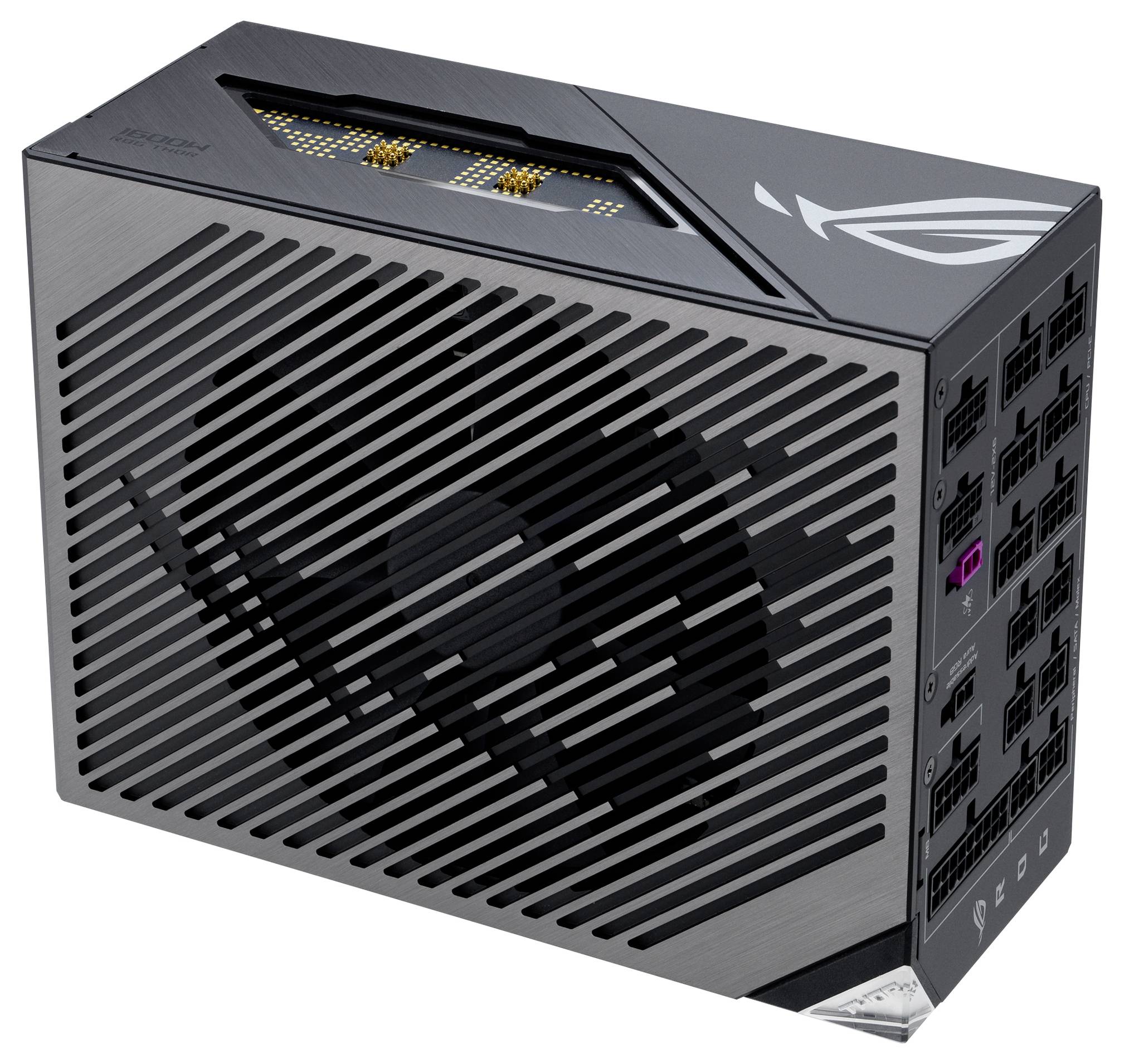

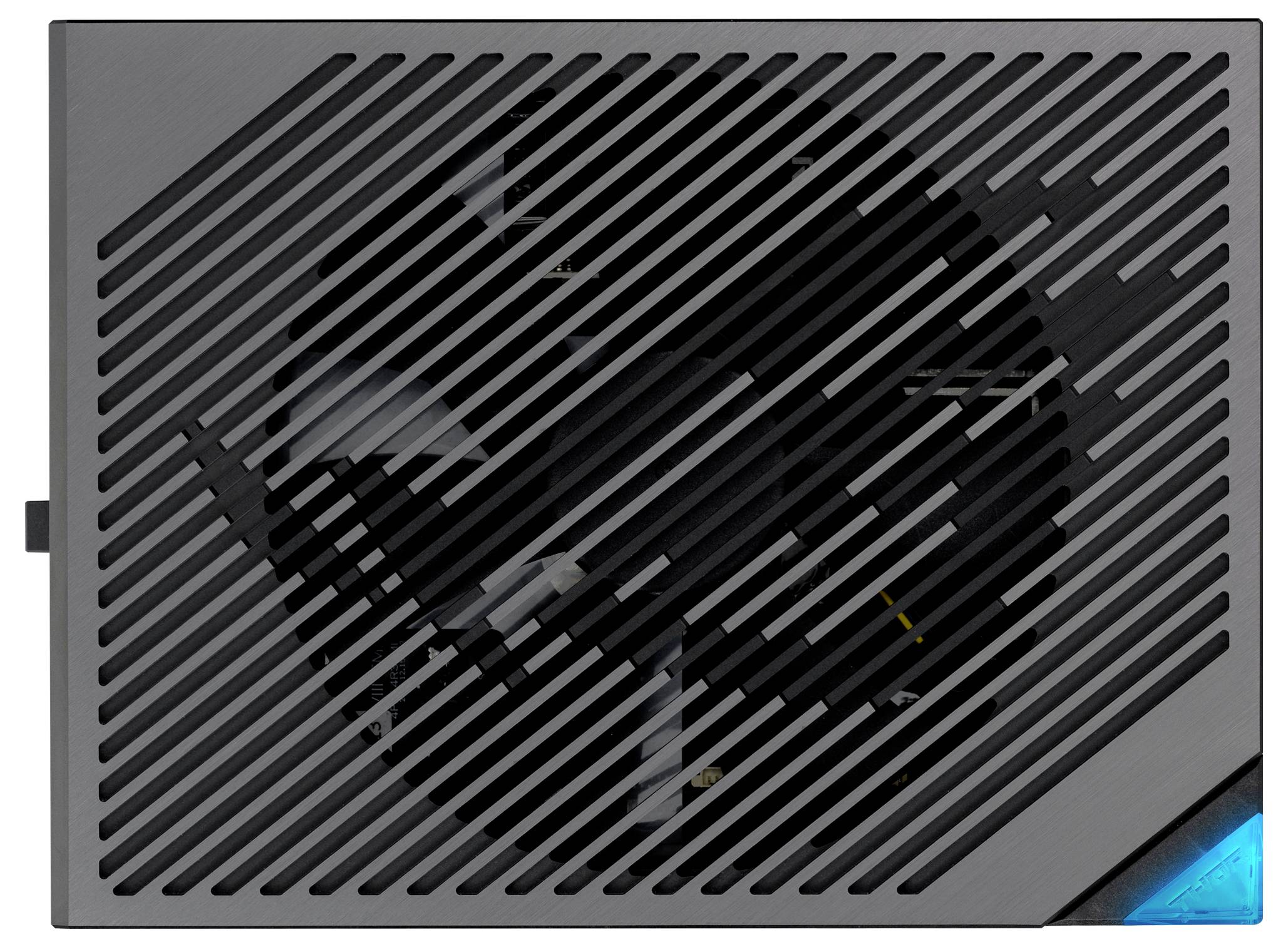

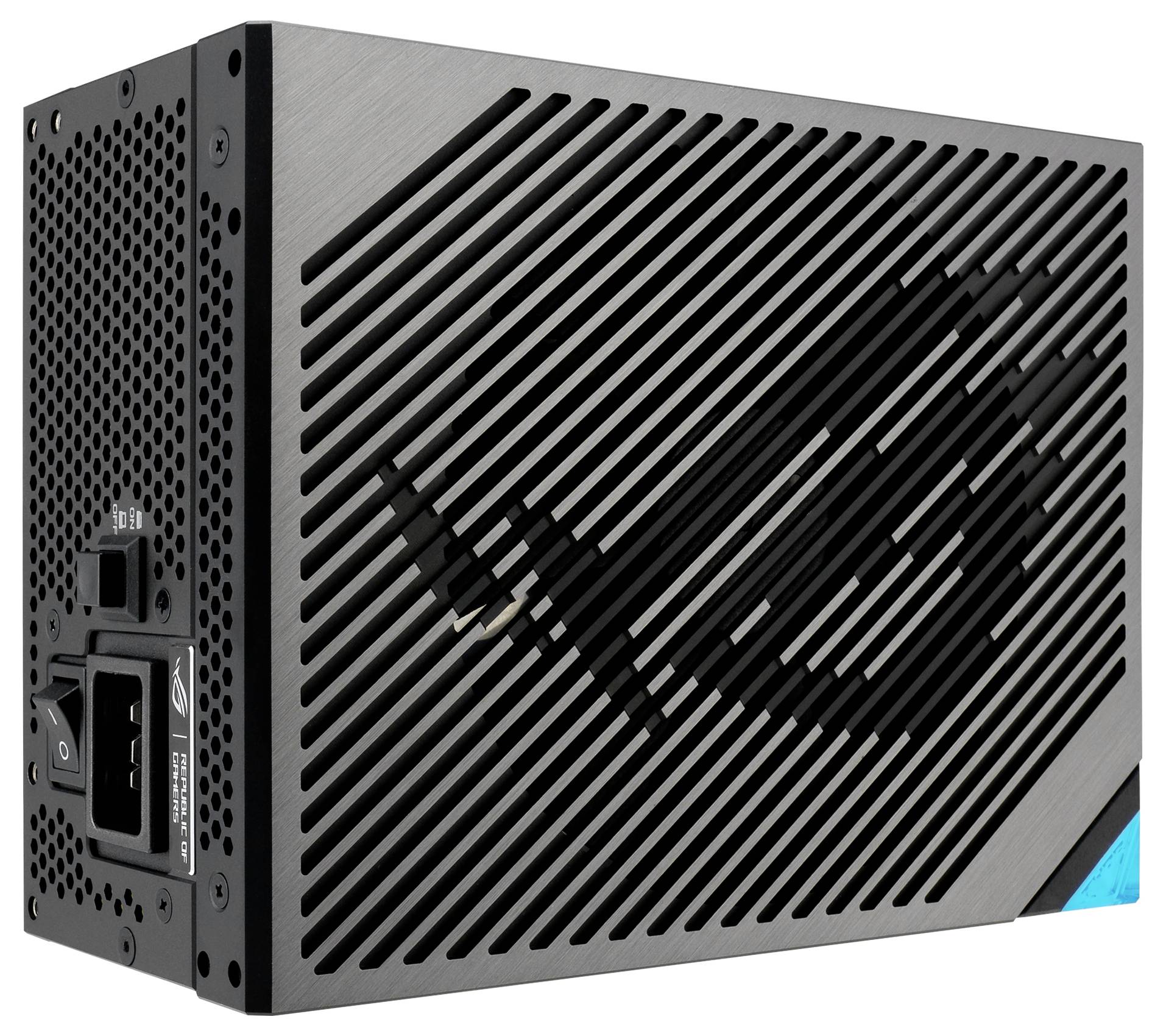

Asus 90YE00V1-B0NA00 Power supply unit 1600 W ATX 80 PLUS Titanium
EAN:
Part number:
Item no:
Product type
Power supply unit
PSU output power
1600 W
Modular
Yes
Certification
80 PLUS Titanium
Form factor
ATX
Asus 90YE00V1-B0NA00 Power supply unit
Highlights & Details
- Power supply unit output 1600 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Titanium
Technical specifications
- 80 Plus certification: 80 PLUS Titanium
- Number of fans: 1 fans
- Product type
Power supply unit
- PSU output power
1600 W
- Modular
Yes
- Certification
80 PLUS Titanium
- Form factor
ATX
- Factory colour
Grey
- Dim
(W x H x D) 200 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
200 mm
- Weight
2.8 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
133.3 A
- 5 V DC
25 A
- +5V / DC SB
3 A

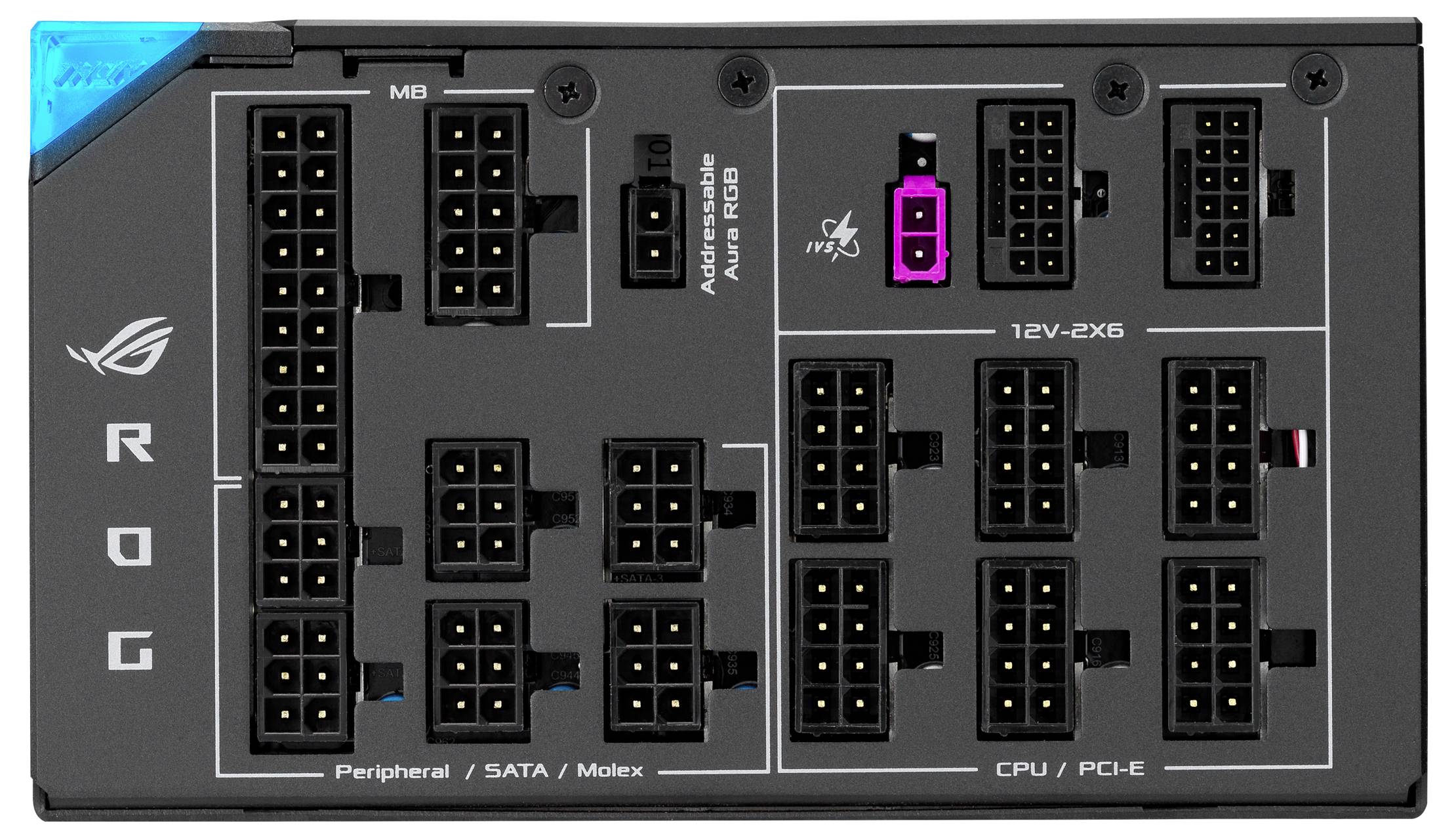

- 4-pin Molex
9
- 6-pin PCIe
4
- 5-pin SATA
10
- Power rating
751 W -
- Cooling
Active
- 3.3V DC
30 A
- Power supply (details)
100 - 240 V
- Operating voltage
230 V / AC
- UKCA
yes
- Silent mode
yes
- Illumination
yes
- Motherboard power cable length
61 cm
- CPU power cable length
100 cm
- PCI Express power cable length
75 cm
- Cable tie(s) included
yes
- PCI Express power connectors (16-pin)
2
- Mean time between failures (MTBF)
120000 h
- On/off switch
yes
- CPU power connector (4+4 pin)
yes
- Package weight
6.3 kg
- Combined power (+3.3V)
125 W
- Combined power (+12V)
1600 W
- Combined power (+5V)
125 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
- Built-in display
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3369651 Asus 90YE00V1-B0NA00 Power supply unit 1600 W ATX 80 PLUS Titanium
Description
ULTIMATE Power. UNMATCHED STABILITY.

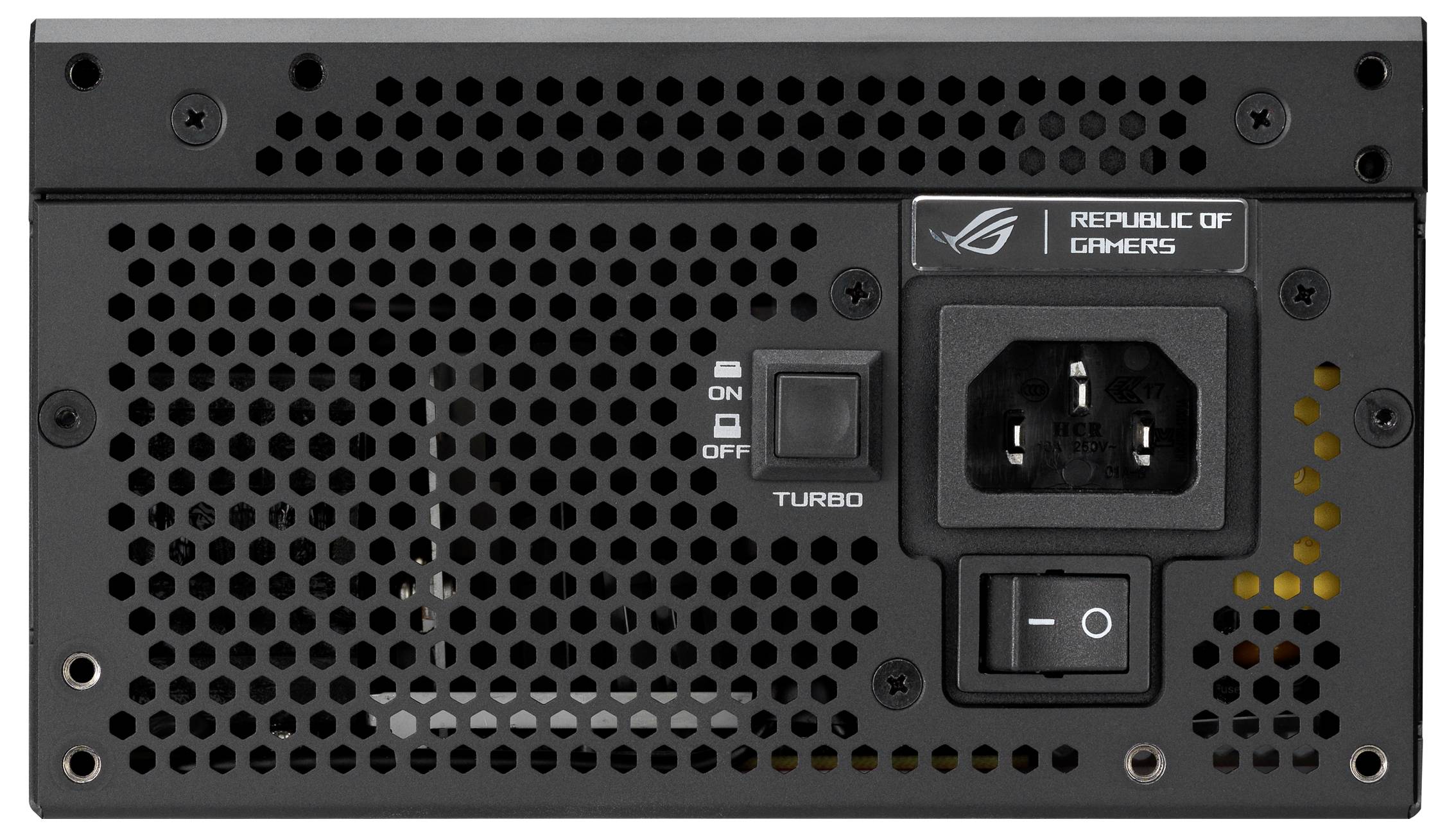

The ROG Thor 1600W Titanium III delivers the ultimate power and stability that gamers need. Next-generation GaN MOSFET delivers superior efficiency, while GPU First voltage measurement with patented intelligent voltage stabilizer ensures superior performance and stability. In addition there is a Turbo-Mode for maximum cooling when overclocking or other demanding workloads.

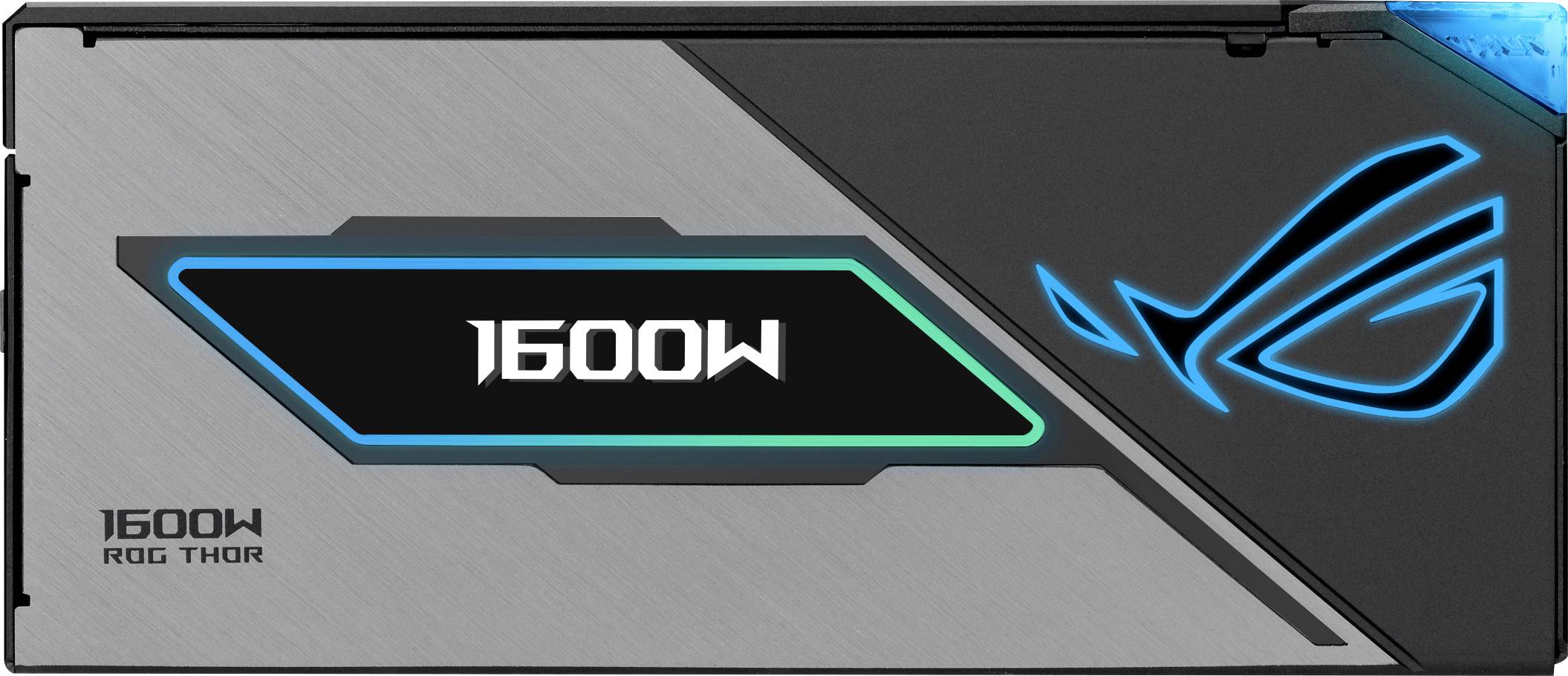

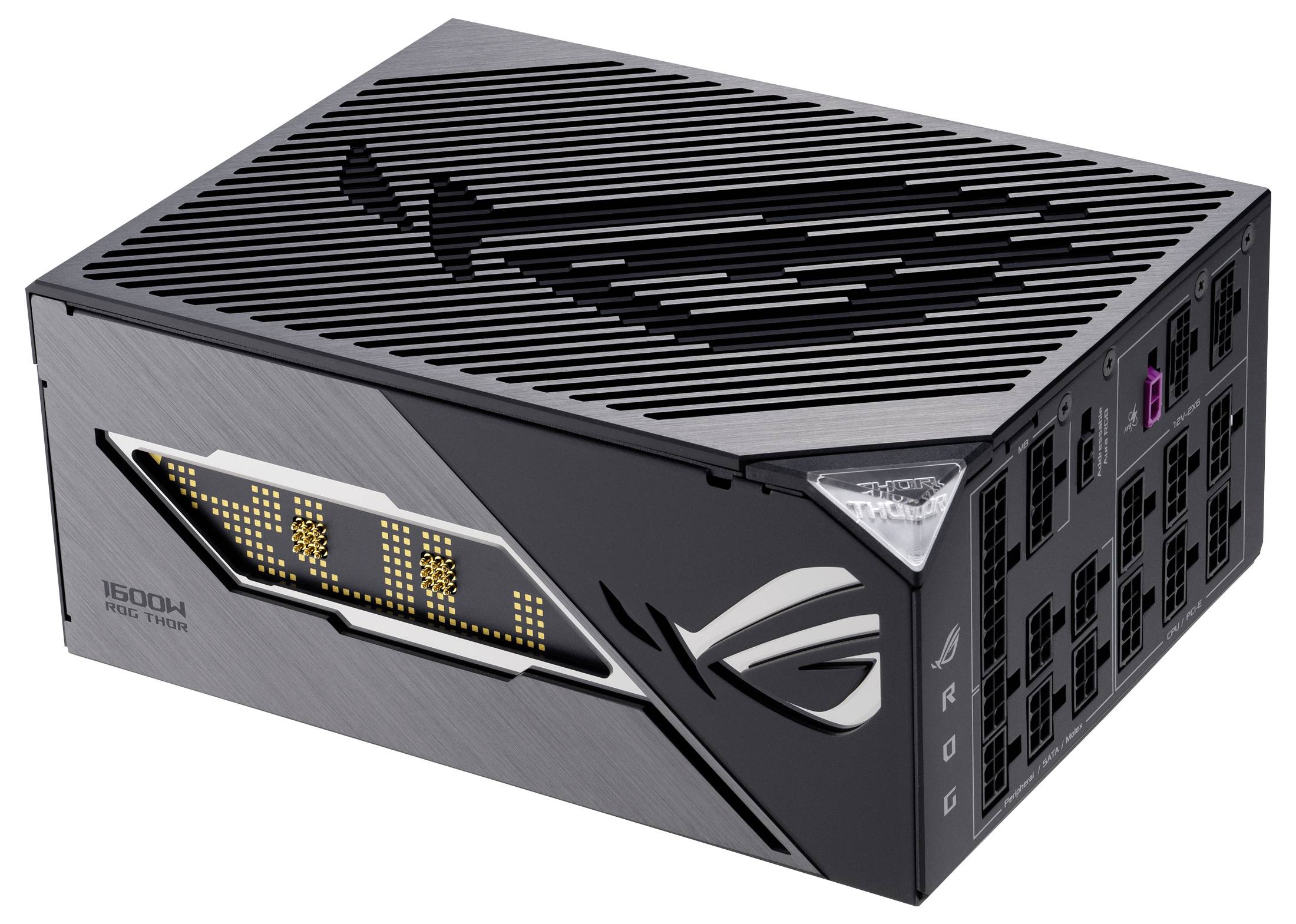

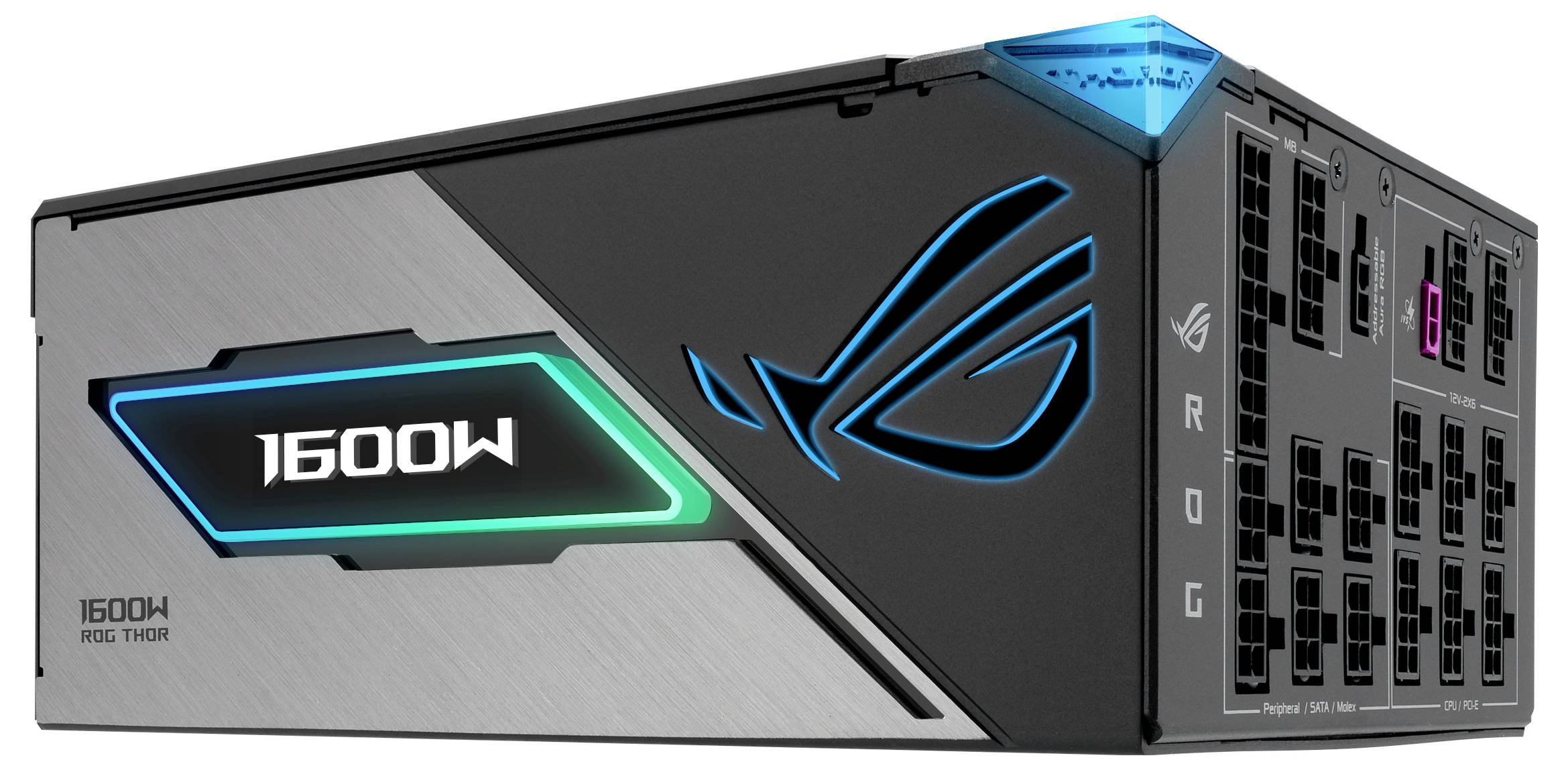

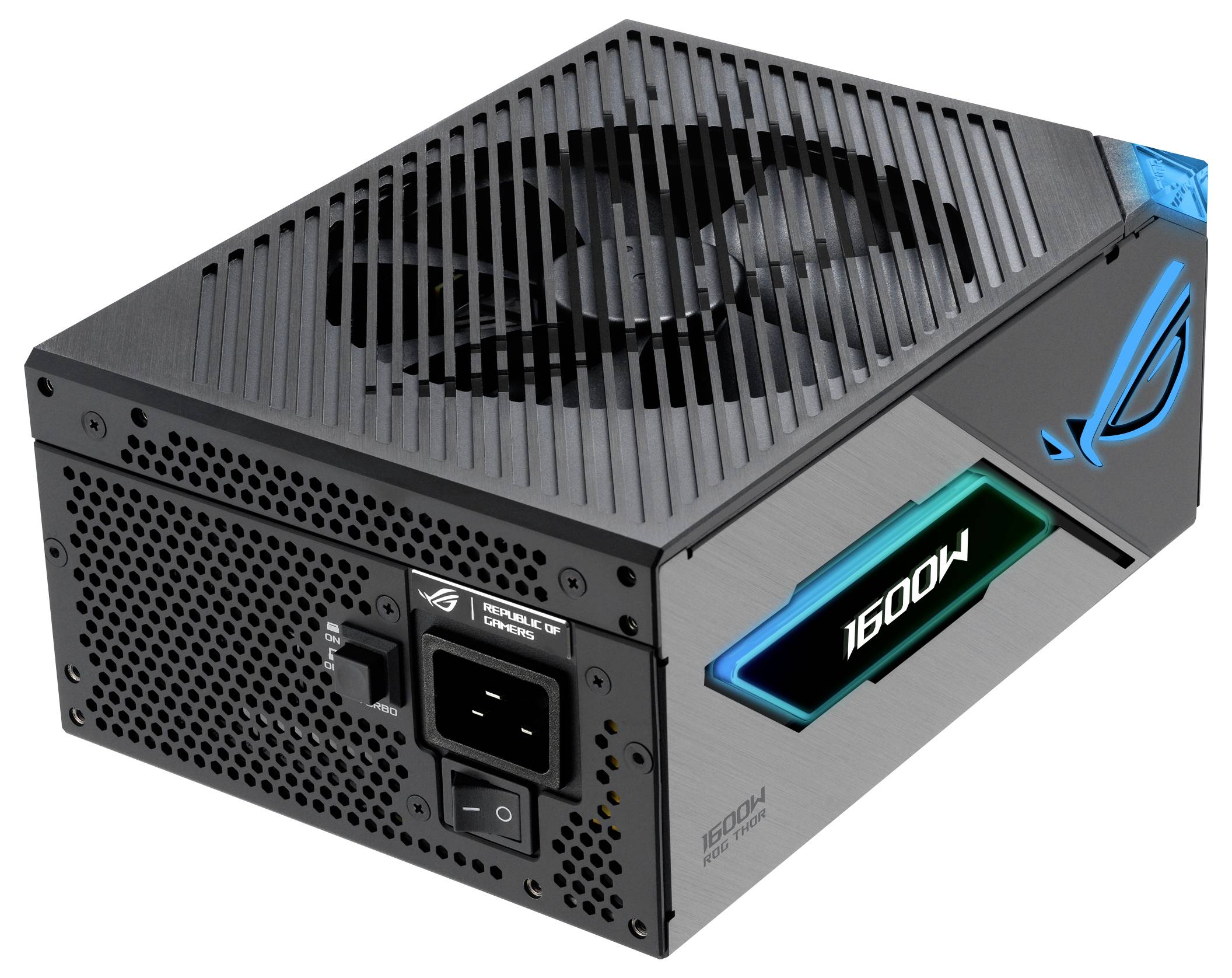

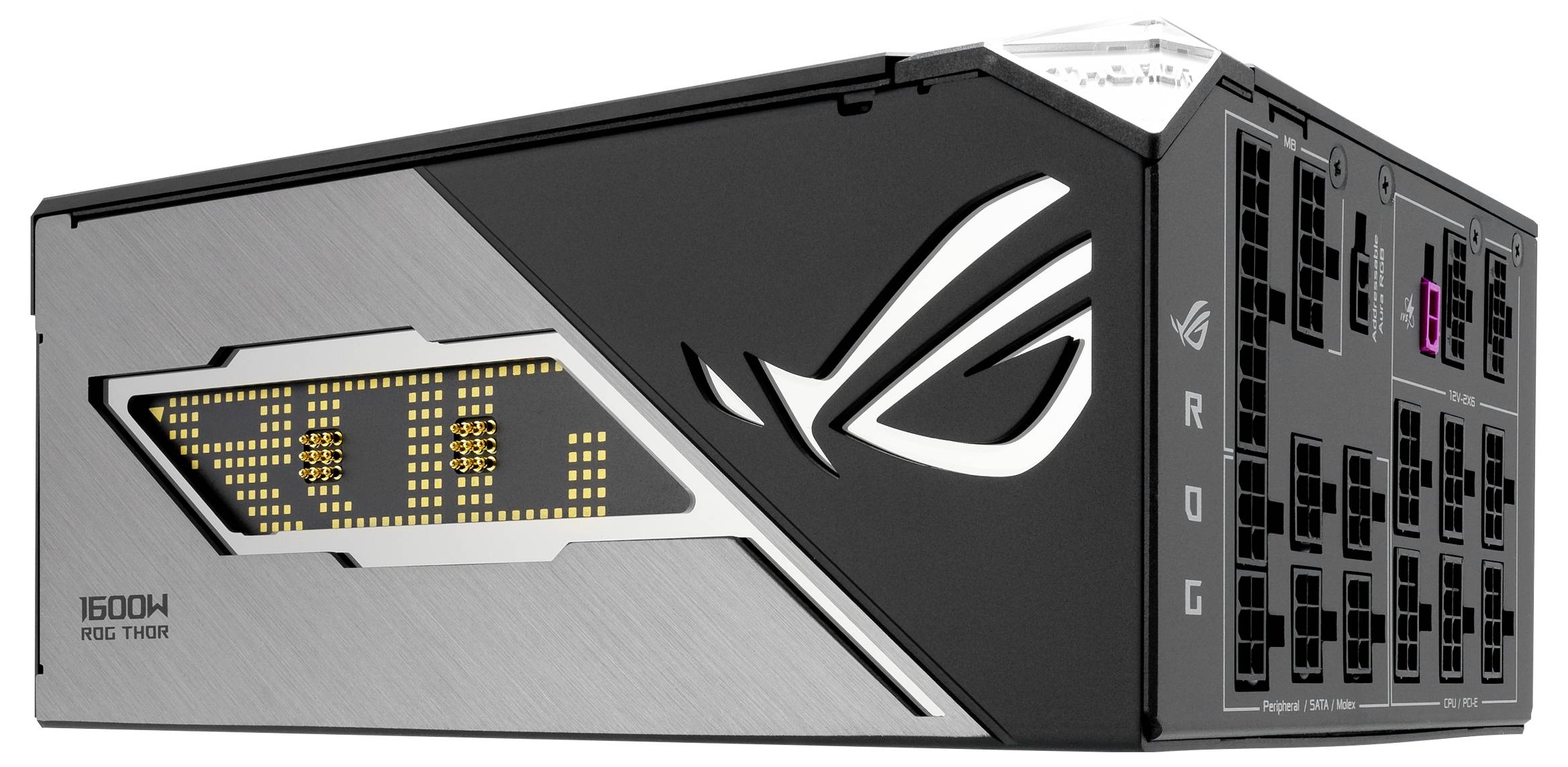

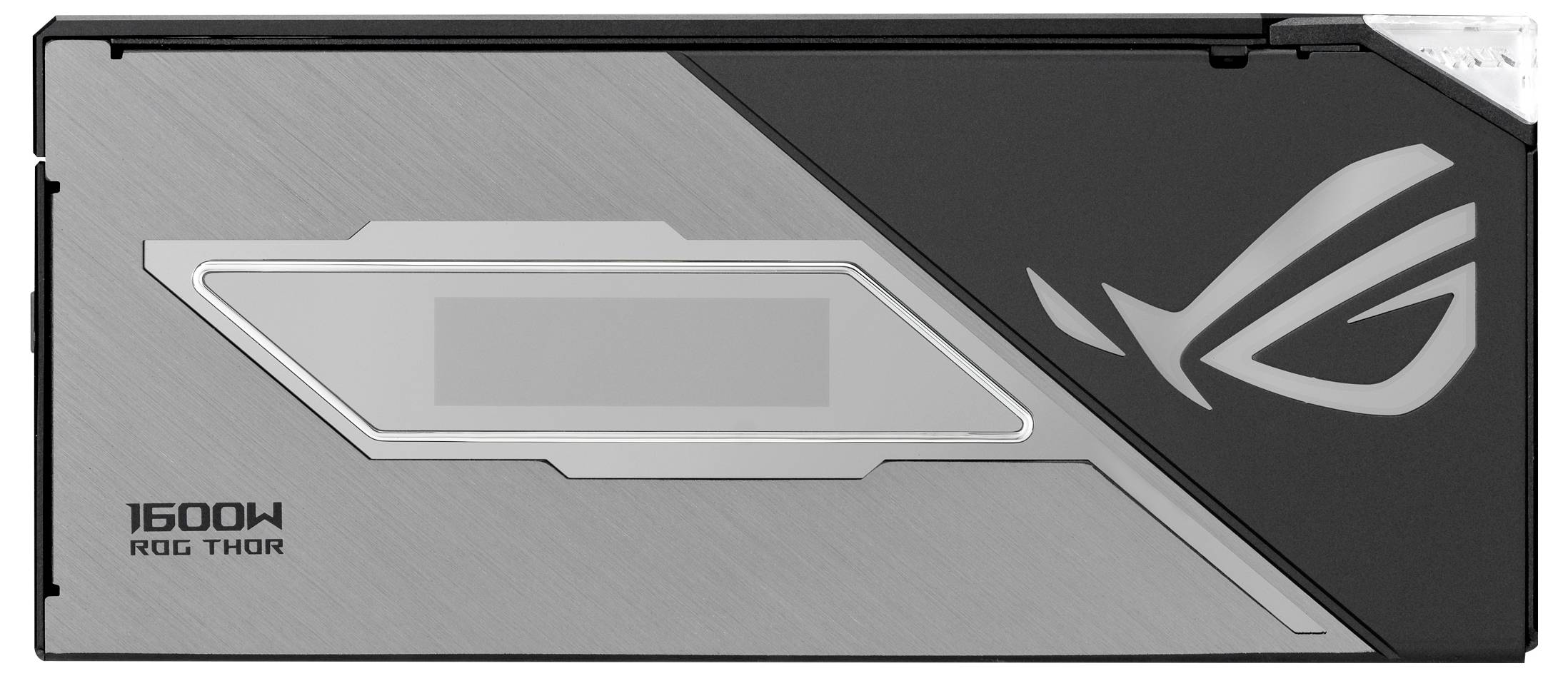

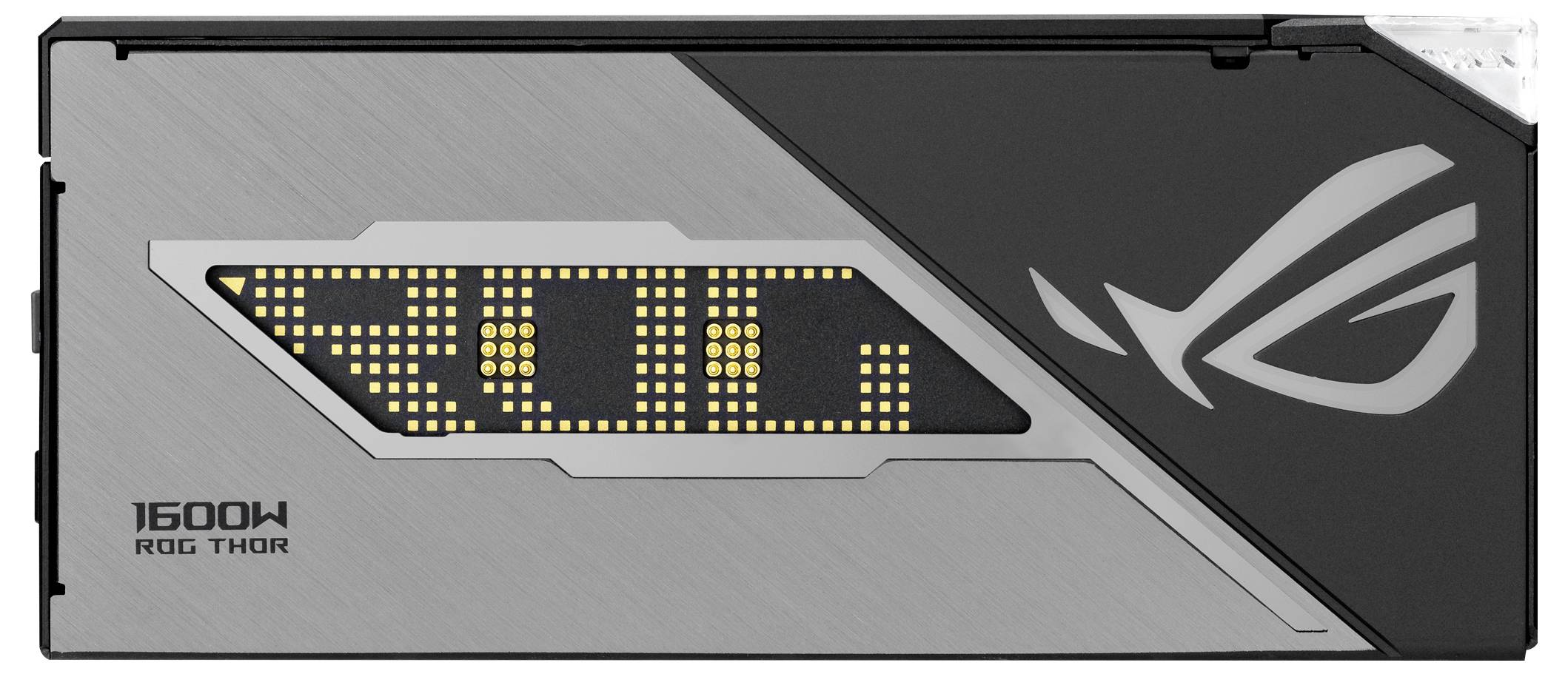

The ROG Thor 1600W Titanium III also has the characteristic Thor-OLED-display, which is now upgraded for a simple magnetic fixing - it can be pushed on both sides of the device, in order to enable the installation of the power supply with or without fans
This text is machine translated.
Features
- The GaN-MOSFET offers up to 30% more performance efficiency than standard MOSFETs and a clearer internal layout for cooler operation. The 'GPU-First' voltage measurement with patented intelligent voltage stabilizer improves the power supply of your graphics card by up to 45% for smoother playing and consistent performance. The magnetic OLED display shows power consumption in real time and can be pushed on both sides of the device to enable the installation of the power supply with or without fans,Turbo mode: High-quality components and a finely tuned fan curve provide high performance. The ROG heat sink and aluminum housing provide excellent cooling and control the heat development of your system. Double ball bearings can last up to twice as long as plain bearings,ATX 3.1-compatible: The ROG Thor Titanium III complies with the ATX 3.1 standard and ensures an improved voltage and current regulation for the latest hardware, etched modular cables with a flexible premium material to provide effortless cable management and exceptional security, Cybenetics Lambda A+ Noise & Titanium certification,80 PLUS certified The ROG Thor Titanium III uses low ESR capacitors and high-quality components for an industry-leading energy efficiency
