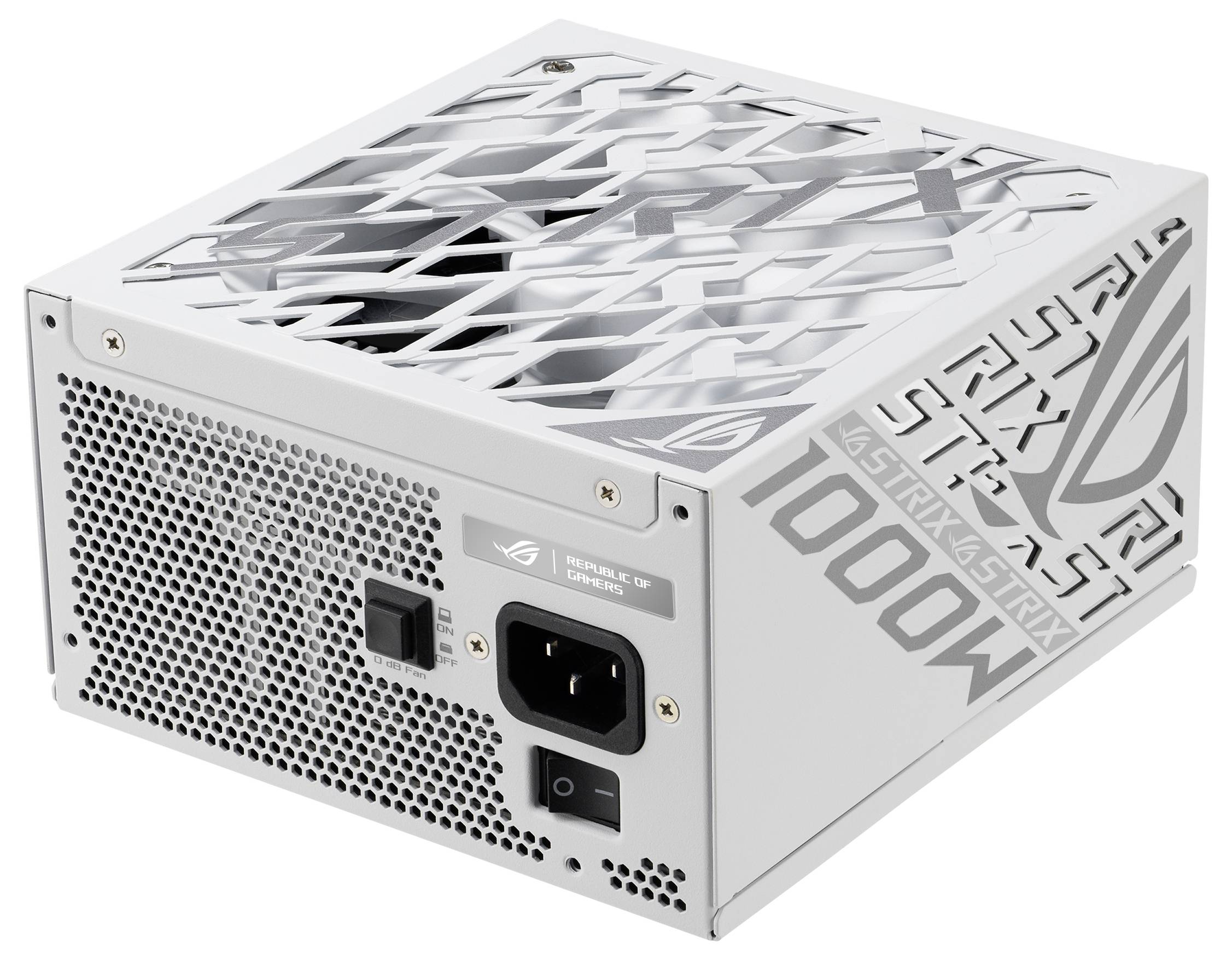

Asus 90YE00W4-B0NA00 PC power supply unit 1000 W ATX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
1000 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX
Asus 90YE00W4-B0NA00 PC power supply unit
Highlights & Details
- Power supply unit output 1000 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- Weight: 1.81 kg
- Product Colour: White
- Number of fans: 1 fans
- Depth: 150 mm
- Height: 86 mm
- Cooling: Active
- Width 160 mm

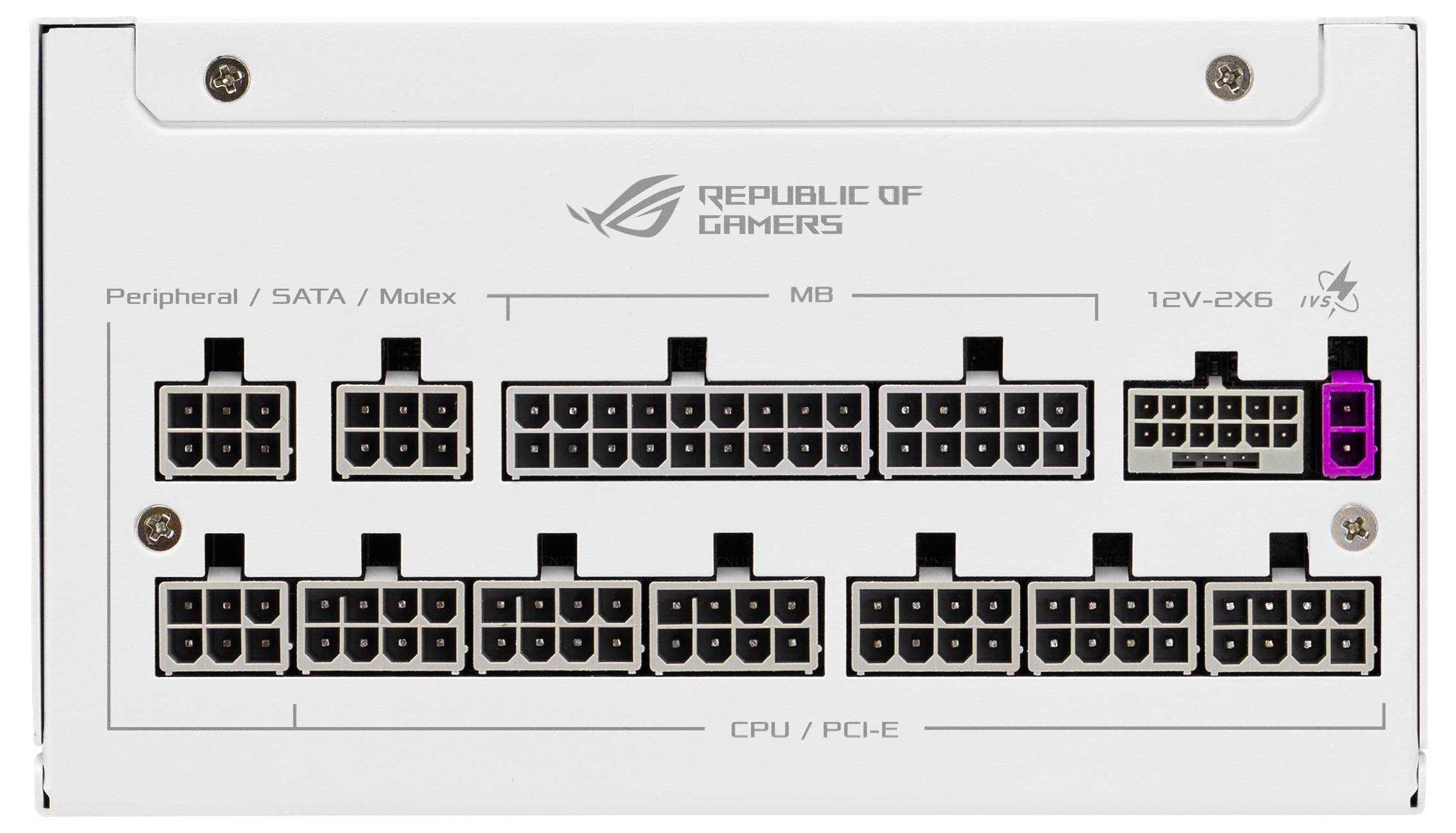

- Supplied cables: CPU, PCIe, SATA, peripheral (Molex)
- Number of Molex Connections 4-pin: 3
- Motherboard connector plug 20+4 pin ATX
- Power cable length of motherboard 61 cm
- Number of SATA power plugs: 6
- SATA-power cable length 400.120 mm
- Peripheral (Molex) Power cable length 400.150 mm
- Number of PCI Express power plugs 6+2-pin: 4
- PCI Express power connections (16-pin): 1
- PCI Express power cable length 75 cm
- CPU connector (4+4 pin): Yes
- CPU power Cable length 100 cm
- Total power 1000 W.
- AC input voltage 100 – 240 V
- Power factor correction filter (PFC): Active
- Combined current (+3.3V) 130 W
- Combined current (+12V): 1000 W
- Combined current (+5V): 130 W
- Combined current (-12V): 3.6 W
- Combined current (+5Vsb): 15 W
- Max. Output current (+3.3V) 25 A
- Max. Output current (+12V) 83.3 A
- Max. Output current (+5V) 25 A
- Max. Output current (-12V) 0.3 A
- Max. Output current (+5Vsb) 3 A
- Energy protection properties: Overheating, over current, overload, over voltage, short circuit, Under current
- Fan placement: Top
- Power Supply Unit (PSU) Form Factor: ATX
- ATX version: 3.1
- Average time between failures (MTBF): 120000 hours
- Product type
PC power supply unit
- PSU output power
1000 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
White
- Dim
(W x H x D) 160 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
160 mm
- Weight
1.81 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
83.3 A
- 5 V DC
25 A
- +5V / DC SB
3 A
- 20+4-pin.
1
- 4-pin Molex
3
- 6-pin PCIe
4
- 5-pin SATA
6
- Features
ATX 3.1
PCIe Gen 5.0
- Power rating
751 W -
- 3.3V DC
25 A
- Power supply (details)
100 - 240 V
- Operating voltage
100 - 240 V / AC
- UKCA
yes
- Motherboard power cable length
61 cm
- CPU power cable length
100 cm
- PCI Express power cable length
75 cm
- PCI Express power connectors (16-pin)
1
- Mean time between failures (MTBF)
120000 h
- CPU power connector (4+4 pin)
yes
- Package weight
2.91 kg
- Combined power (+3.3V)
130 W
- Combined power (+12V)
1000 W
- Combined power (+5V)
130 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3395848 Asus 90YE00W4-B0NA00 PC power supply unit 1000 W ATX 80 PLUS Platinum
Description
Asus ROG STRIX 1000W Platinum white edition gaming power supply (1000 watt, GaN MOSFET, ATX 3.1 compatible, PCIe 5.0 ready 12V 2x6 connection, GPU FIRST voltage sensor, 80 PLUS platinum, white)
