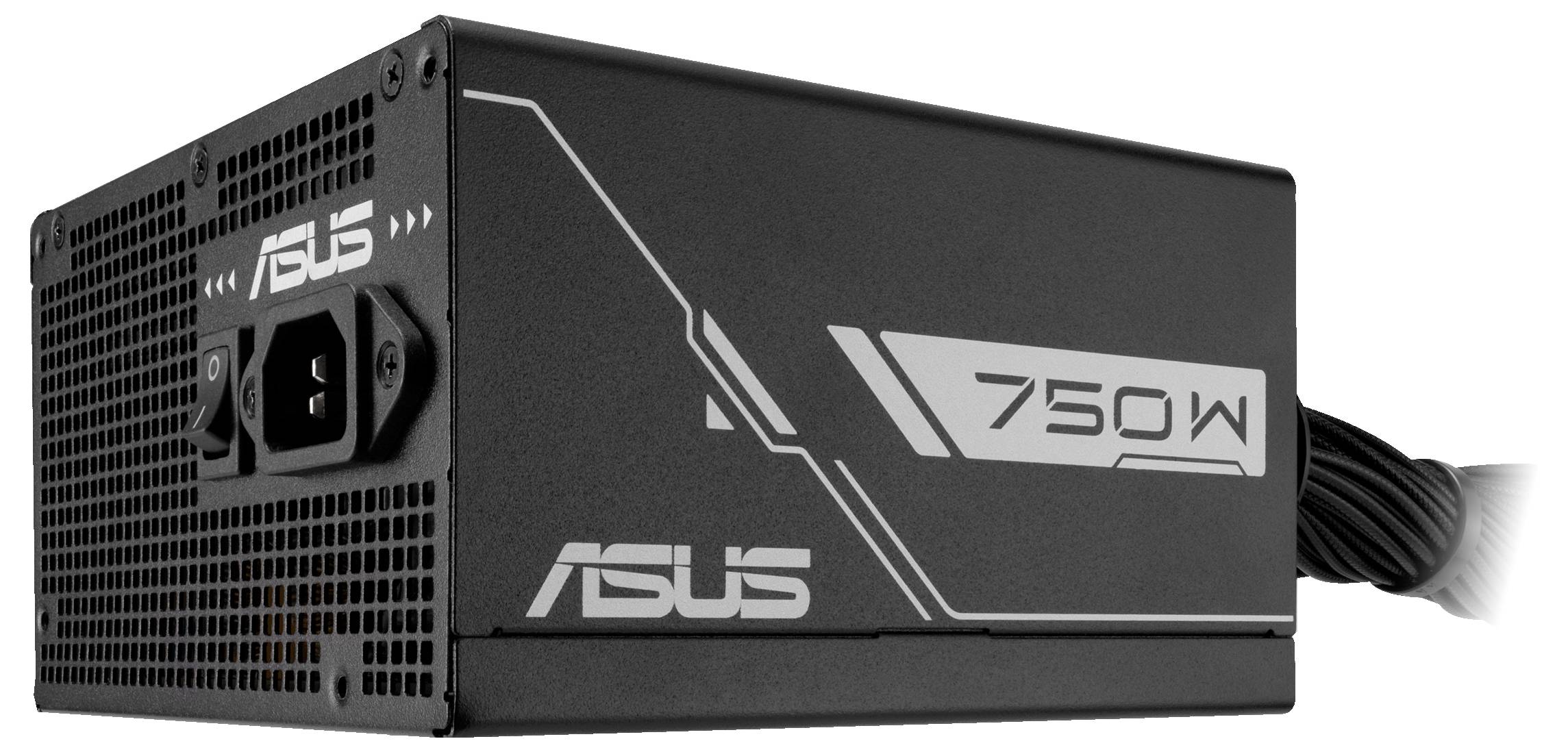

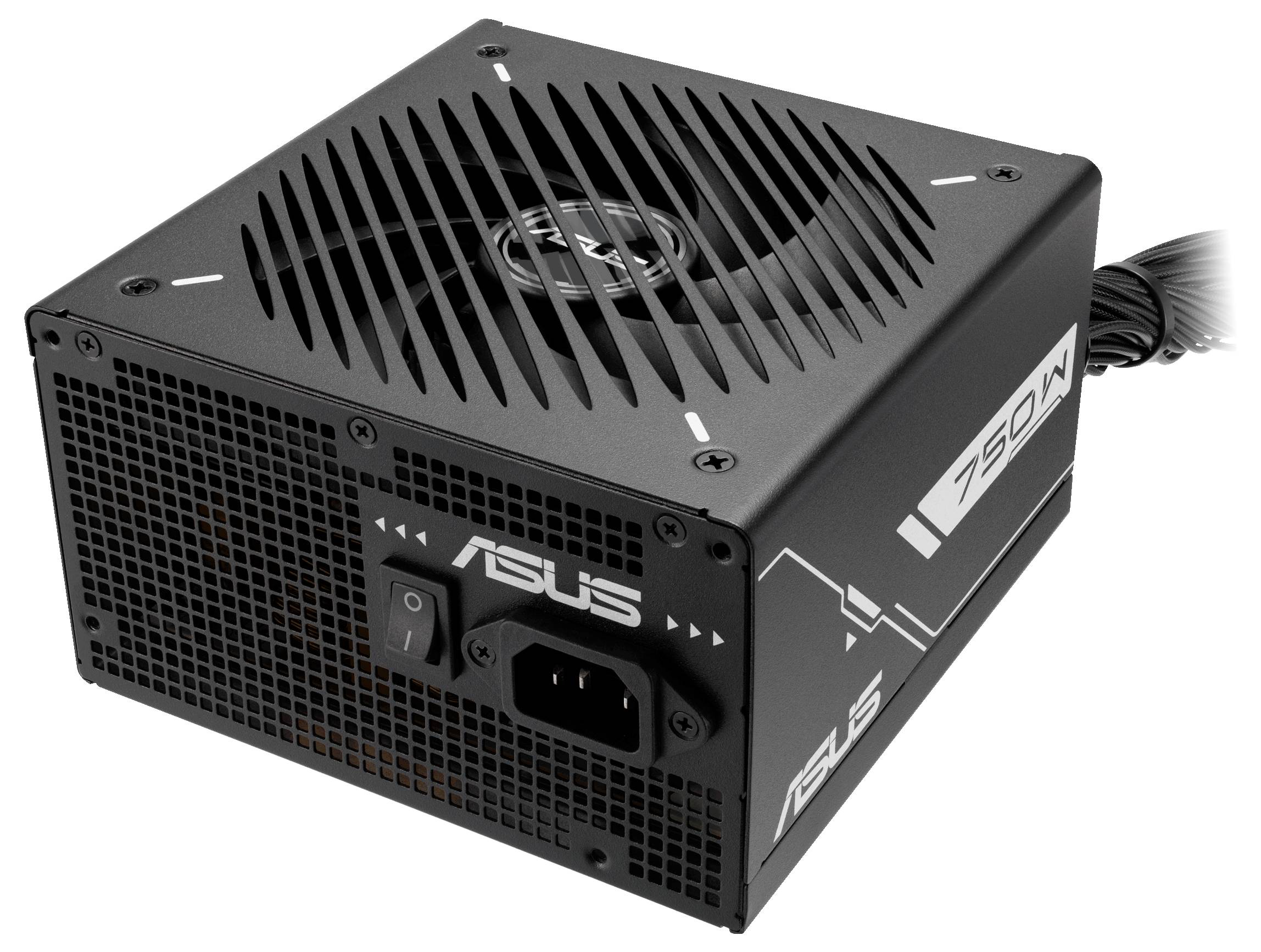

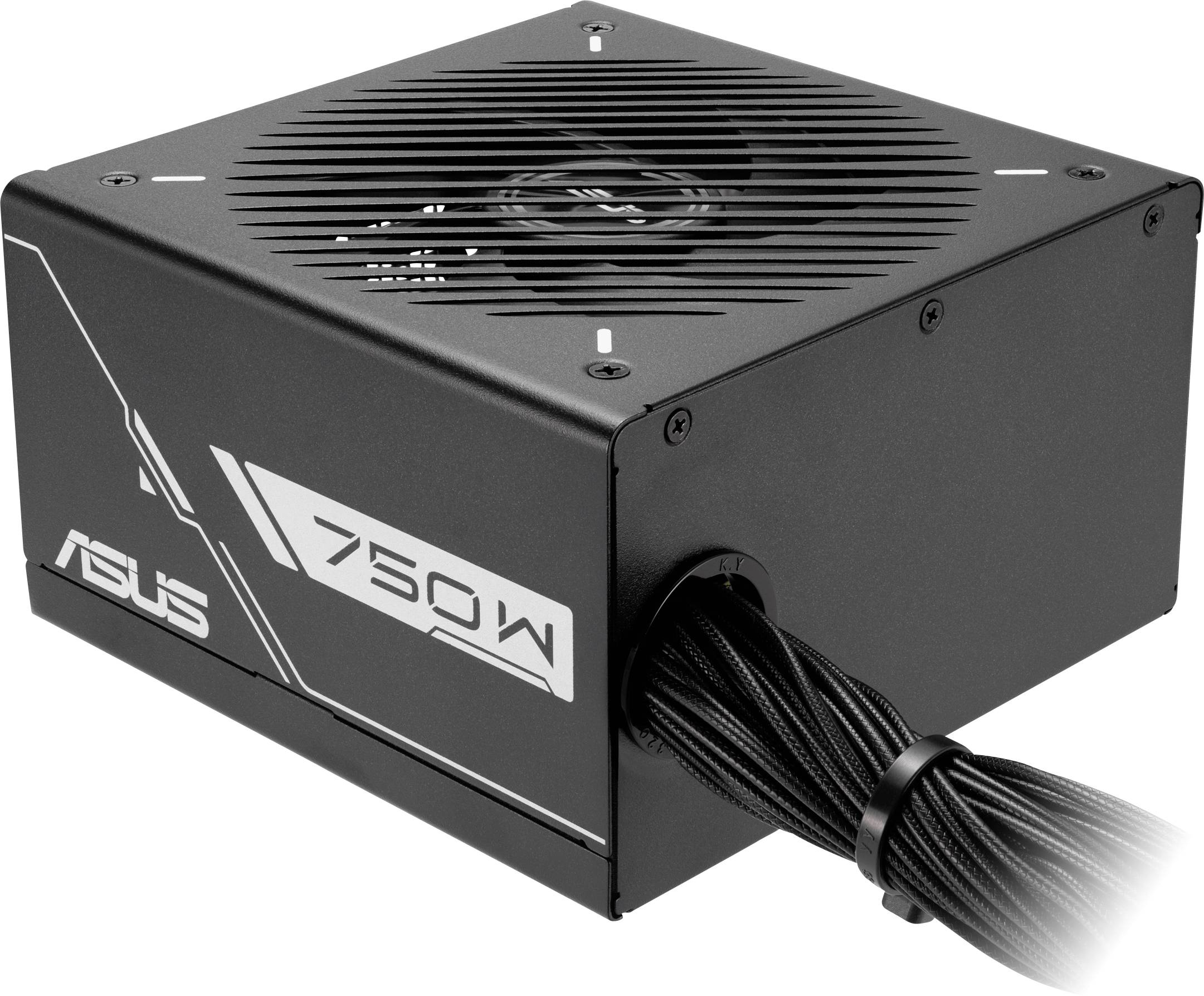

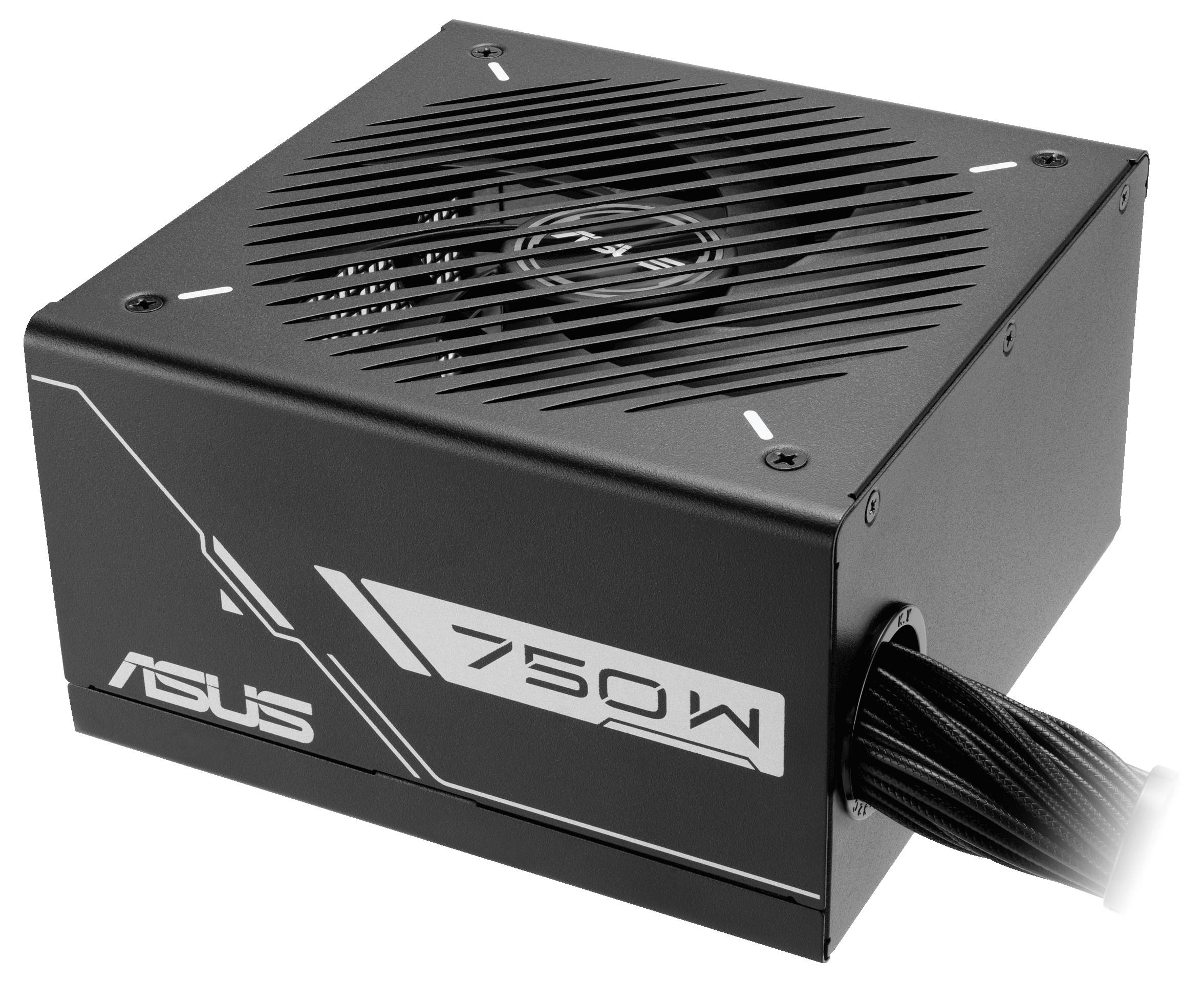

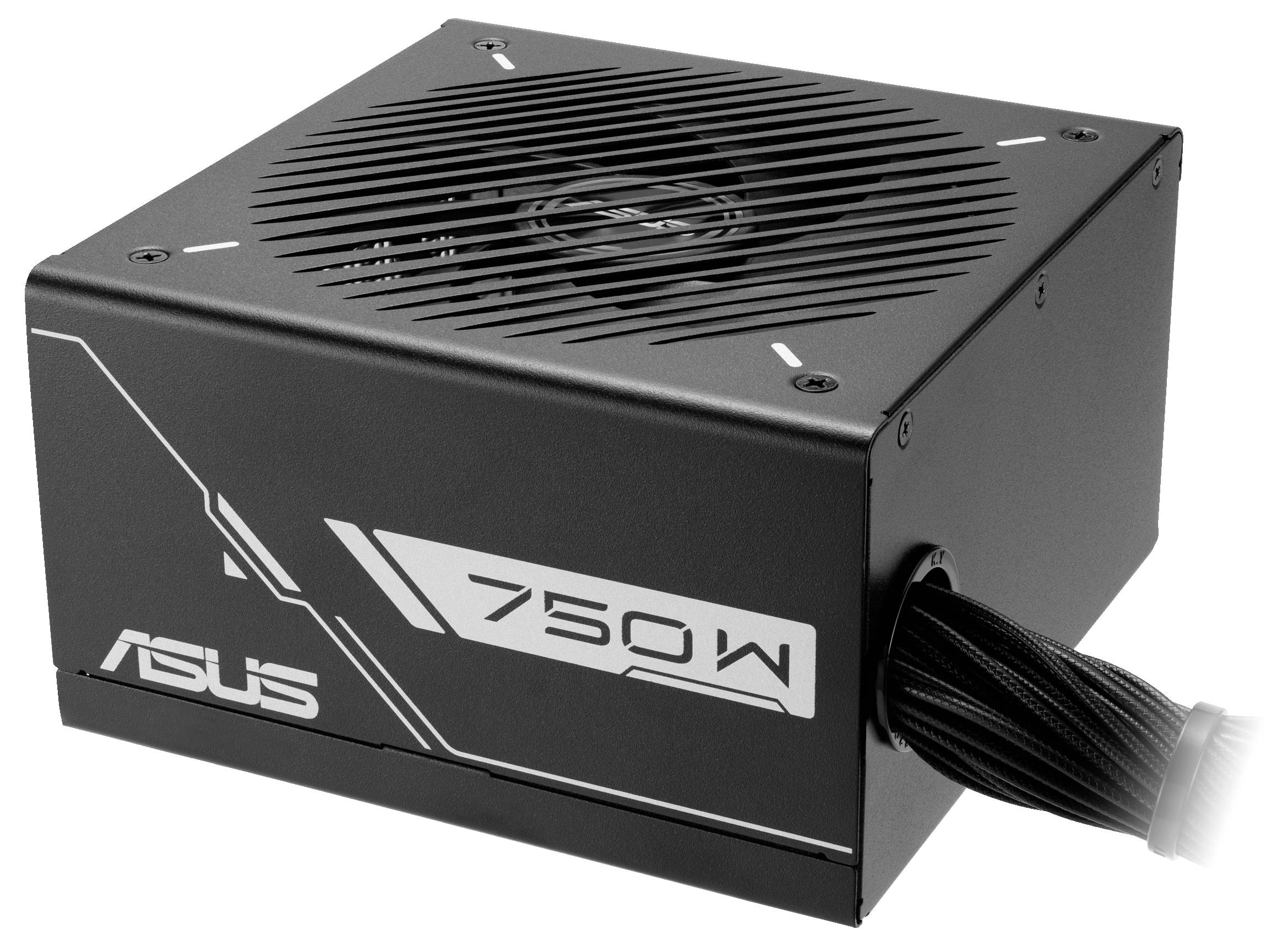

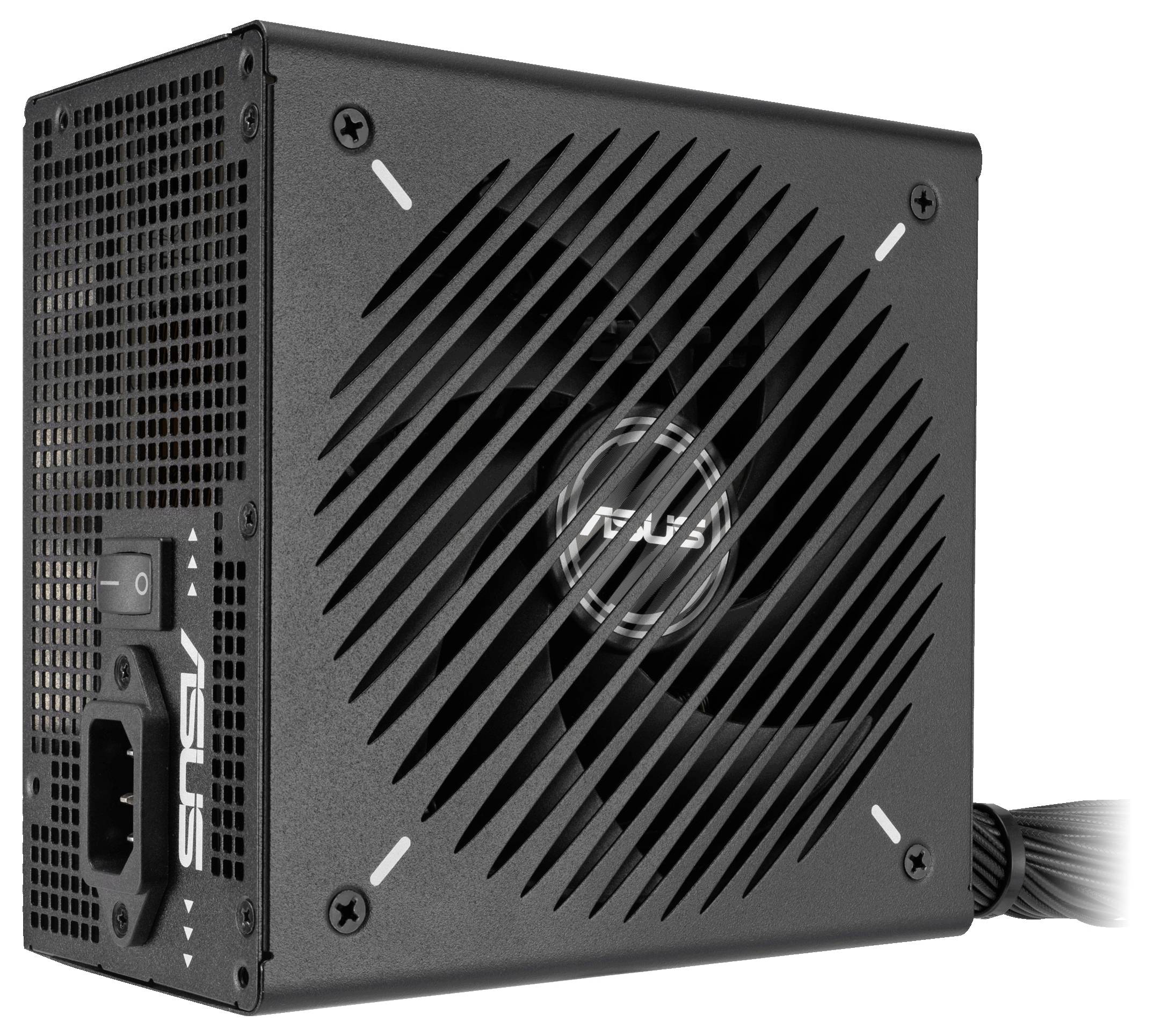

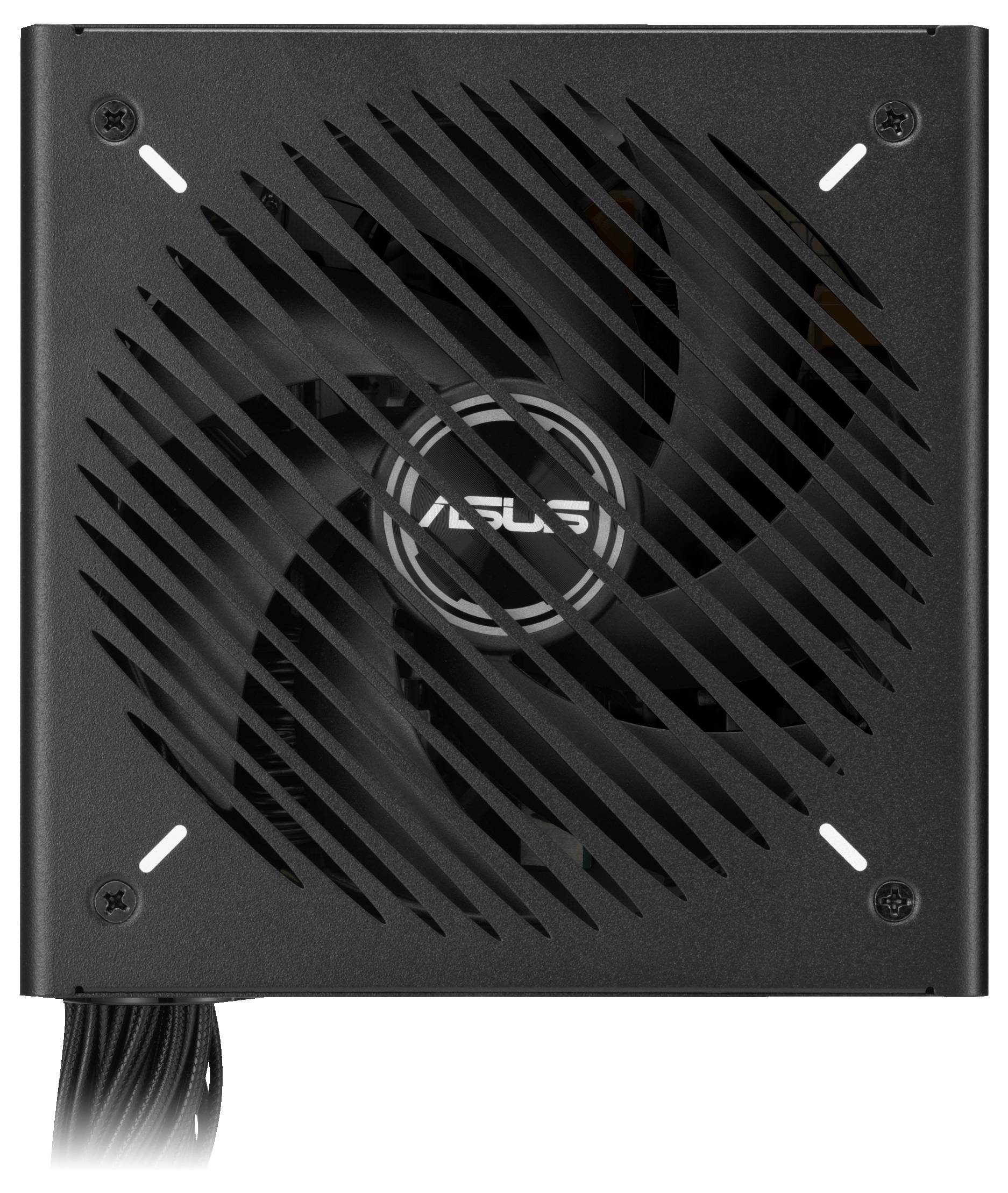

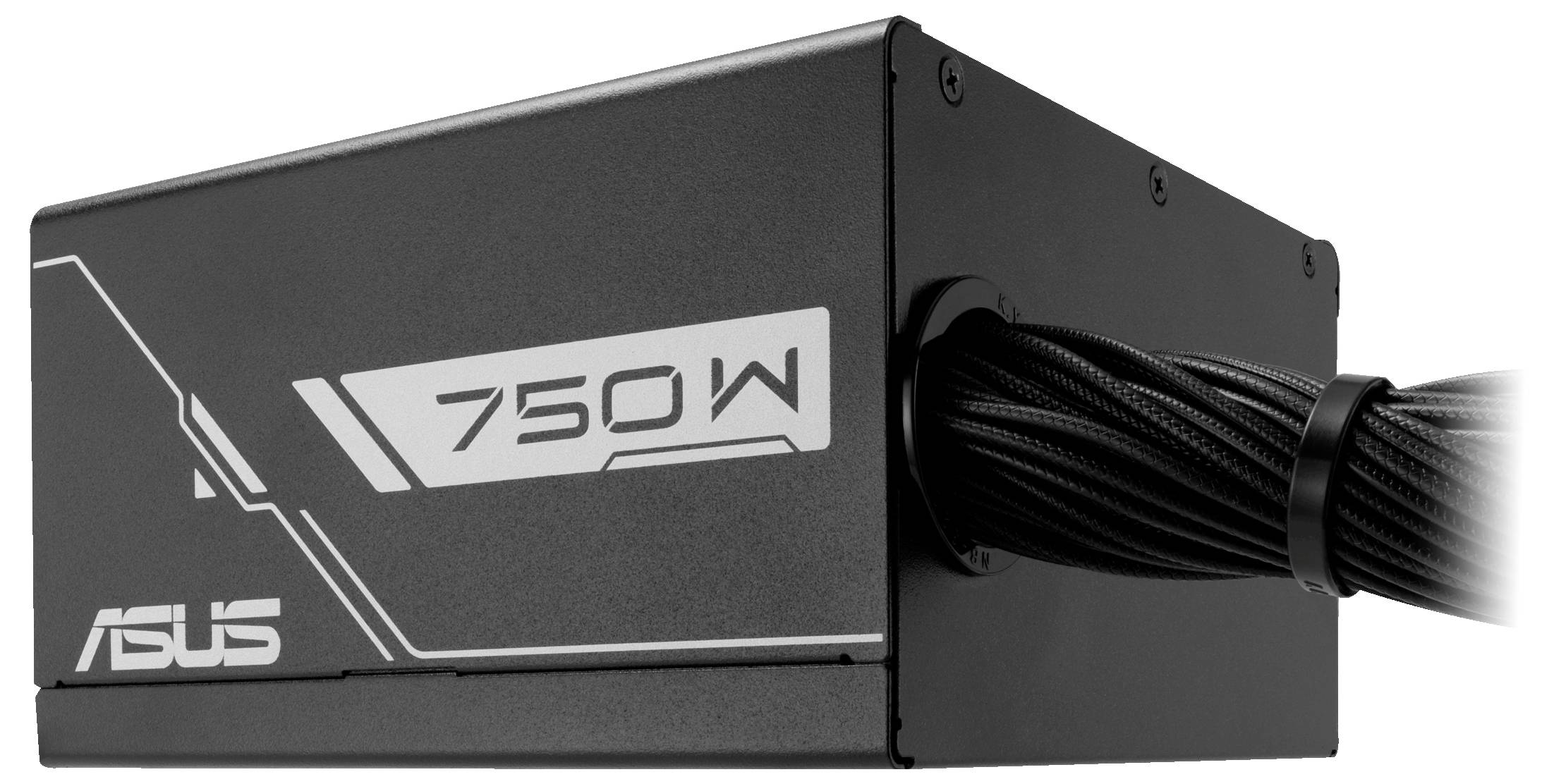

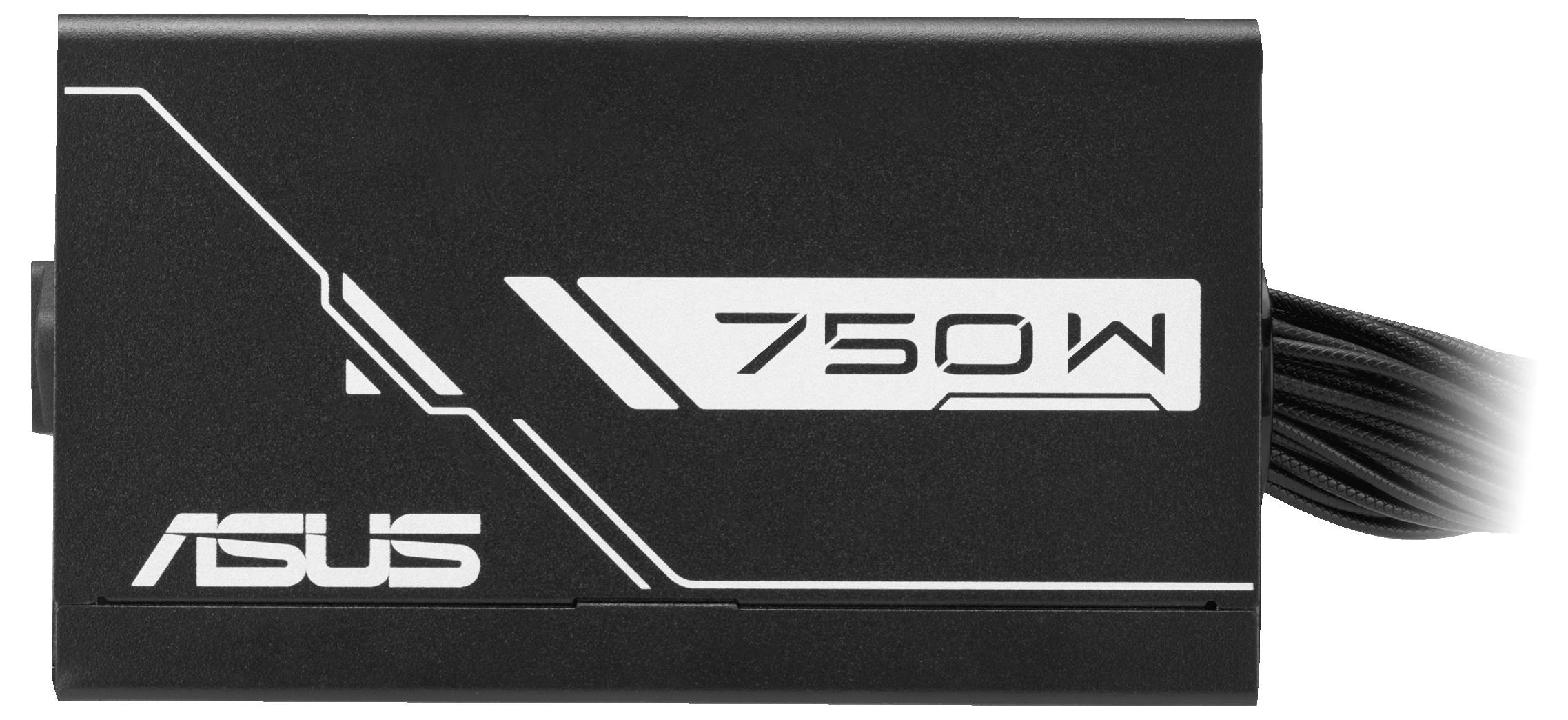

Asus 90YE00Y0-B0NA00 PC power supply unit 750 W ATX 80 PLUS Bronze
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
750 W

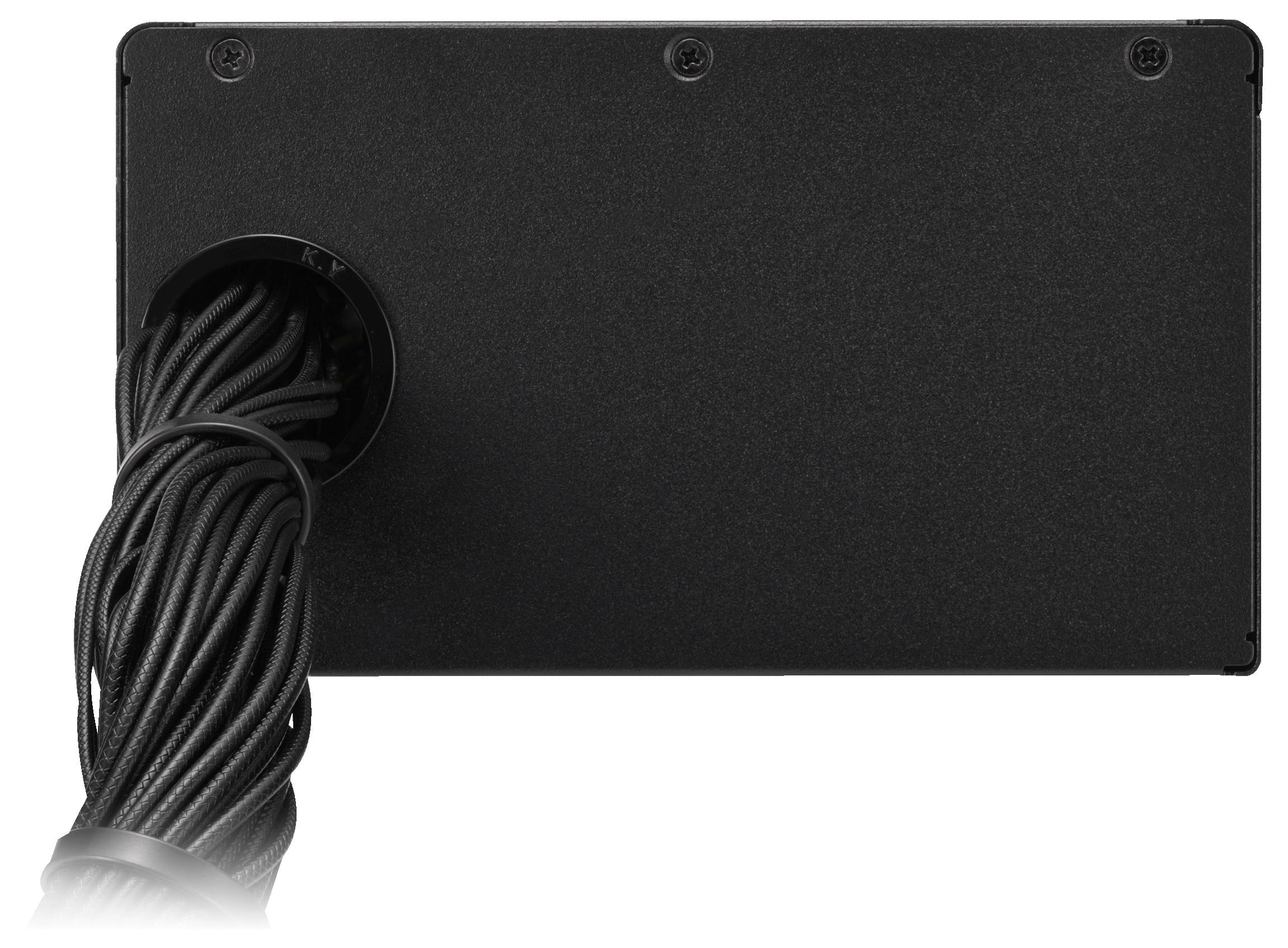

Modular
No
Certification
80 PLUS Bronze
Form factor
ATX
Asus 90YE00Y0-B0NA00 PC power supply unit
Highlights & Details
- Power supply unit output 750 W
- PCI-Express (6+2-Pin) x
- Cable management No
- 80 PLUS Bronze
Technical specifications
- Weight: 1.92 kg
- Product color: Black

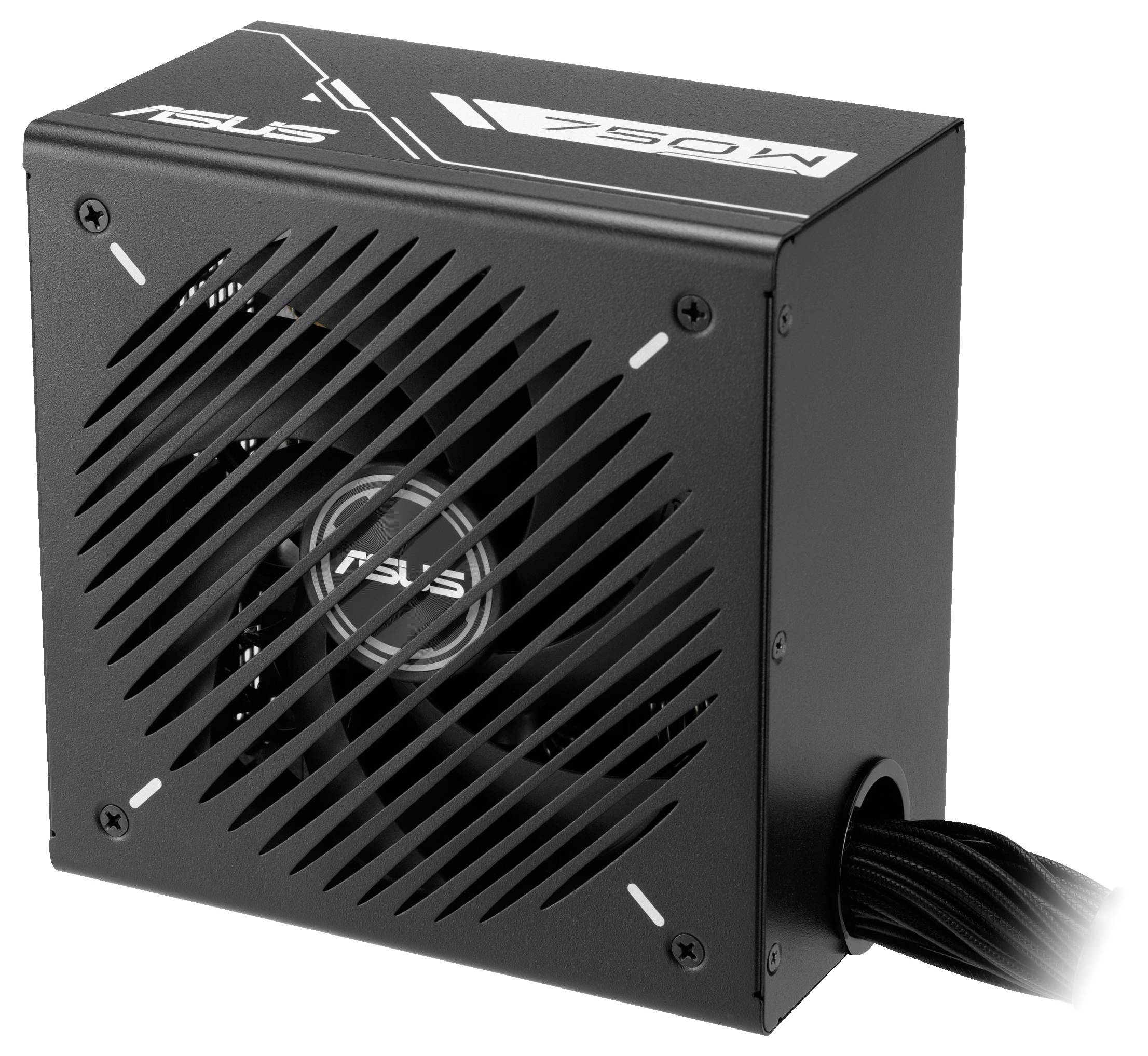

- Number of fans: 1 fans
- Fan diameter 13.5 cm
- Depth: 150 mm
- Height: 86 mm
- Cooling: Active
- Width 150 mm
- Number of Molex Connections 4-pin: 3
- Motherboard connector plug 20+4 pin ATX
- Power cable length of motherboard 60 cm
- Number of SATA power plugs: 6
- SATA-power cable length 120.400 mm
- Peripheral (Molex) Power cable length 120.400 mm
- CPU connector (4+4 pin): Yes
- CPU power Cable length 80 cm
- Total power 750 W.
- AC input voltage 100 – 240 V
- Power factor correction filter (PFC): Active
- Combined current (+3.3V) 120 W
- Combined current (+12V): 750 W
- Combined current (+5V): 120 W
- Combined current (-12V): 3.6 W
- Combined current (+5Vsb): 12.5 W
- Max. Output current (+3.3V) 20 A
- Max. Output current (+12V) 62.5 A
- Max. Output current (+5V) 20 A
- Max. Output current (-12V) 0.3 A
- Max. Output current (+5Vsb) 2.5 A
- Energy protection properties: Overcurrent, overload, overvoltage, short circuit, undervoltage
- Fan placement: Top
- Power Supply Unit (PSU) Form Factor: ATX
- Average time between failures (MTBF): 120000 hours
- Bearing type: Ball bearing
- Number of PCI Express power plugs 8-pin: 3

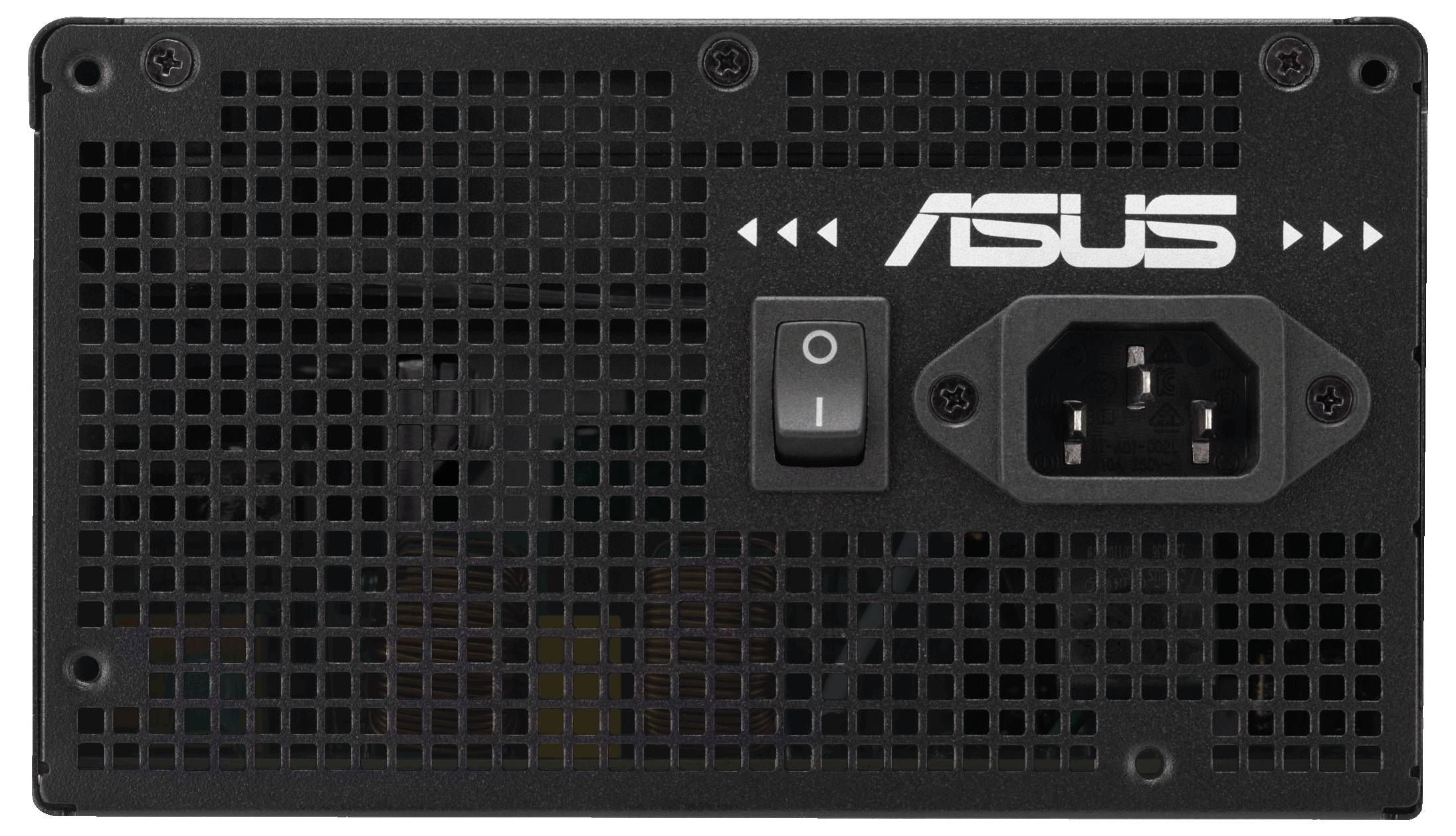

- On/off switch: Yes
- Product type
PC power supply unit
- PSU output power
750 W
- Modular
No
- Certification
80 PLUS Bronze
- Form factor
ATX
- Factory colour
Black
- Dim
(L x W x H) 15 cm x 150 mm x 86 mm
- Depth
150 mm
- Height
86 mm
- Width
150 mm
- Weight
1.92 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
62.5 A
- 5 V DC
20 A
- +5V / DC SB
2.5 A
- 20+4-pin.
1
- 4-pin Molex
3
- 5-pin SATA
6
- Power rating
501 - 750 W
- Length
15 cm
- for brands
Asus
- Cooling
Active
- No. of outputs
5 x
- Max. output current per channel
62.5 A
- 3.3V DC
20 A
- Used at
Internal
750 W
- Power supply (details)
100 - 240 V
- Output current (low)
0.3 A
- Output current (high)
62.5 A
- Operating voltage
100 - 240 V / AC
- UKCA
yes
- Motherboard power cable length
60 cm
- CPU power cable length
80 cm
- Mean time between failures (MTBF)
120000 h
- On/off switch
yes
- PCI Express power connectors (8-pin)
3
- CPU power connector (4+4 pin)
yes
- Package weight
3 kg
- Combined power (+3.3V)
120 W
- Combined power (+12V)
750 W
- Combined power (+5V)
120 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
12.5 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386546 Asus 90YE00Y0-B0NA00 PC power supply unit 750 W ATX 80 PLUS Bronze
Description
Asus PRIME 750W Bronze power supply (750 watt, for all-round PCs and gaming PCs, 80 PLUS Bronze certified, fan with double ball bearings, black)
