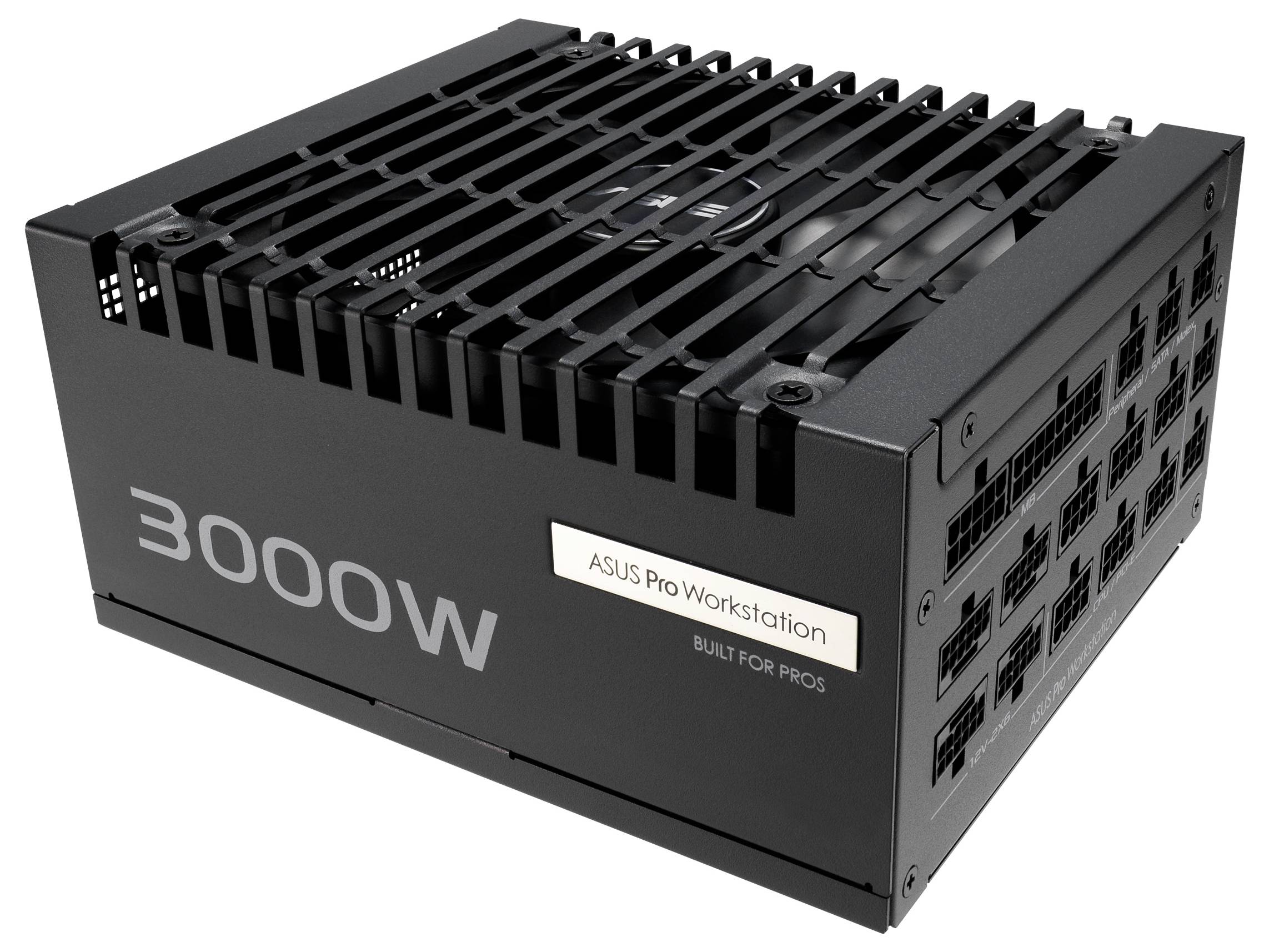

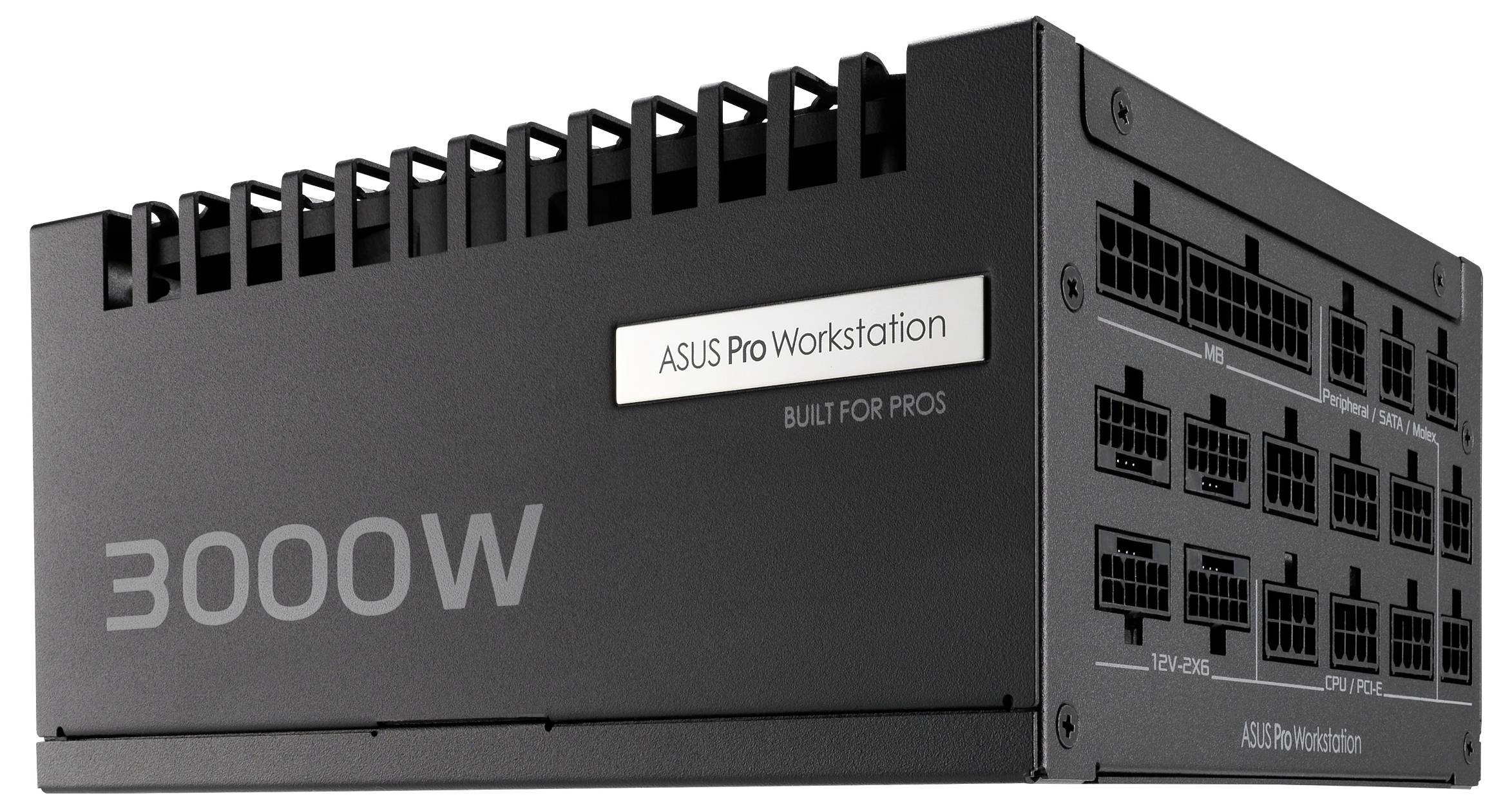

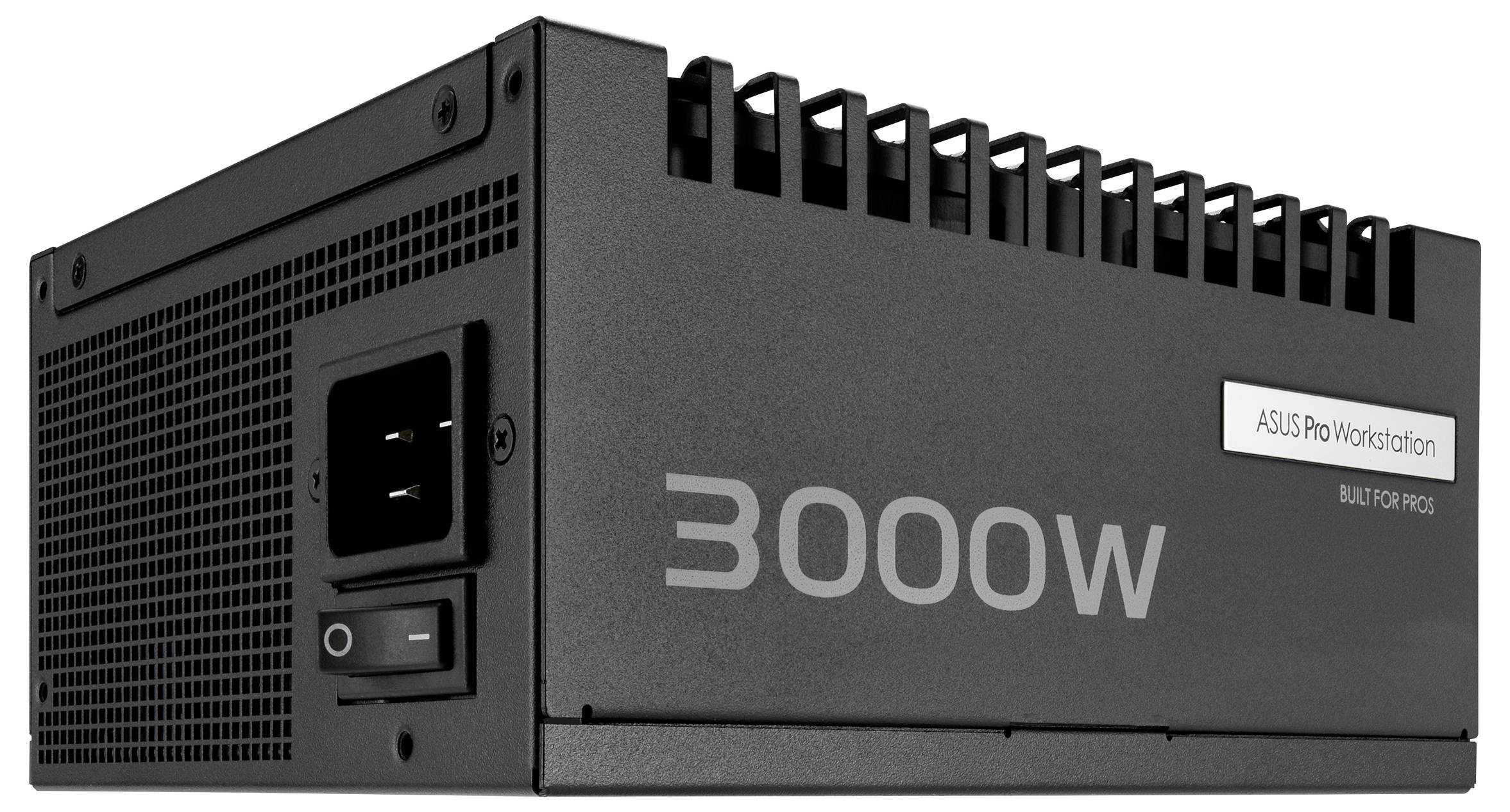

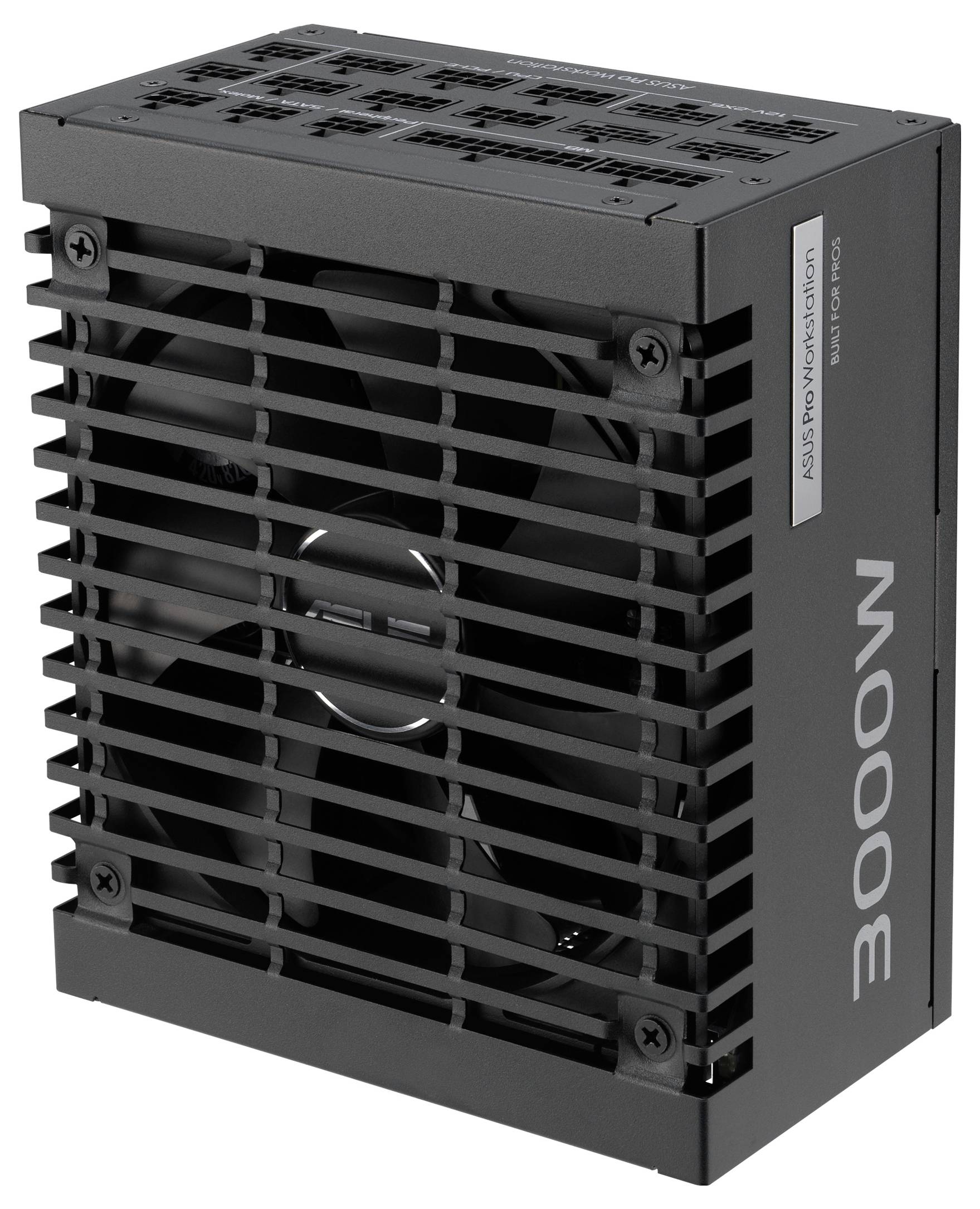

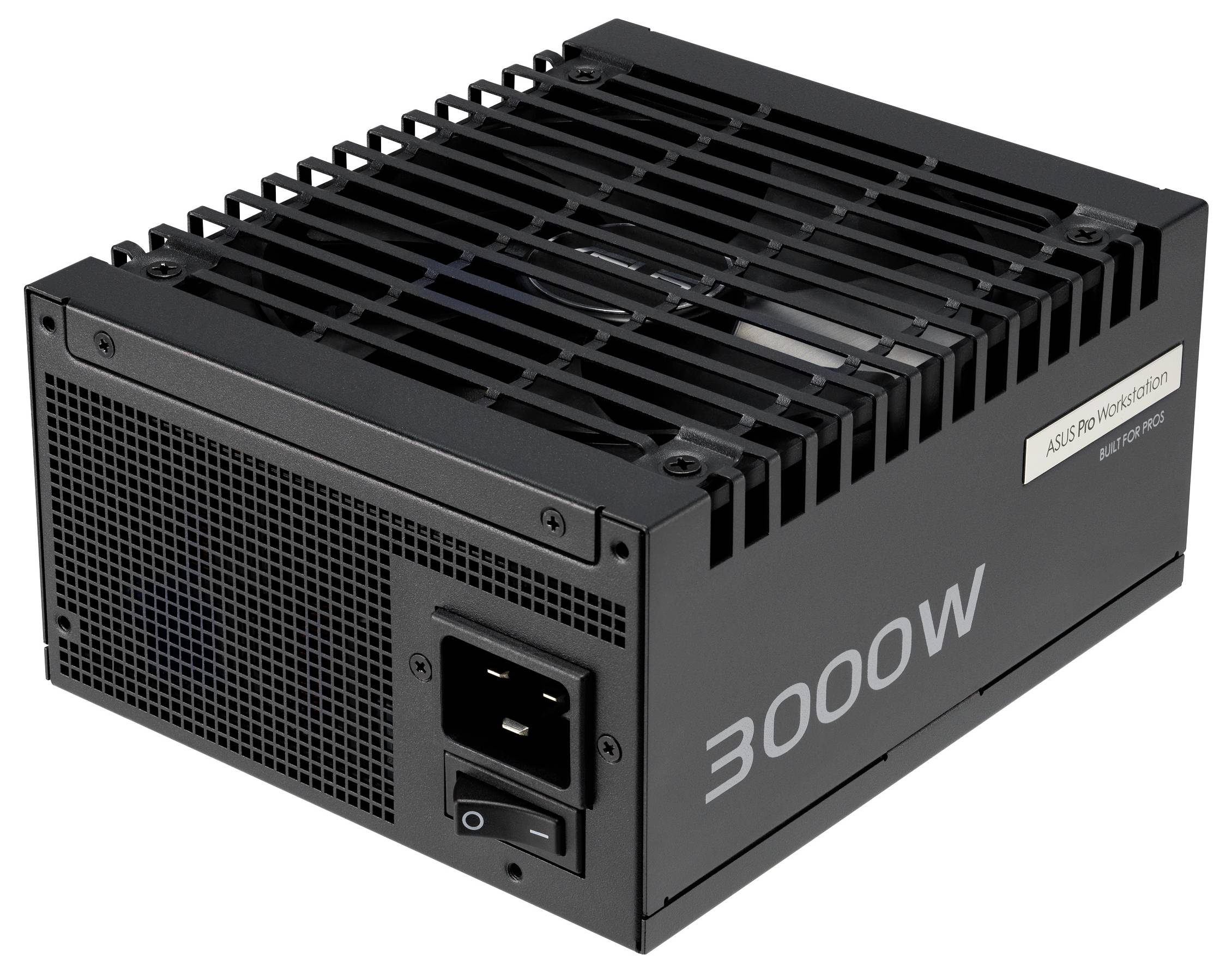

Asus 90YE00Z0-B0EA00 PC power supply unit 3000 W ATX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
3000 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX

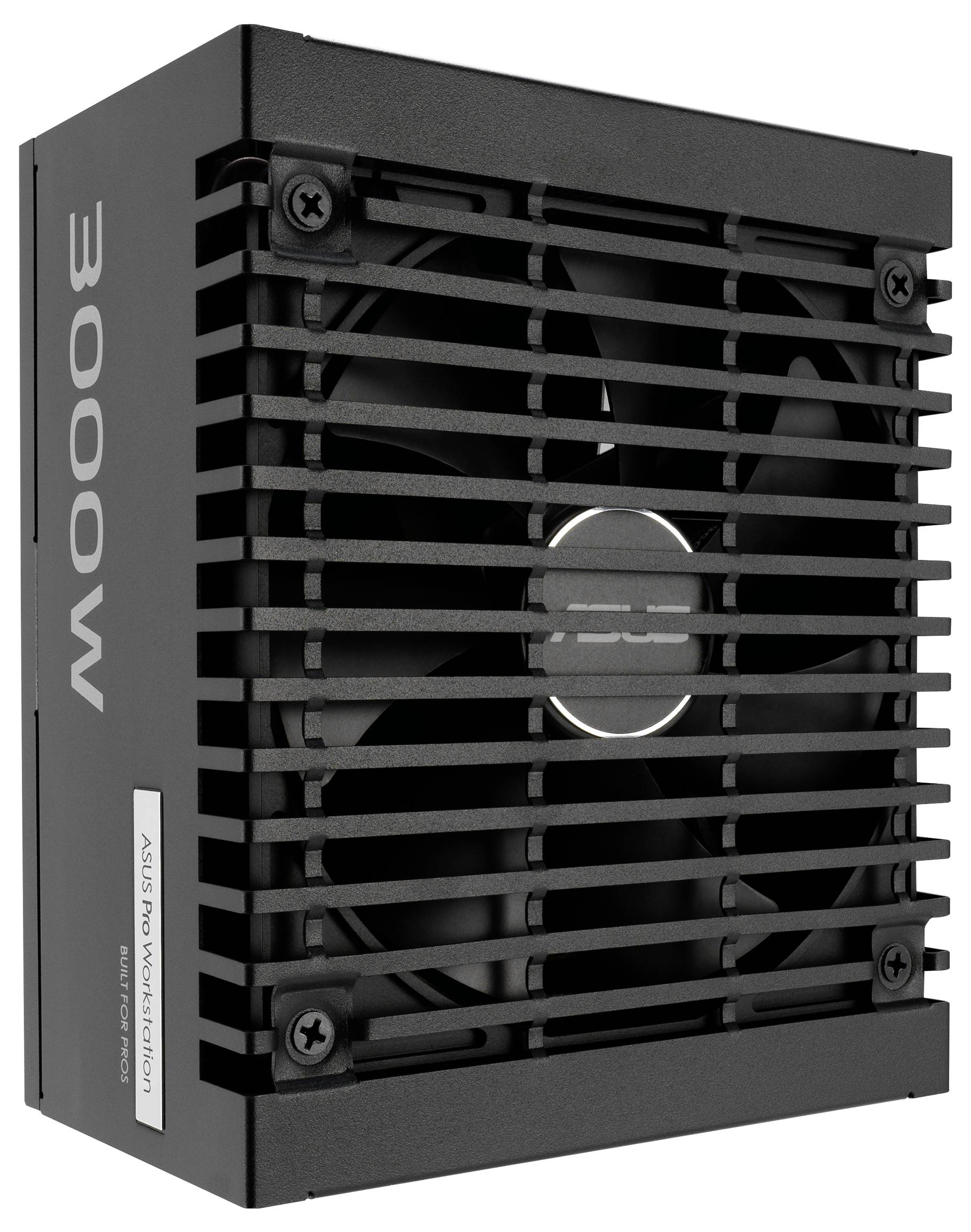

Asus 90YE00Z0-B0EA00 PC power supply unit
Highlights & Details
- Power supply unit output 3000 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- 80 Plus certification: 80 PLUS Platinum
- Product type
PC power supply unit
- PSU output power
3000 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 175 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
175 mm
- Weight
2.16 kg
- -12V / DC
9.6 A
- +12 V/DC (1)
250 A
- 5 V DC
25 A
- +5V / DC SB
15 A

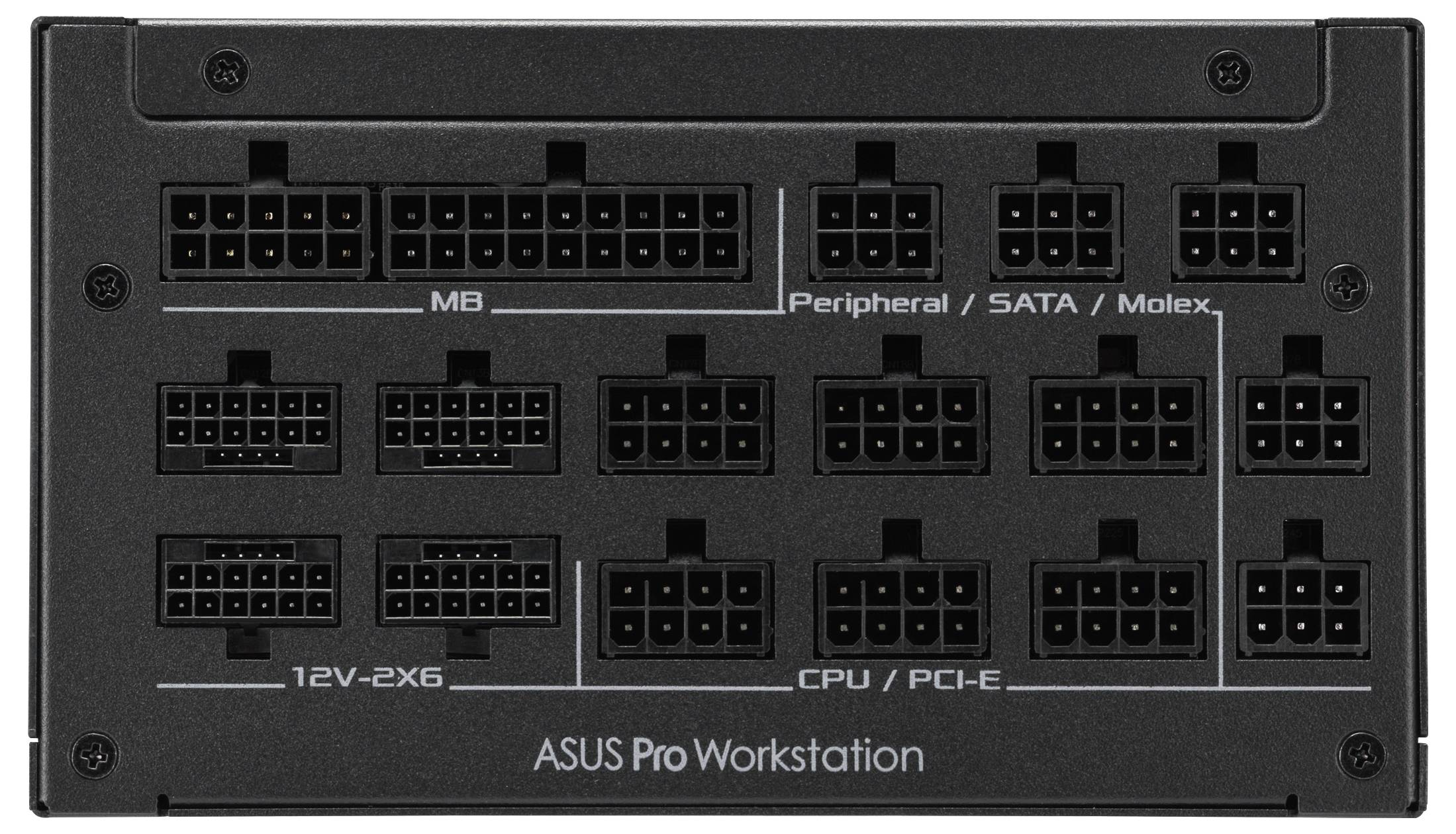

- 4-pin Molex
3
- 6-pin PCIe
4
- 5-pin SATA
12
- Power rating
751 W -
- Cooling
Active
- 3.3V DC
25 A
- Power supply (details)
220 - 240 V
- Operating voltage
230 V / AC
- UKCA
yes
- Motherboard power cable length
61 cm
- CPU power cable length
100 cm
- PCI Express power cable length
75 cm
- PCI Express power connectors (16-pin)
4
- CPU power connector (4+4 pin)
yes
- Package weight
5.09 kg
- Combined power (+3.3V)
130 W
- Combined power (+12V)
3000 W
- Combined power (+5V)
130 W
- Combined power (-12V)
0.8 W
- Combined power (+5Vsb)
3 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3438950 Asus 90YE00Z0-B0EA00 PC power supply unit 3000 W ATX 80 PLUS Platinum
Description
HIGH POWER
The Asus Pro WS 3000W Platinum reliably delivers the thousands of watts required to power up to four Nvidia® GeForce RTX™ 5090 graphics cards, delivering breakthrough performance to meet the needs of demanding AI workloads.
Note: The wattage rating of the electrical system must meet the product specifications,
In order to avoid overloads or power failures.
GOLD-PLATED HIGH-PERFORMANCE COPPER PINS
The copper pins of the PCIe® connectors in this power supply have been coated with gold to ensure cooler operation and improved power efficiency. This coating significantly reduces normal 12 V 2x6 connector temperatures (up to 10°C) to deliver optimum performance and stability even for the most demanding graphics cards. In addition, the improved contact between the socket pins and the plugs reduces the resistance and improves the durability when inserting and removing the plugs, WAS ensures a reliable cooling performance.
This text is machine translated.
Features
- High performance power supply: Supports up to four GeForce RTX™ 5090 graphics cards with rock-solid voltage stability and advanced power supply.

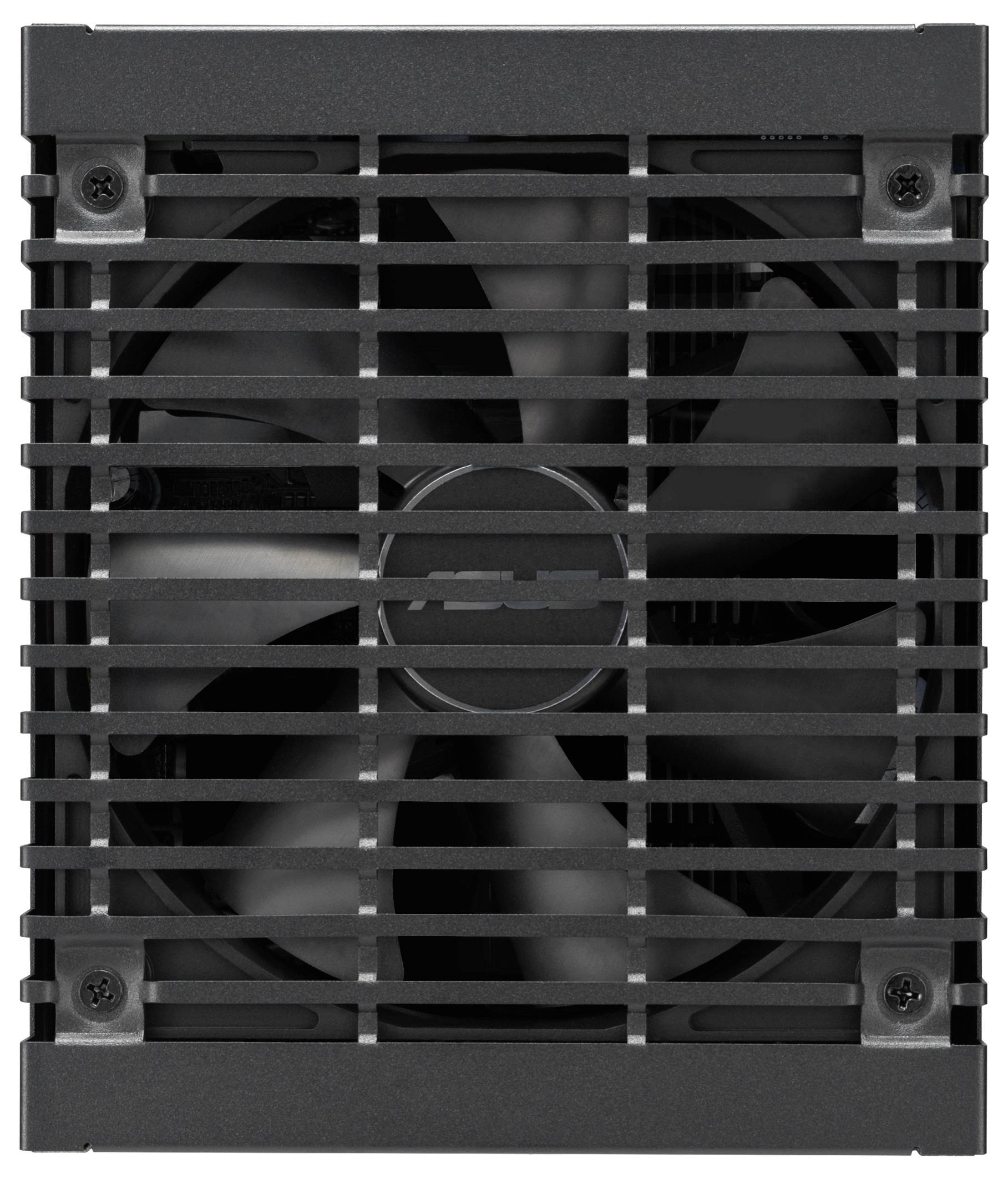

- Fans with double ball bearings: Retain for twice as long as plain bearings.
- Extruded aluminum heat sinks: Covers critical components and provides lower temperatures and noise compared to reference designs.
- ATX 3.1 compatible: Corresponds to the ATX 3.1 standard and ensures an improved voltage and current control.
- PCIe® 5.1: With native 12V-2×6 ports for the latest graphics card performance.
- 80 PLUS Platinum certified: Uses low ESR Japanese server capacitors and high-quality components for industry-leading energy efficiency.
