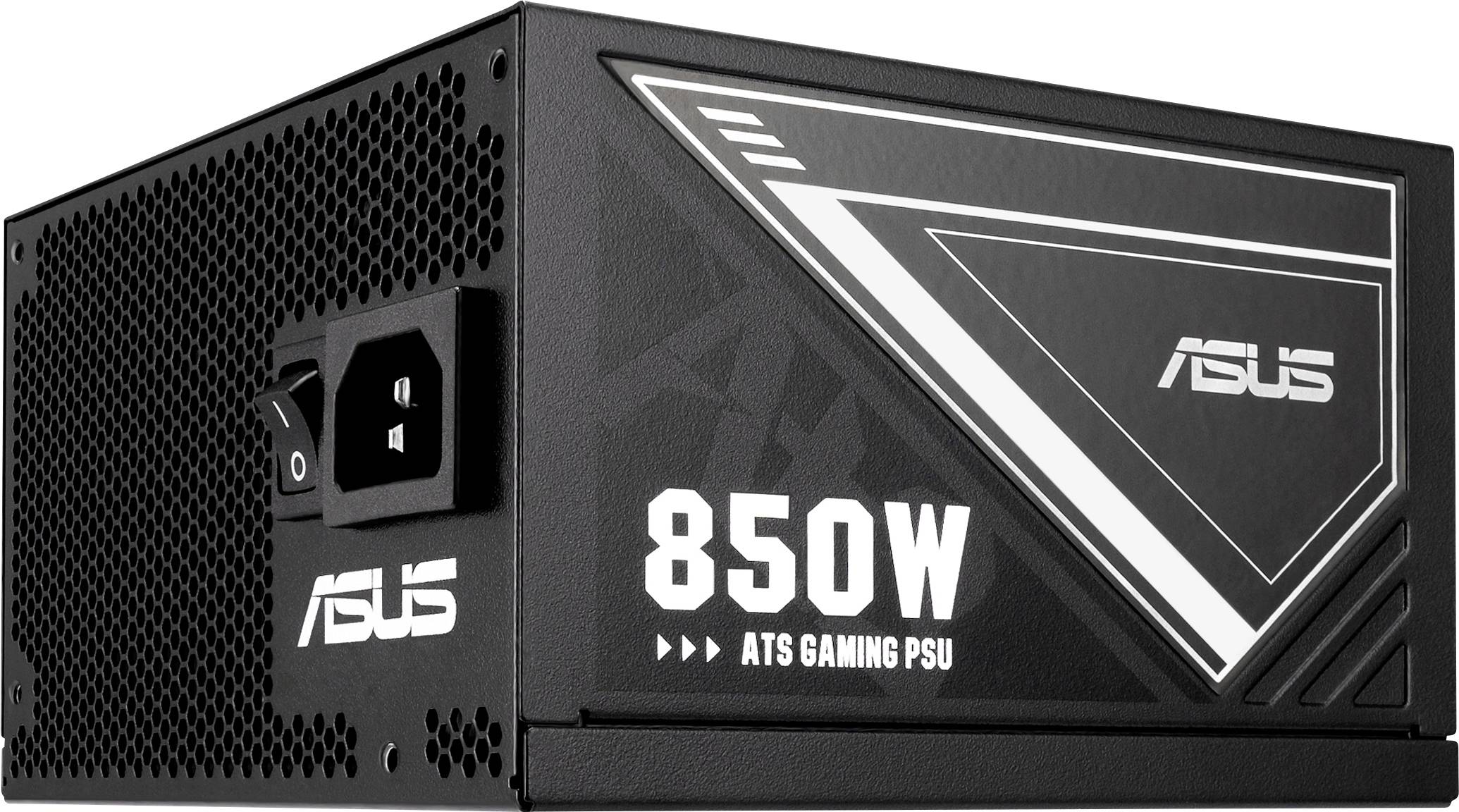

Asus 90YE04A0-B0NC00 PC power supply unit 850 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
850 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
Highlights & Details
Asus 90YE04A0-B0NC00 PC power supply unit
- Power supply unit output 850 W
- PCI-Express (6+2-Pin) 3x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- Efficiency: 92%
- Motherboard connector plug 20+4 pin ATX
- Power cable length of motherboard 55 cm
- Peripheral (Molex) Power cable length 120.400 mm
- SATA-power cable length 120.400 mm
- CPU connector (4+4 pin): Yes
- CPU power Cable length 65 cm
- PCI Express power cable length 67.5 cm
- ATX power plug (20+4-pin): Yes
- Number of fans: 1 fans
- Product color: Black
- Power factor correction filter (PFC): Active
- Combined current (+3.3V) 100 W
- Combined current (+12V): 850 W
- Combined current (+5V): 100 W
- Combined current (-12V): 3.6 W
- Combined current (+5Vsb): 15 W
- Bearing type: Ball bearing
- On/off switch: Yes
- Average time between failures (MTBF): 120000 hours
- Cooling: Active
- Energy protection properties: Overcurrent, overload, overvoltage, overheating, short circuit, Undervoltage
- Cable type: Fully modular
- Product type
PC power supply unit
- PSU output power
850 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
1.55 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
70.83 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
3
- 6-pin PCIe
3
- 5-pin SATA
3
- Power rating
751 W -
- 3.3V DC
20 A
- Operating voltage
110 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443613 Asus 90YE04A0-B0NC00 PC power supply unit 850 W ATX 80 PLUS Gold
