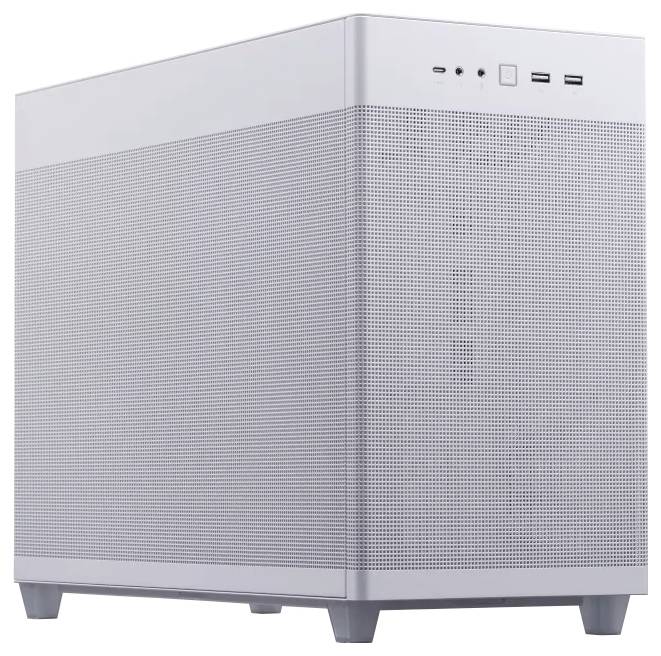

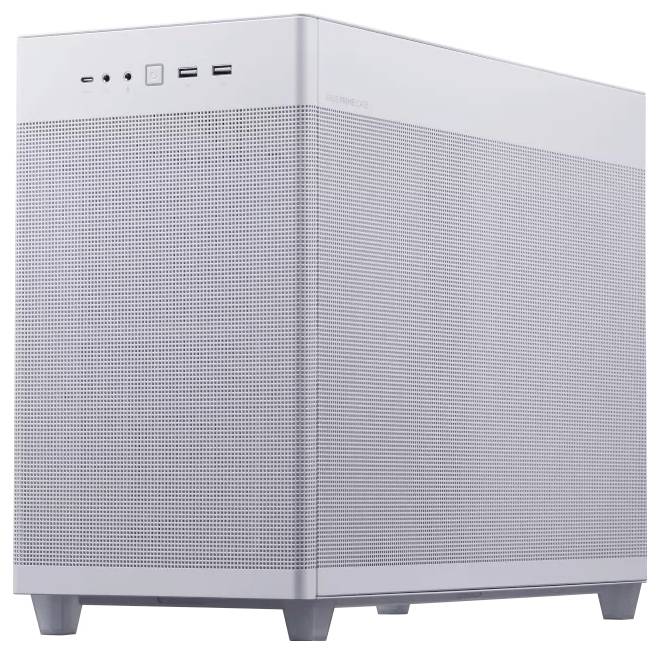

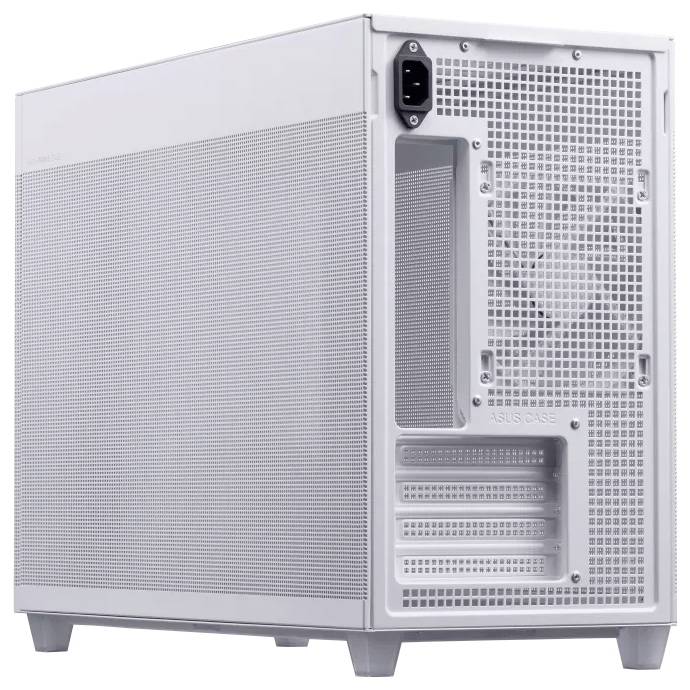

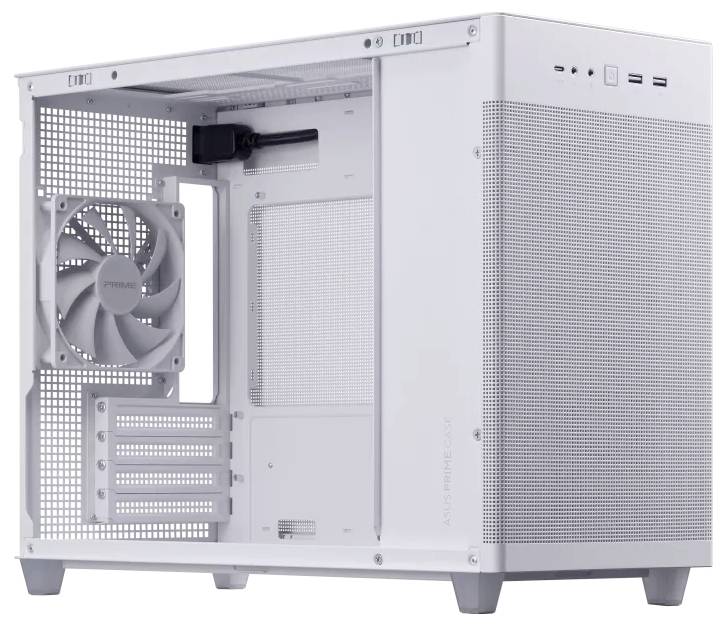

Asus AP201 Mini tower PC casing White
EAN:
Part number:
Item no:
Asus AP201 Mini tower PC casing
Highlights & Details
- Mini Tower PC
- Micro ATX, Mini ITX
- Supported hard-disk drive sizes: 2.5,3.5"
- Number of 2.5" expansion slots: 1 Number of 3.5" expansion slots: 3
- Side windows Hardened glass panel(s) anti-dust filter
- White
Technical specifications
- Form factor:Mini Tower
- Supported motherboards Form factors: Micro ATX,mini ITX
- Product type
PC casing
- Case type
Mini tower
- Factory colour
White
- 8.9 cm (3.5") internal slots
3
- 6.4cm (2.5 ") external shafts
1
- Width
205 mm
- Height
460 mm
- Depth
350 mm
- Weight
5.8 kg
- Form factor
Micro-ATX
- Wireless charging
No
- Dim
(W x H x D) 205 x 460 x 350 mm
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Keyboard layout
German, QWERTZ
- Type
PC
- UKCA
yes
- Cable management
yes
- Tempered glass panel(s)
yes
- Anti-dust filter
yes
- Number of rear fans supported (max)
1
- Number of top fans supported (max)
3
- Side window
yes
- Maximum CPU cooler height
17 cm
- Maximum graphics card length
33.8 cm
- Number of expansion slots
4
- Maximum PSU length
18 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3414286 Asus AP201 Mini tower PC casing White
Description
OR NOT AT ALL. REMAIN COMPACT.
33-LITER COOL
The Asus PRIME AP201 Tempered Glass version is a breakthrough in the microATX housing design and offers a powerful platform, which loads 360 mm AIO cooler and up to 338 mm long graphics cards, all in a compact 33 liter housing. Tool-free side panels also provide easy access and complete a tasteful, minimalist aesthetic that can be the heart of any DIY PC.
INDUSTRY-LEADING EFFICIENCY
CHARGE
Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm in length, graphics cards up to 338 mm in length, custom liquid cooling systems, and a variety of storage devices.
OPTIMIZED FOR AIR FLOW
COOLING
With the support of 280 and 360 mm radiators and up to 6 fans, the AP201 is equipped for the thermal rush of SFF rigs with multi-core CPUs and high-end graphics cards.
REMOVABLE DUST FILTER
TAKE A BREATH
The two 120 mm fan mounts on the bottom of the AP201 contain a dust filter that can be removed for easy cleaning or further improvement of the airflow.

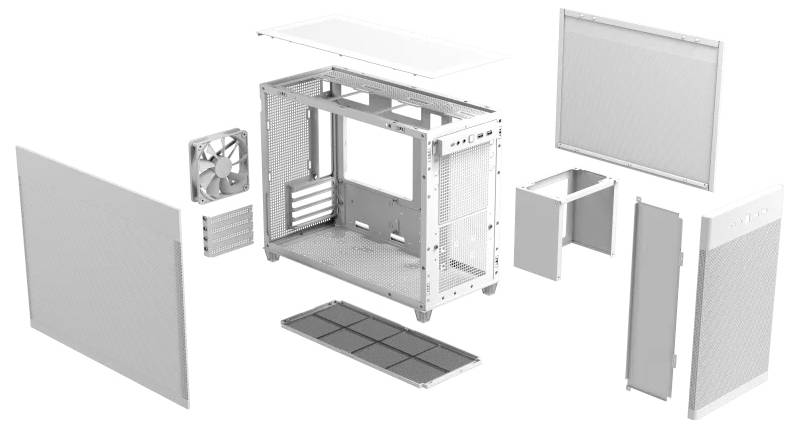

SIDE PANELS WITHOUT TOOLS
UNRESTRICTED ACCESS
Instead of having to knock around with screws or potentially uncomfortable hinges, the side panels of the AP201 are attached to the chassis with a simple but secure clip mechanism. So they can be easily removed, if you want to access the inner life of the casing, and are protected against accidental falling out.

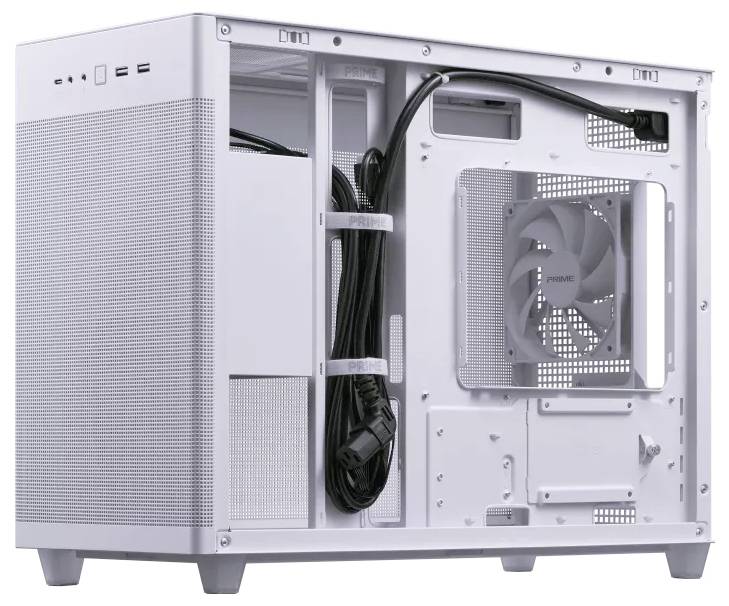

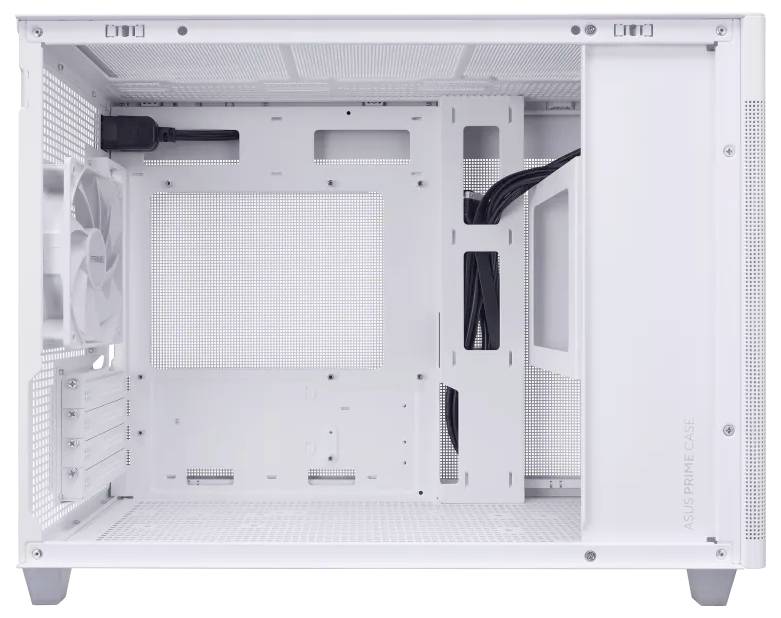

EXTENSIVE CABLE MANAGEMENT
ORDER ACCORDING TO YOUR TASTE
The AP201 has a 32 mm wide compartment behind the power supply bracket, which provides sufficient space to lay cables out of sight and ensure a clean aesthetics in your DIY PC.
COLOR-CODED CABLE
BLACK OR WHITE
The AP201 is available in black or white and its cables are designed to the color of the enclosure to give a high-quality impression.

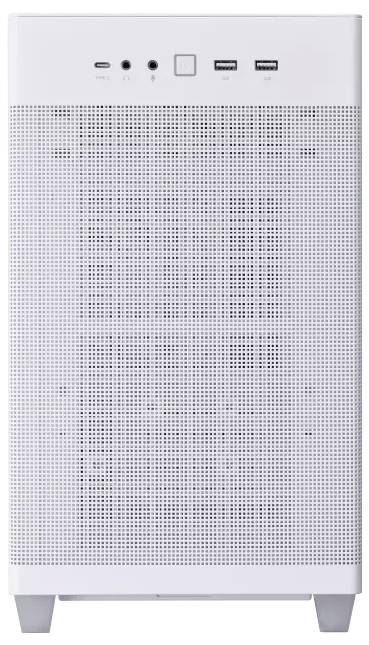

USB TYPE C® SUPPORT ON THE FRONT PANEL
QUICK CONNECTIONS
In addition to two USB 3.2 Gen 1 connectors (Type A), the AP201 also has a Type C connector designed for USB 3.2 Gen 2 on the front.
This text is machine translated.
Features
- Optimized for cooling: With support of 280 and 360 mm radiators and up to six fans, the AP201 is equipped for the thermal rush of high-performance hardware
- Industry-leading efficiency: Despite a footprint of 33 L, the AP201 supports ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices
- Side panels without tools: With a simple, but secure clip mechanism the side parts of the casing can be detached easily and are secured against accidental loosening
- Extensive cable management: The AP201 has an extended motherboard tray with strategically placed cutouts and a 32 mm gap to take cables out of sight
- Front USB Type-C® support: At the front of the AP201, there is a USB 3.2 Gen 2 Type C port that allows you to achieve transfer speeds of up to 10 Gbps
