Asus ASUS P13R-E/10G-2T (1700) (D) V2 Motherboard and CPU Form factor (details) ATX
EAN:
Part number:
Item no:
Asus P13R-e/10G-2T Intel C266 LGA 1700 ATX
Highlights & Details
- Intel LGA 1700 Intel® Pentium®, Intel Xeon E
- Server ATX Intel C266
- DDR5 SDRAM 4 DIMM RAM maximum: 128 GB
- HDD & SSD PCI Express, SATA III Number of supported storage drives: 10
- 10 Gigabit Ethernet
Technical specifications
- LGA 1700 processor socket
- Supported processor slots: LGA 1700
- Supported memory: DDR5 SDRAM
- ECC compatibility: ECC
- Maximum internal memory per slot: 32 GB
- Number of EPS power connections (4-pin): 1
- Intel C266 motherboard chipset
- 1. M.2 Largest key size: 22110
- 1. M.2 highest PCI Express generation: 4.0
- 2. M.2 Largest key size: 22110
- 2. M.2 highest PCI Express generation: 4.0
- Product type
Motherboard and CPU
- Form factor
ATX
- No. of PCIe 3.0 x16
1 x
- No. of SATA III ports
8 x
- No. of USB 2.0 ports
1 x
- Factory colour
Black
- Depth
24.4 cm
- Height
100 mm
- Width
30.5 cm
- No. of VGA ports
1 x
- No. of USB A 2.0 ports
2 x
- No of. USB type A 3.1 /3.2 2nd gen
4 x
- Cooling
Passive
- 10/100/1000 Mbps ports
2 x
- RAM / Max. upgrade
128 GB
- RAM type
DIMM
- Range of use
Server
- Weight
800 g
- Wi-Fi
No
- UKCA
yes
- Operating temperature (T-T)
10 - 50 °C
- Ethernet LAN
yes
- Storage relative humidity (H-H)
20 - 90 %
- Number of memory slots
4
- Number of M.2 (M) slots
2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Front panel connector
yes
- 12V power connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- Number of HDDs supported
8
- TPM connector
yes
- PCI Express x4 (Gen 4.x) slots
2
- Supported memory clock speed (max)
4400 MHz
- PCI Express x8 (Gen 5.x) slots
1
- EPS power connector (8-pin)
yes
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
1.9 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Number of storage drives supported
10
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3589264 Asus ASUS P13R-E/10G-2T (1700) (D) V2 Motherboard and CPU Form factor (details) ATX
Description

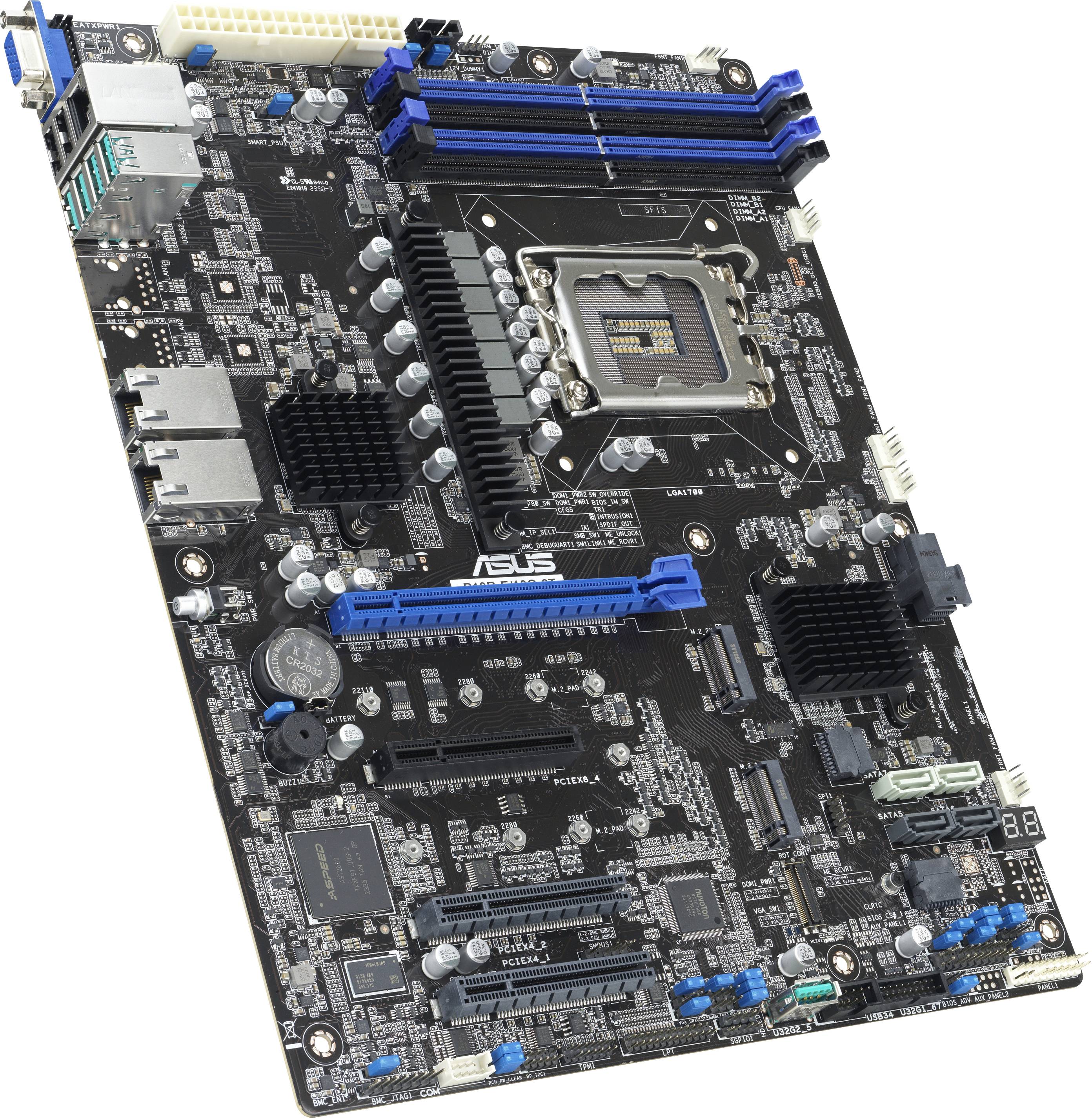

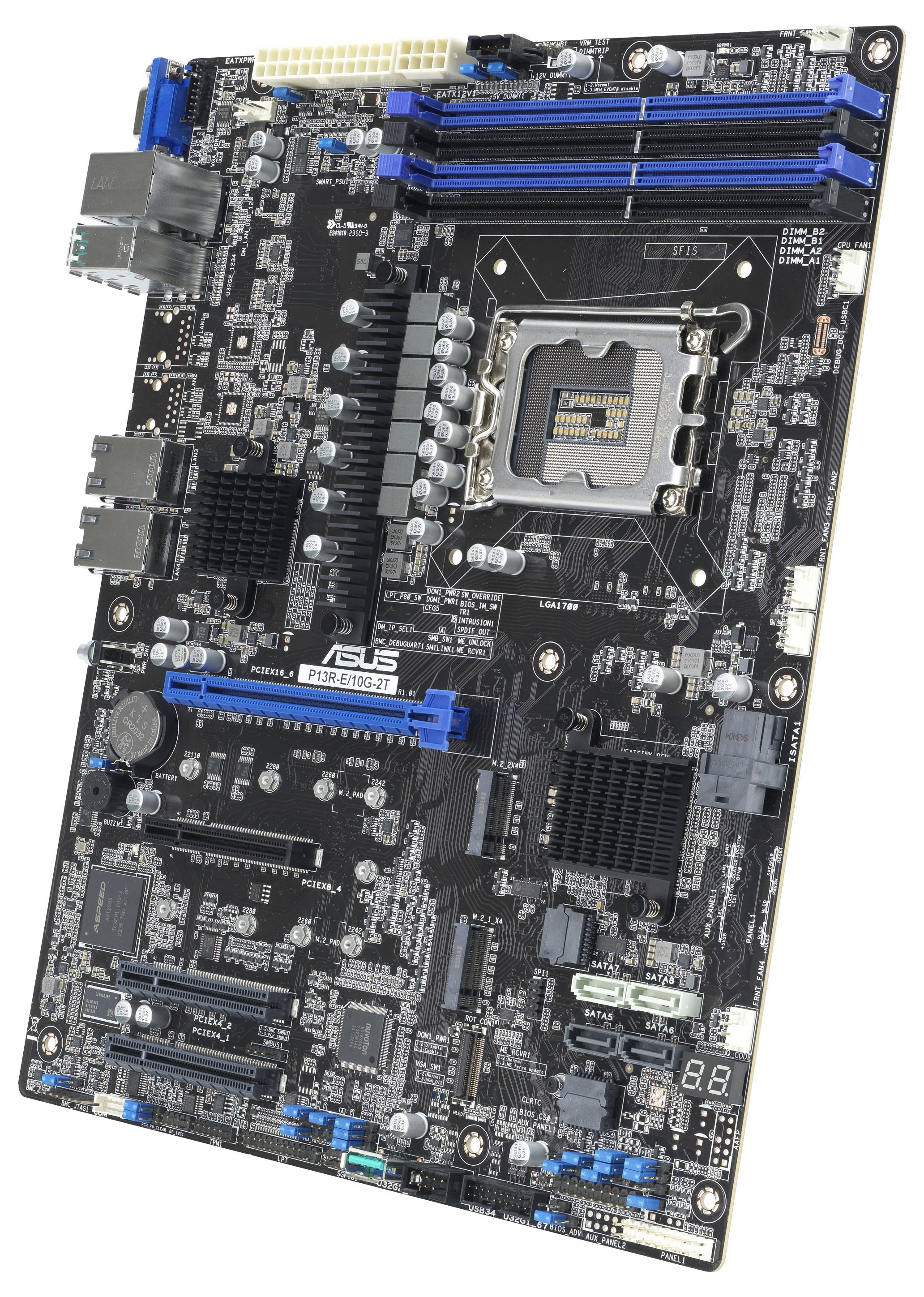

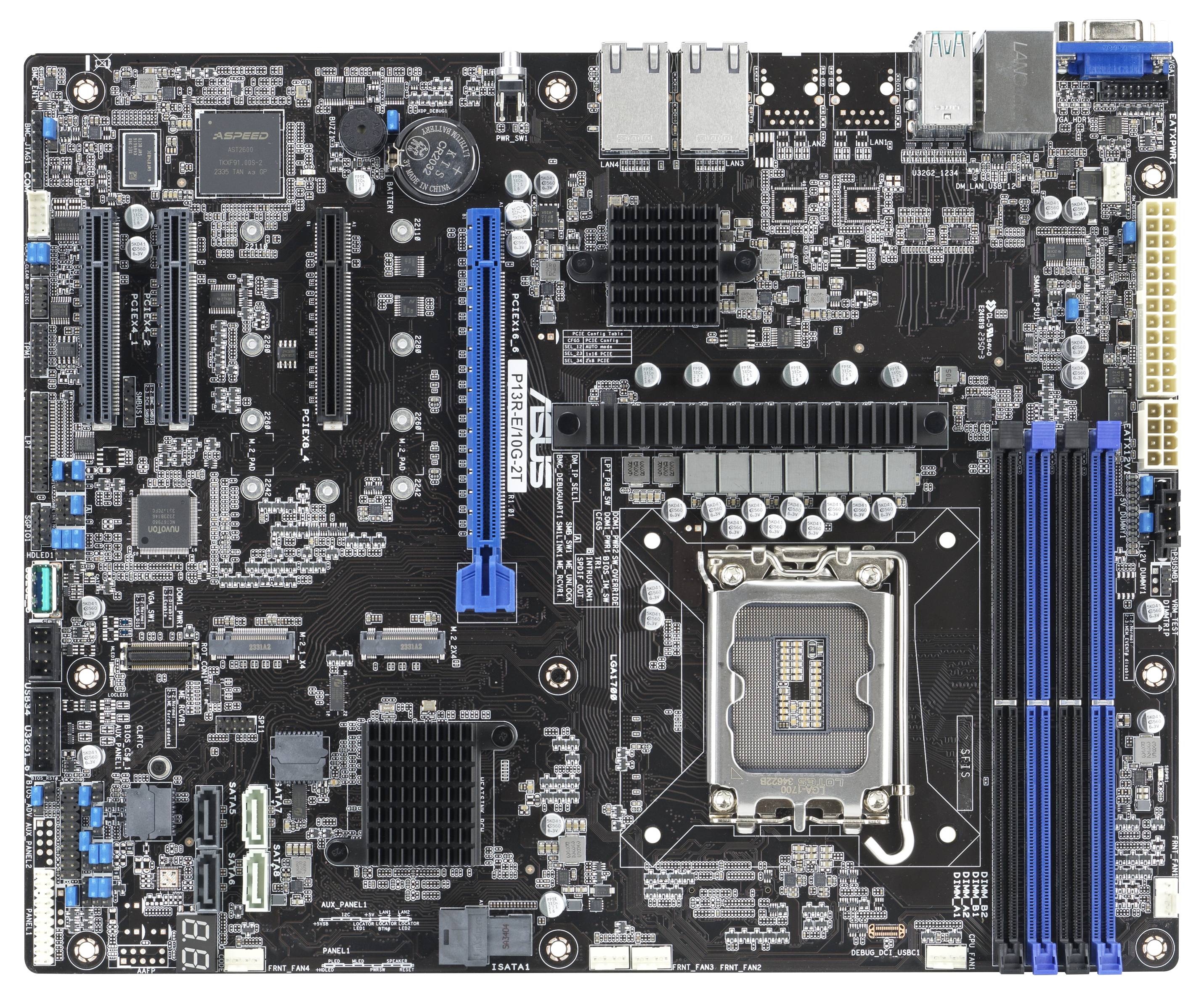

ATX server board with LGA 1700 for Intel® Xeon® E-2400 and Xeon® 6300 processors. It supports four DDR5 ECC UDIMM slots, two M.2 slots, Dual 10 GB LAN, eight SATA ports, two PCIe 5.0 and two PCIe 4.0 slots, four USB 10Gbps ports, two USB 2.0 ports, and an integrated Asus ASMB11 iKVM management module.
Ready for PCIe 5.0
PCI Express® (PCIe®) 5.0 offers 32 GT/s bandwidth. The Asus P13R-E/10G-2T supports PCIe® 4.0 and 5.0 for improved network scalability and backward compatibility – Ideal for increasing demands of modern data centers.
Intel Xeon E-2400 / Xeon 6300 Processors
Designed for small and medium-sized businesses and cloud service providers. They provide up to 8 cores and 16 threads, a clock frequency of up to 5.6 GHz and 95 W TDP. It supports up to 128 GB DDR5 memory with 4400 MT/s (E-2400) or 4800 MT/s (6300) as well as PCIe 5.0 – for reliable 24/7 operation and cost-effective cloud performance.
Four fast USB 3.2 1st Gen 2 ports
The Asus P13R-E/10G-2T has four USB 3.2 Gen 2 ports at the rear for fast, reliable data transfer at up to 10 Gbps. They are fully backwards compatible.
Dual Ethernet bandwidth
With two built-in LAN ports based on the Intel X710-AT2 Ethernet controller, the board provides reliable, low-latency connections for high data volumes in compute-intensive applications.
Versatile storage and SSD integration
The P13R-E/10G-2T offers eight SATA ports, four DDR5 ECC UDIMM slots with up to 128 Gb/s and two M.2 22110 slots for fast booting. This equipment accelerates virtualized workloads and increases productivity.
Comprehensive IT infrastructure management
The board has an integrated iKVM module and is optionally equipped with the Asus control center (ACC). It provides comprehensive out-of-band and in-band management capabilities, Ideal for small and medium businesses. The ASMB11 iKVM module supports remote BIOS updates, fan control, independent KVMs, video recording, and BSOD detection even when the operating system is not active. The web-based interface is compatible with all popular browsers.
Asus control center (ACC) also improves management by centrally monitoring and managing Asus servers, workstations and digital signage. It supports remote BIOS updates, mobile system monitoring, and easy management through one-click updates and software distribution.
This text is machine translated.
Ready for PCIe 5.0
PCI Express® (PCIe®) 5.0 offers 32 GT/s bandwidth. The Asus P13R-E/10G-2T supports PCIe® 4.0 and 5.0 for improved network scalability and backward compatibility – Ideal for increasing demands of modern data centers.
Intel Xeon E-2400 / Xeon 6300 Processors
Designed for small and medium-sized businesses and cloud service providers. They provide up to 8 cores and 16 threads, a clock frequency of up to 5.6 GHz and 95 W TDP. It supports up to 128 GB DDR5 memory with 4400 MT/s (E-2400) or 4800 MT/s (6300) as well as PCIe 5.0 – for reliable 24/7 operation and cost-effective cloud performance.
Four fast USB 3.2 1st Gen 2 ports
The Asus P13R-E/10G-2T has four USB 3.2 Gen 2 ports at the rear for fast, reliable data transfer at up to 10 Gbps. They are fully backwards compatible.
Dual Ethernet bandwidth
With two built-in LAN ports based on the Intel X710-AT2 Ethernet controller, the board provides reliable, low-latency connections for high data volumes in compute-intensive applications.
Versatile storage and SSD integration
The P13R-E/10G-2T offers eight SATA ports, four DDR5 ECC UDIMM slots with up to 128 Gb/s and two M.2 22110 slots for fast booting. This equipment accelerates virtualized workloads and increases productivity.
Comprehensive IT infrastructure management
The board has an integrated iKVM module and is optionally equipped with the Asus control center (ACC). It provides comprehensive out-of-band and in-band management capabilities, Ideal for small and medium businesses. The ASMB11 iKVM module supports remote BIOS updates, fan control, independent KVMs, video recording, and BSOD detection even when the operating system is not active. The web-based interface is compatible with all popular browsers.
Asus control center (ACC) also improves management by centrally monitoring and managing Asus servers, workstations and digital signage. It supports remote BIOS updates, mobile system monitoring, and easy management through one-click updates and software distribution.
This text is machine translated.
Features
- Powered by eight-core Intel Xeon E-2400 and Xeon® 6300 series processors with support for up to 95 W TDP
- Flexible expandability with eight SATA connectors, two PCIe 5.0 slots and two PCIe 4.0 slots
- Two Intel I210-AT2 LAN ports with up to 10 Gb/s and teaming support
- Four DDR5 ECC UDIMM slots with up to 128 Gb/s and one M.2-22110 slot for faster booting
- Integrated Asus ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- ATX mainboard with extensive I/O expansion capabilities – Ideal for fast data storage and general server applications
