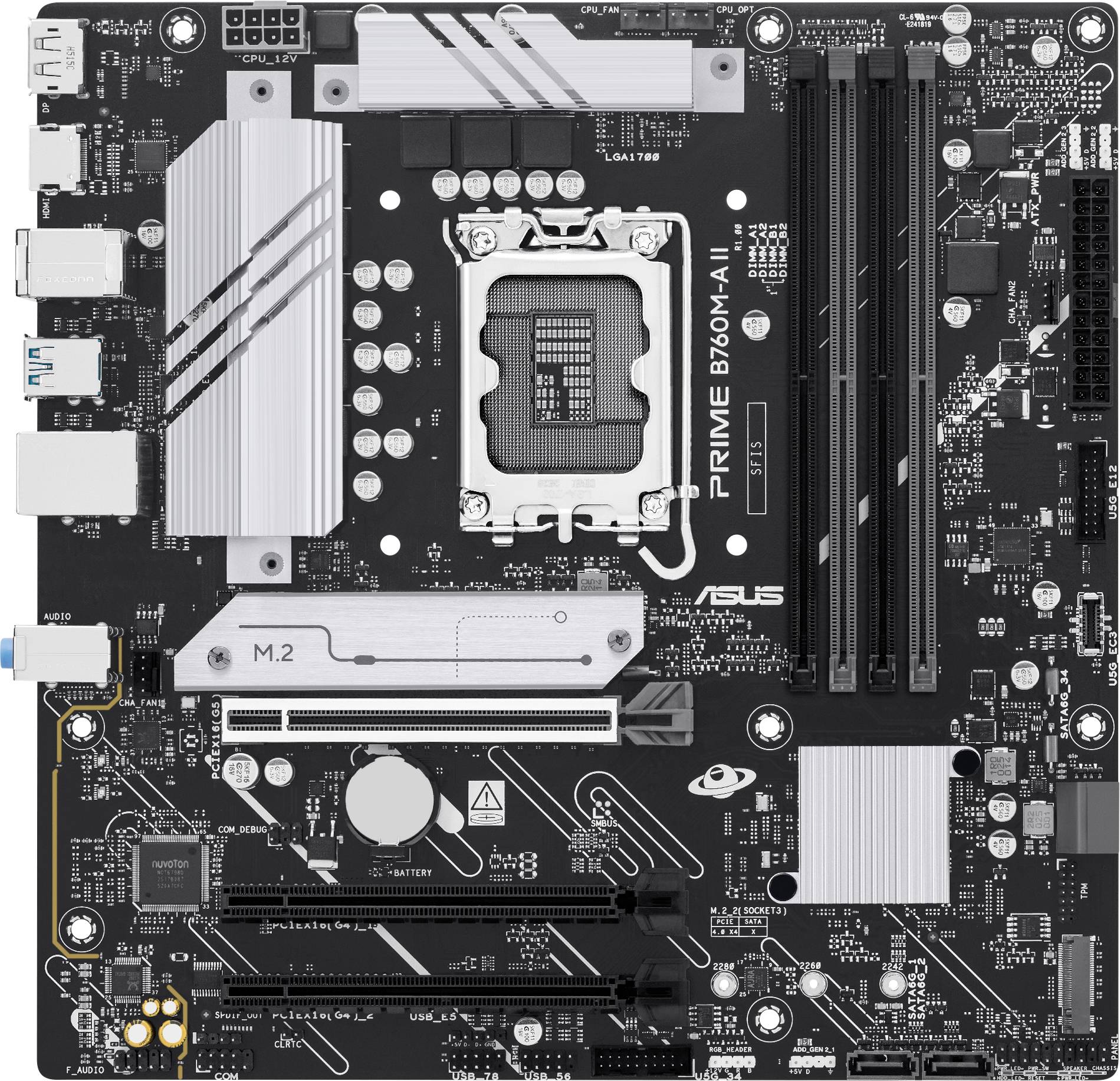

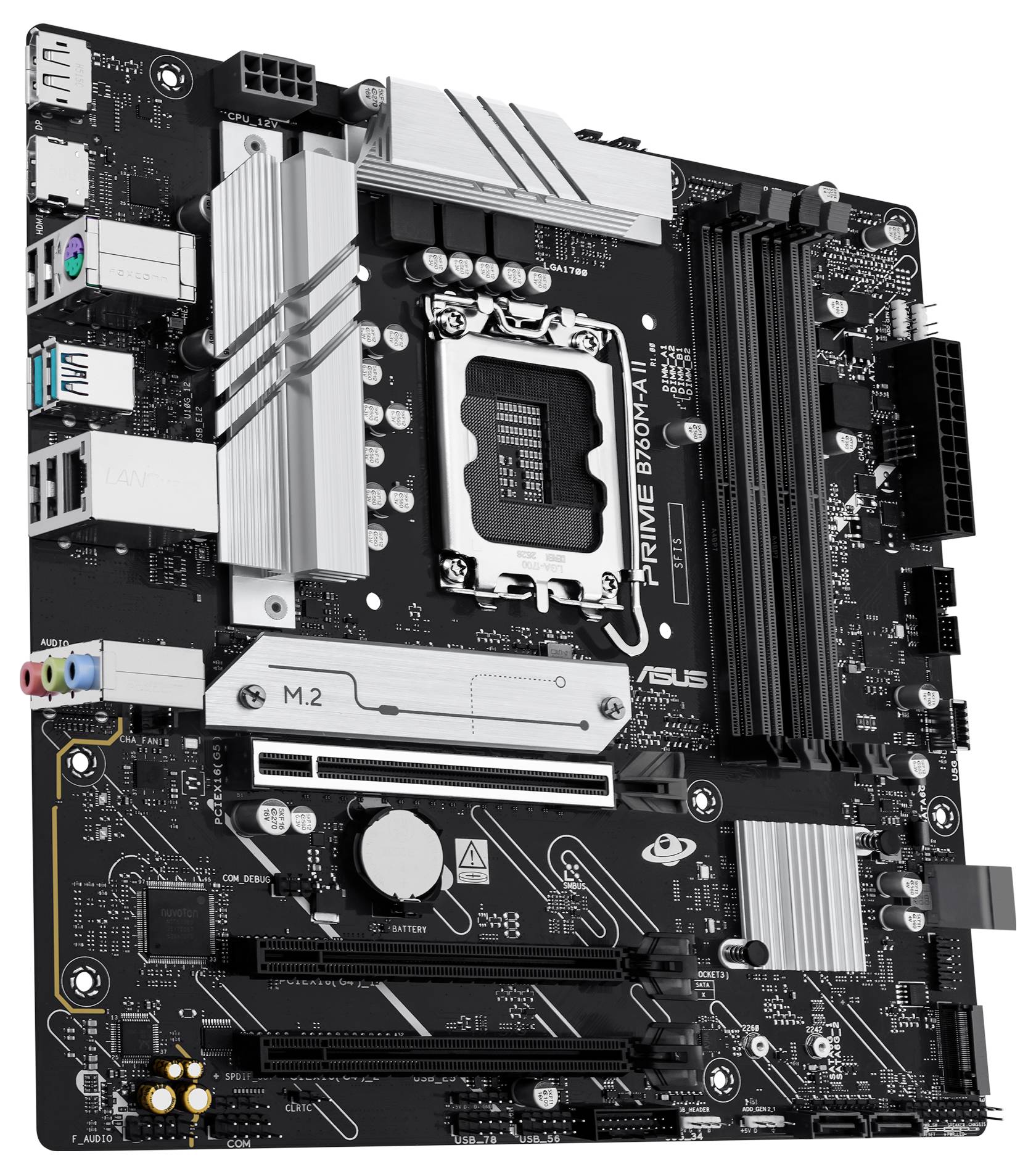

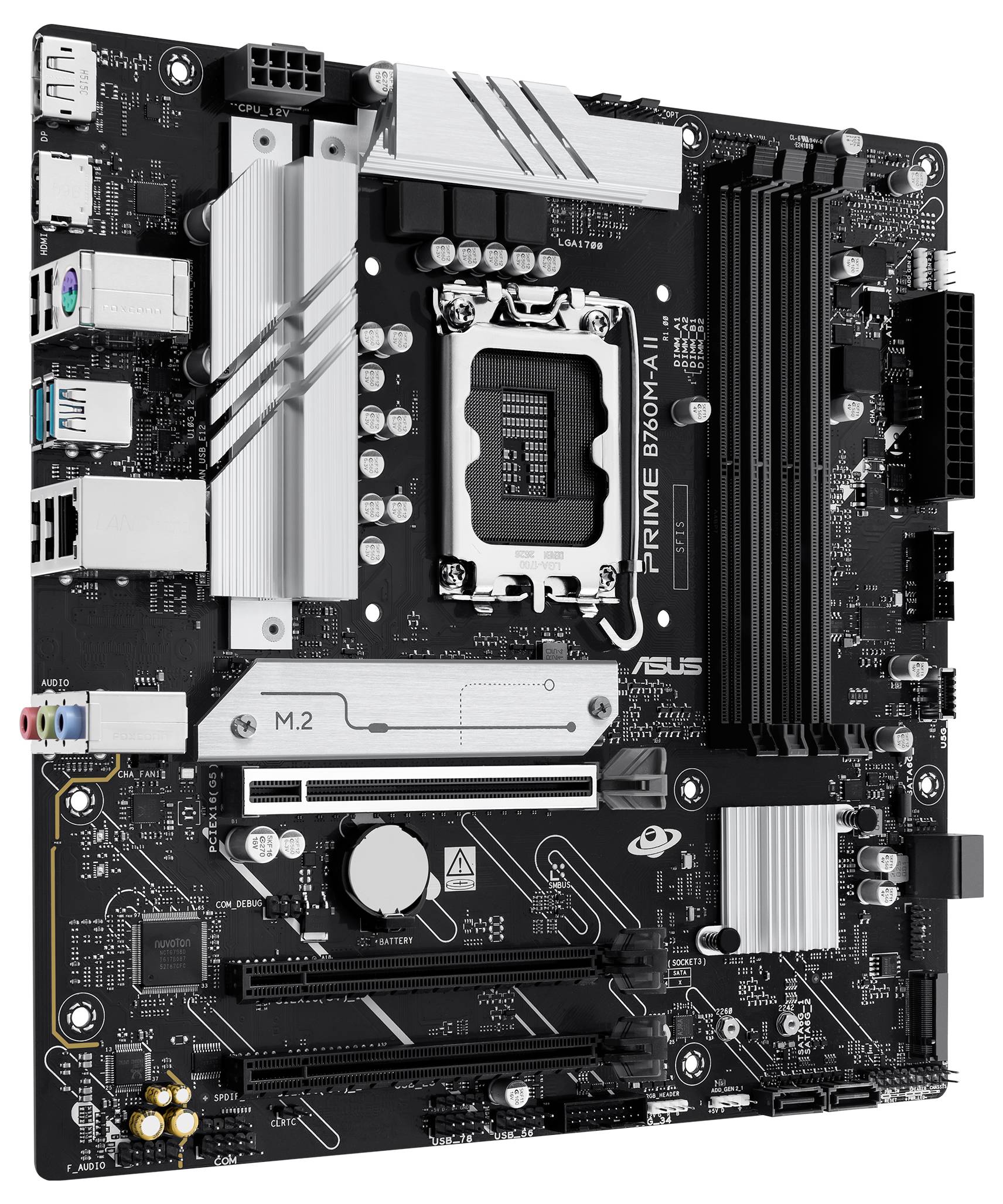

Asus ASUS PRIME B760M-A II-CSM LGA 1700 MB Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard c

The motherboards of the Asus PRIME series were developed by experts to reach the full potential of 14. Gen Intel® Core™ processors. With a robust performance design, comprehensive cooling solutions and intelligent tuning options, the PRIME B760M-A II-CSM offers users and PC-DIY builders a range of performance enhancements via intuitive software and firmware features. This platform provides the performance and connectivity that advanced AI PC applications require.


Asus corporate stable model

Asus corporate stable model (CSM) is a commercial program designed to provide stable and reliable motherboards. We provide up to 36 months of product lifecycle support and 6 months of pre-notification for the end of the product lifecycle to allow the company to prepare for product transitions. Each time you purchase a Asus CSM board, Asus Control Center Express is included - server-quality IT management software.
* Lifecycle support, program offering, and delivery status may vary by region. Please contact your local sales representative for more information.

Asus control

Centre Express

Asus Control Center Express is an integrated IT monitoring and management software designed to accelerate deployment, simplify IT operations, and improve productivity through comprehensive control and user-friendly features. Compatible with over 100 Asus boards, Asus Control Center Express offers a high-quality, TCO-optimized solution for business needs.


Optimize IT endpoint management

Designed to help IT staff monitor and control devices on their corporate networks and facilitate remote inventory at multiple locations


Automate IT maintenance

Allows IT personnel to schedule automatic updates of the latest BIOS, software, and utilities for specific or all devices at low-traffic times to improve system stability and IT operational flexibility


Secure management of all endpoints

Secure management of endpoint configuration, access to portable storage, and PC software applications by enabling the ability to create grouping rules for individual devices


FLEXIBILITY

Extensive control options form the basis of the Asus PRIME series. The Prime B760 motherboard offers flexible tools to help you optimize every aspect of your system. This allows you to adjust performance perfectly to your way of working and maximize productivity.


Intelligent control

Asus intelligent control makes your PC intelligent. Not only does it handle complex tuning and dynamic optimization of key aspects of your system, it also offers intelligently simplified options for newcomers to PCs and more comprehensive capabilities for experienced veterans.


Flexible controls for air and water cooling

The Asus fan Xpert 2+ software offers comprehensive control of the fan and all-in-one (AiO) cooler. No matter, whether you are cooling with air or water, the Auto-Tuning mode configures all parameters intelligently with a single click. There is also an extremely quiet mode, which reduces the fan speeds below the standard minimum, so that your system remains whisper-quiet in light tasks. Fans and AiO coolers can also be controlled through the UEFI BIOS.


Precise digital power control

The Digi+ Voltage Regulator Module (VRM) provides real-time control over the voltage drop and automatically controls the frequency and energy efficiency settings. It also allows you to optimize your CPU for ultimate stability and performance.


UEFI BIOS

The renowned Asus UEFI BIOS provides everything WAS you need to configure, optimize and tune your system. It offers both intelligently simplified options for beginners to PC and comprehensive features for experienced veterans.


Advanced tuning for passionate Tweaker

An intuitive advanced mode, offered via the UEFI, lets you take full control. A built-in search feature makes it easy to find options and various advanced features allow you to make smart adjustments so you can adjust the performance exactly as you want it.


Fast and easy setup

EZ Mode displays important settings and statistics, plus wizards, drag-and-drop features, and the ability to make important settings with one click - so you can set up your system in no time at all.


Intuitive graphical fan control

Fine tuning of individual fan settings is carried out simply by dragging a curve with the mouse.


Aura on/off mode (Stealth)

Activate or deactivate the Aura RGB lighting or each LED on board to improve aesthetics.


COOLING

The Prime B760 series is equipped with several onboard heat sinks and a series of hybrid fan headers to ensure that your system stays cool and stable even under heavy loads.

Heat Sinks


M.2 Heat sink

The M.2 heat sink prevents the threshing, which can occur with M.2 storage during sustained transmissions. The heatsink is held by captive screws. These removable captive screws reduce the risk of the heat sink falling or being lost when removed.


VRM heat sinks and heat conductive pads

VRM heat sinks and heat conductive pads improve the heat transfer from the MOSFETs and mounting stones for better cooling performance.


Cooler by design

The Prime B760 series features comprehensive cooling controls that can be configured via the Fan Xpert 2+ software or the UEFI BIOS.


Multiple temperature sources

Each connection can be dynamically assigned to one of three temperature sensors. With Fan Xpert 2+ you can map the temperature of the supported Asus graphics cards to optimize the cooling for GPU-intensive and CPU-intensive tasks.


Intelligent protection

A special integrated circuit protects each fan connector from overheating and overcurrent.


4-Pol-PWM/DC-fan connection

Each onboard header supports the automatic detection of PWM or DC fans.


PERFORMANCE

The PRIME B760 series is designed to meet the high core numbers and bandwidth requirements of 14, 13 and 12 Gen Intel® processors. The Asus B760 motherboard offers all the basics, in order to increase the daily productivity. Your system is ready for use with stable performance, intuitive cooling and flexible data transfer options.


Robust Power design

A stable power supply is essential to achieve the last quantum of performance from the Intel® processors. The PRIME B760M-A II-CSM is designed to meet the needs of these high-core CPUs.


ProCool connection

Proprietary connectors complement the connection of the mainboard to the power supply with 8-pin connectors that directly pass 12 volts to the processors. Each socket is fitted with massive contacts, which can handle higher currents than sockets with hollow contacts.


Six-layer printed circuit board design

Several PCB layers optimize the heat dissipation for critical components and offer more room to accelerate CPUs beyond the standard clock rates.

Memory


AEMP II for ultimate DDR5 power

Asus Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for memory modules with PMIC restriction. AEMP II is based on the ability of a CPU and a memory module to train the memory chips of your kit and offers an optimized clock rate, which can release the performance easily.

A flexible training method makes it easy to not only optimize the memory beyond the basic settings, but also maintain the stability of the system, whether you get the best out of an entry-level module or prepare a high-speed kit for the ultimate performance.

Asus OptiMem II

Revised logic paths on the motherboard provide the latest processors with full access to memory bandwidth. Asus OptiMem II technology carefully maps the signal paths of the memory over the different PCB layers to reduce through-contacting and adds shielding zones that significantly reduce crosstalk.


Benefits of Asus OptiMem II:


Improved memory stability and compatibility
Enables lower memory latency at the same voltage
Higher reserves of the storage frequency

Boards with OptiMem II technology have been tested with Synopsys HSICE simulation software

HDDs

Two M.2 slots (up to 64 Gbps)

The PRIME B760 motherboard offers a total of two M.2 slots that support data transfer speeds of up to 64 Gb/s over PCIe4.0, enabling faster boot and loading times of operating systems or applications.
*Actual transmission speed is lower than theoretical maximum speed.

Connectivity


PCIe 5.0 slot

The latest processors support PCIe 5.0, WAS doubles the data transfer rate as compared to PCIe 4.0, improving signal integrity and providing backward compatible CEM connections as well as support for earlier versions of PCIe.


USB 5 Gbps type C®

Numerous USB ports support high-end systems with a wide range of peripherals, including front USB Type C® ports with fast USB 5 Gbps technology for transmission speeds of up to 5 Gbps.


Realtek 2.5 GB ETHERNET

Realtek 2.5 GB Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster and smoother data transfer.


LANguard

Asus LANguard is a hardware-level network protection feature that integrates advanced signal coupling technology and high-quality surface-mounted anti-EMI capacitors to improve throughput and ensure a more reliable connection.


Combined onboard functions provide first-class sound

Intelligent design and high-quality hardware provide an audio quality, which you have never experienced before.


Audio shielding

The audio shielding provides a precise analogue/digital separation and a strongly reduced multilateral interference.


Dedicated audio PCB layers

Separate layers for the left and right tracks ensure that both channels deliver the same quality.


Premium audio capacitors

Offers a warm, natural and realistic sound with extraordinary clarity and fidelity.

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a suitable aesthetic. Asus aura offers full RGB lighting control with a variety of presets for the built-in RGB LEDs as well as for strips and devices connected to the onboard RGB headers - all of which can be synchronized with a constantly growing portfolio of Aura-enabled hardware.


Addressable Gen 2 header

Three addressable Gen 2 headers can detect the number of LEDs on second-generation addressable RGB devices, allowing the software to automatically tune light effects to specific devices. The new headers are also backwards compatible with existing Aura RGB devices.


Armoury Crat

Within a single intuitive user interface, the Armoury Crate offers easily customizable Aura Sync RGB settings for any compatible device in your arsenal as well as controls for a constantly growing family of Asus products, including keyboard and mouse settings. Armoury Crate also integrates a product registration and newsfeed so you don't miss updates that are interesting for the Asus community.


Asus driver hub

Asus DriverHub simplifies the installation and management of Asus drivers and utilities, so your hardware is always up to date and works optimally. This standalone application automatically detects the current driver versions and displays available updates in a list view. By default, Asus boards are supported and users are prompted to install Asus DriverHub after operating system installation. In addition, Asus DriverHub offers a one-click installation and update check, which makes it easier for users to operate their system smoothly and efficiently.
