Asus ASUS ROG STRIX X870-A Gaming WIFI (AM5) Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chip
EAN:
Part number:
Item no:

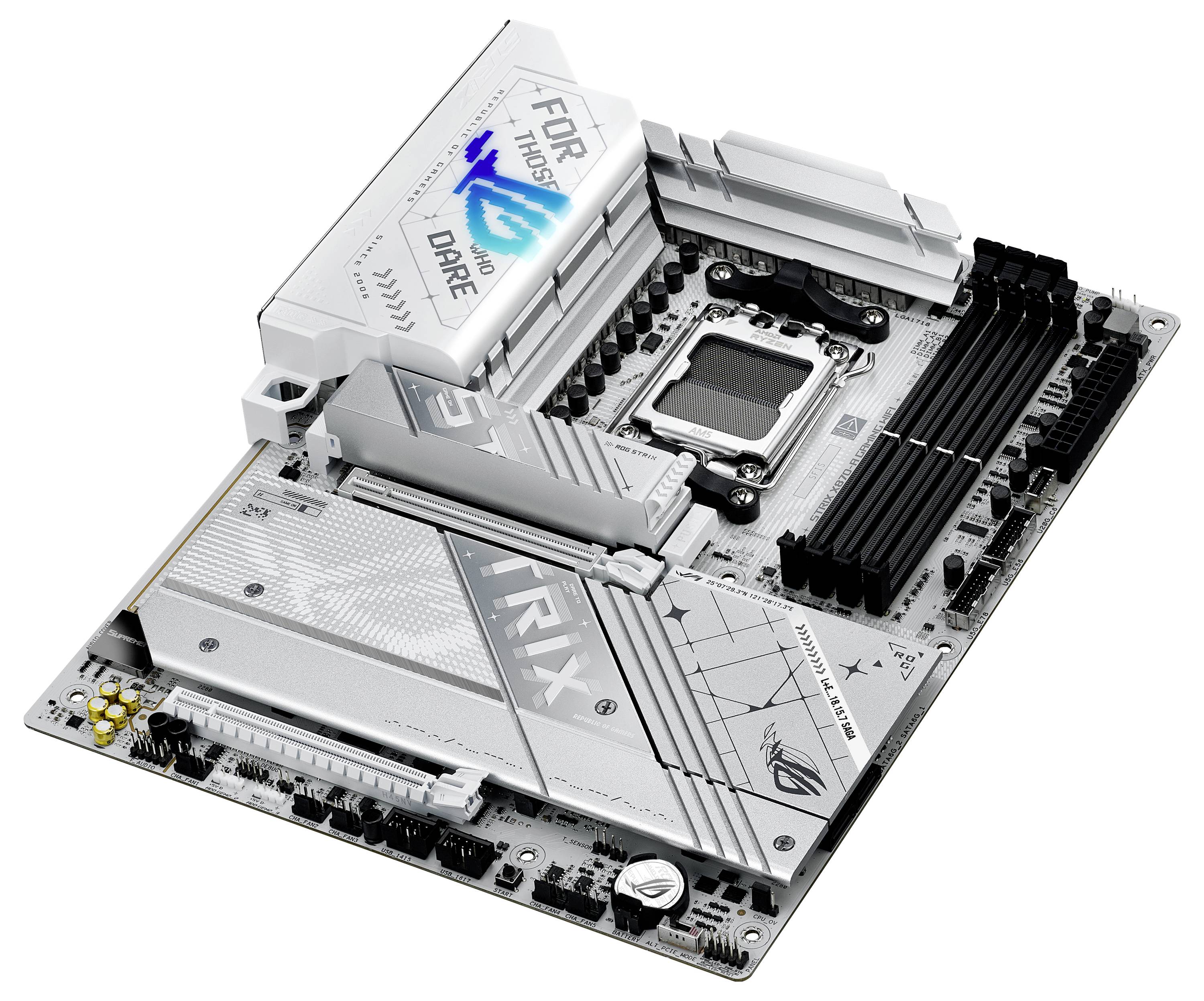

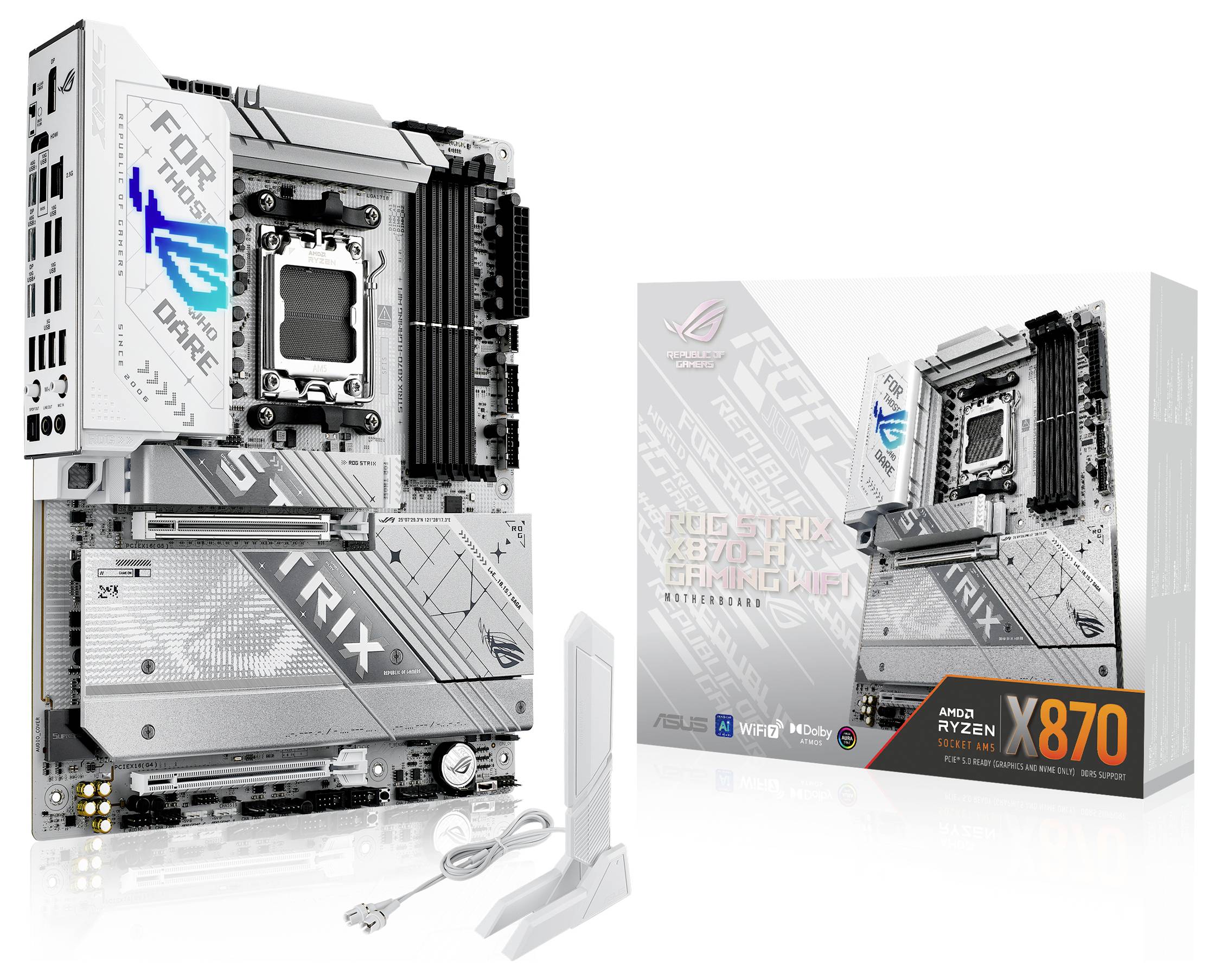

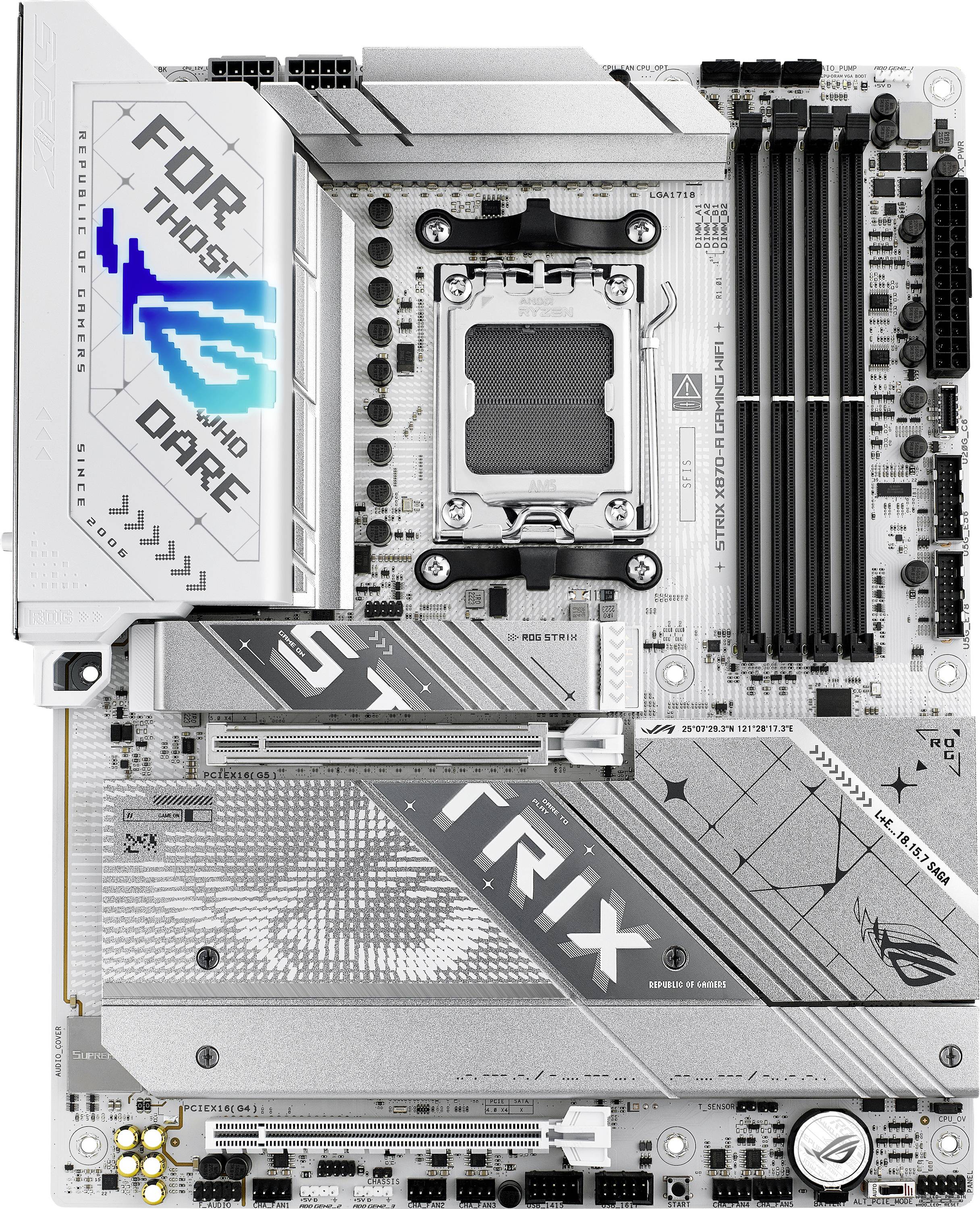

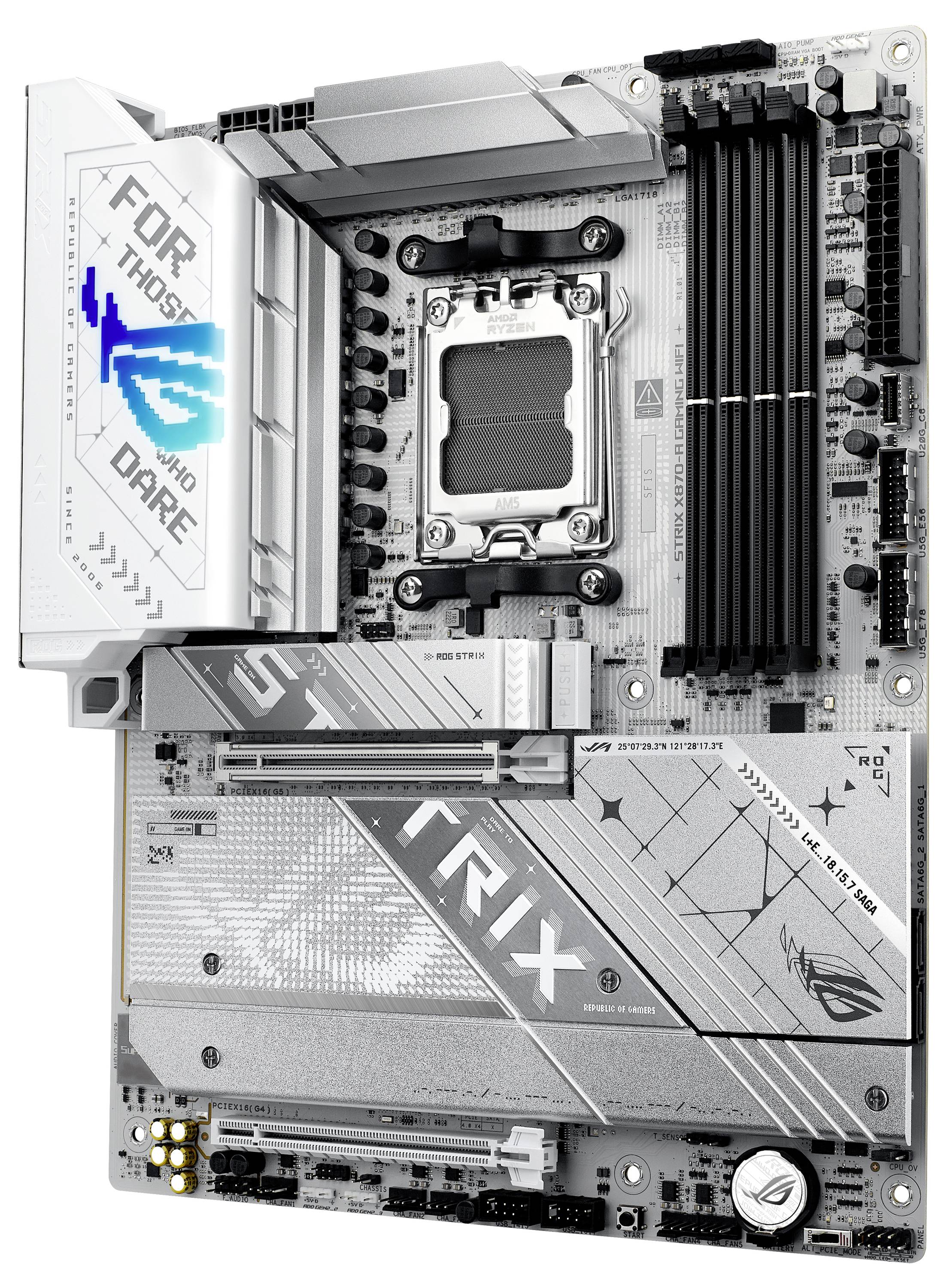

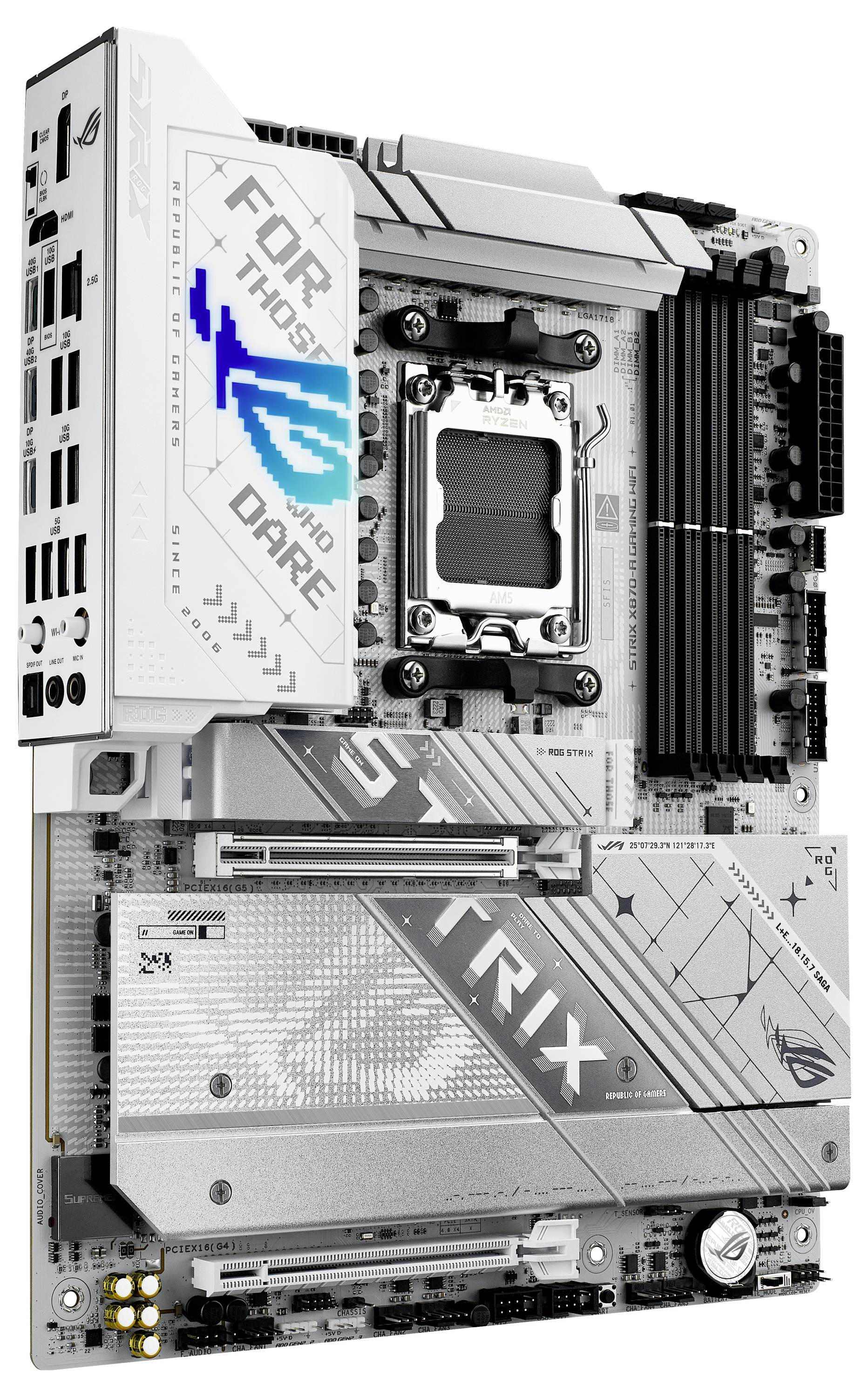

Asus ASUS ROG STRIX X870-A Gaming WIFI (AM5) Motherboard
Highlights & Details
- AMD Socket AM5
- PC ATX AMD X870 Realtek ALC4080 7.1 channels
- DDR5 SDRAM 4 DIMM ECC Without ECC RAM Maximum: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
- BIOS type UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Product type
Motherboard
- Chipset
AMD® X870
#####AMD AM5
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
192 GB

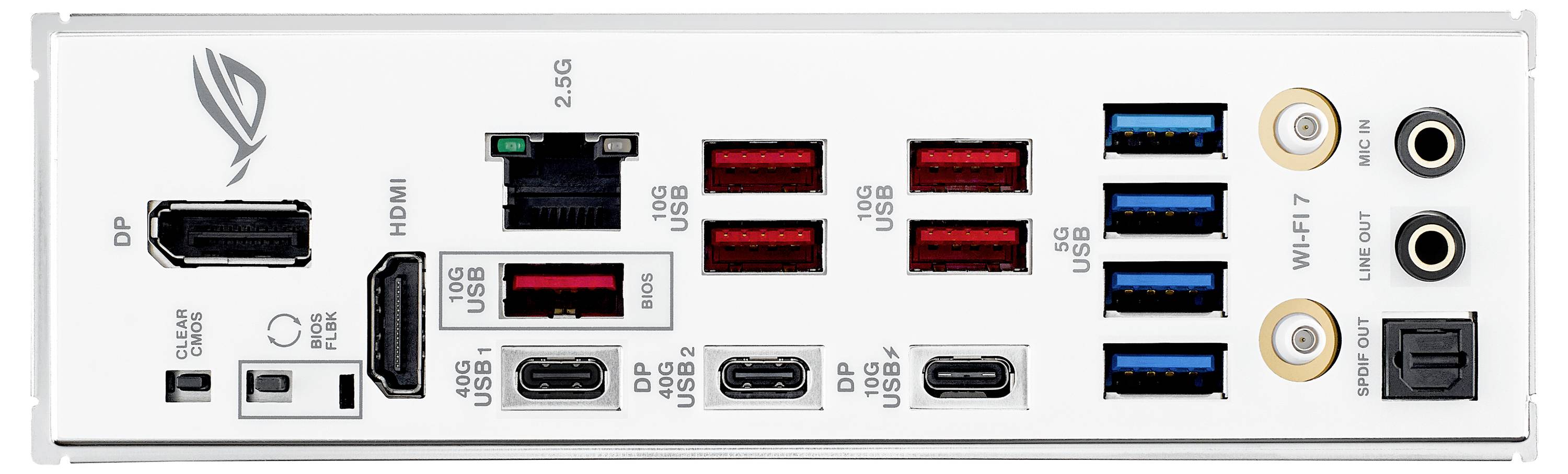

- Interfaces
USB A (USB 2.0)
USB A (USB 3.2 2nd gen)
USB C® 3.2
RJ45
HDMI™
DisplayPort
Microphone (3.5 mm jack)
S/PDIF
Wi-Fi
Bluetooth
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
2 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB 3.2
5 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
2 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Aluminium
- Depth
244 mm
- Height
50 mm
- Width
305 mm
- Weight
2.32 kg
- Wi-Fi
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3337796 Asus ASUS ROG STRIX X870-A Gaming WIFI (AM5) Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chip
Description
AI OVER-CLOCKING
Asus AI Overclocking creates profiles for the CPU and the cooling in order to determine the optimum configuration and to bring the system to its limits.
AI COOLING II
Match the temperatures and noise levels of each build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide a trusted and seamless connection, and unlock the full speed of WiFi 7*.
Dynamic OC switcher
Dynamic OC Switcher maximizes CPU performance by setting power and temperature thresholds to automatically switch between manual over-clocking for heavy multi-threaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest overclocking Load Guard has an improved immediate protection mechanism, which prevents the system crashes during the overclocking.
This text is machine translated.
Asus AI Overclocking creates profiles for the CPU and the cooling in order to determine the optimum configuration and to bring the system to its limits.
AI COOLING II
Match the temperatures and noise levels of each build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide a trusted and seamless connection, and unlock the full speed of WiFi 7*.
Dynamic OC switcher
Dynamic OC Switcher maximizes CPU performance by setting power and temperature thresholds to automatically switch between manual over-clocking for heavy multi-threaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest overclocking Load Guard has an improved immediate protection mechanism, which prevents the system crashes during the overclocking.
This text is machine translated.
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Intelligent control: Asus-exclusive AI overclocking, AI Cooling II, AI Networking II and AEMP for simplifying the setup and improving the performance
- ROG STRIX Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Robust power supply: 16+2+2 90 A per tier power supply solution with two ProCool II power connectors, high-quality alloy reactors, and durable capacitors to support multi-core processors
- Optimised cooling design: Massive heat sinks connected to the VRMS with high-conductive heat transfer pads and an integrated I/O cover
- Latest M.2 support: Two onboard PCIe® 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with comprehensive cooling solutions
- Versatile connectivity: Two USB4® Type-C ports, front USB 20Gbps Type-C® connector, rear USB 10Gbps Type-C® connector with PD 3.0 up to 30W and USB Wattage Watcher, five additional USB 10Gbps connectors, PCIe 5.0 x16 SafeSlots, HDMI™ connector
- High-performance networks: On-board WiFi 7 (802.11b) with Intel 2.5 GB Ethernet
- DIY-friendly design: PCIe slot Q-release slim, M.2 Q-latch, M.2 Q-release, M.2 Q-slide, Q-antenna, Q Dashboard, Q-Code, Q-LED, BIOS Flashback™ Button, Clear CMOS Button and Pre-assembled I/O Shield
- Immersive Audio: ROG SupremeFX ALC4080 Codec with Savitech SV3H712 amplifier, together with Dolby Atmos®
- Unmatched personalization: Asus exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
- Renowned software: Asus DriverHub, Asus GlideX, hwinfo, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
