Asus ASUS ROG STRIX X870E-E GAMING WIFI7 NEO Motherboard PC base #####AMD AM5 Form factor (details) ATX
EAN:
Part number:
Item no:

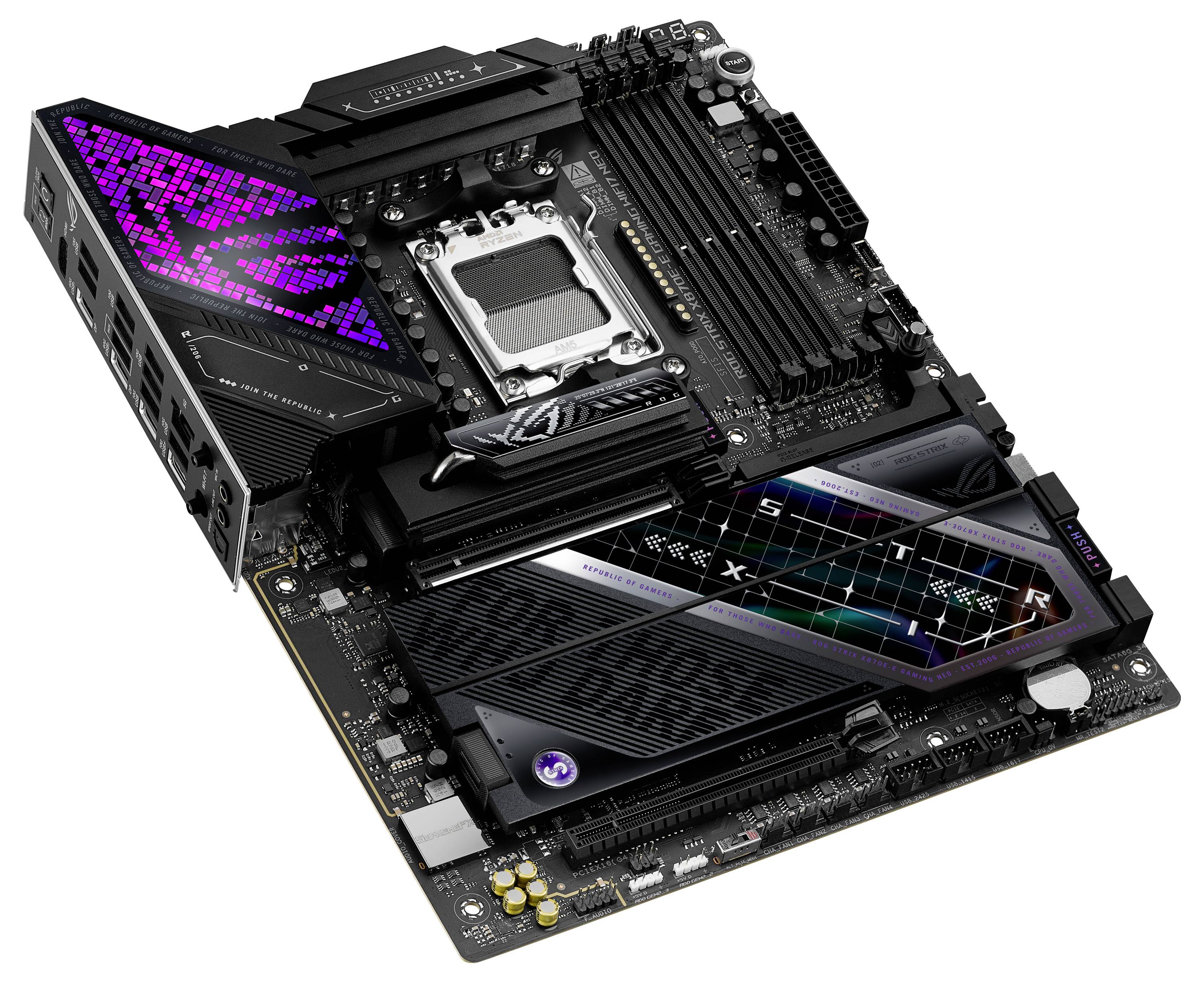

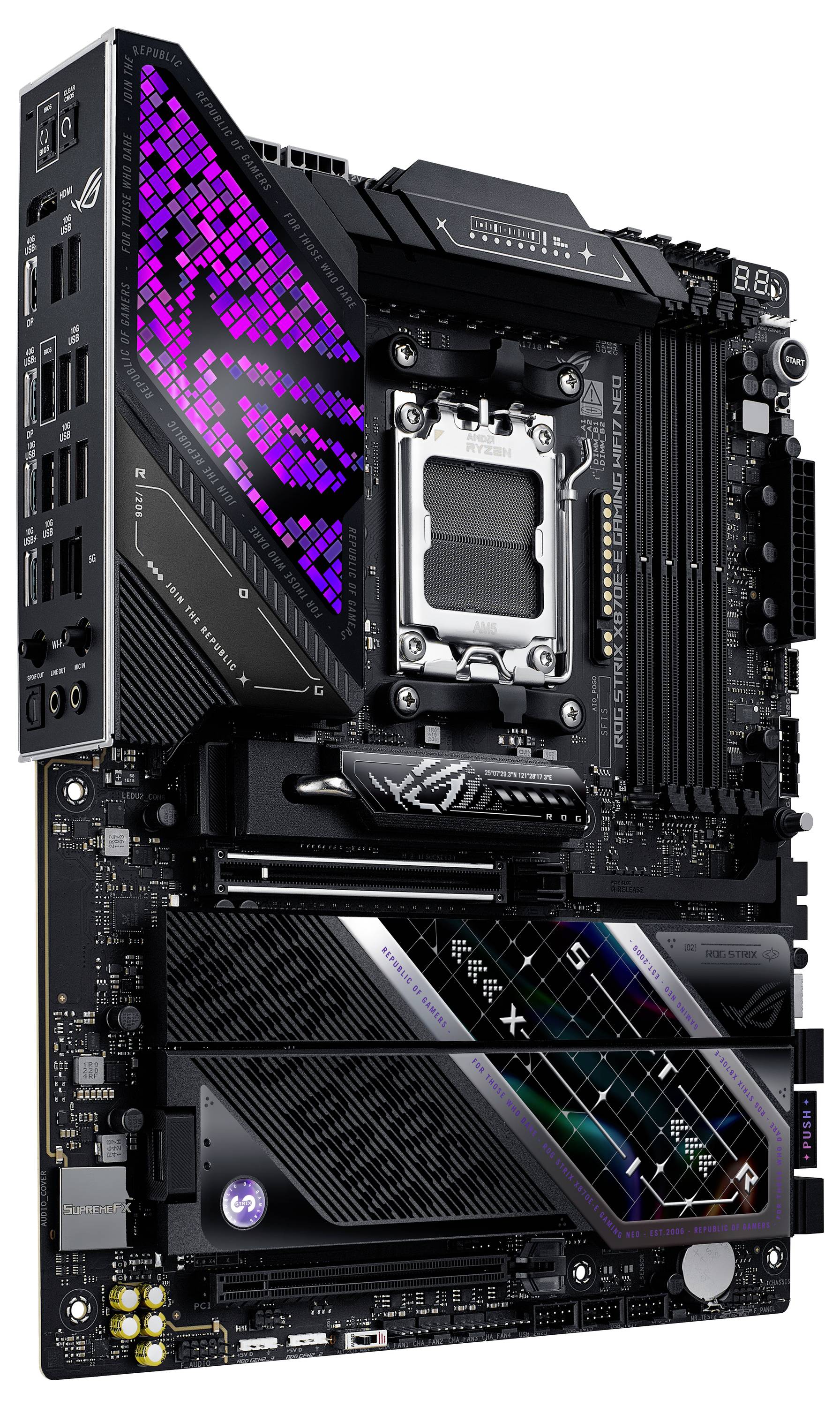

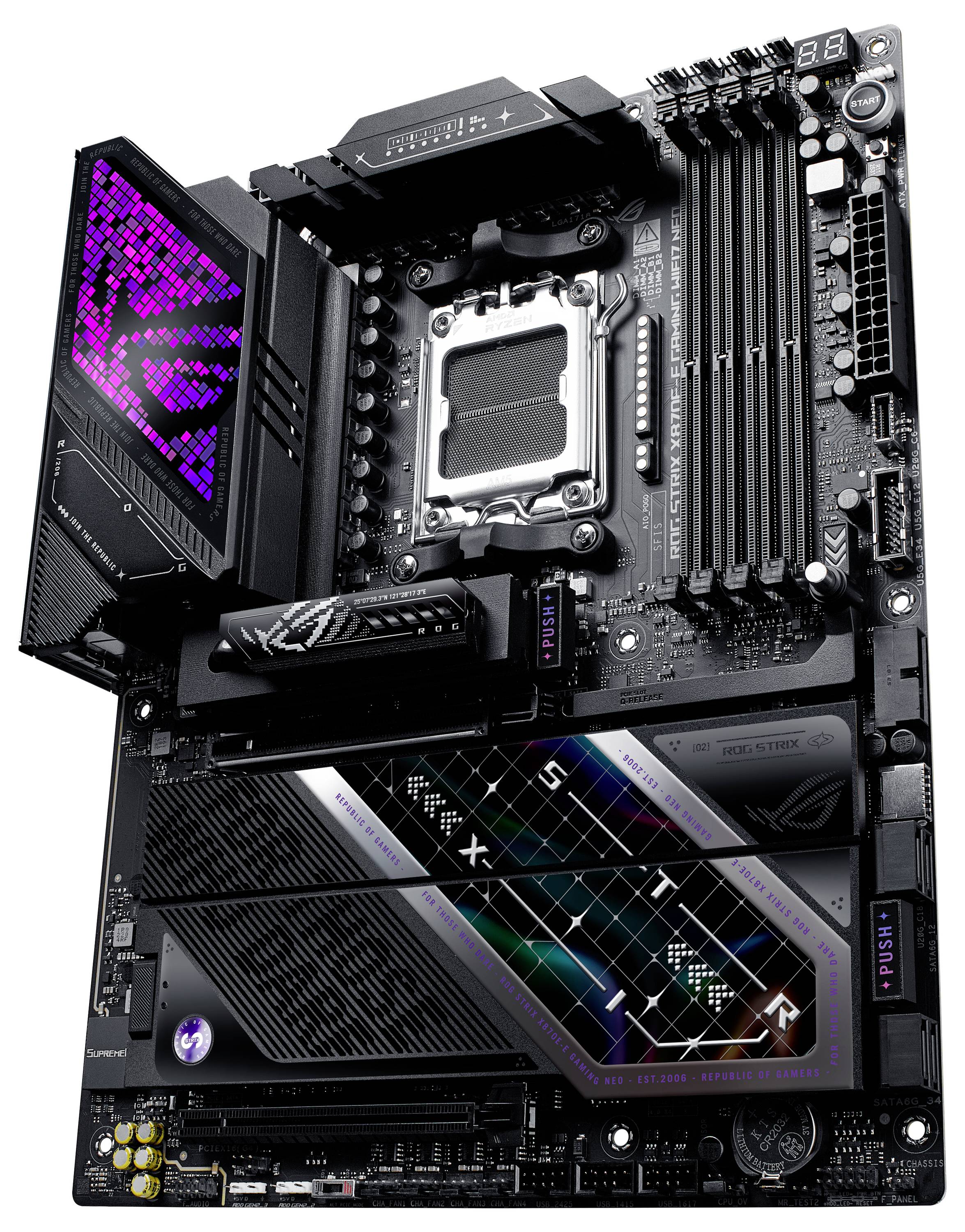

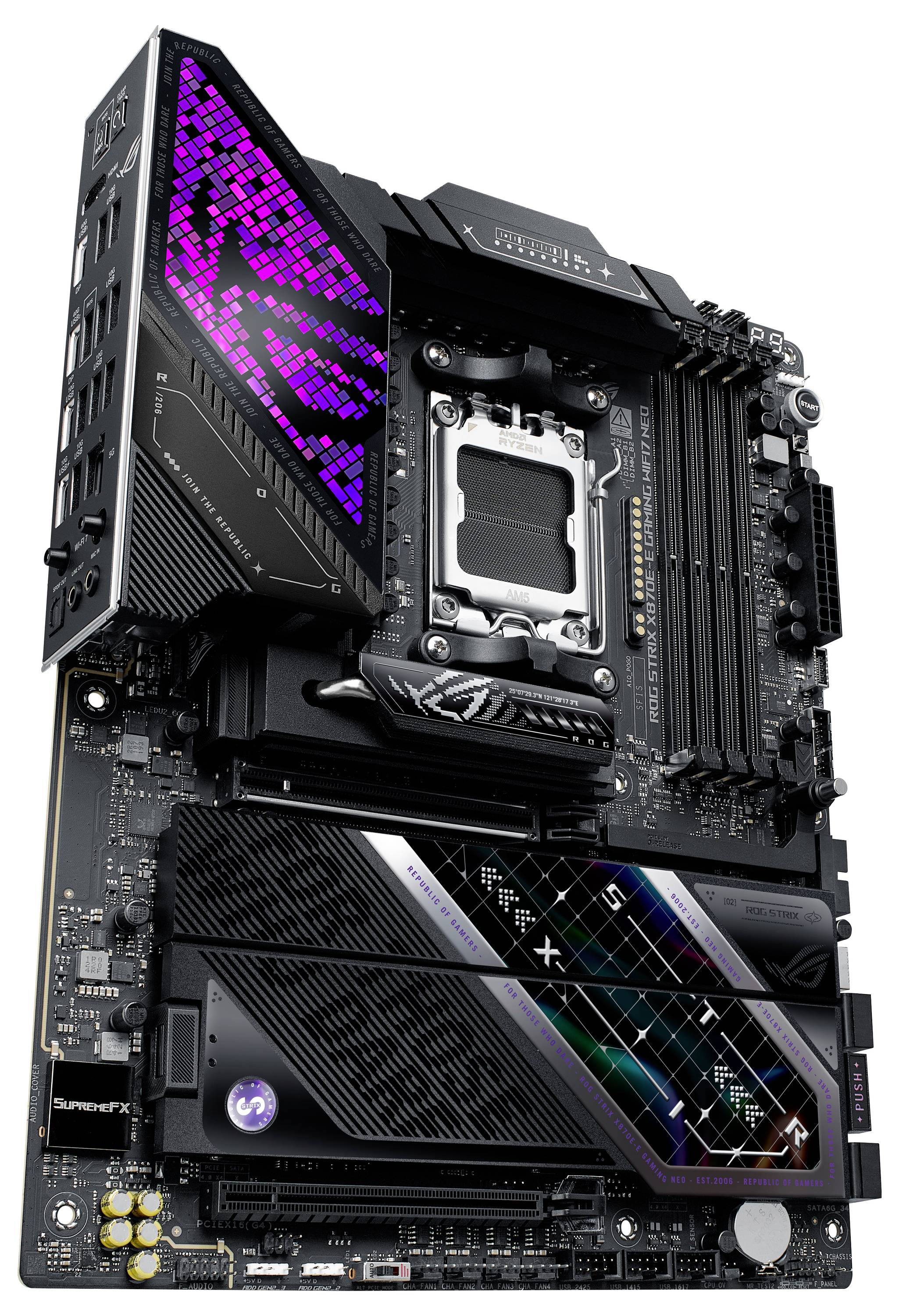

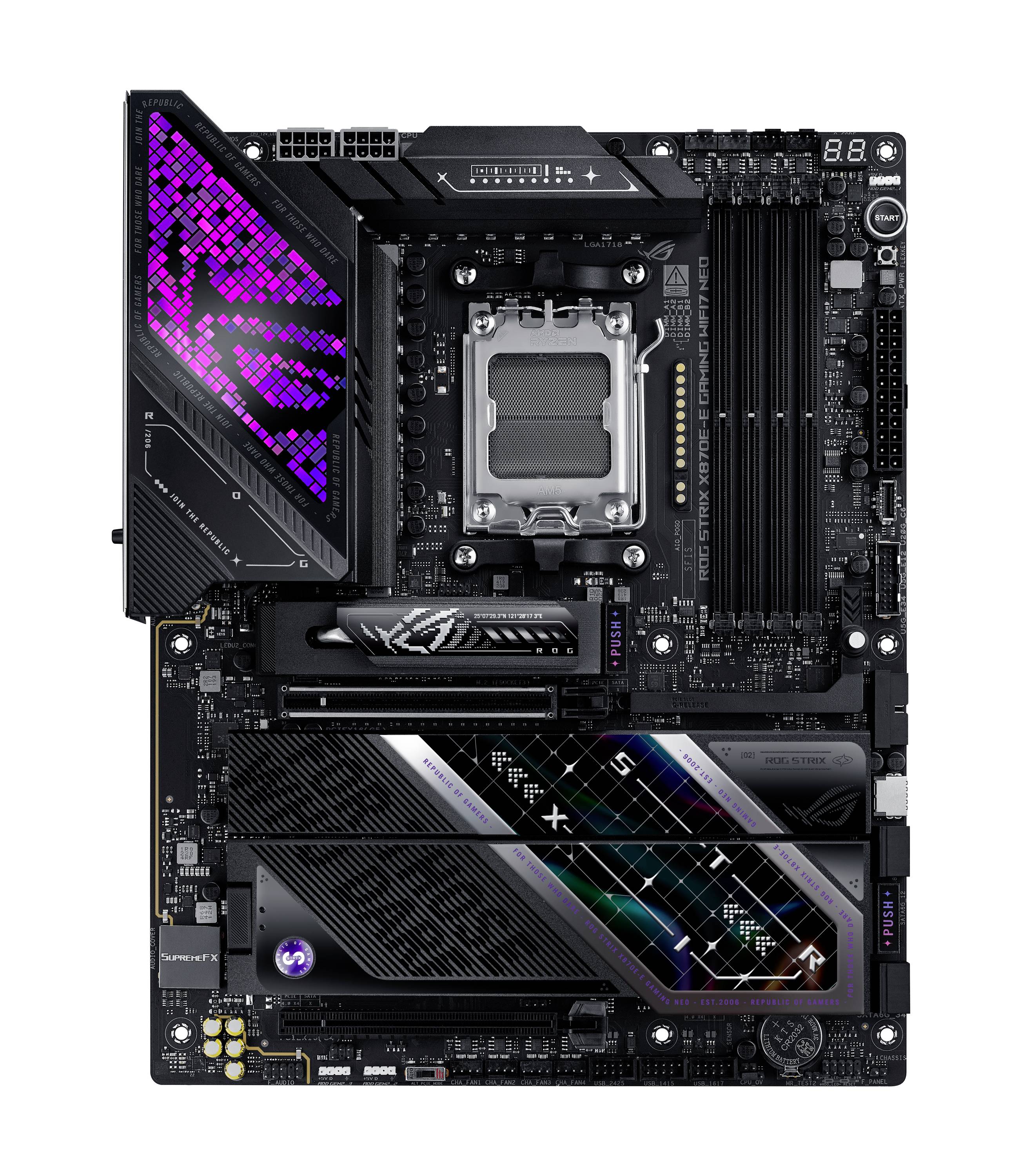

Asus ASUS ROG STRIX X870E-E GAMING WIFI7 NEO Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 9000 series, AMD Ryzen 8000 series, AMD Ryzen 7000 series
- PC ATX AMD X870E 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD SATA III, M.2 RAID Support Number of supported storage drives: 9
- BIOS type UEFI AMI 64 Mbit Clear CMOS button
- Bluetooth: 5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b)
- This text is machine translated.
Technical specifications
- Socket AM5
- Supported memory: DDR5 SDRAM
- WLAN-standards Wi-Fi 7 (802.11b)
- AMD X870E motherboard chipset
- Product type
Motherboard
#####AMD AM5
- Form factor
ATX
- Processor/type
AMD Ryzen 9000 Series
AMD Ryzen 8000 Series
AMD Ryzen 7000 Series
- RAM type
DIMM
- RAM / Max. upgrade
256 GB
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
3 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- No. of SATA III ports
4 x
- Bluetooth
Yes
- Factory colour
Black
- Depth
244 mm
- Height
100 mm
- Width
305 mm
- No. of HDMI ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
9 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Weight
1.9 kg
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
64 Mbit
- Screws included
yes
- Ethernet LAN
yes
- Antenna included
yes
- Number of memory slots
4
- Number of M.2 (M) slots
5
- Microphone in
yes
- S/PDIF out port
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- RGB LED pin header
yes
- USB4 Gen 3x2 ports quantity
2
- USB 3.2 Gen 2x2 connectors
2
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
2.7 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- Unbuffered memory
yes
- Clear CMOS button
yes
- Number of storage drives supported
9
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3756324 Asus ASUS ROG STRIX X870E-E GAMING WIFI7 NEO Motherboard PC base #####AMD AM5 Form factor (details) ATX
Description
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
- AMD AM5 socket: Ready for AMD Ryzentrade 9000, 8000 and 7000 series desktop processors
- Exclusive AI technologies: AI cache boost, Asus AI Advisor, Asus exclusive AI overclocking, AI Cooling II, AI Networking II.
- Exclusive storage technologies: NitroPath DRAM technology, DIMM Fit Pro/DIMM Fit and AEMP to simplify setup and improve performance
- ROG STRIX Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Robust power supply: 18+2+2 Power Stages for up to 110 A per Power Stage with two ProCool II power connectors, high-quality coils and durable capacitors to support multi-core processors
- Optimised cooling design: Massive heat sink with integrated I/O-cover, high-conductive heat-conductive heat-conductive heat-conductive pads and an L-shaped heat-pipe as well as the M.2 Combo-sink for M.2-drives with a directly contacted U-shaped heat pipe for better cooling
- Latest M.2 support: Two onboard PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots, all with extensive cooling solutions

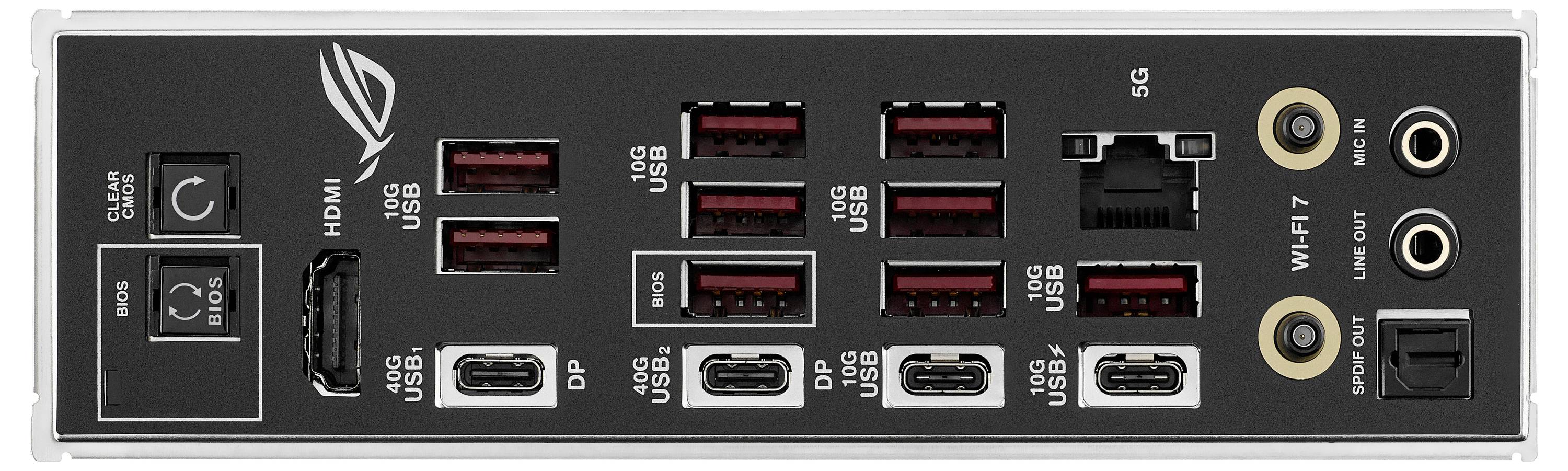

- Versatile connectivity: Dual USB4® Type-C connectors, a USB 10Gbps Type-C® rear I/O with PD 3.0 up to 30W and USB Wattage Watcher, plus ten additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMITM port
- High-performance networks: On-board WiFi 7 (802.11b) with 5 GB Ethernet
- Asus-friendly design: AIO Q connectors, PCIe slot Q-release, M.2 Q-latch, M.2 Q-release, M.2 Q-slide, Q-antenna, Q-dashboard, Q-code, Q-LED, start button, BIOS FlashBacktrade button, Clear CMOS button and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4080 Codec with Savitech SV3H712 amplifier and Dolby Atmos®
- Unmatched personalization: Polymo Lighting I/O coverage, three Gen 2 ARGB headers, all configurable with Asus exclusive Aura Sync RGB lighting
- Renowned software: BIOS 64 MB, pre-installed WIFI driver, Asus DriverHub, TurboV Core, Asus GlideX, hwinfo, Norton 360 for Gamers (60 days free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
