Asus MB ASUS ROG CROSSHAIR X870E DARK HERO Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipse
EAN:
Part number:
Item no:
Highlights & Details

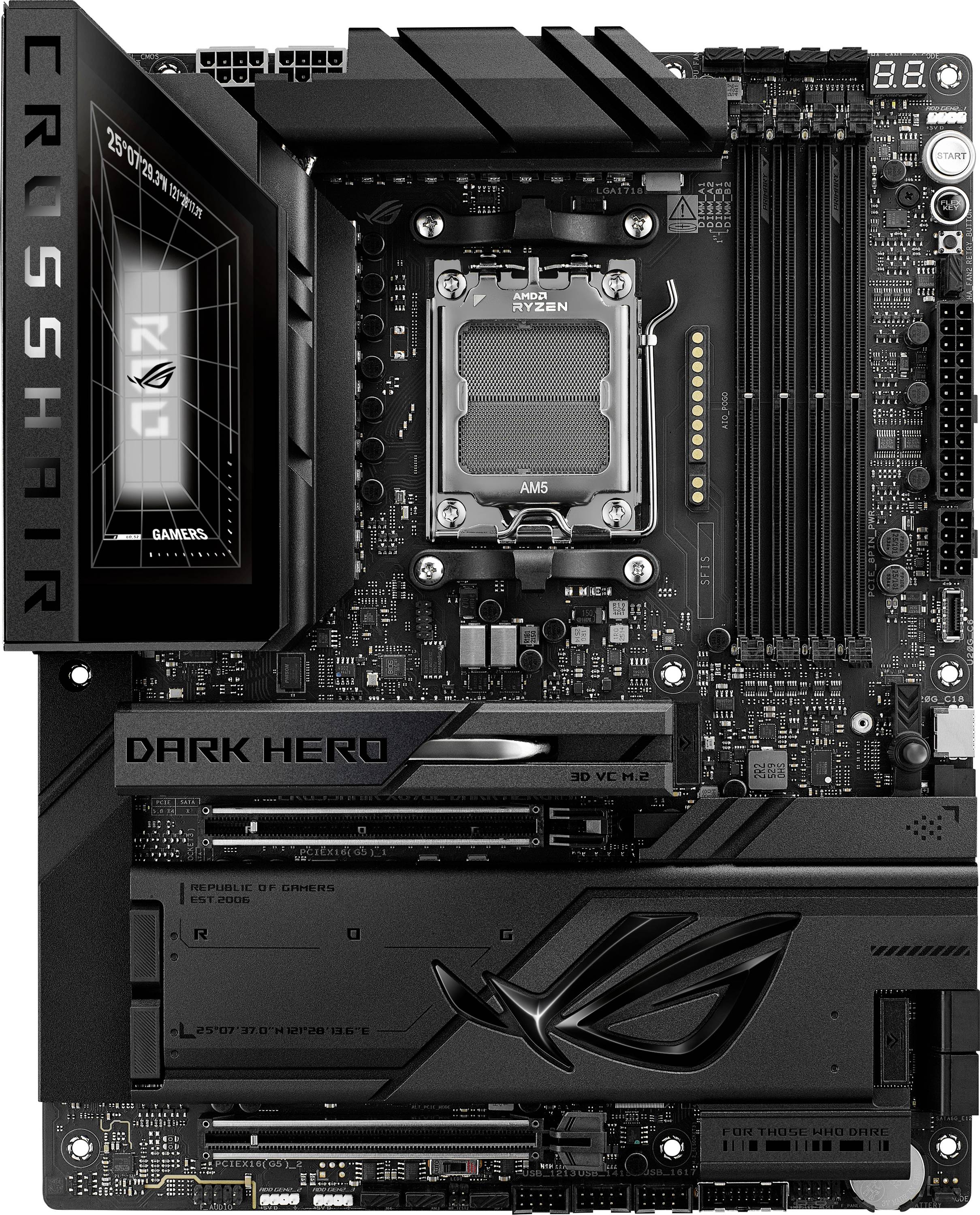

Asus MB ASUS ROG CROSSHAIR X870E DARK HERO Motherboard
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD X870E Realtek ALC4082 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 9
- UEFI AMI 512 Mbit BIOS type
- 5 Gigabit Ethernet, 10 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- ECC compatibility: ECC and non-ECC
- Number of temperature sensor headers: 1
- WLAN-standards Wi-Fi 7 (802.11b)
- AMD X870E motherboard chipset
- 1. M.2 Largest key size: 22110
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 2280
- 2. M.2 highest PCI Express generation: 5.0
- 3. M.2 Largest key size: 2280
- 3. M.2 highest PCI Express generation: 4.0
- 4. M.2 Largest key size: 2280
- 4. M.2 highest PCI Express generation: 4.0
- 5. M.2 highest PCI Express generation: 4.0
- Product type
Motherboard
- Chipset
AMD® X870E
#####AMD AM5
- Form factor
ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB
- No. of PCIe 3.0 x16
2 x
- No. of PCIe 3.0 x16
2 x
- No. of USB 2.0 ports
3 x
- No. of USB 3.2 2nd Gen (USB 3.1)
3 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Black
- Depth
244 mm
- Width
305 mm
- No. of HDMI ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
6 x
- 10/100/1000 Mbps ports
2 x
- Range of use
PC
- Wi-Fi
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3619892 Asus MB ASUS ROG CROSSHAIR X870E DARK HERO Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipse
Description
AMD X870E (AM5 socket) ATX motherboard, advanced AI PC ready, 20+2+2 Power stages, dynamic OC switch, core Flex, DDR5 slots with AEMP & NitroPath DRAM technology, 3D VC M.2 heat sink, Realtek 10 GB Ethernet, Wi-Fi 7 with Asus WiFi Q antenna, five M.2 slots onboard, two PCIe® 5.0 M.2 slots onboard, PCIe® 5.0 x16 SafeSlots with PCIe® slot Q-release, two USB4® ports, two USB 20Gbps Type-C® front ports (one with Quick Charge 4+ up to 60 W and USB Wattage Watcher), AI Cache Boost, Asus AI Advisor, AI Overclocking and Polymo Lighting II.
The ROG Crosshair X870E Dark Hero is dressed in an elegant, discreet black design and offers sophisticated performance for high-end builds. It features a robust 20+2+2 Power stage design, support for high-speed DDR5 memory and the latest PCIe® 5.0 connectivity. It offers five built-in M.2 SSD slots with heatsinks, including a 3D VC M.2 heat sink for advanced thermal performance, as well as Realtek 10G Ethernet and USB4® ports for next-generation connectivity. Asus-exclusive AI technologies and Polymo Lighting II complete the platform and create the balance between intelligent tuning and a clean, high-quality aesthetic.
This text is machine translated.
The ROG Crosshair X870E Dark Hero is dressed in an elegant, discreet black design and offers sophisticated performance for high-end builds. It features a robust 20+2+2 Power stage design, support for high-speed DDR5 memory and the latest PCIe® 5.0 connectivity. It offers five built-in M.2 SSD slots with heatsinks, including a 3D VC M.2 heat sink for advanced thermal performance, as well as Realtek 10G Ethernet and USB4® ports for next-generation connectivity. Asus-exclusive AI technologies and Polymo Lighting II complete the platform and create the balance between intelligent tuning and a clean, high-quality aesthetic.
This text is machine translated.
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the performance and connectivity required for demanding AI applications
- AMD socket: Ready for AMD Ryzen™ 9000, 8000, and 7000 series desktop processors
- Intelligent control: Asus-exclusive AI Cache Boost, Asus AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and AEMP simplify the setup and improve the performance.
- ROG over-clocking technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Robust power supply solution: 20 (110 A) + 2 (110 A) + 2 power levels with ProCool II power connections, MicroFine alloy reactors and high-quality metal capacitors
- Optimized thermal design: 3D-VC-M.2 heat sink for a PCIe® 5.0 M.2 slot, massive heat sinks integrated into the I/O cover, connected by an L-shaped heat pipe and connected to the power levels via high-conductive heat conductive heat transfer pads
- Latest M.2 support: Two built-in PCIe® 5.0 M.2 slots and three PCIe® 4.0 M.2 slots, all with extensive cooling solutions.
- Extensive connectivity: Two USB4® Type-C® connectors, two front USB 20Gbps Type-C® connectors (one with Quick Charge 4+ up to 60 W and USB Wattage Watcher), nine additional USB 10Gbps connectors, two PCIe® 5.0 x16 SafeSlots, HDMI™ connector
- High-performance network: Built-in Wi-Fi 7 (802.11be) with Asus WiFi Q antenna, Realtek 10 GB Ethernet and Realtek 5 GB Ethernet
- DIY-friendly design: AIO-Q connector, PCIe® slot Q-release, new M.2-Q-latch, M.2-Q-release, M.2-Q-slide, Q-antenna, Q-dashboard, Q-code, Q-LED, FlexKey, Start button, BIOS Flashback™, Clear CMOS button, and pre-mounted I/O cover
- Immersive Audio: ROG SupremeFX ALC4082 Codec with ESS® ES9219 Quad-DAC for up to 32 bit/384 kHz playback
- Unmatched personalization: I/O coverage with Polymo lighting II, three Gen 2 ARGB headers, all configurable with Asus's exclusive Aura Sync RGB lighting
- Renowned software: BIOS 64 MB, Asus DriverHub, Dolby Atmos, GlideX, hwinfo, Exclusive 1-year subscription to Internet Security and bundled 1-year subscription to AIDA64 Extreme
