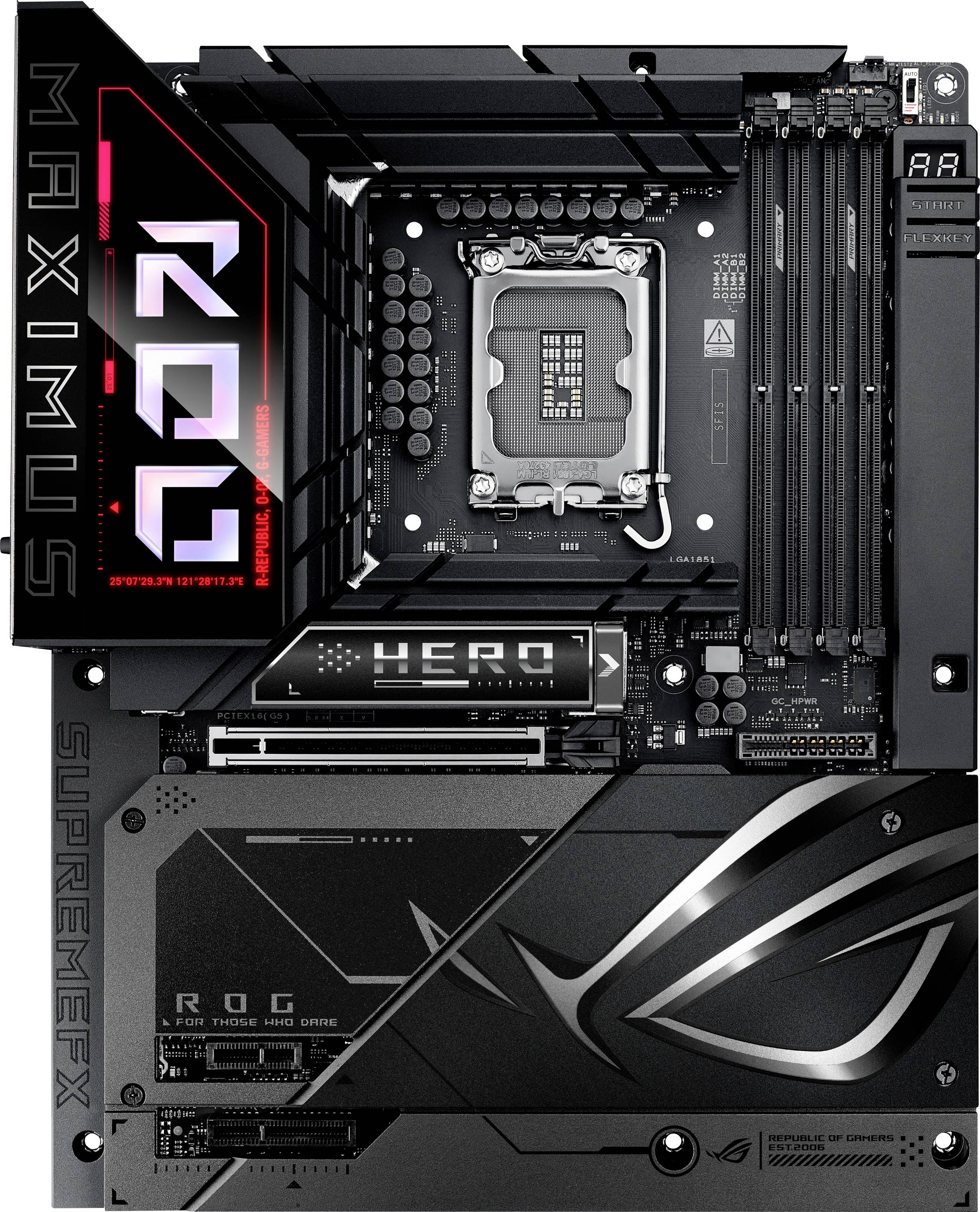

'Top-down view of a computer motherboard with an LGA 1700 socket, RAM slots, and logos, suitable for high-performance PCs.'

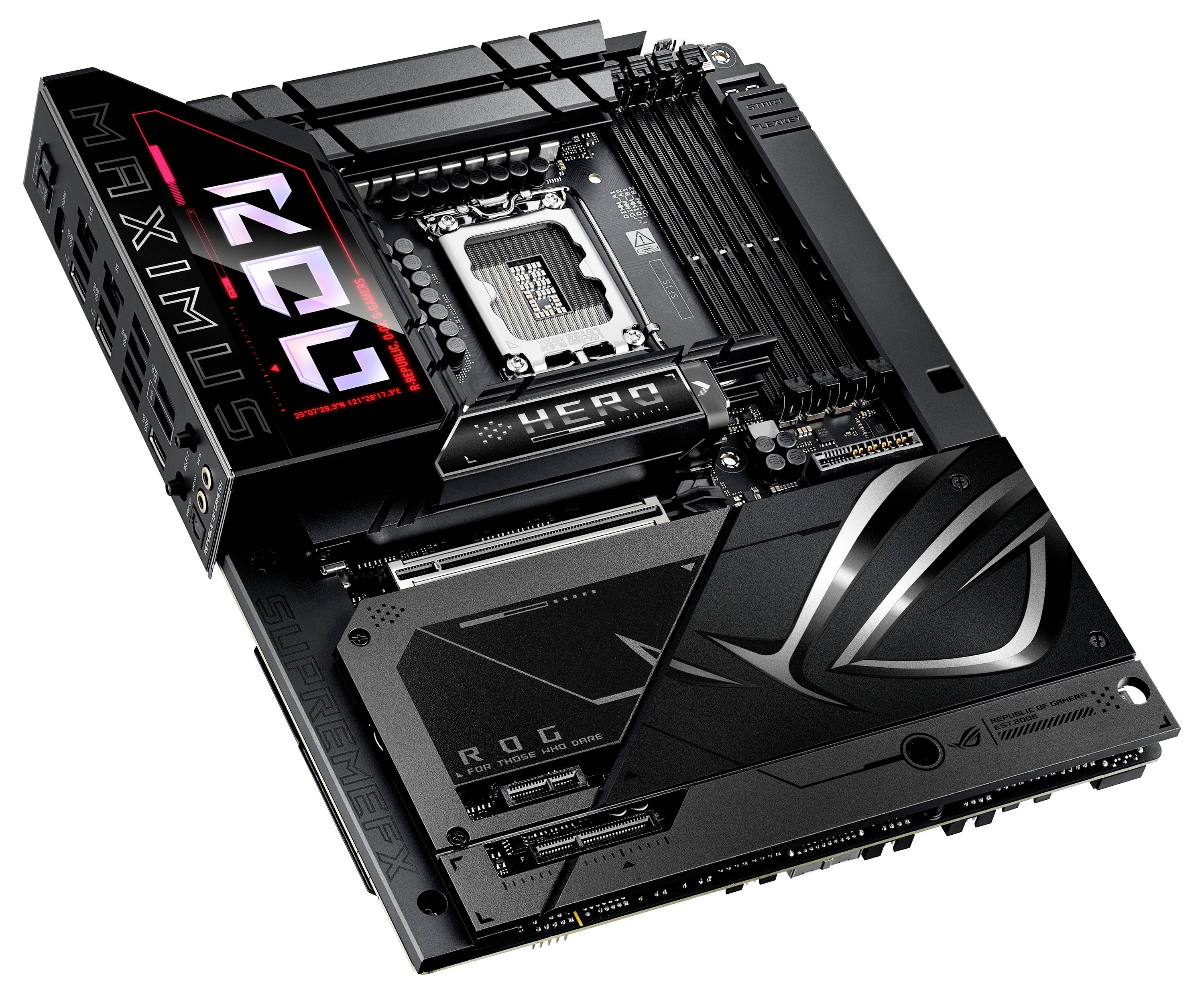

A ROG Maximus Hero motherboard with a black and grey design and RGB lighting, suitable for high-performance PC builds.

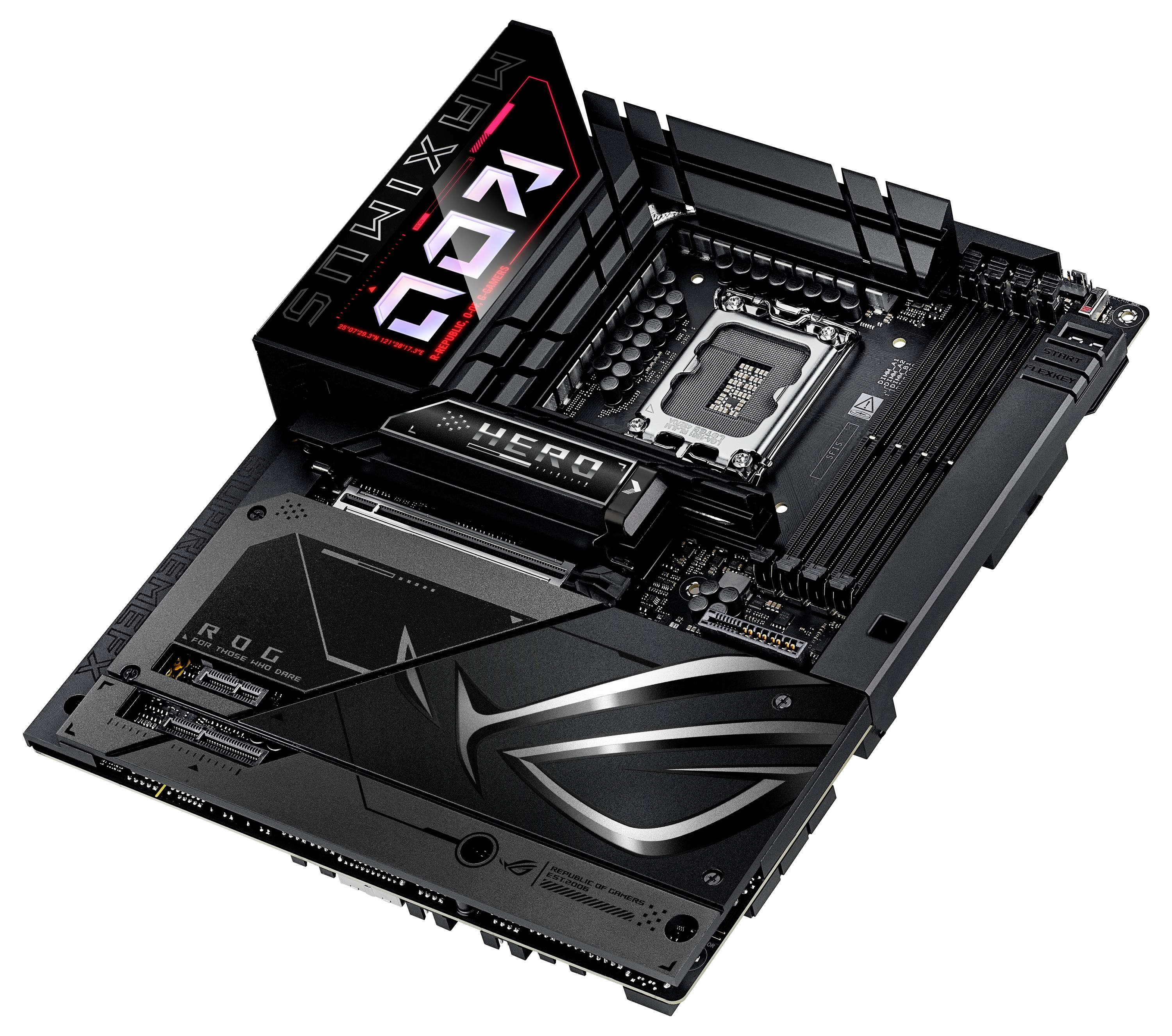

A black motherboard with illuminated text 'ROG Maximus', displaying various ports and an LGA socket for CPUs.

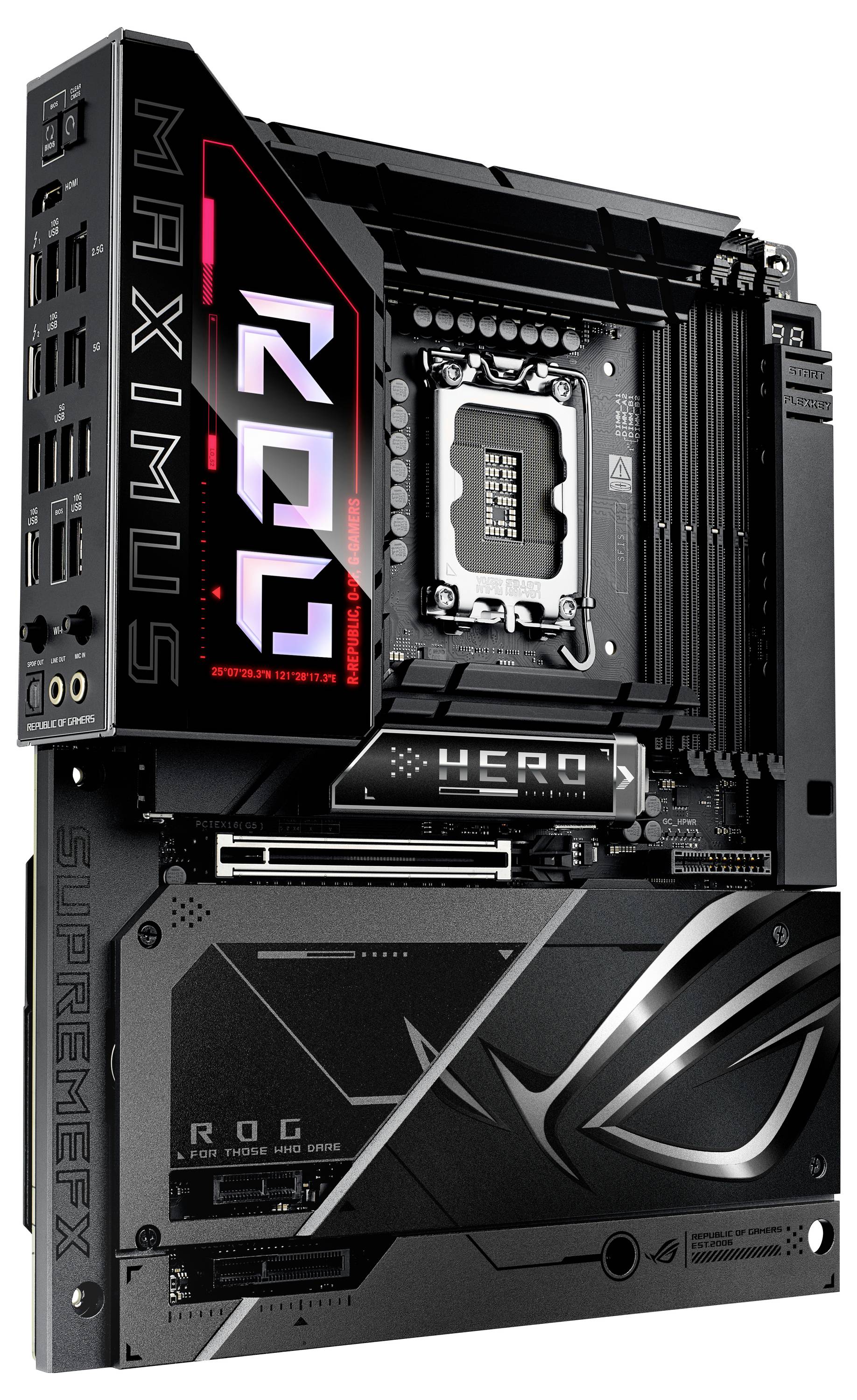

A computer motherboard with the illuminated 'ROG' lettering. It shows connections and slots for components. Model: MAXIMUS.

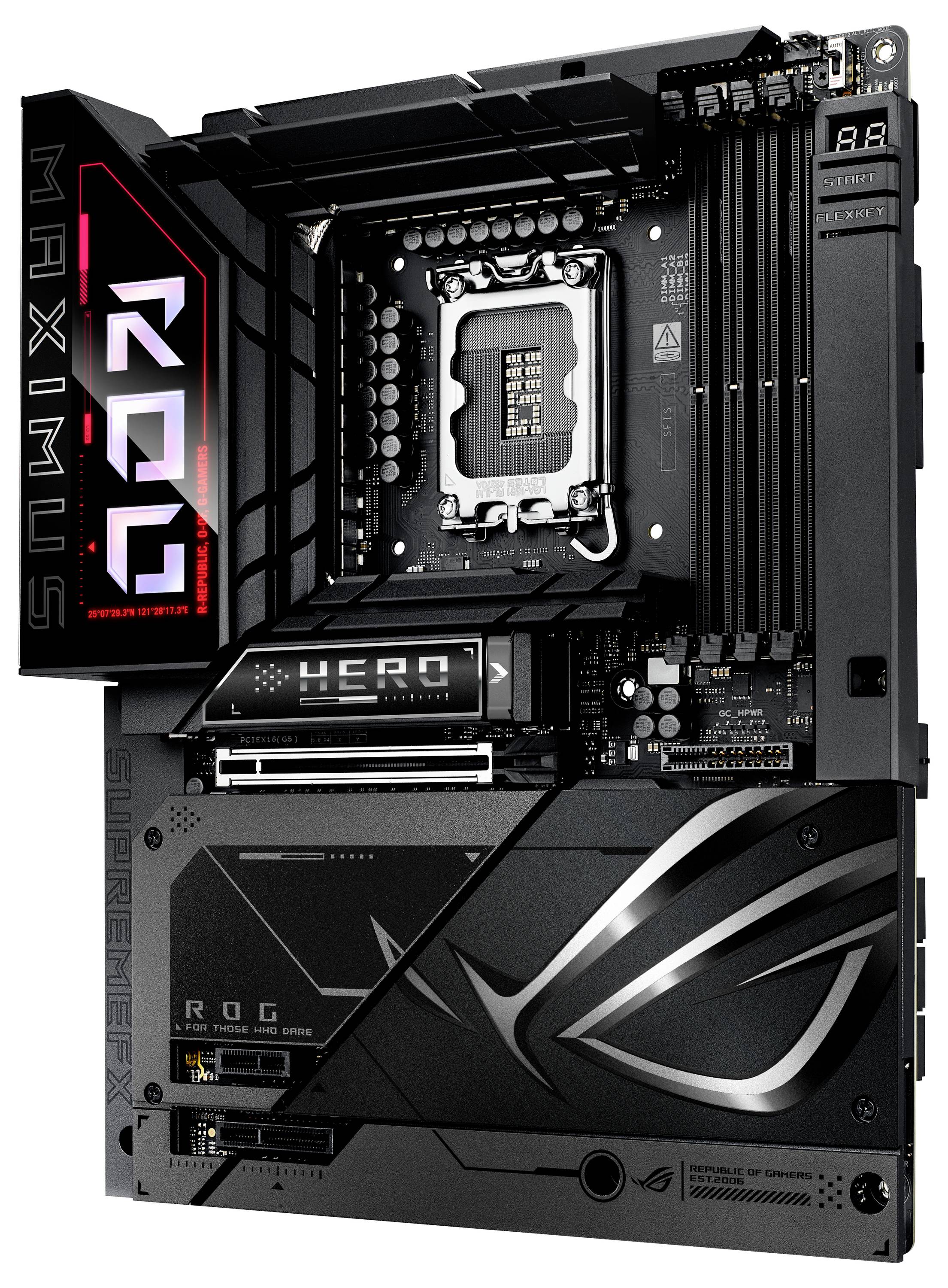

Motherboard with black design, vertical heatsinks and integrated LED display for 'ROG'. Supports Intel processors.

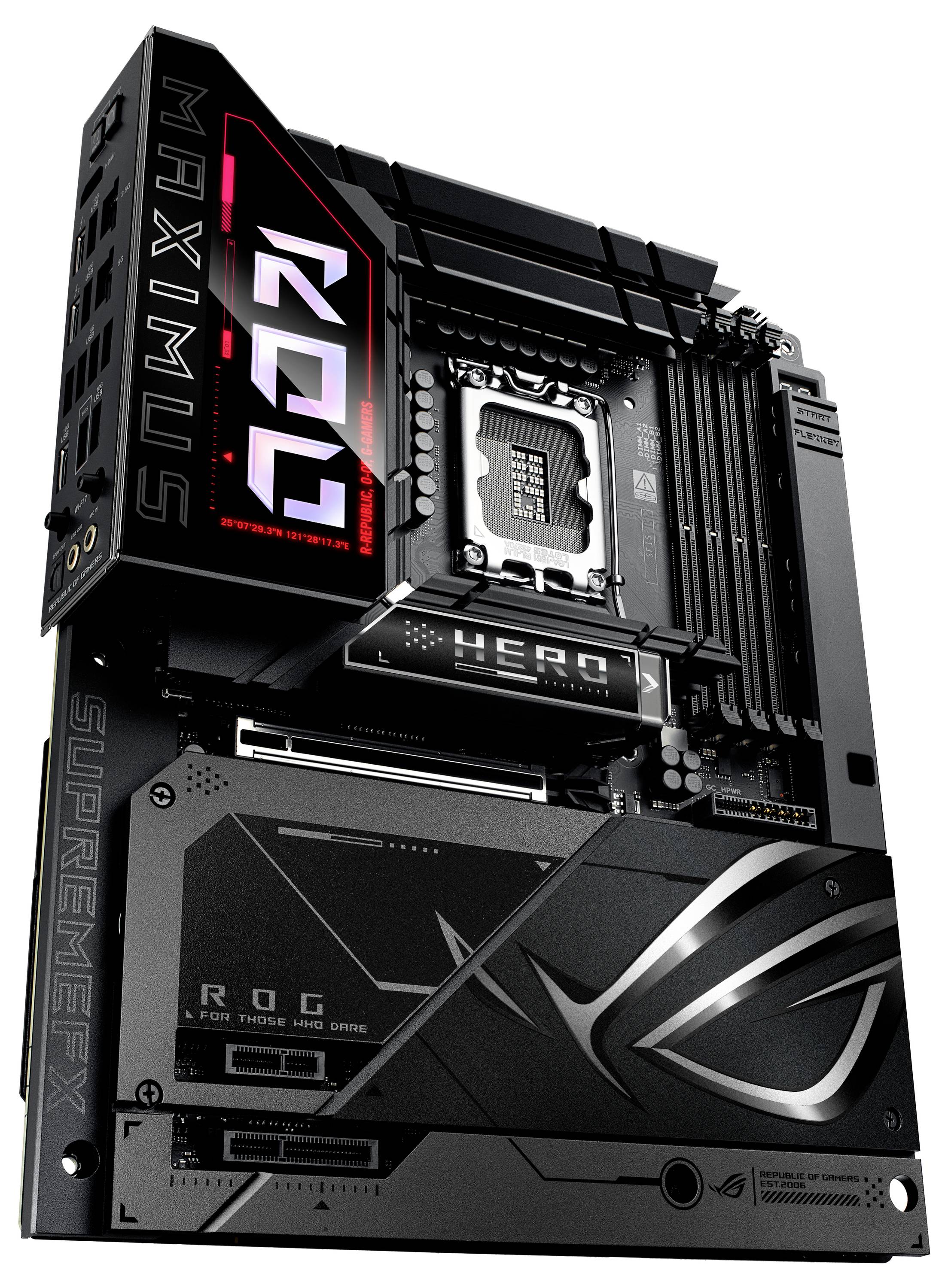

Motherboard with black heatsinks and RGB lighting, model 'ROG Maximus Z690 Hero', for gaming PCs. CPU socket and RAM slots visible.

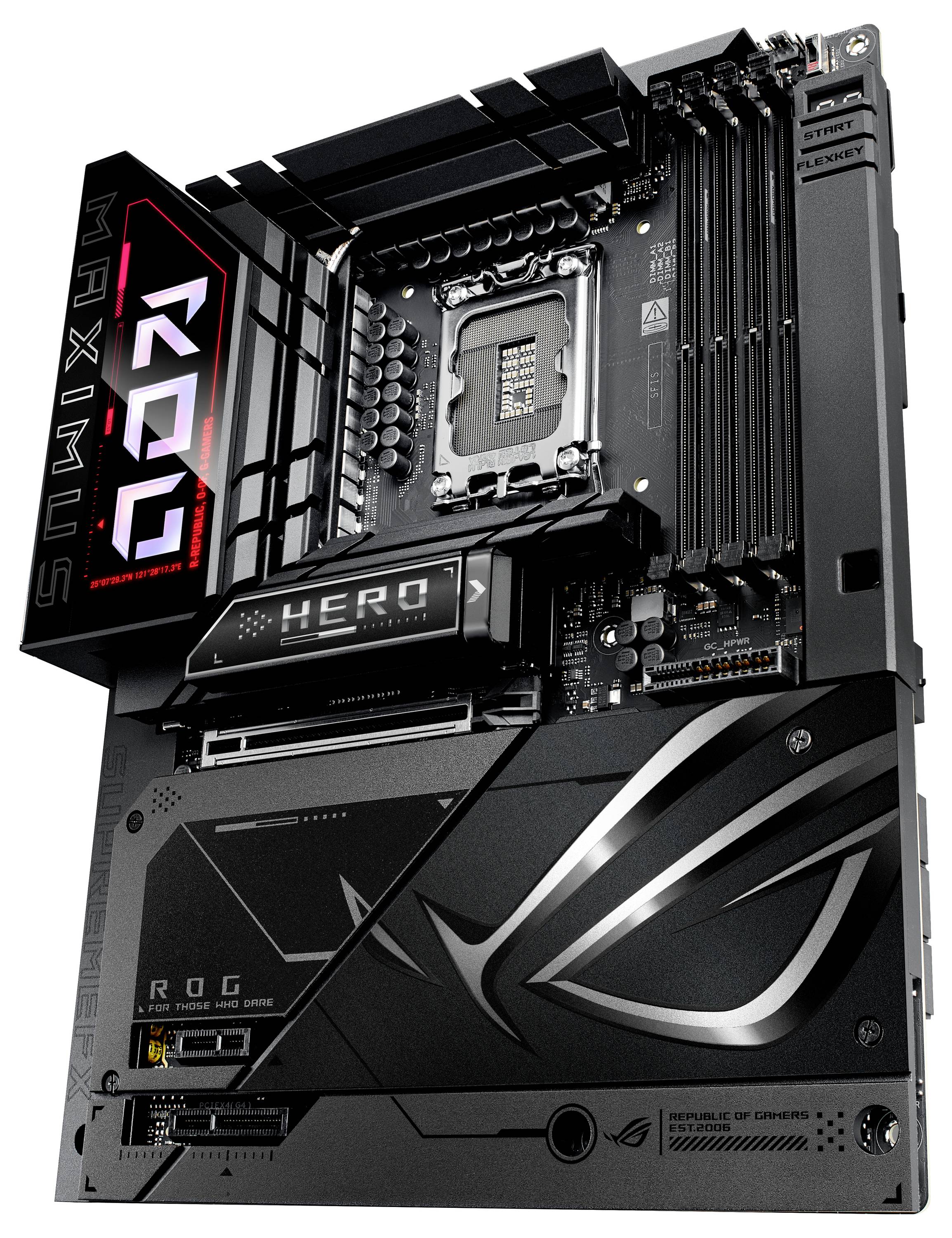

Black motherboard named 'ROG Maximus XII Hero', featuring RGB lighting and multiple slots for components and connections.

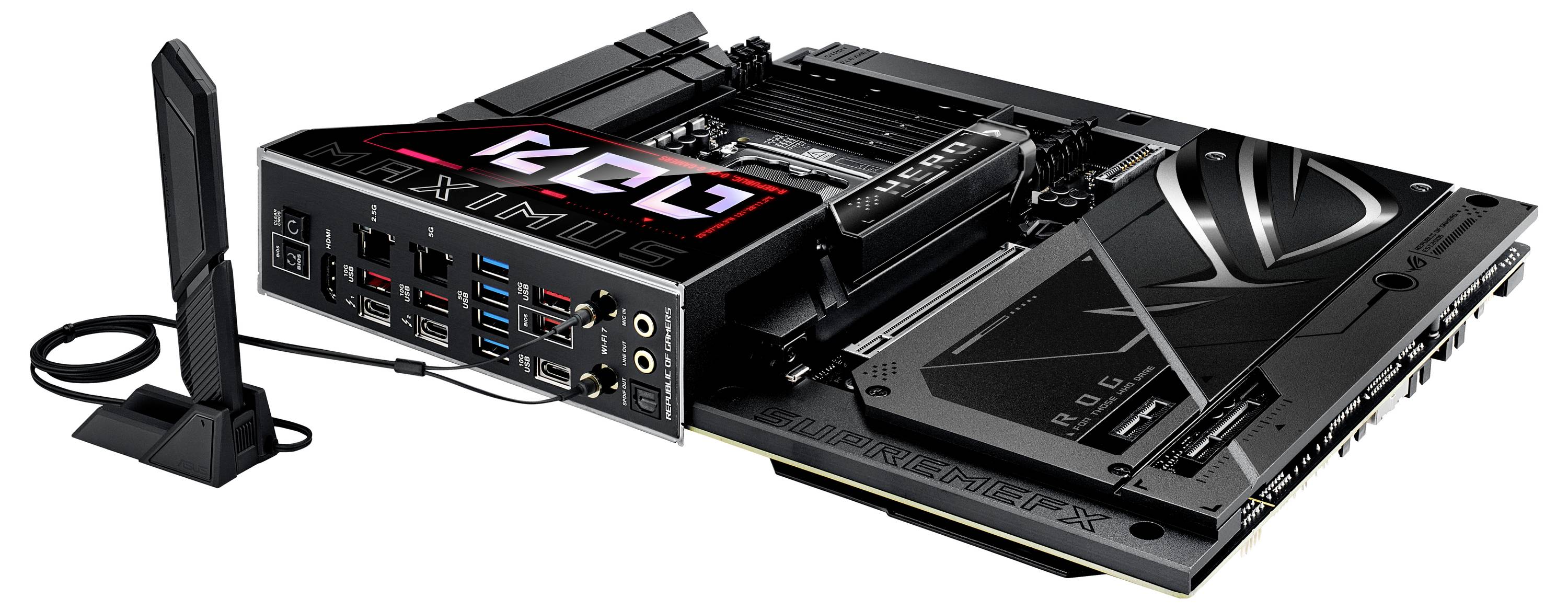

A gaming motherboard with an integrated Wi-Fi module and RGB lighting. It shows multiple connectors and slots for PC components.

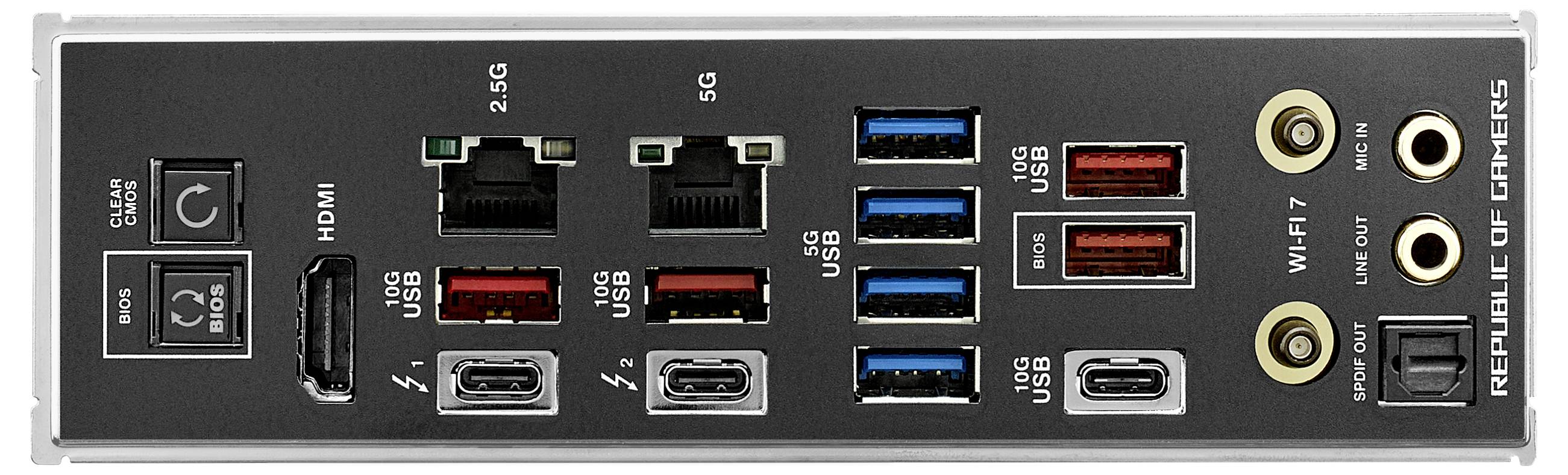

Ports on a PC rear panel: HDMI, USB-C, USB 3.0, Audio, Ethernet and Wi-Fi connections with the inscription 'REPUBLIC OF GAMERS'.

'ASUS ROG Maximus Z690 Hero BTF Motherboard with Accessories on White Background.'

1/16

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Asus ROG MAXIMUS Z890 HERO BTF Intel Z890 LGA 1851 (socket V1) ATX

Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (2 Series)
Hidden-connector design: Offers a never before level of cable management to PC-DIY enthusiasts
Graphics card high-Power slot Compatible with the gold high-Power finger of the Asus BTF graphics card, which delivers up to 600 watts via the motherboard
Exclusive AI technologies: Asus AI Advisor, AI Overclocking, AI Cooling II and AI Networking II to simplify setup and improve performance
Advanced Overclocking & memory technologies: NPU Boost, NitroPath DRAM technology, DIMM Fit, DIMM Flex and AEMP III.
Robust power supply: 22(110A)+1(90A)+2(90A)+2(80A) Power Stages with ProCool II ProCool II power terminals, MicroFine alloy reactors and high-quality metal capacitors
Optimised cooling design: Massive heat sinks integrated into the I/O cover that are connected by a U-shaped heat pipe and are connected to the Power stages via high-conductive heat conductive heat transfer pads
Latest M.2 support: Three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots on board with ROG M.2 PowerBoost, all with comprehensive cooling solutions
Versatile connectivity: Two Thunderbolt™ 4 USB Type-C® ports, front USB 20Gbps Type-C port, front USB 10Gbps Type-C port, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-generation graphics cards, HDMI™ 2.1
High-performance networks: Built-in Wi-Fi 7 (802.11b) with Asus WiFi Q-antenna, Intel 2.5Gb Ethernet and Realtek 5GB Ethernet
DIY-friendly design: PCIe slot Q-release slim, new M.2 Q-latch, M.2 Q-release, M.2 Q-slide, Q-antenna, BIOS Q Dashboard, Q Code, Q LED, FlexKey key, Start key, BIOS Flashback™ key, Clear CMOS key and pre-mounted I/O shield
Immersive Audio: ROG SupremeFX ALC4082 Codec with ESS® ES9219 Quad DAC for up to 32-bit/384 kHz playback
Unmatched personalization: I/O coverage with PolymoLighting II, three Gen 2 ARGB headers, all configurable with Asus exclusive Aura Sync RGB lighting
Renowned software: Asus DriverHub, Dolby Atmos®, exclusive 1-year subscription for Internet security, TurboV Core, GlideX, hwinfo and includes a 1-year subscription for AIDA64 Extreme

Technical specifications

Number of HDMI connections: 1
Depth: 244 mm
LGA 1851 (socket V1)
Compatible processors: Intel core ultra (series 2)
Supported memory: DDR5 SDRAM
Number of memory slots: 4
RAM maximum: 256 GB
RAM type DIMM
Memory channels: Two-channel
ECC compatibility: Non-ECC
Unbuffered memory: Yes
Width 305 mm
Wi-Fi: Yes
Ethernet/LAN: Yes
Ethernet interfaces Type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Number of USB 2.0 ports 2
USB 3.2 Gen 1 (3.1 Gen 1) Connections 2
USB 3.2 Gen 2 (3.1 Gen 2) Connections 1
SATA III connections 4
USB 3.2 Gen 2×2 connections 1
Front Panel audio connector: Yes
ATX power plug (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan ports: 2
Number of chassis fan connectors: 4
Thunderbolt multi-pin connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of ports Type A: 4
USB 3.2 Gen 2 (3.1 Gen 2) Number of C-type connectors: 1
Number of Ethernet LAN connections (RJ-45): 2
Quantity of Thunderbolt ports: 2
Supported drive interfaces: M.2, SATA III.
Supported drives: HDD & SSD
Maximum number of HDD supported: 4
Number of supported storage drives: 10
RAID support: Yes
RAID levels 0, 1, 5, 10
Supplied cable SATA
PCI Express x16 slots (Gen 5.x): 1
Number of M.2 (M) slots: 6
BIOS TYPE UEFI AMI
BIOS memory size: 256 Mbit
Motherboard form factor ATX
Motherboard Chipset family: Intel
Intel Z890 motherboard chipset
Audio channels: 7.1 channels
Audio chip: Realtek ALC4082
Supports Windows operating systems: Windows 11
Top WLAN standard Wi-Fi 7 (802.11b)
Bluetooth: Yes
Bluetooth version: 5.4
Front panel connector: Yes
12 V power connection: Yes
S/PDIF output: Yes
WiFi-AP antenna socket 1
Antenna included: Yes
Drivers included: Yes
PCI Express x1 slots (Gen 4.x): 1
PCI Express x4 slots (Gen 4.x): 1

Product type: Motherboard

Chipset: Intel® Z890

: #####Intel® 1851

Form factor: ATX

Processor/type: Intel Core Ultra (Series 2)

RAM type: DDR5 RAM

RAM / Max. upgrade: 256 GB

Interfaces: HDMI™
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
USB C® (USB 3.2 2nd gen)
RJ45
Thunderbolt
Wi-Fi 7 (IEEE 802.11be)
Bluetooth

No. of DDR5 slots: 4 x

No. of LAN ports: 2 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x4: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 2 x

No. of USB 3.2 2nd Gen (USB 3.1): 4 x

No. of USB 3.2: 4 x

No. of USB 3.0 ports: 1 x

No. of SATA III ports: 4 x

Onboard audio: 7.1

Bluetooth: 5.4

Bluetooth: Yes

Factory colour: Black

Depth: 244 mm

Width: 305 mm

No. of HDMI ports: 1 x

No. of USB type A 3.1 / 3.2 1st Gen: 4 x

No of. USB type A 3.1 /3.2 2nd gen: 4 x

Onboard graphics card: No

10/100/1000 Mbps ports: 2 x

Range of use: PC

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 6

Thunderbolt headers: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

S/PDIF out port: yes

Front panel connector: yes

12V power connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 1

PCI Express x1 (Gen 4.x) slots: 1

PCI Express x4 (Gen 4.x) slots: 1

USB 3.2 Gen 2x2 connectors: 1

Drivers included: yes

RAID support: yes

Package weight: 4.62 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Thunderbolt ports quantity: 2

Unbuffered memory: yes

Number of storage drives supported: 10

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3386547 Asus MB ROG MAXIMUS Z890 HERO BTF Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Int

Description

Asus ROG MAXIMUS Z890 HERO BTF gaming motherboard socket Intel LGA 1851 (ATX, DDR5, WiFi 7, 3x PCIe 5.0 M.2, 3x PCIe 4.0 M.2, 2x Thunderbolt 4, hidden connection design)
