Asus Mini PC VIVO PB63-B7016MH Intel® Core™ i7 i7-13700 16 GB RAM 512 GB SSD Intel UHD graphics 770 90MS02R1-M000H0
EAN:
Part number:
Item no:

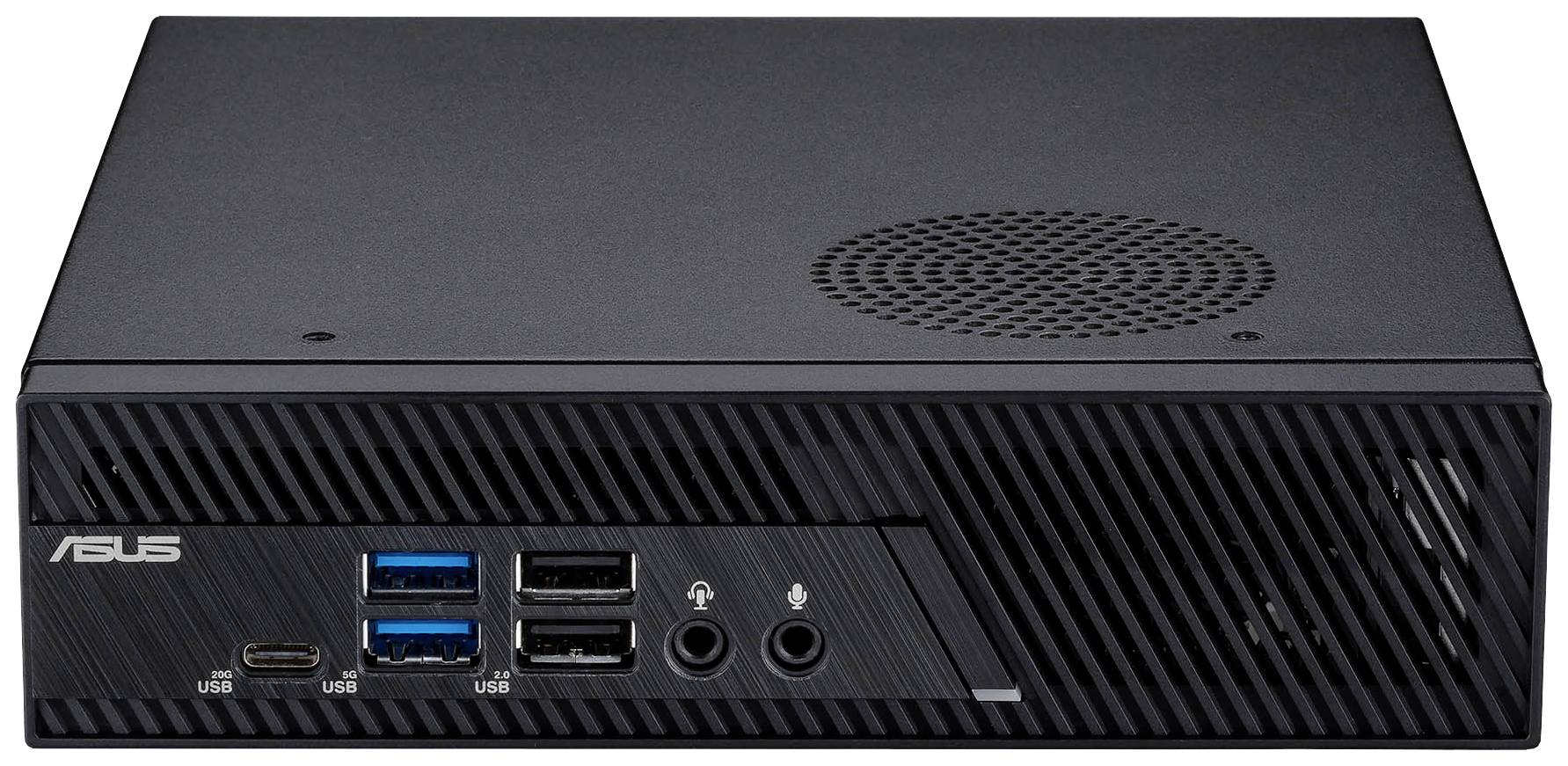

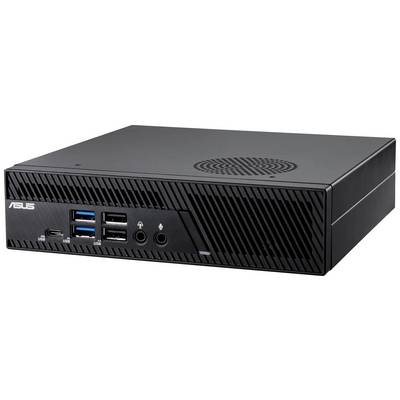

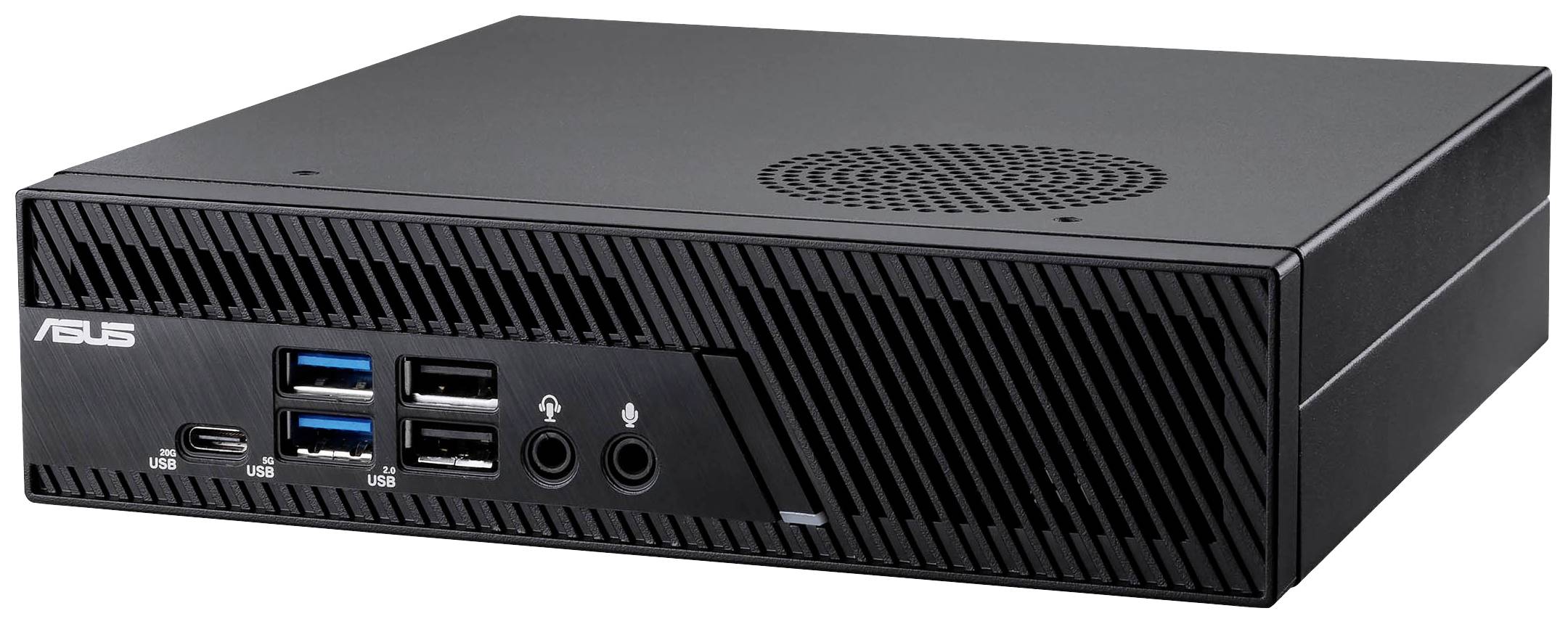

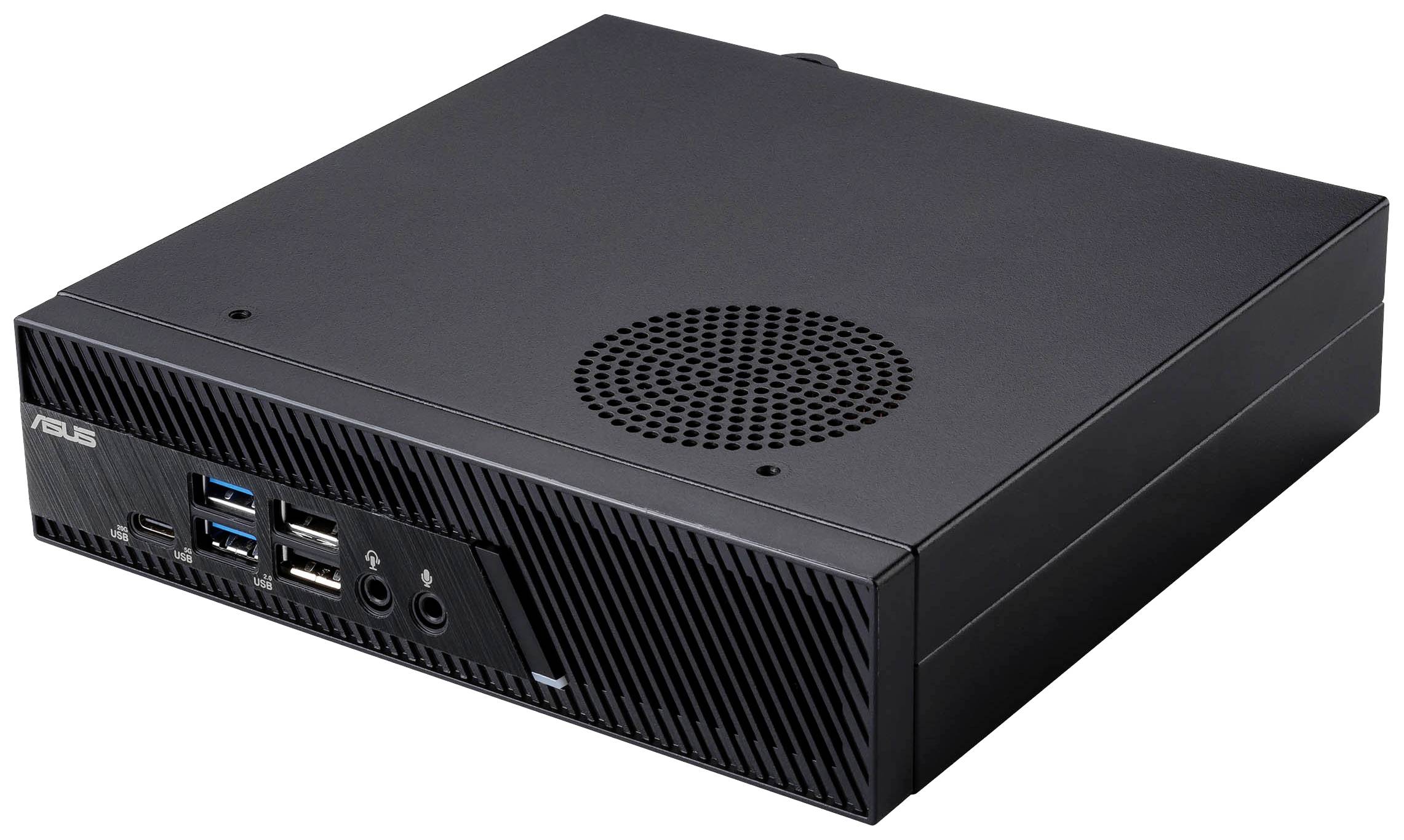

Asus VIVO PB63-B7016MH Mini PC
Highlights & Details
- Display: 2.5 cm (1 inch)
- Intel® Core™ i7 i7-13700 13th Gen (Raptor Lake) 16 core(s) / max. 5.1 GHz
- RAM: 16 GB DDR5 RAM
- 512 GB SSD
- Intel UHD graphics 770
- w/o OS
Technical specifications
- Product type
Mini PC
- Model
PB63-B7016MH
- Display (cm)
2.5 cm
- Screen size diagonal (inches)
1 inch
- CPU series
Intel® Core™ i7
- CPU
Intel® Core™ i7 i7-13700
- Processor/type
i7-13700
- Processor generation
13th Gen (Raptor Lake)
- Processor cores (No.)
16 x
- CPU speed
2.1 GHz
- CPU turbo clock speed (max.)
5.1 GHz
- CPU cache
30 MB
16 GB
- RAM type
DDR5 RAM
- No. of memory slots
2
- RAM / Max. upgrade
64 GB
- Onboard graphics card
Yes
- Onboard graphics card (GPU manufacturer)
Intel
- Onboard graphics card (version)
UHD graphics 770
- Dedicated graphics card
No
- SSD size (total)
512 GB
- SSD 1 type
SSD
- SSD
512 GB
- SSD connection
M.2 PCIe NVMe
- HDD capacity (total)
0 GB
- Hard drive
0 GB
- Drive
w/o hard drive
- Bluetooth
5.2
- Mobile internet
WiFi
- Keyboard layout
Keyboard not included
- No. of DisplayPort
2 x
- No. of Gigabit LANs
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
3 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- No. of USB 3.0 ports
1 x

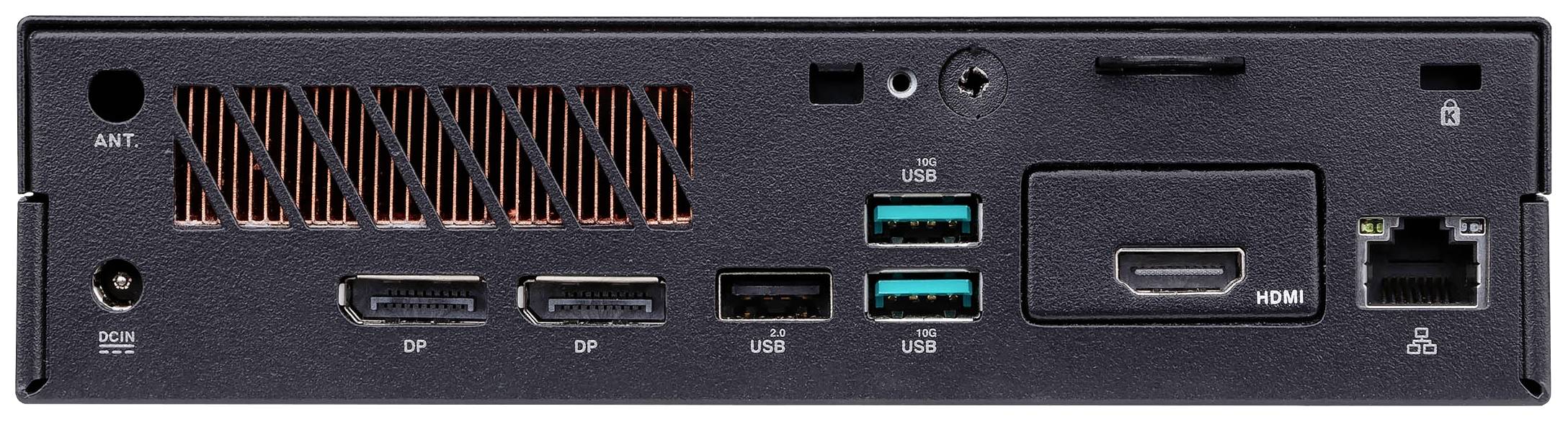

- Interfaces
USB A (USB 2.0)
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
USB C®
HDMI™
DisplayPort
RJ45
Headphone jack (3.5 mm)
Microphone (3.5 mm jack)
Wi-Fi 6E (IEEE 802.11ax)
Show more
- Factory colour
Black
- Width
175 mm
- Height
44.2 mm
- Depth
175 mm
- Weight
1.18 kg
- Operating system (Version)
w/o OS
- Display size
- 23 inch
- Display
2.5 cm (1 inch)
- UKCA
yes
- Eco badge reference
EPEAT
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2959605 Asus Mini PC VIVO PB63-B7016MH Intel® Core™ i7 i7-13700 16 GB RAM 512 GB SSD Intel UHD graphics 770 90MS02R1-M000H0
Description
The Asus Expertise Center PB63 is a robust, versatile, and powerful PC that is suitable for a range of business applications, including digital signage, point-of-sale (POS) systems, kiosks, and smart vending machines. Powered by the latest 13 Intel® Core™ processors. Generation with Intel® UHD graphics processors, PB63 delivers desktop performance in a compact format and supports next-generation DDR5 memory. In order to meet the different requirements, the PB63 supports a 46 to 65 watt CPU, so you can easily choose between maximum efficiency and maximum performance. With full connectivity with eight USB ports and support for up to three 4K UHD displays, the PB63 is perfect for almost any business case. It has also been tested to the latest MIL-STD-810H military standard to ensure it is suitable for harsh environments.
This text is machine translated.
This text is machine translated.
Hints
HDMI® is a registered trademark of HDMI Licensing LLC
Image may differ from actual product.
