Asus P13R-I Motherboard PC base Intel® 1700 Form factor (details) Mini-ITX Motherboard chipset Intel® C262
EAN:
Part number:
Item no:

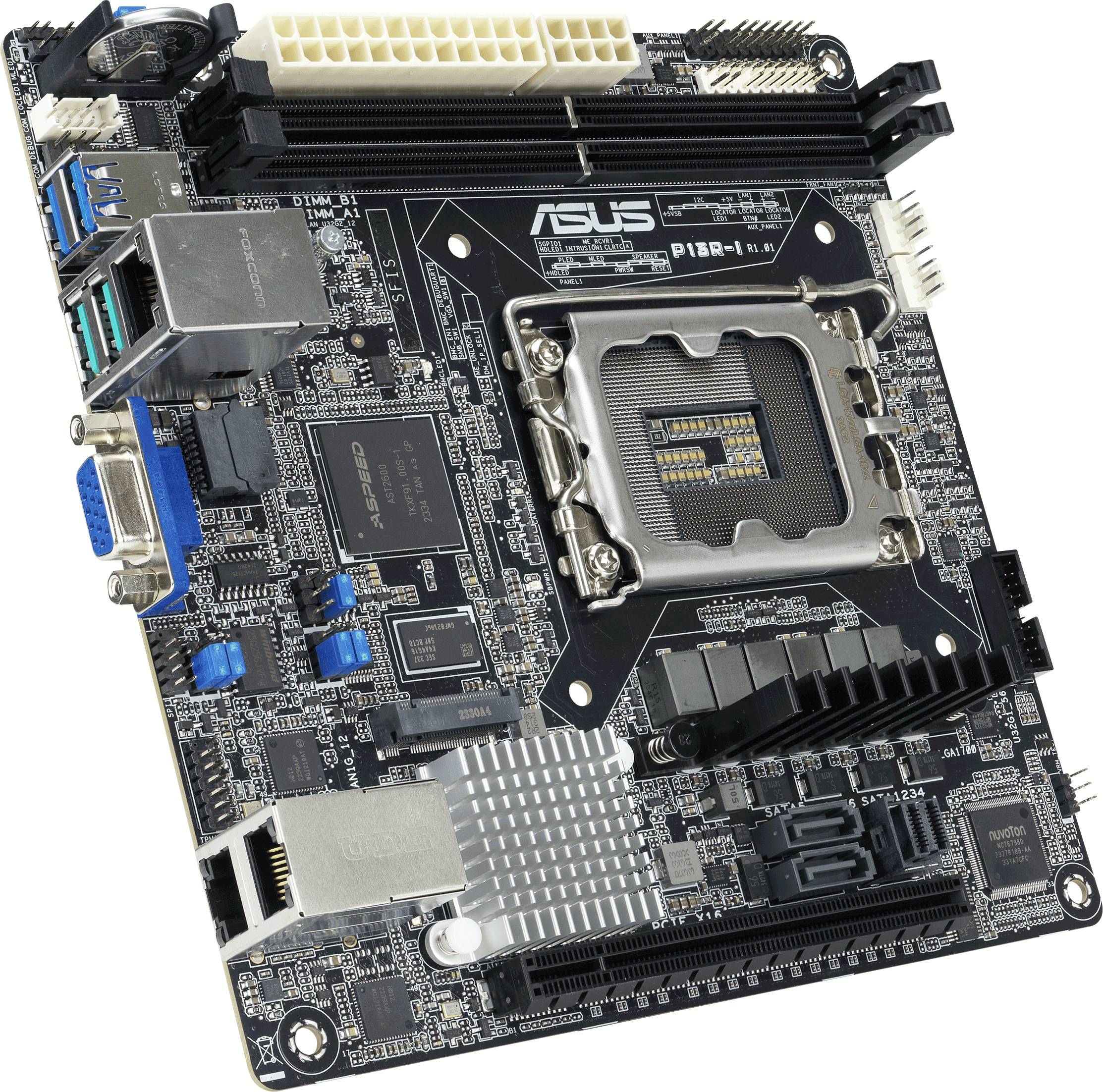

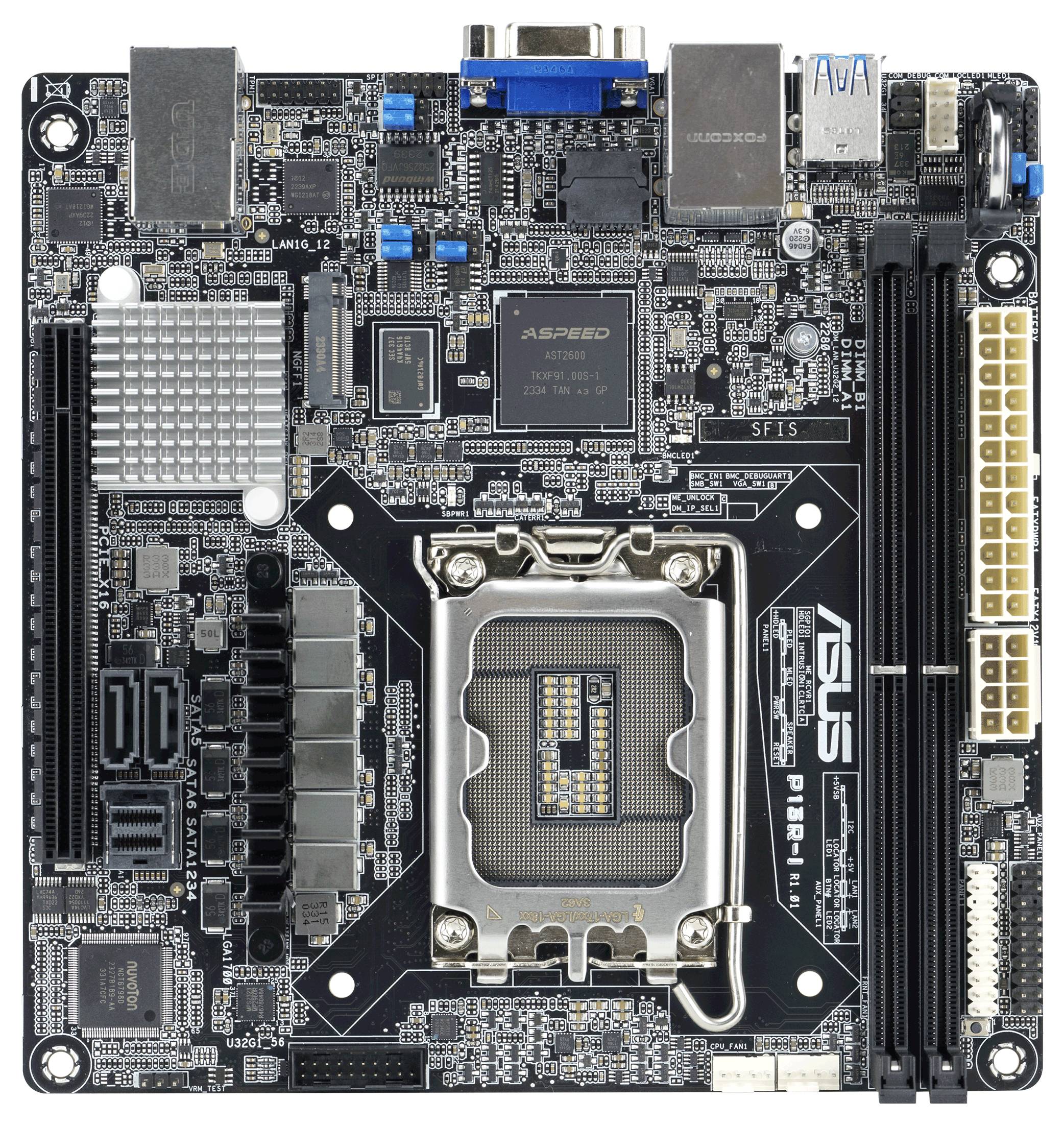

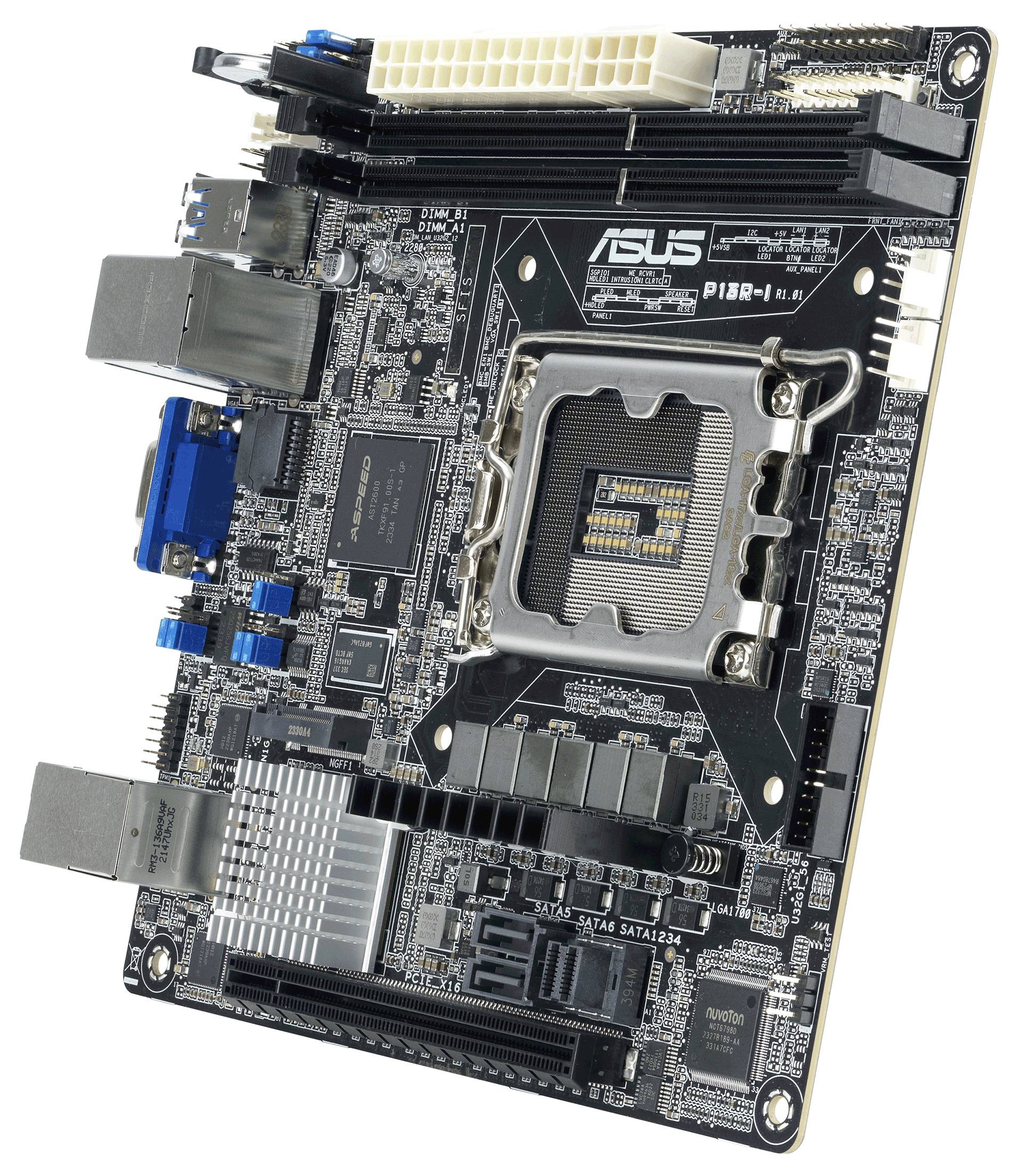

Asus P13R-I Motherboard
Highlights & Details
- Supports Pentium and Xeon E processors for high-end computing
- 4 DIMM slots supporting 4800 MHz DDR5 SDRAM for superior memory performance
- Flexible memory with 6 x SATA-600 and M.2-socket for SSDs
- USB 3.2 Gen 1 and Gen 2 for high-speed peripheral connectivity
- Dual Intel I210-AT Gigabit Ethernet for reliable network connections
Technical specifications
- Product type
Motherboard
- Chipset
Intel® C262
Intel® 1700
- Form factor
Mini-ITX
- Processor/type
Intel® Pentium® Processors; Intel® Xeon® E processors
- RAM type
DDR5 RAM
- Clock speed
4800 MHz
- RAM / Max. upgrade
64 GB

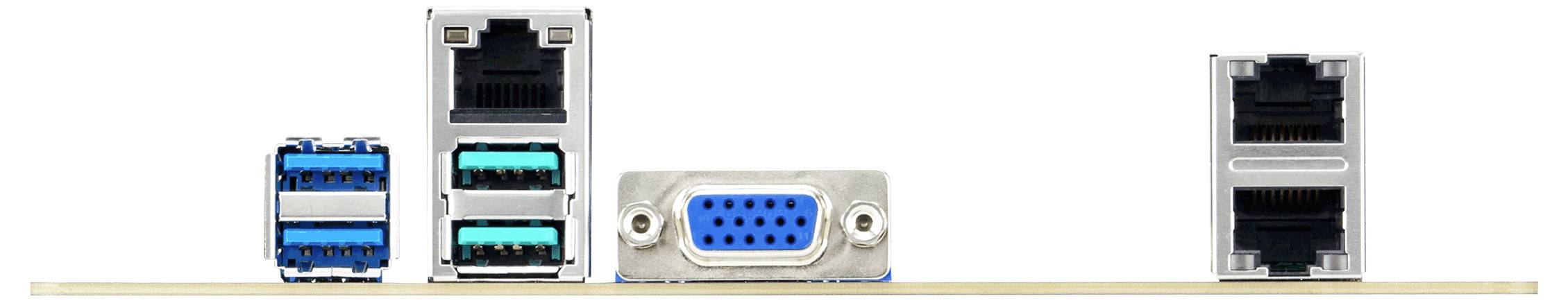

- Interfaces
VGA
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
Gigabit LAN (1 Gbps)
SATA
PCI-Express
M.2
- No. of DDR5 slots
2 x
- No. of LAN ports
1 x
- No. of Gigabit LANs
2 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- No. of USB 3.2
2 x
- No. of SATA III ports
6 x
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3364305 Asus P13R-I Motherboard PC base Intel® 1700 Form factor (details) Mini-ITX Motherboard chipset Intel® C262
Description
Robust expansion options
Equipped with a variety of expansion slots, including 1 CPU slot, 4 DIMM 288-pin slots for DDR5 SDRAM and a PCIe 5.0 x16 slot, the Asus P13R-I offers ample space for upgrades and extensions and ensures that your system can grow with your requirements.
High-speed connectivity
With USB 3.2 Gen 1 ports and Gen 2 ports, as well as two Gigabit Ethernet (LAN) ports, the Asus P13R-I provides fast and reliable connections for all your peripherals and network requirements.
Advanced storage solutions
With support for up to 6 x SATA-600 and an M.2 socket for SSDs, the Asus P13R-I offers flexible memory options that allow a mixture of speed and capacity for each requirement.
Optimized for performance
The Intel C262 chipset and support for Pentium and Xeon E processors on an LGA1700 socket in combination with DDR5 memory support at speeds up to 4800 MHz make the Asus P13R-I a power pack for productivity and performance.
Dedicated graphics and management
The built-in ASPEED AST2600 graphics adapter and ASMB11-iKVM for remote management underline the commitment of the Asus P13R-I to deliver a comprehensive solution that meets the needs of advanced users and professionals.
This text is machine translated.
