Asus P13R-M (1700) Motherboard PC base #####Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® C262
EAN:
Part number:
Item no:

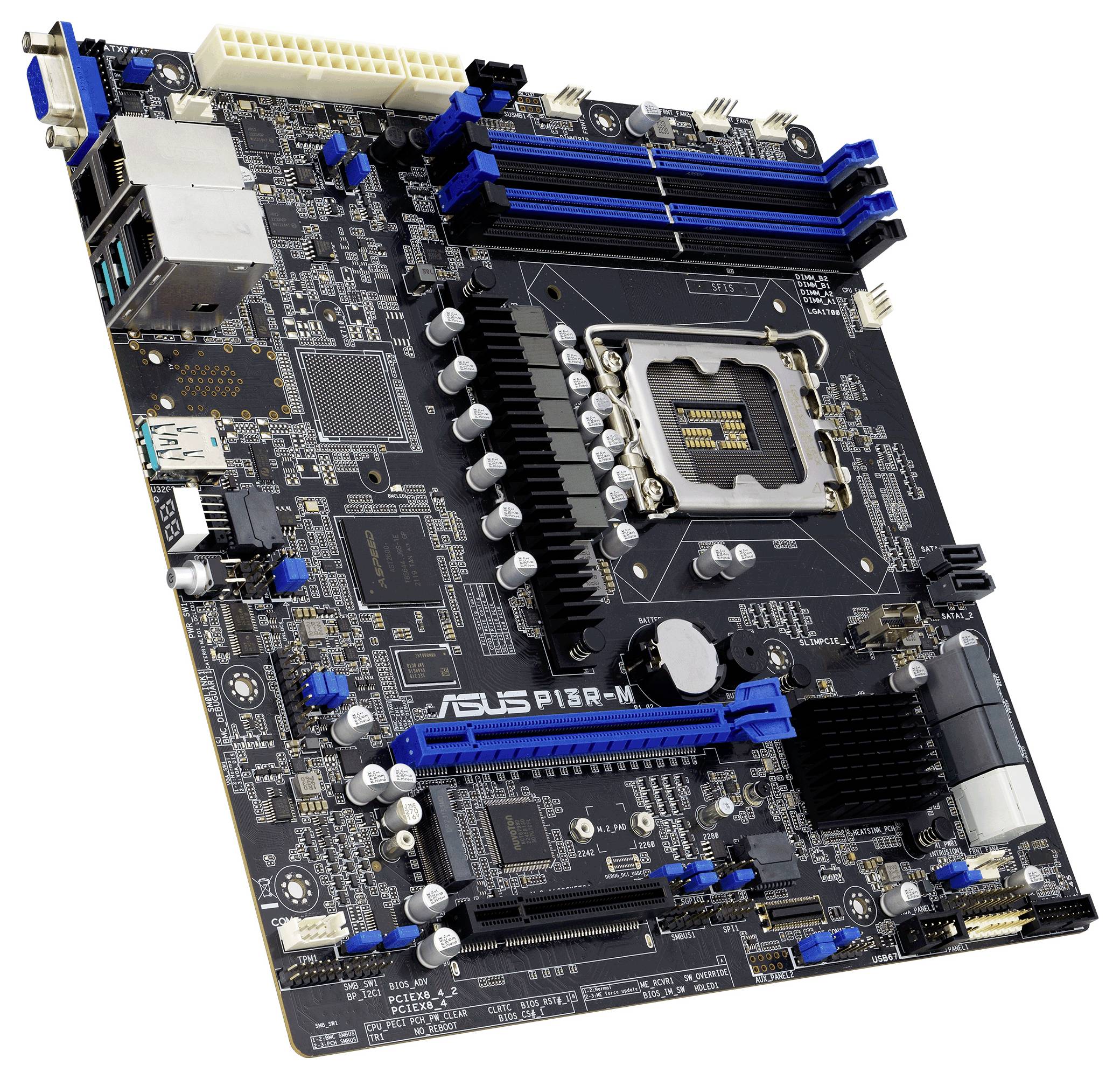

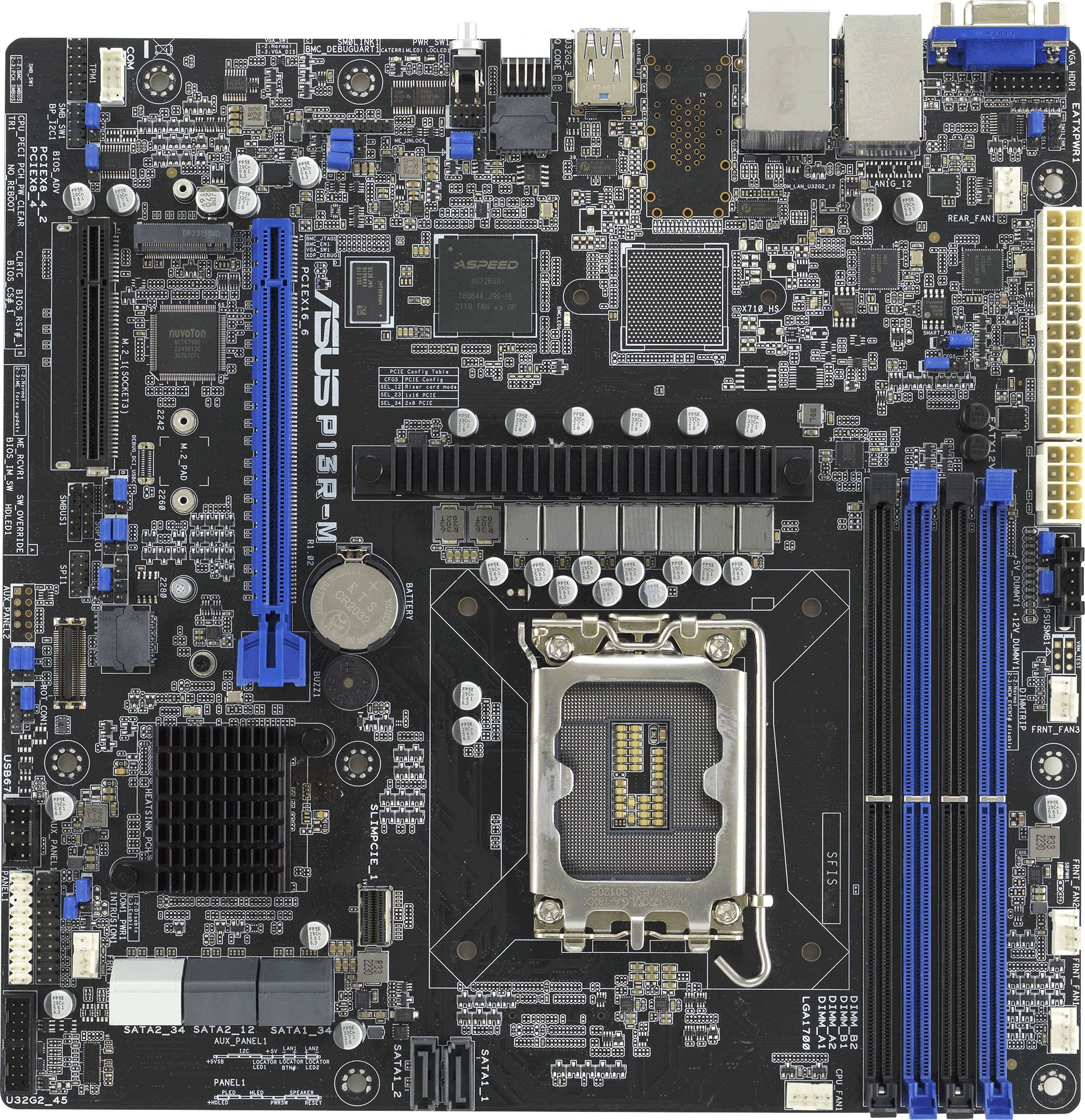

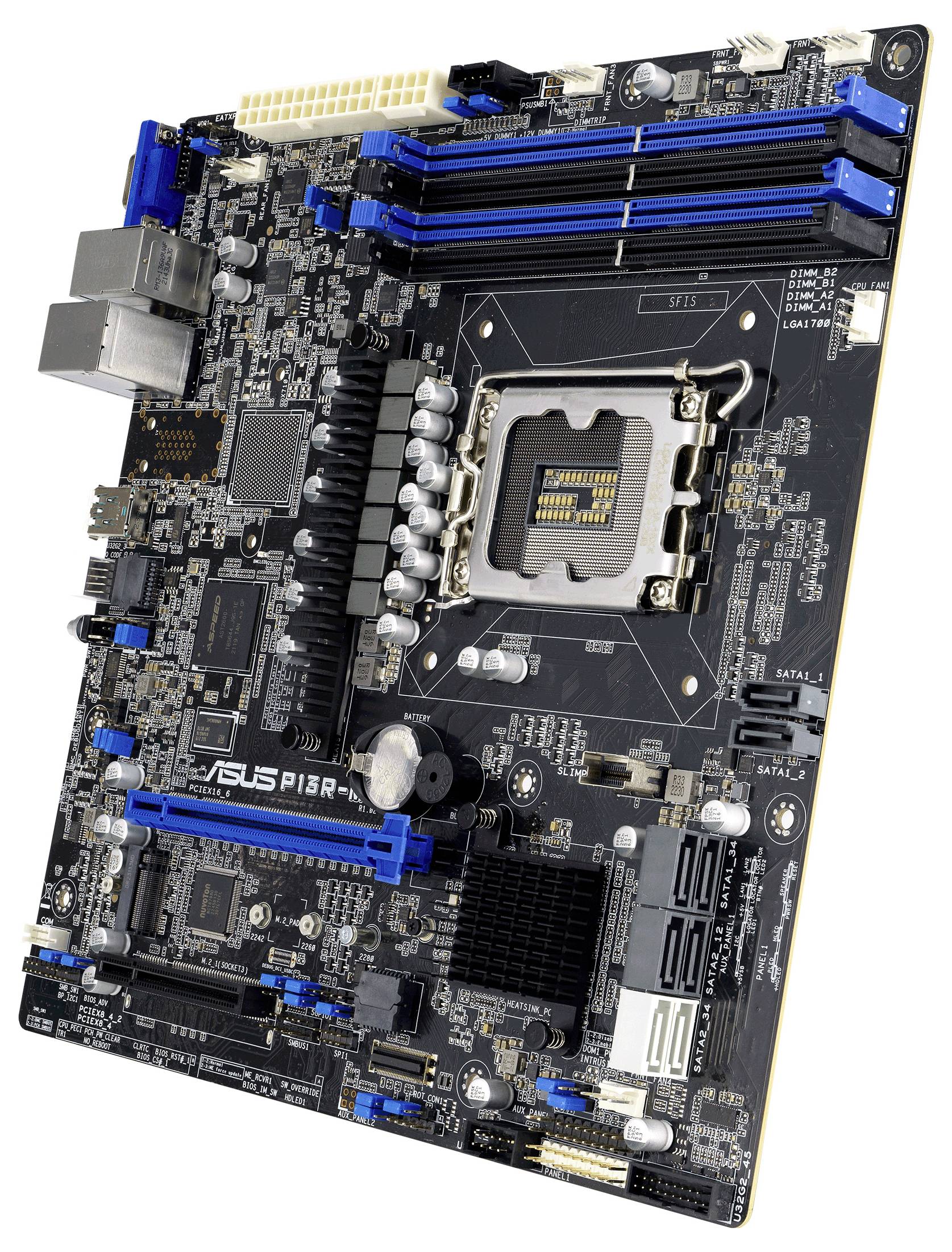

Asus P13R-M (1700) Motherboard
Highlights & Details
- Intel LGA 1700 Intel® Pentium®, Intel Xeon E
- Micro ATX Intel C262 server
- DDR5 SDRAM 4 DIMM RAM maximum: 128 GB
- M.2 SATA III
- ASPEED AST2600
- Fast Ethernet, Gigabit Ethernet
- This text is machine translated.
Technical specifications
- LGA 1700 processor socket
- Supported memory: DDR5 SDRAM
- Intel C262 motherboard chipset
- Motherboard form factor: Micro ATX
- Product type
Motherboard
- Chipset
Intel® C262
#####Intel® 1700
- Form factor
ATX
- RAM type
DIMM
- RAM / Max. upgrade
128 GB

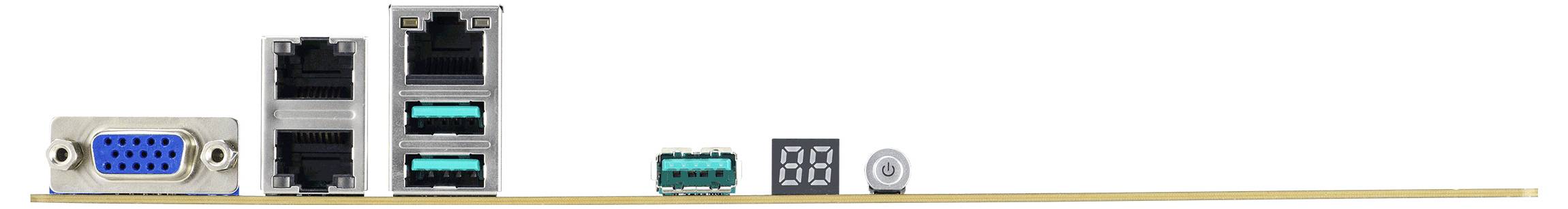

- Interfaces
USB A (USB 3.1 2nd gen)
USB A (USB 2.0)
VGA
- No. of Gigabit LANs
2 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
1 x
- No. of SATA III ports
8 x
- Depth
244 mm
- Height
100 mm
- Width
244 mm
- Graphics card type
ASPEED
- No. of VGA ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- Range of use
Server
- Weight
760 g
- UKCA
yes
- Operating temperature (T-T)
10 - 50 °C
- Ethernet LAN
yes
- Storage relative humidity (H-H)
20 - 90 %
- Number of memory slots
4
- Number of M.2 (M) slots
1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
3
- ATX Power connector (24-pin)
yes
- Number of HDDs supported
8
- TPM connector
yes
- EPS power connector (8-pin)
yes
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
1.3 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Serial port headers
1
