Asus P13R-M Motherboard Motherboard chipset Intel® C262
EAN:
Part number:
Item no:
Highlights & Details
Asus P13R-M Intel C262 LGA 1700 micro ATX
- Intel LGA 1700 Intel® Pentium®, Intel Xeon E
- Micro ATX Intel C262 server
- DDR5 SDRAM 4 DIMM RAM maximum: 128 GB
- HDD & SSD M.2, SATA III
- ASPEED AST2600
- Fast Ethernet, Gigabit Ethernet
Technical specifications
- LGA 1700 processor socket
- Supported memory: DDR5 SDRAM
- Intel C262 motherboard chipset
- Motherboard form factor: Micro ATX
- Product type
Motherboard
- Chipset
Intel® C262
- Graphics card type
ASPEED
- Graphics card type
AST2600
- No. of PCIe 3.0 x16
1 x
- No. of SATA III ports
8 x
- No. of USB 2.0 ports
1 x
- Depth
244 mm
- Width
244 mm
- No. of VGA ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- 10/100/1000 Mbps ports
2 x
- RAM / Max. upgrade
128 GB
- RAM type
DIMM
- Range of use
Server
- Weight
760 g
- UKCA
not relevant
- Operating temperature (T-T)
10 - 50 °C
- Ethernet LAN
yes
- Storage relative humidity (H-H)
20 - 90 %
- Number of memory slots
4
- Number of M.2 (M) slots
1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
3
- ATX Power connector (24-pin)
yes
- Number of HDDs supported
8
- TPM connector
yes
- PCI Express x8 (Gen 4.x) slots
1
- EPS power connector (8-pin)
yes
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
1.3 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Serial port headers
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3762611 Asus P13R-M Motherboard Motherboard chipset Intel® C262
Description

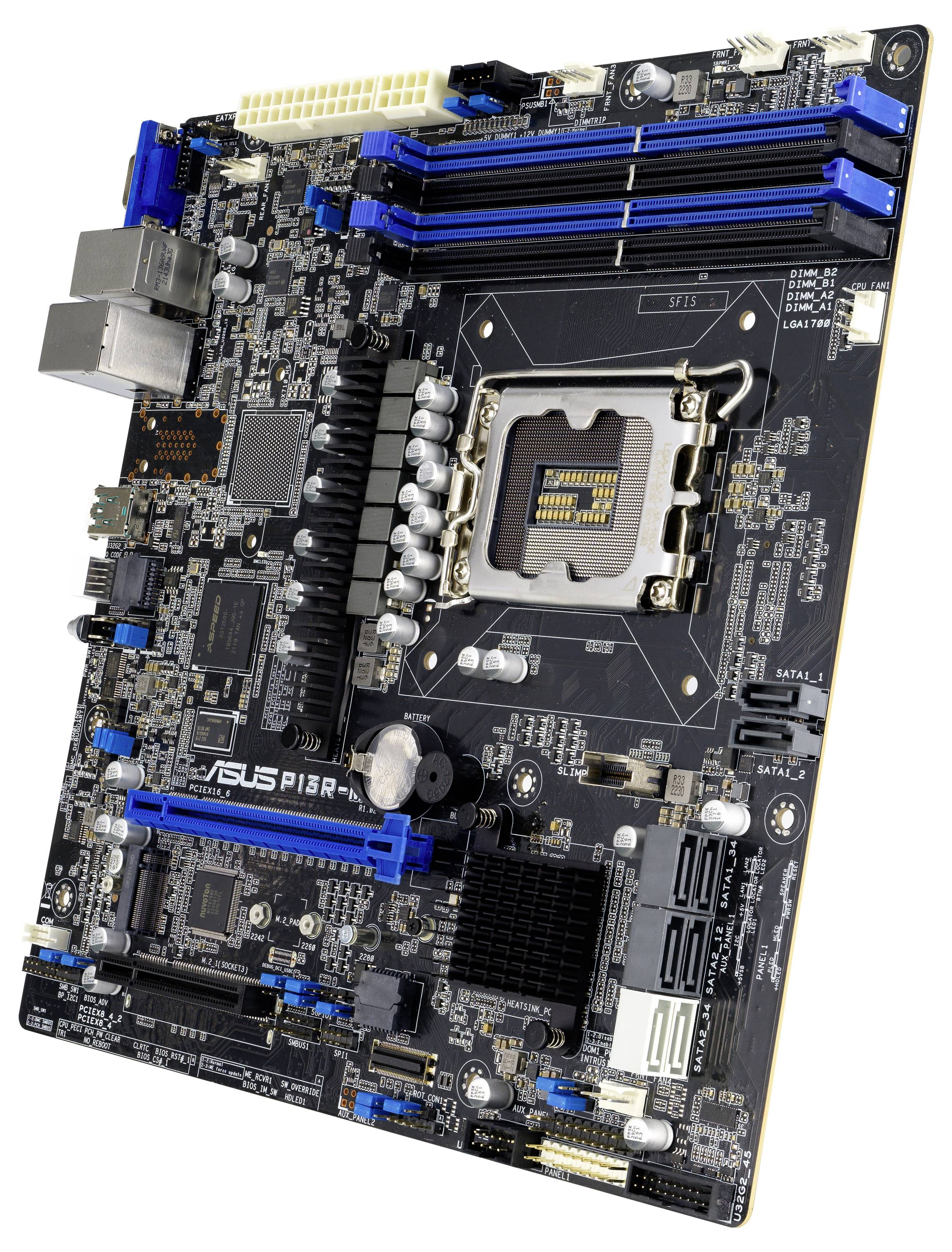

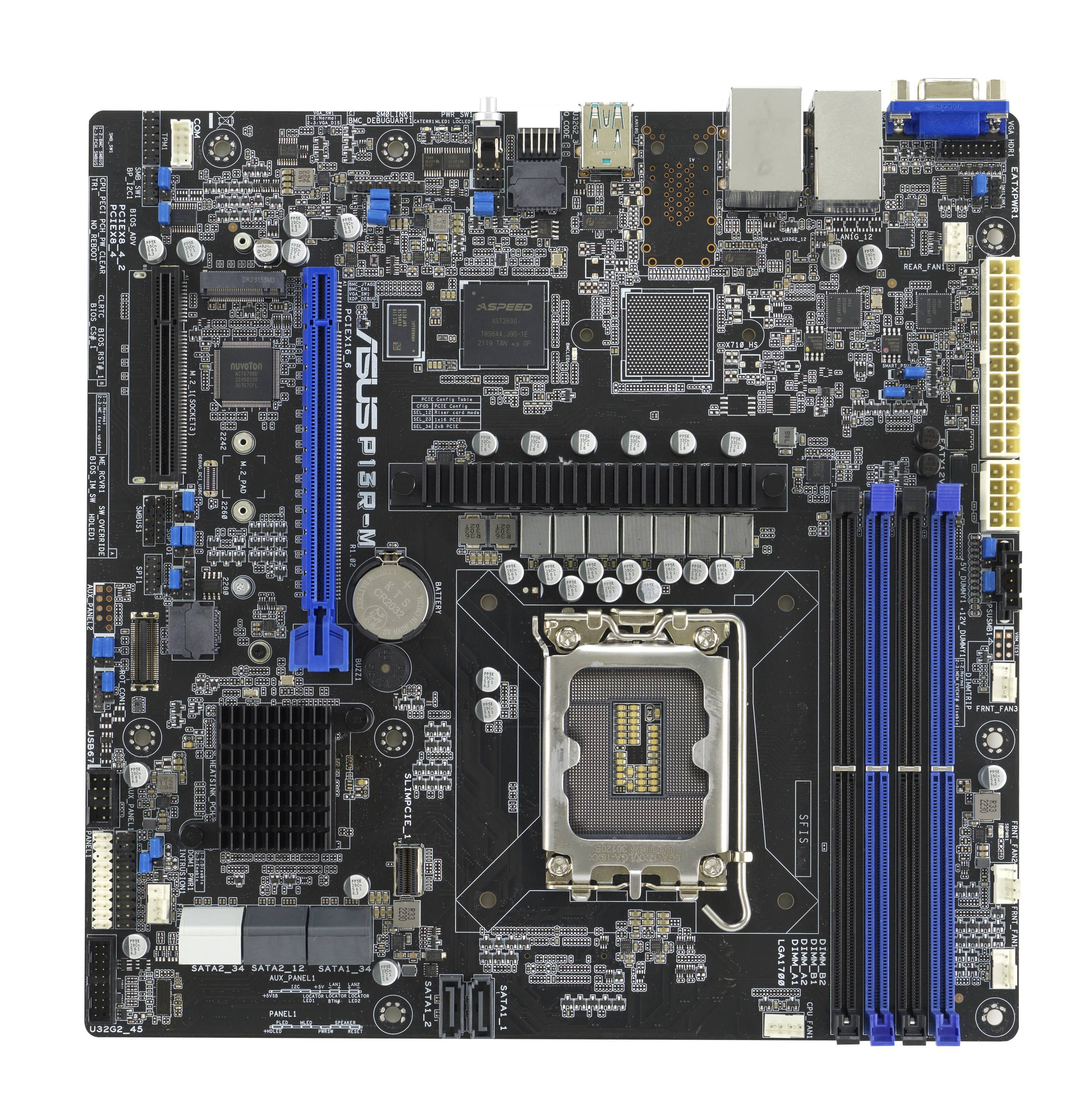

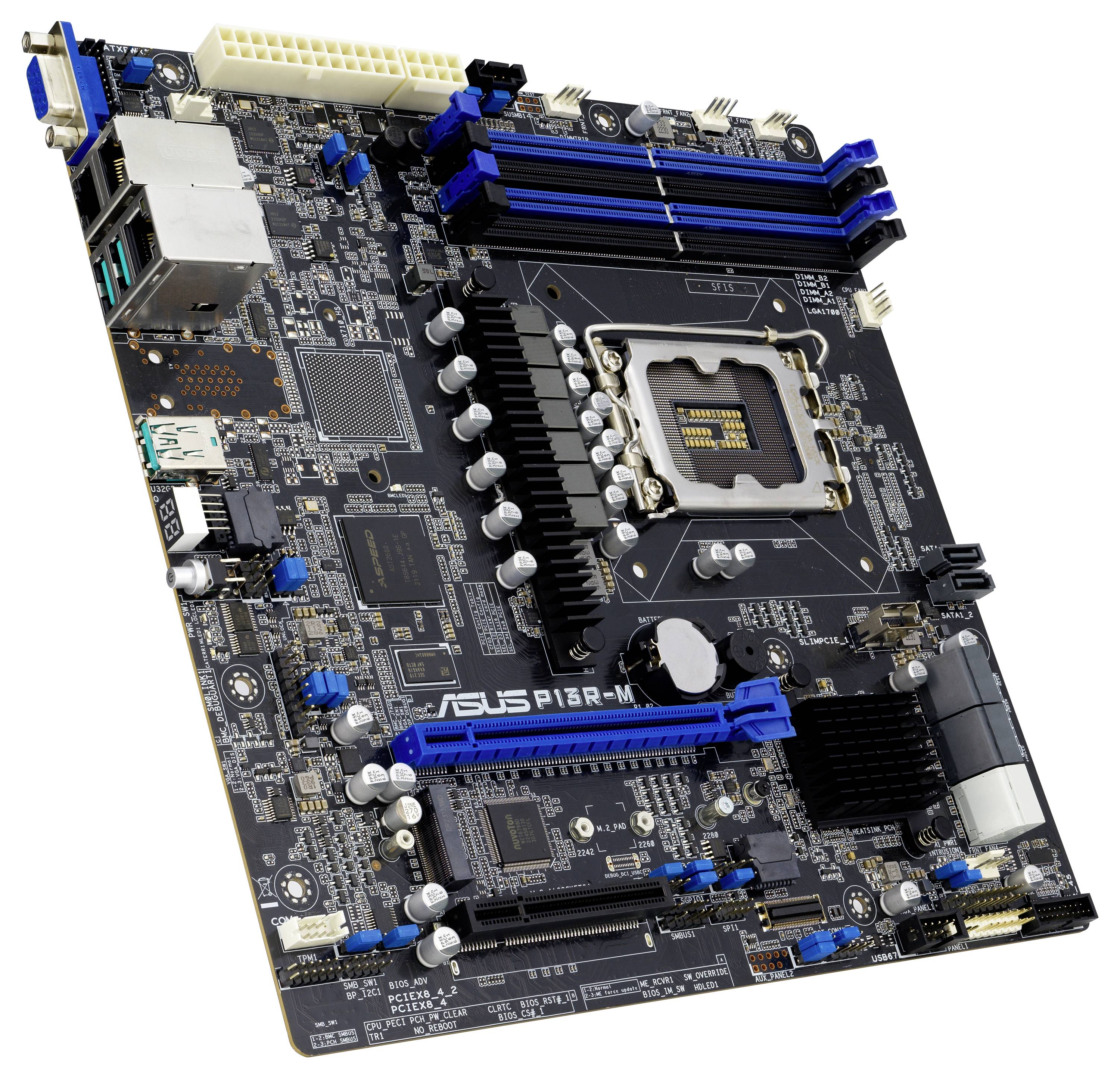

Micro ATX server board with LGA 1700 socket for Intel® Xeon® E-2400 and Intel® Xeon® 6300 processors. It supports four DDR5 ECC UDIMM, one M.2 slot, Dual LAN, eight SATA ports, one PCIe® 5.0 and one PCIe 4.0 slot, three USB 3.2 Gen 2 ports, platform firmware resilience (PFR), and the integrated Asus ASMB11 iKVM.
Faster storage, graphics, and networking – PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, while WAS is twice as fast as PCIe 4.0. It also enables lower power consumption, better scalability and backward compatibility. Asus servers are PCIe 5.0-enabled with a scalable design to meet the growing demands of today's data centers.
This text is machine translated.
Faster storage, graphics, and networking – PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, while WAS is twice as fast as PCIe 4.0. It also enables lower power consumption, better scalability and backward compatibility. Asus servers are PCIe 5.0-enabled with a scalable design to meet the growing demands of today's data centers.
This text is machine translated.
Features
- Powered by eight-core Intel Xeon E-2400 and Intel Xeon 6300 series processors with support for up to 95 W TDP
- Flexible expandability with eight native SATA hard drive connectors, one PCIe 5.0 and one PCIe 4.0 slot
- Dual Intel I210-AT Gigabit Ethernet with teaming support
- One M.2 slot with up to 32 Gb/s performance for faster OS booting
- Integrated Asus ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as root-of-trust solution for firmware resilience
