Asus PCE-BE6500 Wi-Fi/Bluetooth®-Adapter 2880 MBit/s PCIe 3.0 x1
EAN:
Part number:
Item no:
WiFi 7 PCI-E adapter
Highlights & Details
- WiFi 7 PCI-E adapter
- Supports 6GHz band, 4096-QAM
- BE6500, 2.4GHz BE: 2x2 + 5GHz BE: 2x2 + 6GHz BE: 2x2
- Bluetooth 5.4, WPA2 network security, OFDMA and MU-MIMO
Technical specifications
- Network standard: IEEE 802.11n; IEEE 802.11ac; IEEE 802.11ax
- Wi-Fi 6E (802.11ax)
- Wi-Fi 7 (802.11b)
- Bluetooth 5.4
- Interface: PCI-Express x 1 slot
- WiFi 7 (802.11be) (2.4GHz): Up to 688 Mbps
- WiFi 7 (802.11be) (5GHz): Up to 2882 Mbps
- WiFi 7 (802.11be) (6GHz): Up to 2882 Mbps
- Product type
Wi-Fi/Bluetooth®-Adapter
- Interfaces
PCIe 3.0 x1
- Transfer rate
2880 MBit/s
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3368164 Asus PCE-BE6500 Wi-Fi/Bluetooth®-Adapter 2880 MBit/s PCIe 3.0 x1
Description
Asus offers a complete solution for the latest WiFi 7 standard, from the router to the wireless PCIe® card. With carefully developed technology and supporting software, the Asus Wi-Fi 7 overall solution provides optimized capabilities and performance.
Least overloaded Wi-Fi
Asus PCE-BE6500 is a WiFi 7PCIe® card that allows your PC to connect to a WiFi 7 router via the dedicated 6 GHz band. This means that it does not compete for bandwidth with non-WiFi 6E/7 devices. The brand new 6 GHz band with the lowest signal interference increases the speed up to 2.8 Gbps.
Plug the PCE-BE6500 into your PC and you get an immediate upgrade to the latest Bluetooth® 5.4 technology, which improves power consumption, supports large networks and optimizes power consumption. It enables flexible network configurations and various applications, with energy efficiency in the foreground.
* PCE-BE6500 only supports the PCI Express x1 standard, please install the adapter in a PCI-e x1 slot.
This text is machine translated.
Least overloaded Wi-Fi
Asus PCE-BE6500 is a WiFi 7PCIe® card that allows your PC to connect to a WiFi 7 router via the dedicated 6 GHz band. This means that it does not compete for bandwidth with non-WiFi 6E/7 devices. The brand new 6 GHz band with the lowest signal interference increases the speed up to 2.8 Gbps.
Plug the PCE-BE6500 into your PC and you get an immediate upgrade to the latest Bluetooth® 5.4 technology, which improves power consumption, supports large networks and optimizes power consumption. It enables flexible network configurations and various applications, with energy efficiency in the foreground.
* PCE-BE6500 only supports the PCI Express x1 standard, please install the adapter in a PCI-e x1 slot.
This text is machine translated.
Features

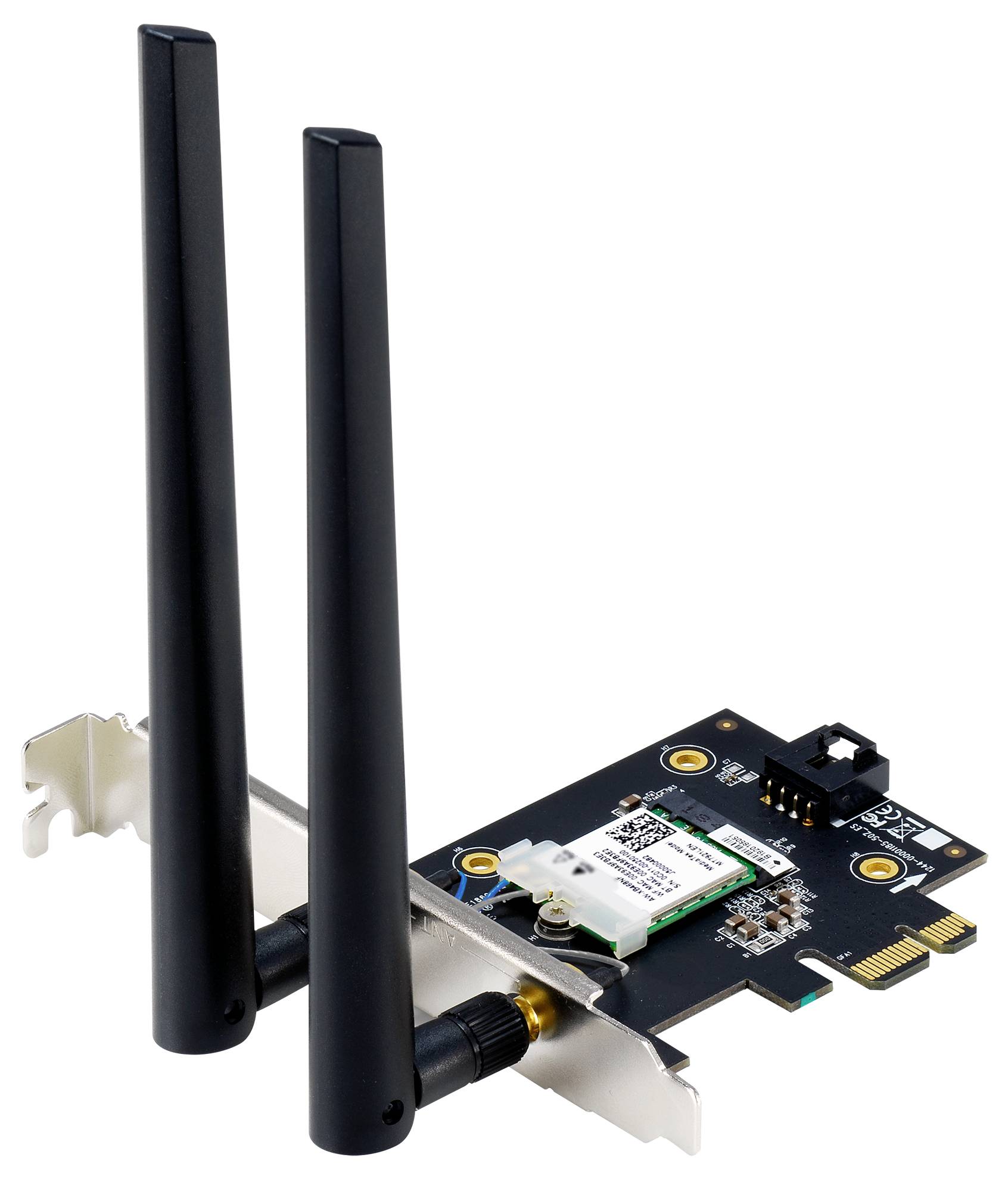

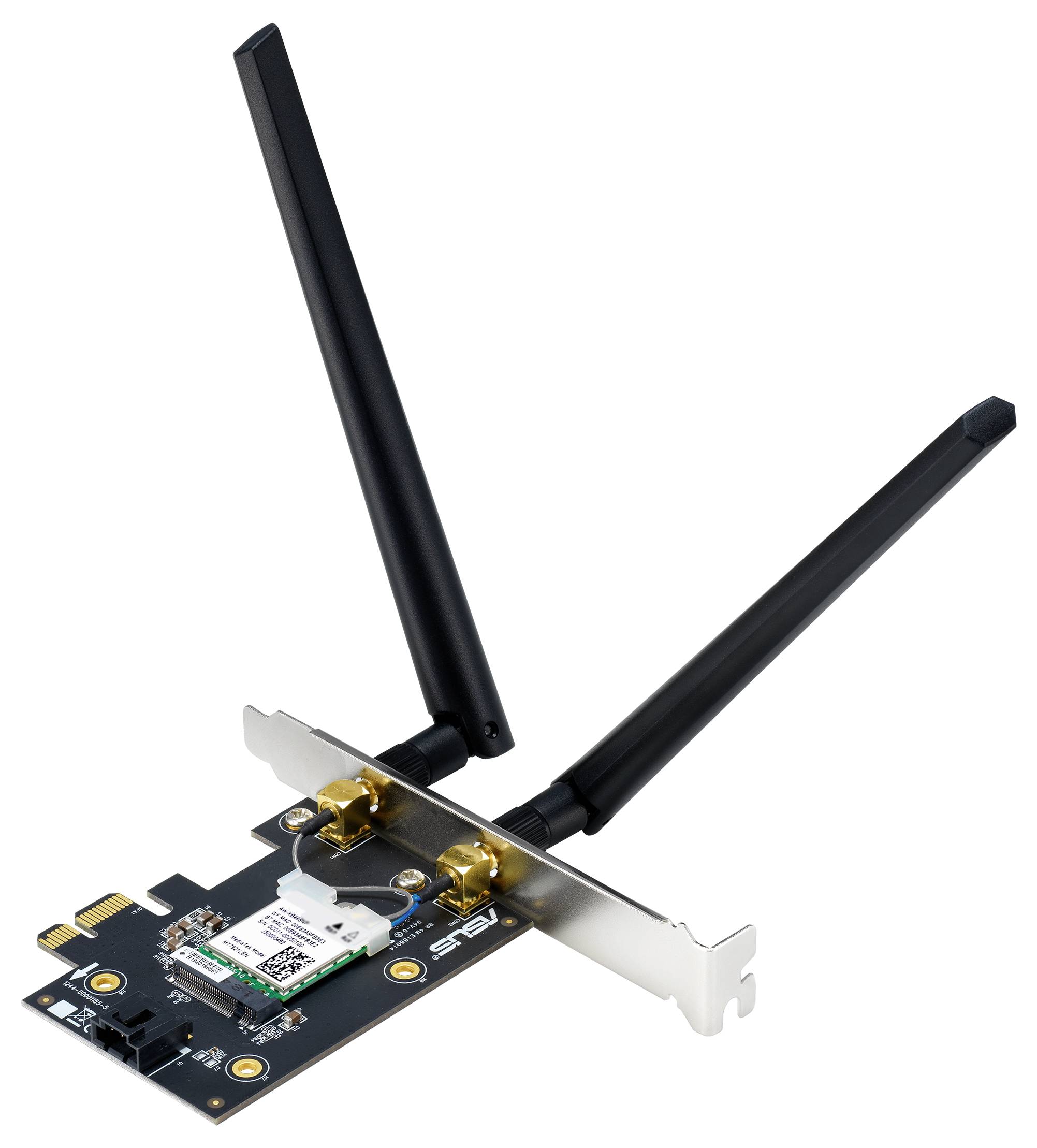

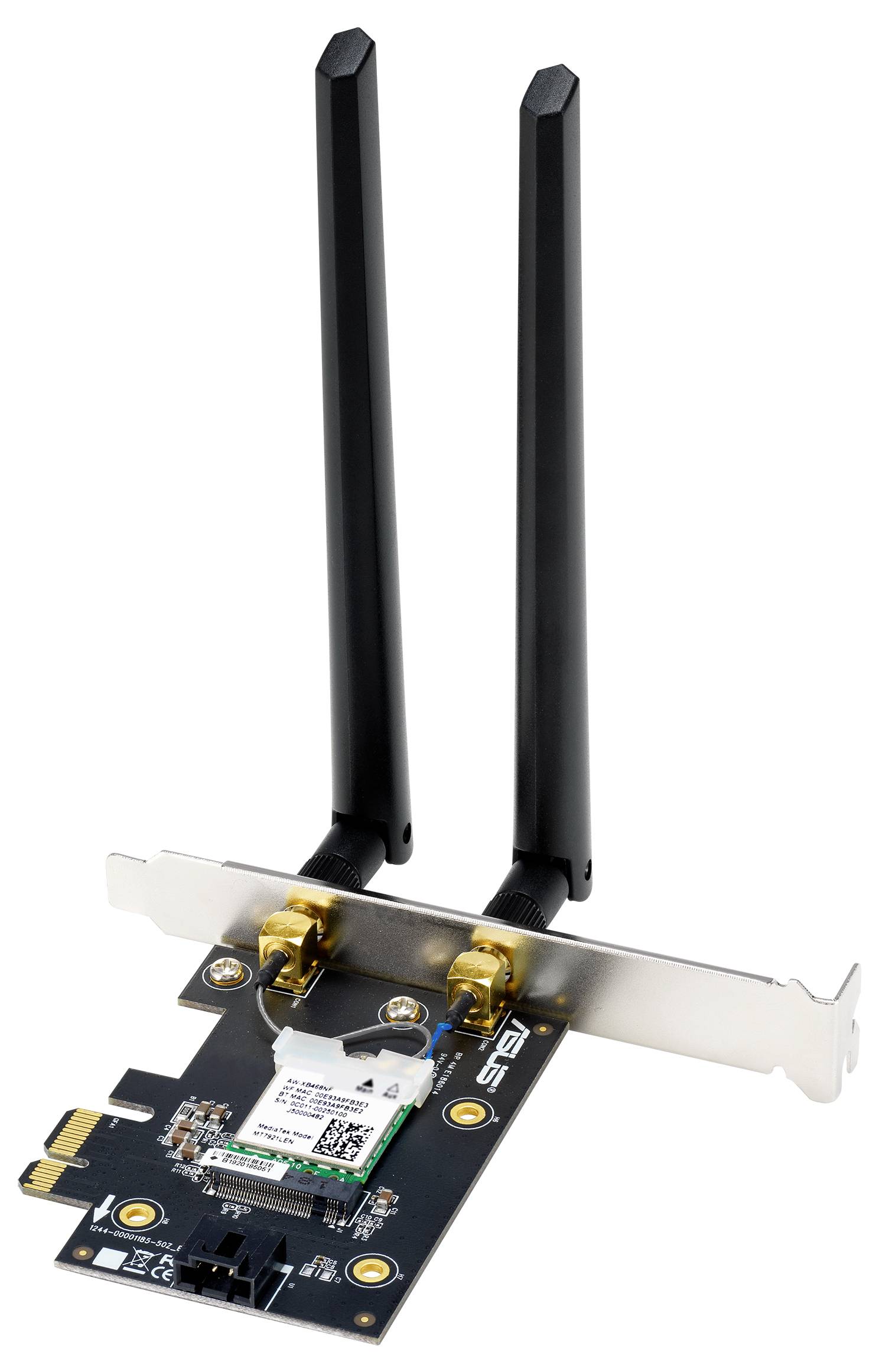

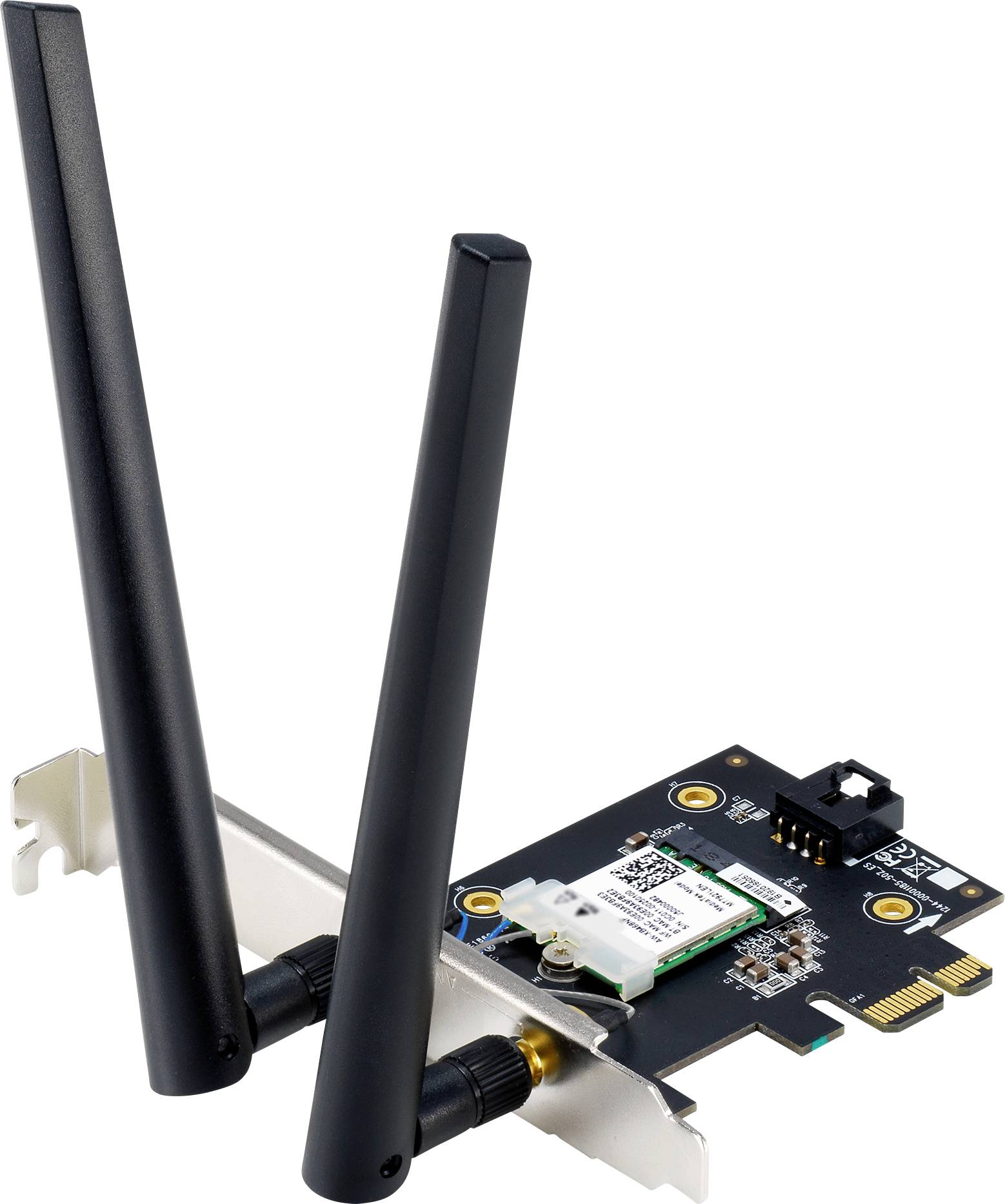

- WiFi 7 PCI-E adapter with 2 external antennas
- Supports 6GHz band
- 4096-QAM
- Bluetooth 5.4
- WPA2 network security
- Ultrafast WiFi 7 - 1.2x faster speeds, improved connection efficiency and improved network security
- Completely new 6-GHz band and 4096-QAM modulation - less overload and interference and higher network capacity for WiFi-connections
- Latest Bluetooth® 5.4 – Improve security, reliability and energy efficiency compared to the latest generation of high-speed Bluetooth 5.3
- Less dead zones with external antennas - The adjustable antennas allow easy positioning for the best reception.
Scope of delivery

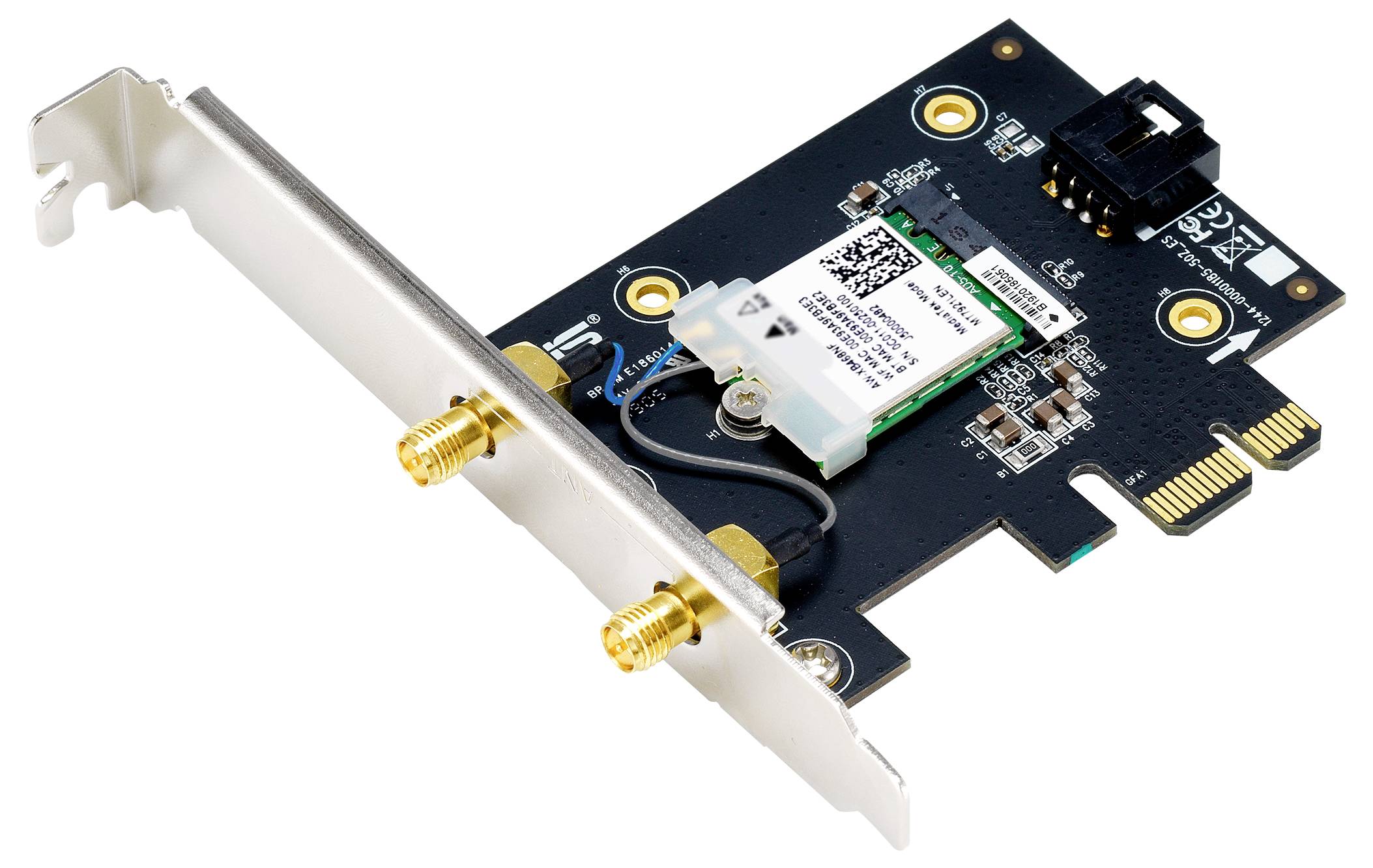

- PCI-Express X1 PCE-BE6500 card
- 2 antennas
- 1 Low profile connection sheet
- 1 x motherboard USB connection cable
- User manual.
