Asus PCE-BE92BT Wi-Fi adapter PCI-Express 5764 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Asus PCE-BE92BT WLAN/Bluetooth 5764 Mbps
Highlights & Details
- Wired & wireless
- PCI Express WLAN / Bluetooth
- 5764 Mbit/s
- WLAN Tri-Band (2.4 GHz/5 GHz/6 GHz) Bluetooth 5.4
- Component for: PC
Technical specifications
- Product type
Wi-Fi adapter
- Type
PCE-BE92BT
- Wi-Fi transmission rate (max.)
5764 MBit/s
- Wi-Fi frequency band
2.4 GHz
5 GHz
6 GHz
- Wi-Fi standard
IEEE802.11b
IEEE802.11a
IEEE802.11g
IEEE802.11n
IEEE802.11ax
IEEE 802.11be
- Interfaces
PCI-Express
- Weight
84.8 g
- Width
120 mm
- Height
21 mm
- Length
88 mm
- Version
Cable
- Factory colour
Multicolour
- Cable use
PC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3190738 Asus PCE-BE92BT Wi-Fi adapter PCI-Express 5764 MBit/s
User & Safety Instructions
User & Safety Instructions 3190738 Asus PCE-BE92BT Wi-Fi adapter PCI-Express 5764 MBit/s
Description
Leading WiFi 7
Asus offers a complete solution for the latest WiFi 7 standard, from the router to the wireless PCIe® card. With carefully developed technology and supporting software, the Asus Wi-Fi 7 overall solution provides optimized capabilities and performance.
* PCE-BE92BT only supports the PCI Express x1 standard, please install the adapter in a PCI-e x1 slot.
Least overloaded Wi-Fi
Asus PCE-BE92BT is a WiFi 7 PCIe® card that allows you to connect your PC to a WiFi 7 router via the dedicated 6 GHz band. This means that it does not compete for bandwidth with non-WiFi 6E/7 devices. The brand new 6 GHz band, which is least affected by signal interference, offers a bandwidth of up to 320 MHz and increases the speed to up to 5.7 Gbps.
Ultra fast WiFi 7
Desktop Upgrade
With WiFi 7 6 GHz technology and the wide 320 MHz channels, PCE-BE92BT delivers wireless speeds up to 2.4 times faster* than WiFi 6 / 6E devices, making it suitable for high bandwidth tasks.
*Comparison based on a 2x2 320 MHz WiFi 7 PCIe card against a 2x2 160 MHz WiFi 6 / 6E PCIe card
This text is machine translated.
Asus offers a complete solution for the latest WiFi 7 standard, from the router to the wireless PCIe® card. With carefully developed technology and supporting software, the Asus Wi-Fi 7 overall solution provides optimized capabilities and performance.
* PCE-BE92BT only supports the PCI Express x1 standard, please install the adapter in a PCI-e x1 slot.
Least overloaded Wi-Fi
Asus PCE-BE92BT is a WiFi 7 PCIe® card that allows you to connect your PC to a WiFi 7 router via the dedicated 6 GHz band. This means that it does not compete for bandwidth with non-WiFi 6E/7 devices. The brand new 6 GHz band, which is least affected by signal interference, offers a bandwidth of up to 320 MHz and increases the speed to up to 5.7 Gbps.
Ultra fast WiFi 7
Desktop Upgrade
With WiFi 7 6 GHz technology and the wide 320 MHz channels, PCE-BE92BT delivers wireless speeds up to 2.4 times faster* than WiFi 6 / 6E devices, making it suitable for high bandwidth tasks.
*Comparison based on a 2x2 320 MHz WiFi 7 PCIe card against a 2x2 160 MHz WiFi 6 / 6E PCIe card
This text is machine translated.
Features
- Ultra-fast Wi-Fi 7 - 2.4x faster speeds, improved connection efficiency and improved network security
- Completely new 6-GHz band and 320 MHz bandwidth - less overload and interference with WLAN connections
- Latest Bluetooth® 5.4 – Improve security, reliability and energy efficiency compared to the latest generation of high-speed Bluetooth 5.3

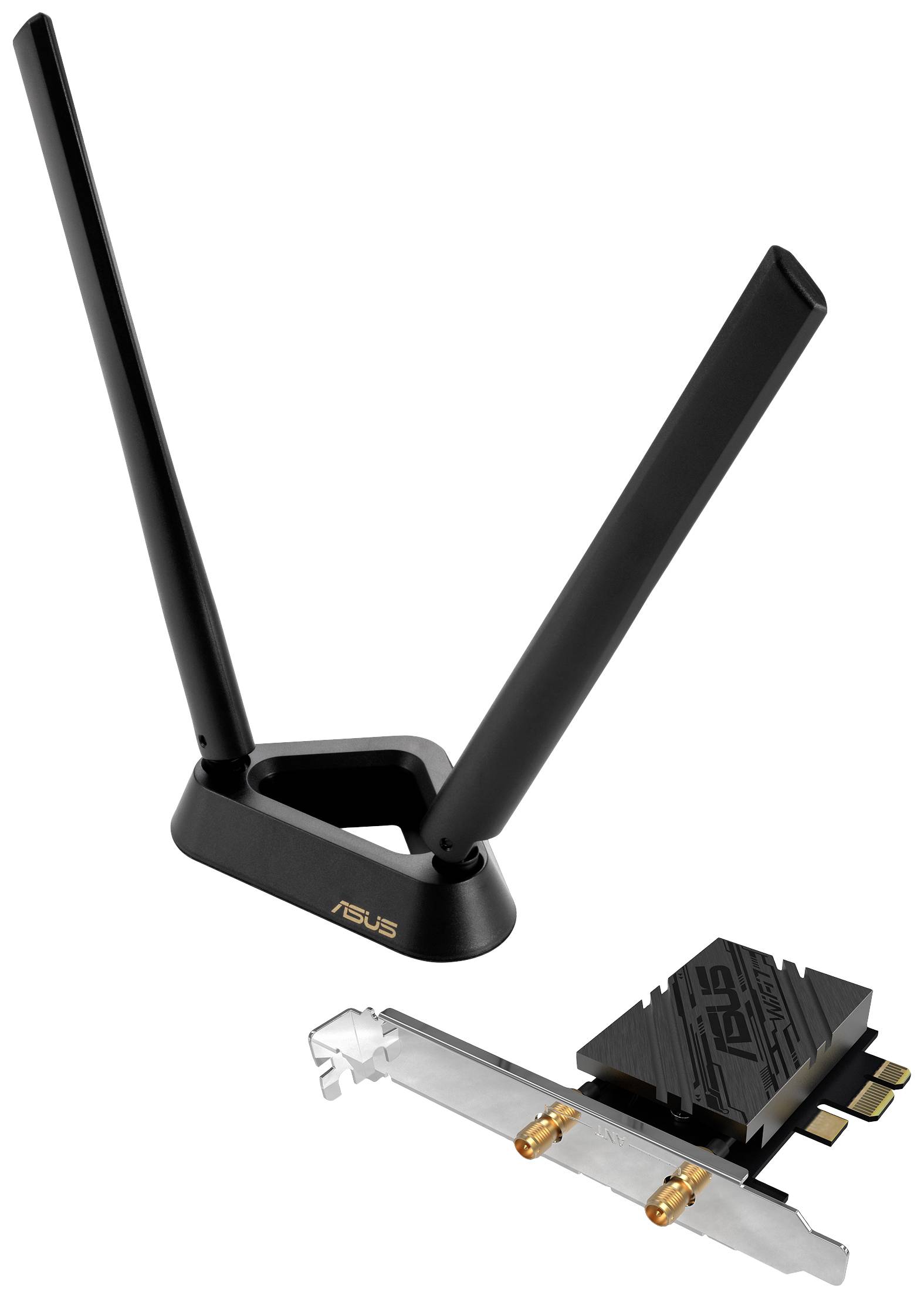

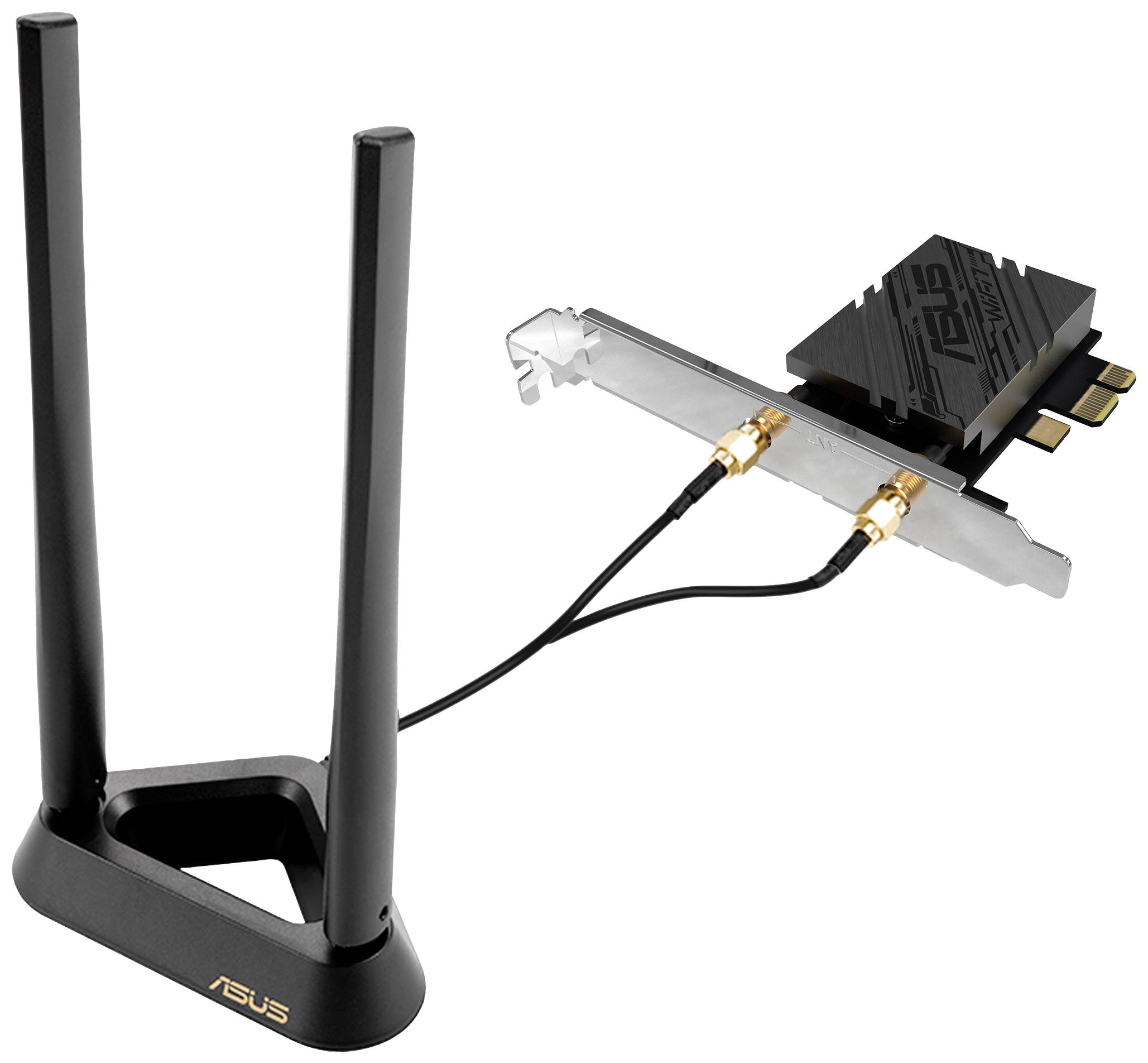

- Less dead zones with external antenna - Free standing transceiver and connection cable enable an easy positioning for the best reception
- Platform Support Guide - Works with Windows 11, compatible with Intel generation 13 and higher CPUs; does not support all AMD motherboards
System requirements
- Supports Windows operating systems: Windows 11
