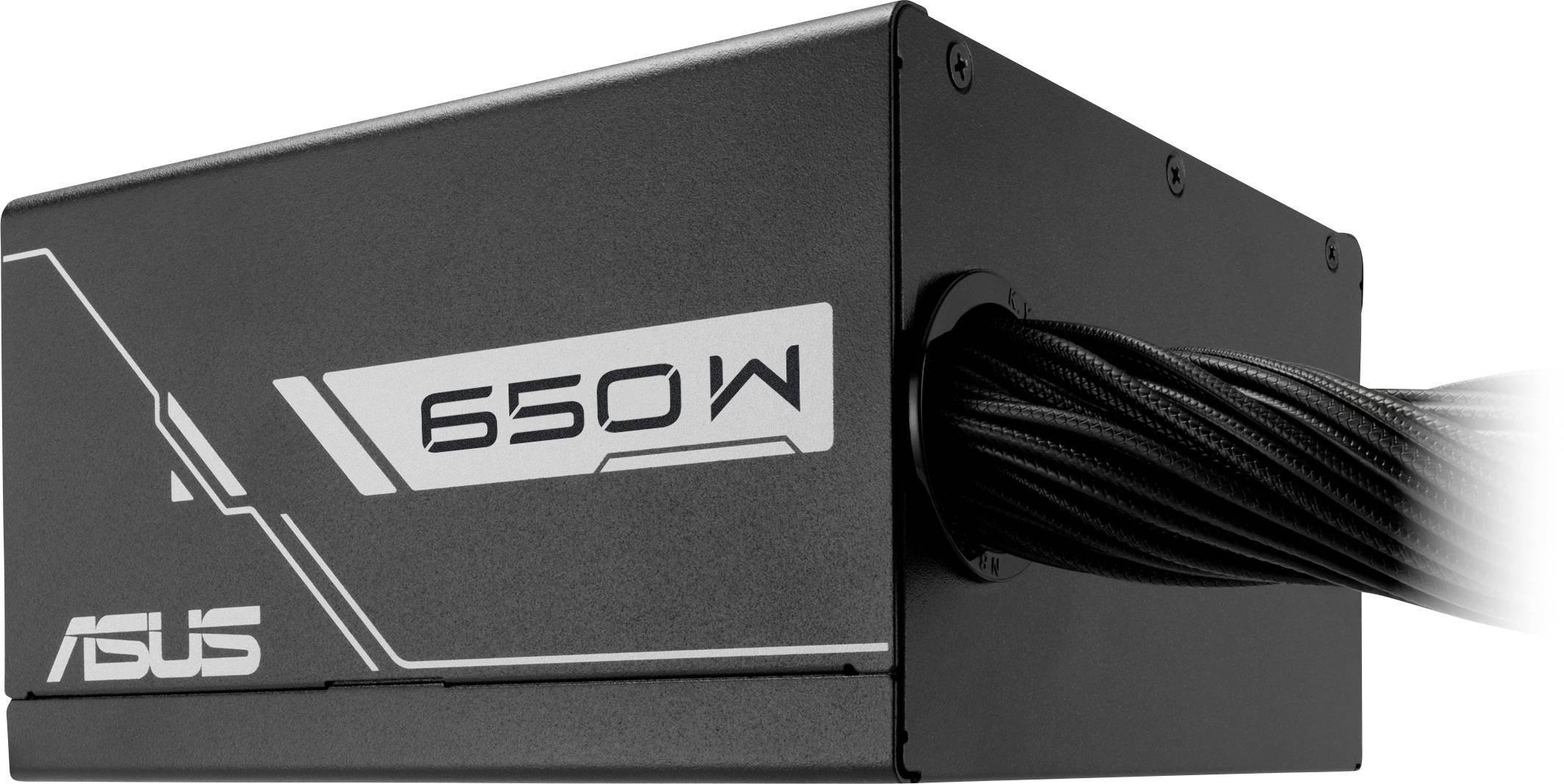

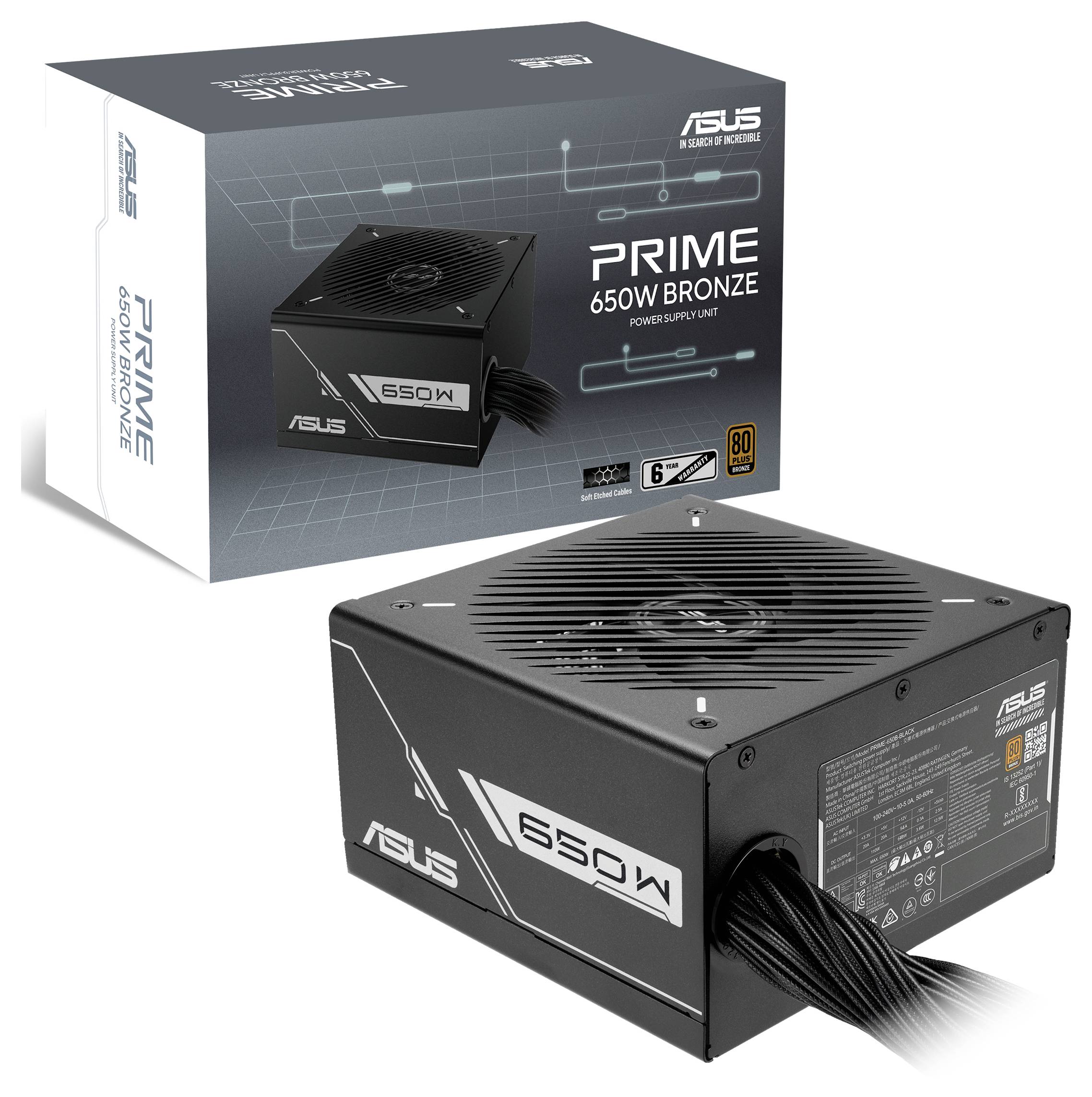

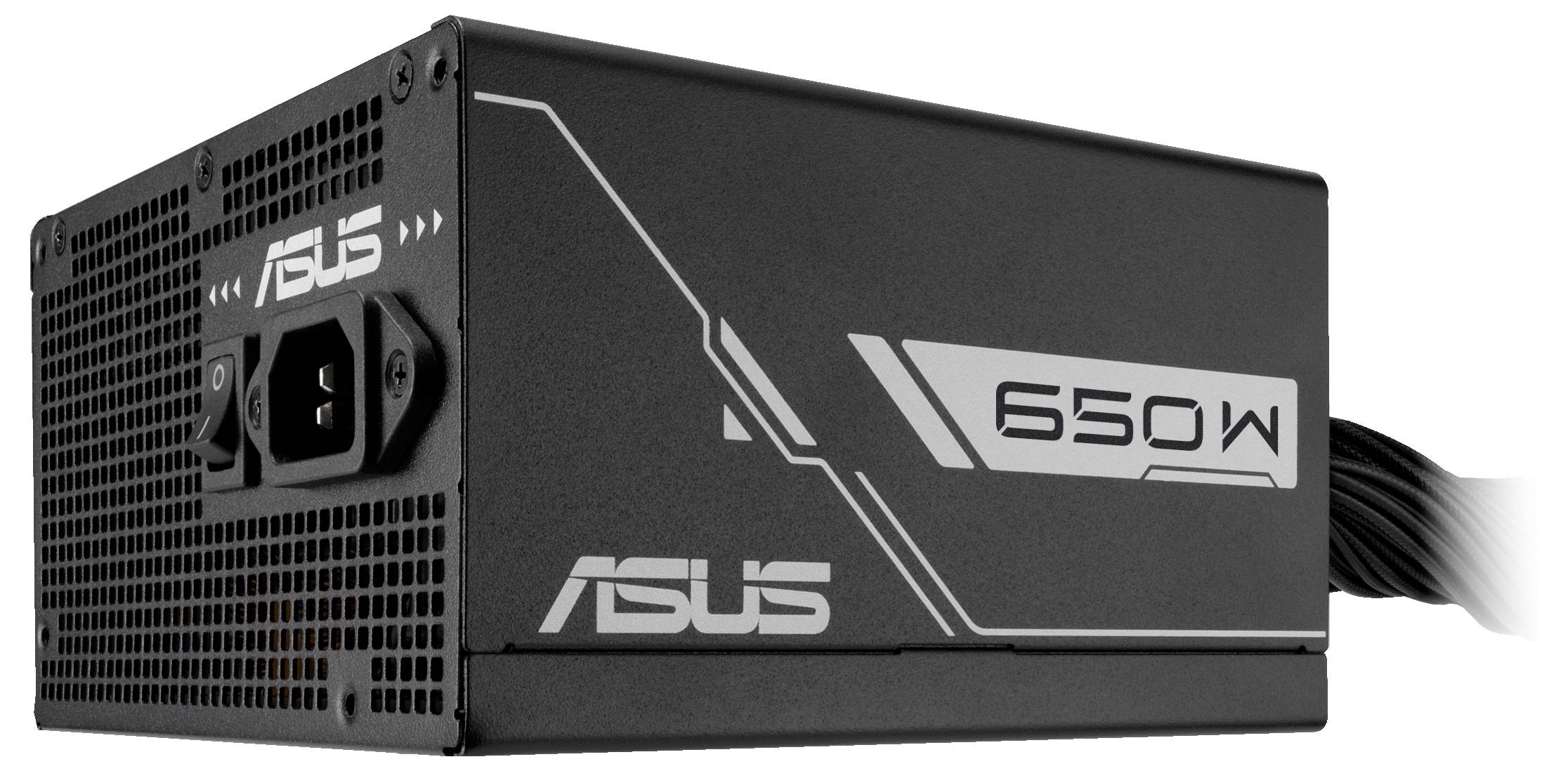

Asus PRIME 650B PC power supply unit 650 W ATX 80 PLUS Bronze
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
650 W
Modular
No
Certification
80 PLUS Bronze
Form factor
ATX

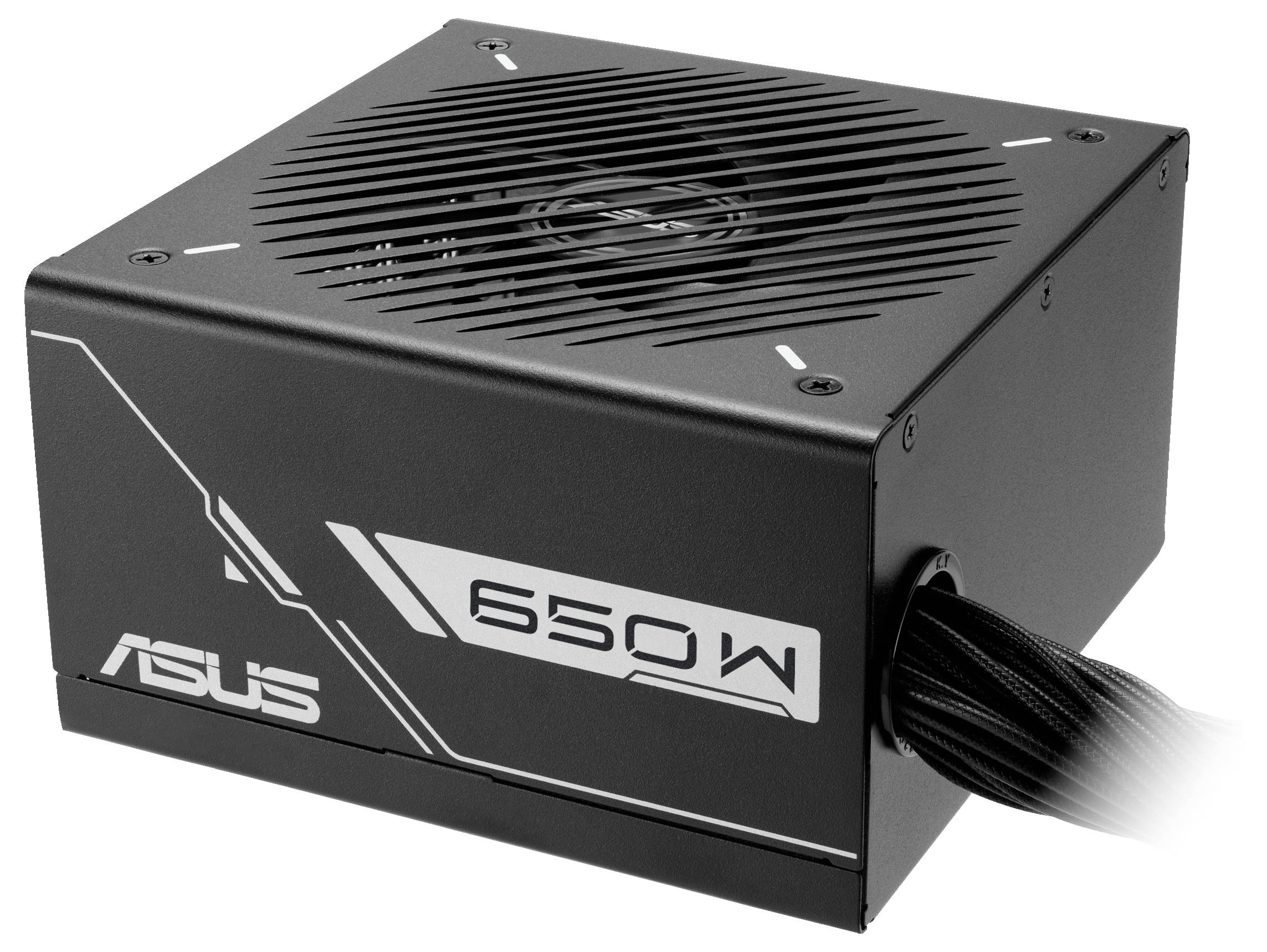

Asus PRIME 650B PC power supply unit
Highlights & Details
- Power supply unit output 650 W
- PCI-Express (6+2-Pin) x
- Cable management No
- 80 PLUS Bronze
Technical specifications
- 80 Plus certification: 80 PLUS Bronze
- Fan diameter 13.5 cm
- Product type
PC power supply unit
- PSU output power
650 W
- Modular
No
- Certification
80 PLUS Bronze
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
150 mm
- Weight
2.2 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
54 A
- 5 V DC
20 A
- +5V / DC SB
2.5 A
- 4-pin Molex
3
- 5-pin SATA
5
- Power rating
501 - 750 W
- Cooling
Active
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
230 V / AC
- UKCA
yes
- CPU power cable length
80 cm
- PCI Express power cable length
60 cm
- Mean time between failures (MTBF)
120000 h
- PCI Express power connectors (8-pin)
2
- CPU power connector (4+4 pin)
yes
- Package weight
3 kg
- Combined power (+3.3V)
110 W
- Combined power (+12V)
648 W
- Combined power (+5V)
110 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
12.5 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3474662 Asus PRIME 650B PC power supply unit 650 W ATX 80 PLUS Bronze
Description
The Asus PRIME 650W Bronze power supply delivers efficient and long-lasting energy for all-round PCs and gaming rigs.
Prime Performance
With 80+ Bronze certification, fan with double ball bearings and etched cables, the power supply of the Asus PRIME series offers efficient and durable power supply for reliable performance during system construction.
80 Plus Bronze certified
Heads and bronze
The high-quality components, which are used in the Asus PRIME power supplies, provide for an efficient and reliable operation, which deserves a 80 PLUS Bronze certification. The efficiency also leads to low temperatures inside the power supply, WAS enables an even quieter sound profile.
COOLING
Fans with double ball-bearings
2x longer life expectancy
Fans with double ball bearings have a long life of up to 80,000 hours and thus last twice as long as plain bearings and exceed even the fluid-dynamic bearings. If you choose the Asus PRIME Bronze series, it means long-lasting, reliable cooling with minimal noise.

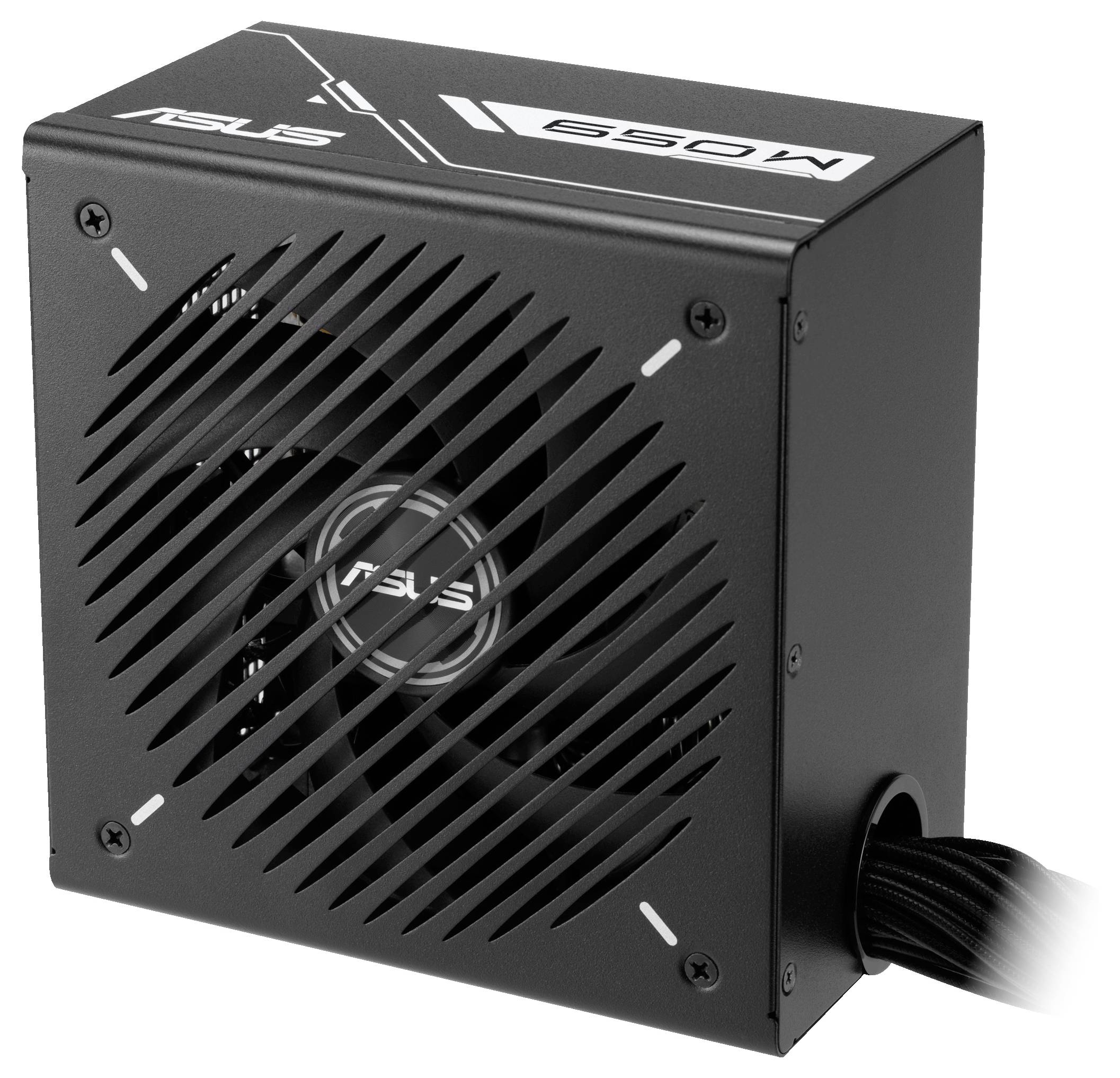

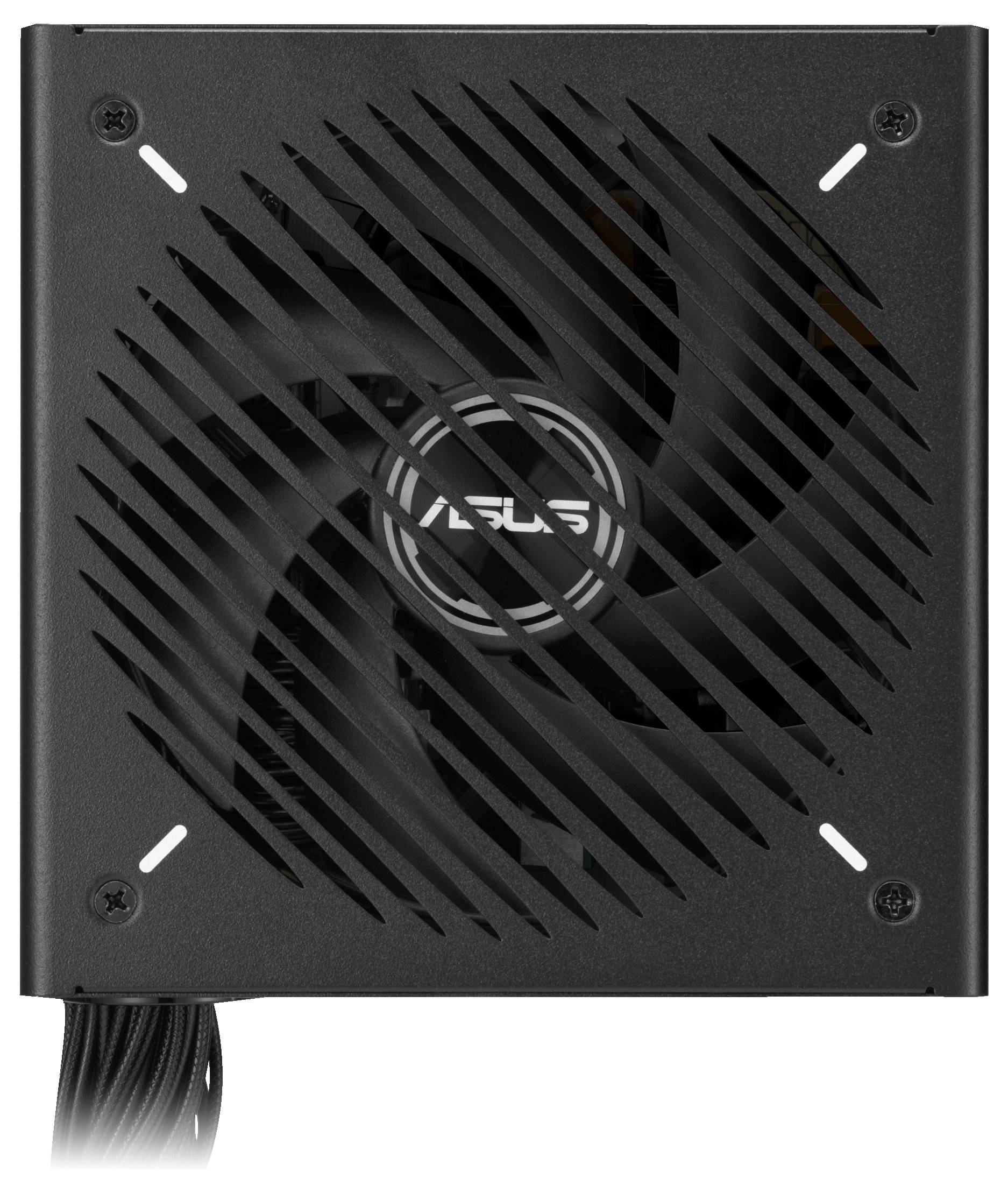

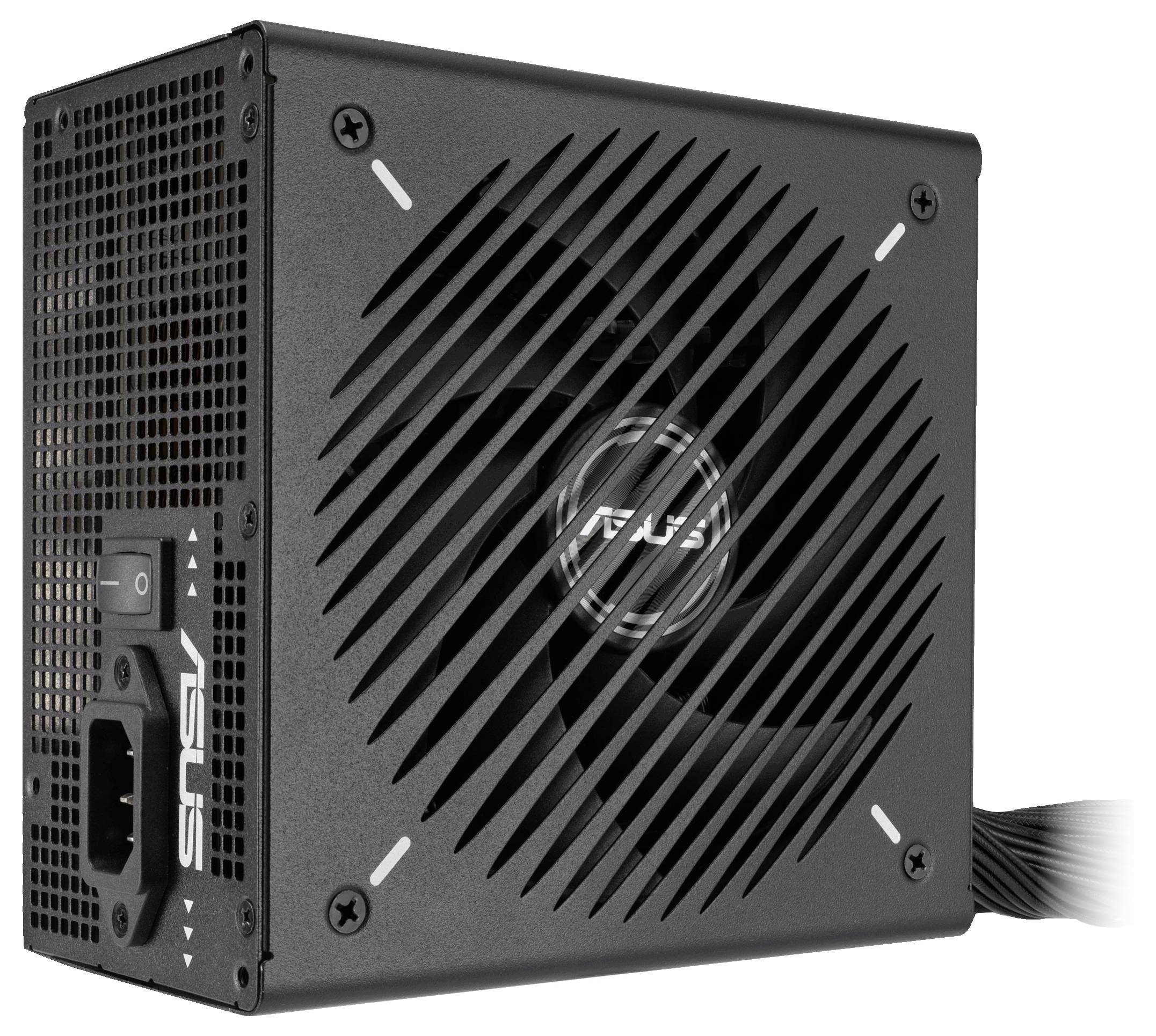

135 mm fan design
The 135 mm fan can dissipate heat more effectively, making the power supply cooler and quieter.
EXPERIENCE

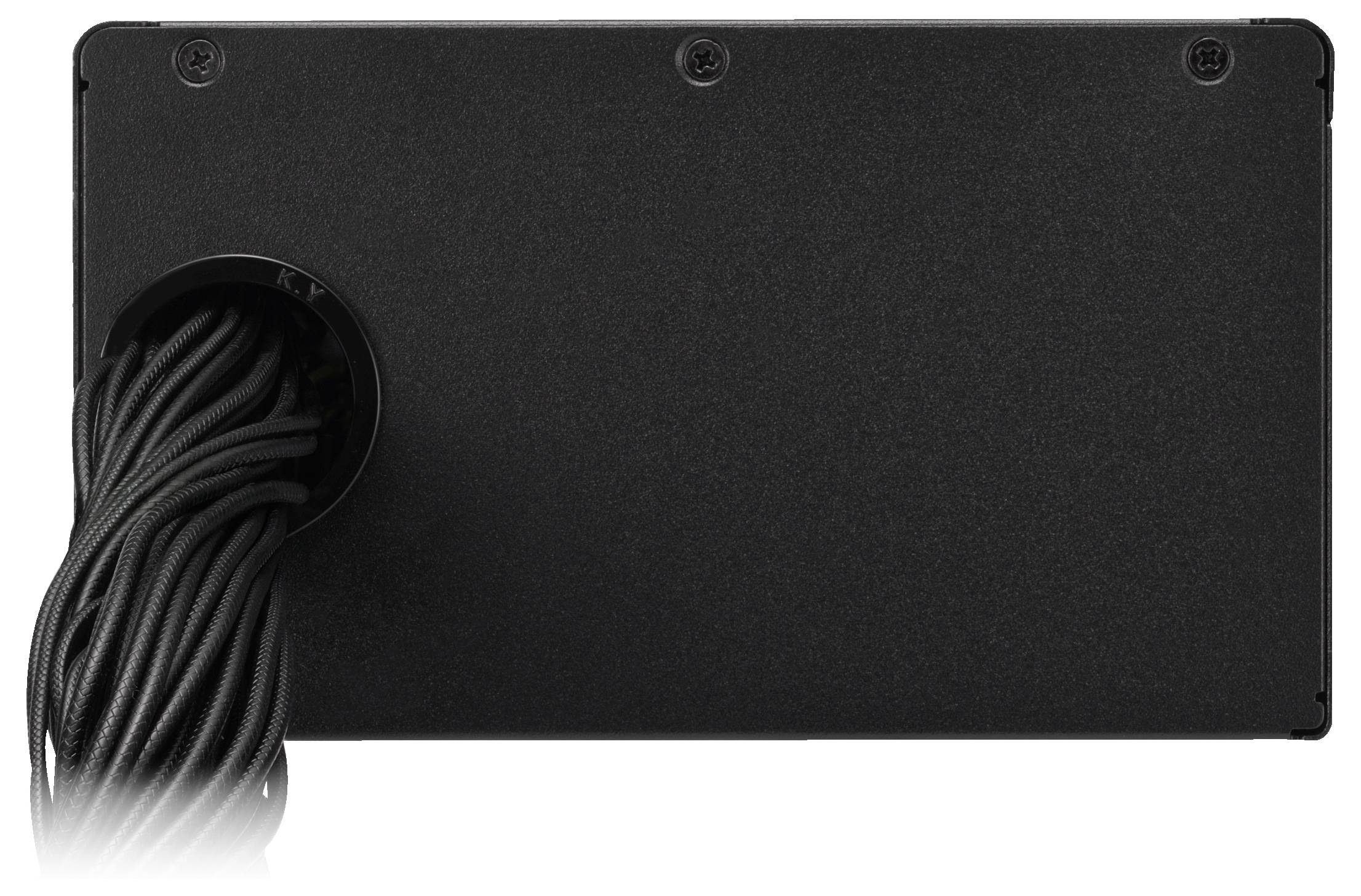

Etched cables
These etched cables made of flexible premium material are slightly flexible during installation and operate at temperatures 50°C below the safety limit when installed for cable management. These cables also meet the stringent UL1581 flame test and UL758 certification standards to ensure smooth PC assembly and exceptional safety.
DIY-friendly CPU Power connector
This CPU power cable is provided with a clear clip between the 4+4-pin plugs and a unique color scheme, WAS simplifies the identification of the cable during the installation. The integrated clip provides for a secure and effortless connection with the CPU-power connection of the mainboard, WAS simplifies the setup and strengthens the confidence in your PC-setup.
This text is machine translated.
Prime Performance
With 80+ Bronze certification, fan with double ball bearings and etched cables, the power supply of the Asus PRIME series offers efficient and durable power supply for reliable performance during system construction.
80 Plus Bronze certified
Heads and bronze
The high-quality components, which are used in the Asus PRIME power supplies, provide for an efficient and reliable operation, which deserves a 80 PLUS Bronze certification. The efficiency also leads to low temperatures inside the power supply, WAS enables an even quieter sound profile.
COOLING
Fans with double ball-bearings
2x longer life expectancy
Fans with double ball bearings have a long life of up to 80,000 hours and thus last twice as long as plain bearings and exceed even the fluid-dynamic bearings. If you choose the Asus PRIME Bronze series, it means long-lasting, reliable cooling with minimal noise.
135 mm fan design
The 135 mm fan can dissipate heat more effectively, making the power supply cooler and quieter.
EXPERIENCE
Etched cables
These etched cables made of flexible premium material are slightly flexible during installation and operate at temperatures 50°C below the safety limit when installed for cable management. These cables also meet the stringent UL1581 flame test and UL758 certification standards to ensure smooth PC assembly and exceptional safety.
DIY-friendly CPU Power connector
This CPU power cable is provided with a clear clip between the 4+4-pin plugs and a unique color scheme, WAS simplifies the identification of the cable during the installation. The integrated clip provides for a secure and effortless connection with the CPU-power connection of the mainboard, WAS simplifies the setup and strengthens the confidence in your PC-setup.
This text is machine translated.
Features
- Fans with double ball bearings can last twice as long as plain bearing versions.
- The 80 Plus Bronze certification is the result of low ESR electrolytic capacitors and other high quality components.
- Etched cables can be easily bent during installation.
