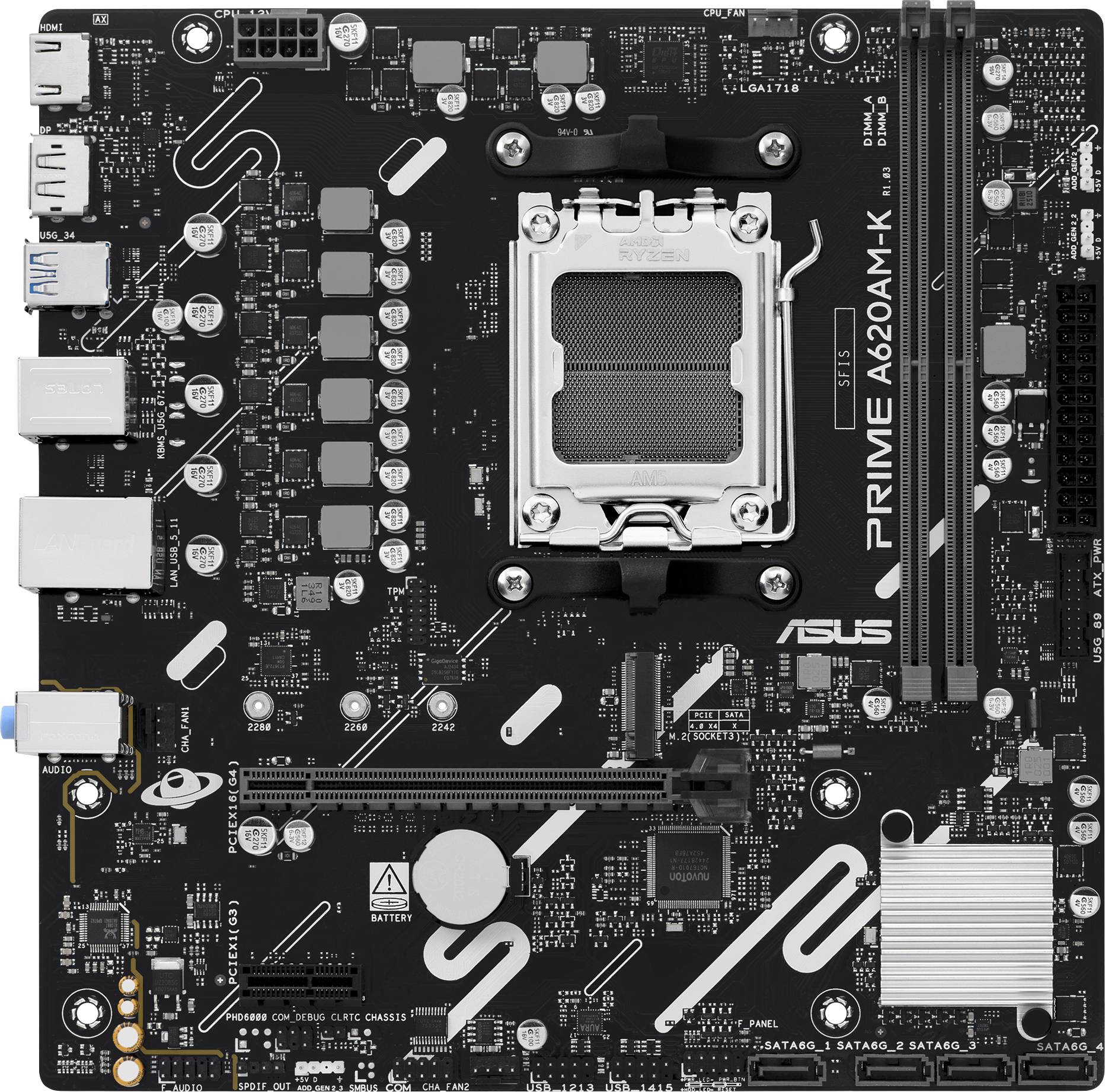

A black ASUS Prime A620M-K motherboard, featuring various ports, slots for RAM and a CPU socket, designed for building or upgrading a computer.

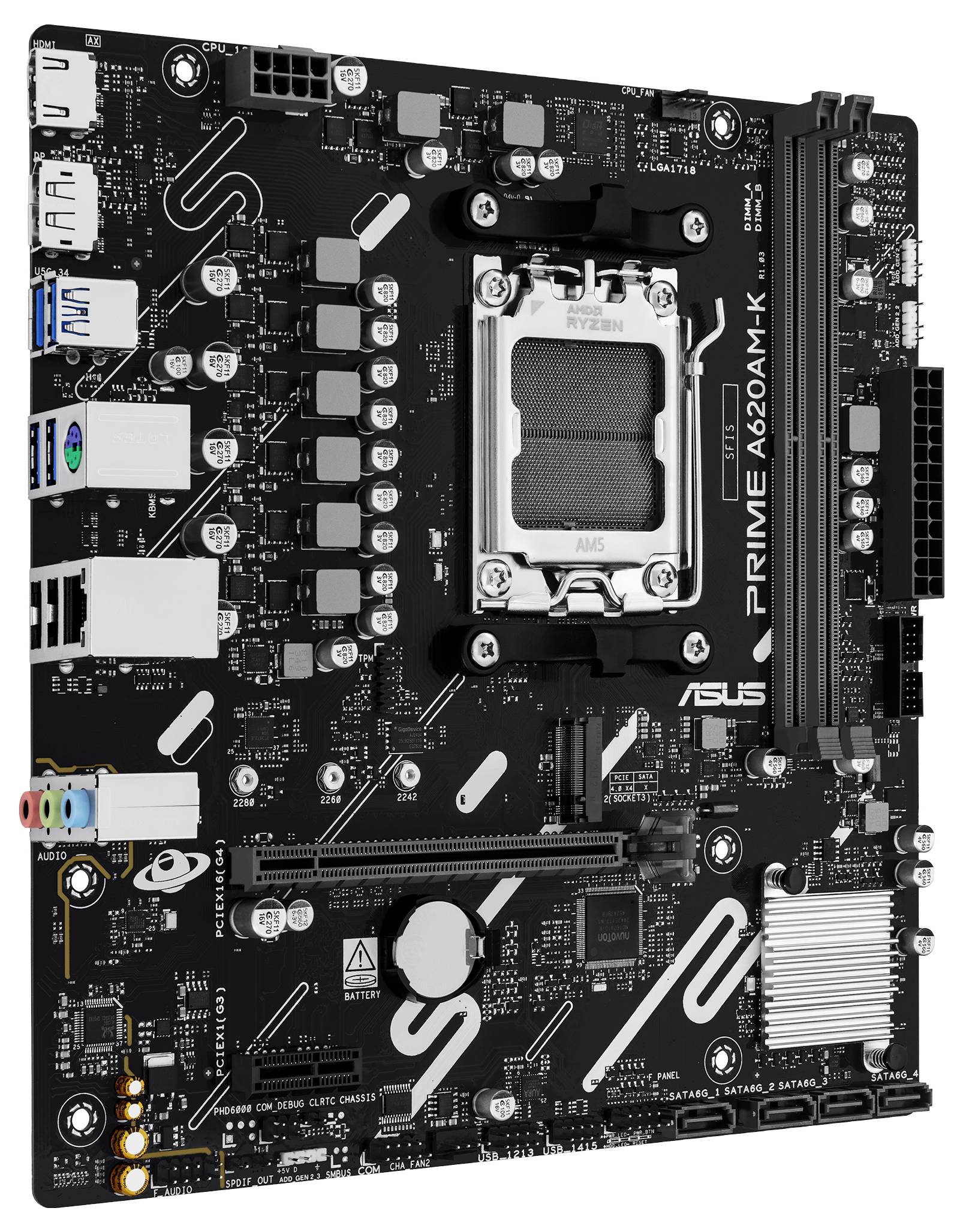

'ASUS Prime A620M-K' motherboard featuring multiple slots and ports, including USB, PCIe, and RAM slots, designed for AMD processors.

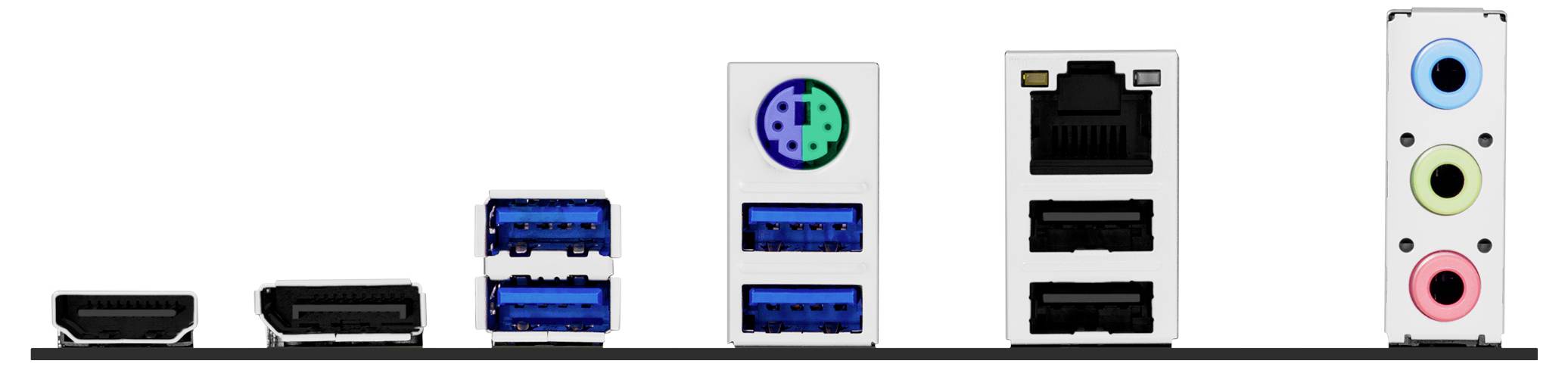

Rear view of a computer's I/O ports, including HDMI, USB, PS/2, Ethernet, and audio jacks, showing various connectivity options.

Rack layout diagram showing sections for a control unit, power supply, CPU, and networking components labeled from left to right.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Asus Prime A620AM-K Motherboard

AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
PC micro ATX AMD A620A 7.1 channels
DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 5
UEFI AMI 256 Mbit BIOS type
Gigabit Ethernet

Technical specifications

Socket AM5
Supported processor slots: Socket AM5
Supported memory: DDR5 SDRAM
ECC compatibility: Non-ECC
Number of CPU fan ports: 1
Number of RGB LED pin strips: 3
AMD A620A motherboard chipset
Motherboard form factor: Micro ATX
1. M.2 Largest key size: 2280
1. M.2 highest PCI Express generation: 4.0

Product type: Motherboard

Chipset: AMD® A620A

: #####AMD AM5

Form factor: Micro-ATX

RAM type: DIMM

RAM / Max. upgrade: 128 GB

Interfaces: Gigabit LAN (1 Gbps)
USB A (USB 2.0)
USB A (USB 3.2 2nd gen)
DisplayPort
HDMI™
PS/2

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

No. of PS/2 ports: 1 x

Depth: 221 mm

Height: 100 mm

Width: 226 mm

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 4 x

10/100/1000 Mbps ports: 1 x

Range of use: PC

Wi-Fi: No

UKCA: yes

BIOS memory size: 256 Mbit

Screws included: yes

Ethernet LAN: yes

PCI Express x1 (Gen 3.x) slots: 1

Number of memory slots: 2

Number of M.2 (M) slots: 1

Front panel connector: yes

12V power connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

TPM connector: yes

RGB LED pin header: yes

RAID support: yes

Package weight: 900 g

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Unbuffered memory: yes

Number of storage drives supported: 5

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3533475 Asus Prime A620AM-K Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® A620A

Description

A620AM-K

The Asus PRIME series boards are designed by experts to unleash the full potential of the AMD Ryzen™ 9000 series processors. The PRIME A620AM-K motherboard offers users and PC-DIY builders a range of performance enhancements through intuitive software and firmware features. It was developed as "Advanced AI PC-ready" and offers the necessary power and connectivity for demanding AI-applications.

Performance

Digital Power design

The PRIME A620AM-K features a 6+2+1-phase power supply design with discrete MOSFETs to ensure efficient and stable power supply for AMD processors and consistent performance for everyday use.
