Asus Prime B760-Plus Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® B760
EAN:
Part number:
Item no:

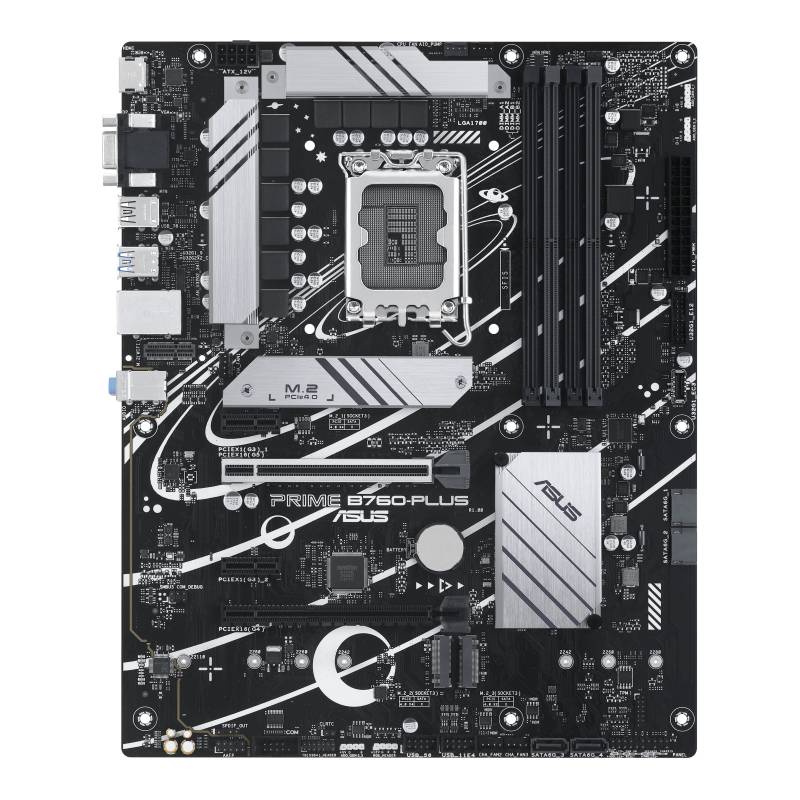

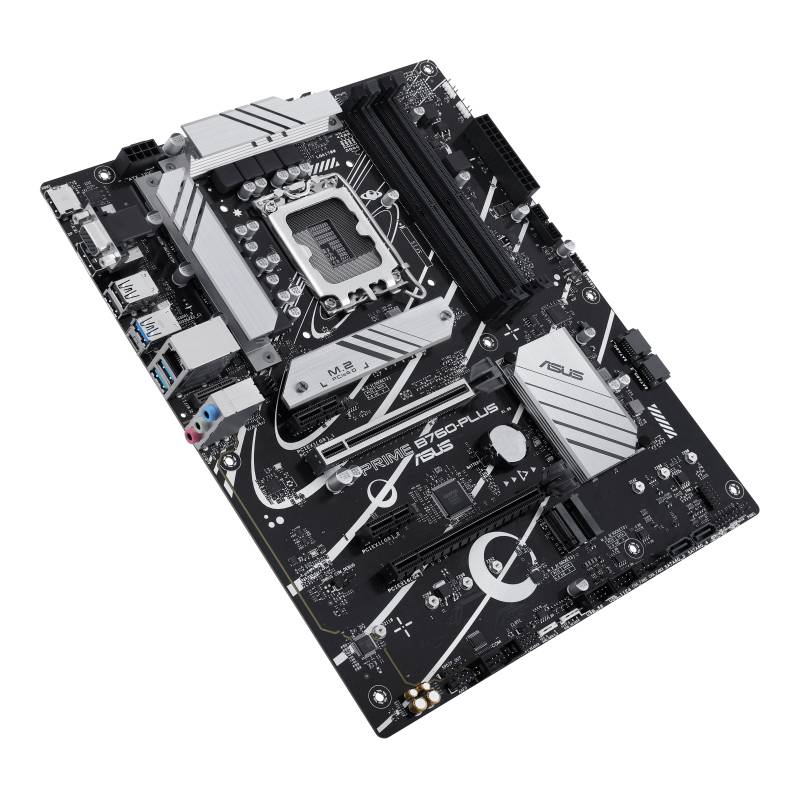

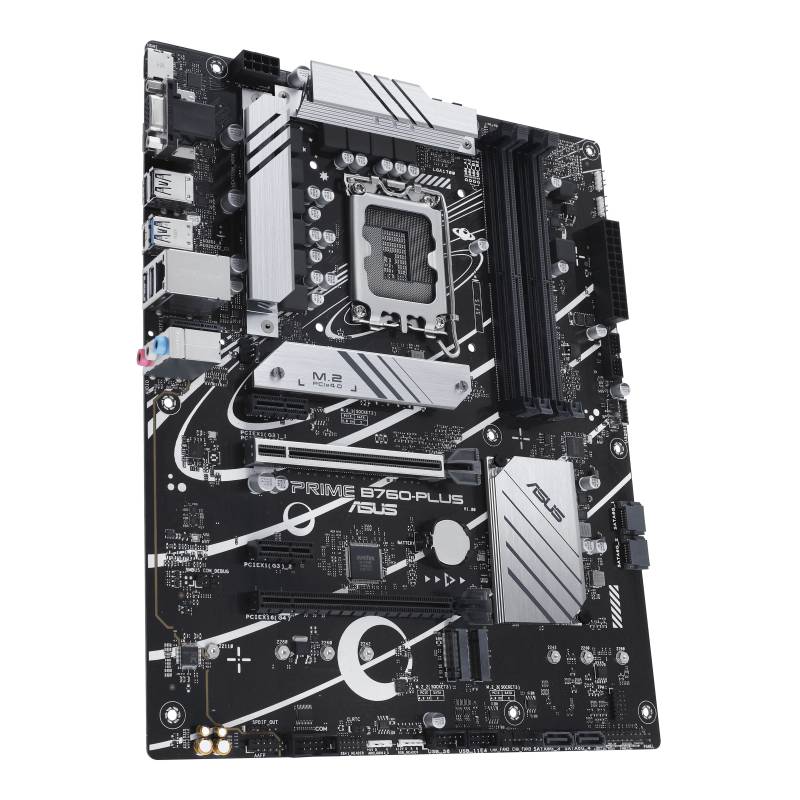

Asus Prime B760-Plus Motherboard
Technical specifications
- Product type
Motherboard
- Chipset
Intel® B760
Intel® 1700
- Form factor
ATX
- Processor/type
Intel® Core™ Prozessoren der 13. Generation
- RAM type
DDR5 RAM
- RAM / Max. upgrade
128 GB
- Interfaces
Gigabit LAN (1/2.5 Gbps)
- No. of LAN ports
1 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB type A 3.0 ports
1 x
- No. of USB 3.0 ports
2 x
- No. of SATA III ports
4 x
- No. of PS/2 ports
1 x
- Factory colour
Multicolour
- Depth
244 mm
- Height
100 mm
- Width
305 mm
- No. of 10 Gb LAN ports
1 x
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- 20+4-pin.
1
- Weight
5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2842781 Asus Prime B760-Plus Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® B760
Description
Features
- Processor manufacturer: IntelLGA 1700 processor socketCompatible processors: Intel® Celeron®Intel® Core™ i3Intel® Core™ i5Intel® Core™ i7Intel® Core™ i9. Supported memory: DDR5 SDRAMRAM maximum: 128 GBRAM type DIMM. Supported drive interfaces: M.2PCI Express 4.0PCI Express 5.0SATA IIISupported drives: HDD & SSDRAID levels 01510. Ethernet interface type 2.5 Gigabit Ethernet. Component for: PCMotherboard form factor ATXMotherboard Chipset family: Intel
- This text is machine translated.
