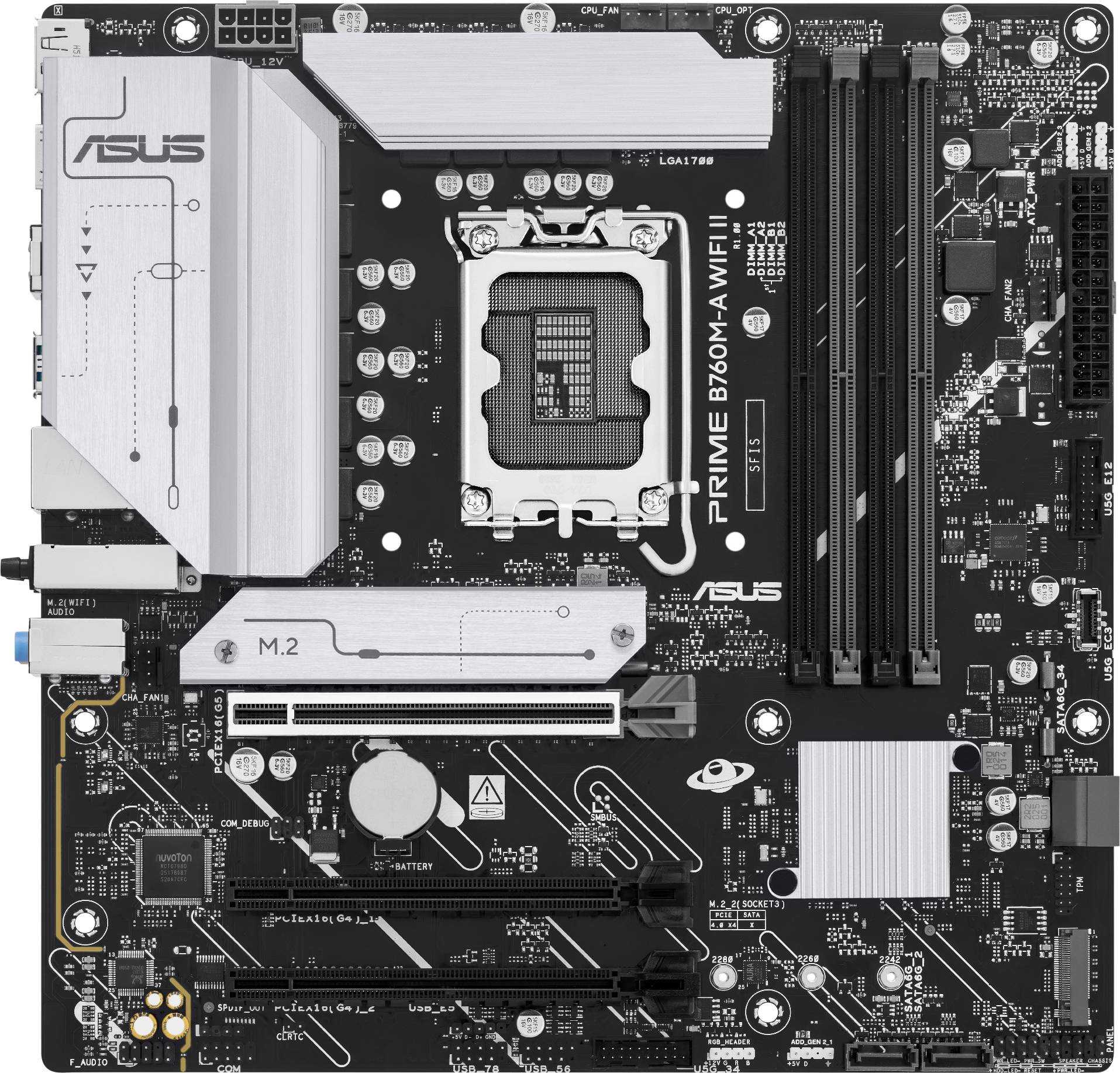

The image shows an ASUS Prime B760M-A WiFi motherboard with socket LGA 1700, featuring multiple slots for RAM, storage, and expansion cards.

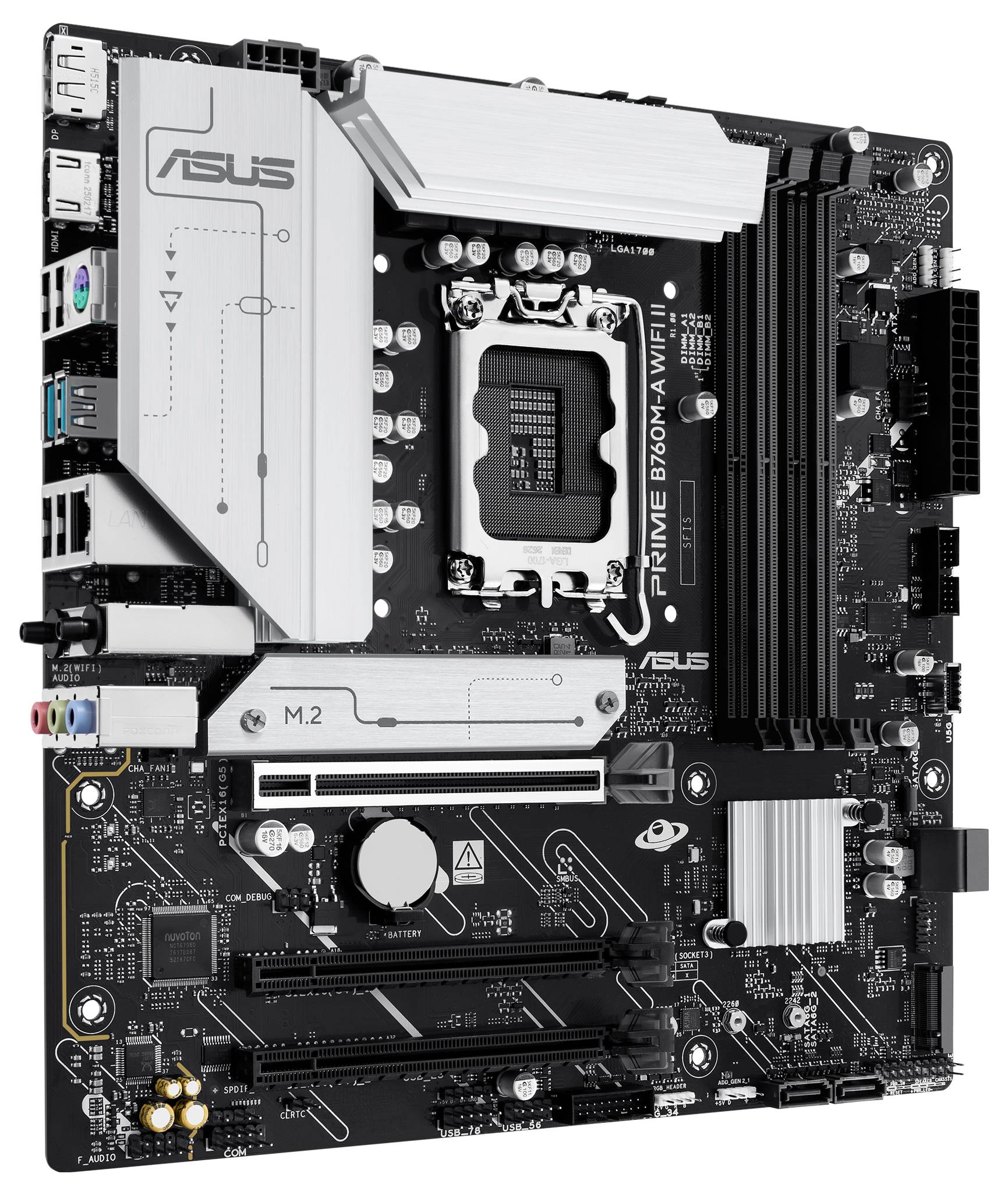

A black ASUS Prime B760M-A WiFi motherboard with silver heatsinks featuring multiple ports and slots for RAM, CPU, and expansion cards.

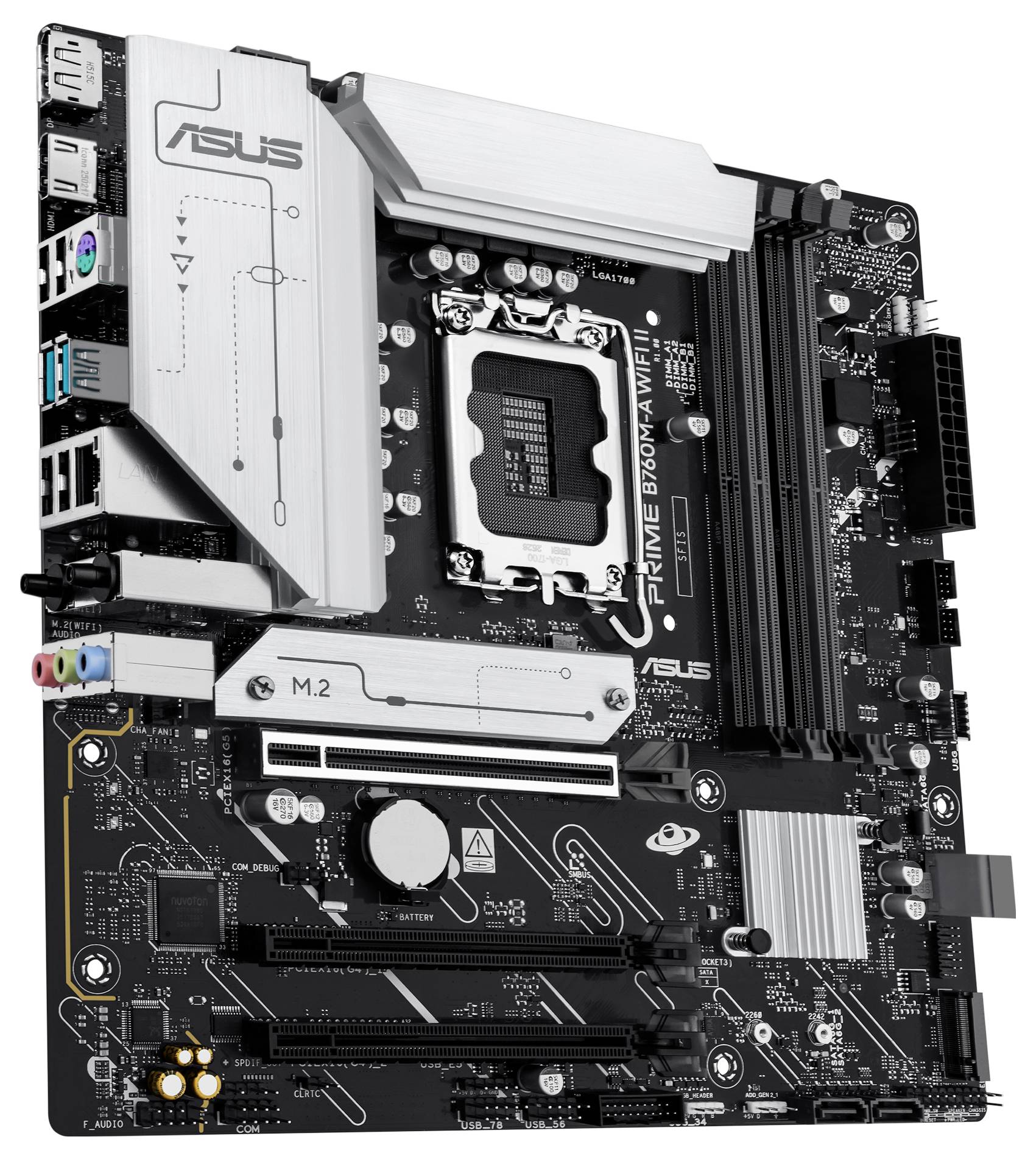

A black-and-silver ASUS PRIME B760M-A WiFi D4 motherboard with various slots and ports for RAM, CPU, and peripherals, shown at an angle.

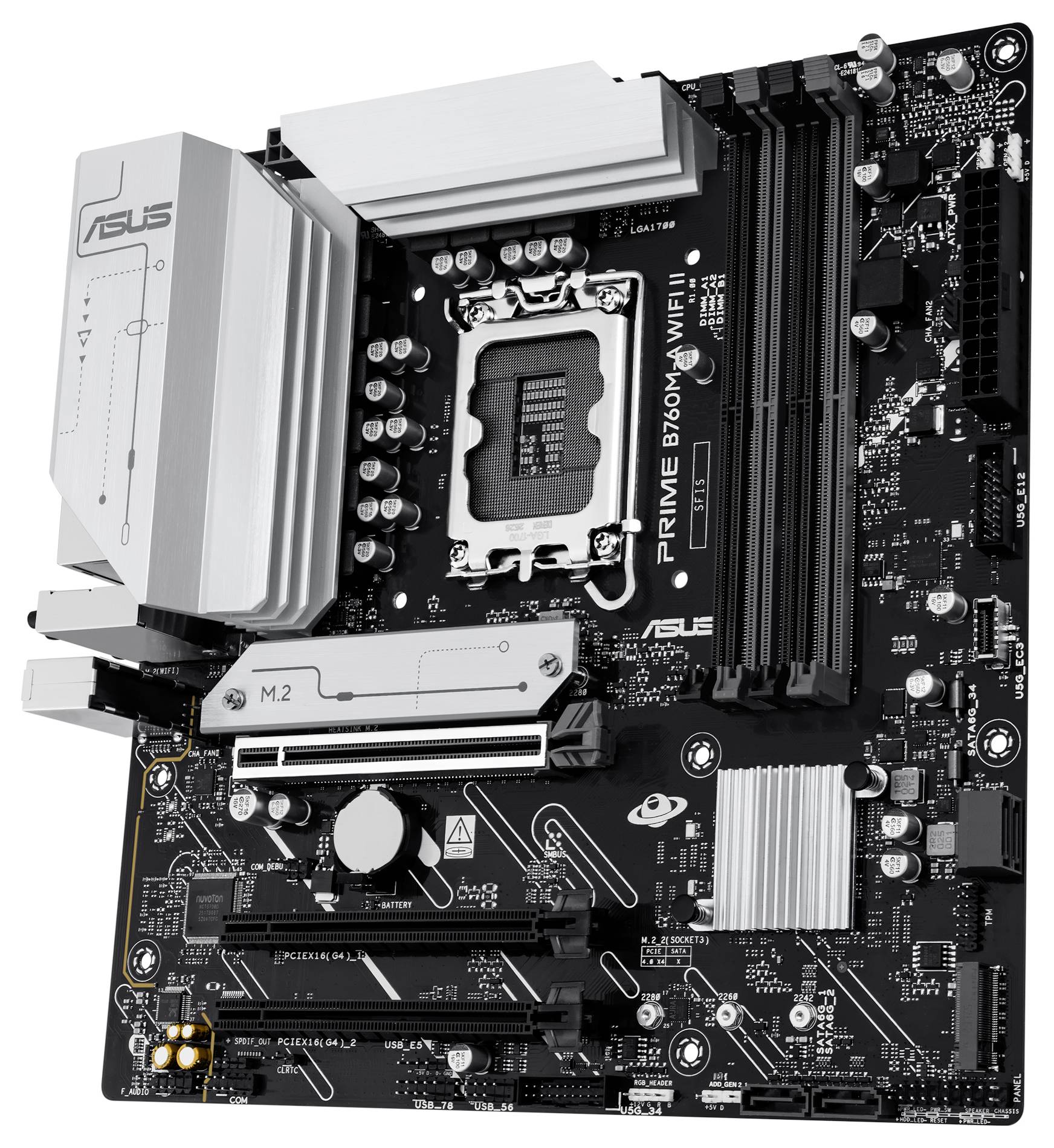

A black ASUS PRIME B760M-A WIFI motherboard with silver heatsinks, displaying various slots and ports for components and connectivity.

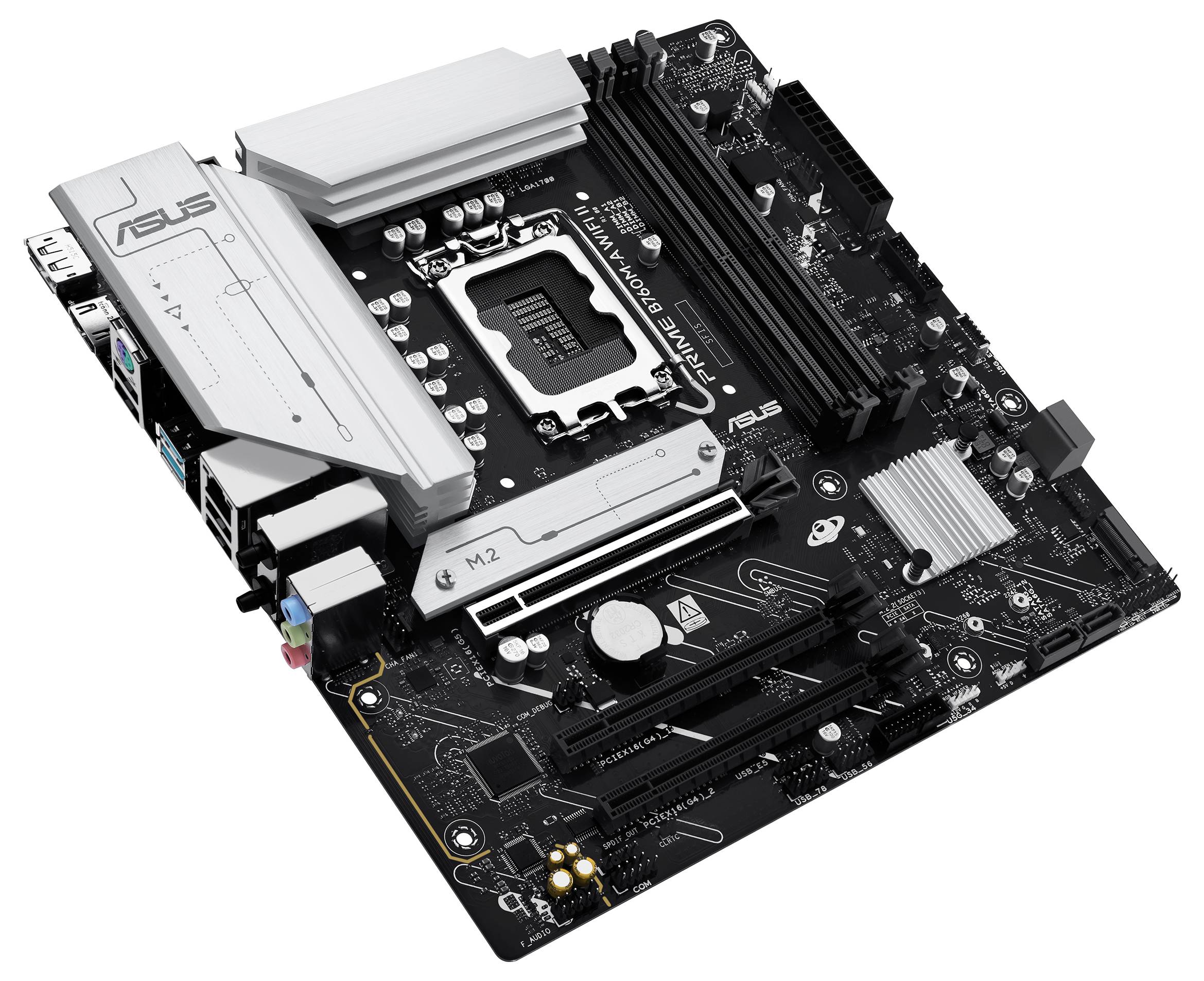

A computer motherboard with 'ASUS' branding, featuring a CPU socket, RAM slots, PCIe slots, and various connectors for components.

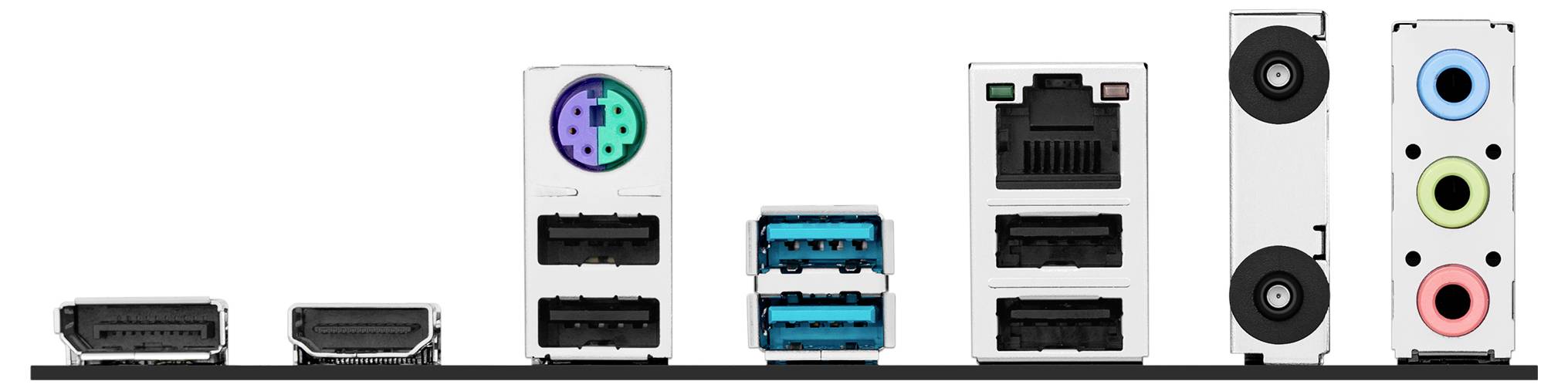

'Back panel ports on a computer motherboard including HDMI, USB, Ethernet, audio jacks, and PS/2 connectors arranged horizontally.'

Electronic circuit board layout with labeled component areas, connectors, and circular elements marked 'VI', 'FIRE', with a numeric code.

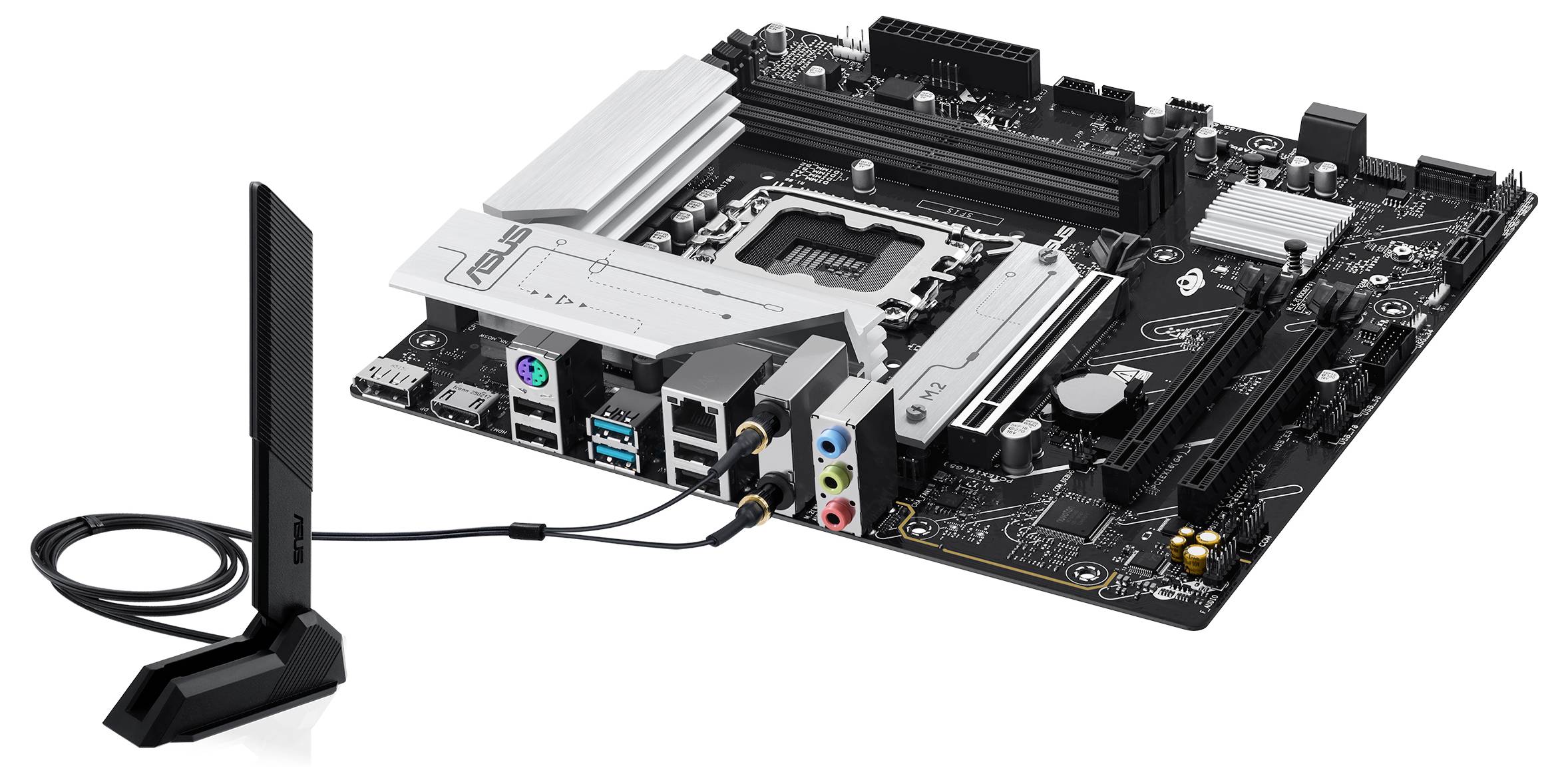

A computer motherboard with multiple USB ports, audio jacks, and RAM slots. An external antenna is connected for wireless connectivity.

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Asus PRIME B760M-A WIFI II Motherboard

Highlights & Details

Intel LGA 1700 Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel core i9 14th Gen, Intel® Pentium® Gold
PC micro ATX Intel B760 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
UEFI AMI 128 Mbit BIOS type
2.5 Gigabit Ethernet WLAN Wi-Fi 6E (802.11ax) Bluetooth 5.4

Technical specifications

LGA 1700 processor socket
Compatible processors: Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i7 12th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel® Pentium Gold
Supported processor slots: LGA 1700
Supported memory: DDR5 SDRAM
ECC compatibility: Non-ECC
WLAN standards Wi-Fi 6E (802.11ax)
Intel B760 motherboard chipset
Motherboard form factor: Micro ATX
1. M.2 Largest key size: 2280
1. M.2 highest PCI Express generation: 4.0
2. M.2 Largest key size: 2280
2. M.2 highest PCI Express generation: 4.0
3. M.2 highest PCI Express generation: 3.0

Product type: Motherboard

Chipset: Intel® B760

: Intel® 1700

Form factor: Micro-ATX

RAM type: DIMM

RAM / Max. upgrade: 256 GB

No. of PCIe 3.0 x16: 2 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 3 x

No. of SATA III ports: 4 x

No. of PS/2 ports: 1 x

Bluetooth: 5.4

Bluetooth: Yes

Depth: 244 mm

Width: 244 mm

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No of. USB type A 3.1 /3.2 2nd gen: 2 x

10/100/1000 Mbps ports: 1 x

Range of use: PC

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 128 Mbit

Screws included: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 2

Front panel connector: yes

12V power connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 1

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 7200 MHz

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.4 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

Unbuffered memory: yes

Number of storage drives supported: 6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3619885 Asus PRIME B760M-A WIFI II Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® B7

Description

Intel® B760 (LGA 1700) mATX motherboard, DDR5, PCIe 5.0 ready, two M.2 slots, WIFI 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps Type-A and front USB 5Gbps Type-C®, Aura Sync

The motherboards of the Asus PRIME series were developed by experts to reach the full potential of 14. Gen Intel® Core™ processors. With a robust performance design, comprehensive cooling solutions and intelligent tuning options, the PRIME B760M-A WIFI II offers users and PC-DIY builders a range of performance enhancements via intuitive software and firmware features. This platform provides the performance and connectivity that advanced AI PC applications require.

This text is machine translated.

Features

Ready for Advanced AI PC: Designed for the future of AI computing, with the necessary performance and connectivity for demanding AI applications
Intel® LGA 1700 Socket: Ready for 14., 13. And 12. Gen Intel® Core™ processors
Ultra-fast connectivity: WIFI 6E, PCIe 5.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A connectors, front USB 5Gbps Type-C® connector
Comprehensive cooling: VRM heat sink, PCH heat sink, hybrid fan header and fan Xpert 2+
Aura Sync RGB lighting: Built-in addressable Gen 2 headers for RGB LED strips that can be easily synchronized with Aura Sync-enabled hardware
Two-Way AI Noise Cancelling: Reduces background noises of the microphone and audio output for crystal-clear communication in games or video conferences
Renowned software: Armoury Crate, Asus DriverHub
