Asus PRIME B860M-A WIFI Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel®
EAN:
Part number:
Item no:
Highlights & Details
Asus PRIME B860M-A WIFI Motherboard
- Supports Intel core ultra processors
- It has DDR5 SDRAM with speeds of up to 4333 MHz
- Versatile connection options including USB 3.2 and HDMI
- Contains Asus Q design for easy installation
- Equipped with protective functions such as ESD protection devices
Technical specifications
- RAM bus frequency 4333 MHz (O.C.)
- Supported RAM integrity check: Non-ECC, on-the-ECC
- RAM Registered or buffered: Unbuffered
- RAM Special features: Intel Extreme Memory Profile (XMP), two-channel memory architecture
- Type HD Audio (8-channel)
- Audio compatibility: High-definition audio
- Network interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1, 2 x M.2 socket (2242/2260/2280 M.2 slot with key M)
- Memory interfaces: SATA-600 interface points: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 connection points: 1 x M.2, PCIe 5.0 connection points: 1 x M.2

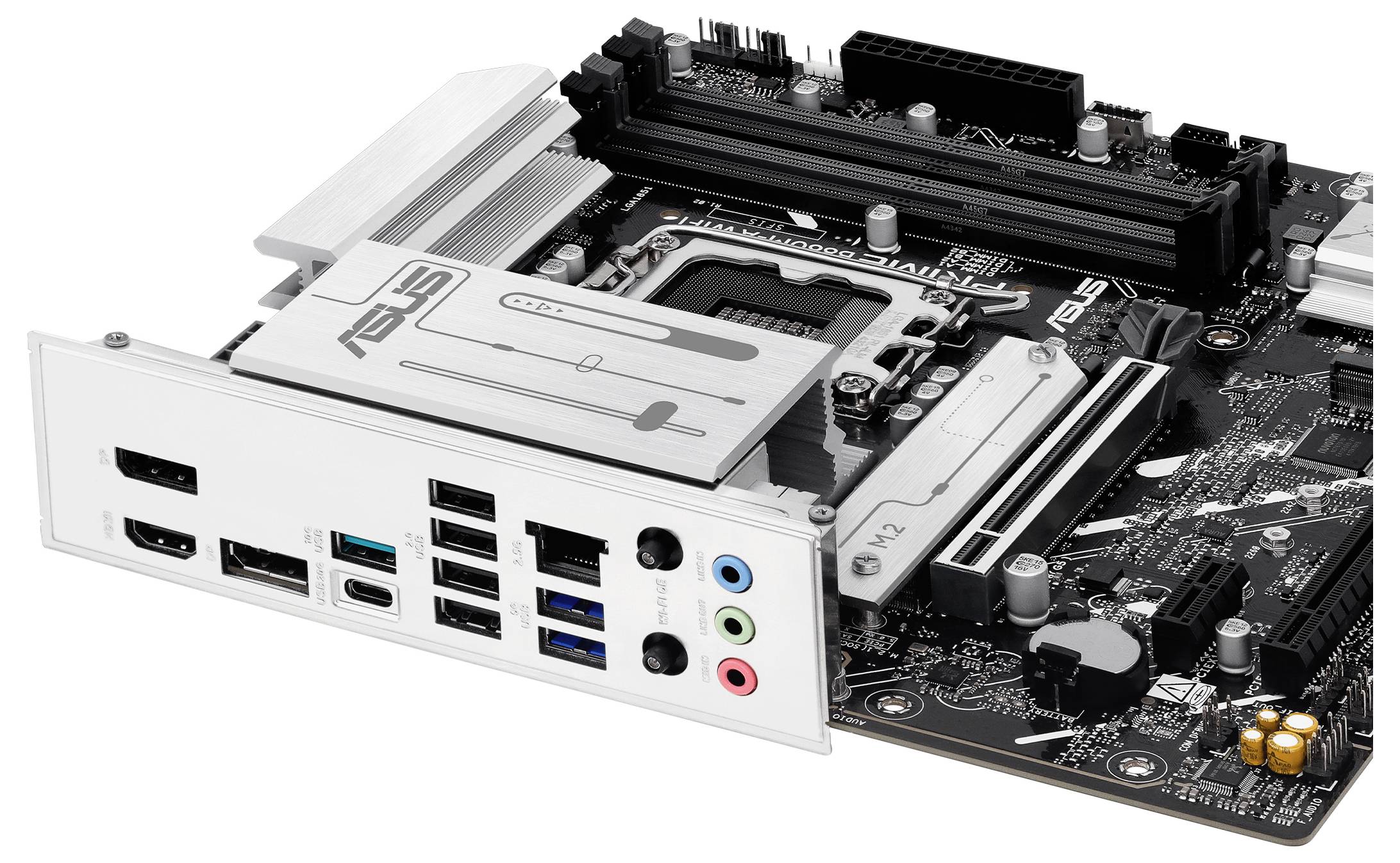

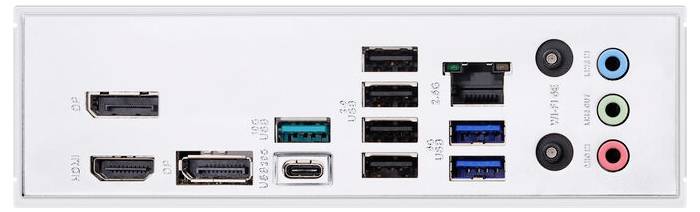

- External interfaces: 1 x HDMI, 2 x DisplayPort 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen2, 2 x Antenna, 1 x LAN (2.5Gigabit Ethernet), 1 x Microphone - Mini jack plug, 1 x audio line in – mini jack plug, 1 x audio line out – mini jack plug
- Internal interfaces: 1 x USB-C 3.2 Gen 2 - multi-pin connector, 2 x USB 2.0 Gen 1 - multi-pin connector, 1 x USB 3.2 - multi-pin connector, 1 x serial pin connector, 2 x audio - multi-pin connector, 1 x SPDIF-output - multi-pin connector, 1 x Thunderbolt 4 - multi-pin connector, 1 x SPI - multi-pin connector
- Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
- BIOS type: AMI
- BIOS functions: UEFI BIOS, Asus EZ Flash, Asus UEFI BIOS EZ Mode
- Sleep / Wake -up: Wake-On-LAN (WOL), Wake On PME
- Hardware features: Preboot execution environment (PXE), Asus 5X protection III, Asus DIGI+ VRM, ESD guards, LANguard, surge protection, Asus SafeSlot core, Asus Stainless Steel Back I/O, Asus Q-Design, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED core, Q-slot, M.2 heat sink, VRM heat sink design, Asus EZ DIY, Asus ProCool, 7+1+1+1 phase power supply design, Asus Enhanced Memory Profile (AEMP) III, Asus Aura Sync, Dr.MOS MOSFET, 6 layer PCB, Asus fan Xpert 2+
- Product type
Motherboard
- Chipset
Intel® B860
#####Intel® 1851
- Form factor
Micro-ATX
- Processor/type
(unterstützt Intel Core Ultra Prozessoren (Serie 2))
- RAM type
DDR5 RAM
- Clock speed
4333 MHz
- RAM / Max. upgrade
256 GB
- Interfaces
HDMI™
DisplayPort
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
USB A (USB 3.2 2nd gen)
USB C® (USB 3.2 2x 2nd gen)
Antenna (75 Ohm)
Gigabit LAN (1/2.5 Gbps)
Microphone (3.5 mm jack)
Audio line in
Show more
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB 3.2
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Bluetooth
5.3
- Bluetooth
Yes
- Depth
244 mm
- Height
100 mm
- Width
244 mm
- No. of DisplayPort
2 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
1 x
- Range of use
PC
- Weight
5
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Screws included
yes
- Ethernet LAN
yes
- Antenna included
yes
- Number of memory slots
4
- Number of M.2 (M) slots
2
- Thunderbolt headers
1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Front panel connector
yes
- 12V power connector
yes
- S/PDIF out connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- WiFi-AP antenna jack
1
- TPM connector
yes
- RGB LED pin header
yes
- PCI Express x1 (Gen 4.x) slots
1
- RAID support
yes
- Package weight
1.44 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Number of storage drives supported
6
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3376555 Asus PRIME B860M-A WIFI Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel®
Description
The Asus PRIME B860M-A WIFI has been developed for those who demand reliability and performance in their computer systems. This micro ATX motherboard supports Intel core ultra processors and features a powerful Intel B860 chipset that provides robust multitasking capabilities and support for DDR5 SDRAM technology at speeds up to 4333 MHz at overclocking. Users can take advantage of the extensive connectivity options, including multiple USB ports, HDMI, DisplayPort, and 2.5 Gigabit Ethernet that provide seamless connectivity to peripherals and networks. This motherboard enhances functionality with a variety of innovative features such as Asus Q design for easier component installation, ESD protection against electrostatic discharge, and a VRM heatsink design for improved cooling efficiency. In addition, the integration of Asus Aura Sync enables a customizable RGB lighting that increases the visual attractiveness of your system. The PRIME B860M-A WIFI is a versatile foundation for both gaming and professional applications and provides a balanced combination of performance, durability and connectivity.
Reliable performance
The Micro ATX form-factor motherboard uses the Intel B860 chipset and offers powerful performance for both gaming and productivity applications.
Versatile connectivity options
Offers a variety of connections, including USB 3.2 Gen 2, USB-C, HDMI and DisplayPort, which enable a seamless connection to different devices.
Extended memory support
Supports four DIMM slot DDR5 SDRAM and offers Intel extreme memory profiles (XMP) for optimized performance.
Improved cooling solutions
Includes a VRM heatsink design along with Asus fan Xpert 2+ technology for maintaining optimum temperatures under demanding workloads.
Integrated wireless connectivity
Supports Wi-Fi 6E and Bluetooth 5.3 and thus provides for fast and reliable wireless connections to networks and devices.
This text is machine translated.
Reliable performance
The Micro ATX form-factor motherboard uses the Intel B860 chipset and offers powerful performance for both gaming and productivity applications.
Versatile connectivity options
Offers a variety of connections, including USB 3.2 Gen 2, USB-C, HDMI and DisplayPort, which enable a seamless connection to different devices.
Extended memory support
Supports four DIMM slot DDR5 SDRAM and offers Intel extreme memory profiles (XMP) for optimized performance.
Improved cooling solutions
Includes a VRM heatsink design along with Asus fan Xpert 2+ technology for maintaining optimum temperatures under demanding workloads.
Integrated wireless connectivity
Supports Wi-Fi 6E and Bluetooth 5.3 and thus provides for fast and reliable wireless connections to networks and devices.
This text is machine translated.
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
- Intel LGA 1851 Socket: Supports Intel® Core™ Ultra Processors (2 Series)
- Improved power supply solution: 7+1+1+1 80A DrMOS power levels, 6-layer PCB, 8-pin ProCool power connections, alloy reactors and long-life capacitors for a stable power supply
- Latest M.2 support: One onboard PCIe 5.0 M.2 slot, equipped with an M.2 heat sink, and one PCIe 4.0 M.2 slot
- Ultra-fast connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® connector, front USB 10Gbps Type-C® connector
- Comprehensive cooling: VRM heat sink, an M.2 heat sink, PCH heat sink, hybrid fan header and fan Xpert 2+
- DIY-friendly design: Q-Dashboard, Q-DIMM, Q-LED, Q-slot and pre-mounted I/O shield
- Unmatched personalization: Three addressable Gen 2 headers, all configurable with Asus exclusive Aura Sync
- Renowned software: Asus DriverHub, Asus GlideX, Asus MyHotkey, Aura Sync

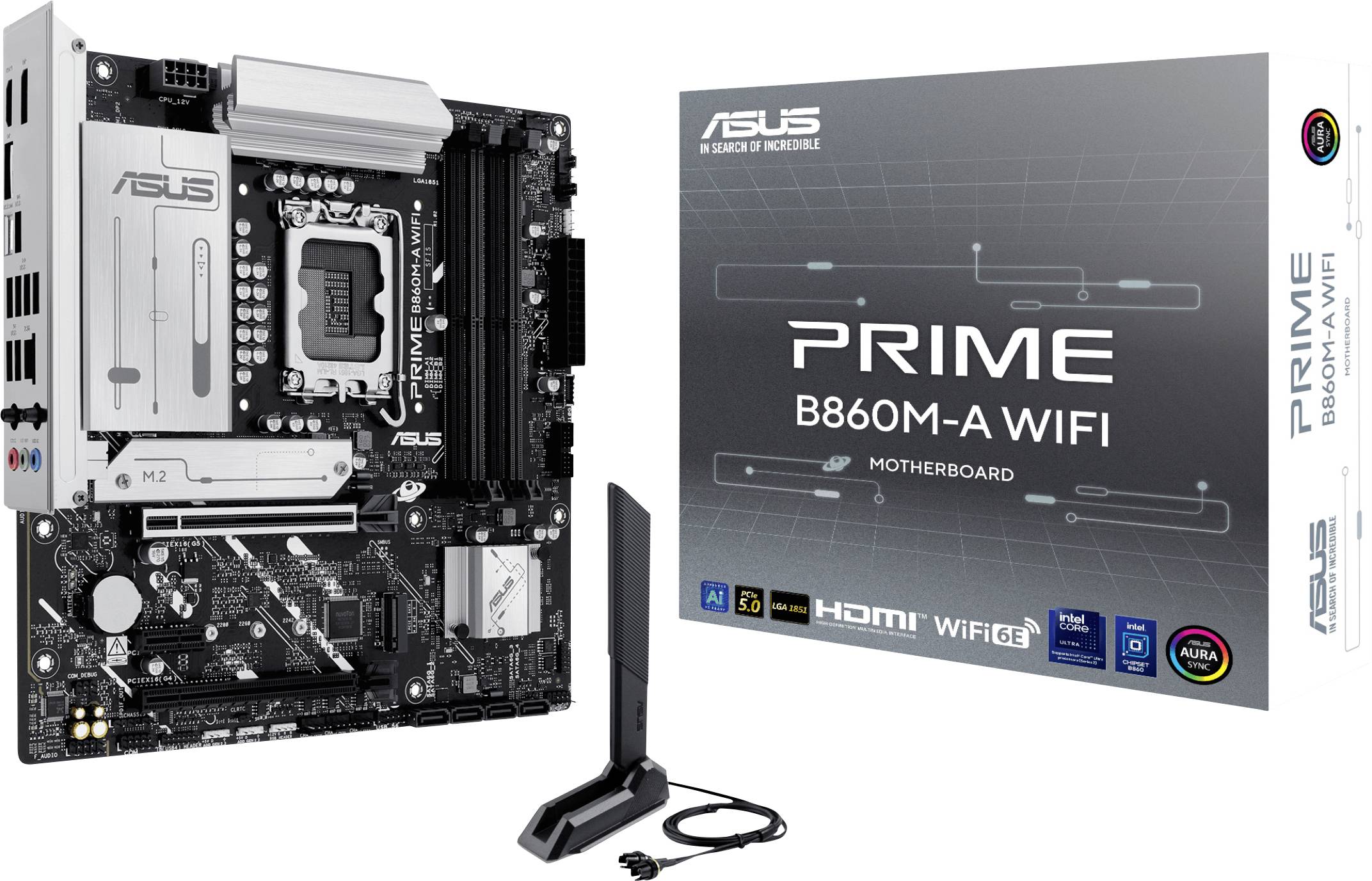

Scope of delivery
- Asus Wi-Fi Q-antenna
- 1 x M.2 Rubber pack
- M.2 Screw package
- 2 x Serial ATA cable
