Asus PRIME H810M-E-CSM Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel® H
EAN:
Part number:
Item no:

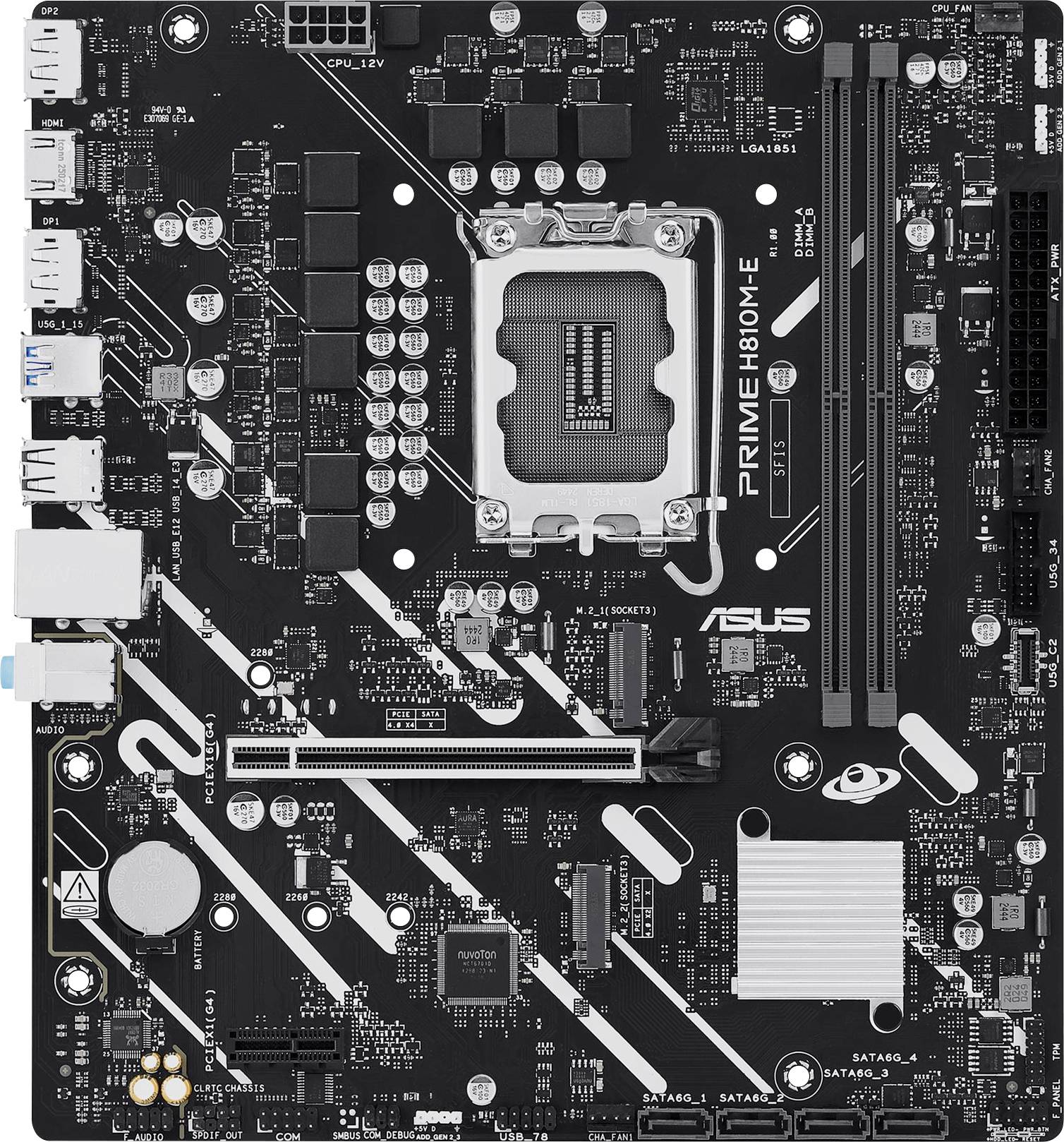

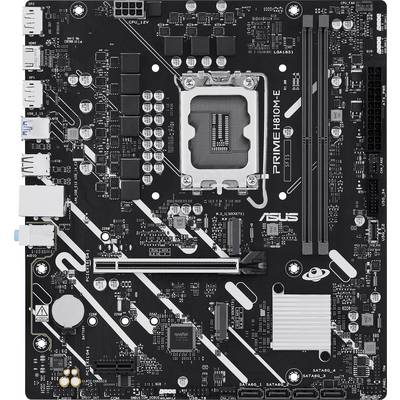

Asus PRIME H810M-E-CSM Motherboard
Technical specifications
- Included cable 2 x Serial ATA cable
- Accessories included: I/O shielding, 1 x M.2 anchor, ACC Express Activation Key Card
- Max. Number Processors: 1
- Registered or buffered: Unbuffered
- Network interfaces: Gigabit Ethernet
- Expansion slots: 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 1 x M.2 socket (2280 M.2-slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
- 2 x 7-pin Serial ATA PCIe 600 4.0 ports 4 x M.2
- Internal interfaces: 1 x USB-C 3.2 1 Gen 1 - Multi-pin connector 2 x USB 3.2 Gen 1 - Multi-pin connector 2 x USB 2.0 - Multi-pin connector 1 x serial - Multi-pin connector 1 x SPDIF-output - Multi-pin connector 1 x SPI - Multi-pin connector
- Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
- BIOS type: AMI
- BIOS functions: Asus EFI BIOS, Asus EZ Flash
- Asus Enhanced memory profile (AEMP) II, Intel turbo boost technology 3.0, 6+1+1+1 phase Power design, Intel turbo boost technology 2.0, chipset heat sinks, Asus EZ DIY, Asus Aura Sync, Asus 5X Protection III, Asus DIGI+ VRM, LANguard, over-voltage protection, Asus SafeSlot Core+, Asus stainless steel back I/O, Asus Q design, Q dashboard, Q-LED core, Q-slot, Aluminium heatsink design
- Width 24.4 cm
- Depth: 22.2 cm
- Supported RAM Health Check: Non-ECC
- Special features: Two-channel memory architecture, Intel extreme memory profiles (XMP)
- Type (Audio): HD Audio (8-channel)
- Software included: Armoury Crate, Asus AURA Creator, Asus fan Xpert 2+, Asus DriverHub, Asus CPU-Z, Norton 360 Deluxe (60-day trial version), WinRAR (40 days Trial)
- Sleep/Wake-up: Wake-On-LAN (WOL)
- Product type
Motherboard
- Chipset
Intel® H810
#####Intel® 1851
- Form factor
Micro-ATX
- Processor/type
Intel Core Ultra-Prozessoren (Serie 2)
- RAM type
DDR5 RAM
- RAM / Max. upgrade
128 GB
- Interfaces
HDMI™
DisplayPort
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
Audio line in
Audio line out
Microphone input
- No. of DDR5 slots
2 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2
2 x
- No. of SATA III ports
4 x
- No. of serial ports
1 x
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- UKCA
yes
