Asus PRIME H810M-K Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel® H810
EAN:
Part number:
Item no:
Highlights & Details

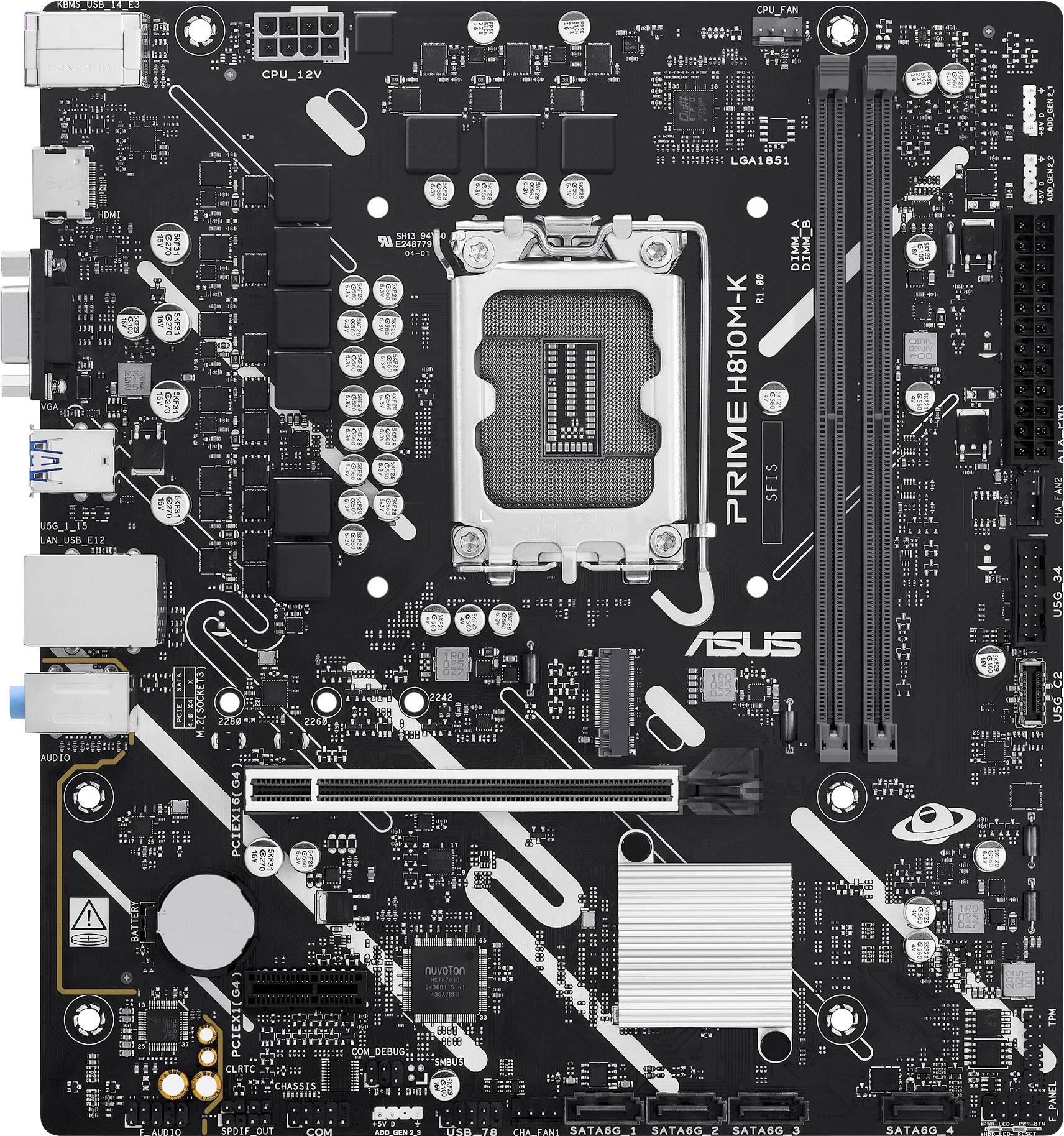

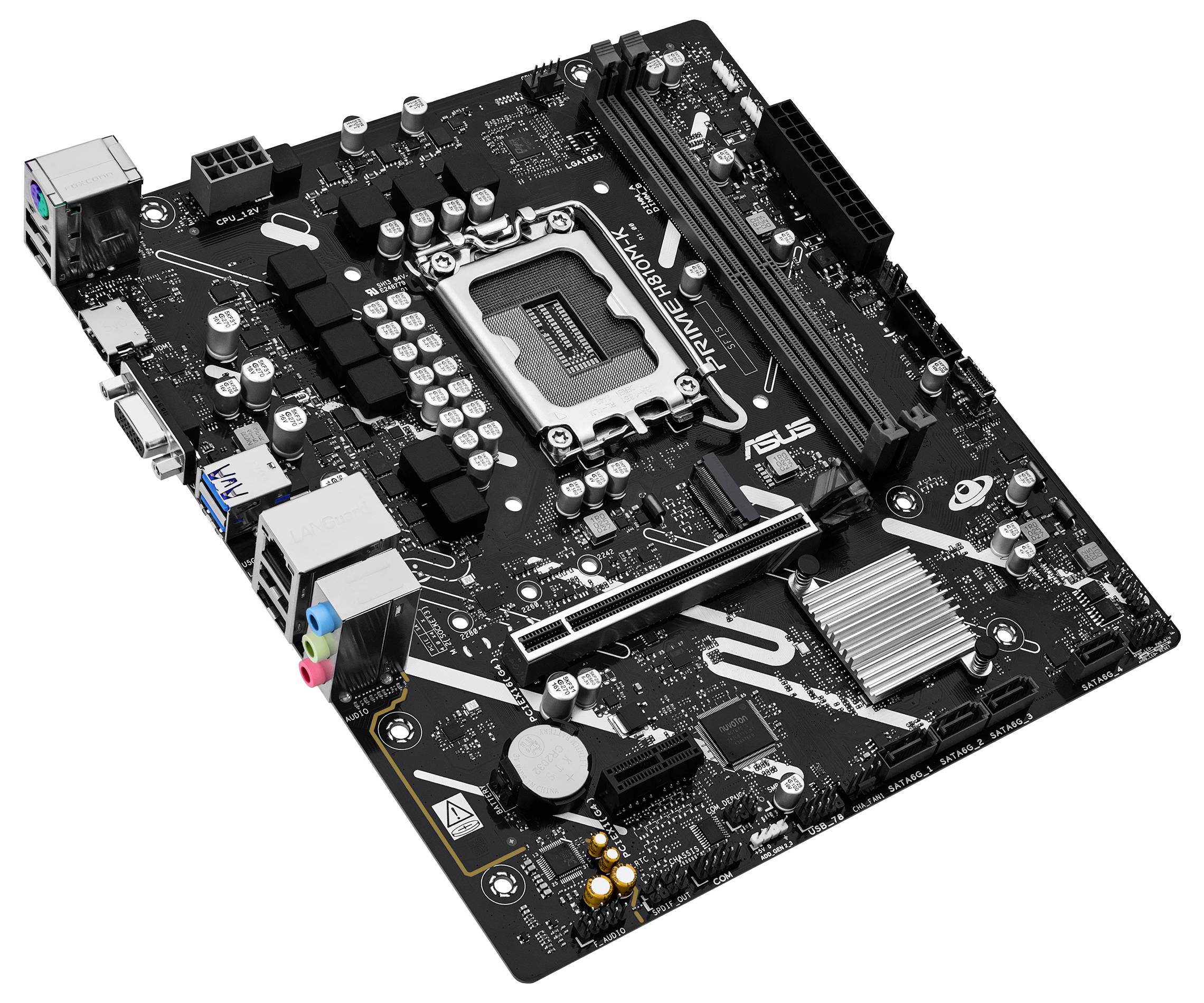

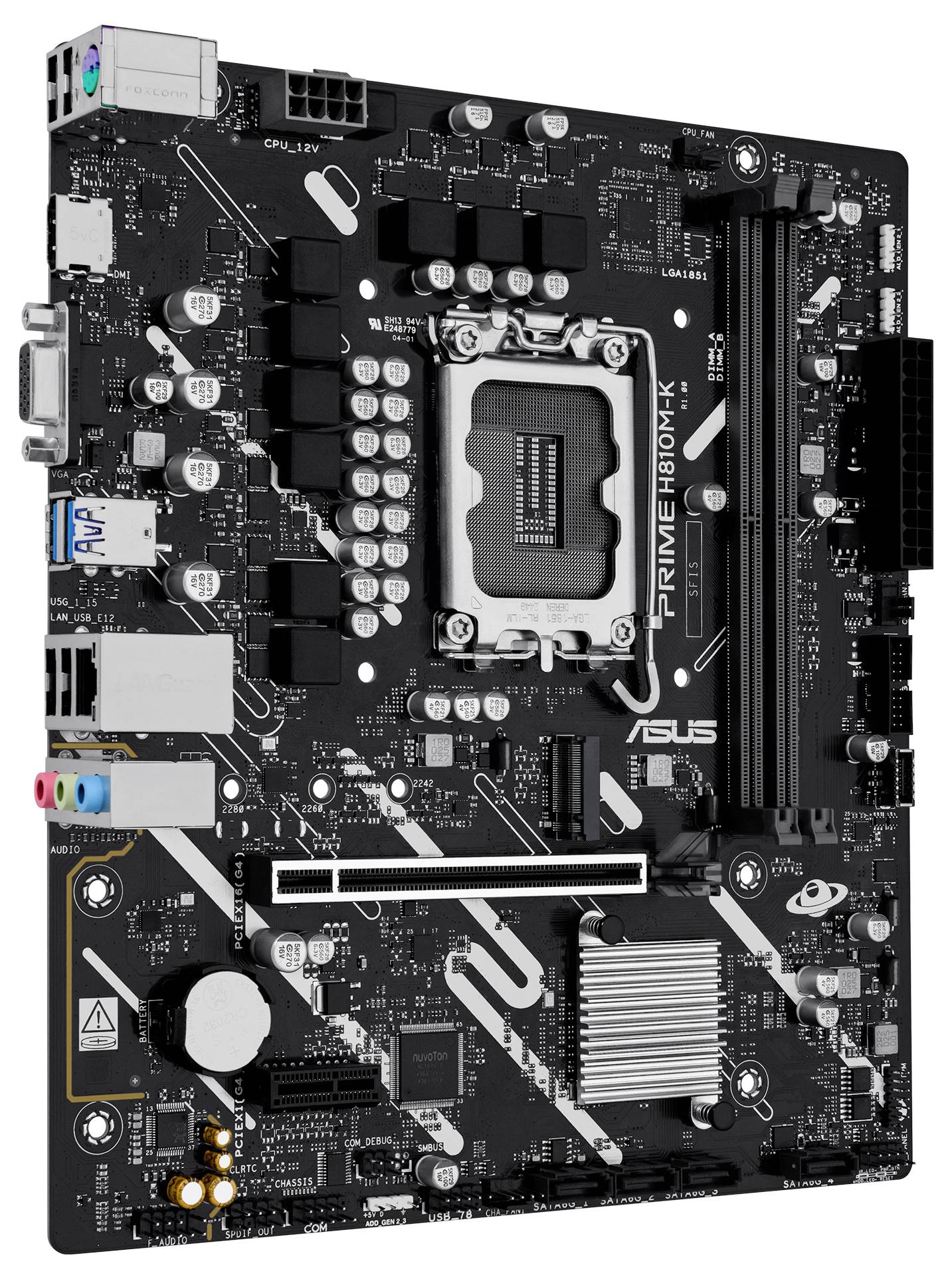

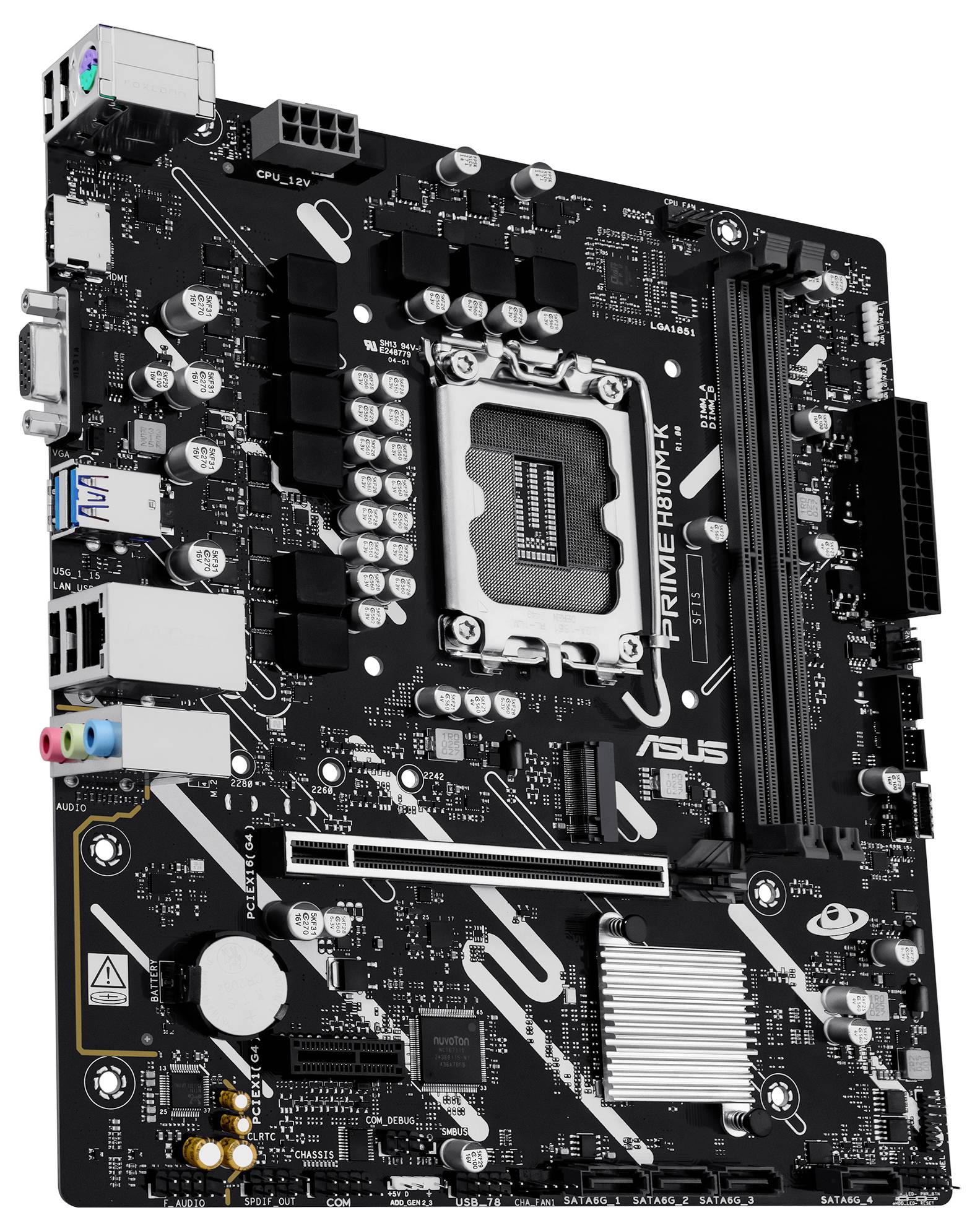

Asus PRIME H810M-K Motherboard
- Intel LGA 1851 (socket V1) Intel core ultra (series 2)
- PC micro ATX Intel H810 7.1 channels
- DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
- HDD & SSD M.2, SATA III Number of supported storage drives: 5
- UEFI AMI 256 Mbit BIOS type
- Gigabit Ethernet
Technical specifications
- LGA 1851 (socket V1)
- Supported processor slots: LGA 1851
- Supported memory: DDR5 SDRAM
- ECC compatibility: Non-ECC
- Number of CPU fan ports: 1
- Number of RGB LED pin strips: 3
- Intel H810 motherboard chipset
- Motherboard form factor: Micro ATX
- 1. M.2 Largest key size: 2280
- 1. M.2 highest PCI Express generation: 4.0
- Product type
Motherboard
- Chipset
Intel® H810
#####Intel® 1851
- Form factor
Micro-ATX
- RAM type
DIMM
- RAM / Max. upgrade
128 GB
- No. of DDR5 slots
2 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
1 x
- No. of SATA III ports
4 x
- No. of PS/2 ports
1 x
- Depth
211 mm
- Width
234 mm
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
256 Mbit
- Ethernet LAN
yes
- Number of memory slots
2
- Number of M.2 (M) slots
1
- Front panel connector
yes
- 12V power connector
yes
- S/PDIF out connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- TPM connector
yes
- RGB LED pin header
yes
- PCI Express x1 (Gen 4.x) slots
1
- EPS power connector (8-pin)
yes
- Package weight
828 g
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- Unbuffered memory
yes
- Number of storage drives supported
5
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3619888 Asus PRIME H810M-K Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel® H810
Description
PRIME H810M-K
The Asus PRIME series boards are designed by experts to meet the full potential of the latest Intel® CORE™ Ultra processors (2 series). The PRIME H810M-K motherboard features a robust Power design, comprehensive cooling solutions and intelligent tuning options, and offers users and PC-DIY builders a range of performance enhancements via intuitive software and firmware features. It was developed as "Advanced AI PC-ready" and offers the necessary power and connectivity for demanding AI-applications.
Performance
Digital Power design
A stable power supply is crucial to maximizing the performance of Intel® CORE™ The PRIME H810M-K features a 6+1+1+1 phase design with discrete MOSFETs that provide efficient and stable power supply for Intel® processors and provide consistent performance for everyday use.
This text is machine translated.
Features
- Ready for Advanced AI PC: Designed for the future of AI computing, with the necessary performance and connectivity for demanding AI applications
- Intel® LGA 1851 Socket Ready for Intel® Core™ Ultra Processors (2 Series)
- Ultra-fast connectivity: PCIe 4.0, DDR5, front USB 5 Gbps type C®
- Comprehensive cooling: PCH heat sink, hybrid fan header and fan Xpert 2+
