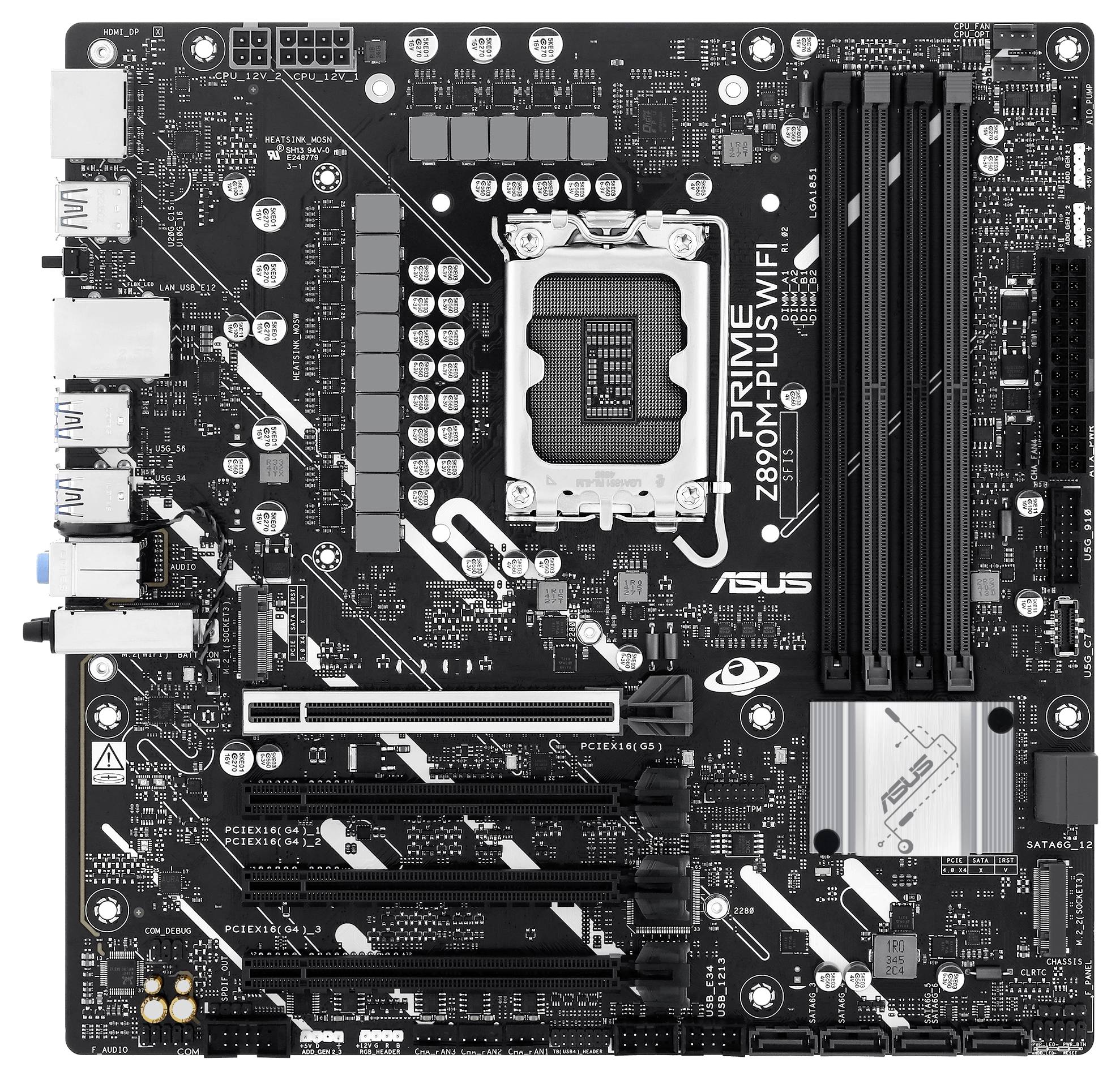

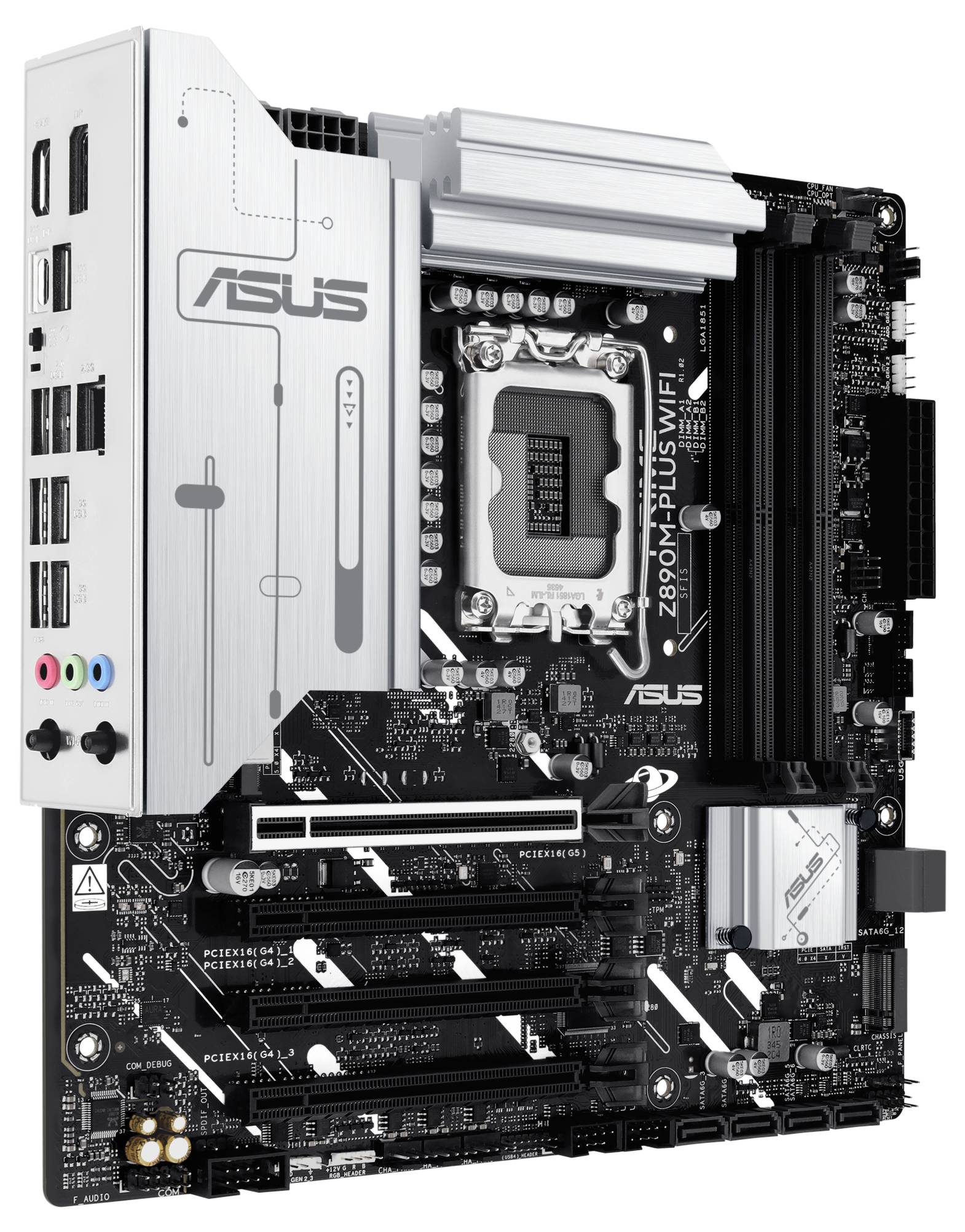

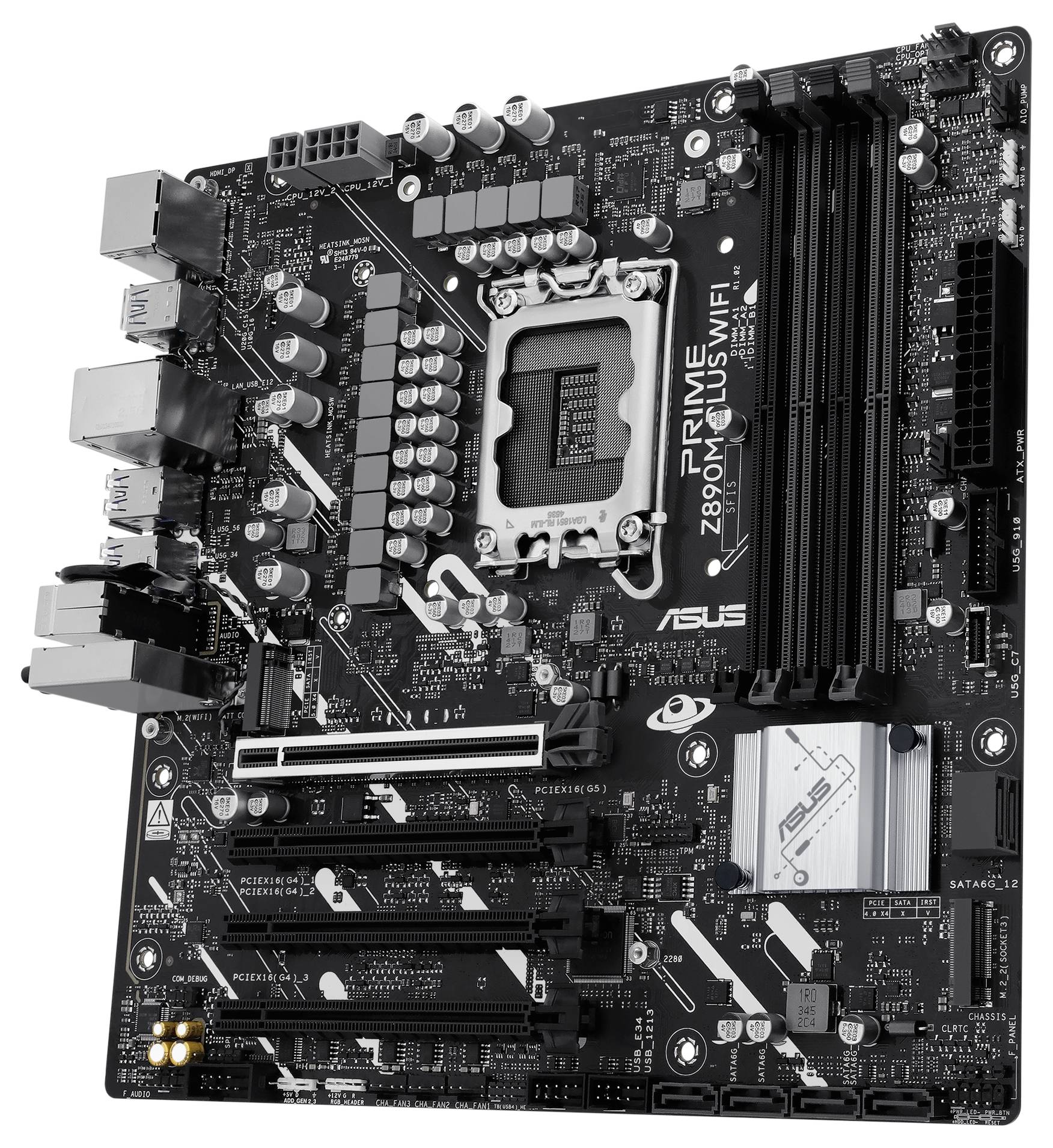

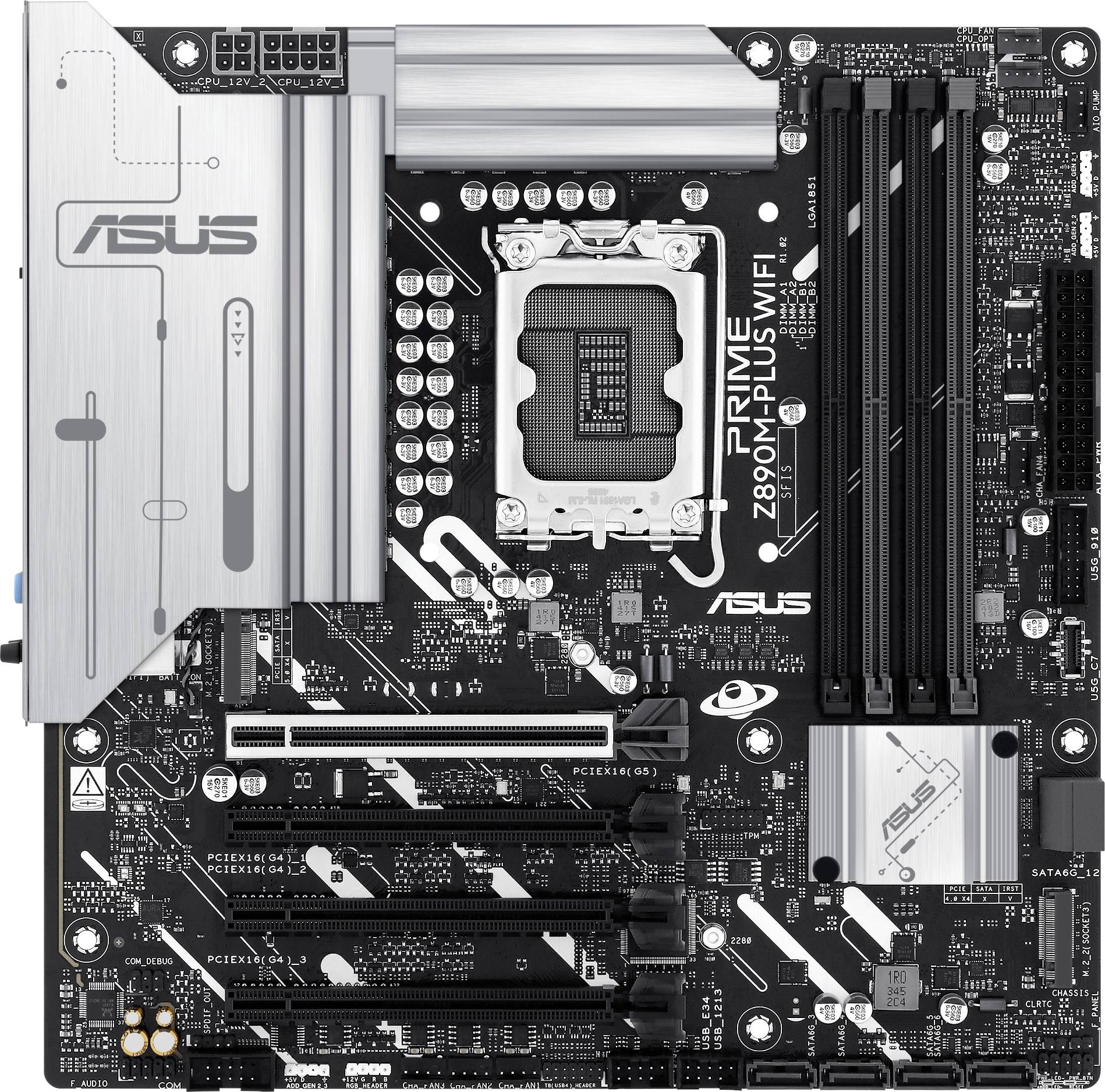

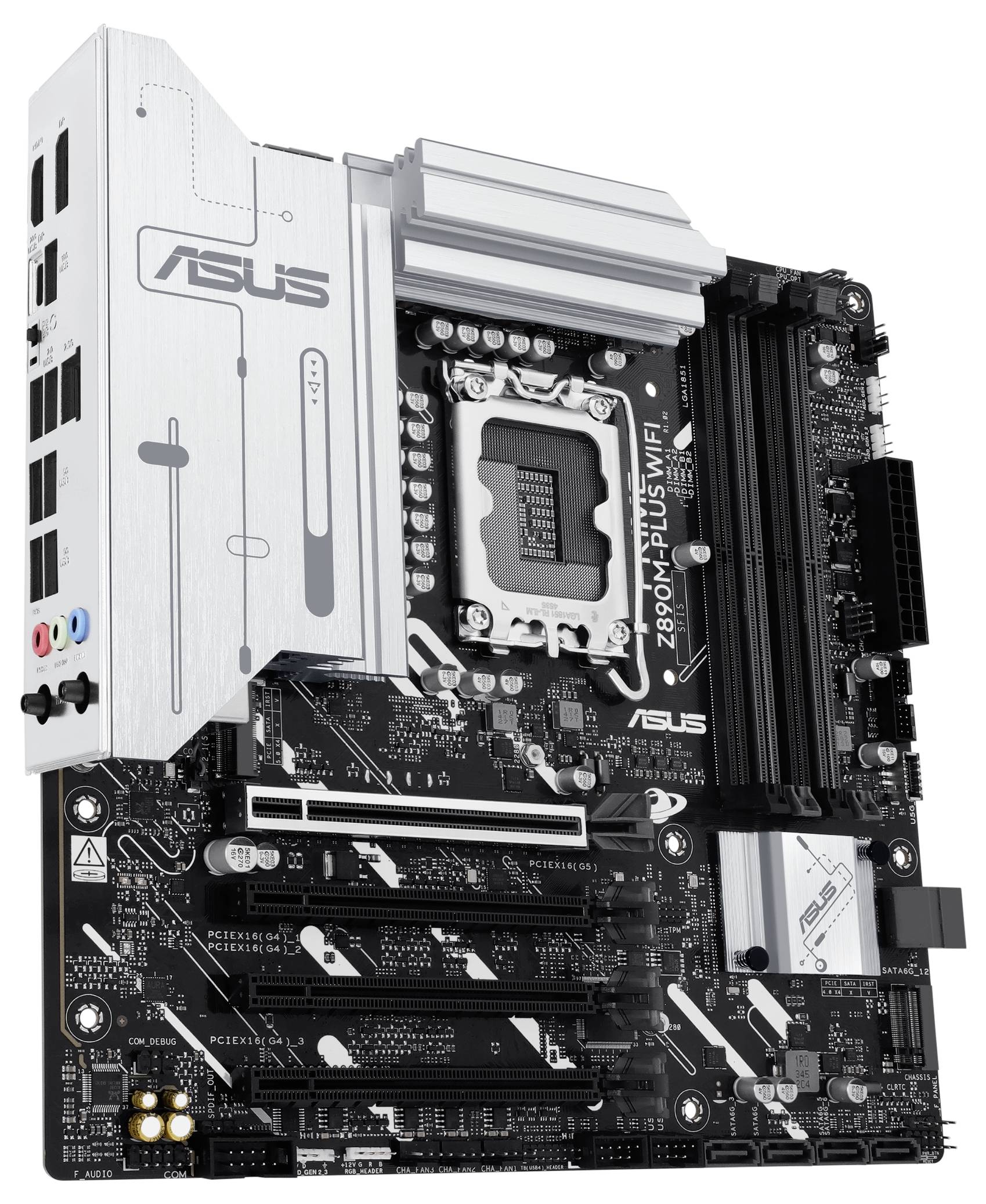

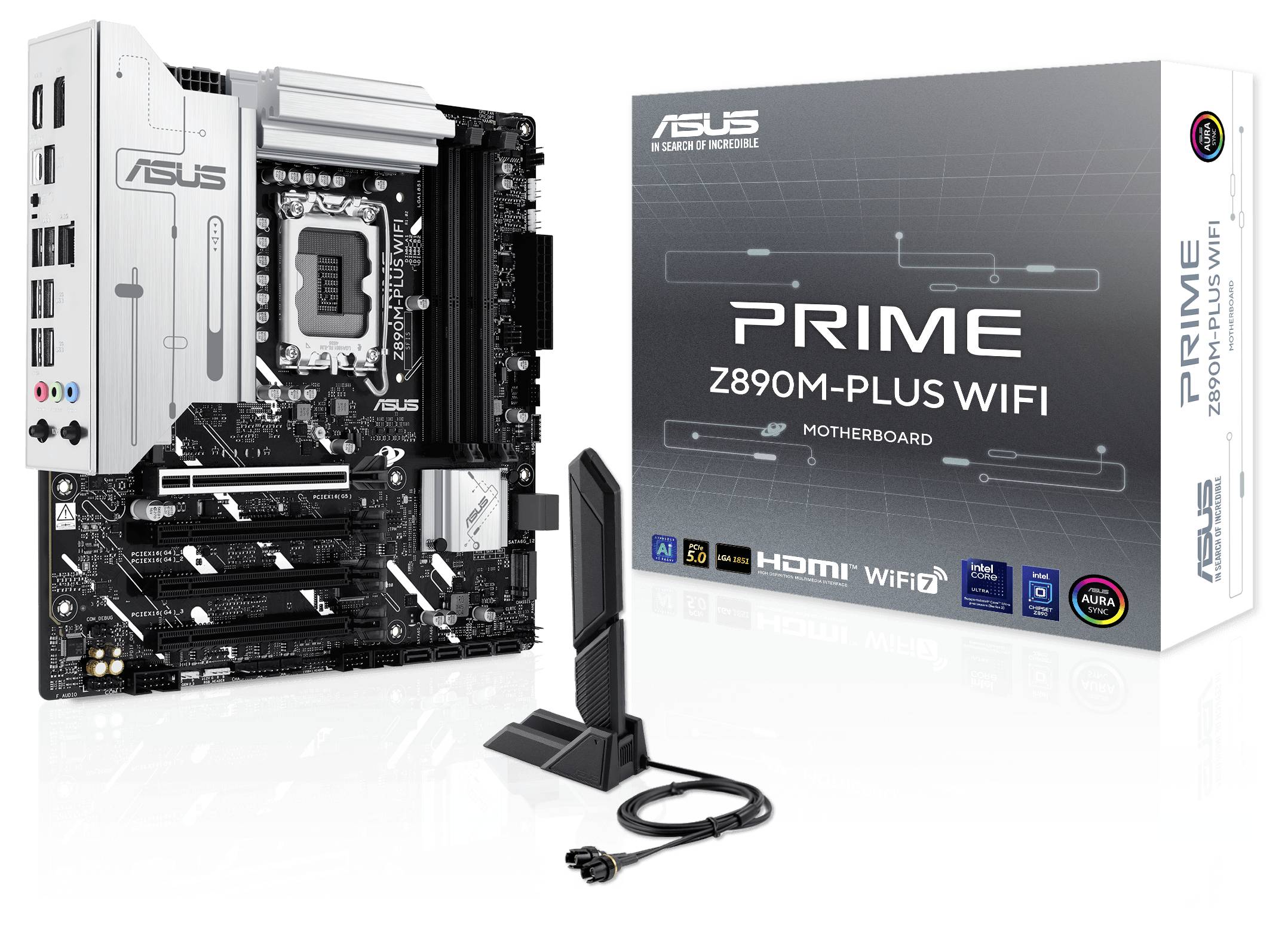

Asus PRIME Z890M-PLUS WIFI Motherboard
Highlights & Details
- Intel LGA 1851 (socket V1)
- Suitable for Intel Core Ultra (2 series)
- DDR5 SDRAM
- Max. 192 GB
Technical specifications
- 3x M2 interface (1x PCIe 5.0 x4, 2x PCIe 4.0 4x)
- Product type
Motherboard
- Chipset
Intel® Z890
#####Intel® 1851
- Form factor
Micro-ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
192 GB
- Interfaces
HDMI™
Bluetooth
Thunderbolt 4
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x16
3 x
- No. of PCIe x4
1 x
- No. of PCIe x1
2 x
- No. of USB 2.0 ports
6 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB 3.2
6 x
- No. of USB 3.0 ports
3 x
- No. of SATA III ports
6 x
- Onboard audio
7.1
Optical S/PDIF
- Onboard graphics
HDMI 2.1; Thunderbolt
- Factory colour
Multicolour
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- Weight
1.57
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3342074 Asus PRIME Z890M-PLUS WIFI Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Inte
Description
Z890M-PLUS WI-FI CONNECTION
The Asus PRIME series boards are designed by experts to take full advantage of the latest Intel® Core™ Ultra processors (2 series). The PRIME Z890M-PLUS WIFI motherboard has a rugged performance design, comprehensive cooling solutions and intelligent tuning options, and offers users and PC DIY builders a range of performance enhancements via intuitive software and firmware features. It was developed as "Advanced AI PC-ready" and offers the necessary power and connectivity for demanding AI-applications.
This text is machine translated.
The Asus PRIME series boards are designed by experts to take full advantage of the latest Intel® Core™ Ultra processors (2 series). The PRIME Z890M-PLUS WIFI motherboard has a rugged performance design, comprehensive cooling solutions and intelligent tuning options, and offers users and PC DIY builders a range of performance enhancements via intuitive software and firmware features. It was developed as "Advanced AI PC-ready" and offers the necessary power and connectivity for demanding AI-applications.
This text is machine translated.
Features
- Asus PRIME Z890M-PLUS WIFI
- Processor manufacturer: Intel, processor socket: LGA 1851 (socket V1), compatible processors: Intel core ultra (series 2)
- Supported memory: DDR5 SDRAM, RAM maximum: 192 GB, memory type: DIMM
- Supported drive interfaces: M.2, SATA III, supported drives: HDD & SSD, RAID levels: 0, 1, 5, 10
- Ethernet interface type: 2.5 Gigabit Ethernet, top WLAN standard: Wi-Fi 7 (802.11b), WLAN standards: Wi-Fi 7 (802.11b)
- Component for: PC, motherboard form factor: Micro ATX, motherboard chipset family: Intel
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (2 Series)
- Exclusive AI: AI Cooling III and AI Networking II to simplify setup and improve performance
- Robust power supply: 10+1+2+1 80A DrMOS power stages with ProCool power connectors, 6-layer PCB, alloy reactors and long-life capacitors for a stable power output
- Optimised cooling design: Large VRM-heat sinks and PCH-heat sinks, hybrid fan-header and fan Xpert 4 with AI Cooling II.
- Latest M.2 support: One onboard PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots

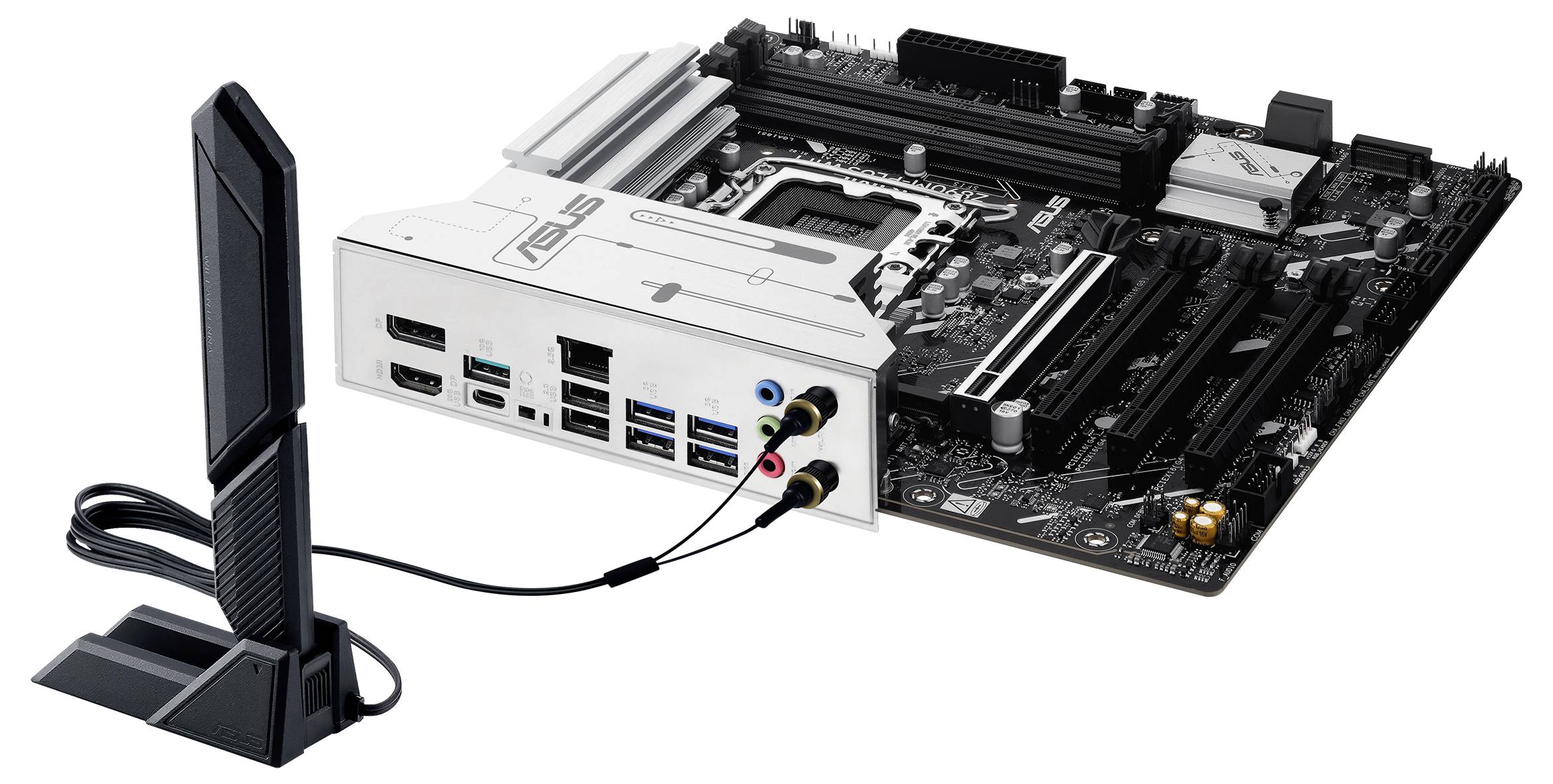

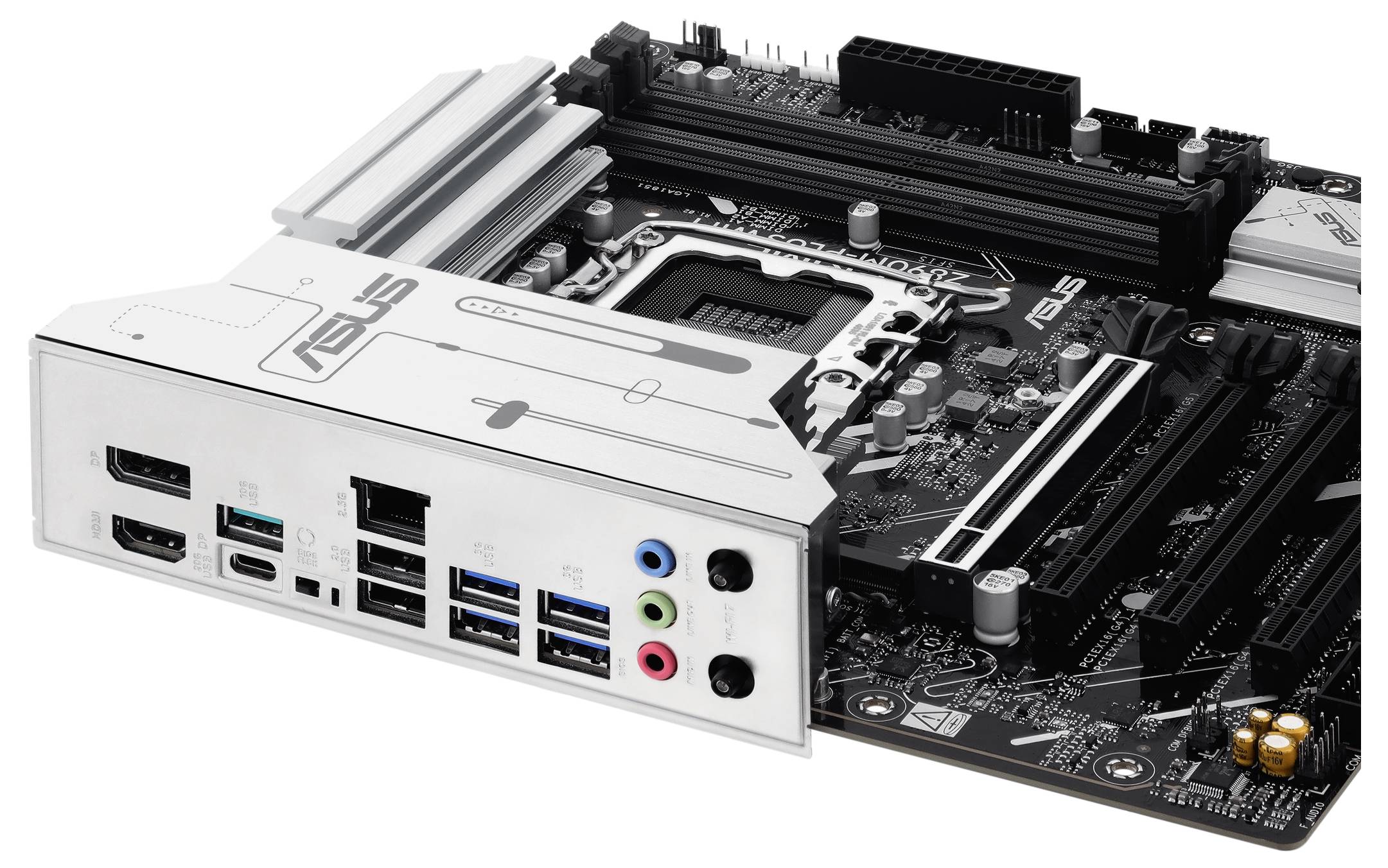

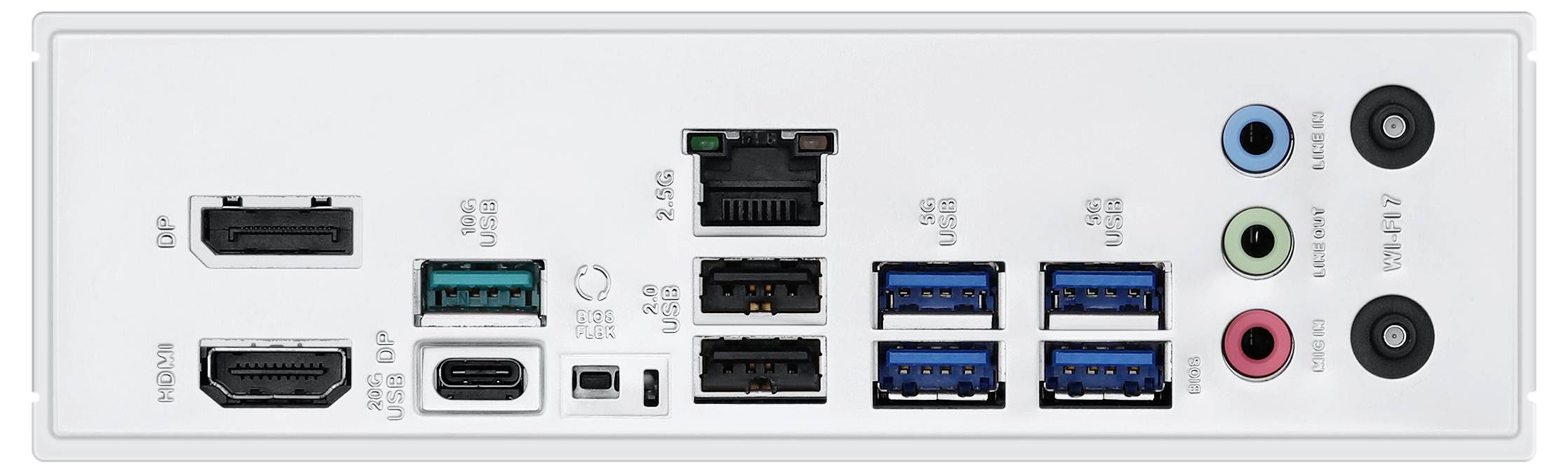

- Versatile connectivity: USB 20Gbps connector (1 x USB Type-C® with DP Alt Mode), USB 5Gbps Type-C® connector at the front, Thunderbolt™ (USB4®) header support, PCIe® 5.0 x16 SafeSlot and full support for Next-Gen graphics cards

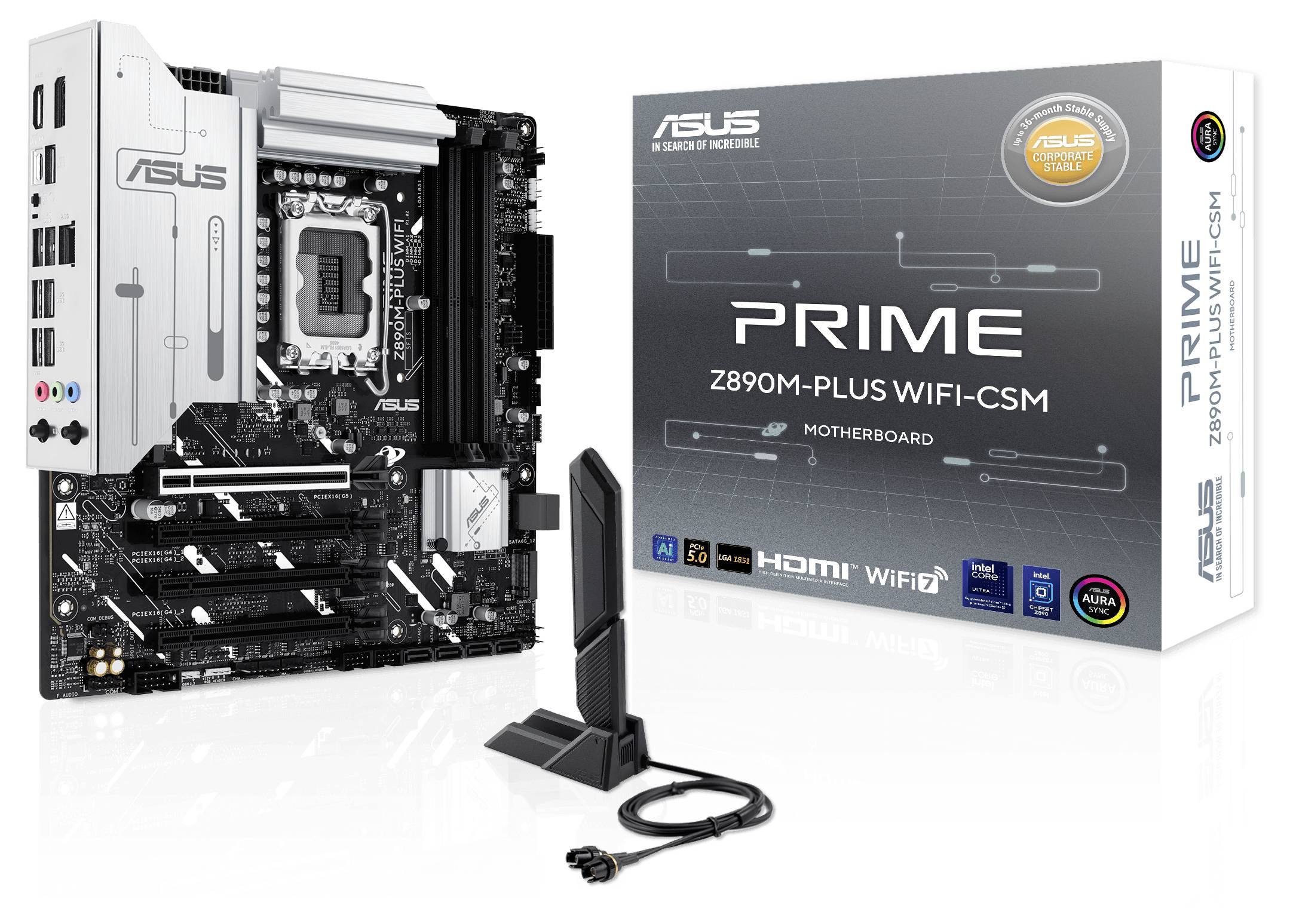

- High-performance networks: Built-in Wi-Fi 7 (802.11b) with Asus WiFi Q-antenna and Realtek 2.5 GB Ethernet
- DIY-friendly design: Q-antenna, Q-dashboard, Q-LED core, BIOS Flashback™ key, BIOS Flashback™ LED and pre-mounted I/O shield
- Unmatched personalization: Three addressable Gen 2 headers, all configurable with Asus exclusive Aura Sync RGB lighting
