Asus PRO A620AT-CSM Motherboard PC base #####AMD AM5 Form factor (details) Mini-ITX Motherboard chipset AMD® A620A
EAN:
Part number:
Item no:

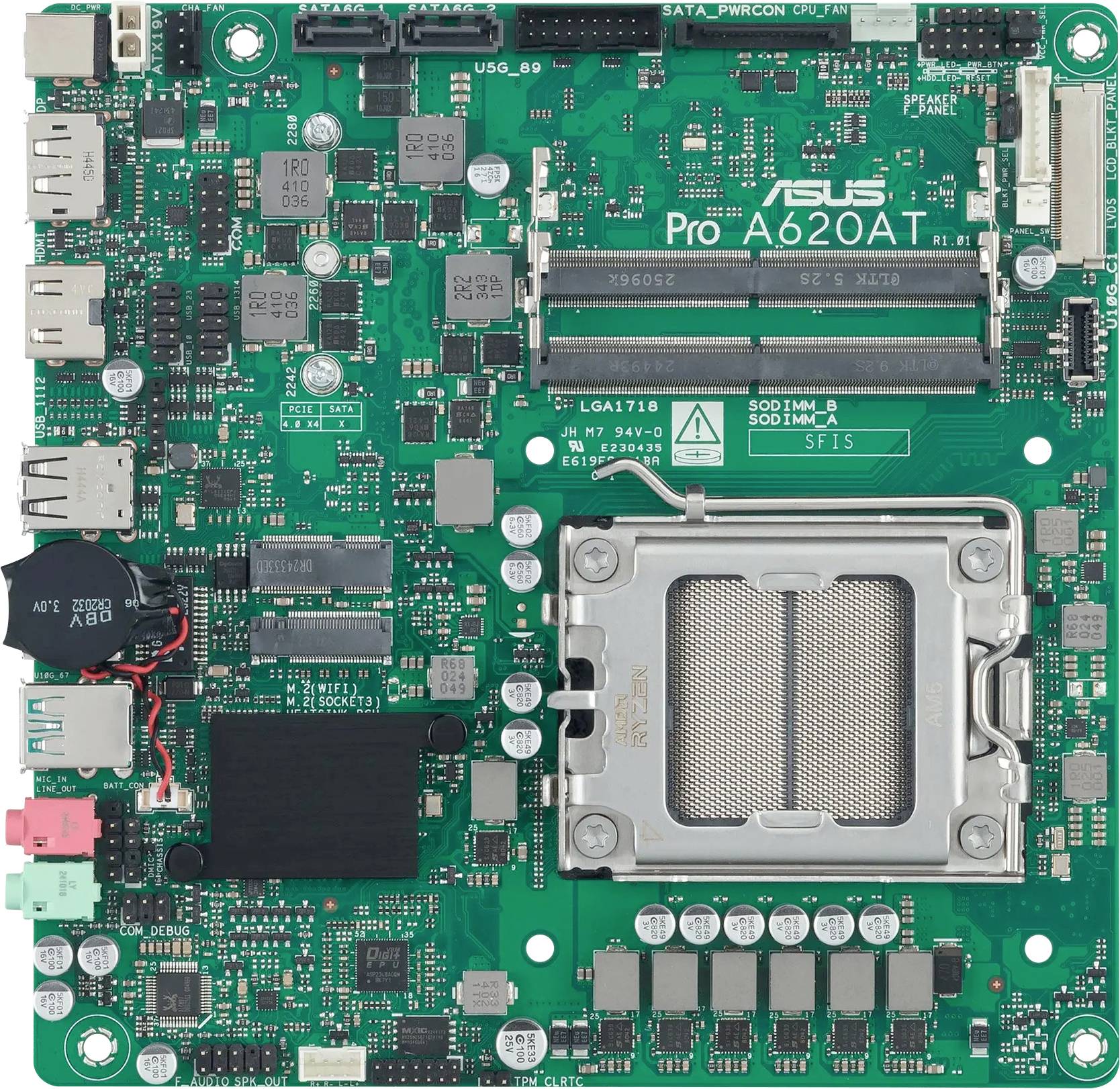

Asus PRO A620AT-CSM Motherboard
Technical specifications
- LAN: Gigabit Ethernet
- Audio: HD Audio (8-channel)
- Data Link Protocol (Network): Ethernet, Fast Ethernet, Gigabit Ethernet
- Supported RAM Health Check: Non-ECC, ECC, On-the-ECC
- Width: 17 cm
- Depth: 17 cm
- MODEL: PRO A620AT-CSM
- Type (audio output): Sound card
- USB-/Firewire-connection 2 x USB 3.2 Gen 2 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 5 x USB 2.0 via an internal multi-pin connector)
- Supported RAM: 2 DIMM slots - DDR5, non-ECC, on-the ECC, ECC, unbuffered
- AMD A620A chipset (motherboard)
- Supported RAM (Registered or Buffered) memory: Unbuffered
- Installed number (processor): 0
- Max. Supported number (processor): 1
- Type (video output): Graphics adapter (CPU required)
- Product type
Motherboard
- Chipset
AMD® A620A
#####AMD AM5
- Form factor
Mini-ITX
- Processor/type
Ryzen 7000/8000/9000 Serie
- RAM type
DDR5 RAM
- RAM / Max. upgrade
128 GB
- Interfaces
USB C®
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
- No. of DDR5 slots
2 x
- No. of USB 2.0 ports
7 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- No. of USB 3.2
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
2 x
- UKCA
yes
