Asus PRO WS TRX50-SAGE Motherboard PC base #####AMD sTR5 Form factor (details) CEB Motherboard chipset AMD® TRX50
EAN:
Part number:
Item no:

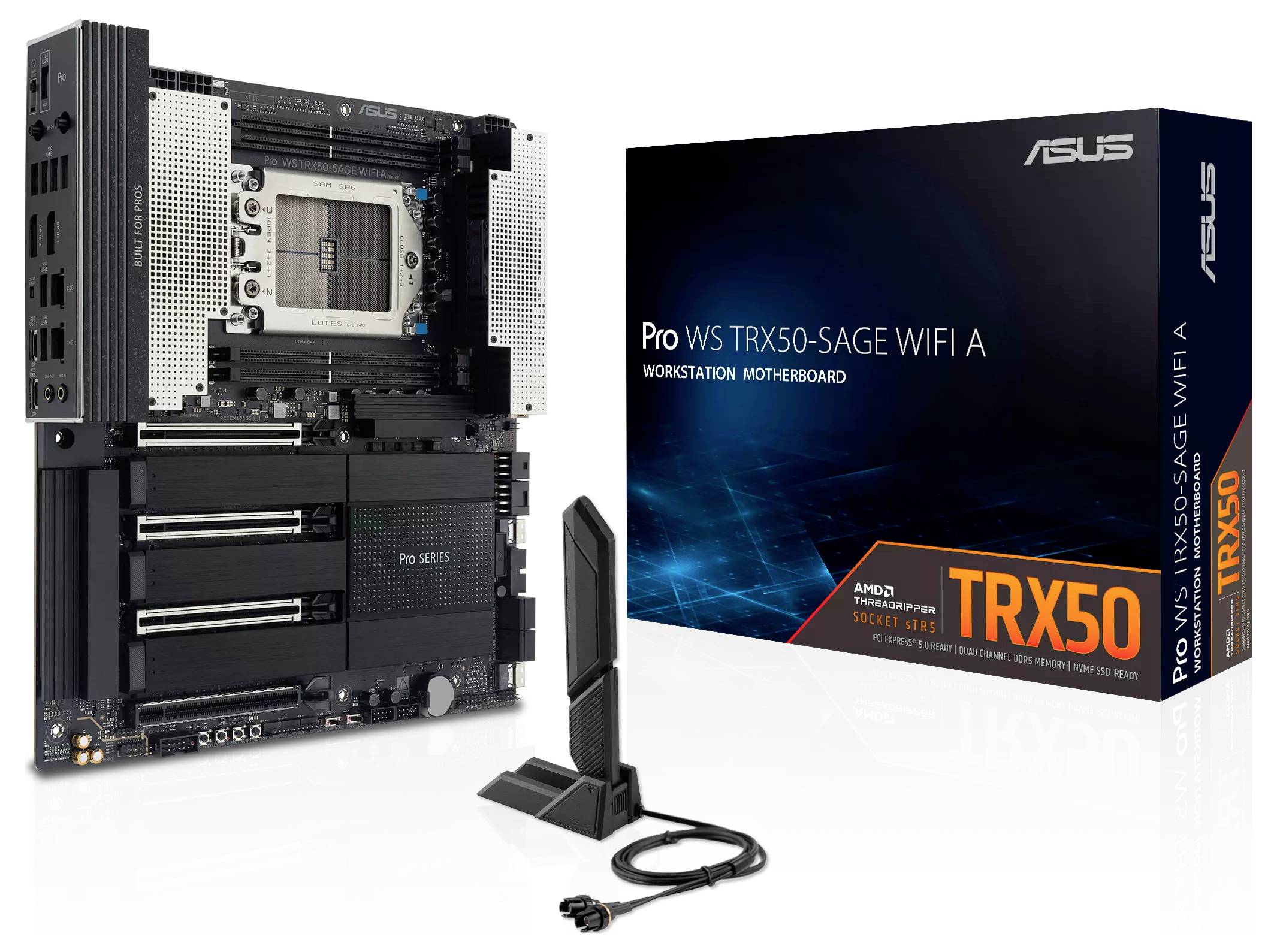

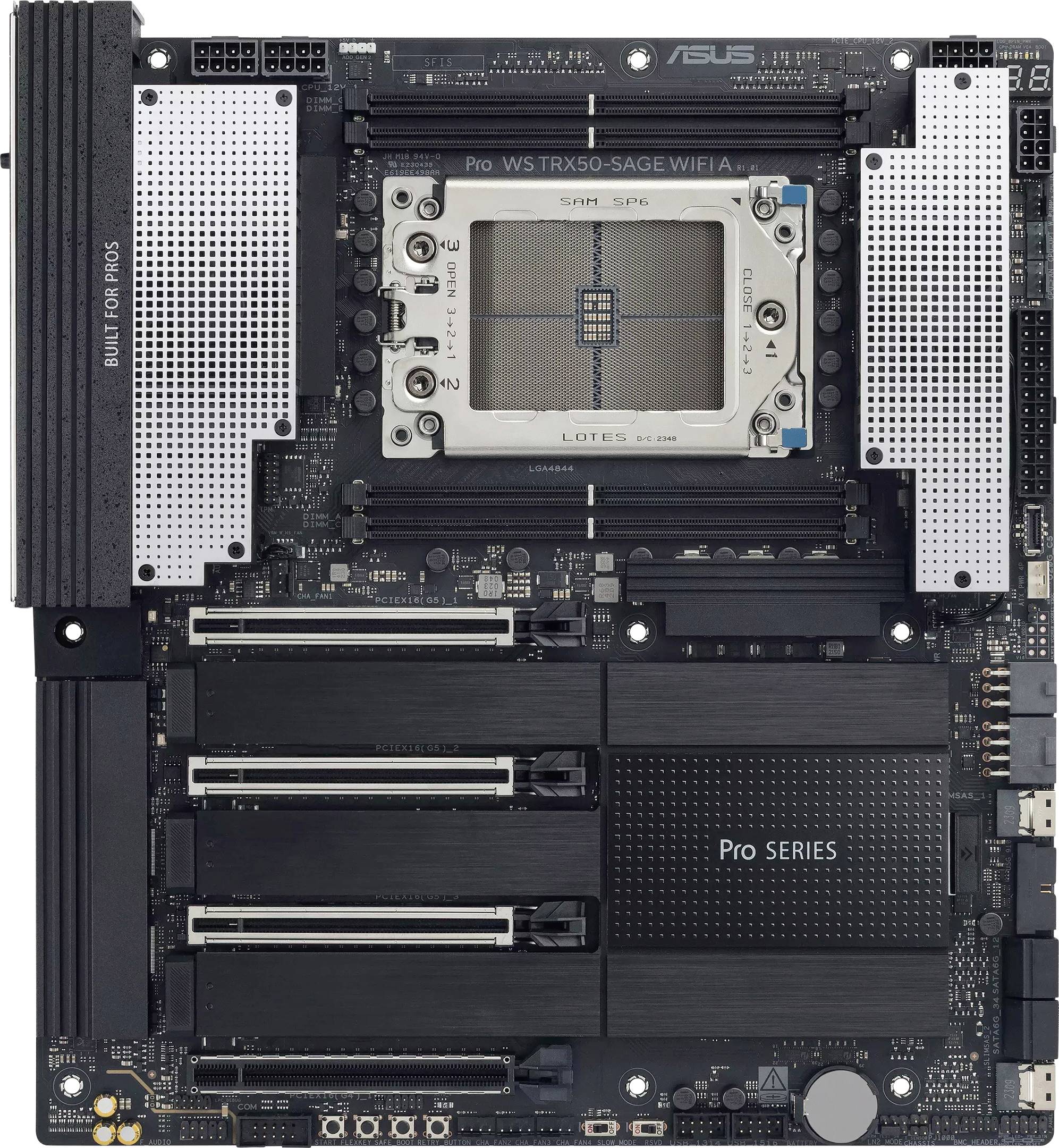

Asus PRO WS TRX50-SAGE WIFI A AMD TRX50 socket STR5 CEB
Highlights & Details
- AMD socket STR5 AMD Ryzen thread ripper 7000 series, AMD Ryzen thread ripper PRO 7000 WX series
- CEB AMD TRX50 Realtek ALC1220P workstation 5.1 channels
- DDR5 SDRAM 4 DIMM
- HDD & SSD M.2, SATA III, SlimSAS RAID-support Number of supported storage drives: 10
- UEFI AMI 256 Mbit BIOS type
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Socket STR5
- Supported processor slots: Socket STR5
- Supported memory: DDR5 SDRAM
- ECC compatibility: ECC
- Number of temperature sensor headers: 1
- WLAN-standards Wi-Fi 7 (802.11b)
- AMD TRX50 motherboard chipset
- Component for: Workstation
- 1. M.2 Largest key size: 2280
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 2580
- 2. M.2 highest PCI Express generation: 5.0
- 3. M.2 Largest key size: 2280
- 3. M.2 highest PCI Express generation: 4.0
- 4. M.2 Largest key size: 2280
- 4. M.2 highest PCI Express generation: 5.0
- Product type
Motherboard
- Form factor
CEB
#####AMD sTR5
- Chipset
AMD® TRX50
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
3 x
- No. of SATA III ports
4 x
- No. of USB 2.0 ports
2 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Aluminium
Black
- Depth
28 cm
- Height
100 mm
- Width
30.5 cm
- No. of DisplayPort
2 x
- No. of USB A 2.0 ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
6 x
- Suitable for
#####AMD sTR5
- Onboard graphics card
No
- 10/100/1000 Mbps ports
2 x
- RAM type
DIMM
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Ethernet LAN
yes
- Antenna included
yes
- Number of memory slots
4
- Number of M.2 (M) slots
4
- Front panel connector
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- WiFi-AP antenna jack
1
- TPM connector
yes
- RGB LED pin header
yes
- USB4 Gen 3x2 ports quantity
2
- USB 3.2 Gen 2x2 connectors
1
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
4.85 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Number of storage drives supported
10
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443612 Asus PRO WS TRX50-SAGE Motherboard PC base #####AMD sTR5 Form factor (details) CEB Motherboard chipset AMD® TRX50
Description
A DREAM WORKSTATION
The Pro WS TRX50-SAGE WIFI A motherboard offers first-class speed, compatibility and stability tailored for content creation, software development, machine learning and AI-era applications. Twenty power levels drive AMD Ryzen™ Threadripper™ processors with up to 96 cores and supports up to 1 TB R-DIMM DDR5 modules, providing the performance potential professionals need for the most modern applications. The Pro WS TRX50-SAGE WIFI A is equipped with integrated PCLE® power connections with additional support for multiple graphics cards, active cooling on the VRM heat sinks, WiFi 7, USB4® (40 Gbps), SlimSAS and IMPL support for a variety of scenarios and industries.
This text is machine translated.
Features
- Ready for Advanced AI PC: Designed for the future of AI computing, with the necessary performance and connectivity for demanding AI applications
- AMD STR5 socket supports up to 96-core CPUs: Prepared for AMD Socket STR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX Series and Ryzen™ Threadripper™ 9000 & 7000 Series processors
- CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
- Robust performance & Thermal design: 20 Power Stages with two 8-pin power ports for the CPU, massive VRM cooling, chipset and M.2 heat sinks, and M.2 thermal pad.
- Ultra-fast connectivity: Three PCIereg 5.0 x16 slots, one PCIereg 4.0 x16 slot, two USB4 (40Gbps) ports, 10 GB & 2.5 GB LAN ports, four M.2 slots, front USB 20Gbps type-CREG ports and SlimSAS NVMe support
- Server-quality IPMI remote management: Hardware and software support for Asus IPMI expansion cards and Asus control center express software for real-time monitoring and management
- Reliable stability: Validated for full compatibility with the latest technologies, a comprehensive QVL list and tested for 24/7 operation
