Name: Asus PRO WS Z890-ACE SE Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z890
Brand: Asus
SKU: 3394723

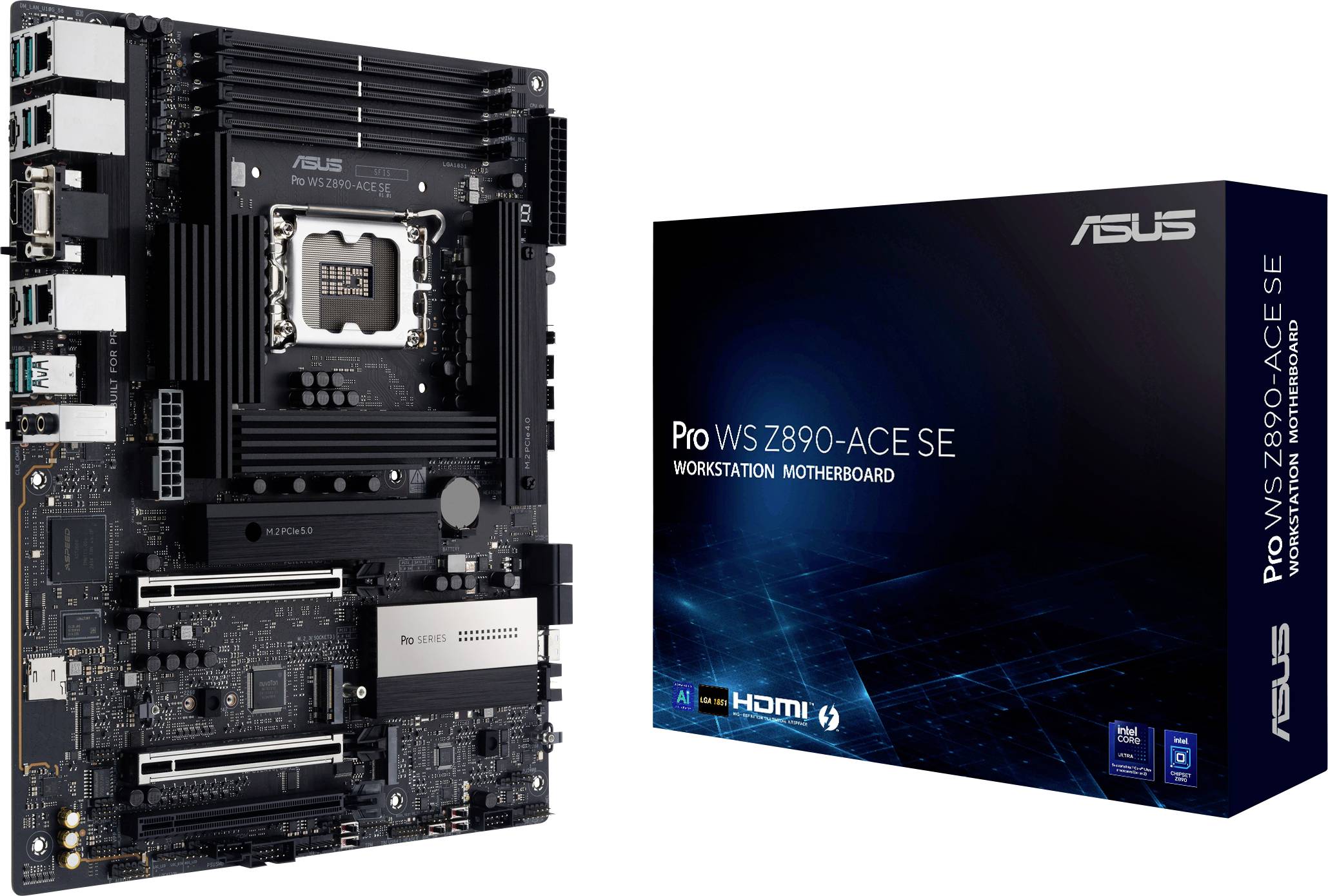

'ASUS Pro WS Z890-ACE SE Workstation Motherboard' next to the product packaging, showing connections and details for professionals.

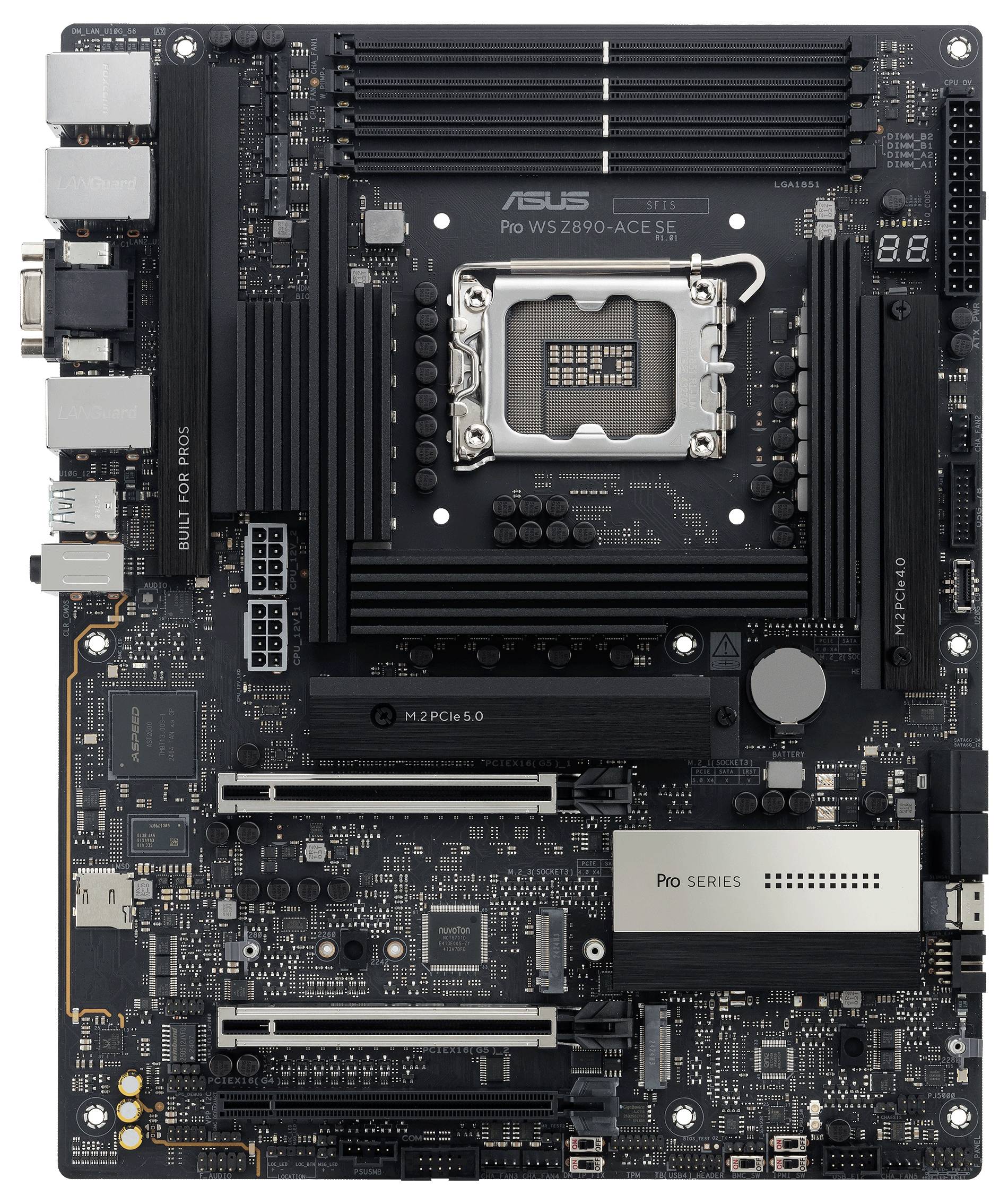

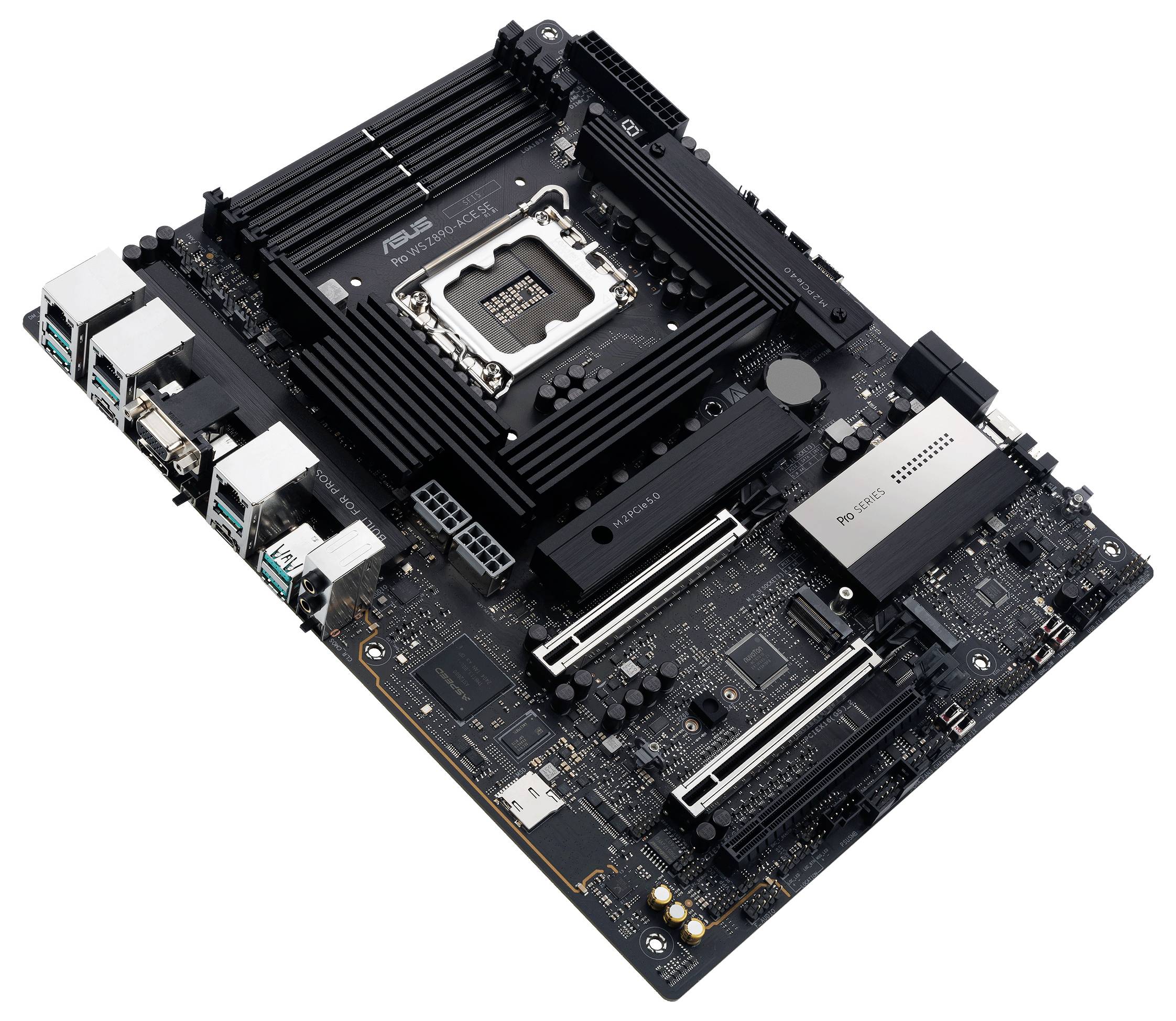

A motherboard with multiple PCIe slots, RAM banks, and a CPU socket, suitable for computer assembly.

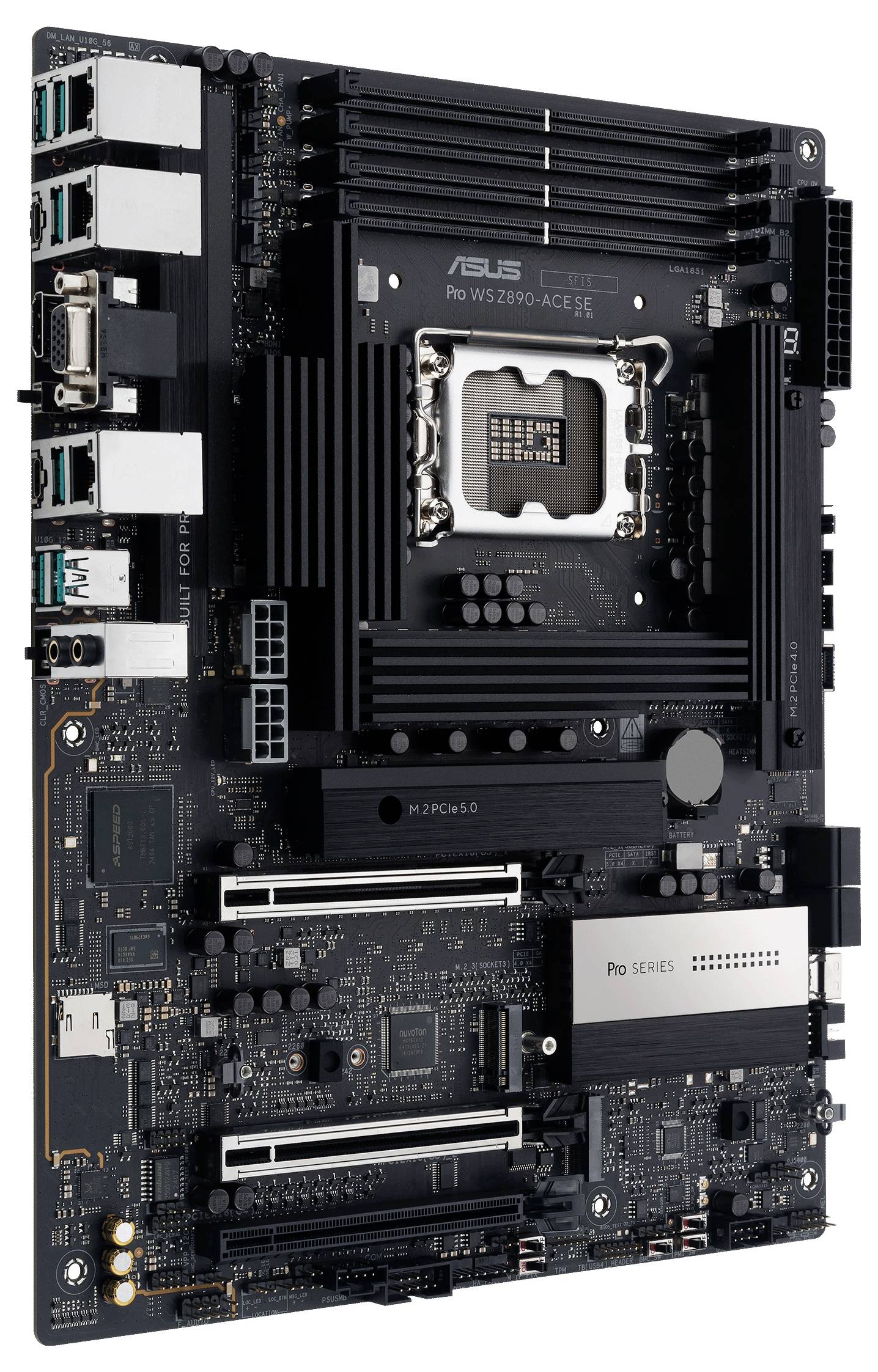

A black computer motherboard model with multiple ports, expansion slots, and a central processor socket.

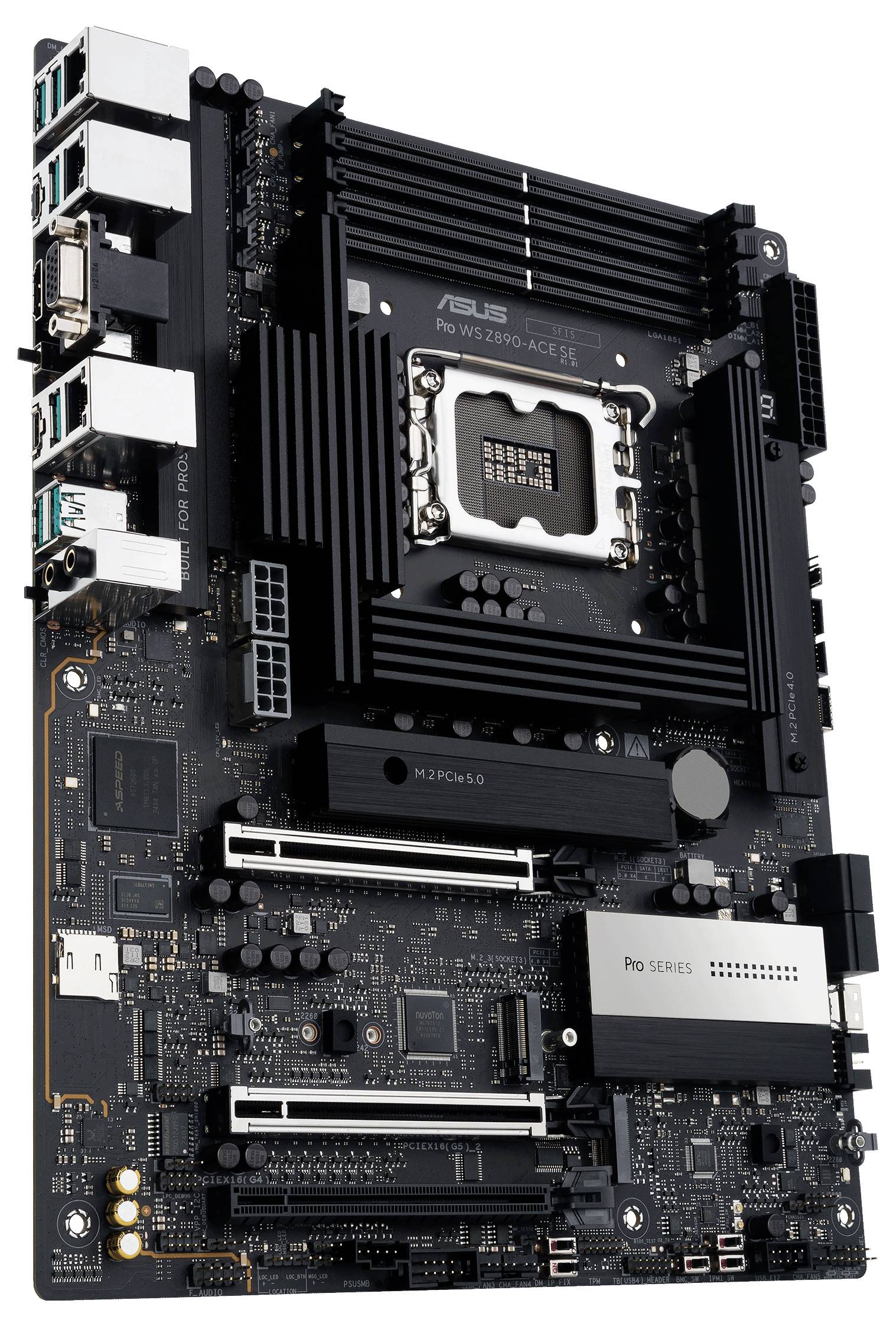

Computer motherboard with multiple ports and expansion slots, suitable for high-performance applications and gaming.

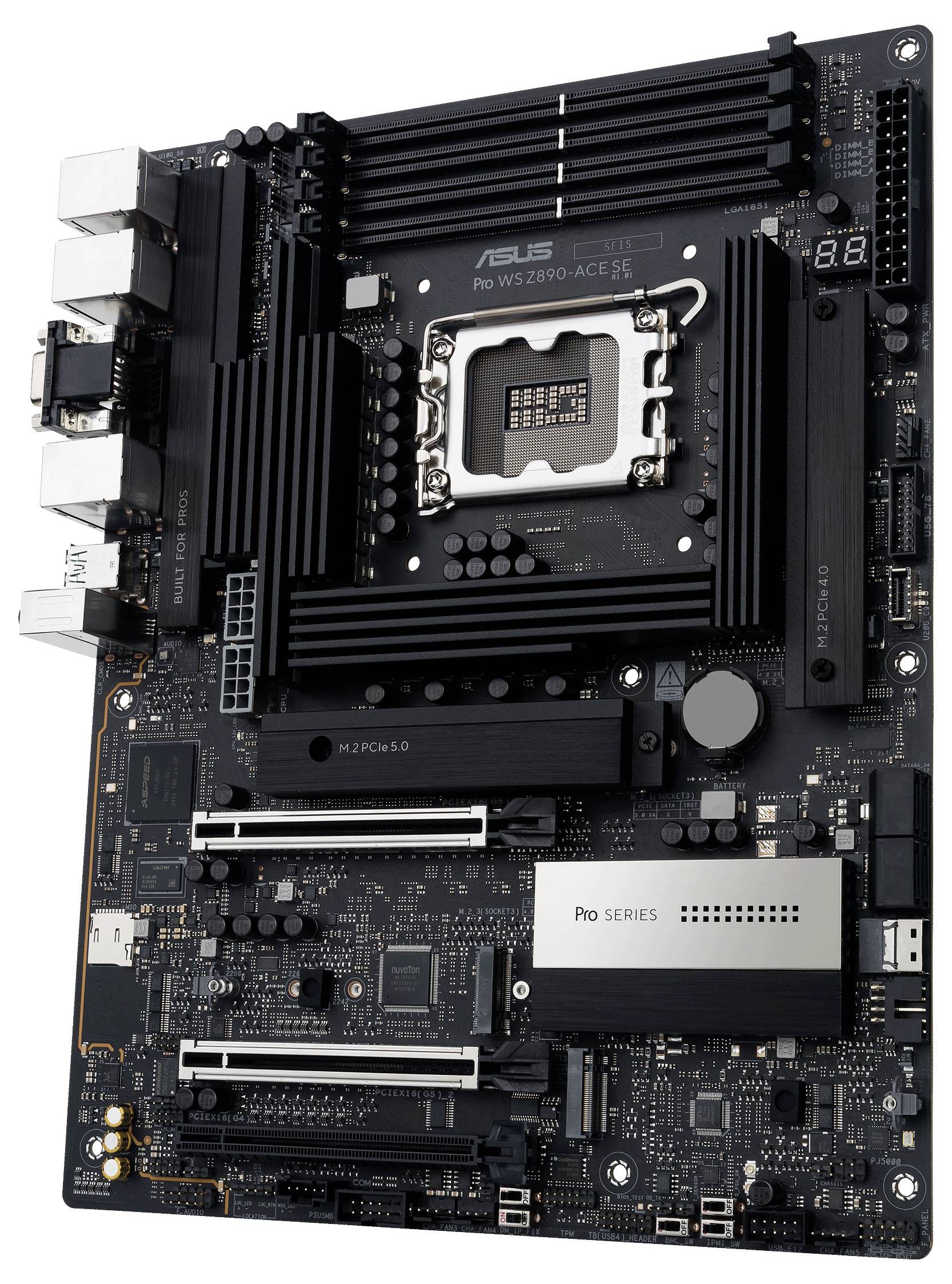

A black motherboard with multiple expansion slots and connectors, a central light rectangular component, surrounded by heatsinks.

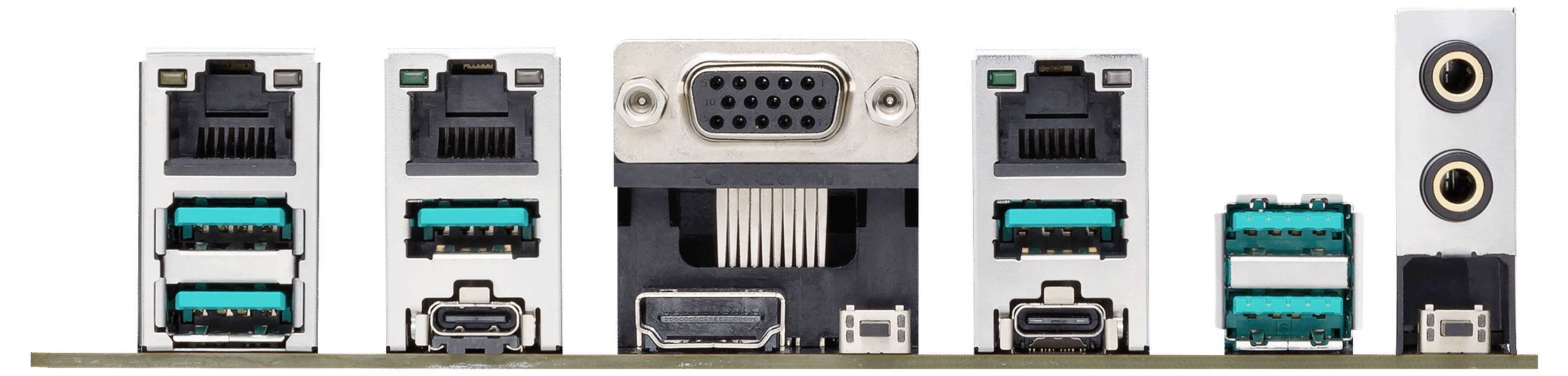

Back of a computer motherboard with various ports: Ethernet, USB, VGA, HDMI and audio sockets.

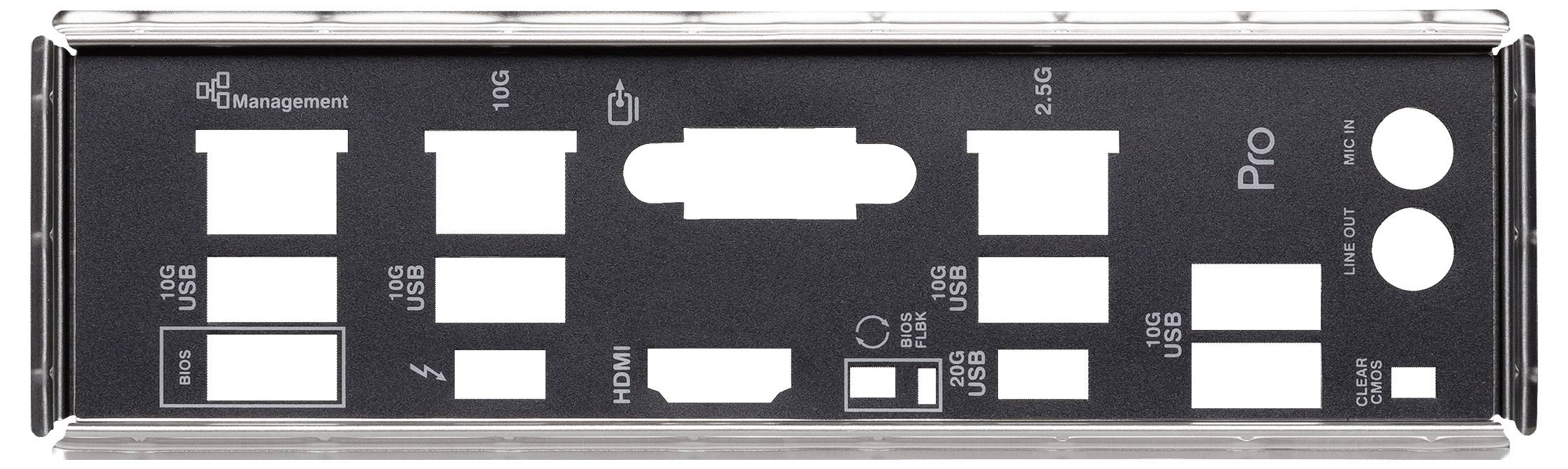

Back of a computer motherboard with various ports: USB, HDMI, Ethernet ports (10G, 2.5G), Audio and Thunderbolt.

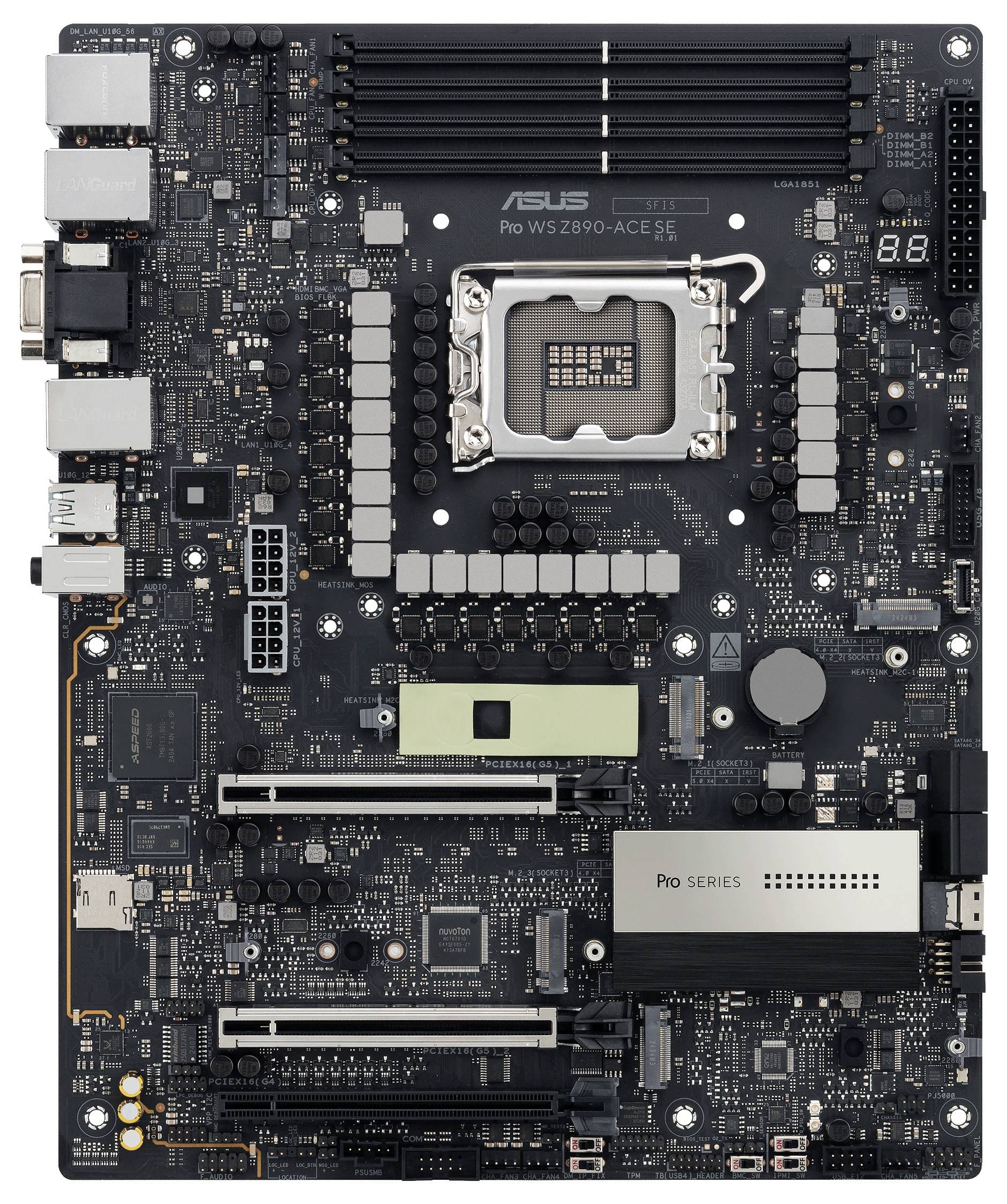

Motherboard 'ASUS Pro WS Z690-Ace SE' with CPU socket, RAM slots, PCIe expansion slots and connectors, suitable for PC build.

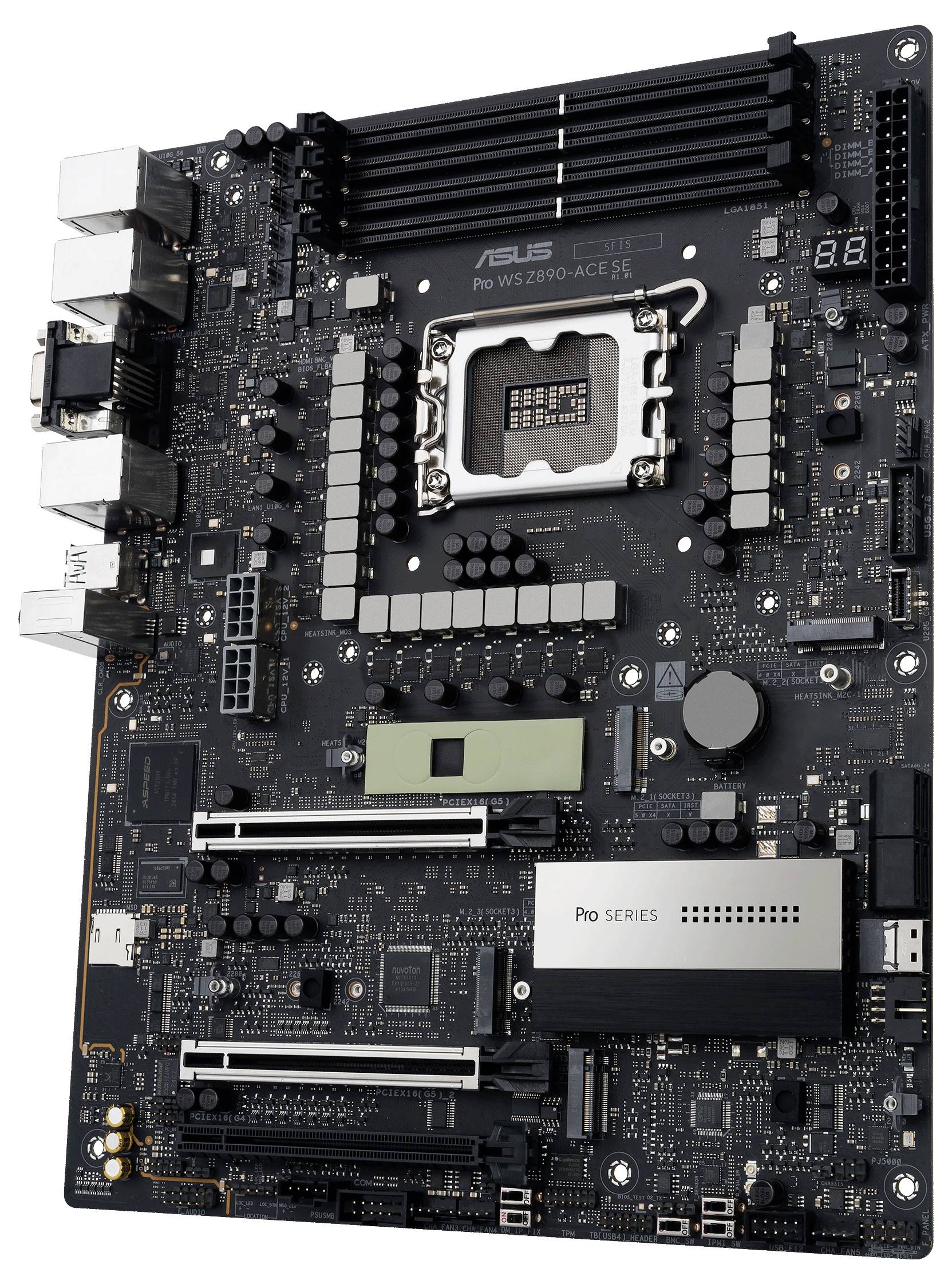

Motherboard with multiple expansion slots and connectors, black design, 'ProArt Z690-Creator WiFi'.

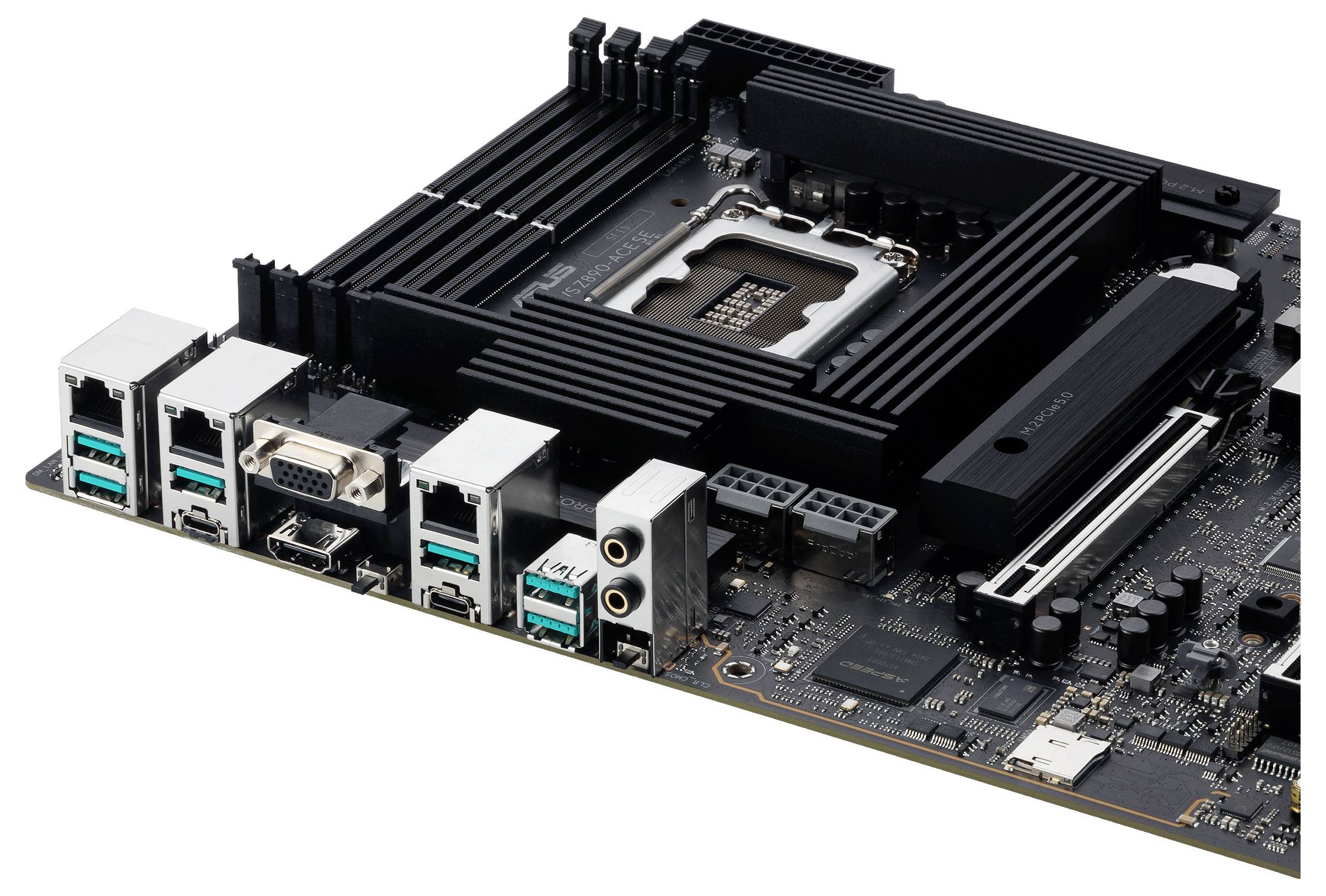

A computer motherboard with multiple USB ports, audio sockets and a CPU socket, ready for installation in a PC.

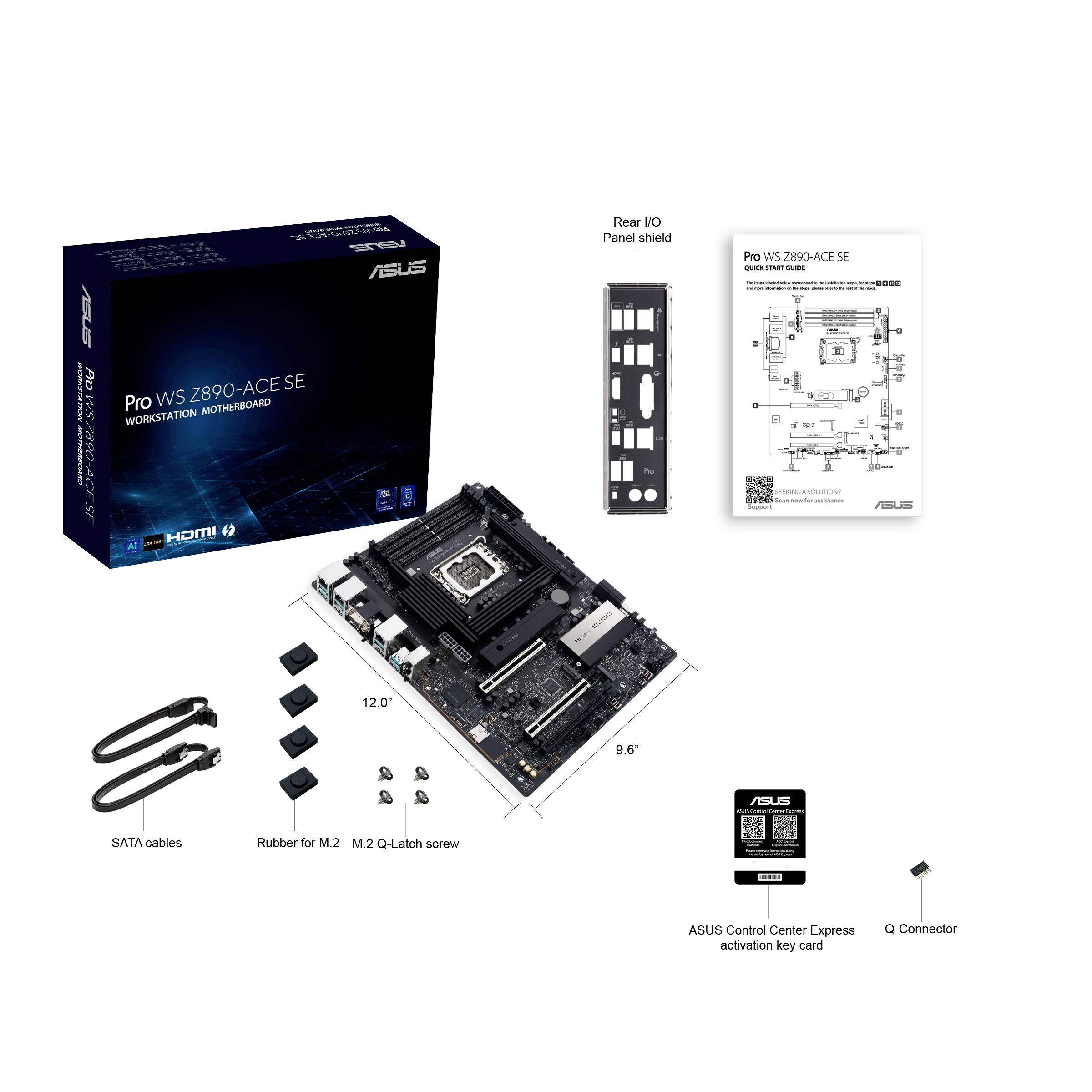

Figure shows an ASUS Pro WS Z690-Ace SE motherboard with accessories: SATA cables, screws, Q-connector, I/O shield and manual.

1/12

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Asus PRO WS Z890-ACE SE Motherboard

Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
Intel LGA1851 Socket: Ready for Intel® Core™ Ultra 9, 7 and 5 desktop processors
Robust performance: 16+2+1+2 staggered power stages, ProCool II power connector, high-quality alloy reactors and long-life capacitors
Future-proof connectivity: Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe® 5.0 PCIe slots with full support for Next-Gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots, and one USB 20Gbps front panel header
Exclusive AI and over-clocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU Boost
DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS Flashback™, Q-Connector
Server-level IPMI remote management and integrated BMC: Hardware and software-level management with a dedicated LAN port connected to an integrated AST2600 BMC controller, and Asus control center express software for real-time monitoring and management

Pre-contractual information under the EU Data Act

Technical specifications

Product color: Black
Number of HDMI connections: 1
Depth: 244 mm
Cooling: Passive
LGA 1851 (socket V1)
Compatible processors: Intel core ultra (series 2)
Supported memory: DDR5 SDRAM
Number of memory slots: 4
RAM maximum: 256 GB
RAM type DIMM
Memory channels: Two-channel
ECC compatibility: Non-ECC
Supported memory clock rate (max.): 9066 MHz
Unbuffered memory: Yes
Width 305 mm
Wi-Fi: No.
Ethernet/LAN: Yes
Ethernet interfaces Type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Number of USB 2.0 ports 2
USB 3.2 Gen 1 (3.1 Gen 1) Connections 1
SATA III connections 4
USB 3.2 Gen 2×2 connections 1
Audio connection: Yes
Front Panel audio connector: Yes
ATX power plug (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan ports: 1
Number of chassis fan connectors: 5
Chassis intrusion connector: Yes
EPS Power Connector (8-pin): Yes
Number of EPS power connections (4-pin): 2
Number of COM plugs: 1
Thunderbolt multi-pin connectors 1
Integrated SAS ports: 1
Number of water pump connections: 1
Number of temperature sensor headers: 1
USB 3.2 Gen 2 (3.1 Gen 2) Number of ports Type A: 6
Number of Ethernet LAN connections (RJ-45): 3
USB 3.2 Gen 2×2 type C number of connections: 1
Headphone outputs: 1
Line-in: Yes
Quantity of Thunderbolt ports: 1
Supported drive interfaces: M.2, PCI Express 5.0, SATA III.
Supported drives: HDD & SSD
Maximum number of HDD supported: 4
Number of supported storage drives: 8
RAID support: Yes
RAID levels 0, 1, 5, 10
Supplied cable SATA
PCI Express x16 slots (Gen 4.x): 1
PCI Express x16 slots (Gen 5.x): 2
Number of M.2 (M) slots: 4
BIOS TYPE UEFI AMI
BIOS memory size: 256 Mbit
Motherboard form factor ATX
Motherboard Chipset family: Intel
Intel Z890 motherboard chipset
Audio channels: 7.1 channels
Audio chip: Realtek ALC1220P
Supports Windows operating systems: Windows 10 x64, Windows 11

Product type: Motherboard

Chipset: Intel® Z890

: #####Intel® 1851

Form factor: ATX

Processor/type: Intel Core Ultra (Series 2)

RAM type: DDR5 RAM

Clock speed: 9066 MHz

RAM / Max. upgrade: 256 GB

Interfaces: HDMI™
USB A (USB 3.2 2nd gen)
USB C® (USB 3.2 2x 2nd gen)
RJ45
Headphone input
Audio line in
Thunderbolt

No. of DDR5 slots: 4 x

No. of LAN ports: 3 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 2 x

No. of USB 2.0 ports: 2 x

No. of USB 3.2 2nd Gen (USB 3.1): 6 x

No. of USB 3.0 ports: 1 x

No. of SATA III ports: 4 x

Onboard audio: 7.1

Factory colour: Black

Depth: 244 mm

Height: 100 mm

Width: 305 mm

No. of HDMI ports: 1 x

No of. USB type A 3.1 /3.2 2nd gen: 6 x

Cooling: Passive

10/100/1000 Mbps ports: 3 x

Range of use: PC

Wi-Fi: No

UKCA: yes

Integrated SAS ports: 1

BIOS memory size: 256 Mbit

Line-in: yes

Ethernet LAN: yes

Audio connector: yes

Number of memory slots: 4

Number of M.2 (M) slots: 4

Thunderbolt headers: 1

Headphone outputs: 1

CPU fan connector: yes

ATX Power connector (24-pin): yes

Chassis intrusion connector: yes

Front panel audio connector: yes

Number of HDDs supported: 4

Supported memory clock speed (max): 9066 MHz

USB 3.2 Gen 2x2 connectors: 1

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.43 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Thunderbolt ports quantity: 1

Unbuffered memory: yes

Clear CMOS button: yes

Number of storage drives supported: 8

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3394723 Asus PRO WS Z890-ACE SE Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z890

Description

Asus PRO WS Z890-ACE SE Workstation Board Socket Intel LGA 1851 (ATX, PCIe 5.0, DDR5, 10Gb & 2.5Gb Ethernet, 4x M.2 slots, 1x USB 20Gbps front panel jack, onboard BMC)
