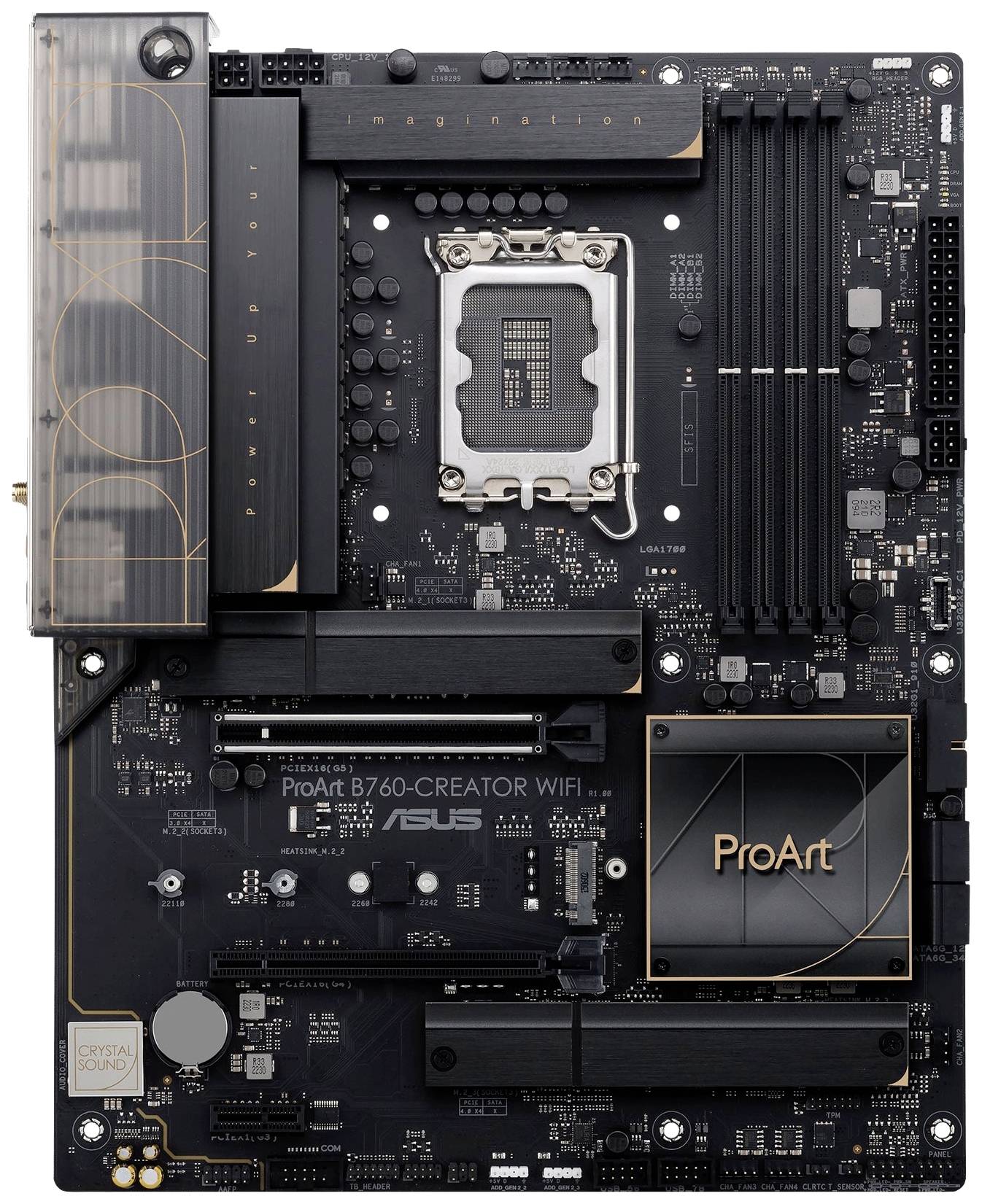

'ASUS ProArt B760-Creator WiFi' Motherboard with LGA1700 socket, four RAM slots and PCIe slots, suitable for high-end computer builds.

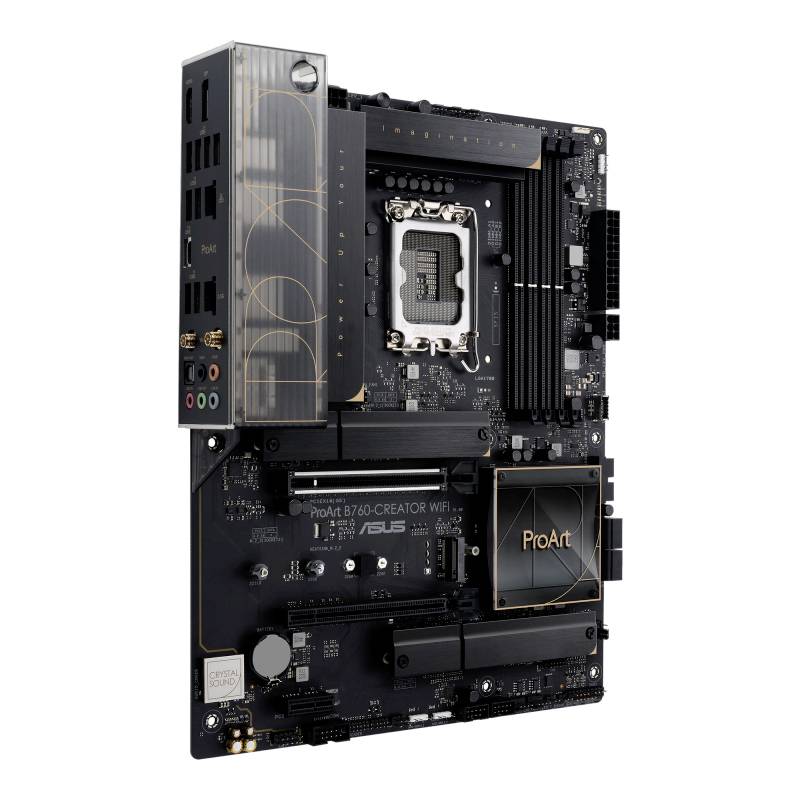

Electronic component of a main circuit board with multiple slots and connectors; distinctively labelled with 'ProArt'.

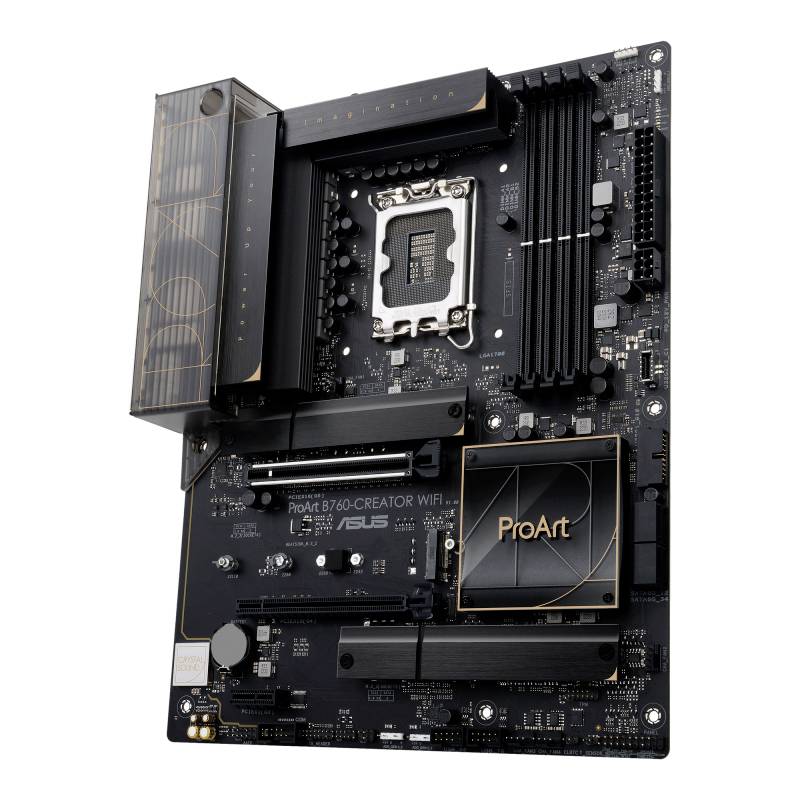

A black computer motherboard with the inscription 'ProArt'. Visible are connections for the CPU, RAM, and other components.

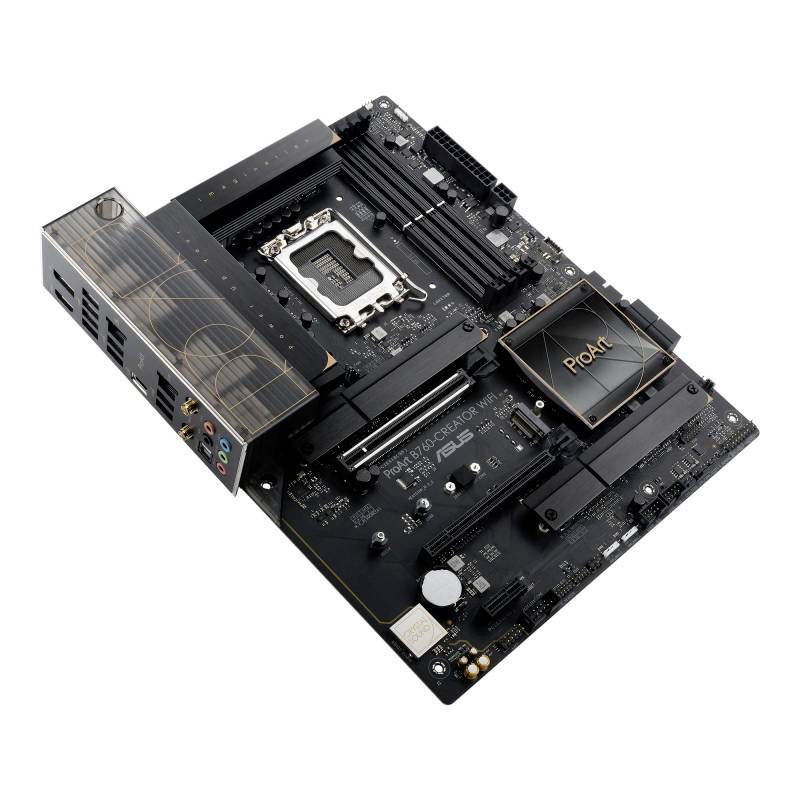

A black motherboard with golden accents, multiple ports, and a large CPU socket, designed for high-performance computers.

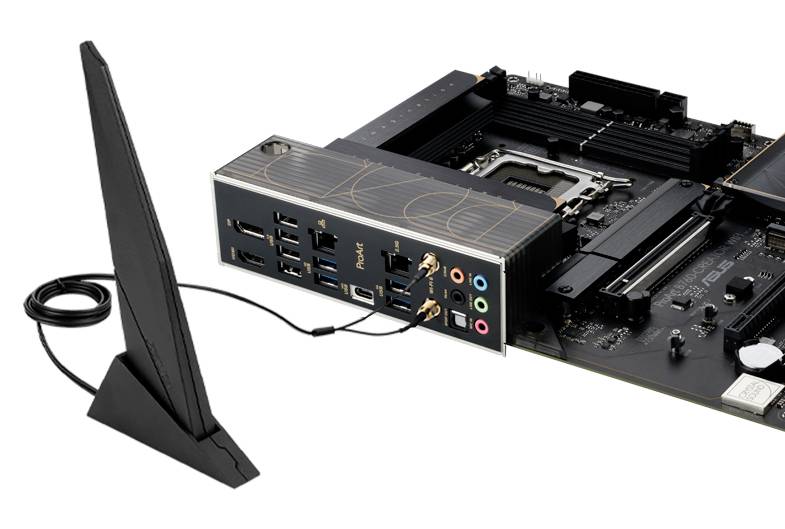

A motherboard with multiple ports shows the rear side with USB inputs, HDMI, audio ports, and a connected antenna cable.

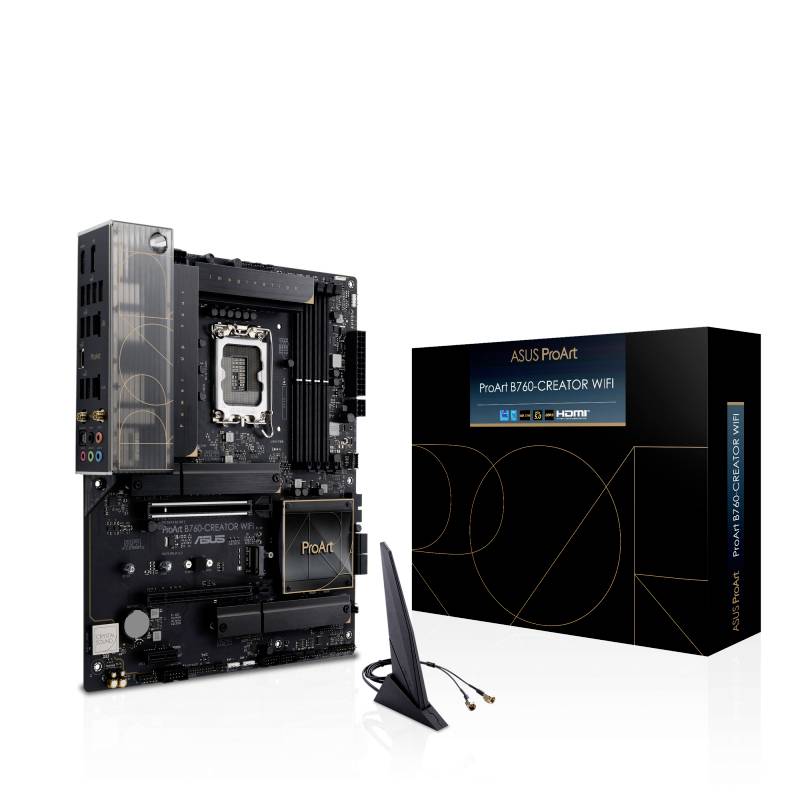

ASUS ProArt B760-Creator WiFi Motherboard with packaging and antenna. Supports Intel processors, DisplayPort and HDMI.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Asus PROART B760-CREATOR WIFI Motherboard

Highlights & Details

Intel® LGA 1700 Socket: Ready for Intel Core™ 13 processors. & 12 Generation
Full connectivity: WiFi 6, 2.5 GB & 1 GB onboard Ethernet, three M.2 slots, Thunderbolt™ header support and USB 3.2 Gen 2×2 front Type C® port with 60W Quick Charge 4+
Next-generation performance: 12+1 Power Stages with a rated power of 50 amps, PCIe® 5.0 ready
Optimised cooling design: Enlarged VRM heat sinks, aluminum M.2 heat sinks, six 4-pin PWM fan strips and an AIO pump strip
ProArt offers you more: Two-way AI noise suppression for clear online communication and ProArt Creator Hub with CreationFirst for the control panel from a single source
Advanced security features: USB port restriction, software blacklisting, and Windows registry protection via Asus Control Center Express
This text is machine translated.

Technical specifications

Supported RAM Health Check: Non-ECC
Registered or buffered: Unbuffered
Special features: Two-channel memory architecture, Intel extreme memory profiles (XMP)
Audio type: HD audio (8-channel)
Audio-compatibility: High-definition audio
Network interfaces: Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1, 3 x M.2 socket (2242/2260/2280/22110 M.2 slot with key M), 1 x M.2 socket (Key E)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 ports 2 x M.2, PCIe 3.0 ports: 1 x M.2
RAID features: Intel Rapid storage technology
External interfaces: 1 x HDMI, 1 x DisplayPort, 1 x USB-C 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x LAN (Gigabit Ethernet), 1 x LAN (2.5Gigabit Ethernet), 1 x Audio Line-In - Mini jack plug, 1 x Microphone - Mini jack plug, 1 x Audio Line-Out (middle/subwoofer) - Mini jack plug, 1 x Audio Line-Out (front surround) - Mini jack plug, 1 x Audio Line-Out (rear) - Mini jack plug, 1 x SPDIF-output
Internal interfaces: 4 x USB 2.0 - multi-pin connector, 2 x USB 3.2 Gen 1 - multi-pin connector, 1 x USB-C Gen 2x2 - pin-pin connector, 1 x audio - pin-header, 1 x SPI - multi-pin connector, 1 x Thunderbolt - pin connector, 1 x serial - pin-header
Power connections: ATX12V plug, 4 pin, main power connector, 24 pin, ATX12V plug, 8-pin
BIOS Features UEFI BIOS, Asus EZ Flash 3
Sleep / Wake -up: Wake-On-LAN (WOL), Wake On PME
Asus Q design, ESD guards, Q-DIMM, Asus EZ DIY, Q-LED, Q-slot, crash-free BIOS 3, Asus Q-connector, Asus DIGI+ VRM, improved DRAM-overload protection Asus, Preboot execution environment (PXE), Asus stainless steel back I/O, LANguard, Asus surge protection, Asus crystal sound 3, Asus SafeSlot, Asus ProCool, water pump header, pre-mounted I/O shield, Asus aura sync, Asus OptiMem II, DIY friendly design, 20+1 phase Power design, M.2 Q-latch, compatible with Windows 11, VRM heat sink design, 50 A power stage

Product type: Motherboard

Chipset: Intel® B760

: Intel® 1700

Form factor: ATX

Processor/type: unterstützt 12. und 13. Generation von Intel Core / Pentium Gold / Celeron

RAM type: DDR4 RAM

RAM / Max. upgrade: 128 GB

Interfaces: HDMI™
DisplayPort
USB C® (USB 3.2 2x 2nd gen)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Gigabit LAN (1 Gbps)
Gigabit LAN (1/2.5 Gbps)
Audio line in
Audio line out
S/PDIF
SPI
Thunderbolt
Serial (9-pin)
Bluetooth
Wi-Fi 6 (IEEE 802.11ax)
Show more

No. of DDR4 slots: 4 x

No. of Gigabit LANs: 2 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 8 x

No. of USB 3.2: 6 x

No. of USB 3.0 ports: 2 x

No. of serial ports: 1 x

Depth: 350 mm

Height: 100 mm

Width: 300 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3045515 Asus PROART B760-CREATOR WIFI Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® B760

Description

Scope of delivery

1x M.2-Screw
Q connector
Portable Asus Wi-Fi antenna
2 x M.2 rubber spacer
ACC Express Activation License Key
Asus ProArt ball-point pen
2 x Serial ATA cable
