Asus ProArt PF120 PC fan Black (W x H x D) 120 x 28 x 120 mm
EAN:
Part number:
Item no:

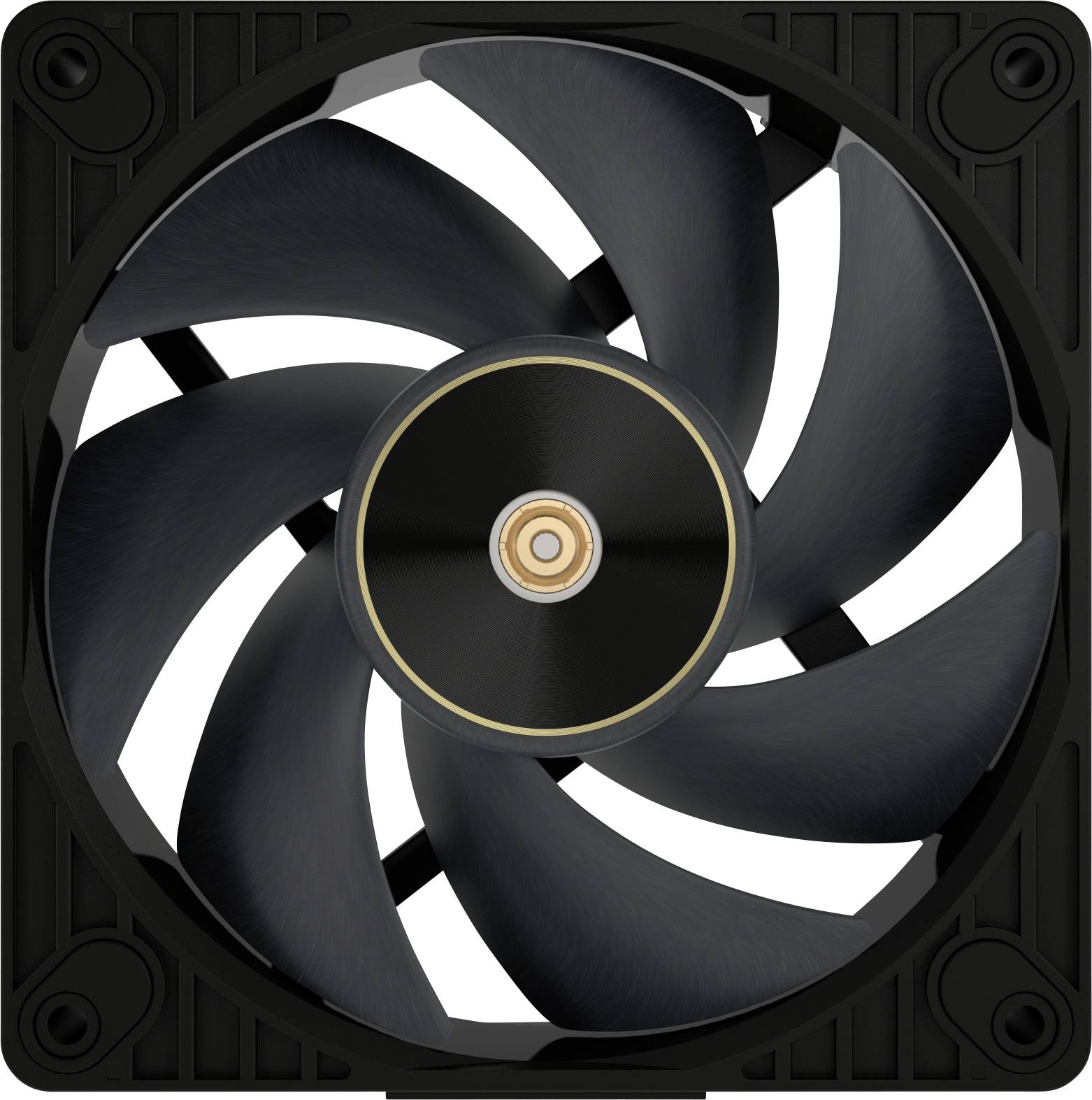

Asus ProArt PF120 PC fan
Highlights & Details
- Computer housing fan 12 cm
- 39 dB 104.8 CFM 7.3 mmH2O Fluid dynamic bearing (FDB)
- Support for pulse width modulation
- 120 x 120 x 28 mm
- Black
- 1 pieces(s)
Technical specifications
- Fan diameter 12 cm
- Storage type: Fluid dynamic bearing (FDB)
- Number of fans: 1 fans
- Product type
PC fan
- Fan size
120 mm
- Noise emission (max.)
39 dB
- Noise emission
30.1 dB - 40 dB
- Rotational speed (min.)
1400 U/min
- Rotational speed (max.)
3000 U/min
- Type of bearing
Fluid dynamic bearing
- Connection
4-pin PWM
- Factory colour
Black
- Weight
219 g
- Width
120 mm
- Height
28 mm
- Depth
120 mm
- Dim
(W x H x D) 120 x 28 x 120 mm
- Content
1 pc(s)
- Type
Fan
- UKCA
yes
- Fan dimensions (W x D x H)
120 x 120 x 28 mm
- Quantity per pack
1 Stück(e)
- Pulse-width modulation (PWM) support
yes
- Maximum airflow
104.8 cfm
- Minimum airflow (imperial)
47.4 cfm
- Minimum air pressure
1.5 mmwc
- Maximum air pressure
7.3 mmwc
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730295 Asus ProArt PF120 PC fan Black (W x H x D) 120 x 28 x 120 mm
Description
ProArt PF120 PWM-fan
The art of cooling performance
The ProArt PF120 fan offers superior cooling with first class quality and design for unsurpassed reliability. With a 28 mm frame, a powerful 3-phase and 6-pin motor, a CNC-machined brass bearing housing, reinforced LCP blades (Liquid Crystal Polymer) and patented daisy chain connections to simplify installation and cable management, the ProArt PF120 is the ideal choice for users, peak performance and effortless integration.
This text is machine translated.
The art of cooling performance
The ProArt PF120 fan offers superior cooling with first class quality and design for unsurpassed reliability. With a 28 mm frame, a powerful 3-phase and 6-pin motor, a CNC-machined brass bearing housing, reinforced LCP blades (Liquid Crystal Polymer) and patented daisy chain connections to simplify installation and cable management, the ProArt PF120 is the ideal choice for users, peak performance and effortless integration.
This text is machine translated.
Features
- The 28 mm fan frame provides for a strong air current and static pressure
- The 3-phase, 6-pin motor offers an improved sound profile through the use of a low operating frequency
- The CNC-milled brass bearing casing provides for a continuous operation and long-term reliability
- Fan blades made of liquid crystal polymer (LCP) provide for a high speed at stable, precise performance
- The lower distance of 0.5 mm between the fan blade and the frame reduces turbulence and optimizes the performance
- Patented daisy-chain connections enable easy installation
- The PWM-regulation at up to 3000 RPM offers optimum cooling for a variety of workloads
