Name: Asus ProArt PF120 PC fan Black (W x H x D) 120 x 28 x 120 mm
Brand: Asus
SKU: 3730297

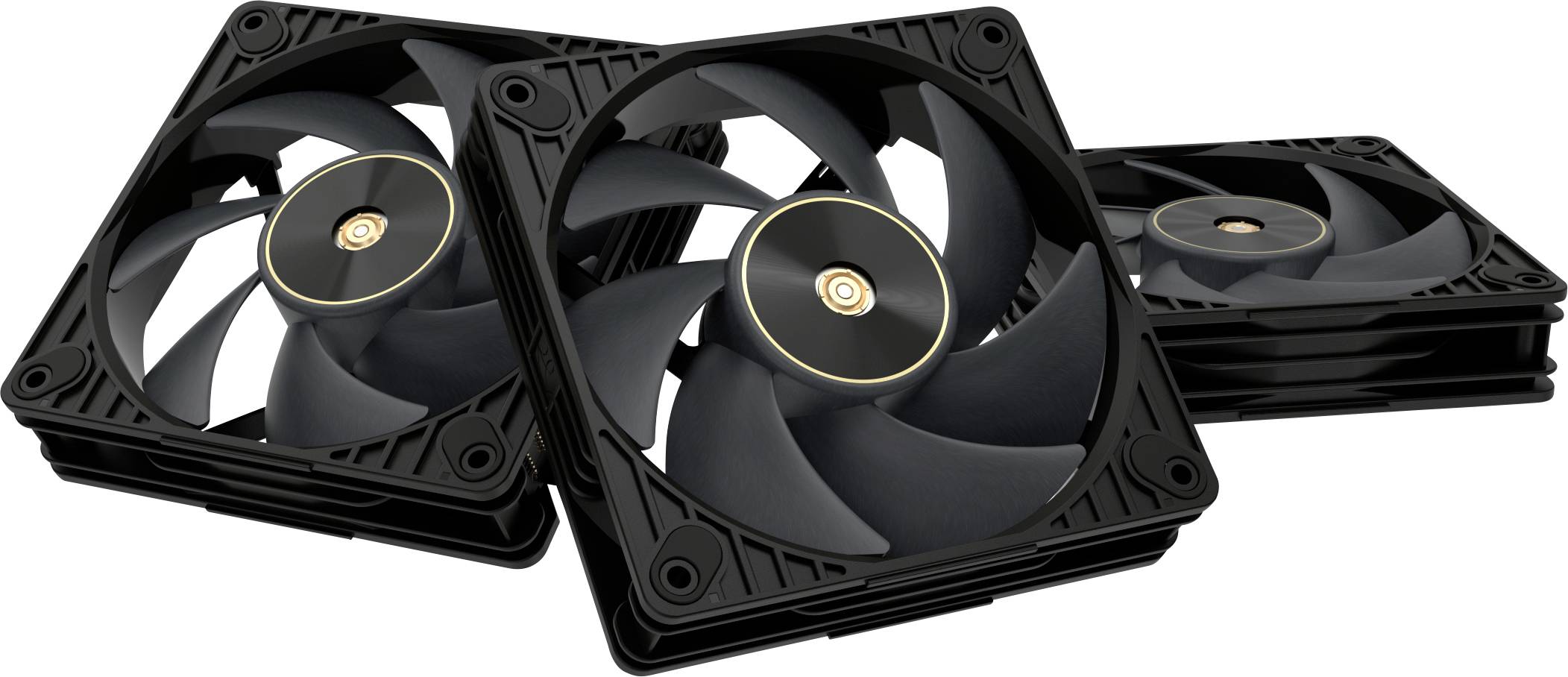

Three black computer cooling fans with circular patterns in the center, stacked and overlapping, suggesting their use in PC builds for airflow management.

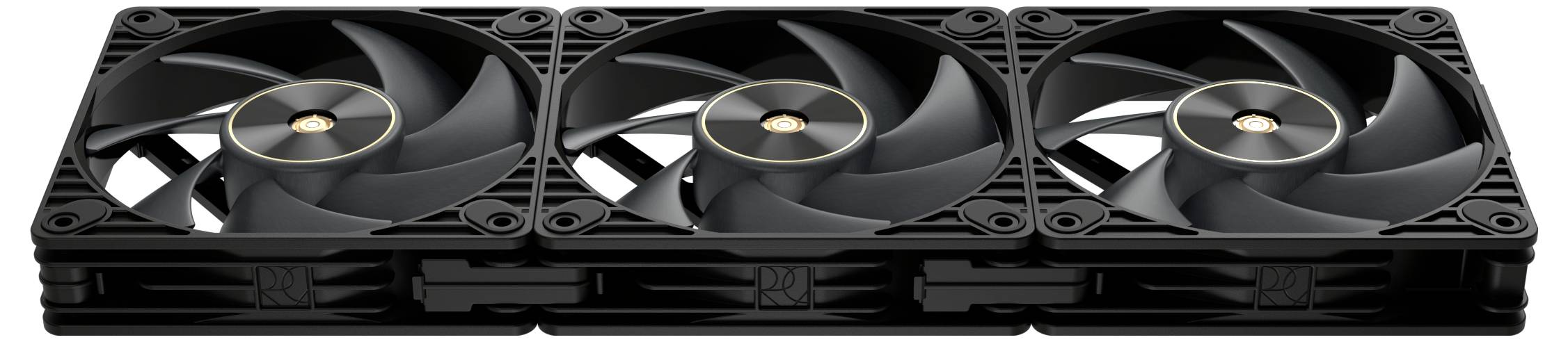

'Three black computer cooling fans aligned horizontally, featuring a central gold accent on each fan.'

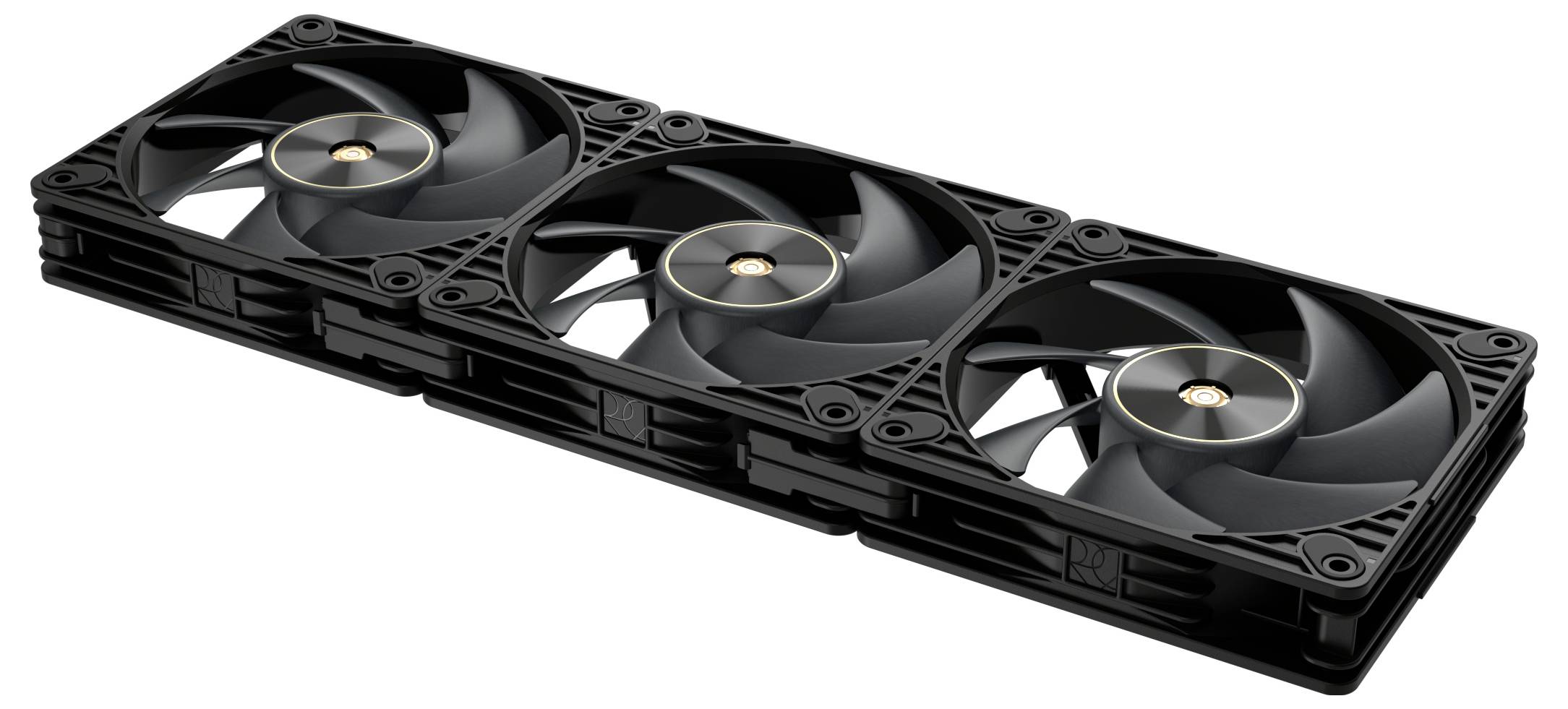

'Three black computer cooling fans aligned side by side, with circular patterns on each fan blade, on a black mounting frame.'

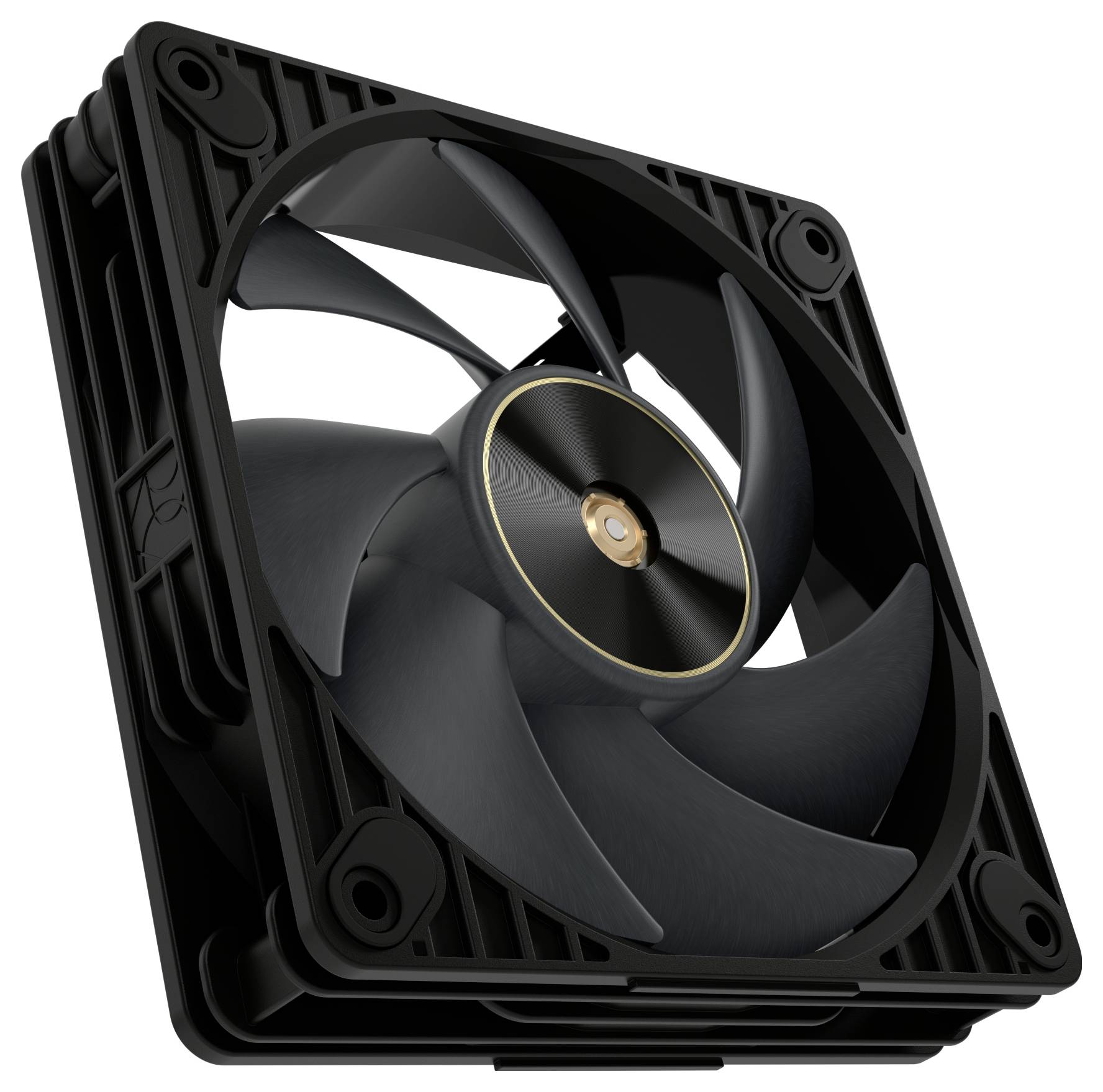

A black computer fan with a square frame and five blades, designed for cooling electronic components.

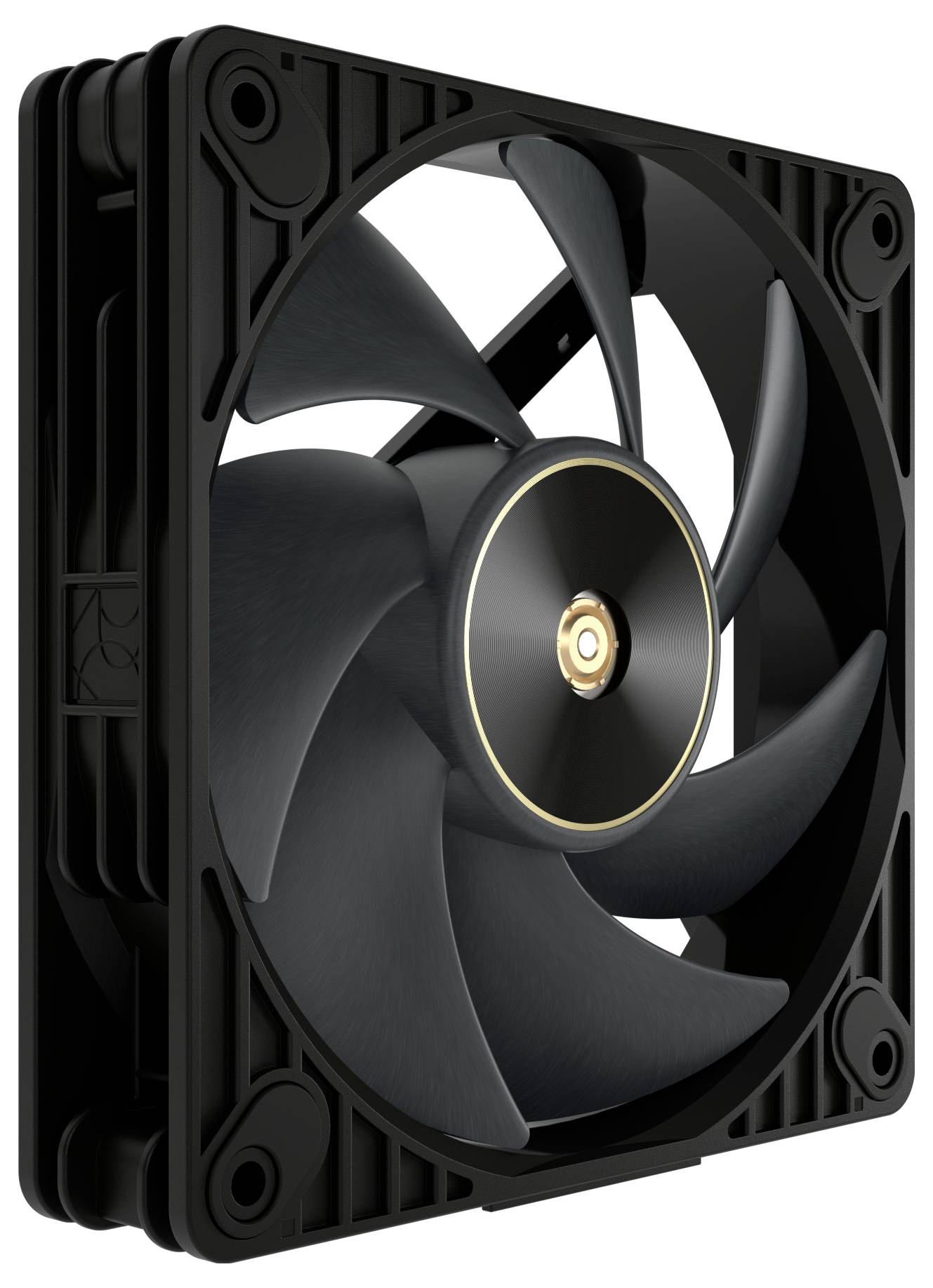

'Black computer cooling fan with multiple blades encased in a square frame, designed for efficient airflow in electronic devices.'

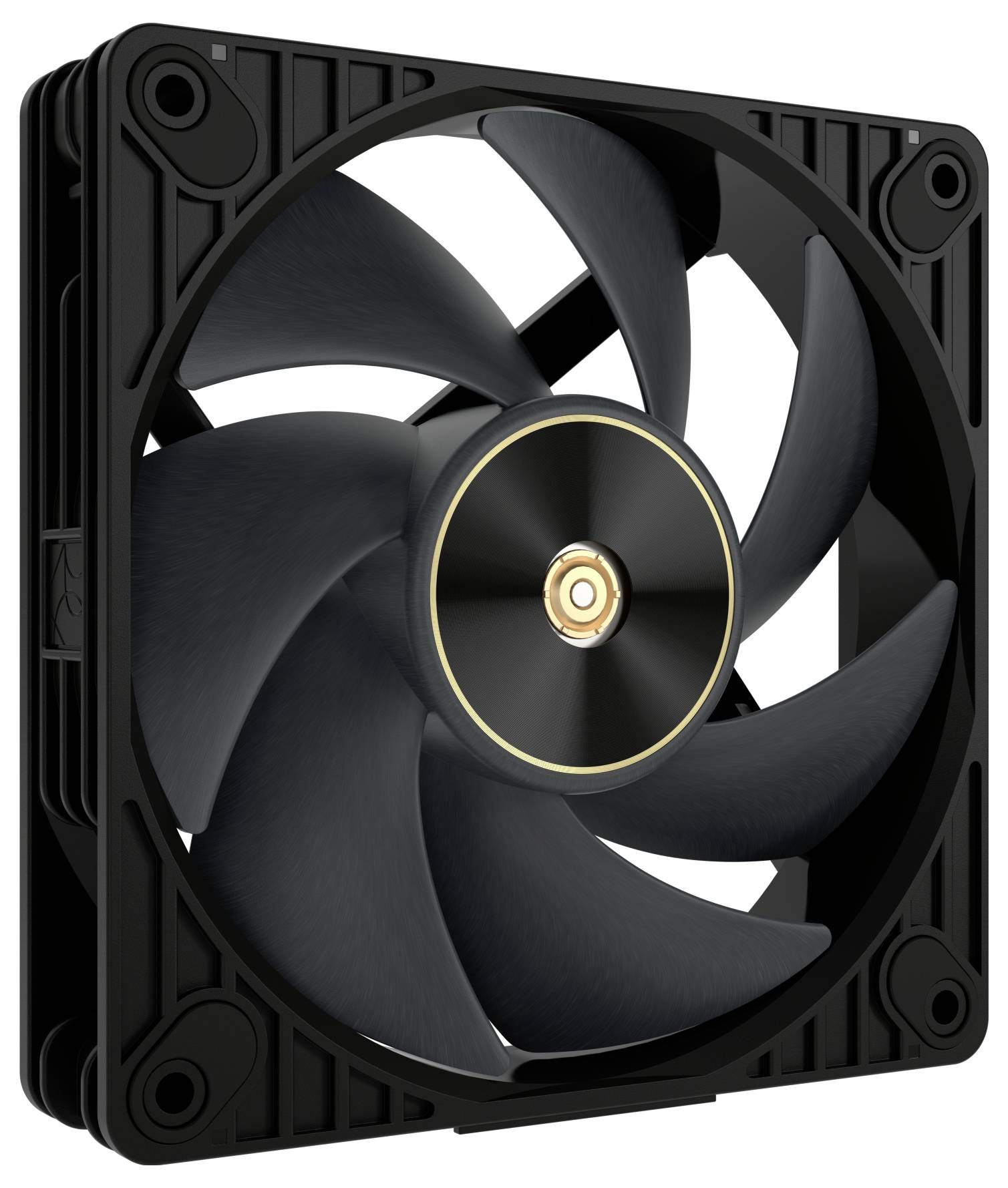

A black computer cooling fan with seven blades and a circular gold accent at the center, viewed from the front.

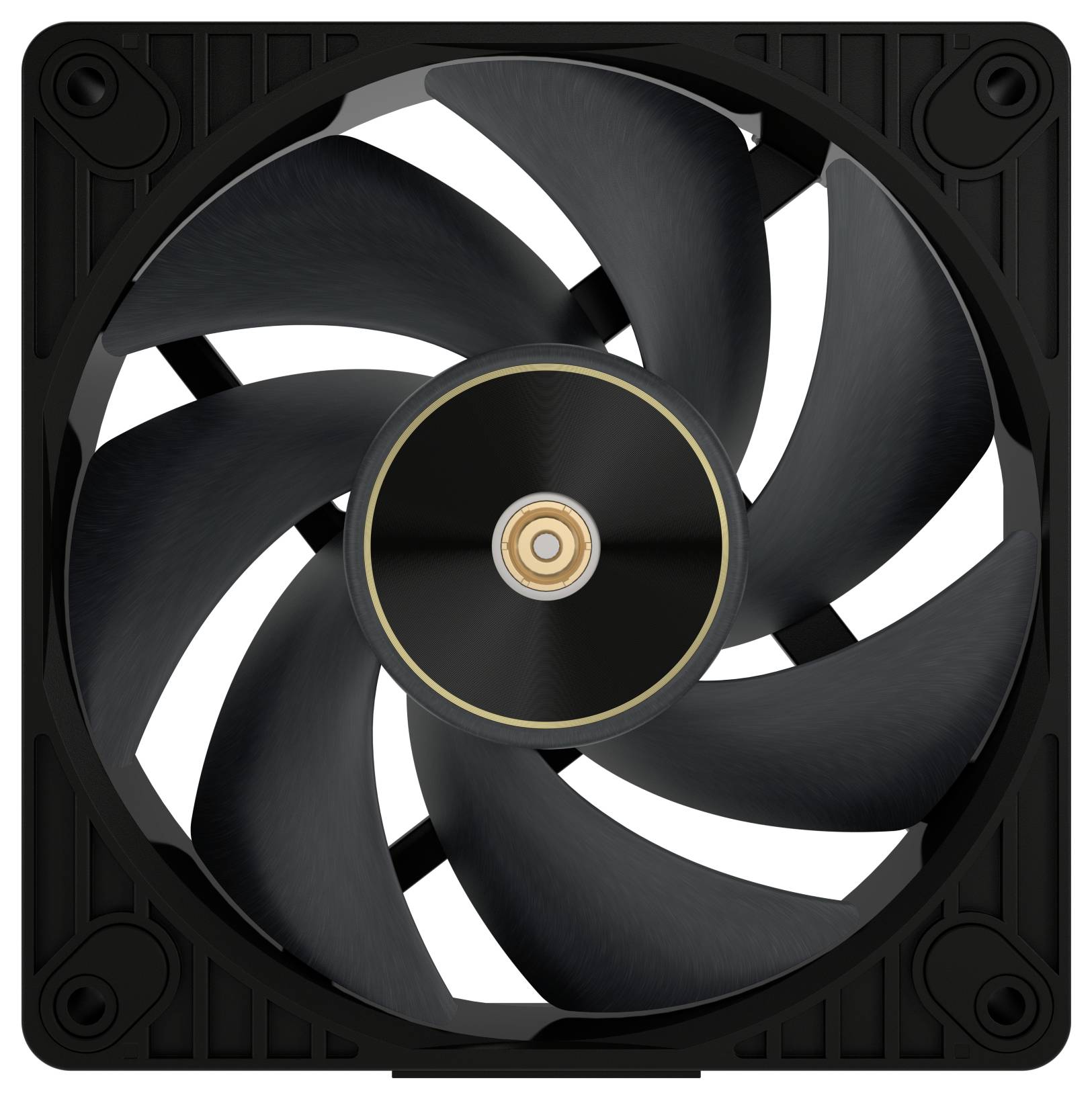

A black computer cooling fan with wide blades centered in a square frame, viewed from the front, against a white background.

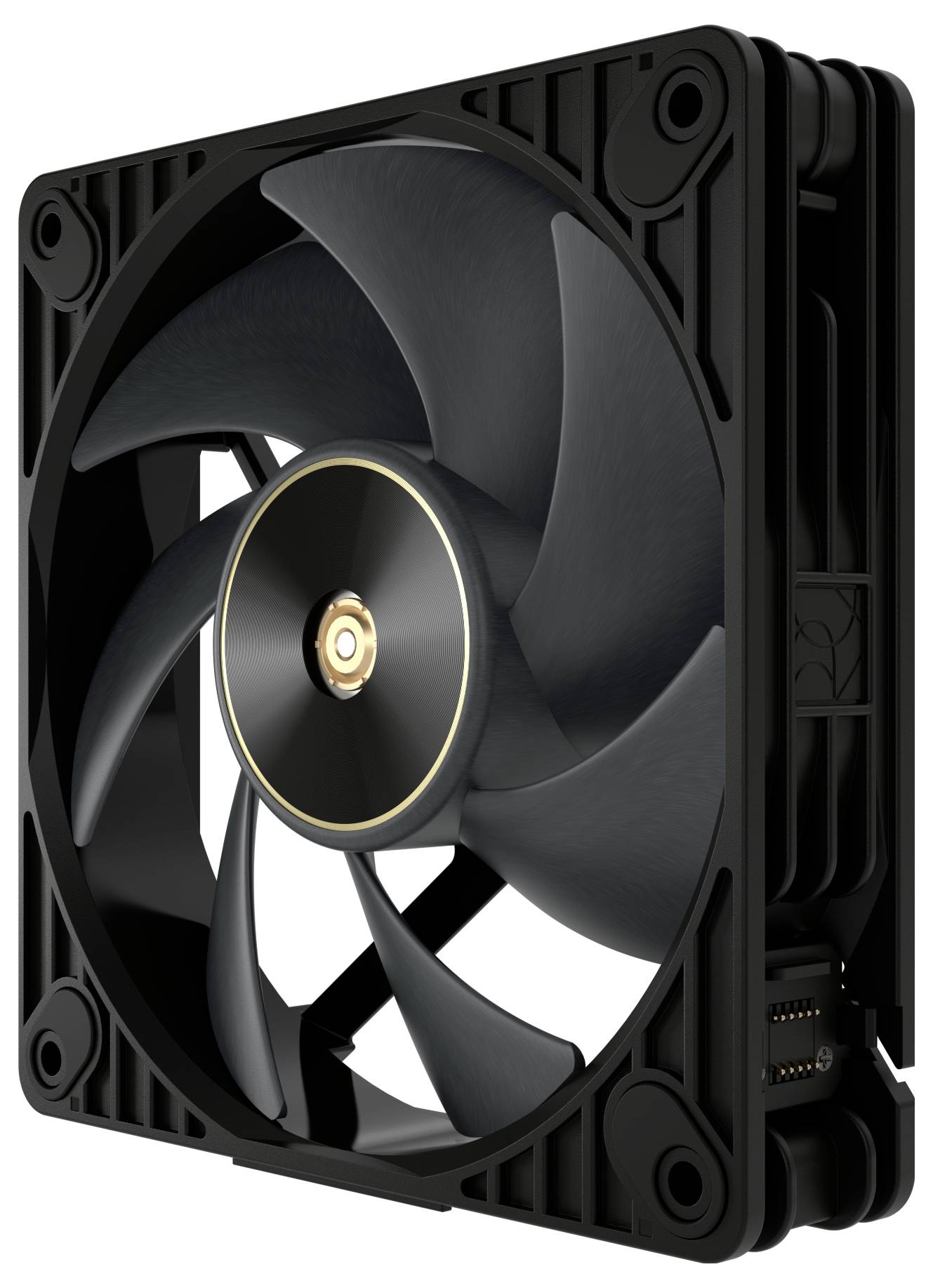

'Close-up of a black computer cooling fan with five blades, designed for efficient airflow and noise reduction, featuring a gold center accent.'

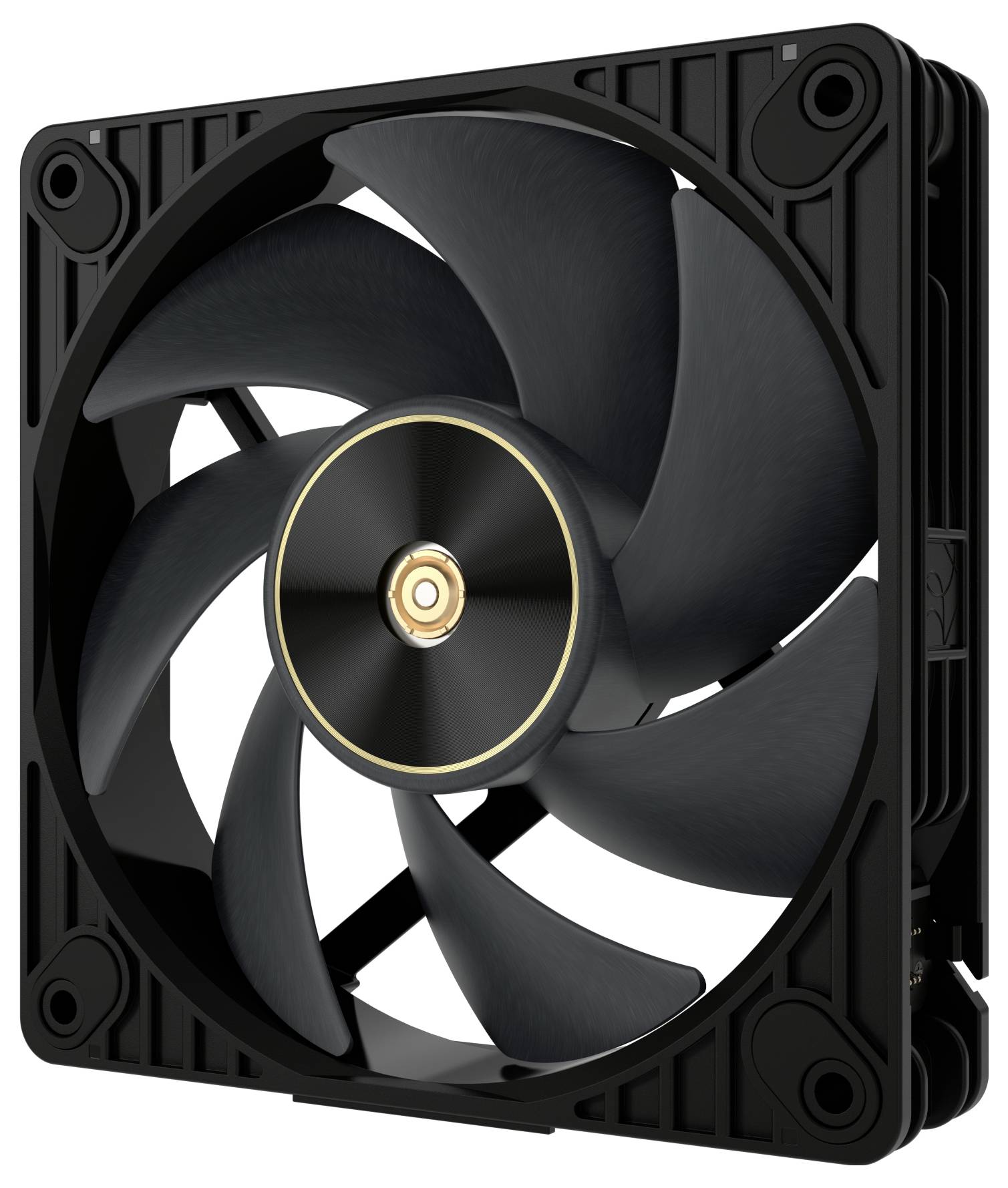

A black cooling fan with five blades and a copper center, designed for use in computer systems or electronics to regulate temperature.

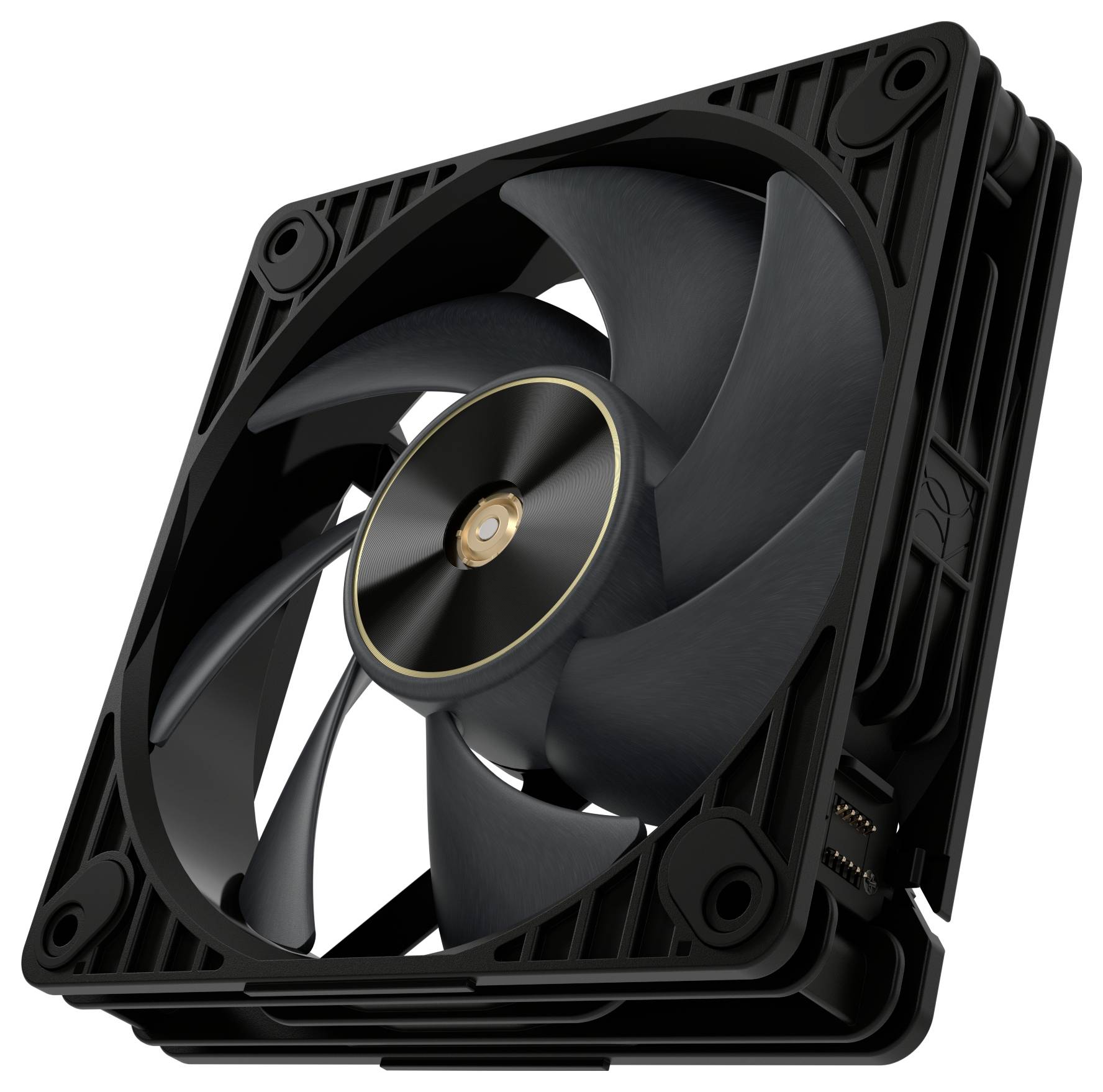

'Black computer cooling fan with a circular design and multiple curved blades, set against a white background.'

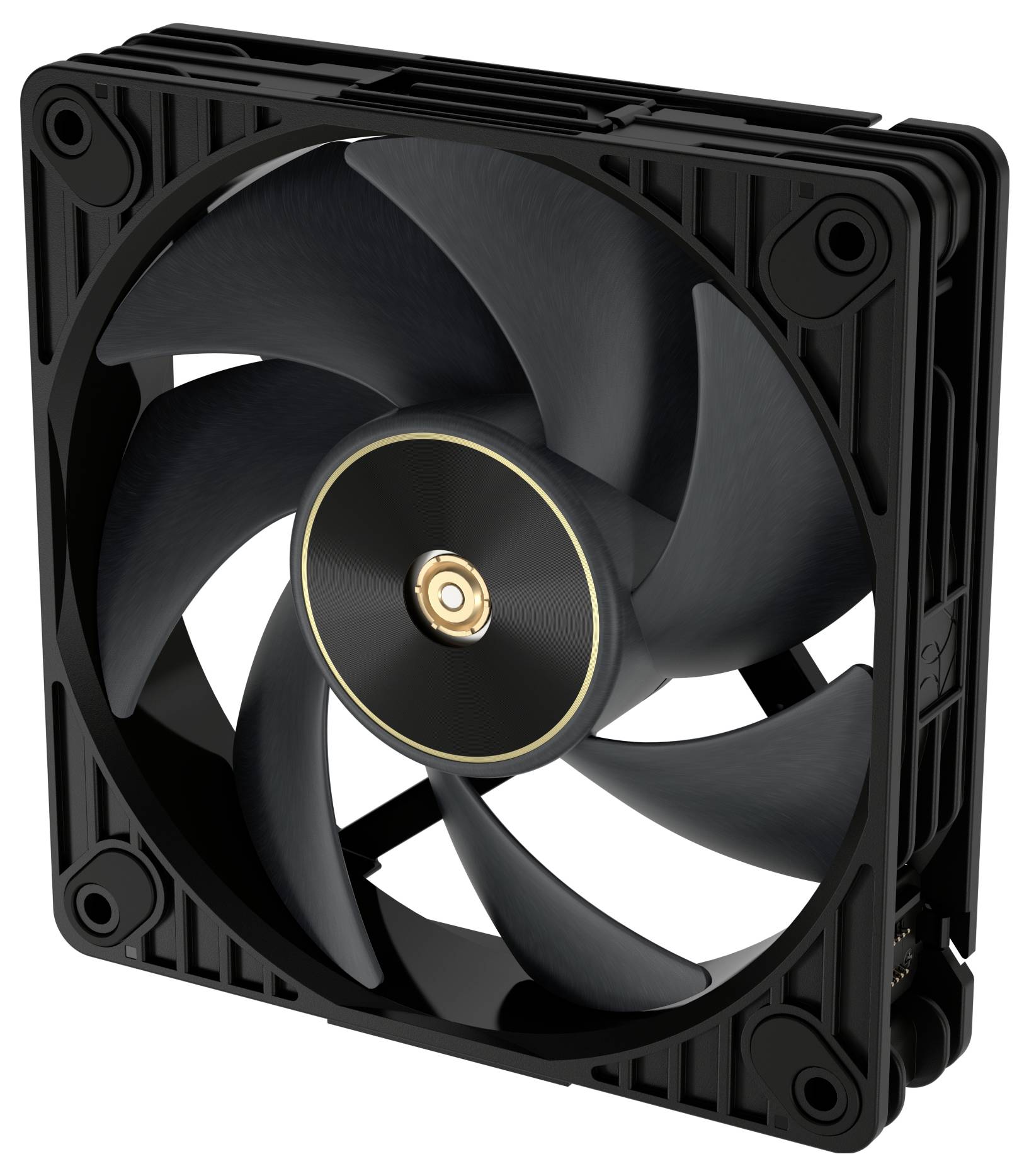

A black computer fan with a five-blade design, featuring a circular gold accent at the center, designed for efficient cooling.

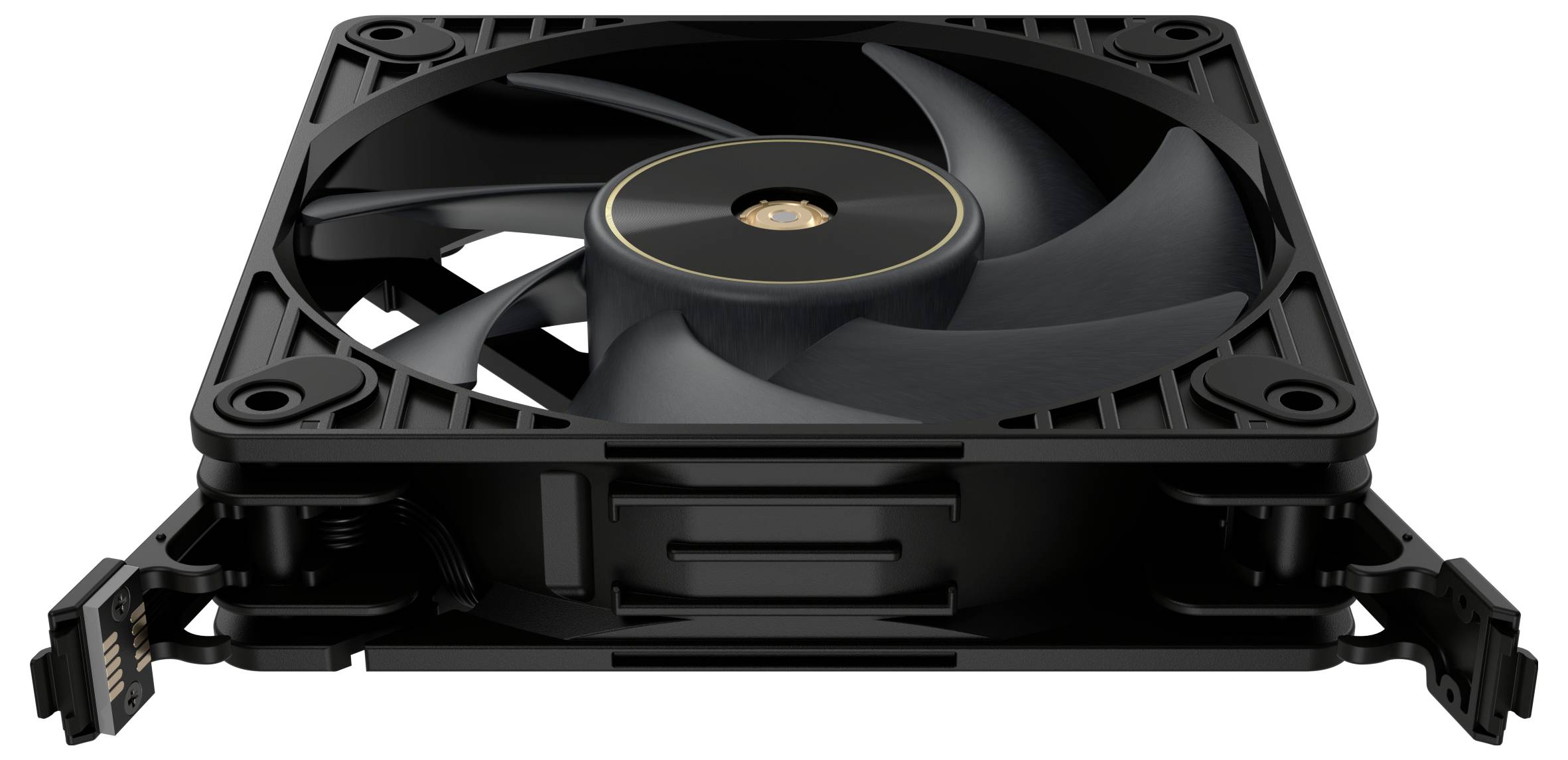

A black computer cooling fan with a 120mm size, featuring a sleek design and four mounting points, viewed from a front angle.

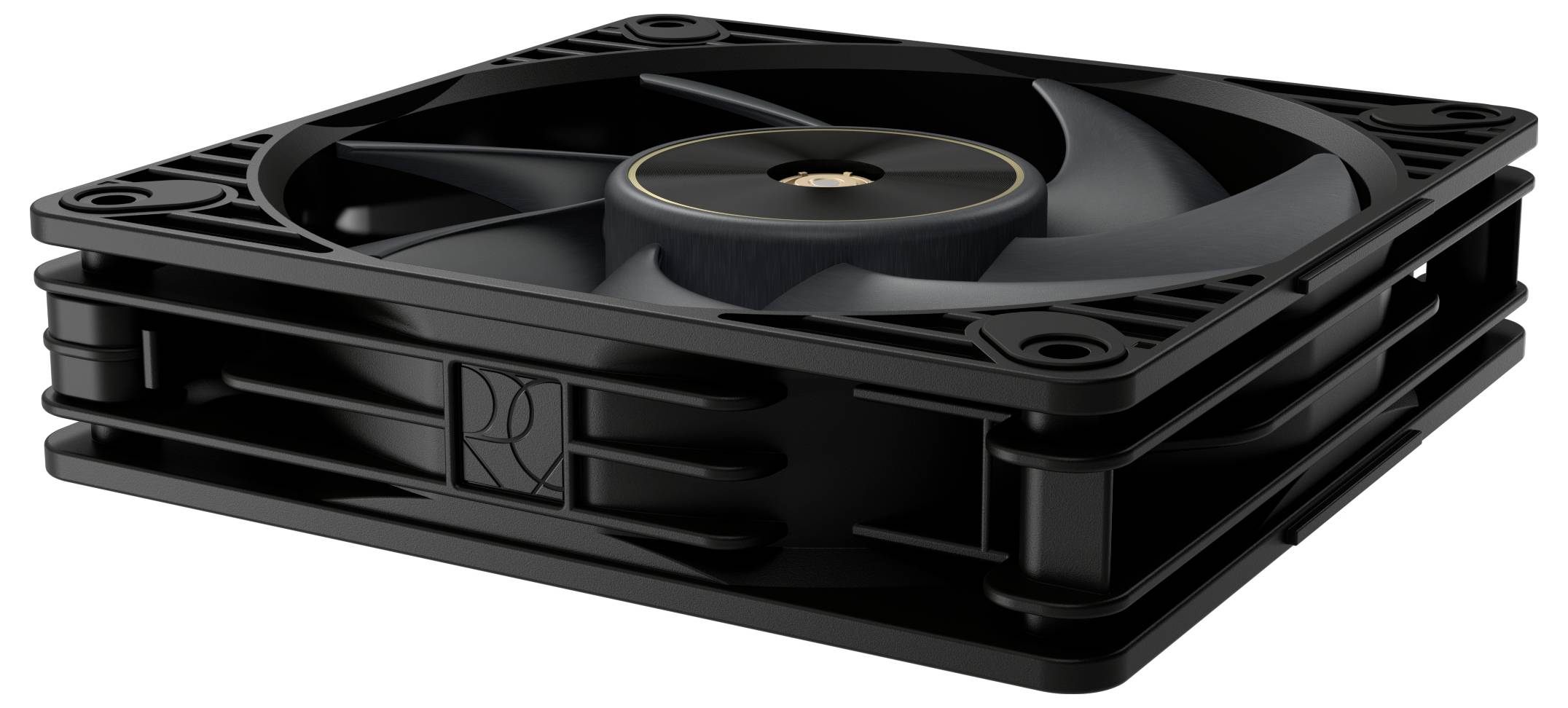

'A black computer fan with five blades, featuring a compact, square design with a circular emblem at the center.'

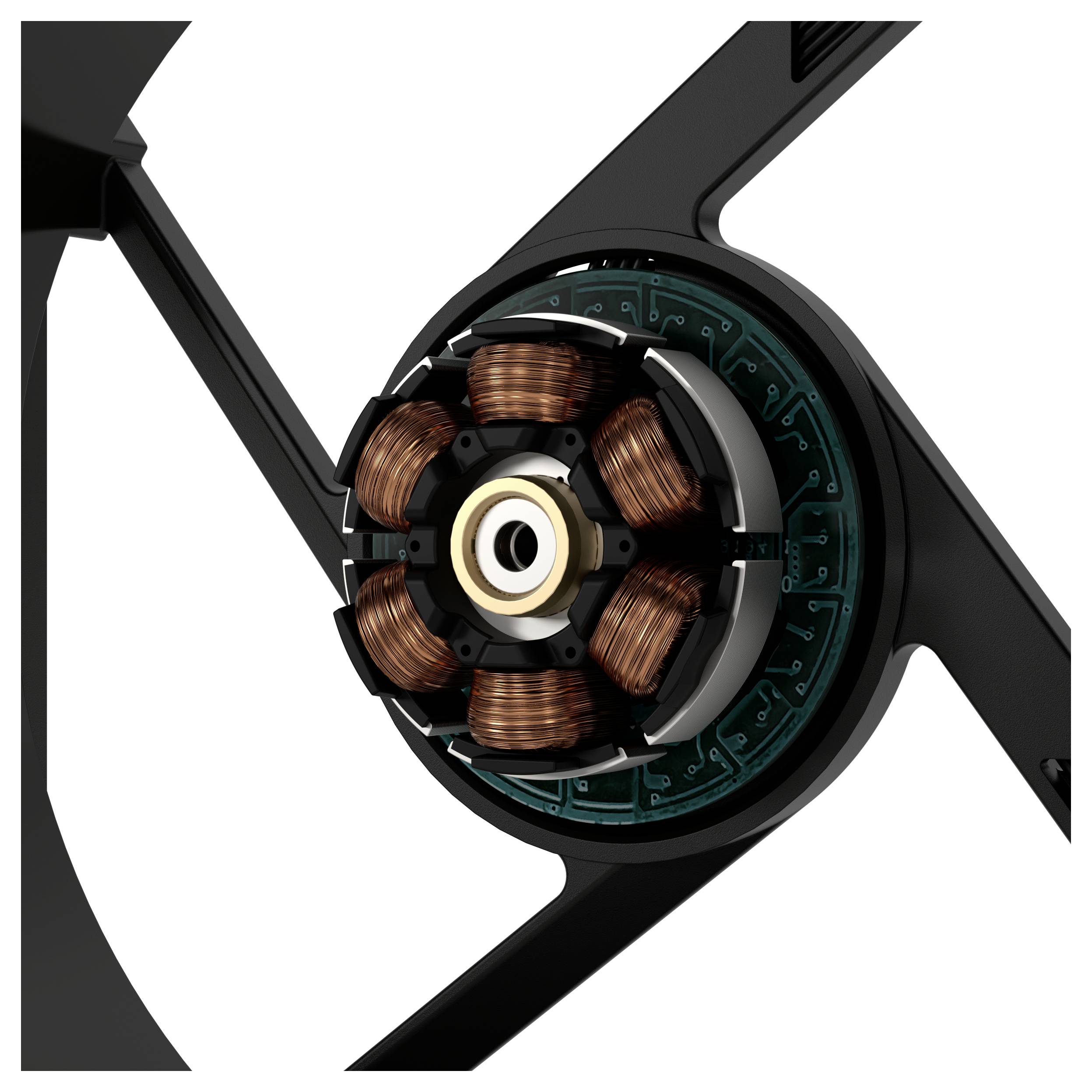

Close-up of a black drone propeller arm showing an exposed motor with copper coils, highlighting the electronic components and design.

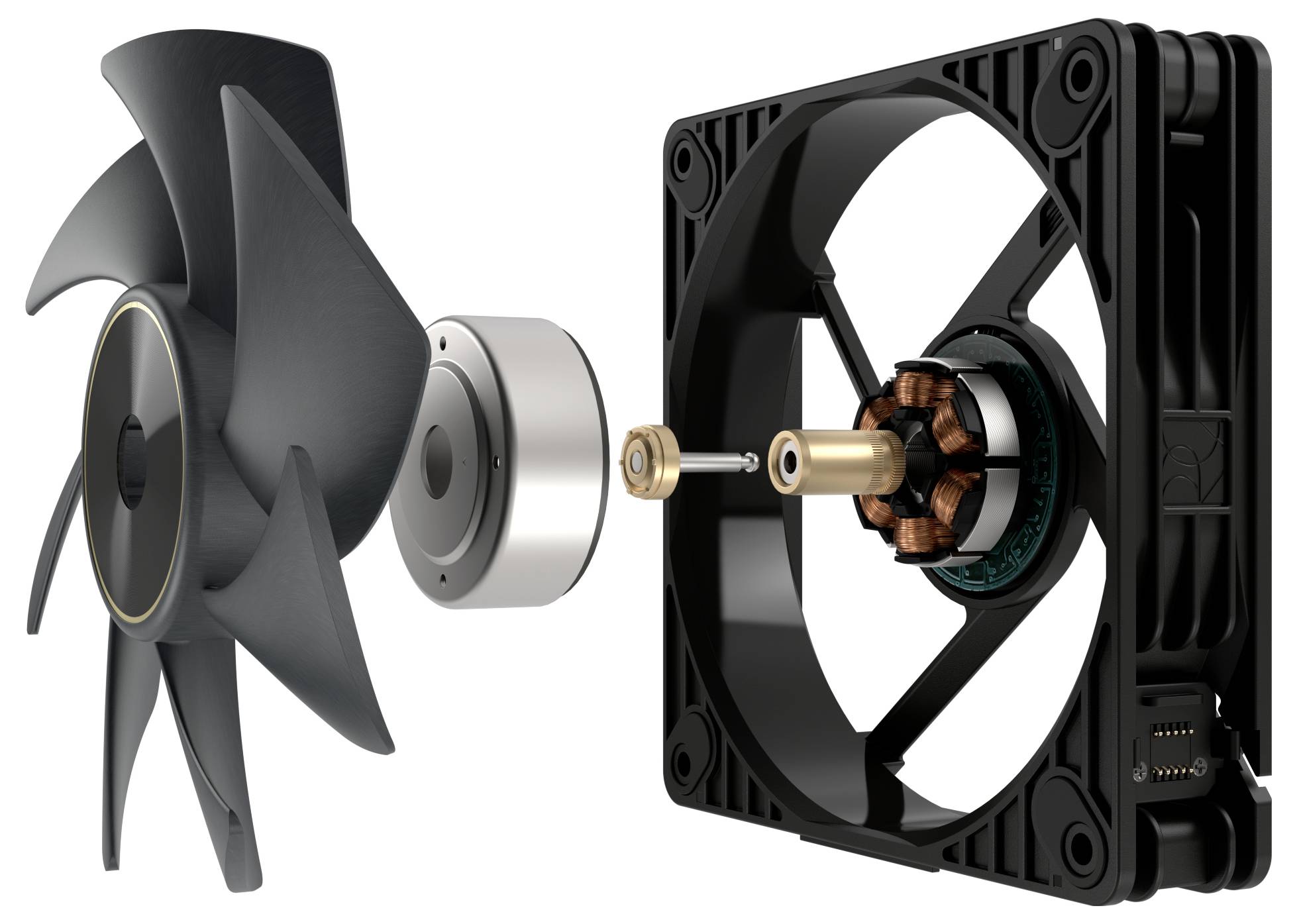

Exploded view of a computer fan showing the blades, motor components, and frame, illustrating assembly and internal structure.

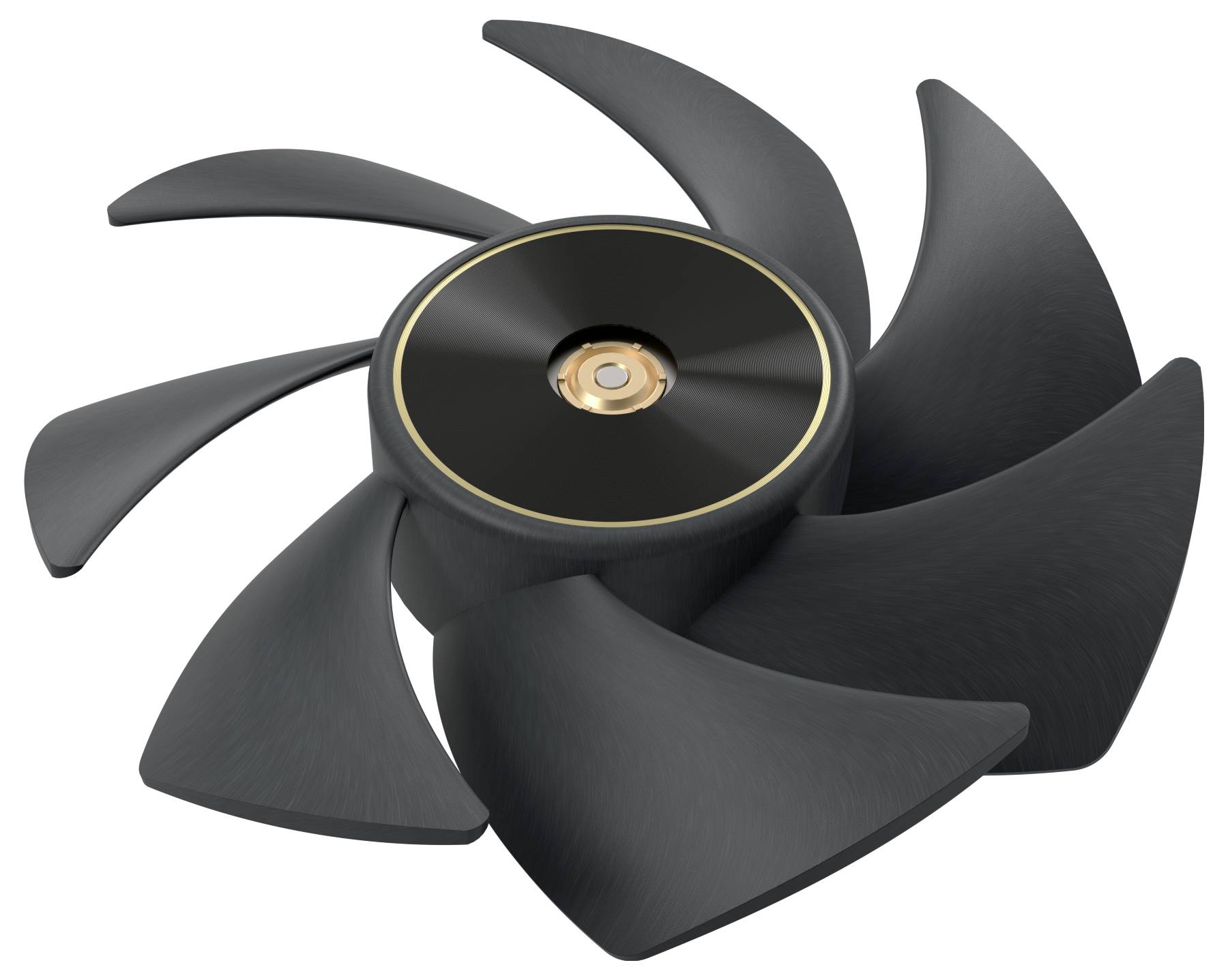

'Black computer fan blade with eight curved blades, used for cooling systems in electronics.'

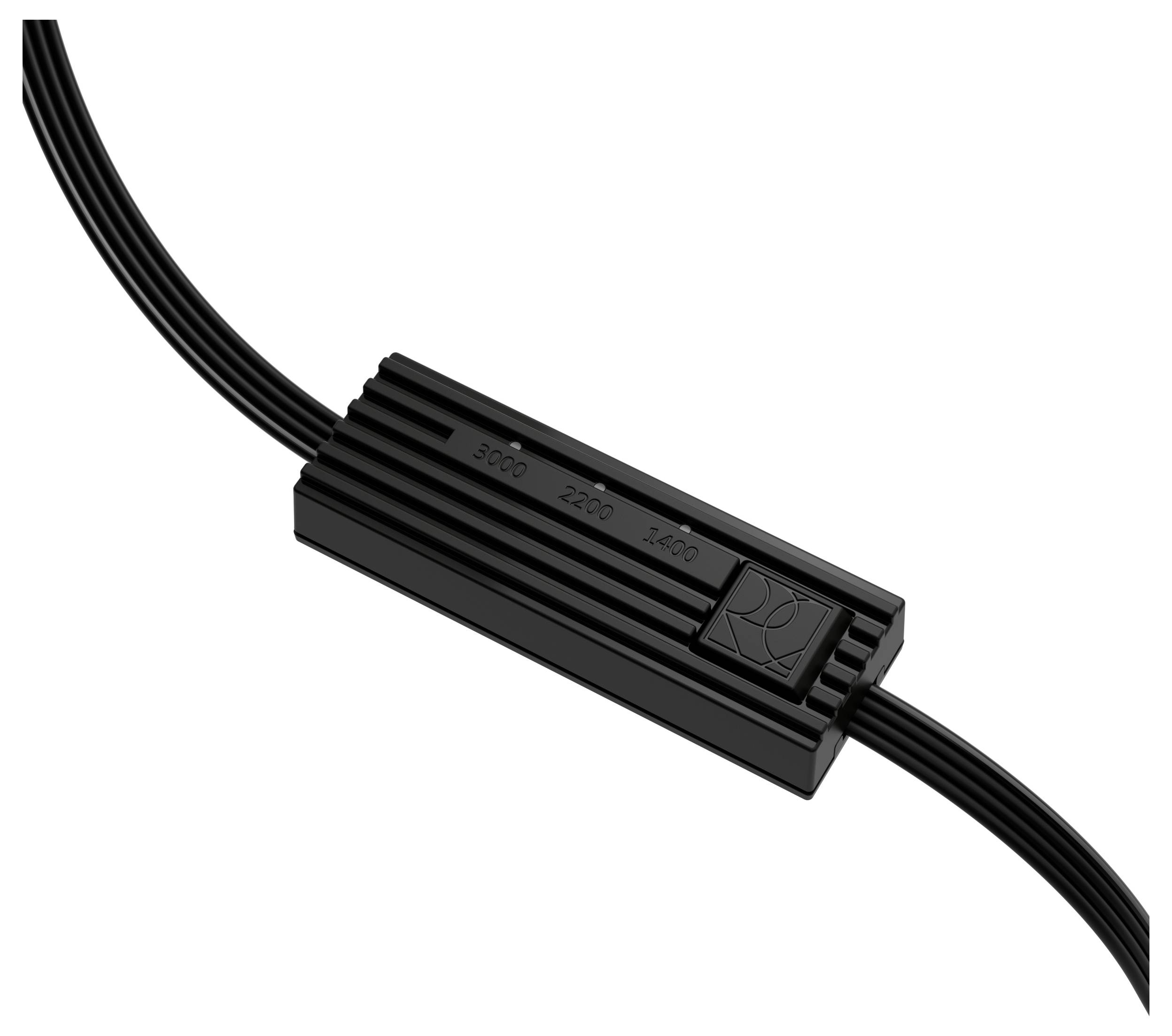

A black inline connector with ribbed design joining two cables, used for electrical connections, appears isolated on a white background.

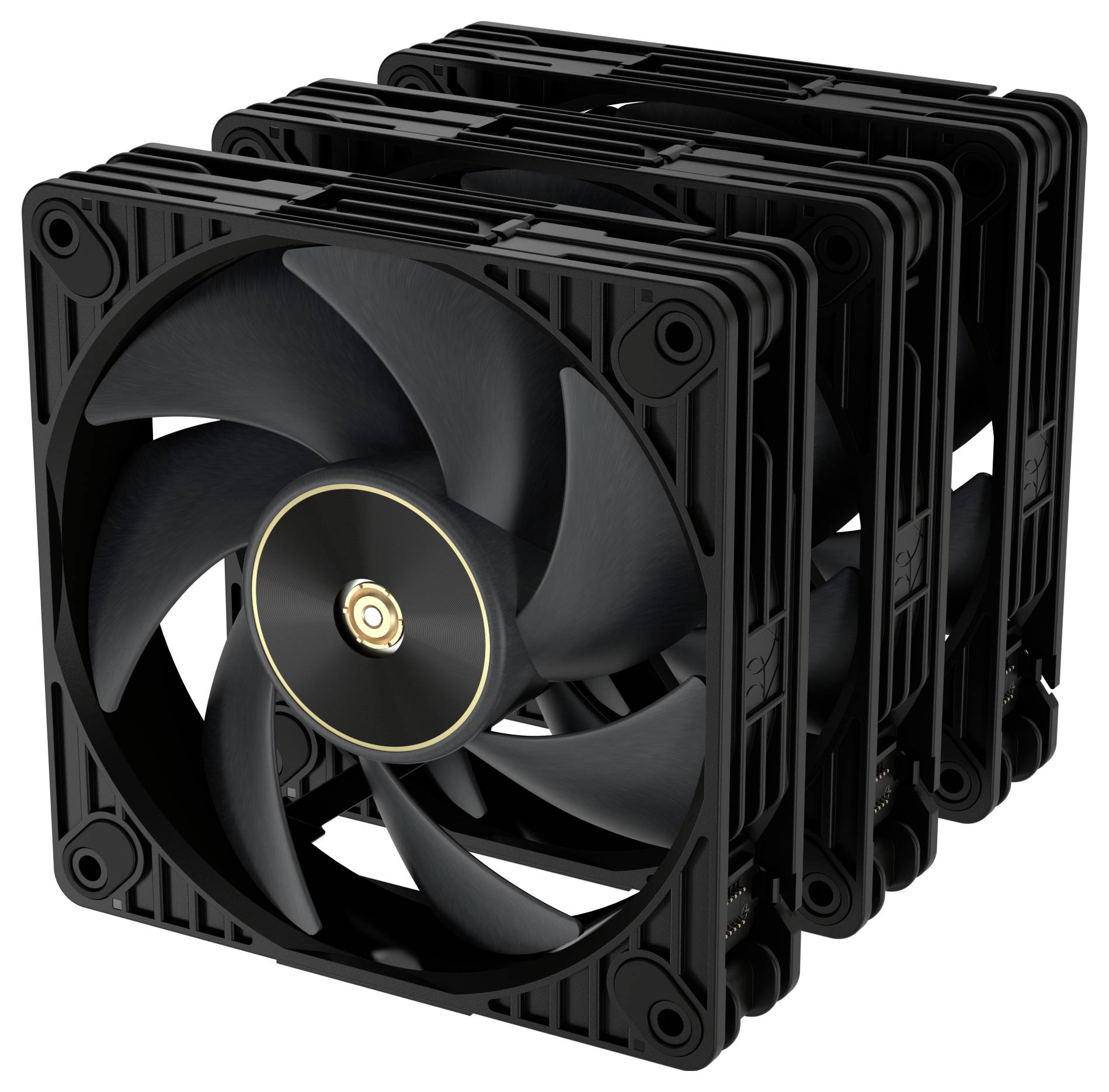

'Three black computer cooling fans stacked vertically; the fans have large blades and are designed for efficient airflow in computing systems.'

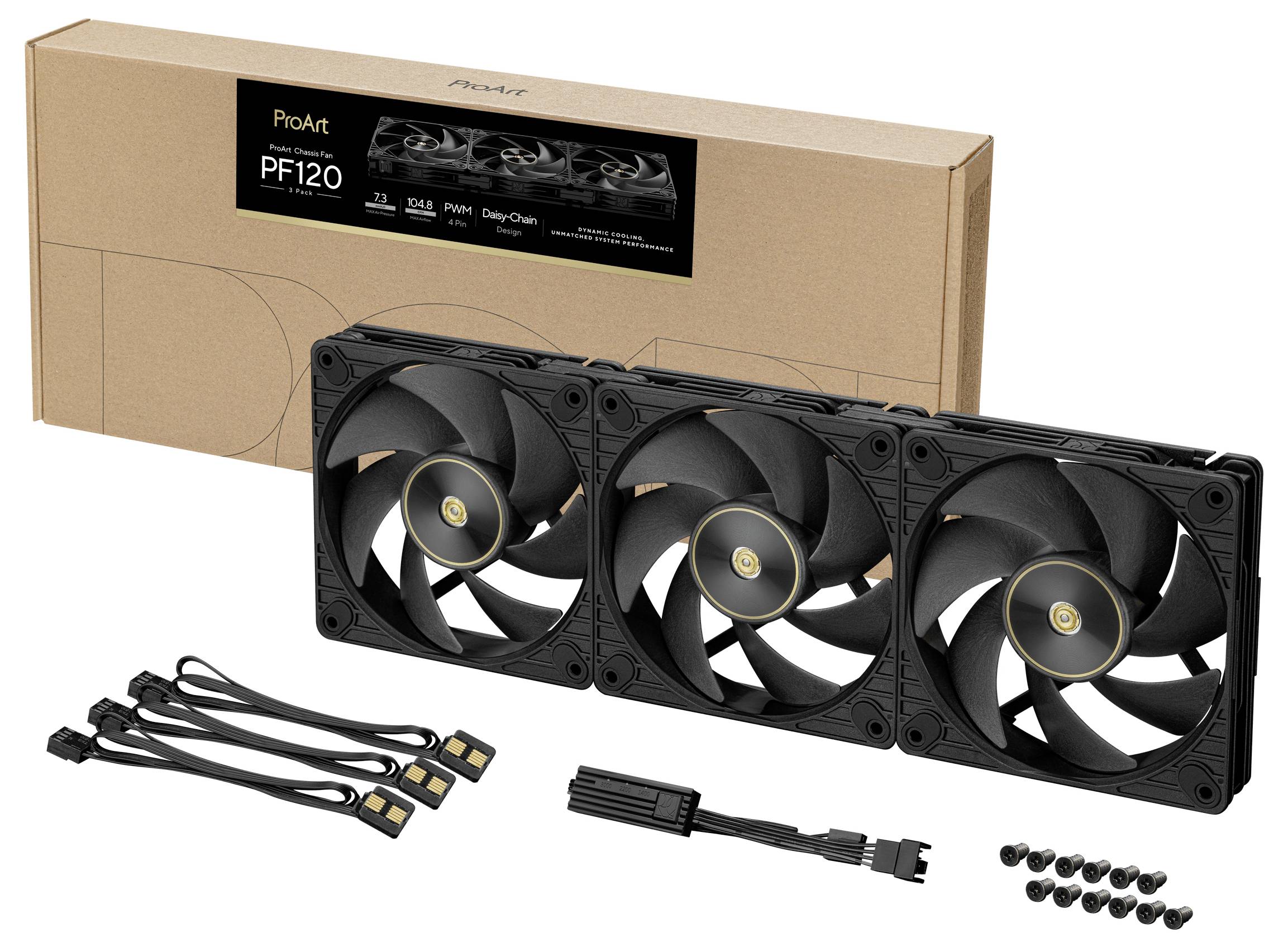

Three black computer cooling fans with accessories, including connectors and screws, displayed in front of a labeled ProArt PF120 box.

1/19

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Asus ProArt PF120 PC fan

Computer housing fan 12 cm
39 dB 104.8 CFM 7.3 mmH2O Fluid dynamic bearing (FDB)
Support for pulse width modulation
120 x 120 x 28 mm
Black
3 pieces(s)

Technical specifications

Fan diameter 12 cm
Storage type: Fluid dynamic bearing (FDB)
Number of fans: 3 fans

Product type: PC fan

Fan size: 120 mm

Noise emission (max.): 39 dB

Noise emission: 30.1 dB - 40 dB

Rotational speed (min.): 1400 U/min

Rotational speed (max.): 3000 U/min

Type of bearing: Fluid dynamic bearing

Factory colour: Black

Weight: 657 g

Width: 120 mm

Height: 28 mm

Depth: 120 mm

Dim: (W x H x D) 120 x 28 x 120 mm

Content: 1 pc(s)

Type: Fan

UKCA: yes

Fan dimensions (W x D x H): 120 x 120 x 28 mm

Quantity per pack: 3 Stück(e)

Pulse-width modulation (PWM) support: yes

Maximum airflow: 104.8 cfm

Minimum airflow (imperial): 47.4 cfm

Minimum air pressure: 1.5 mmwc

Maximum air pressure: 7.3 mmwc

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3730297 Asus ProArt PF120 PC fan Black (W x H x D) 120 x 28 x 120 mm

Description

ProArt PF120 PWM-fan

The art of cooling performance

The ProArt PF120 fan offers superior cooling with first class quality and design for unsurpassed reliability. With a 28 mm frame, a powerful 3-phase and 6-pin motor, a CNC-machined brass bearing housing, reinforced LCP blades (Liquid Crystal Polymer) and patented daisy chain connections to simplify installation and cable management, the ProArt PF120 is the ideal choice for users, peak performance and effortless integration.

This text is machine translated.

Features

The 28 mm fan frame provides for a strong air current and static pressure.
The 3-phase, 6-pin motor offers an improved sound profile through the use of a low operating frequency.
The CNC-milled brass bearing casing provides for a continuous operation and long-term reliability.
Fan blades made of liquid crystal polymer (LCP) provide for a high speed at stable, precise performance.
The lower distance of 0.5 mm between the fan blade and the frame reduces turbulence and optimizes the performance.
Patented daisy-chain connections enable easy installation.
The PWM-regulation at up to 3000 RPM offers optimum cooling for a variety of workloads.
