Asus ROG MAXIMUS Z890 APEX Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z89
EAN:
Part number:
Item no:

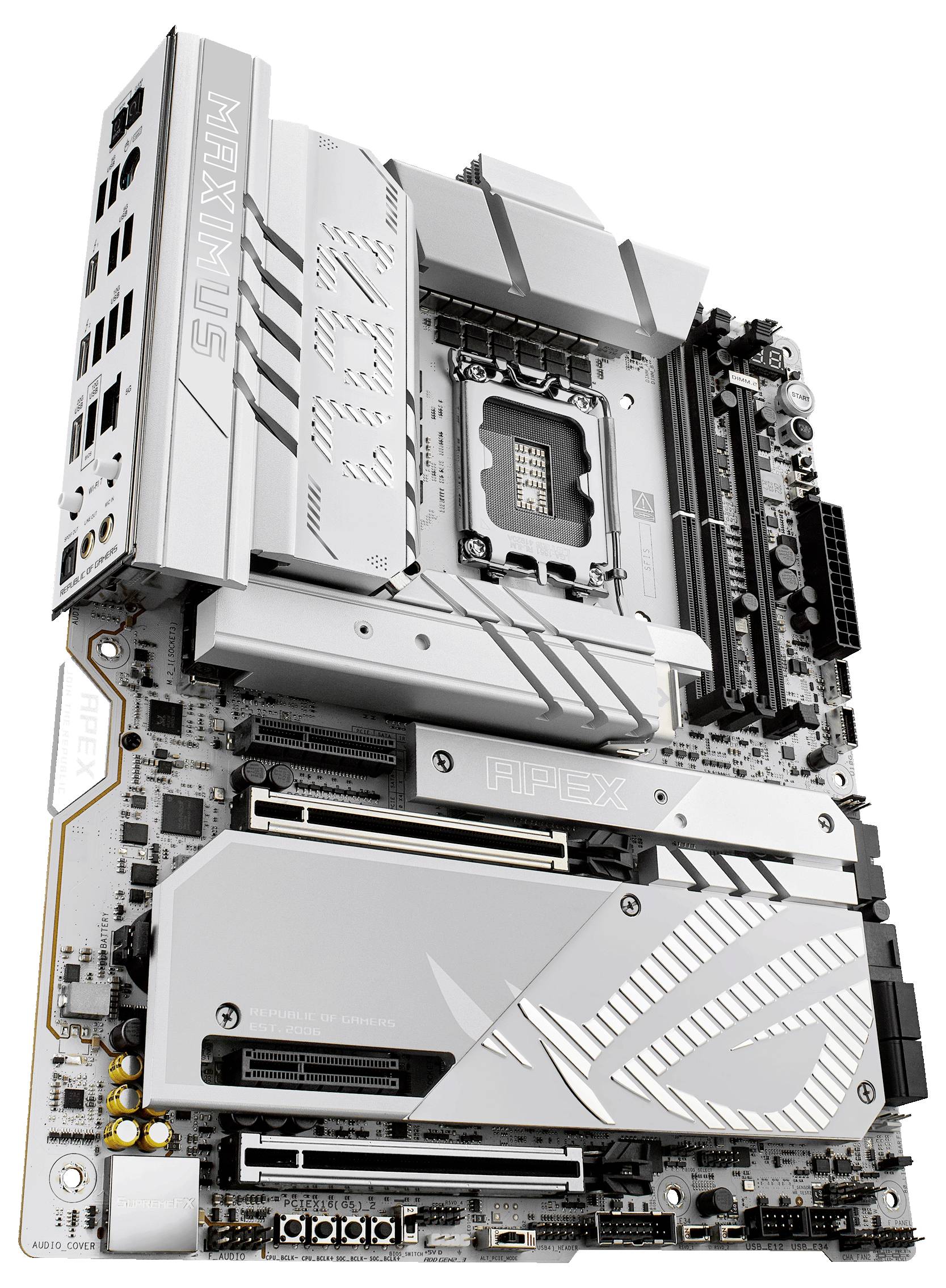

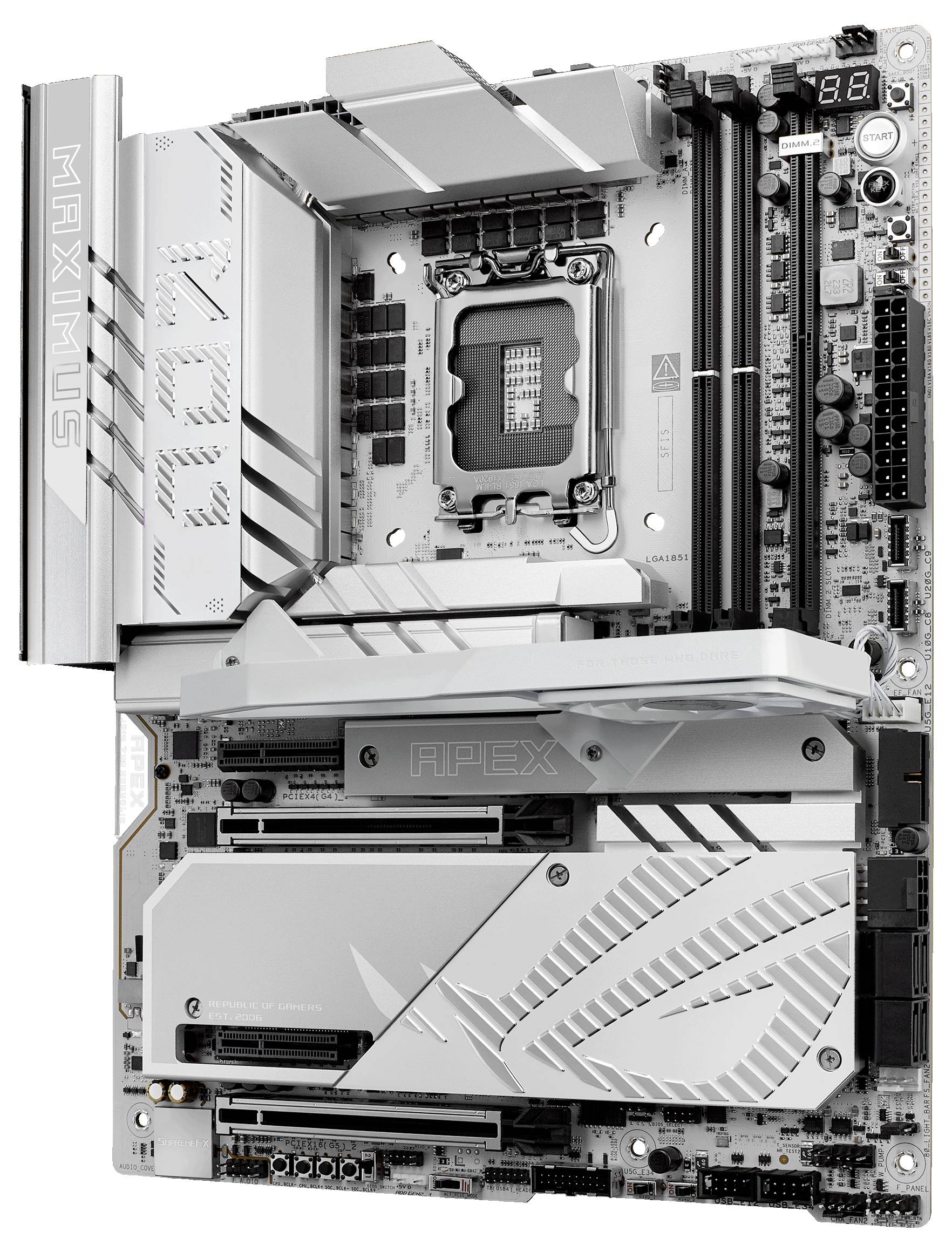

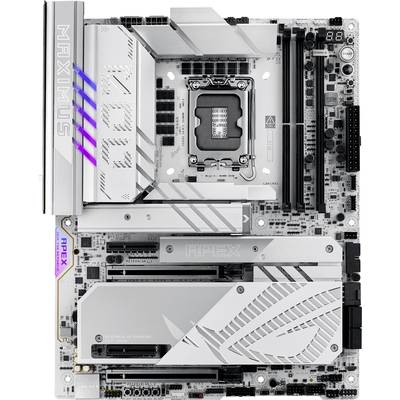

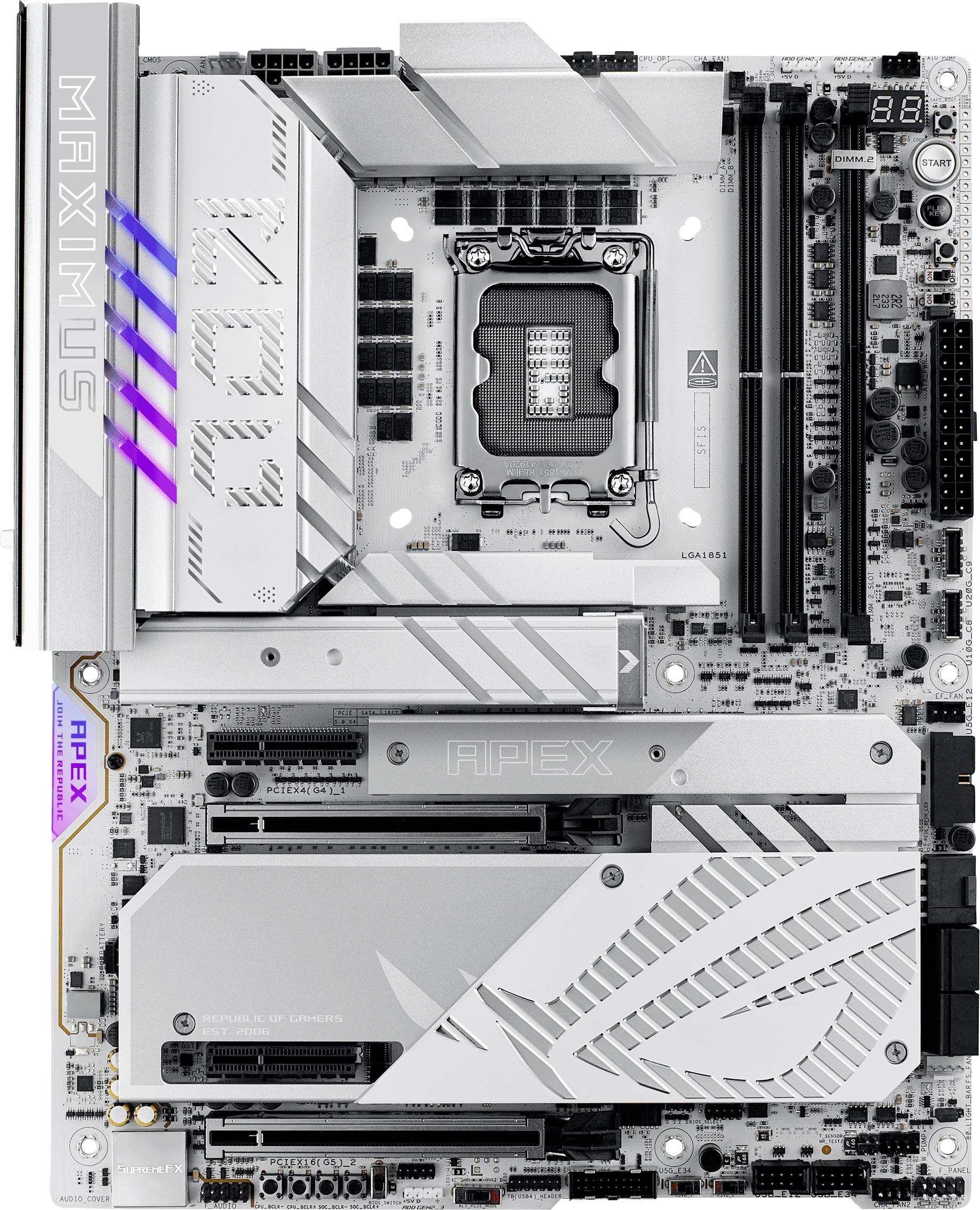

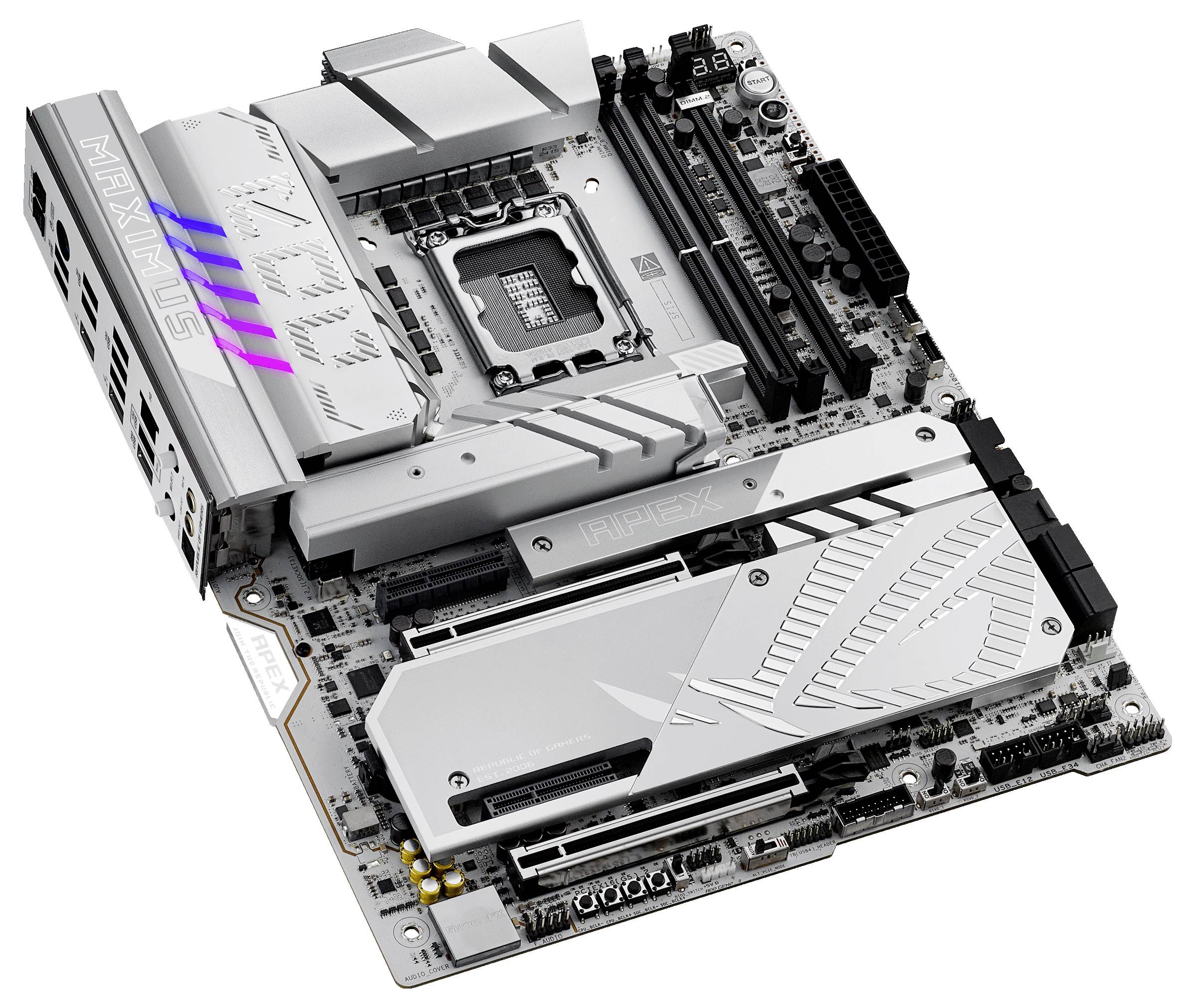

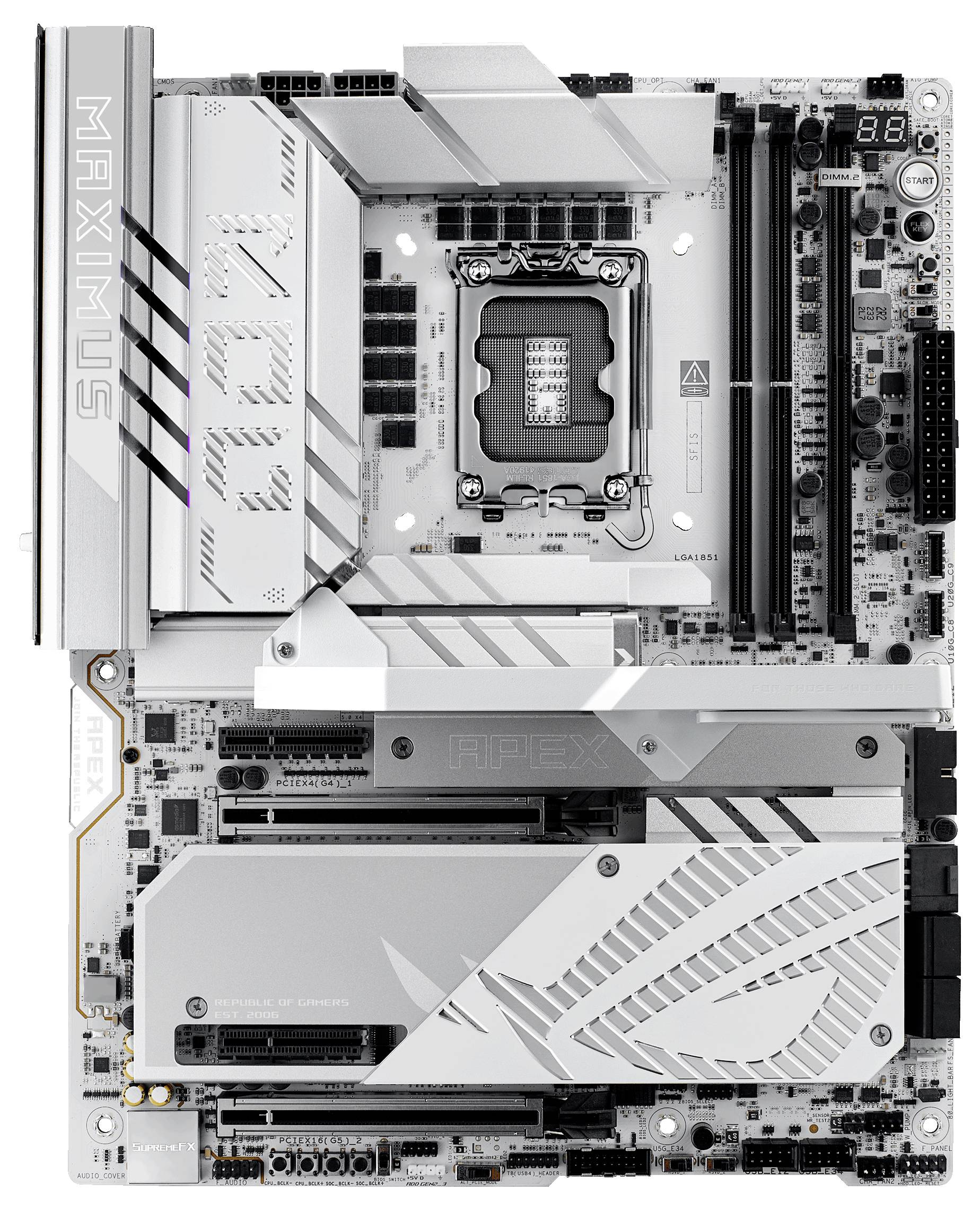

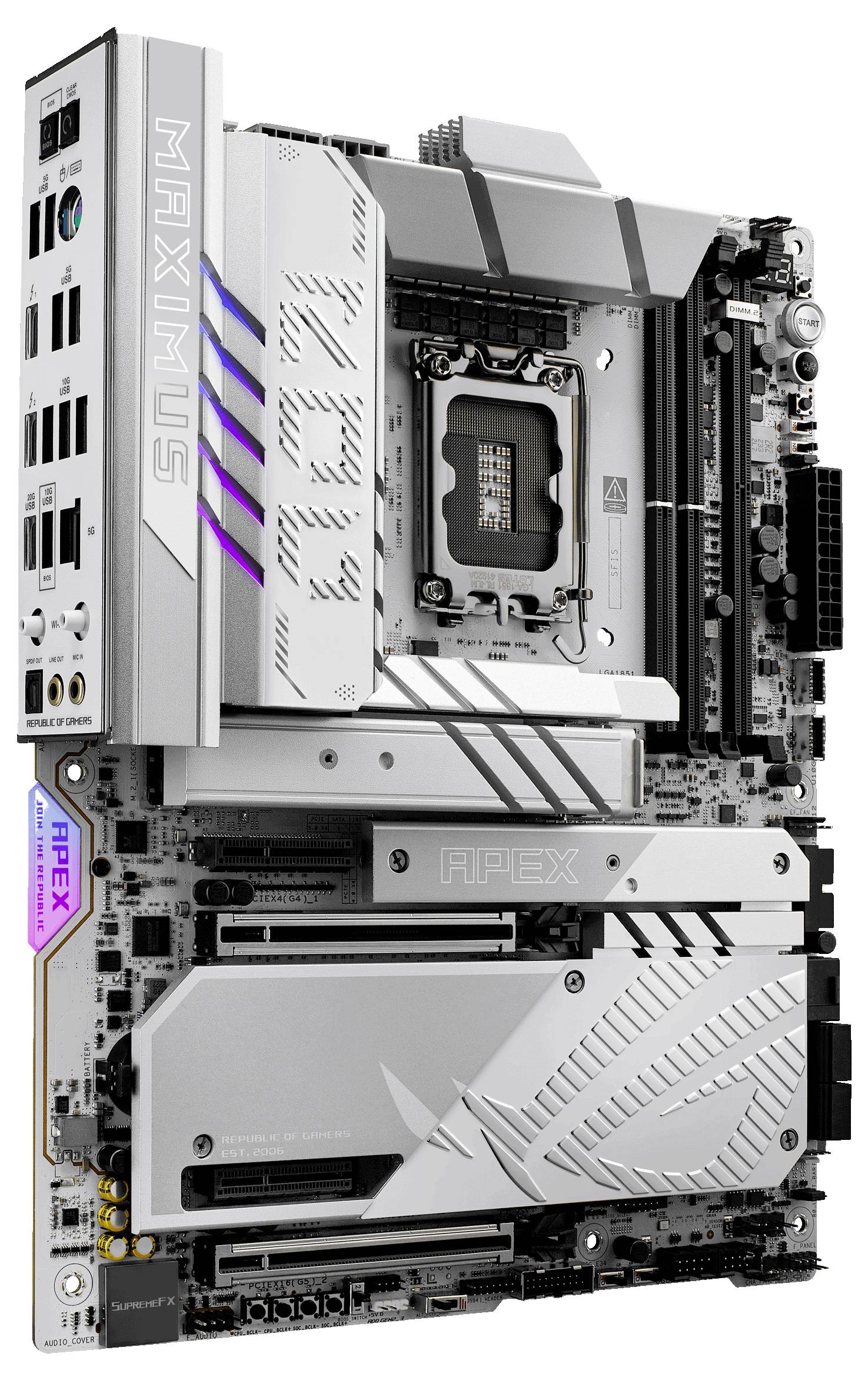

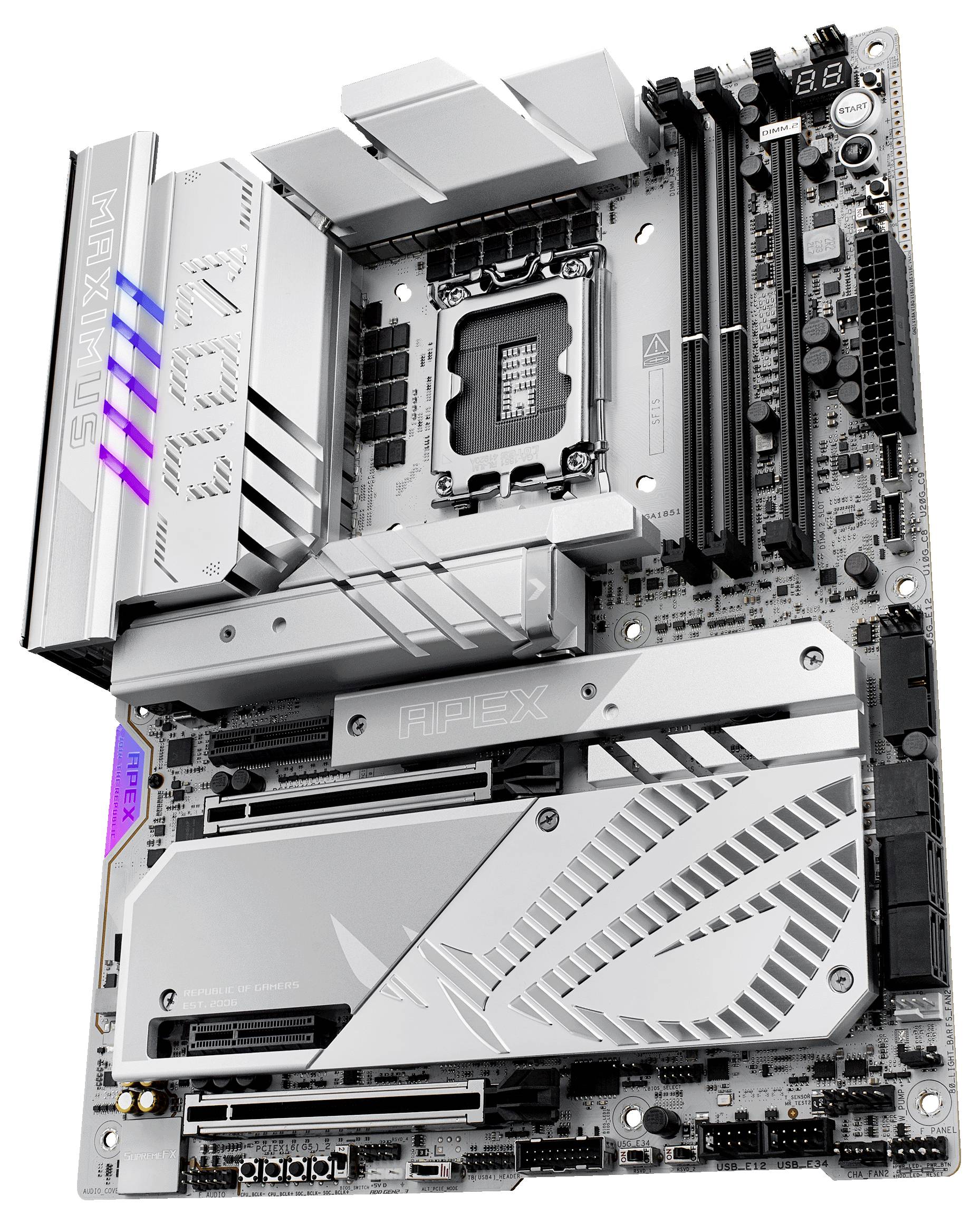

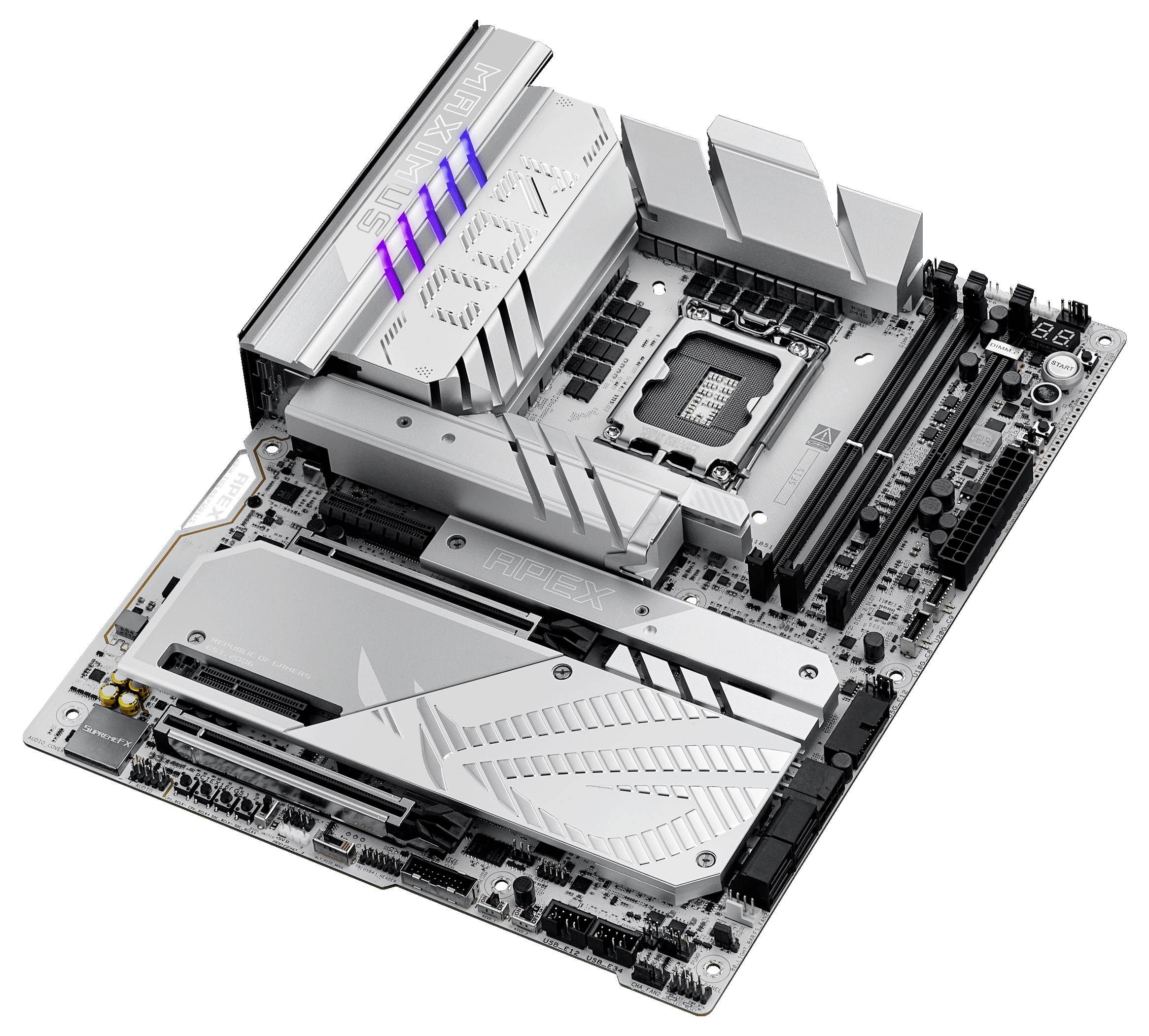

Asus ROG MAXIMUS Z890 APEX Motherboard
Highlights & Details
- Intel LGA 1851 (socket V1)
- Suitable for Intel Core Ultra (2 series)
- DDR5 SDRAM
- Max. 96 GB
Technical specifications
- 6x M2 interface (3x PCIe 5.0 x4, 3x PCIe 4.0 4x)
- Product type
Motherboard
- Chipset
Intel® Z890
#####Intel® 1851
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
96 GB
- Interfaces
HDMI™
Bluetooth
Thunderbolt 4
- No. of DDR5 slots
2 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
2 x
- No. of PCIe x16
2 x
- No. of PCIe x4
2 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2 2nd Gen (USB 3.1)
4 x
- No. of USB 3.2
6 x
- No. of USB 3.0 ports
3 x
- No. of SATA III ports
4 x
- Onboard audio
7.1
Optical S/PDIF
- Onboard graphics
HDMI 2.1; Thunderbolt
- Factory colour
Grey-aluminium (RAL 9007)
- Depth
400 mm
- Height
150 mm
- Width
350 mm
- Weight
5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3342061 Asus ROG MAXIMUS Z890 APEX Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z89
Description
Intel® Z890 LGA 1851 ATX mainboard, Advanced AI PC-ready, 22+1+2+2 power levels, NPU Boost, DDR5 slots with DIMM Fit, DIMM Flex and AEMP III, ROG Memory fan kit for DDR5 over-clocking, WiFi 7 with Asus WiFi Q-antenna, three PCIe® 5.0 M.2 slots and one PCIe 4.0 M.2 slot onboard with ROG M.2 Power Boost, two PCIe 4.0 slots on DIMM.2, two PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim and full support for Next-Gen graphics cards, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® Front port with Quick Charge 4+ up to 60W and USB Wattage Watcher, Asus AI Advisor, OverAI Cooling, AI Cooling II and AI Networking II.

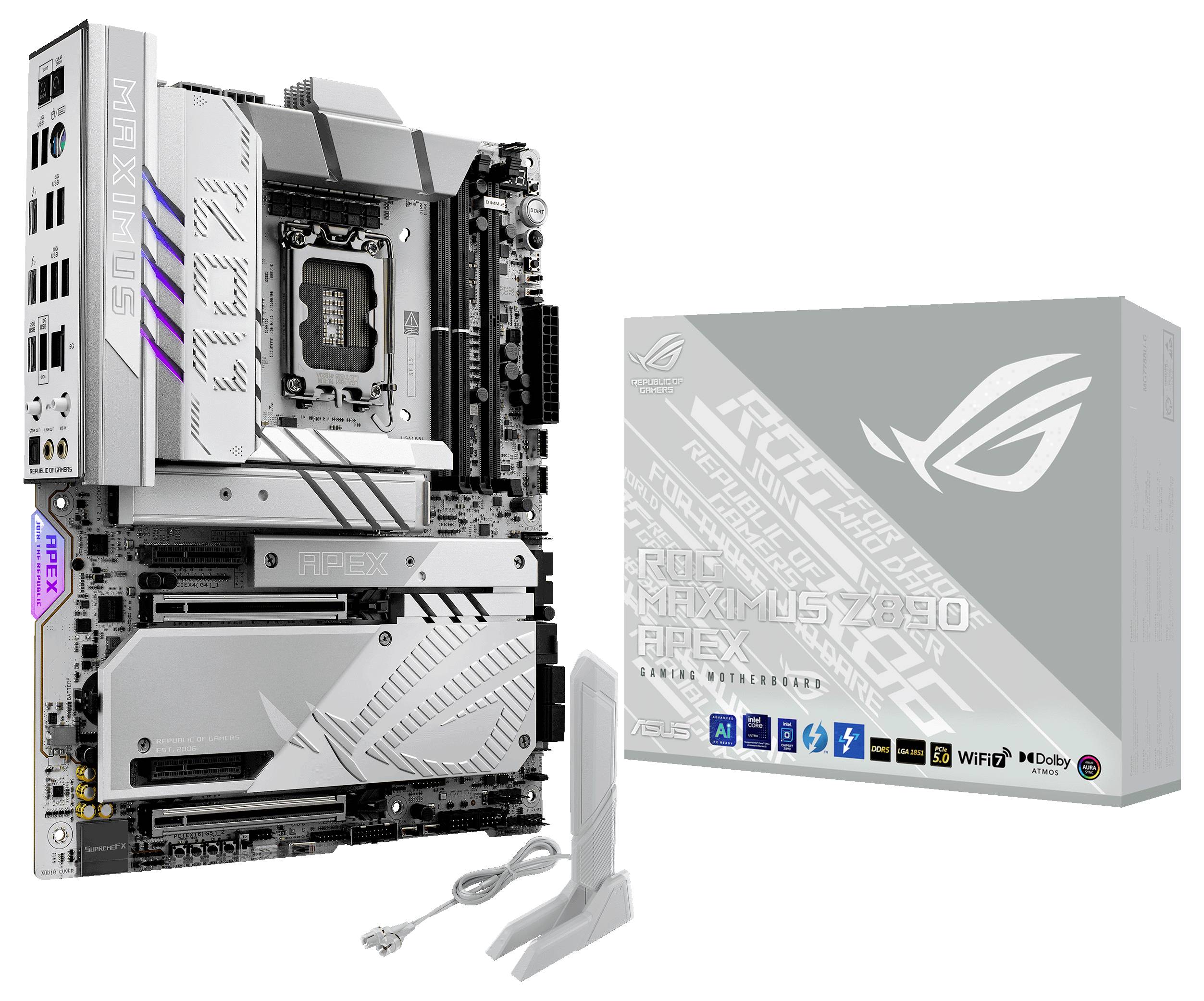

ROG MAXIMUS Z890 APEX
ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (2 series). It was developed for highest over-clocking and leads the heritage of the series in a new generation. Thanks to the extraordinary performance and the two-slot DDR5 memory layout, overclockers can fulfill and exceed their ambitions for a record-breaking CPU and memory performance. For those who prefer lighter colors for the aesthetics of their build, ROG Maximus Z890 Apex offers a headstone-gray surface, polished metallic accents, slim contours and a predominantly silver color palette.
This text is machine translated.
ROG MAXIMUS Z890 APEX
ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (2 series). It was developed for highest over-clocking and leads the heritage of the series in a new generation. Thanks to the extraordinary performance and the two-slot DDR5 memory layout, overclockers can fulfill and exceed their ambitions for a record-breaking CPU and memory performance. For those who prefer lighter colors for the aesthetics of their build, ROG Maximus Z890 Apex offers a headstone-gray surface, polished metallic accents, slim contours and a predominantly silver color palette.
This text is machine translated.
Features
- Asus ROG MAXIMUS Z890 APEX
- Processor manufacturer: Intel, processor socket: LGA 1851 (socket V1), compatible processors: Intel core ultra (series 2)
- Supported memory: DDR5 SDRAM, RAM maximum: 96 GB, memory type: DIMM
- Supported drive interfaces: M.2, SATA III, supported drives: HDD & SSD, RAID levels: 0, 1, 5, 10
- Ethernet interface type: 5 Gigabit Ethernet, top WLAN standard: Wi-Fi 7 (802.11b), WLAN standards: Wi-Fi 7 (802.11b)
- Component for: PC, motherboard form factor: ATX, motherboard chipset family: Intel
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel Core™ Ultra Processors (2 Series)
- Exclusive AI technologies: Asus AI Advisor, AI Overclocking, AI Cooling II and AI Networking II to simplify setup and improve performance
- Advanced Overclocking & memory technologies: NPU Boost, DIMM Fit, DIMM Flex and AEMP III.
- Robust power supply: 22(110A)+1(90A)+2(90A)+2(80A) Power Stages with ProCool II ProCool II power terminals, MicroFine alloy reactors and high-quality metal capacitors

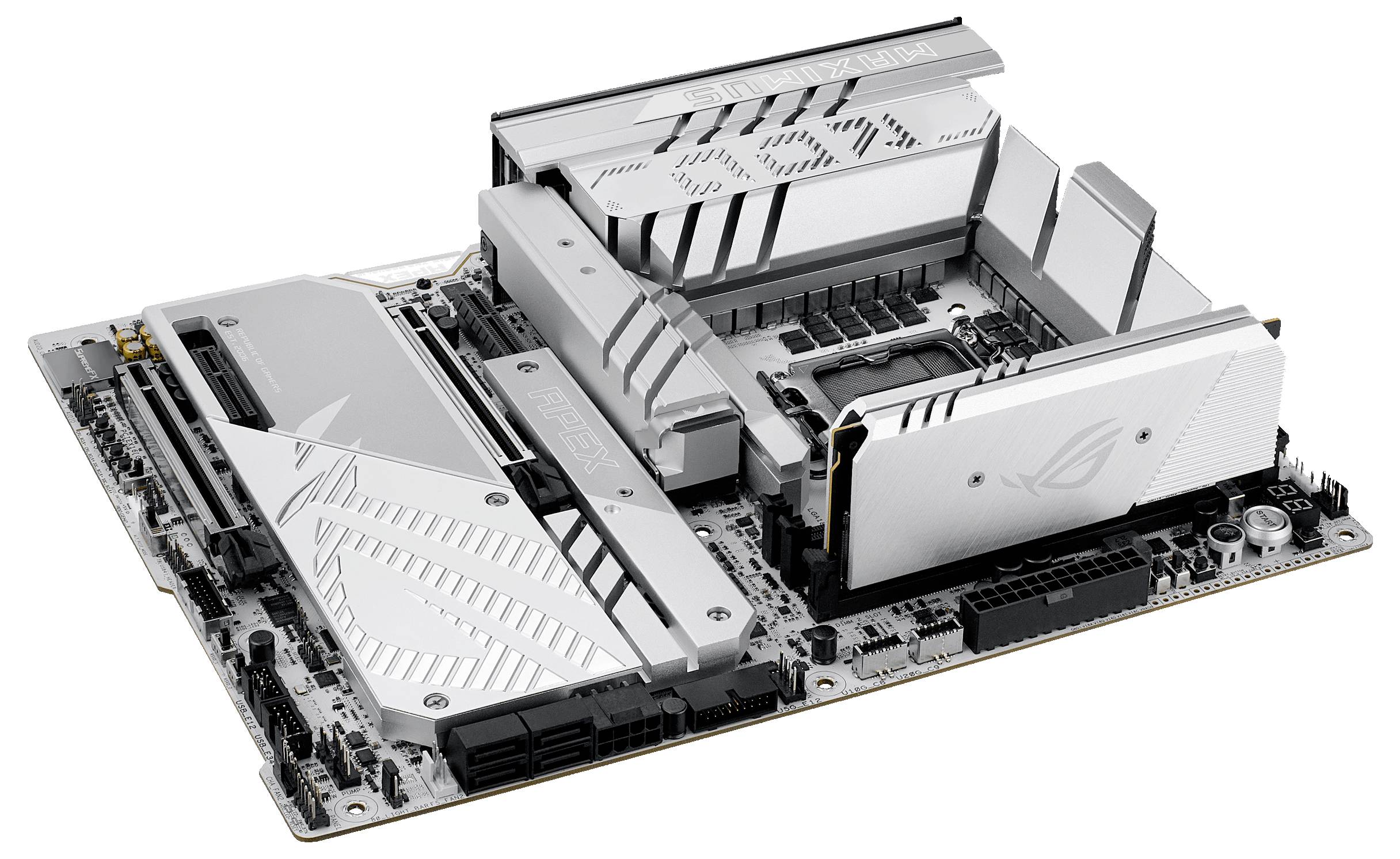

- Optimised cooling design: Massive heat sink with integrated I/O-cover, high-conductive heat-conductive heat-conductive pads and connected to a heat pipe
- Latest M.2 Support: Three PCIe® 5.0 M.2 slots and one PCIe 4.0 M.2 slot onboard with ROG M.2 Power Boost and two PCIe 4.0 M.2 slots on one ROG DIMM.2 card, all with extensive cooling solutions

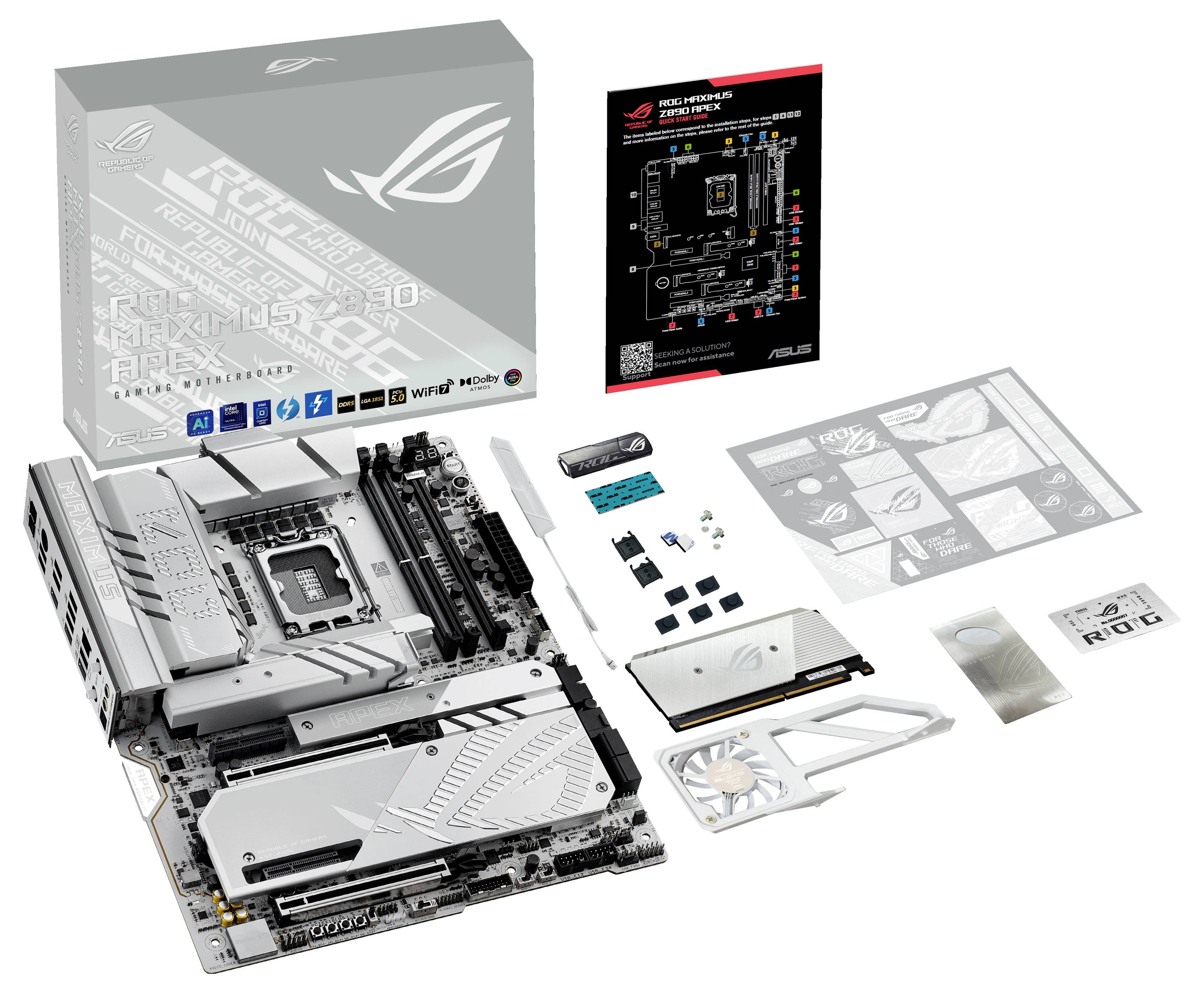

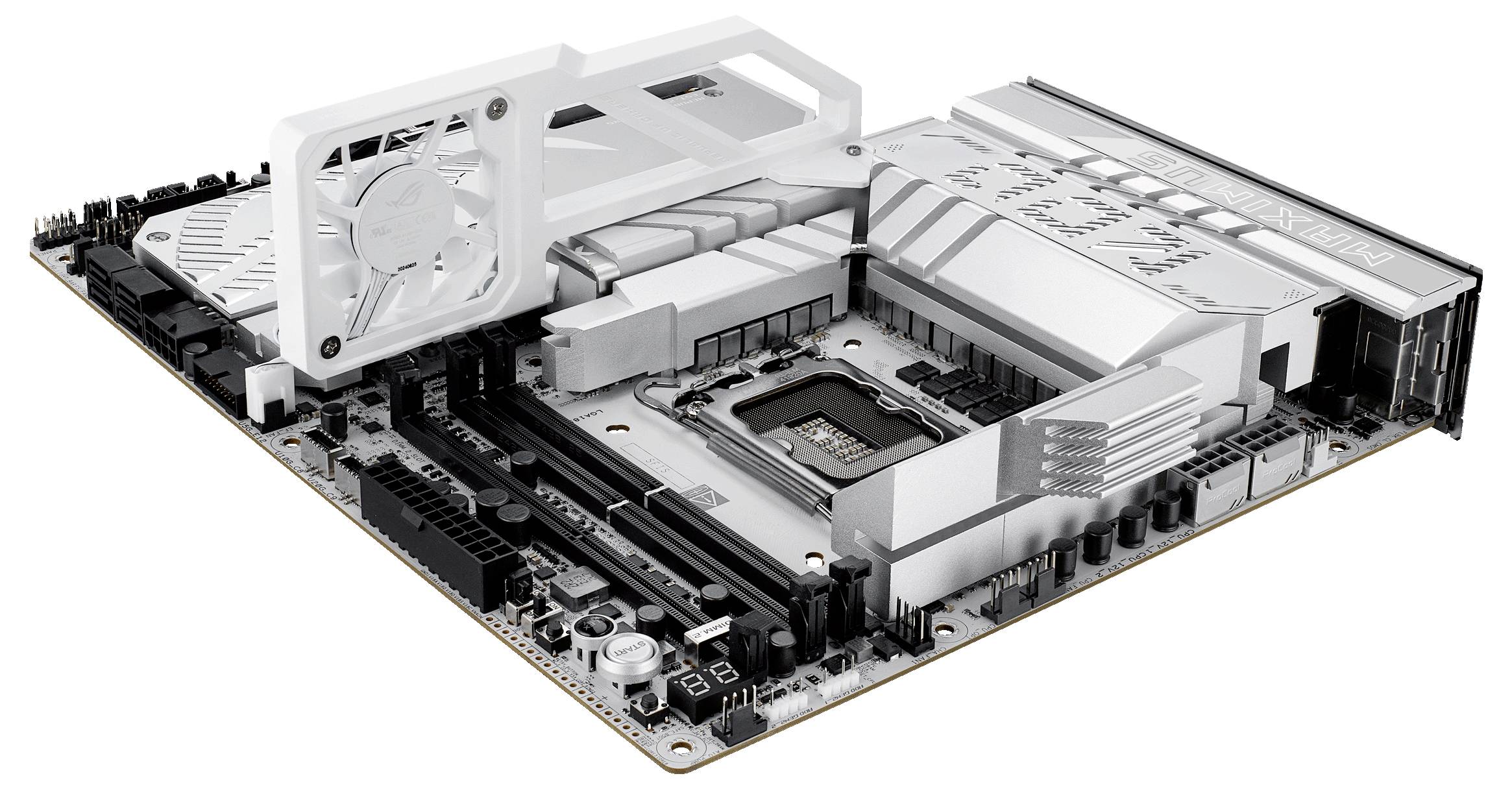

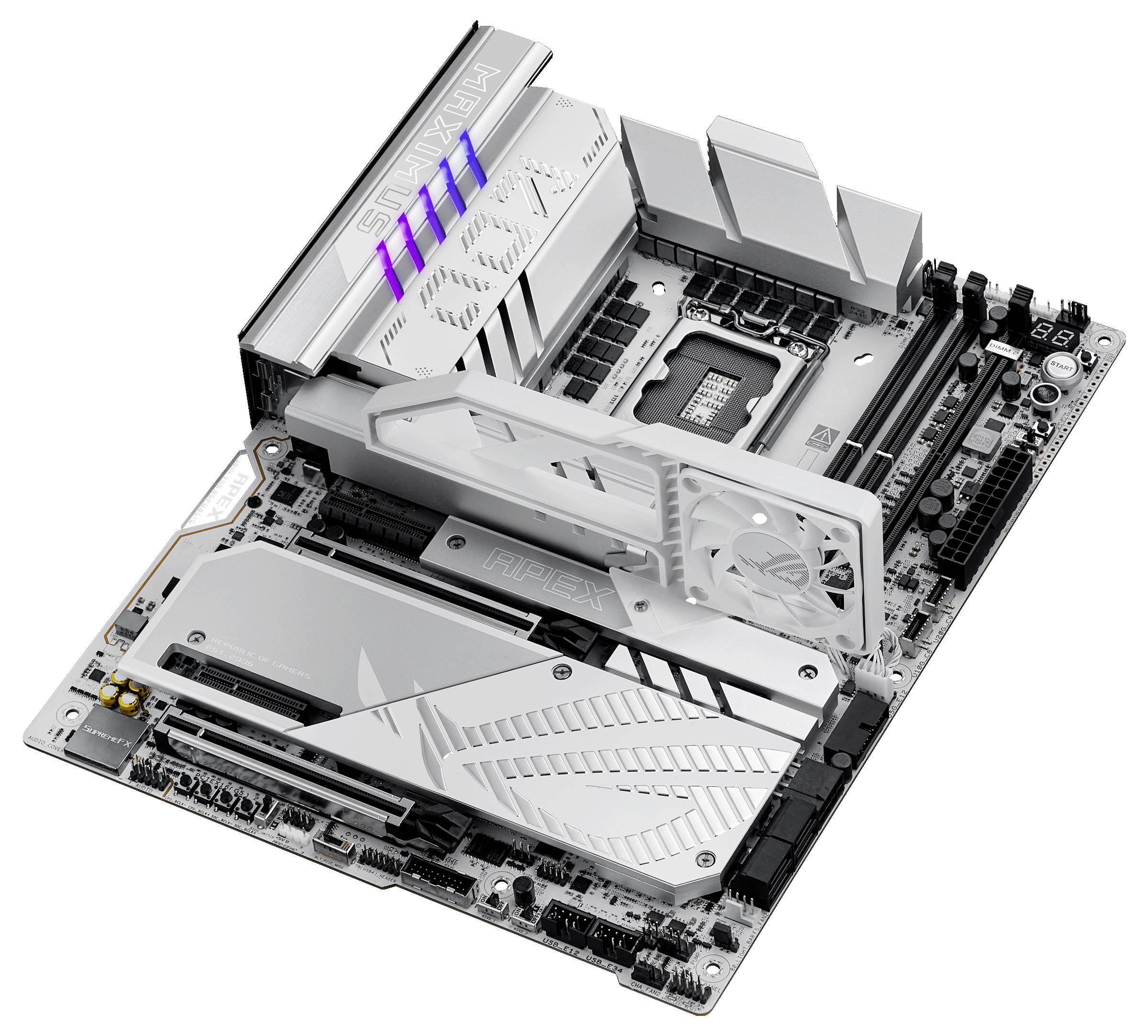

- ROG MEMORY FAN KITThe cooling solution enables a memory over-clocking of up to 9000+ MT/s.

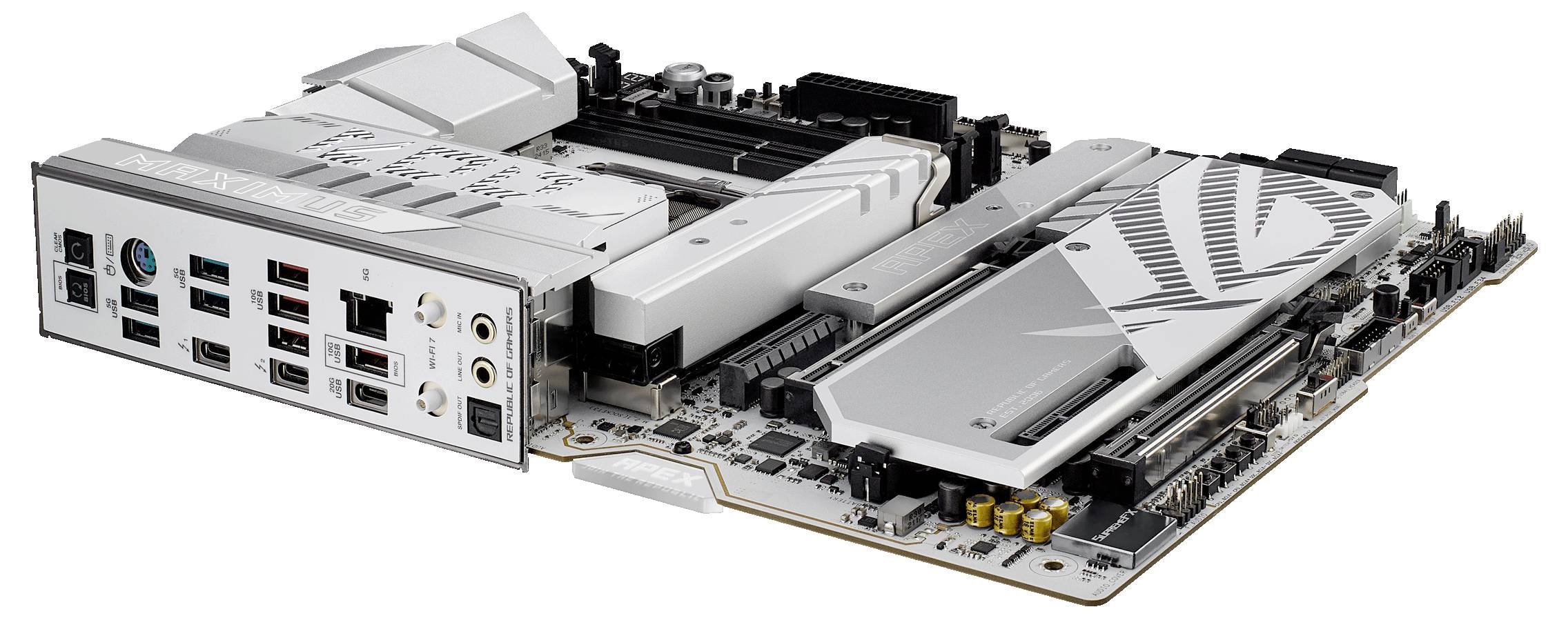

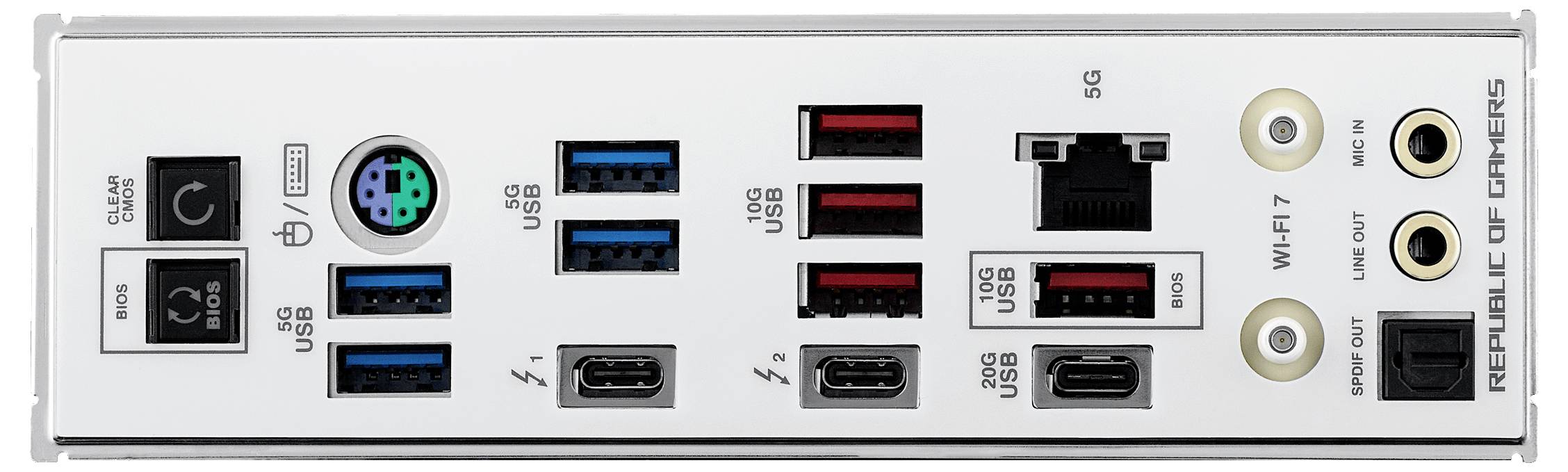

- Versatile connectivity: Two Thunderbolt™ 4 USB Type-C® ports, one USB 20Gbps Type-C port, USB 20Gbps Type-C front port with Quick Charge 4+ up to 60W and USB WateWatcher, USB 10Gbps Type-C front port, four additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots with full support for next-generation graphics cards

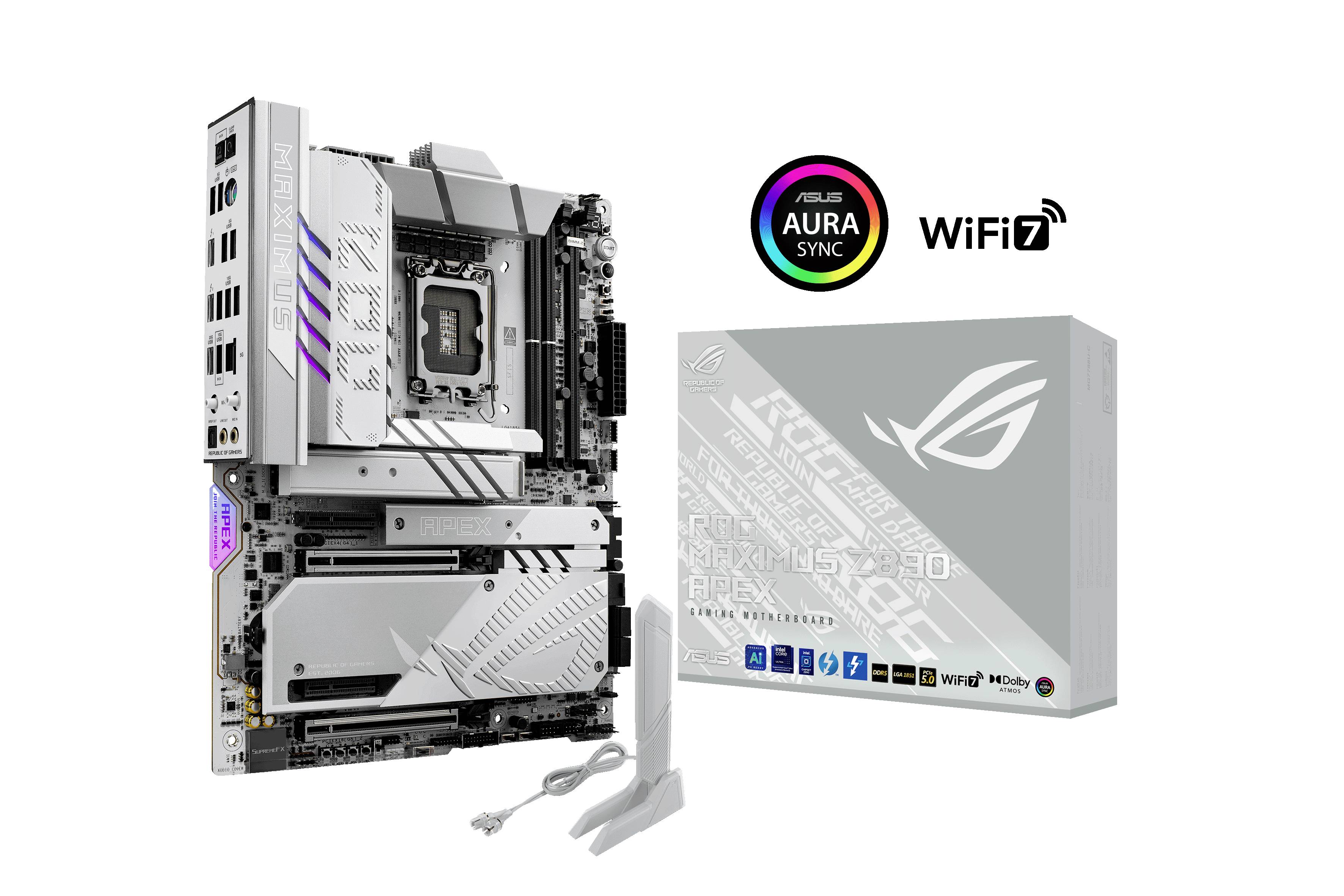

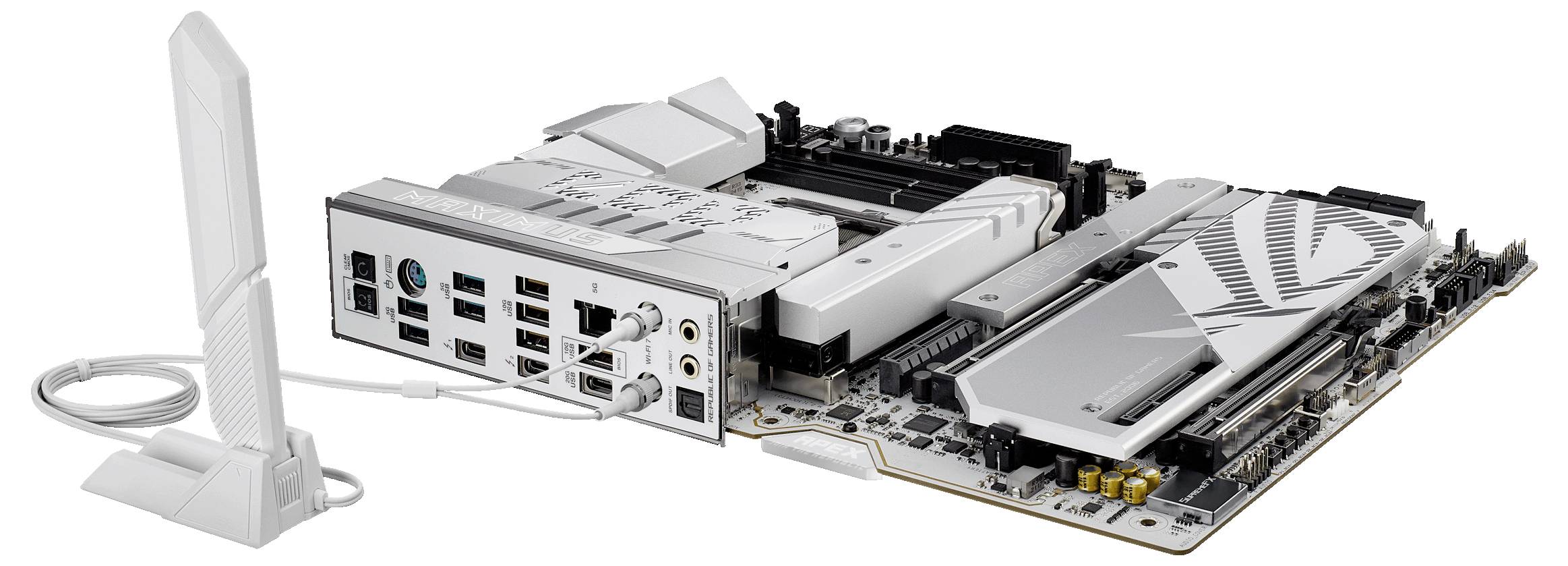

- High-performance networks: Built-in Wi-Fi 7 (802.11b) with Asus WiFi Q antenna, Realtek® 5 GB Ethernet
- DIY-friendly design: PCIe slot Q-release slim, new M.2 Q-latch, M.2 Q-release, M.2 Q-slide, Q-antenna, BIOS Q Dashboard, Q Code, Q LED, FlexKey key, Start key, BIOS Flashback™ key, Clear CMOS key and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4080 Codec with Savitech SV3H712 amplifier

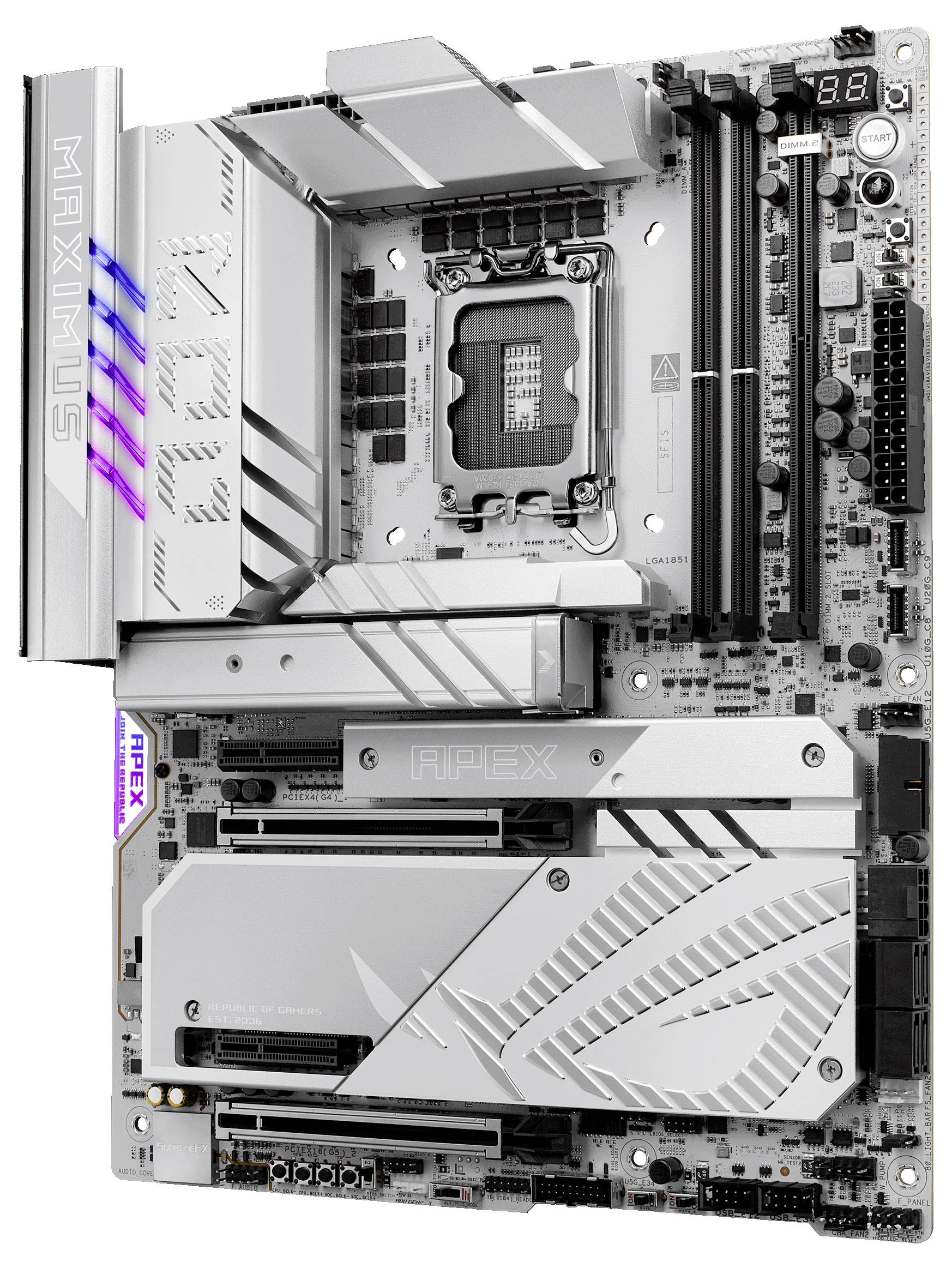

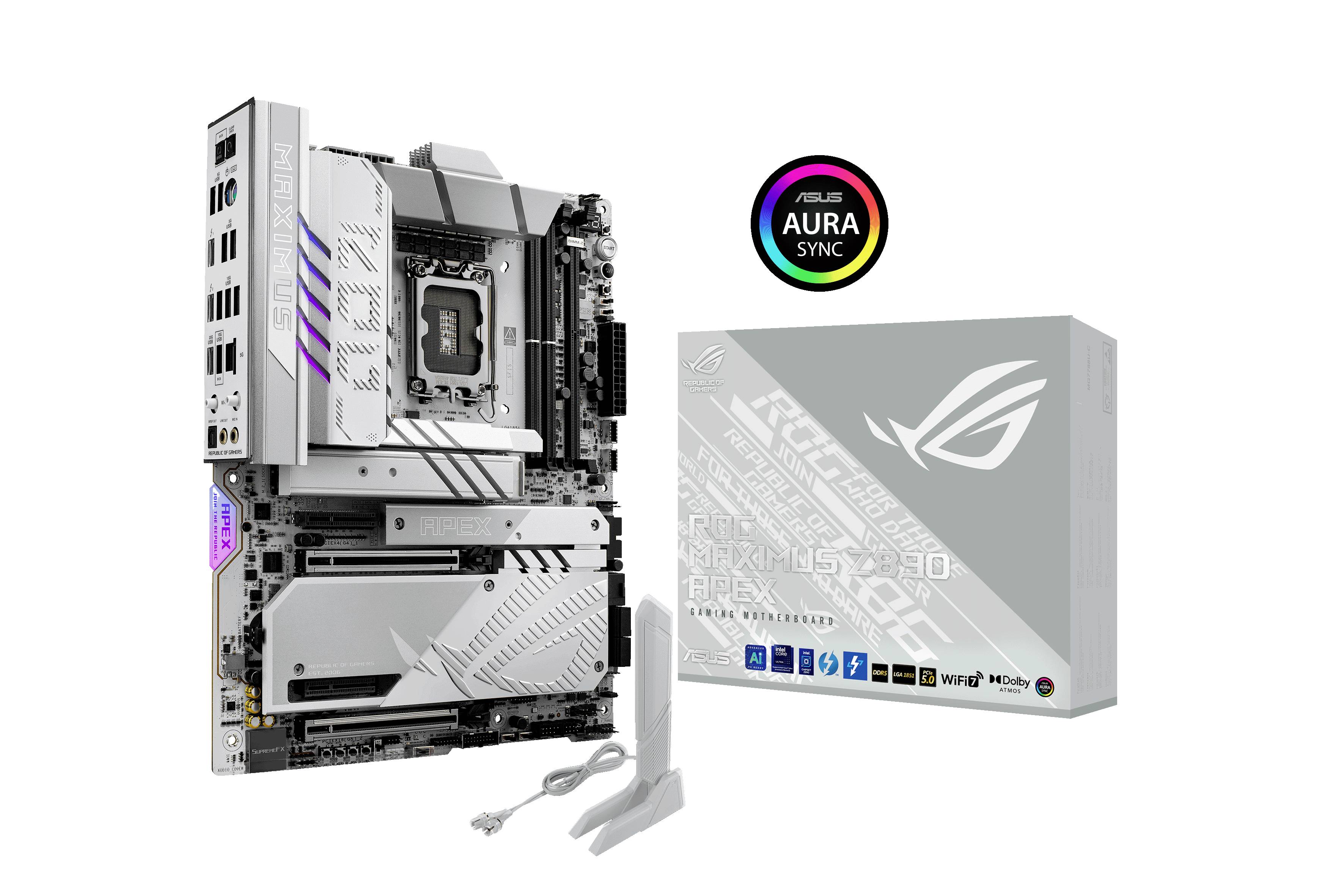

- Unmatched personalization: Three Gen 2 ARGB headers, all configurable with Asus exclusive Aura Sync RGB lighting
- Renowned software: Asus DriverHub, Dolby Atmos®, exclusive 1-year subscription to Internet security, TurboV Core, GlideX, hwinfo and 1-year subscription to AIDA64 Extreme
