Asus ROG STRIX B850-E Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B850
EAN:
Part number:
Item no:

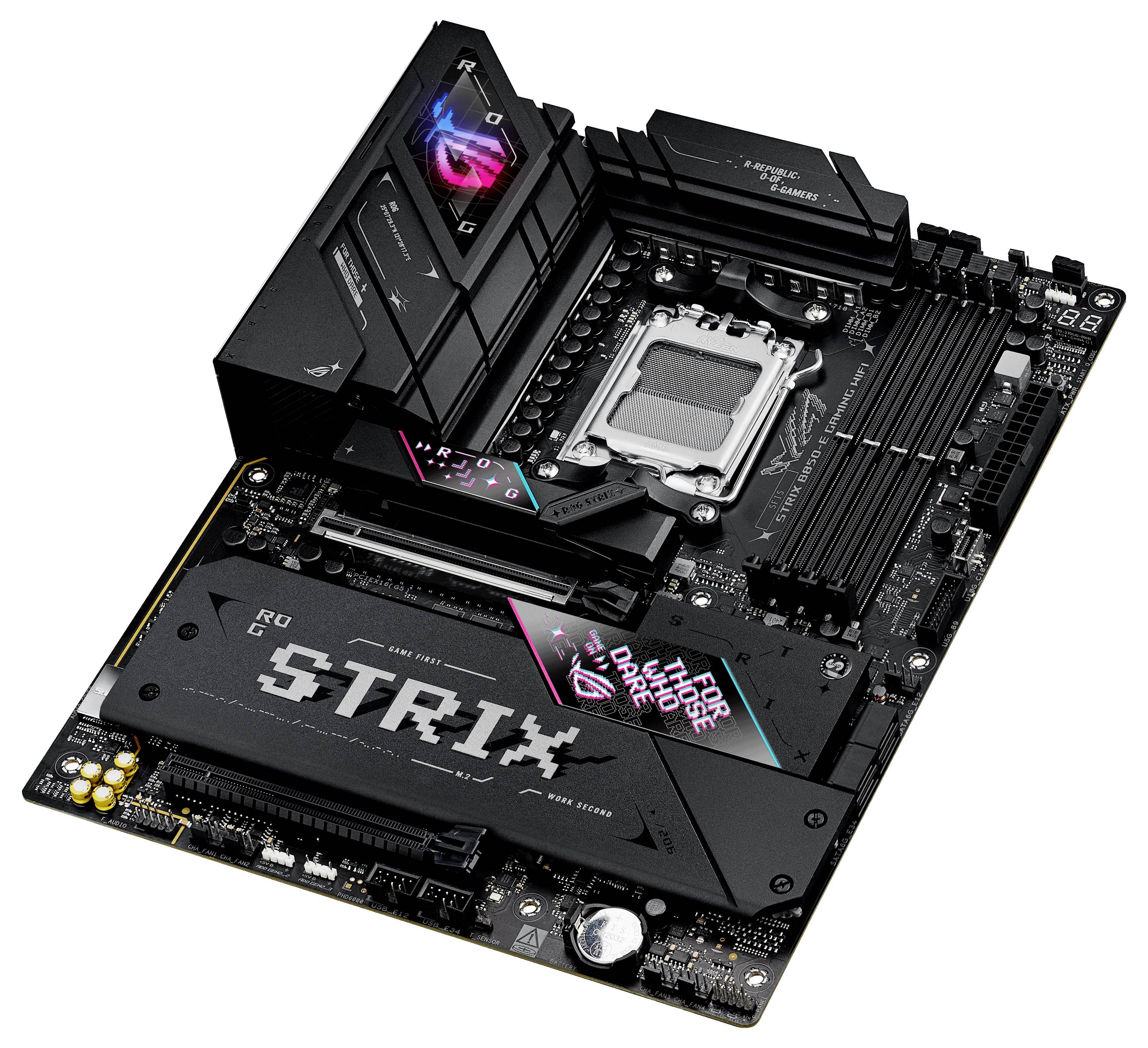

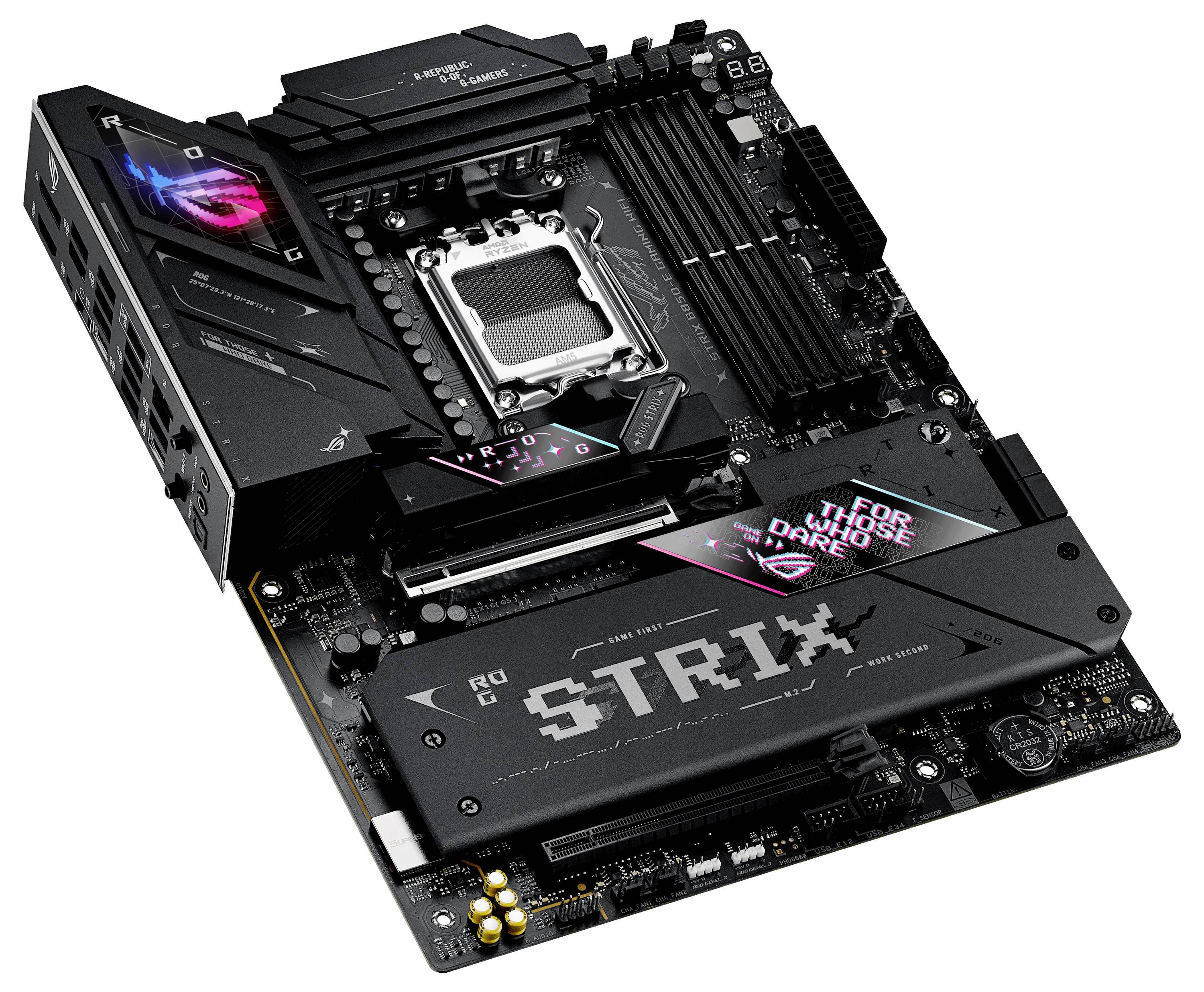

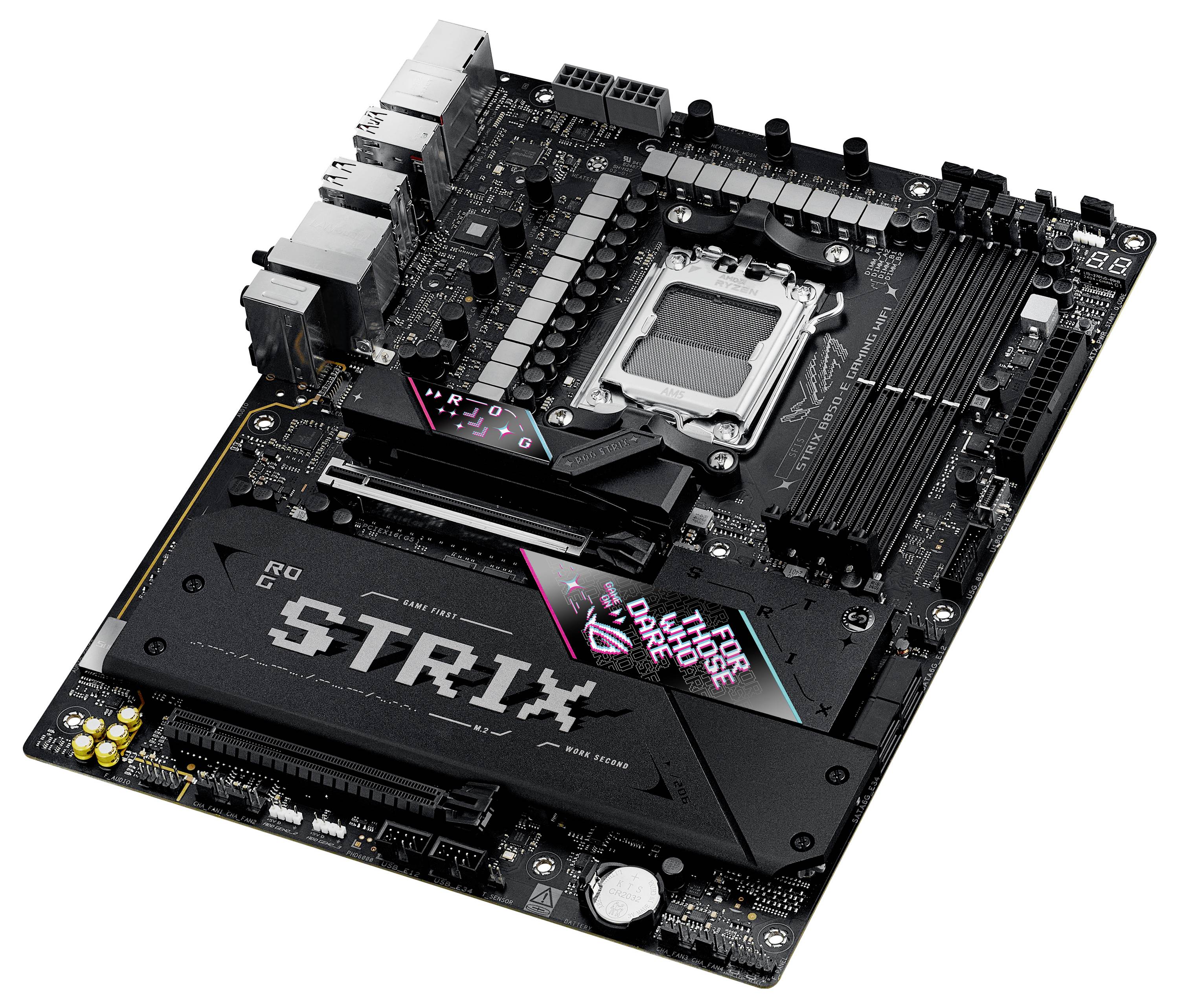

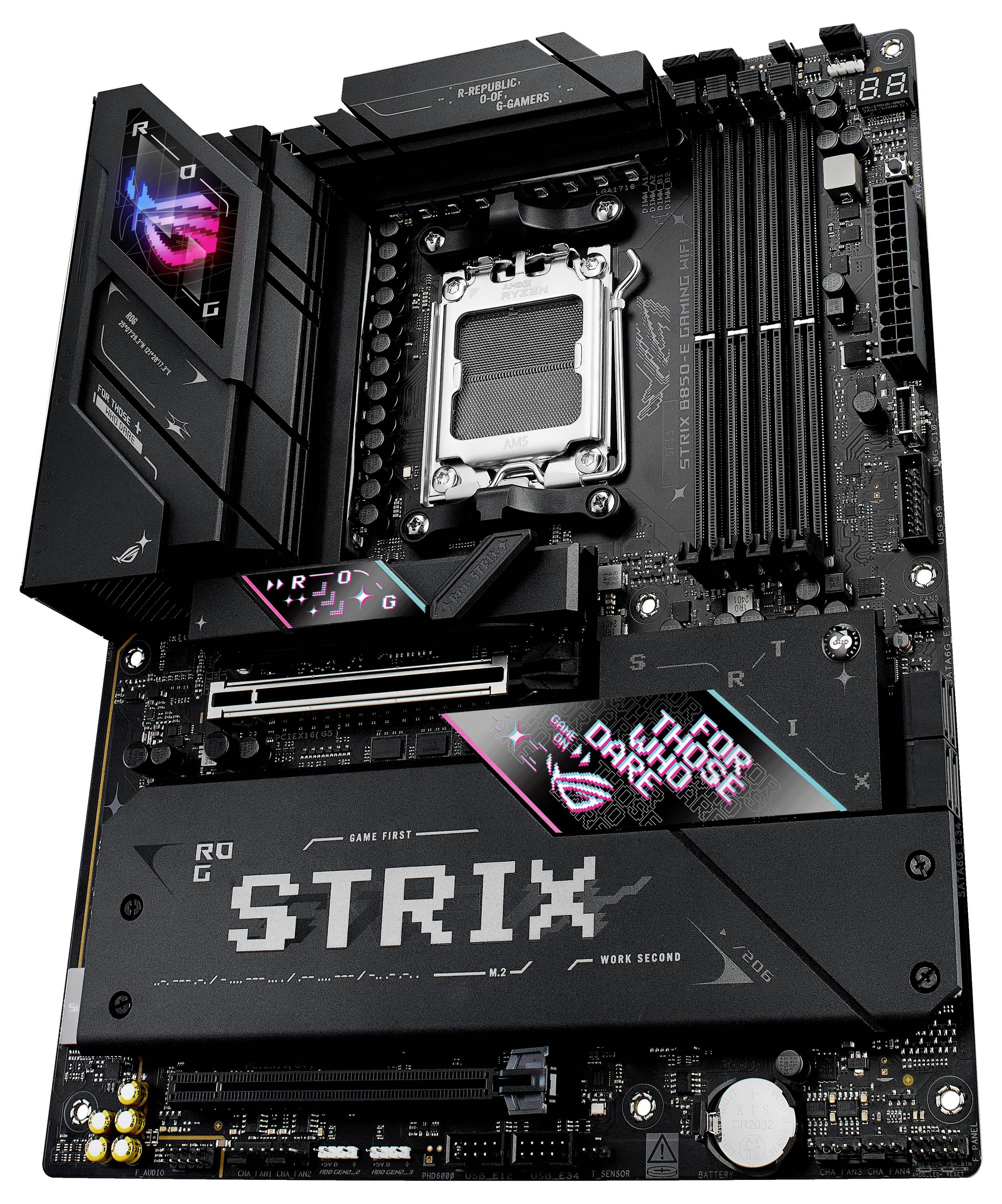

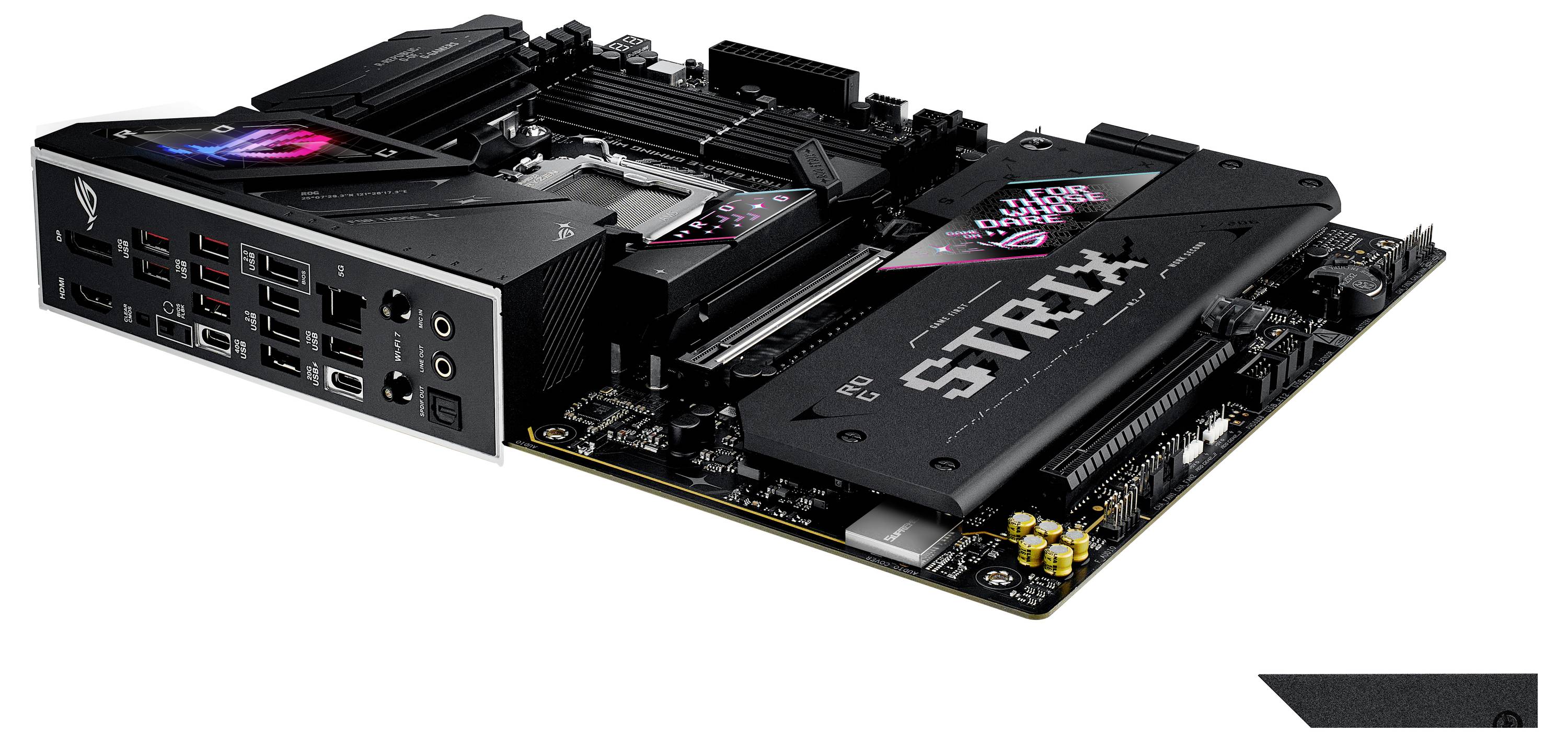

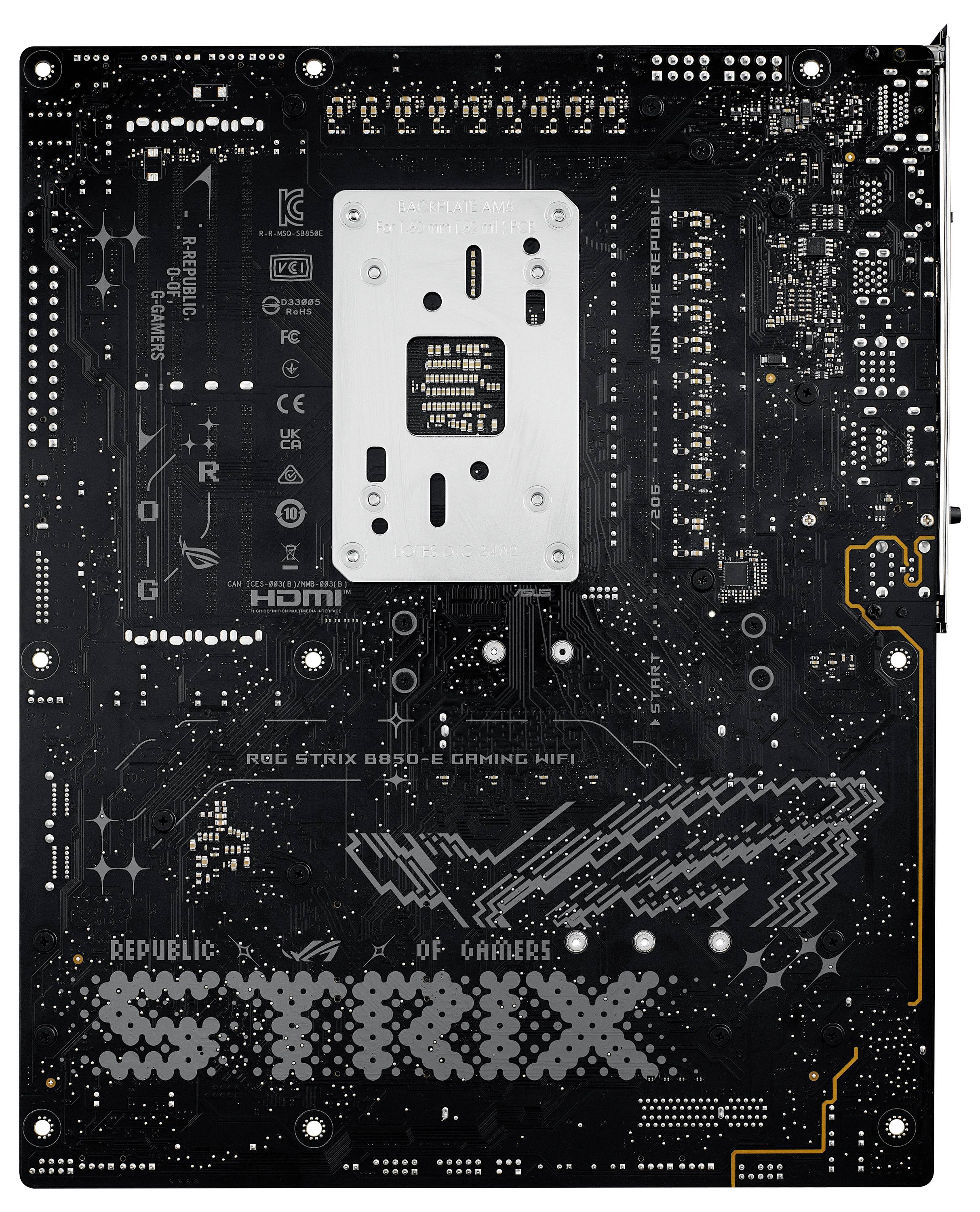

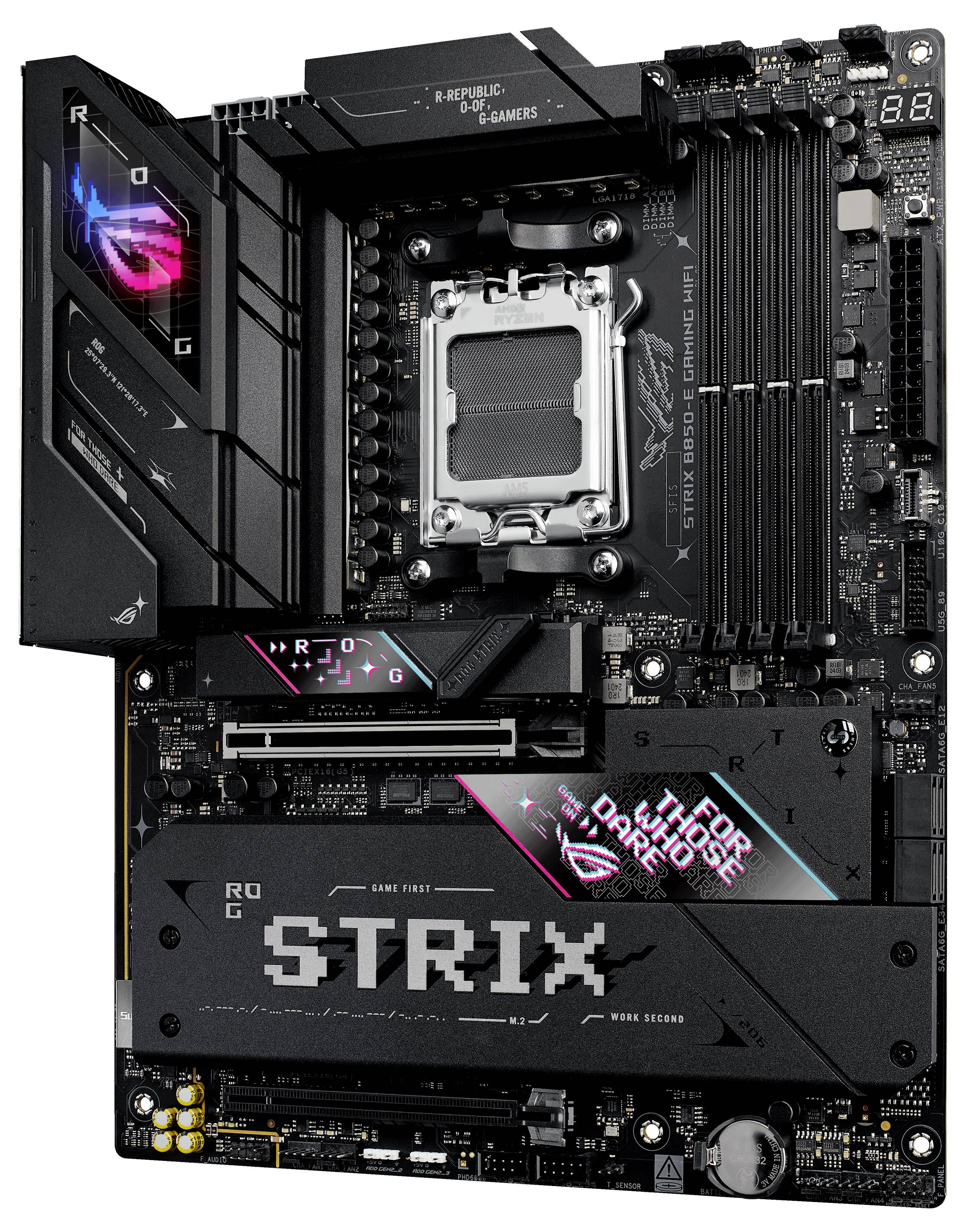

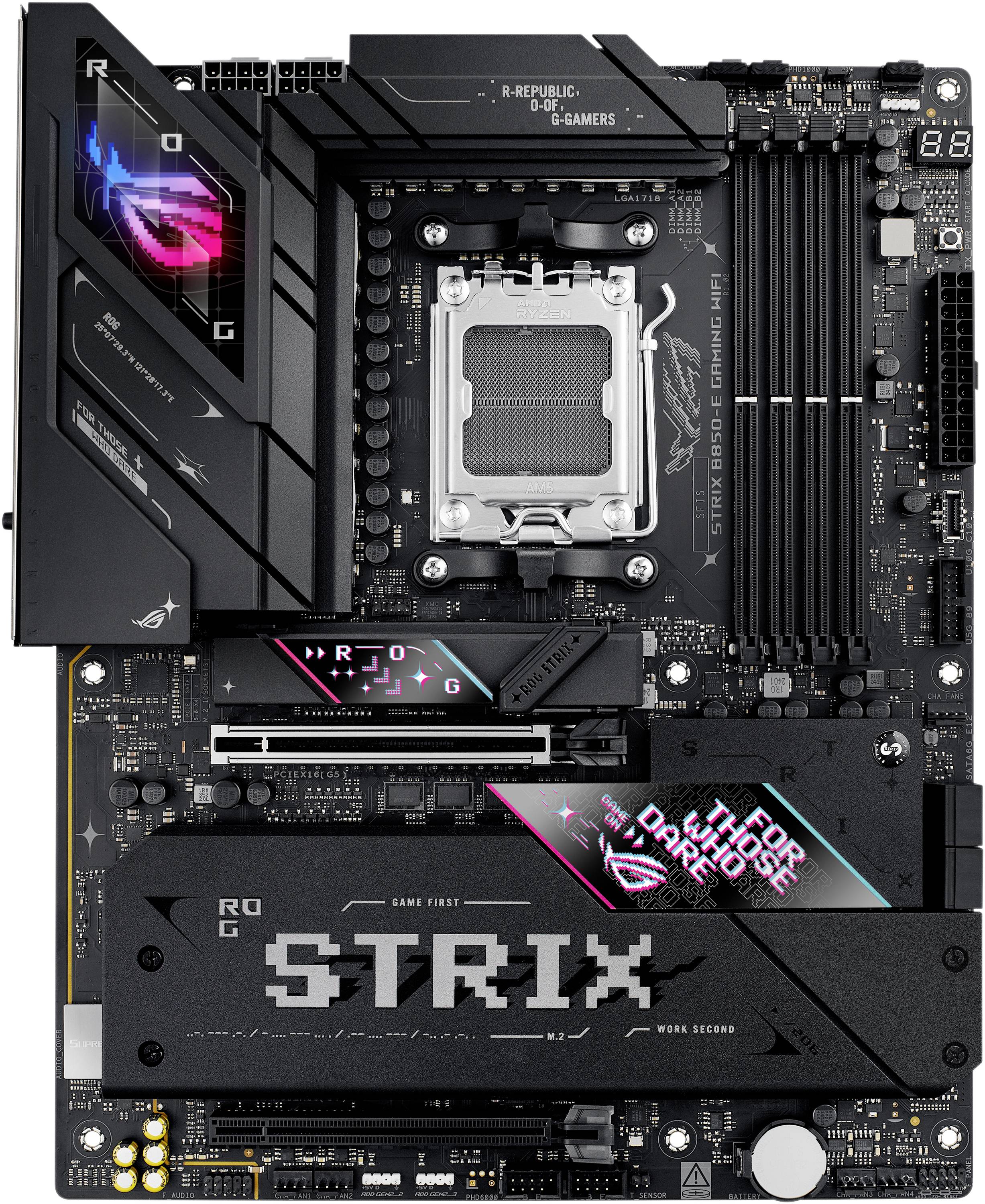

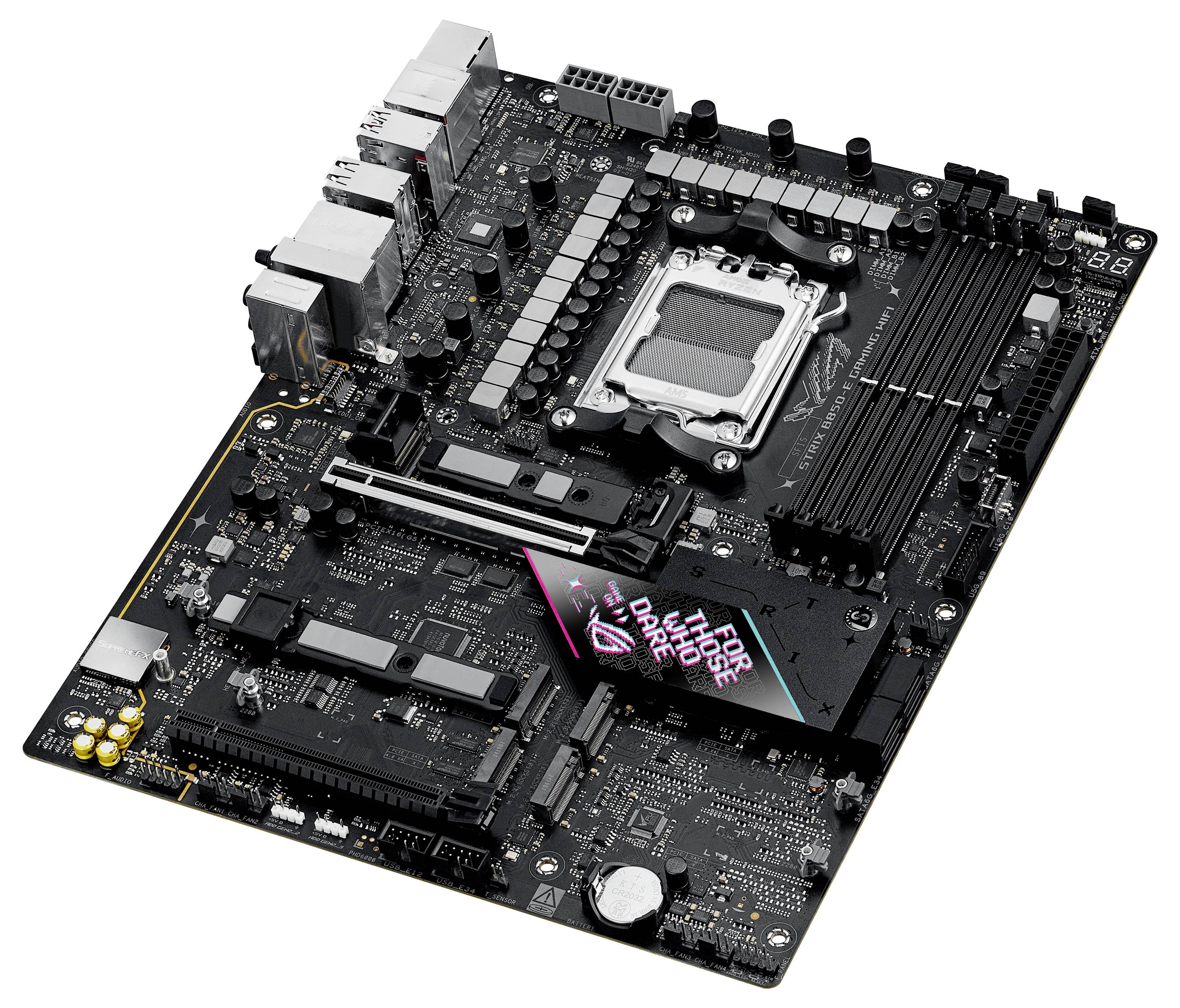

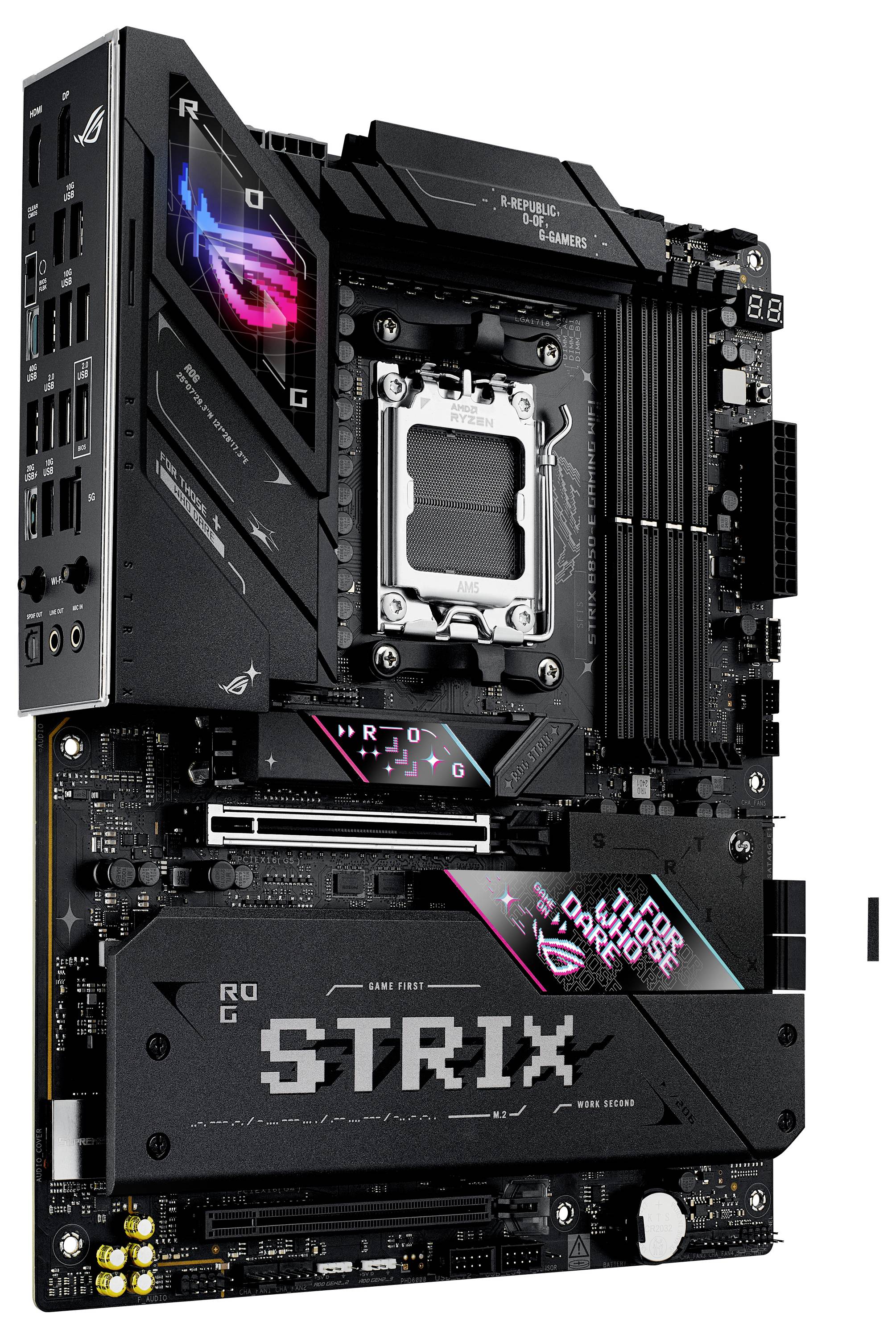

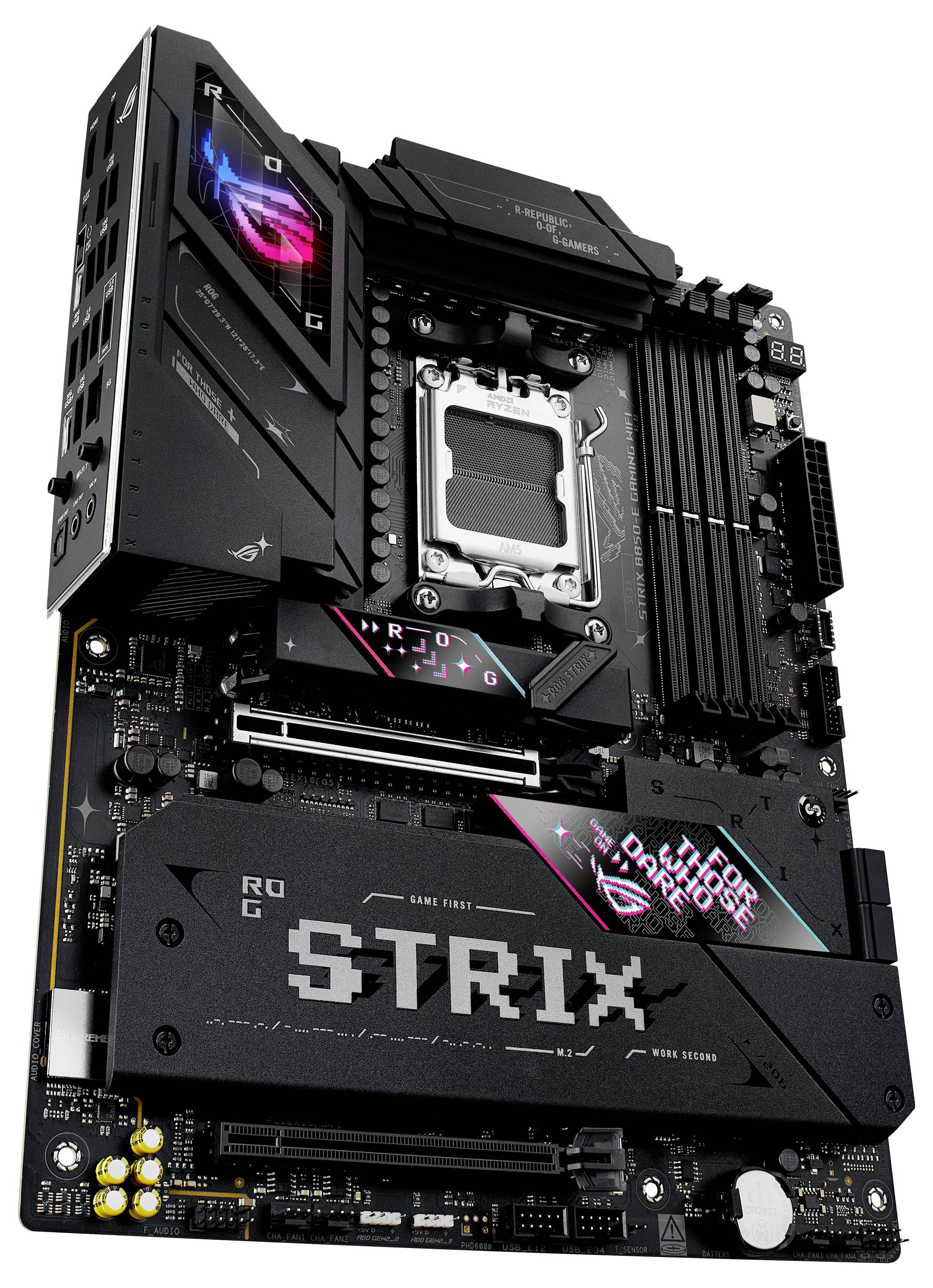

Asus ROG STRIX B850-E Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD B850 Realtek ALC4080 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 9
- BIOS type UEFI AMI 256 Mbit Clear CMOS button
- 5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- C-Ko compatibility: ECC and non-ECC
- Number of CPU fan ports: 2
- Number of EPS power connections (4-pin): 2
- Number of water pump connections: 1
- Number of temperature sensor headers: 1
- Number of GB LED pin strips: 3
- HDMI version 2.1
- WLAN-standards Wi-Fi 7 (802.11b)
- AMD B850 motherboard chipset
- 1. M.2 Largest key size: 2280
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 22110
- 2. M.2 highest PCI Express generation: 5.0
- 3. M.2 Largest key size: 2280
- 3. M.2 highest PCI Express generation: 5.0
- 4. M.2 Largest key size: 2280
- 4. M.2 highest PCI Express generation: 4.0
- 5. M.2 Largest key size: 2280
- 5. M.2 highest PCI Express generation: 4.0
- Product type
Motherboard
- Chipset
AMD® B850
#####AMD AM5
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
192 GB

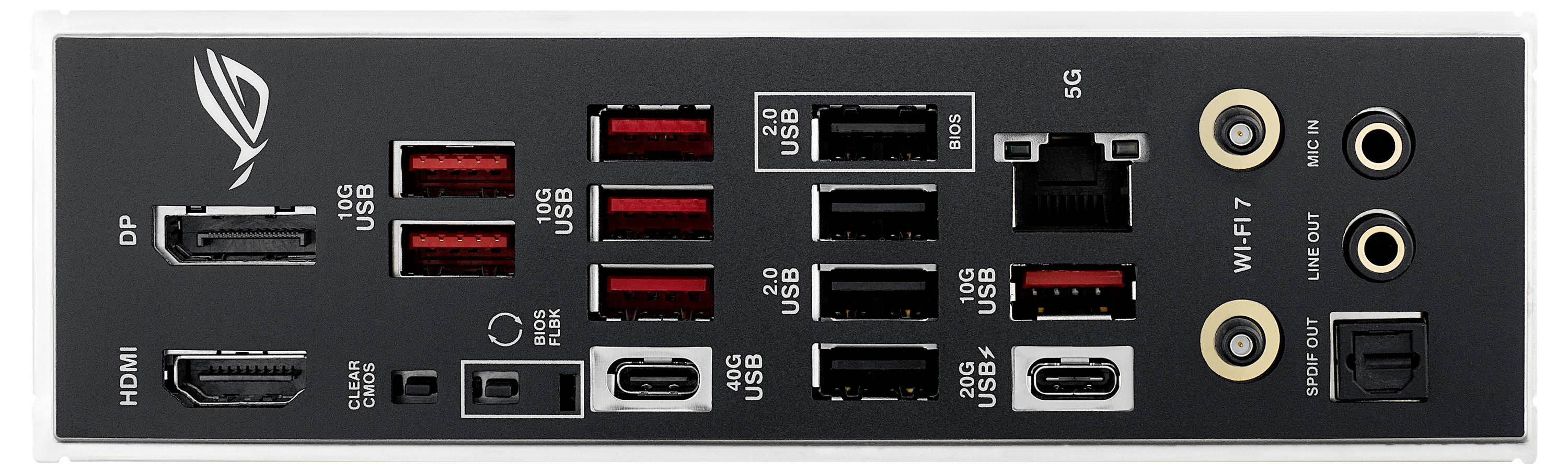

- Interfaces
HDMI™
DisplayPort
USB A (USB 2.0)
USB C®
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Black
- Depth
244 mm
- Height
100 mm
- Width
305 mm
- Display resolution
7680 x 4320 Pixel
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
6 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Weight
5
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Line-in
yes
- Ethernet LAN
yes

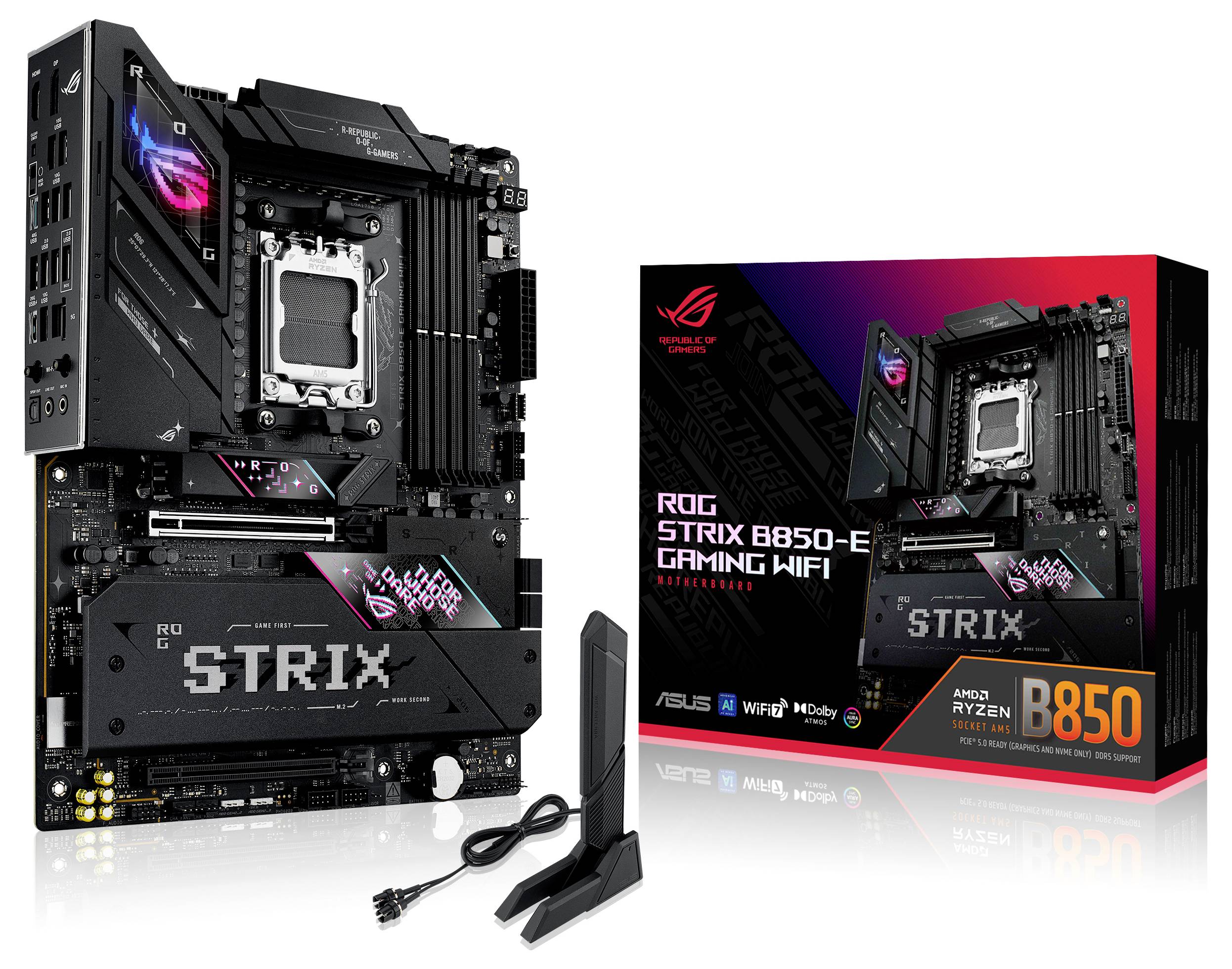

- Antenna included
yes
- Number of memory slots
4
- Number of M.2 (M) slots
5
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- USB 2.0 ports quantity
4
- Headphone outputs
1
- S/PDIF out port
yes
- Front panel connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Digital audio optical out
1
- Front panel audio connector
yes
- Number of HDDs supported
4
- WiFi-AP antenna jack
2
- RGB LED pin header
yes
- USB4 Gen 3x2 ports quantity
1
- Supported memory clock speed (max)
8000 MHz

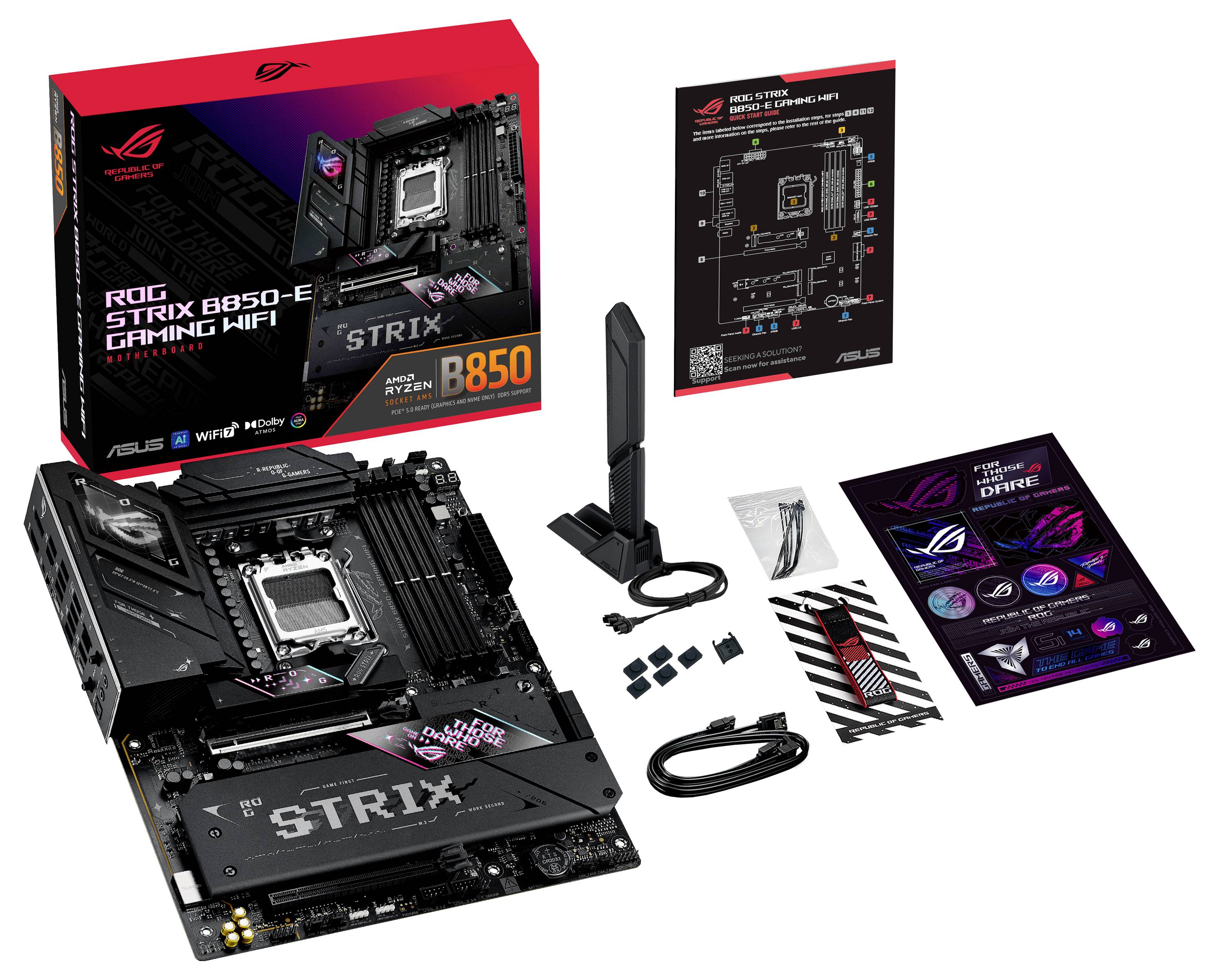

- Quick installation guide
yes
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
2.3 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Clear CMOS button
yes
- Number of storage drives supported
9
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3369663 Asus ROG STRIX B850-E Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B850
Description

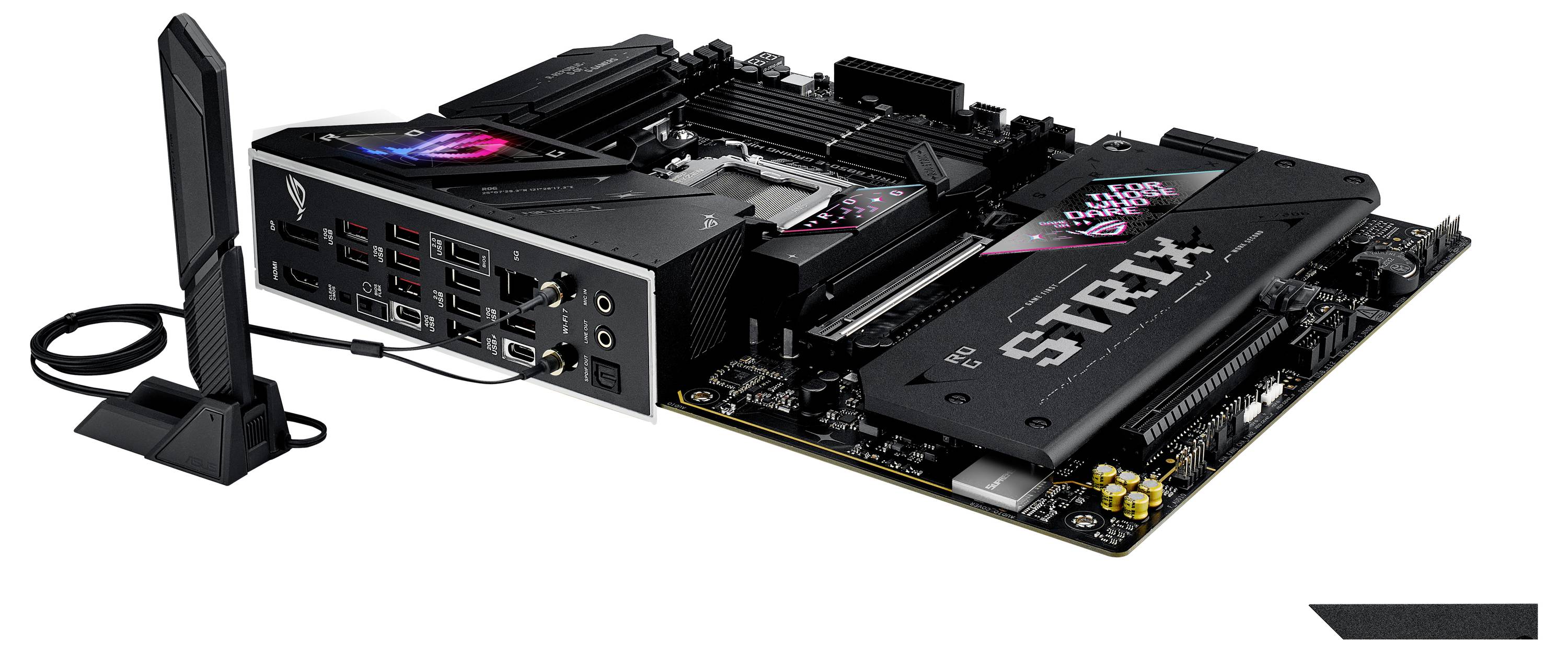

AMD B850-E ATX mainboard with 16+2+2 power levels, dynamic OC switch, core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q antenna, five M.2 slots, PCIe® 5.0 x16 SafeSlots with PCIe slot Q-release slim, one USB4® connection, USB 20Gbps Type-C® with PD 3.0 up to 30W, ASUS AI Advisor, AI Overclocking, AI Networking II and Aura Sync GB lighting.
ASUS AI intelligent CE
ASUS AI VISO R
With the help of KI-technology, which understands questions or scenario descriptions in natural language, the ASUS AI Advisor enables the users to know the functionality and the extended functions of ASUS-Mainboards in a simple and uncomplicated manner.
*The availability of ASUS AI Advisor may vary by region.
**The features of the ASUS AI Advisor may vary depending on the platform.
AI OVER-CLOCKING
ASUS AI Overclocking creates profiles for the CPU and the cooling in order to determine the optimum configuration and to bring the system to its limits.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide a trusted and seamless connection, and unlock the full speed of WiFi 7*.
*Features may vary by model.
OVER CLOCKING
Dynamic OC switcher
Dynamic OC Switcher maximizes CPU performance by setting power and temperature thresholds to automatically switch between manual over-clocking for heavy multi-threaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest overclocking Load Guard has an improved immediate protection mechanism, which prevents the system crashes during the overclocking.
Core Flex
Core Flex allows you to move your limits even further than ever before by creative control of cycle, current and temperature. In the simplest form, you can maximize the Basi clock at lower loads and set limits to gradually reduce the CPU Kern frequency as the temperature or current rises. But the system is extremely adaptable and supports several user-controlled functions that can independently adjust the power, power and temperature limits so that you can design the CPU performance as you wish.
PBO HAN CE ®
AMD precision boost overdrive (PBO) increases the power and voltage budget of the CPU in order to increase the performance opportunistically. By aggressively tuning PBO parameters, AMD's algorithm can use the rugged power solution on the motherboard to further enhance performance.
MEMORY HER
DDR5 dominance
The Trix B850-E is equipped for Enthusiast kits thanks to the extensive support of AMD extended profiles for overclocking (EXPO).
AEMP
The ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for memory modules with PMIC limit.
ROG TRIX ULTIMATE power SIG.N
16(90A)+2(90A)+2(80A) Power stage
COOLING
M.2
M.2 HEAT SINK RPER, M.2-BACKPLATE
VRM
VRM cooling element RPE R-ARRAY
CPU
CPU FAN CONNECTIONS, AIO PUMP FAN CONNECTION
CASE
4-PIN FAN CONNECTIONS
PLAY WITH STYLE
UNDENIABLE ROG TRIX
Diagonal louvers, brushed aluminum and striking GB have become ROG aesthetics hallmarks, and the B850-E is proud of all these features. In this generation, the connector cover and the Q-Release array are provided with transparent diffusers that provide a gentle contrast to the metal heatsinks in the vicinity.
OUTSHINE THE COMPETITION
The ROG STRIX motherboards are equipped with ASUS Aura technology, which provides full lighting control and a variety of presets for onboard GB LEDs and third party accessories. Effects can be easily synchronized with compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
BUILD THE TSC'ICH'S PC FOR GAMING AND CREATION
If only the fastest is good enough, the Trix B850 motherboard is just the right thing. With onboard USB 20Gbps and robust Übertaktungsfunktionen¹, fast Dual channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 graphics and NVRAM support, you can play the most demanding games and implement your biggest projects with the revolutionary performance of a AMD 800 series motherboard and AMD Ryzen™ 9000, 8000 and 7000 series processors.
Dare to be green
We at Republic of Gamers have made it our mission to create a sustainable future in which all gamers can develop on the planet we call our home.
Each step counts, and as part of ROG's commitment to a more sustainable future, ROG has begun to use post-consumer recyclates (PCR)
This text is machine translated.
ASUS AI intelligent CE
ASUS AI VISO R
With the help of KI-technology, which understands questions or scenario descriptions in natural language, the ASUS AI Advisor enables the users to know the functionality and the extended functions of ASUS-Mainboards in a simple and uncomplicated manner.
*The availability of ASUS AI Advisor may vary by region.
**The features of the ASUS AI Advisor may vary depending on the platform.
AI OVER-CLOCKING
ASUS AI Overclocking creates profiles for the CPU and the cooling in order to determine the optimum configuration and to bring the system to its limits.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide a trusted and seamless connection, and unlock the full speed of WiFi 7*.
*Features may vary by model.
OVER CLOCKING
Dynamic OC switcher
Dynamic OC Switcher maximizes CPU performance by setting power and temperature thresholds to automatically switch between manual over-clocking for heavy multi-threaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest overclocking Load Guard has an improved immediate protection mechanism, which prevents the system crashes during the overclocking.
Core Flex
Core Flex allows you to move your limits even further than ever before by creative control of cycle, current and temperature. In the simplest form, you can maximize the Basi clock at lower loads and set limits to gradually reduce the CPU Kern frequency as the temperature or current rises. But the system is extremely adaptable and supports several user-controlled functions that can independently adjust the power, power and temperature limits so that you can design the CPU performance as you wish.
PBO HAN CE ®
AMD precision boost overdrive (PBO) increases the power and voltage budget of the CPU in order to increase the performance opportunistically. By aggressively tuning PBO parameters, AMD's algorithm can use the rugged power solution on the motherboard to further enhance performance.
MEMORY HER
DDR5 dominance
The Trix B850-E is equipped for Enthusiast kits thanks to the extensive support of AMD extended profiles for overclocking (EXPO).
AEMP
The ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for memory modules with PMIC limit.
ROG TRIX ULTIMATE power SIG.N
16(90A)+2(90A)+2(80A) Power stage
COOLING
M.2
M.2 HEAT SINK RPER, M.2-BACKPLATE
VRM
VRM cooling element RPE R-ARRAY
CPU
CPU FAN CONNECTIONS, AIO PUMP FAN CONNECTION
CASE
4-PIN FAN CONNECTIONS
PLAY WITH STYLE
UNDENIABLE ROG TRIX
Diagonal louvers, brushed aluminum and striking GB have become ROG aesthetics hallmarks, and the B850-E is proud of all these features. In this generation, the connector cover and the Q-Release array are provided with transparent diffusers that provide a gentle contrast to the metal heatsinks in the vicinity.
OUTSHINE THE COMPETITION
The ROG STRIX motherboards are equipped with ASUS Aura technology, which provides full lighting control and a variety of presets for onboard GB LEDs and third party accessories. Effects can be easily synchronized with compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
BUILD THE TSC'ICH'S PC FOR GAMING AND CREATION
If only the fastest is good enough, the Trix B850 motherboard is just the right thing. With onboard USB 20Gbps and robust Übertaktungsfunktionen¹, fast Dual channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 graphics and NVRAM support, you can play the most demanding games and implement your biggest projects with the revolutionary performance of a AMD 800 series motherboard and AMD Ryzen™ 9000, 8000 and 7000 series processors.
Dare to be green
We at Republic of Gamers have made it our mission to create a sustainable future in which all gamers can develop on the planet we call our home.
Each step counts, and as part of ROG's commitment to a more sustainable future, ROG has begun to use post-consumer recyclates (PCR)
This text is machine translated.
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Intel intelligent control: ASUS-exclusive AI Advisor, AI Networking II and AEMP for simplifying the setup and improving the performance
- ROG STRIX Overclocking Technologies: Dynamic OC-SWITCH, Core Flex and PBO Enhancement
- Robust power supply: 16+2+2 power supply solutions for up to 90 A per level with dual ProCool power connectors, high-quality alloy reactors and durable capacitors to support multi-core processors
- Opti-lubricated cooling design: Massive heat sinks with integrated I/O cover high-conducting heat-conducting pads and are connected with an L-shaped heat-pipe
- Latest M.2 support: Three onboard PCIe® 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with extensive cooling solutions
- Versatile connectivity: One USB4® Type-C connector, USB 20Gbps Type-C® Rear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, seven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ port
- High-performance networks: Built-in WiFi 7 (802.11b) with Realtek 5 GB Ethernet
- DIY-friendly design: PCIe slot Q-release slim, M.2 Q-latch, M.2 Q-release, M.2 Q-slide, Q-antenna, Q Dashboard, Q Code, Q-LED, Power Button, BIOS Flashback™ Button, Clear CMOS button and pre-assembled I/O shield
- Immersive Audio: ROG SupremeFX ALC4080 Codec with Savitech SV3H712 amplifier and Dolby Atmos®
- Unmatched personalization: ASUS exclusive Aura Sync GB lighting, with three addressable Gen 2 headers
- Renowned software: ASUS DriverHub, ASUS GlideX, hwinfo, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
