Asus ROG STRIX B850-F GAMING WIFI7 NEO Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AM
EAN:
Part number:
Item no:
Highlights & Details

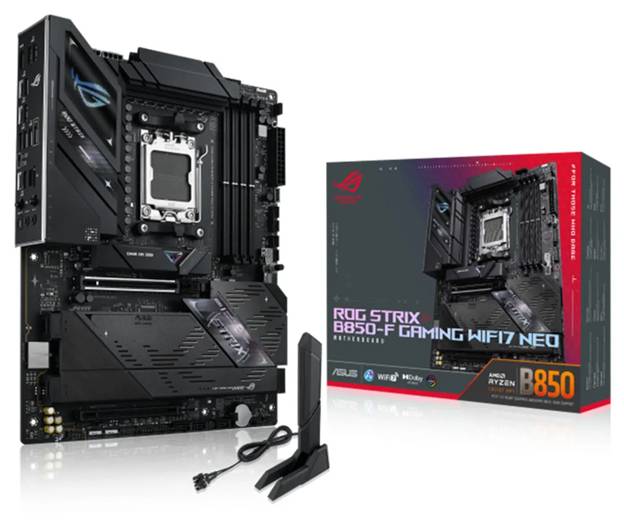

Asus ROG STRIX B850-F GAMING WIFI7 NEO Motherboard
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD B850 Realtek ALC4080 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
- BIOS type UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
- This text is machine translated.
Technical specifications
- Socket AM5
- Supported memory: DDR5 SDRAM
- WLAN-standards Wi-Fi 7 (802.11b)
- AMD B850 motherboard chipset
- Product type
Motherboard
- Chipset
AMD® B850
#####AMD AM5
- Form factor
ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB
- Interfaces
USB C® (USB 3.2 2x 2nd gen)
- No. of DDR5 slots
4 x
- No. of LAN ports
1 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB 3.2
3 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
2 x
- Onboard audio
7.1
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Multicolour
- Depth
244 mm
- Height
100 mm
- Width
305 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Weight
1.63 kg
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Ethernet LAN
yes
- Number of memory slots
4
- Number of M.2 (M) slots
4
- Thunderbolt headers
1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- S/PDIF out port
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Front panel audio connector
yes
- Number of HDDs supported
2
- Supported memory clock speed (max)
8000 MHz
1
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
2.18 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Clear CMOS button
yes
- Number of storage drives supported
6
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3720938 Asus ROG STRIX B850-F GAMING WIFI7 NEO Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AM
Description
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
- AMD AM5 Socket: Prepared for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Intelligent control: Asus AI Advisor, AI Cache Boost, AI Networking II, AI Cooling II and AEMP to simplify setup and improve performance
- Robust power supply: 16+2+2 Power supply solutions for 80 A per level with a 8+8-pin ProCool power connector, high-quality alloy reactors and durable capacitors to support multi-core processors
- Optimised cooling design: Massive heat sinks connected to the VRMS with high-conductive heat transfer pads and an integrated I/O cover
- Latest M.2 support: Two PCIe® 5.0 M.2 slots and two PCIe 4.0 M.2 slots
- Versatile connectivity: Front USB 20Gbps type-C connector, two 5Gbps headers, three USB 2.0 headers, PCIe 5.0 x16 SafeSlot, HDMI trade connector
- High-performance networks: Built-in Wi-Fi 7 (802.11b) with Realtek 5 GB Ethernet
- DIY-friendly design: PCIe slot Q-release, M.2 Q-latch, M.2 Q-release, M.2 Q-slide, Q-antenna, Q Dashboard, Q-DIMM, Q-LED, BIOS Flashback™ button, Clear CMOS button and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 with Savitech SV3H712 amplifier
- Unmatched personalization: Asus exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
- Renowned software: ROG CPU-Z, Dolby Atmos, Armoury Crat, Asus DriverHub, Asus MB Manager, TurboV Core, Asus GlideX, hwinfo, Norton 360 for Gamers (60 days free trial), AIDA64 Extreme (60 days free trial), Adobe Creative cloud (free trial), intuitive UEFI BIOS dashboard
