Asus ROG STRIX B860-A GAMING WIFI Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Int
EAN:
Part number:
Item no:

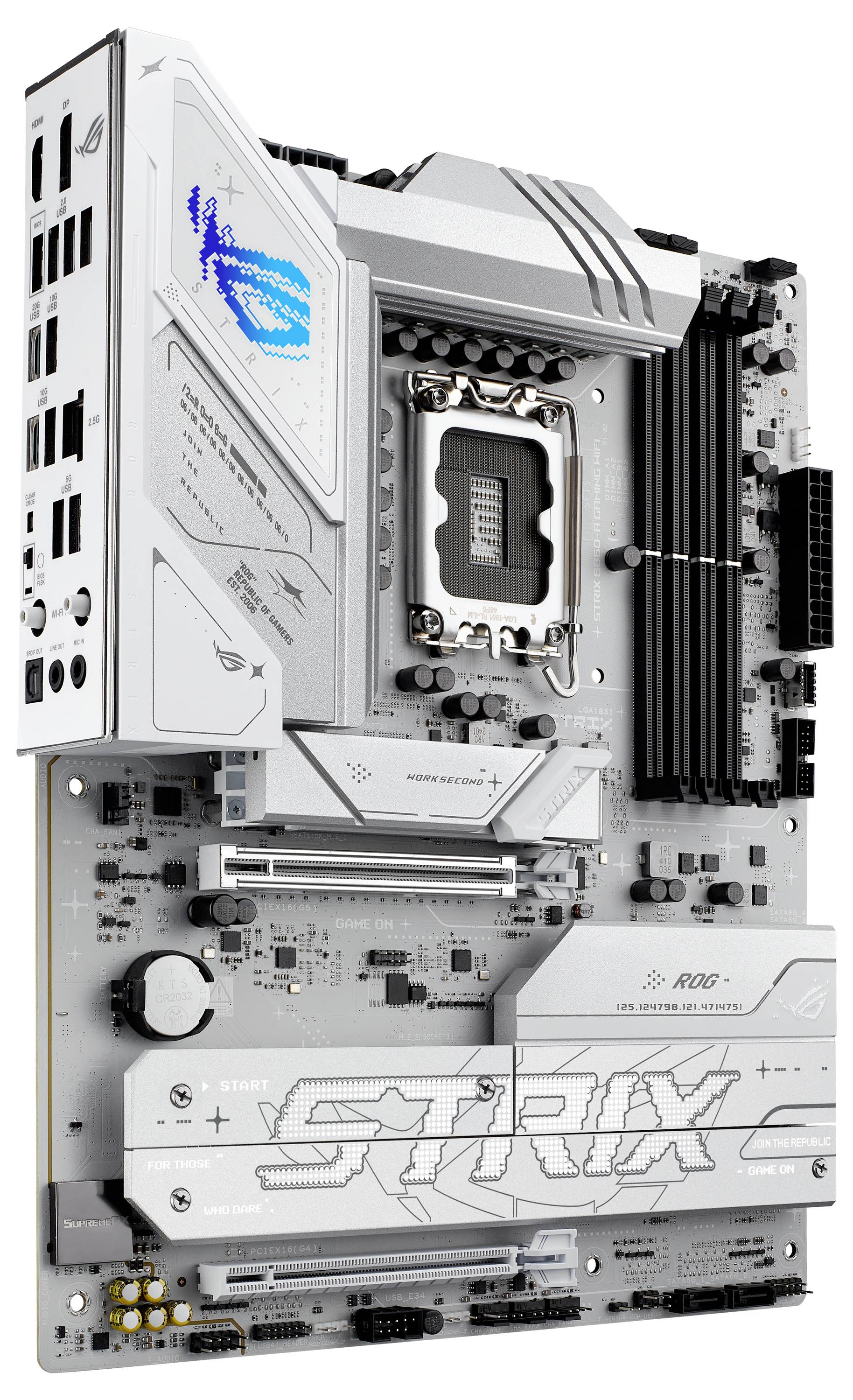

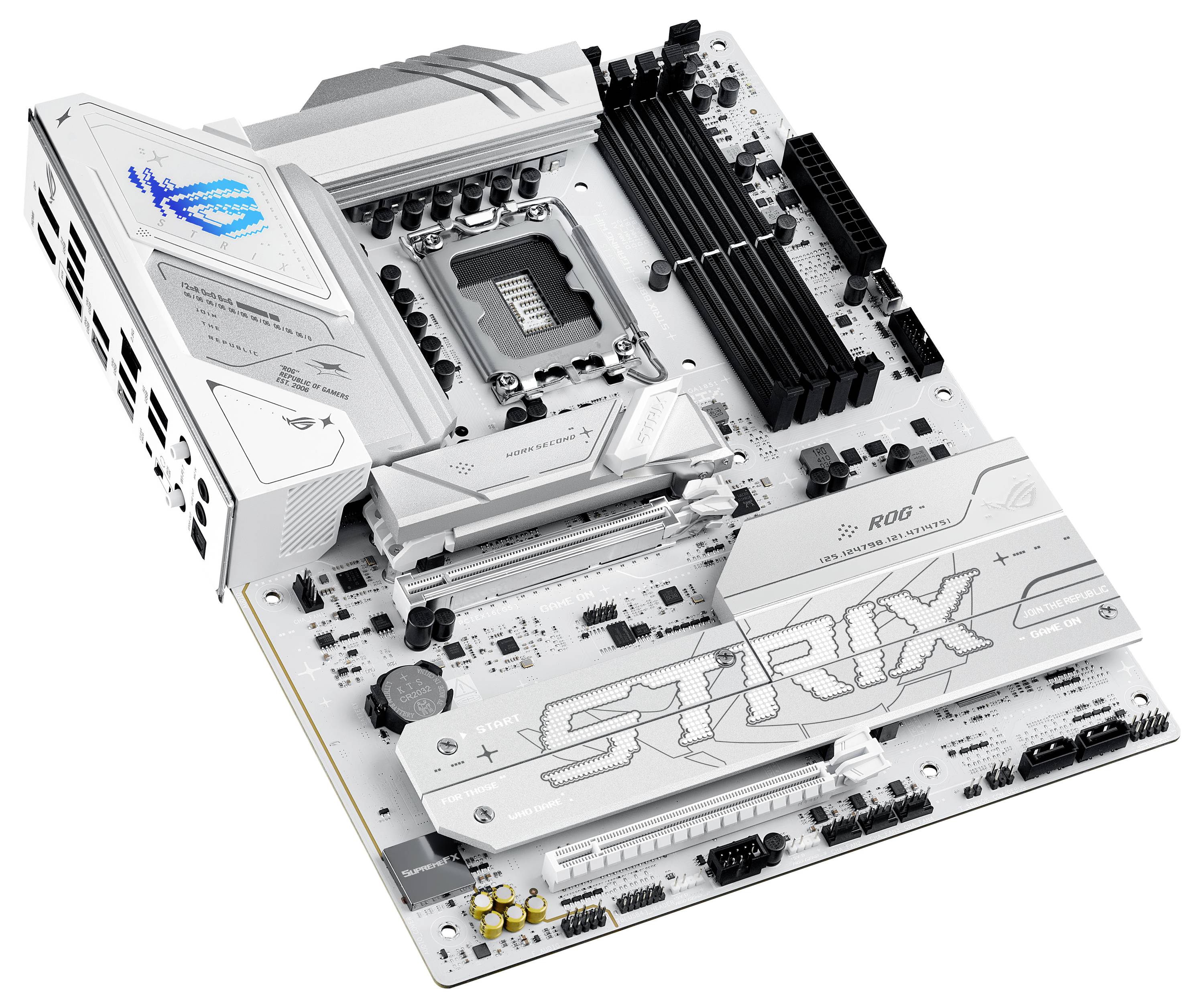

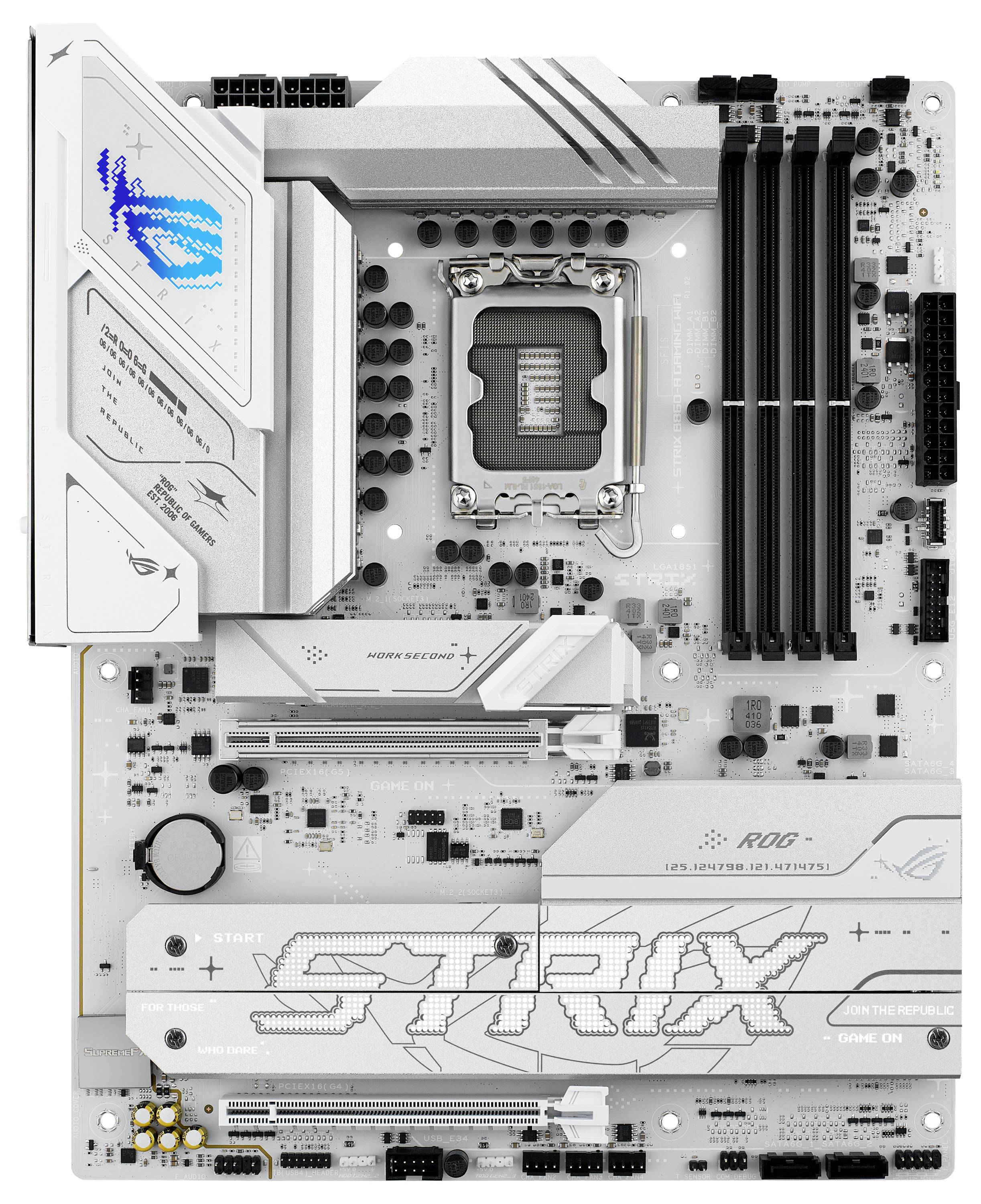

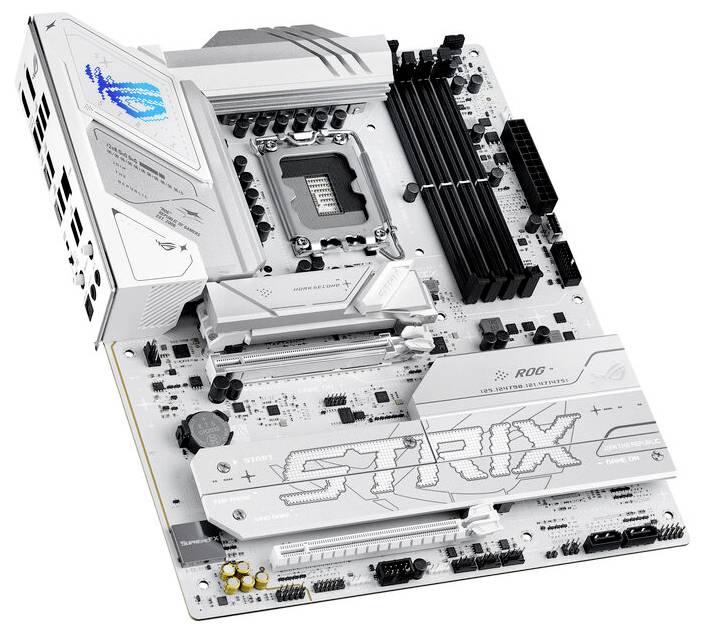

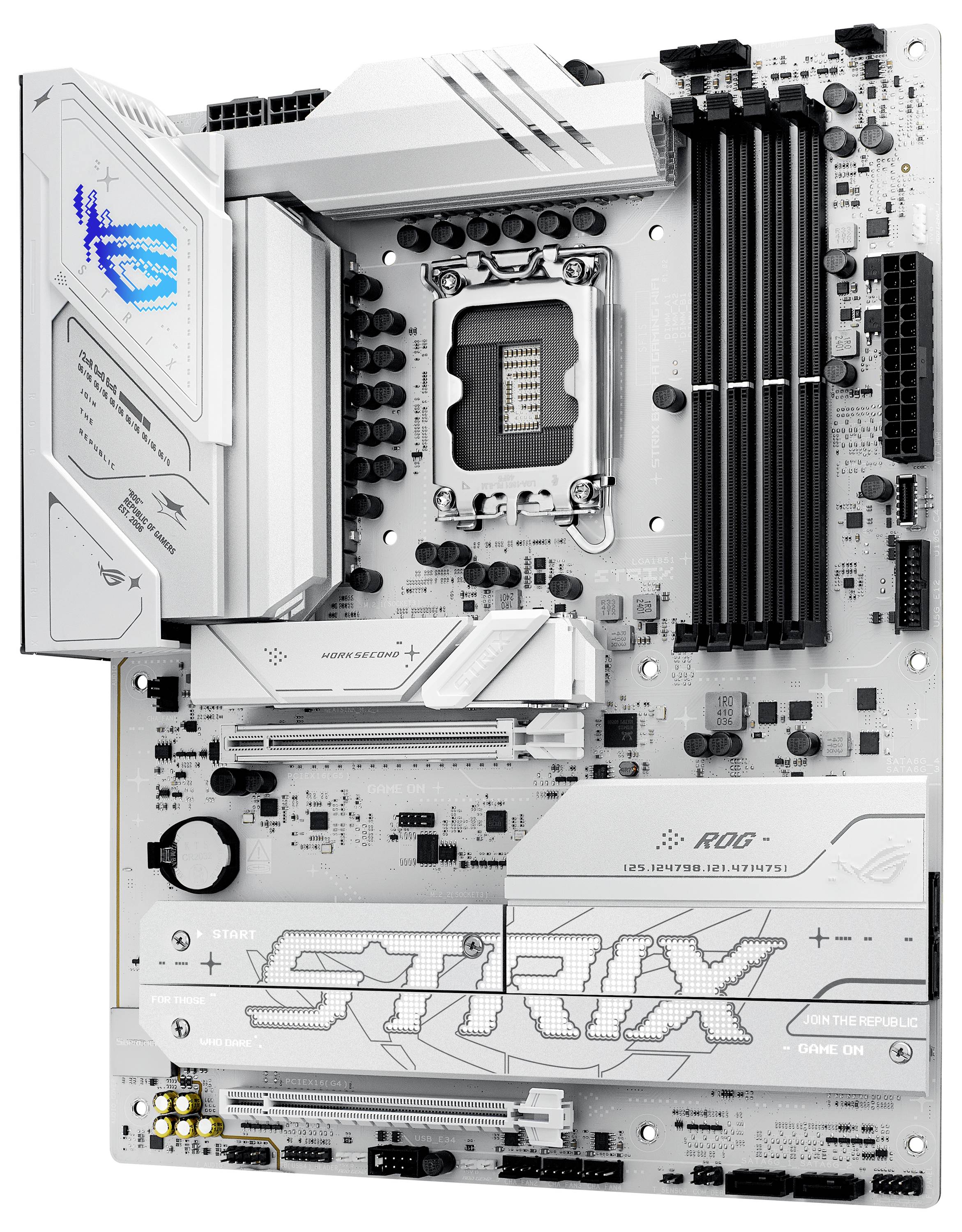

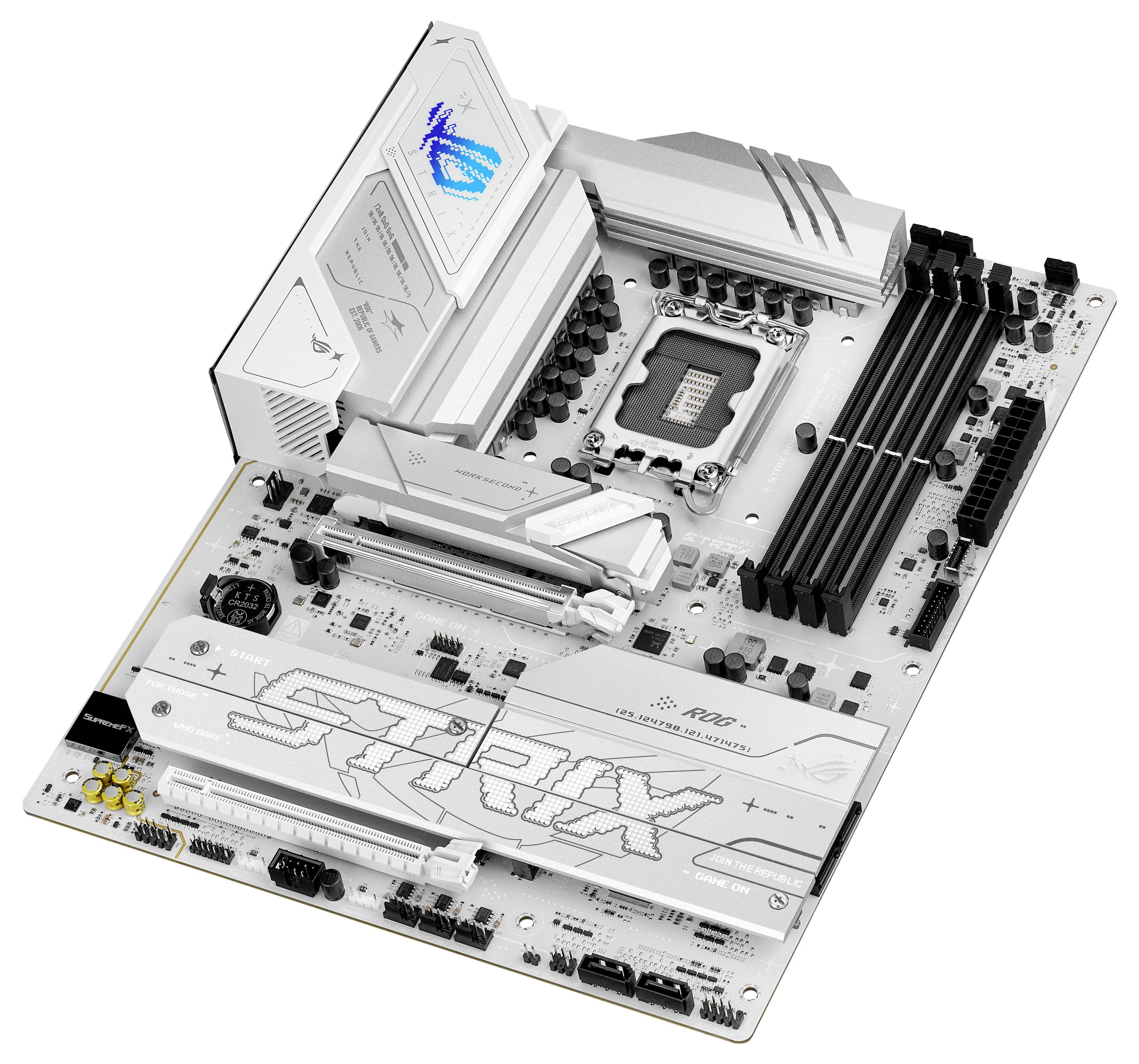

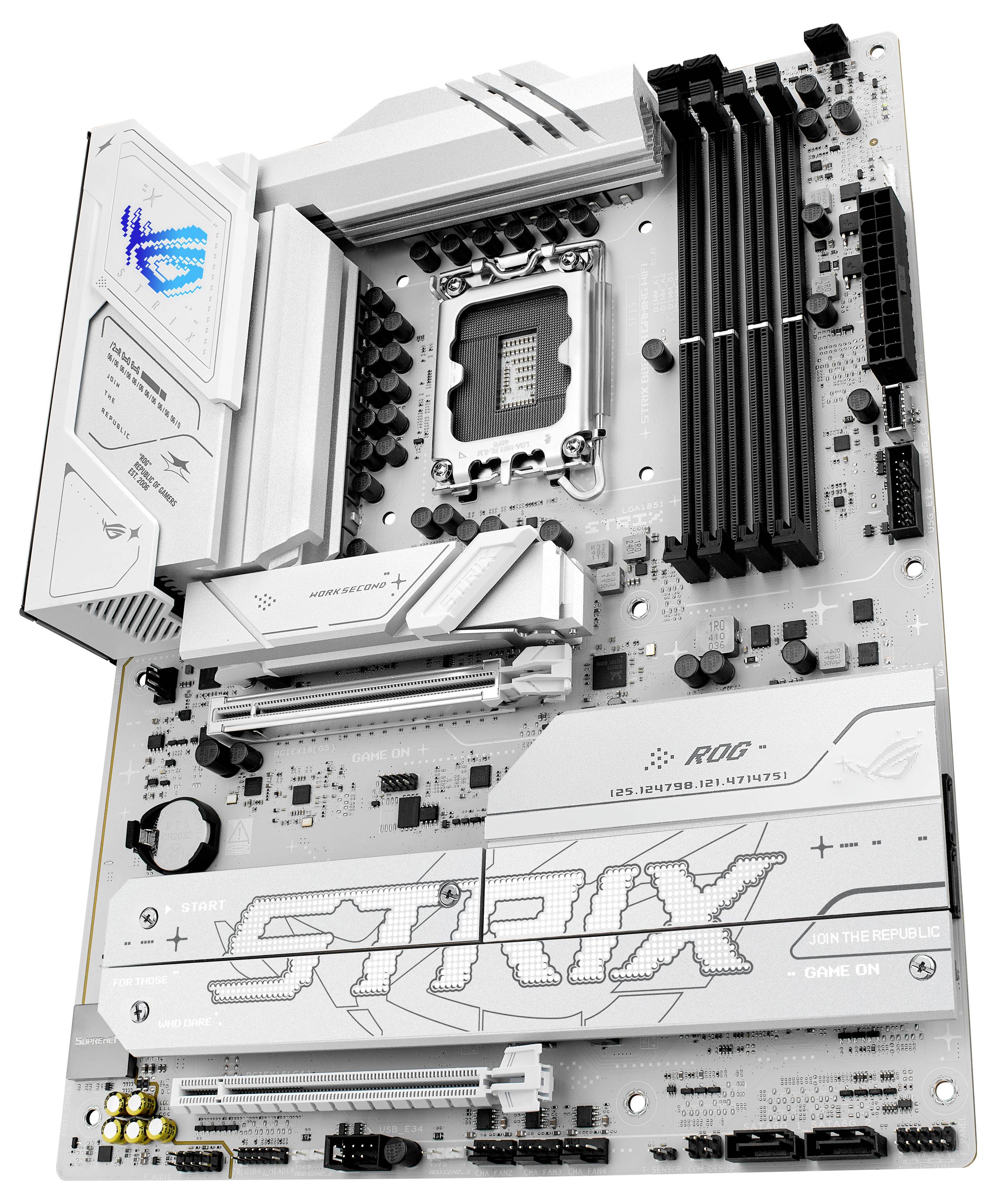

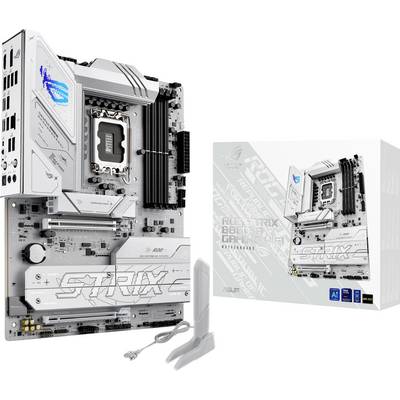

Asus ROG STRIX B860-A GAMING WIFI Motherboard
Highlights & Details
- Supports Intel core ultra processors for improved performance
- High-definition audio with Dolby Atmos for an impressive experience
- Robust power supply design with 14+1+2+1 phase architecture
- Extensive connectivity options, including USB4 and multiple M.2 slots
- Adjustable RGB lighting with Asus Aura Sync
Technical specifications
- RAM bus frequency 4300 MHz (O.C.)
- Supported RAM Health Check: Non-ECC
- RAM Registered or buffered: Unbuffered, clock-independent, unbuffered
- RAM Special features: Intel Extreme Memory Profile (XMP), two-channel memory architecture
- Type HD Audio (8-channel)
- Audio Codec: Realtek ALC1220P
- Audio compatibility: High-definition audio, Dolby Atmos
- Network interfaces: 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4
- Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x M.2 socket (2280 M.2 Key M slot), 1 x M.2 socket (2242/2260/2280 M.2 slot with Key M), 1 x M.2 socket (2280/22,110 M.2 Key M slot)
- Memory interfaces: SATA-600 interface points: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 connection points: 1 x M.2, PCIe 4.0 connection points: 3 x M.2
- RAID features: Intel Rapid storage technology

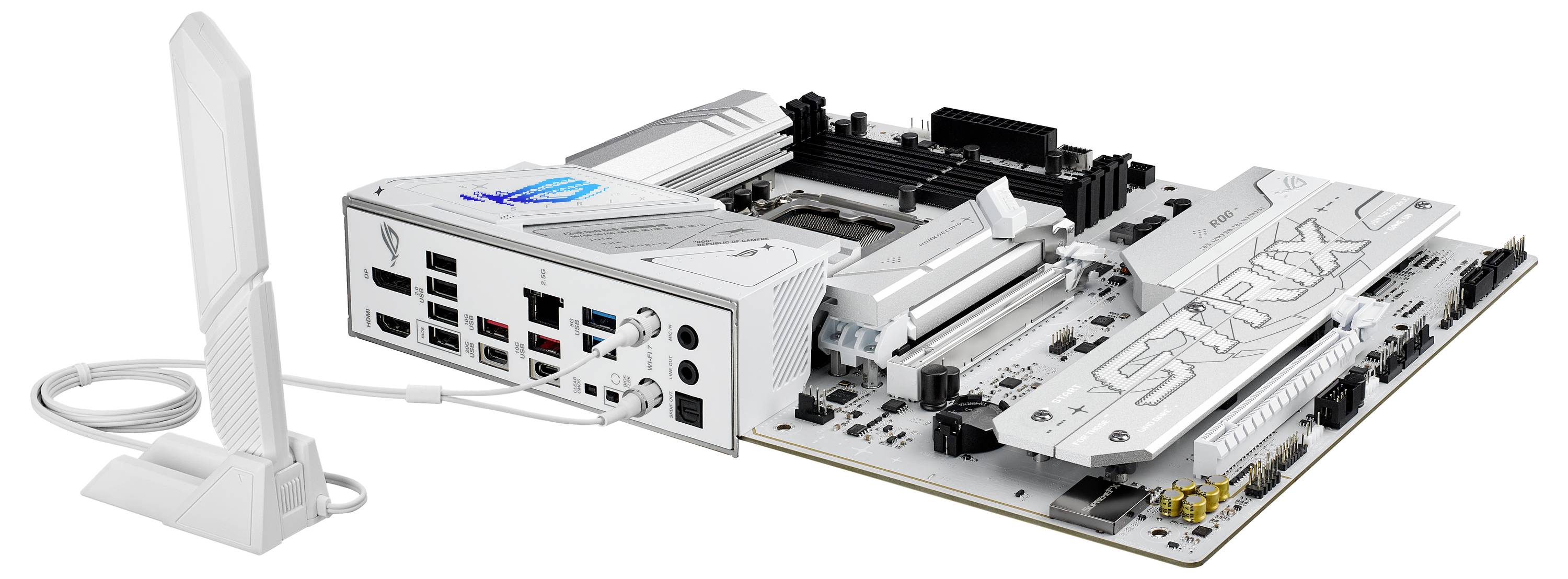

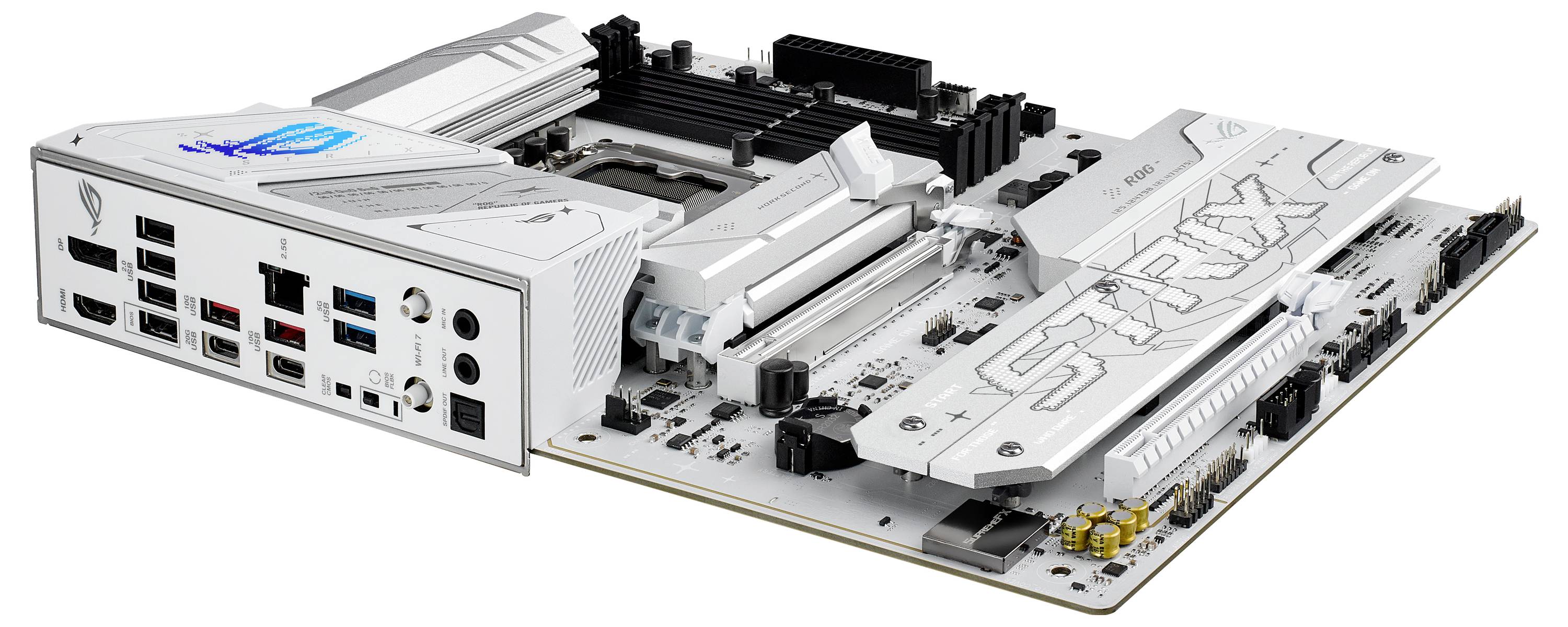

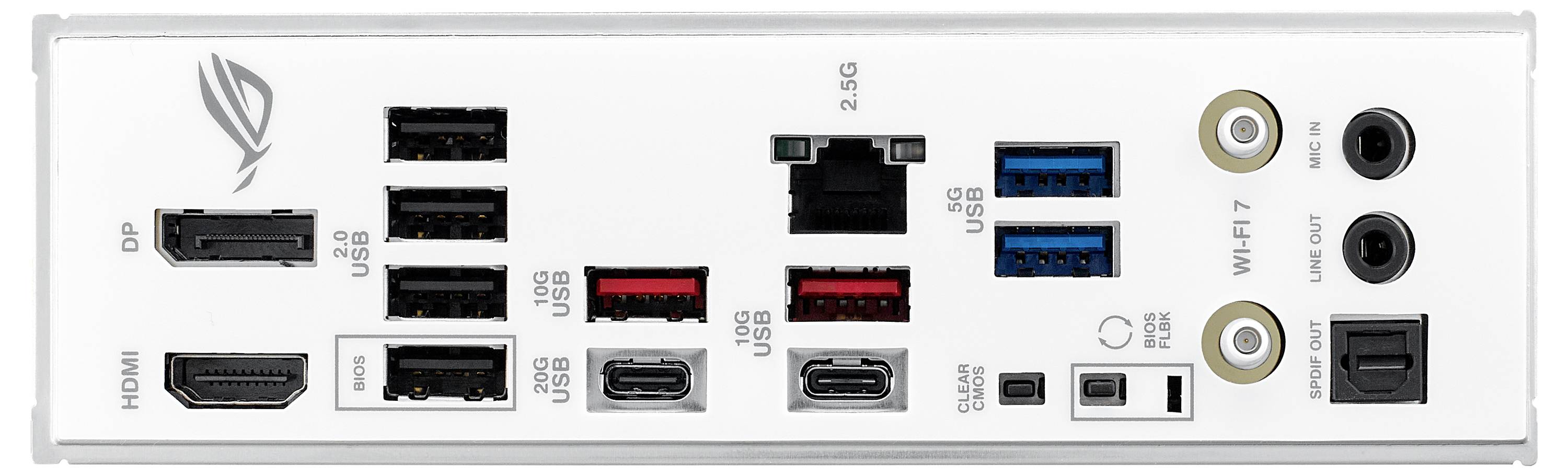

- External interfaces: 1 x LAN (2.5Gigabit Ethernet), 1 x HDMI, 1 x DisplayPort, 1 x USB4, 1 x USB 3.2 Gen 2, 2 x USB-C 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 2 x antenna, 1 x microphones - Mini jack plug, 1 x audio line-out – mini jack plug, 1 x SPDIF-output
- Internal interfaces: 1 x USB-C 3.2 Gen 2 - multi-pin connector, 2 x USB 3.2 Gen 1 - multi-pin connector, 2 x USB 2.0 - multi-pin connector, 1 x audio - multi-pin connector, 1 x Thunderbolt 4 - multi-pin connector
- Power connections: Main power connection, 24-pin, 2 8-pin ATX12V connections
- BIOS type: AMI
- BIOS functions: UEFI BIOS, Asus EZ Flash, Asus UEFI BIOS EZ Mode
- Hardware features: Intel turbo boost technology 2.0, Intel turbo boost technology 3.0, Asus advanced memory profile (AEMP) III, CUDIMM support, transparent CMOS button, Asus extreme engine Digi+, 5K black metallic capacitators, Asus Q-design, M.2 Q-latch, M.2 Q-release, M.2 Q-slide, Q-release slim, Q-antenna, Q-dashboard, Q-DIMM, Q-LED, Q slot, M.2 heatsink rear panel, M.2 heatsink, VRM heatsink design, Asus EZ DIY, BIOS Flashback key, BIOS Flashback LED, CPU socket lever protection, Asus ProCool, pre-mounted I/O shield, Asus SafeSlot, Asus SafeDIMM, Asus Aura Sync, 14+1+2+1 Phase Power design, 80 A power stage, NPU Boost
- Product type
Motherboard
- Chipset
Intel® B860
#####Intel® 1851
- Form factor
ATX
- Processor/type
(unterstützt Intel Core Ultra Prozessoren (Serie 2))
- RAM type
DDR5 RAM
- Clock speed
4300 MHz
- RAM / Max. upgrade
256 GB
- Interfaces
Gigabit LAN (1/2.5 Gbps)
HDMI™
DisplayPort
USB C® (USB4®)
USB C® (USB 3.2 2nd gen)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Antenna (75 Ohm)
Audio line out
Show more
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- No. of USB 3.2
2 x
- No. of USB 3.0 ports
2 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
White
- Depth
244 mm
- Height
50 mm
- Width
305 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- Range of use
PC
- Weight
1.4 kg
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Ethernet LAN
yes
- Number of memory slots
4
- Thunderbolt headers
1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Microphone in
yes
- S/PDIF out port
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- USB4 Gen 2x2 ports quantity
1
- Supported memory clock speed (max)
8600 MHz
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
1.68 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Clear CMOS button
yes
- Number of storage drives supported
8
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3376547 Asus ROG STRIX B860-A GAMING WIFI Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Int
Description
The Asus ROG STRIX B860-A GAMING WIFI motherboard has been designed for high performance and is designed for gamers and Power users alike. With support for Intel core ultra processors and advanced DDR5 SDRAM this motherboard unleashes an extraordinary computing power. It features a rugged power supply design with 14+1+2+1 phase architecture that ensures stable performance during intensive gaming sessions. Fitted with high-definition audio functions, including Dolby Atmos-support, the gamers can experience an impressive sound quality. This motherboard also offers extensive connectivity options, including USB4, HDMI and several M.2 slots for fast memory solutions. The slim ATX form factor and the adjustable RGB lighting with Asus Aura Sync improve aesthetics and at the same time provide the necessary cooling solutions for optimum operation.
Advanced connectivity
With numerous connection possibilities, including USB 3.2 Gen 2, USB-C, HDMI and DisplayPort, this motherboard offers the flexibility you need for a comprehensive gaming setup.
Optimised audio experience
With high-definition audio standards and Dolby-Atmos-support the ROG STRIX B860-A provides high-quality sound for games and multimedia applications.
Efficient cooling solutions
Equipped with a VRM heat sink and an M.2 heat sink, this motherboard maintains optimum temperatures even during intensive use and provides for a stable power.
Versatile storage configurations
With options for RAID configurations and multiple M.2 slots alongside SATA interfaces, users can maximize storage efficiency and speed.
Adjustable aesthetics
The Asus aura sync-technology enables the adjustment of the RGB lighting, as a result of which the visual attractiveness of each gaming rig is improved.
This text is machine translated.
Advanced connectivity
With numerous connection possibilities, including USB 3.2 Gen 2, USB-C, HDMI and DisplayPort, this motherboard offers the flexibility you need for a comprehensive gaming setup.
Optimised audio experience
With high-definition audio standards and Dolby-Atmos-support the ROG STRIX B860-A provides high-quality sound for games and multimedia applications.
Efficient cooling solutions
Equipped with a VRM heat sink and an M.2 heat sink, this motherboard maintains optimum temperatures even during intensive use and provides for a stable power.
Versatile storage configurations
With options for RAID configurations and multiple M.2 slots alongside SATA interfaces, users can maximize storage efficiency and speed.
Adjustable aesthetics
The Asus aura sync-technology enables the adjustment of the RGB lighting, as a result of which the visual attractiveness of each gaming rig is improved.
This text is machine translated.
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (2 Series)
- Exclusive AI technologies: NPU Boost, Asus AI Advisor, Asus exclusive AI Networking II.
- Exclusive storage technologies: DIMM Fit and AEMP III to simplify setup and improve performance
- Robust power supply solution: 14(80A)+1(80A)+2(80A)+1(80A) power levels with ProCool power terminals, MicroFine alloy reactors and high quality metal capacitors
- Optimized thermal design: Massive heat sink with integrated I/O cover, high-conductive heat conductive heat conductive pads
- Latest M.2 support: One PCIe® 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with comprehensive cooling solutions
- Versatile connectivity: One USB4® (20Gbps) USB Type-C® port, four additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for Next-Gen graphics cards, HDMI™ 2.1 and DisplayPort™ 1.4
- High performance network functions: Built-in Intel Wi-Fi 7 (802.11b) with Asus WiFi Q-antenna, Intel 2.5 GB Ethernet
- DIY-friendly design: M.2 Q-Release, PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-LED, BIOS Flashback™ key, Clear CMOS key and pre-mounted I/O shield
- Immersive Audio: Realtek ALC1220P Codec with Savitech SV3H712 amplifier and Dolby Atmos®
- Unmatched personalization: Asus-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
- Renowned software: Asus DriverHub, Dolby Atmos®, TurboV Core, GlideX, hwinfo, bundled 60-day AIDA64 Extreme subscription

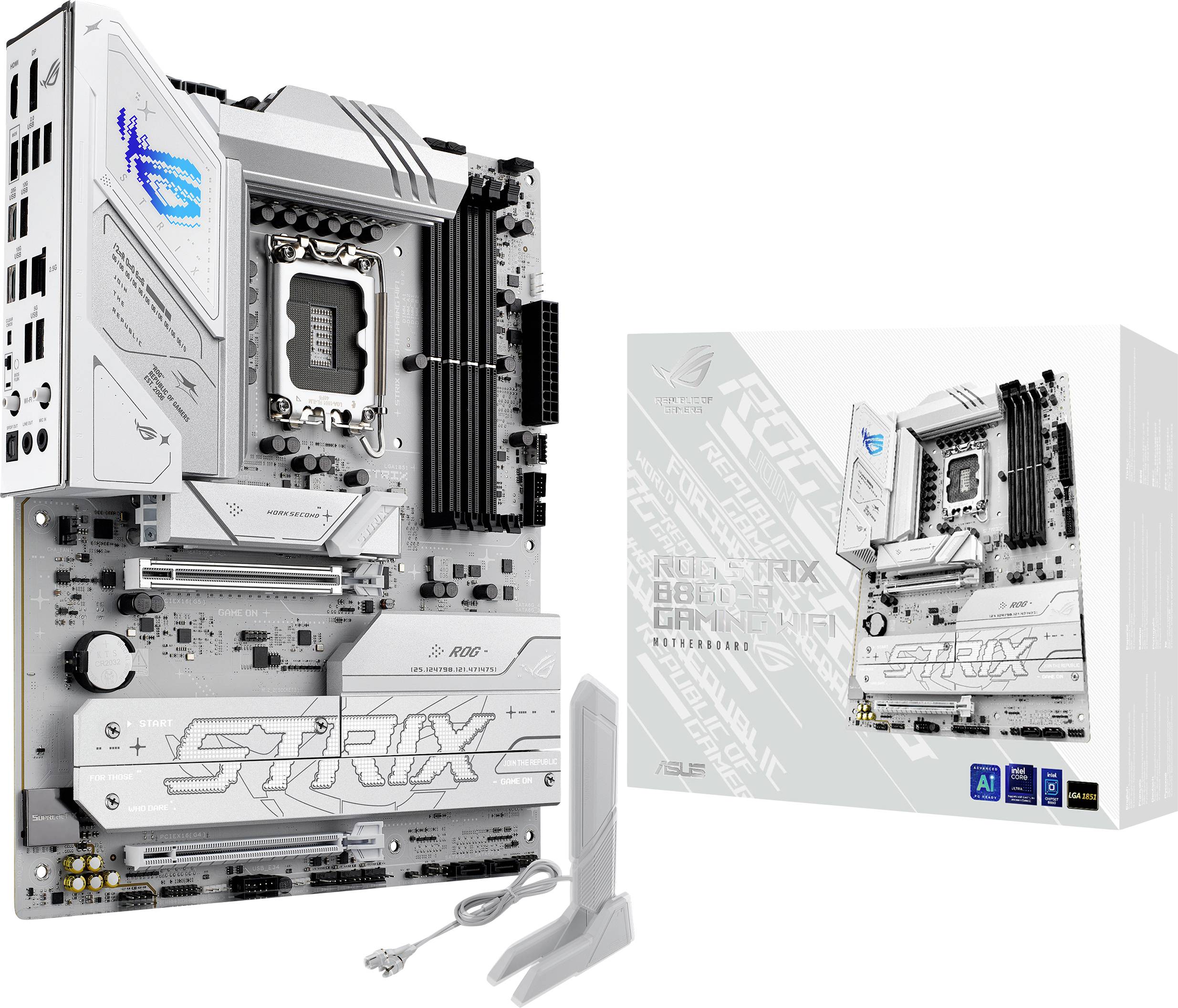

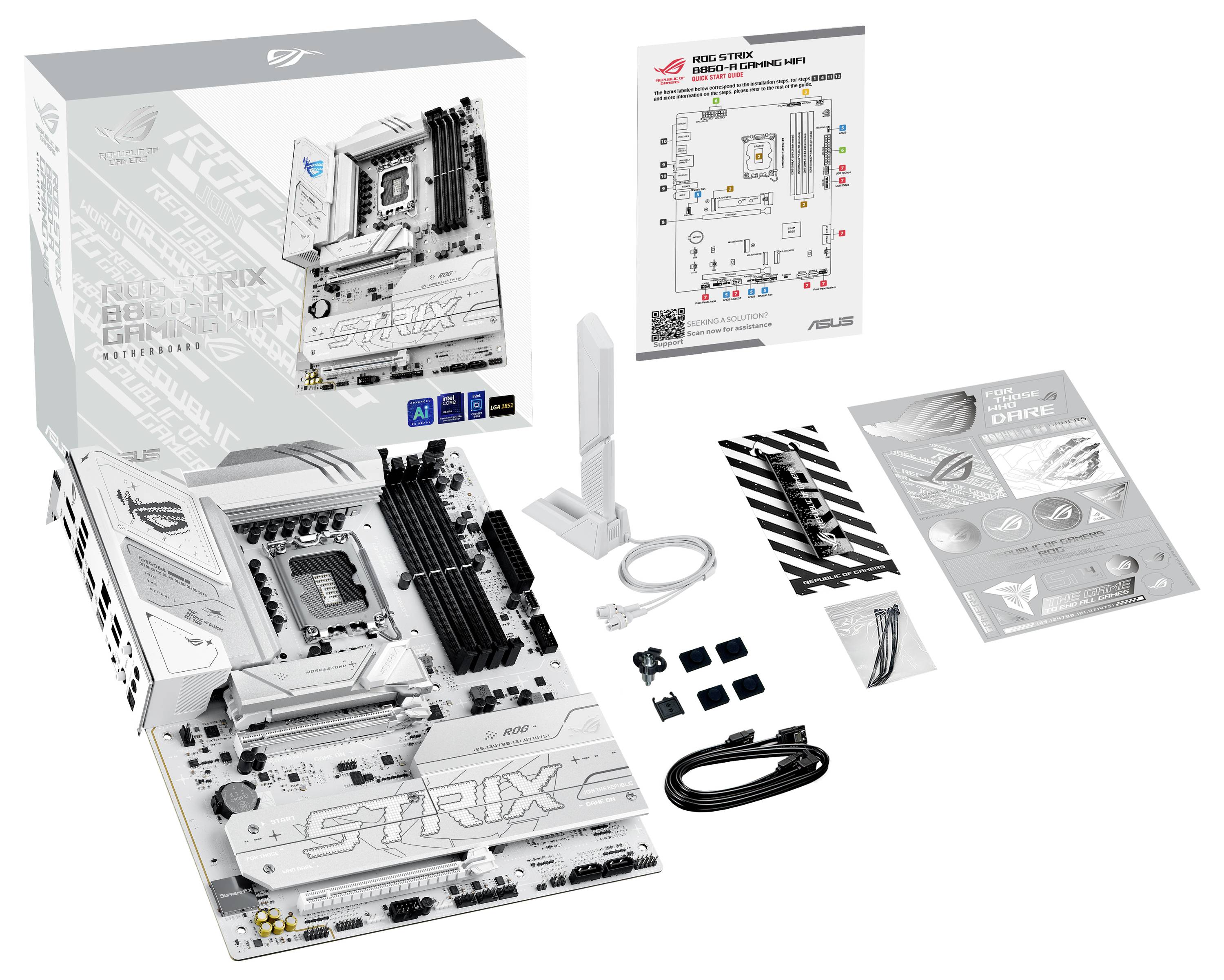

Scope of delivery

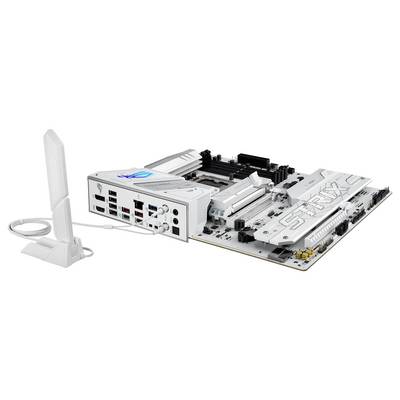

- Asus Wi-Fi Q-antenna
- Cable Ties
- M.2 Q latch
- M.2 Q-Slide
- ROG key chains
- ROG STRIX sticker
- 4 x M.2 Rubber
- 2 x Serial ATA cable
