Asus ROG STRIX X870E-E Gaming WIFI (AM5) Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset
EAN:
Part number:
Item no:

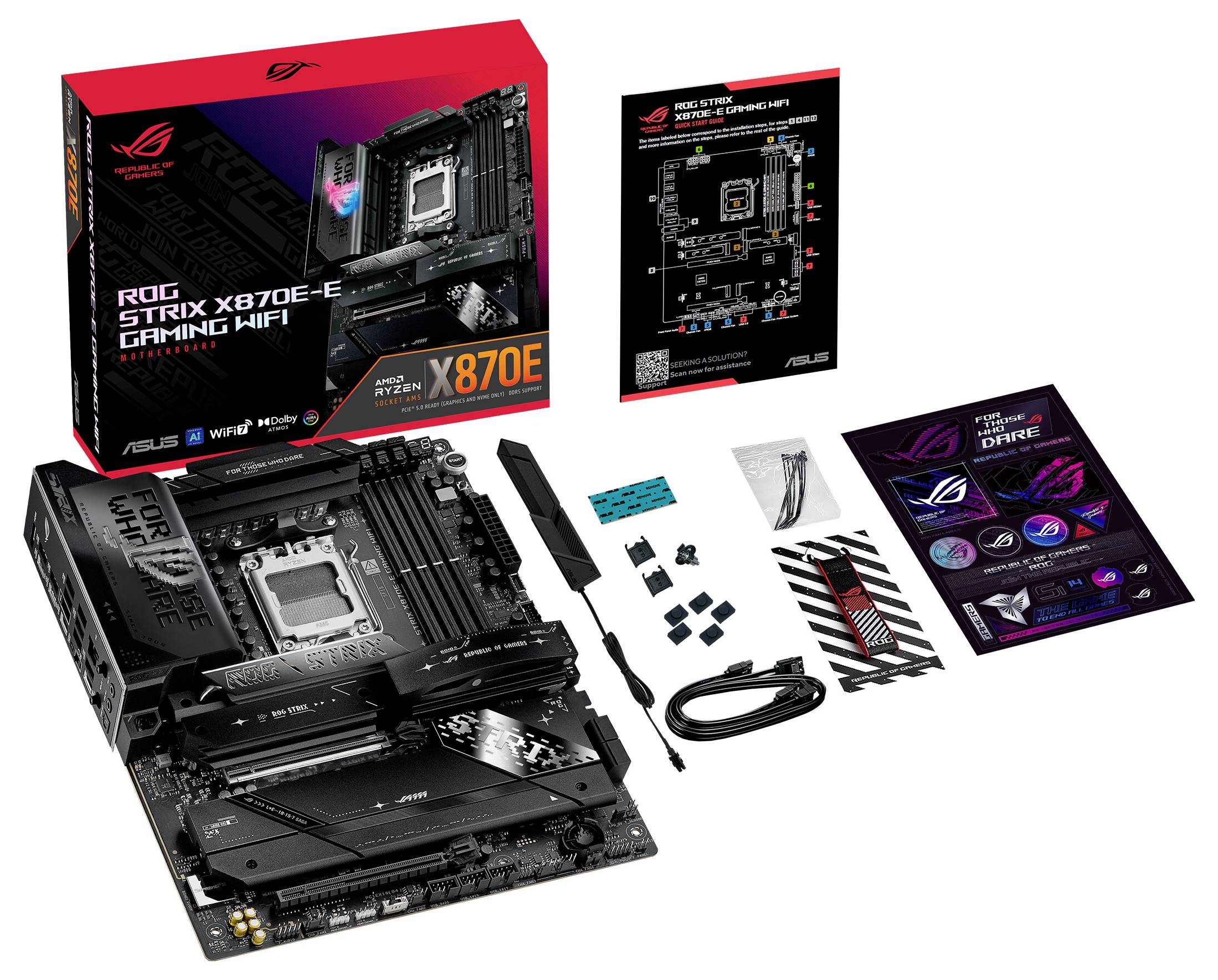

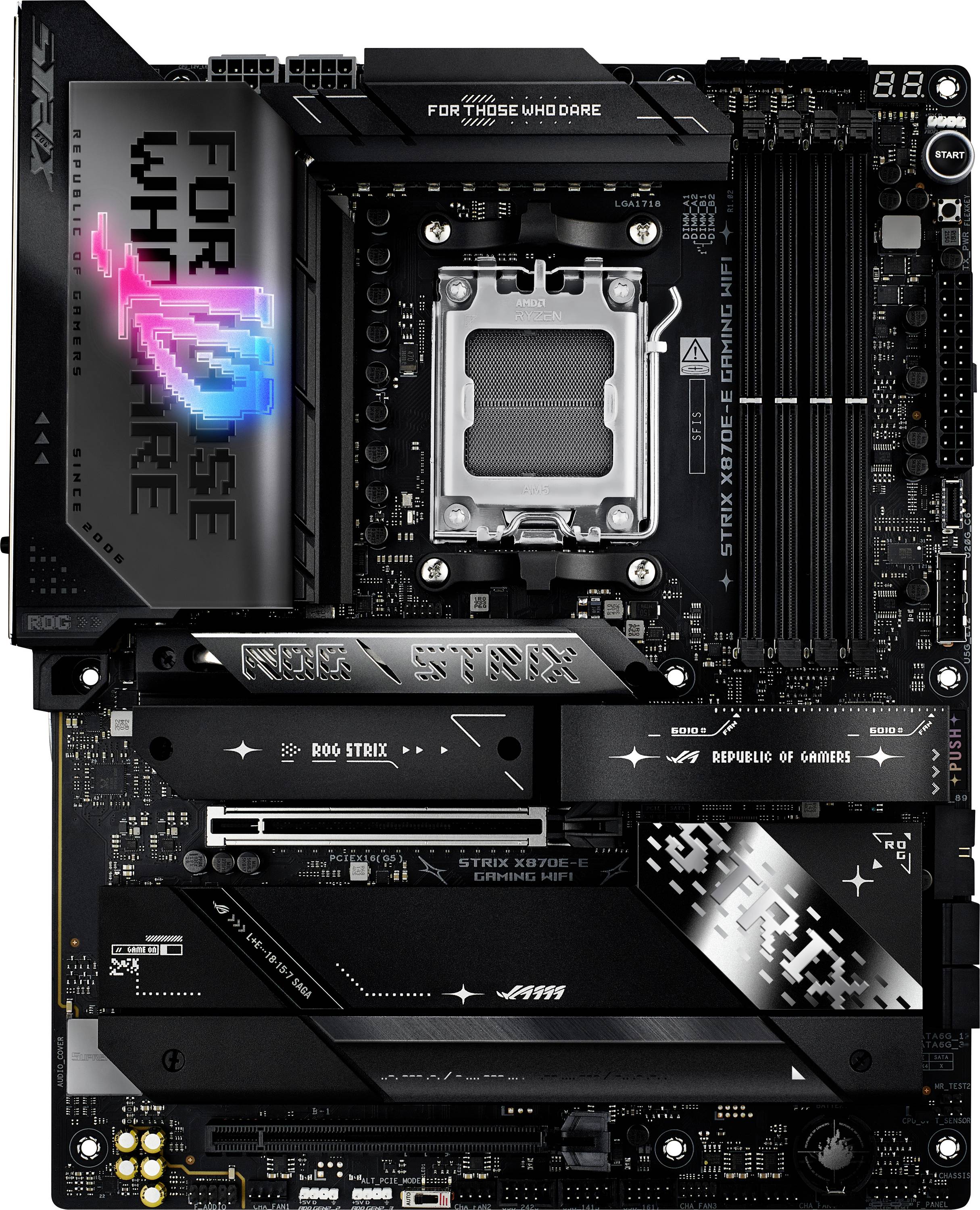

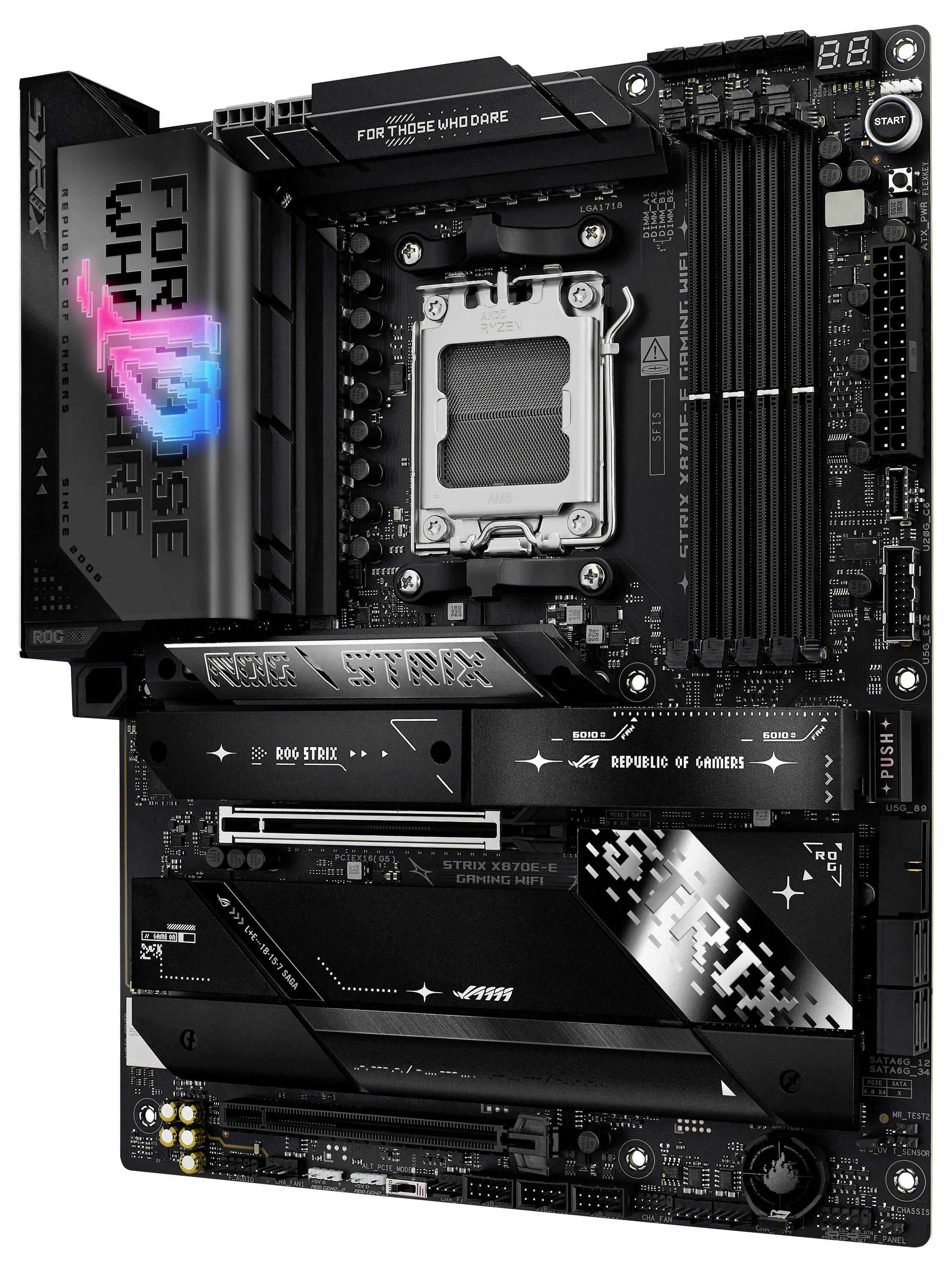

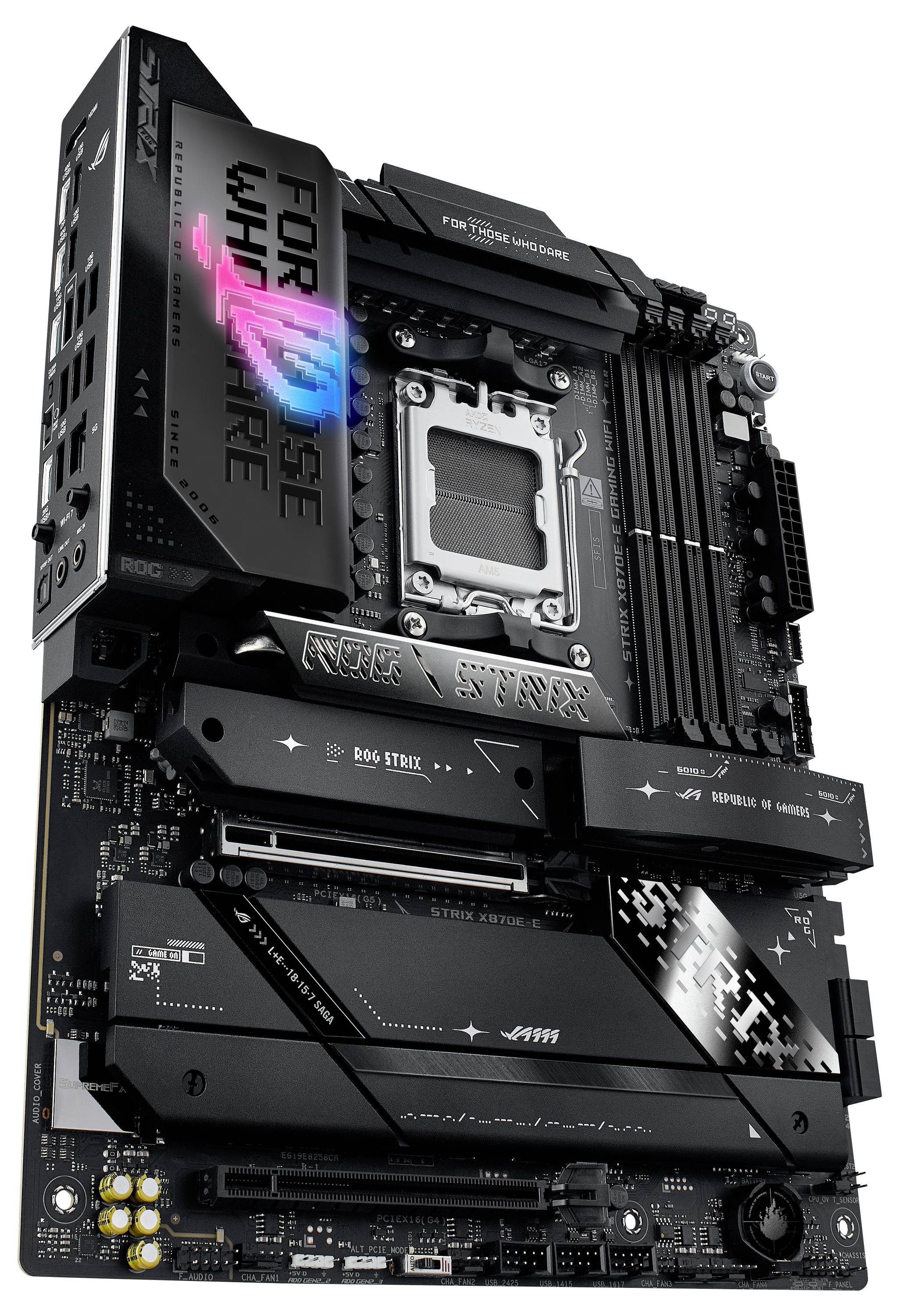

Asus ROG STRIX X870E-E Gaming WIFI (AM5) Motherboard
Highlights & Details
- AMD Socket AM5
- PC ATX AMD X870E Realtek ALC4080 7.1 channels
- DDR5 SDRAM 4 DIMM ECC Without ECC RAM Maximum: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 9
- BIOS type UEFI AMI 256 Mbit Clear CMOS button
- 5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Product type
Motherboard
- Chipset
AMD® X870
#####AMD AM5
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
192 GB
- Interfaces
USB A (USB 3.2 2nd gen)
USB C® 3.2
RJ45
HDMI™
Microphone (3.5 mm jack)
S/PDIF
Wi-Fi
Bluetooth
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 3.2 2nd Gen (USB 3.1)
9 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Black
- Depth
244 mm
- Height
50 mm
- Width
305 mm
- Weight
3.02 kg
- Wi-Fi
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3337793 Asus ROG STRIX X870E-E Gaming WIFI (AM5) Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset
Description
The ROG STRIX X870E-E Gaming WiFi is designed to unleash the full potential of the AMD Ryzen™ 9000 series processors. With the support of PCIe® 5.0, AI Overclocking, AI Cooling II, AI Networking II and AEMP the setup is simplified and the performance maximized. Two USB4® Type-C ports and Wi-Fi 7 with Realtek 5GB Ethernet provide first-class connectivity, while robust heat sinks keep the M.2 drives cool even under high loads. This motherboard not only meets the requirements of games and professional applications, but also offers the necessary performance and connectivity for advanced KI-PC applications.
AI over-clocking
Asus AI Overclocking creates profiles for the CPU and the cooling in order to determine the optimum configuration and to bring the system to its limits.
AI cooling II
Match the temperatures and noise levels of each build with a single click.
AI Networking II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide a trusted and seamless connection, and unlock the full speed of WiFi 7*.
This text is machine translated.
AI over-clocking
Asus AI Overclocking creates profiles for the CPU and the cooling in order to determine the optimum configuration and to bring the system to its limits.
AI cooling II
Match the temperatures and noise levels of each build with a single click.
AI Networking II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide a trusted and seamless connection, and unlock the full speed of WiFi 7*.
This text is machine translated.
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Intelligent control: Asus-exclusive AI overclocking, AI Cooling II, AI Networking II and AEMP for simplifying the setup and improving the performance
- ROG STRIX Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Robust power supply: 18+2+2 Power supply solutions for 110 A per Power Stage with two ProCool II power connectors, high-quality alloy reactors and durable capacitors to support multi-core processors
- Optimised cooling design: Massive heat sinks with integrated I/O cover high-conductivity heat-conducting pads and are connected with an L-shaped heat-pipe
- Latest M.2 support: Three onboard PCIe® 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with extensive cooling solutions
- Versatile connectivity: Two USB4® Type-C ports, rear USB 20Gbps Type-C® connector with PD 3.0 up to 30W and USB Wattage Watcher, ten additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ connector
- High-performance networks: Built-in Wi-Fi 7 (802.11b) with Realtek 5 GB Ethernet
- DIY-friendly design: PCIe slot Q-release slim, M.2 Q-latch, M.2 Q-release, M.2 Q-slide, Q-antenna, Q Dashboard, Q Code, Q LED, Start key, BIOS Flashback™ key, Clear CMOS button and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4080 Codec with Savitech SV3H712 amplifier and Dolby Atmos®
- Unmatched personalization: Asus exclusive Aura Sync RGB lighting, with three addressable Gen 2 headers
- Renowned software: Asus DriverHub, Asus GlideX, hwinfo, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
