Name: Asus ROG-THOR-1600T3-GAMING-EVO PC power supply unit 1600 W ATX 80 PLUS Titanium
Brand: Asus
SKU: 3788406

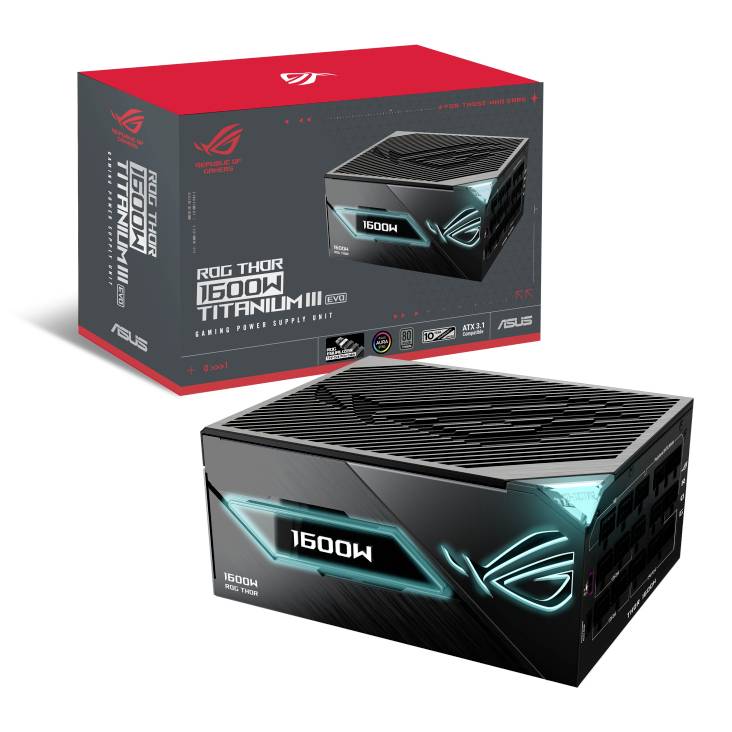

ASUS ROG Thor 1600W Titanium III gaming power supply shown with its retail box and the PSU unit, both black with red and teal accents.<br>

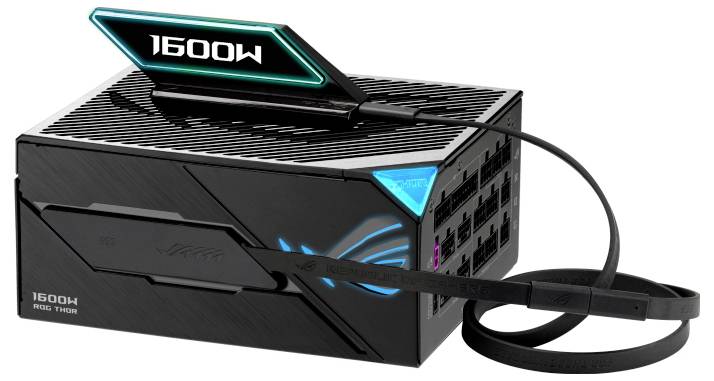

Black 1600W modular power supply unit with illuminated display and attached cables, shown in three-quarter view on a white background.

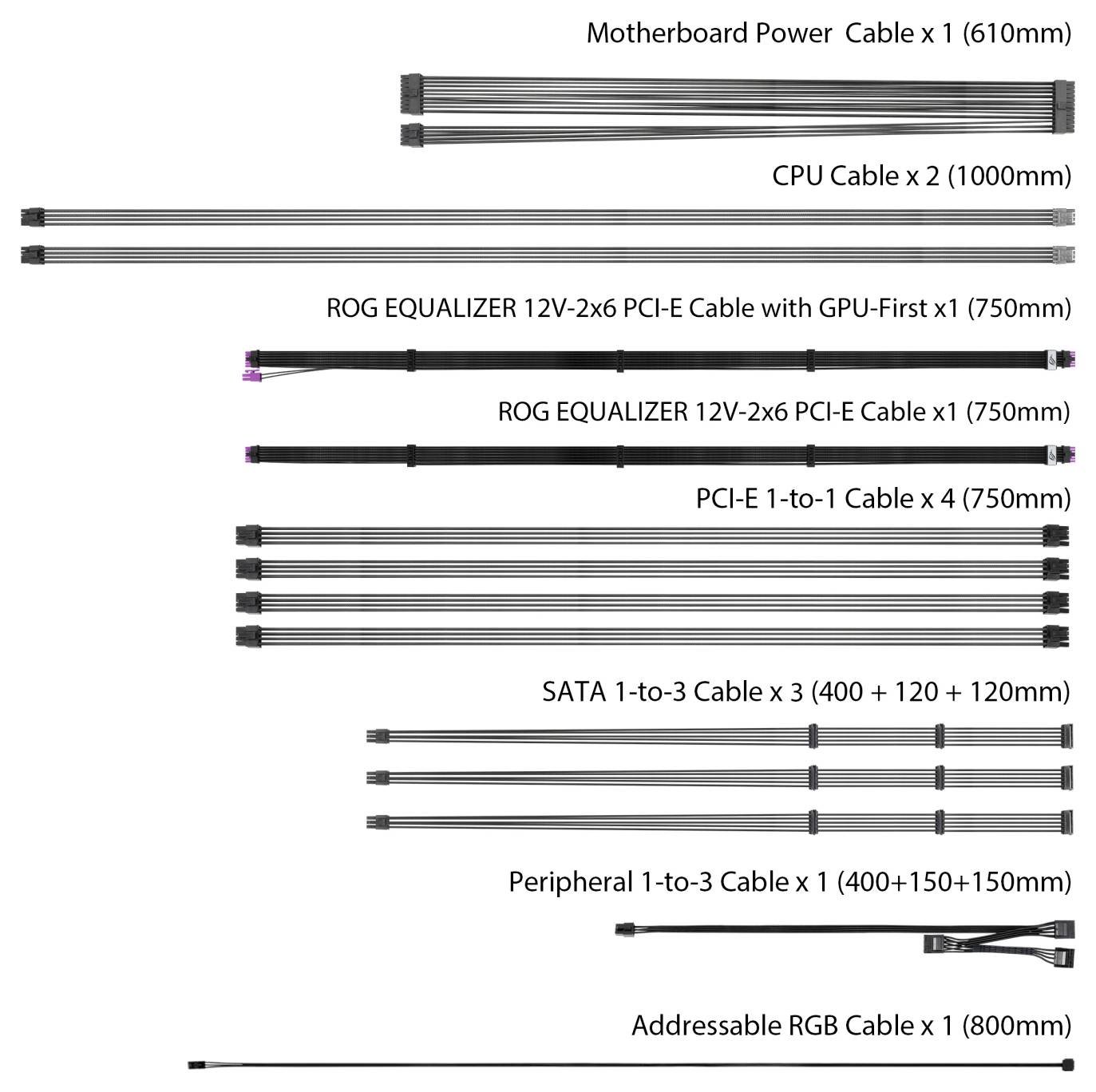

Diagram of included PSU cables with names, quantities, and lengths: motherboard, CPU, 12V-2x6 PCIe, PCIe, SATA, peripheral, and RGB cables.<br>

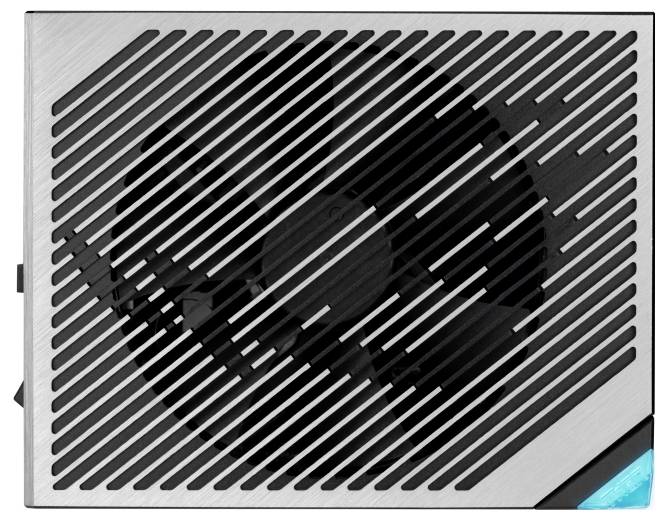

Silver computer case with diagonal black vent slats and a dark fan visible behind them, plus a small blue-lit corner accent.

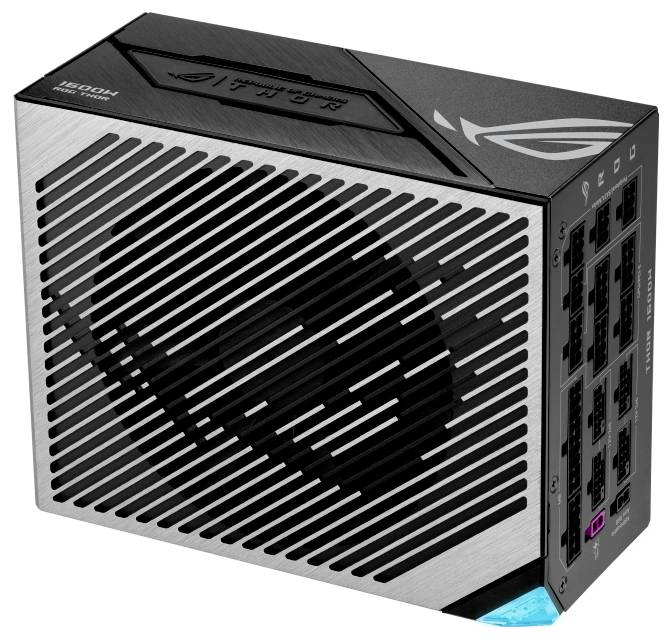

Black ASUS ROG power supply unit with ventilated front grille, modular cable ports, and glowing blue accent<br>

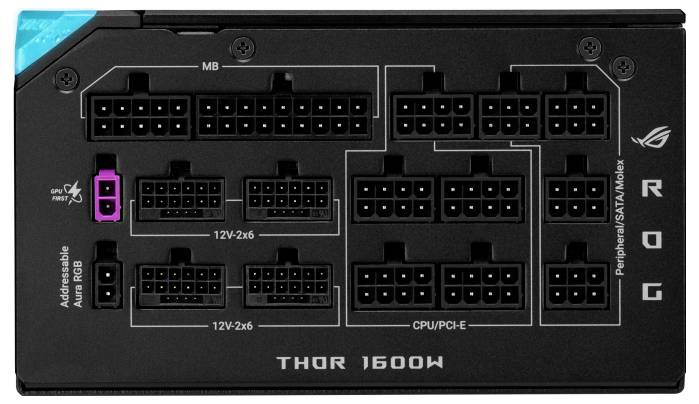

Labelled modular power supply panel with multiple cable ports, including 'MB', 'CPU/PCI-E', '12V-2x6', and 'Peripheral/SATA/Molex'.

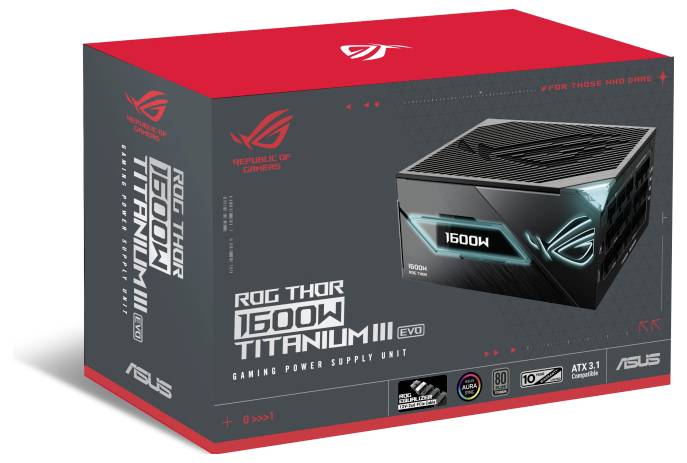

ASUS ROG Thor 1600W Titanium III EV0 gaming power supply unit box, shown in retail packaging with product image and logos.

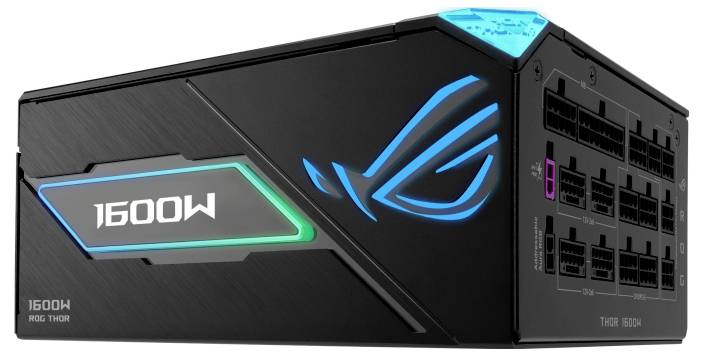

ASUS ROG THOR 1600W power supply unit shown in black with blue lighting and modular cable ports<br>

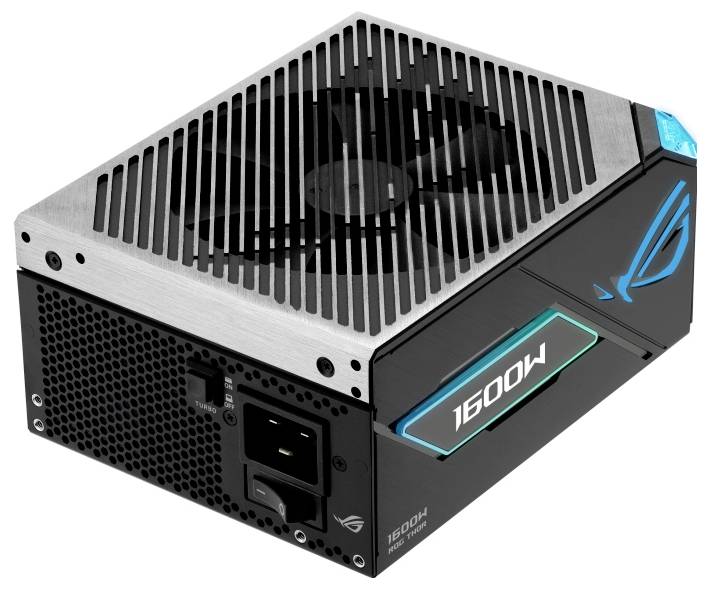

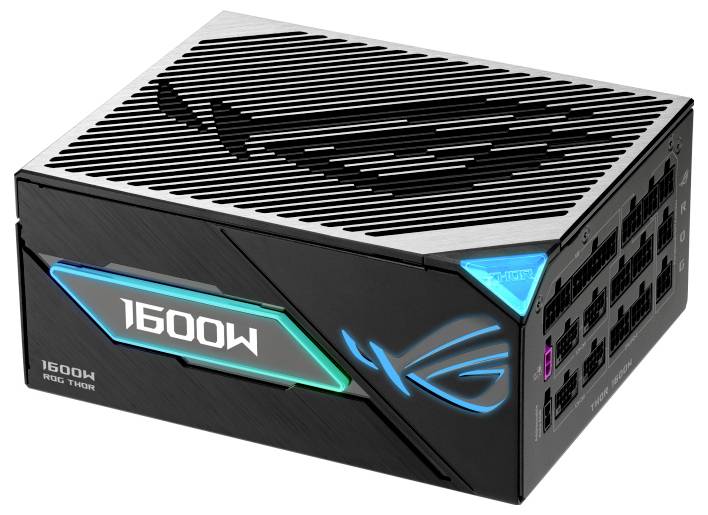

Black 1600W ROG Thor power supply unit with blue LED accents and vented top, shown in three-quarter view on white background.

1/13

Product type

PC power supply unit

PSU output power

1600 W

Certification

80 PLUS Titanium

Form factor

ATX

Factory colour

Grey

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Asus ROG-THOR-1600T3-GAMING-EVO PC power supply unit

Power supply unit output 1600 W
PCI-Express (6+2-Pin) 3x
Cable management
80 PLUS Titanium

Technical specifications

80 Plus certification: 80 PLUS Titanium
Number of fans: 1 fans

Product type: PC power supply unit

PSU output power: 1600 W

Certification: 80 PLUS Titanium

Form factor: ATX

Factory colour: Grey

Dim: (W x H x D) 190 x 86 x 150 mm

Depth: 150 mm

Height: 86 mm

Width: 190 mm

Weight: 2.5 kg

-12V / DC: 0.3 A

+12 V/DC (1): 133.3 A

5 V DC: 25 A

+5V / DC SB: 3 A

4-pin Molex: 3

6-pin PCIe: 3

5-pin SATA: 9

Power rating: 751 W -

Cable length: 0 cm

Keyboard layout: German, QWERTZ

Cooling: Active

3.3V DC: 30 A

Power supply (details): 100 - 240 V

UKCA: yes

Illumination: yes

Quantity per pack: 1 Stück(e)

Motherboard power cable length: 61 cm

CPU power cable length: 100 cm

PCI Express power cable length: 75 cm

PCI Express connector: yes

Cable tie(s) included: yes

PCI Express power connectors (16-pin): 2

: 3

Mean time between failures (MTBF): 120000 h

On/off switch: yes

ATX power connector (20+4 pin): yes

CPU power connector (4+4 pin): yes

Package weight: 5.91 kg

Combined power (+3.3V): 125 W

Combined power (+12V): 1600 W

Combined power (+5V): 125 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 15 W

Built-in display: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3788406 Asus ROG-THOR-1600T3-GAMING-EVO PC power supply unit 1600 W ATX 80 PLUS Titanium

Features

GaN MOSFET: Offers up to 30% more energy efficiency than standard MOSFETs and a better organized internal layout for a cooler operation
Patented GPU-First intelligent voltage stabilizer: Improves the power supply of your graphics card by up to 45% for fluent games and constant power.
Magnetic OLED Display Extender: Allows real-time performance and efficiency monitoring and features a removable design that allows for flexible mounting on the side or outside of the housing and good visibility.
DerTurbo Mode: Enables premium components and a finely tuned fan curve to provide support for extended power peaks.
ROG Equalizer 12V-2×6 PCIe power cable included: Redefines power protection by reducing heat stress and maintaining cable and plug temperatures well to protect the graphics card.
ROG heat sinks and a fully aluminum-made housing synchronize high-end cooling and control the thermal properties of your system.
Fans with double ball bearings: Retain for twice as long as bearings.
The ATX 3.1 standard: Provides improved voltage and current control for the latest hardware.
Certified modular cables: Provide effortless cable management and exceptional security with premium flexible material.
80 Plus Titanium certification: Achieved by low ESR capacitors and high-quality components that ensure industry-leading energy efficiency.

Description

Features

GaN MOSFET: Offers up to 30% more energy efficiency than standard MOSFETs and a better organized internal layout for a cooler operation
Patented GPU-First intelligent voltage stabilizer: Improves the power supply of your graphics card by up to 45% for fluent games and constant power.
Magnetic OLED Display Extender: Allows real-time performance and efficiency monitoring and features a removable design that allows for flexible mounting on the side or outside of the housing and good visibility.
DerTurbo Mode: Enables premium components and a finely tuned fan curve to provide support for extended power peaks.
ROG Equalizer 12V-2×6 PCIe power cable included: Redefines power protection by reducing heat stress and maintaining cable and plug temperatures well to protect the graphics card.
ROG heat sinks and a fully aluminum-made housing synchronize high-end cooling and control the thermal properties of your system.
Fans with double ball bearings: Retain for twice as long as bearings.
The ATX 3.1 standard: Provides improved voltage and current control for the latest hardware.
Certified modular cables: Provide effortless cable management and exceptional security with premium flexible material.
80 Plus Titanium certification: Achieved by low ESR capacitors and high-quality components that ensure industry-leading energy efficiency.
