Name: Asus ROG THOR PC power supply unit 1000 W ATX 80 PLUS Platinum
Brand: Asus
SKU: 3788053

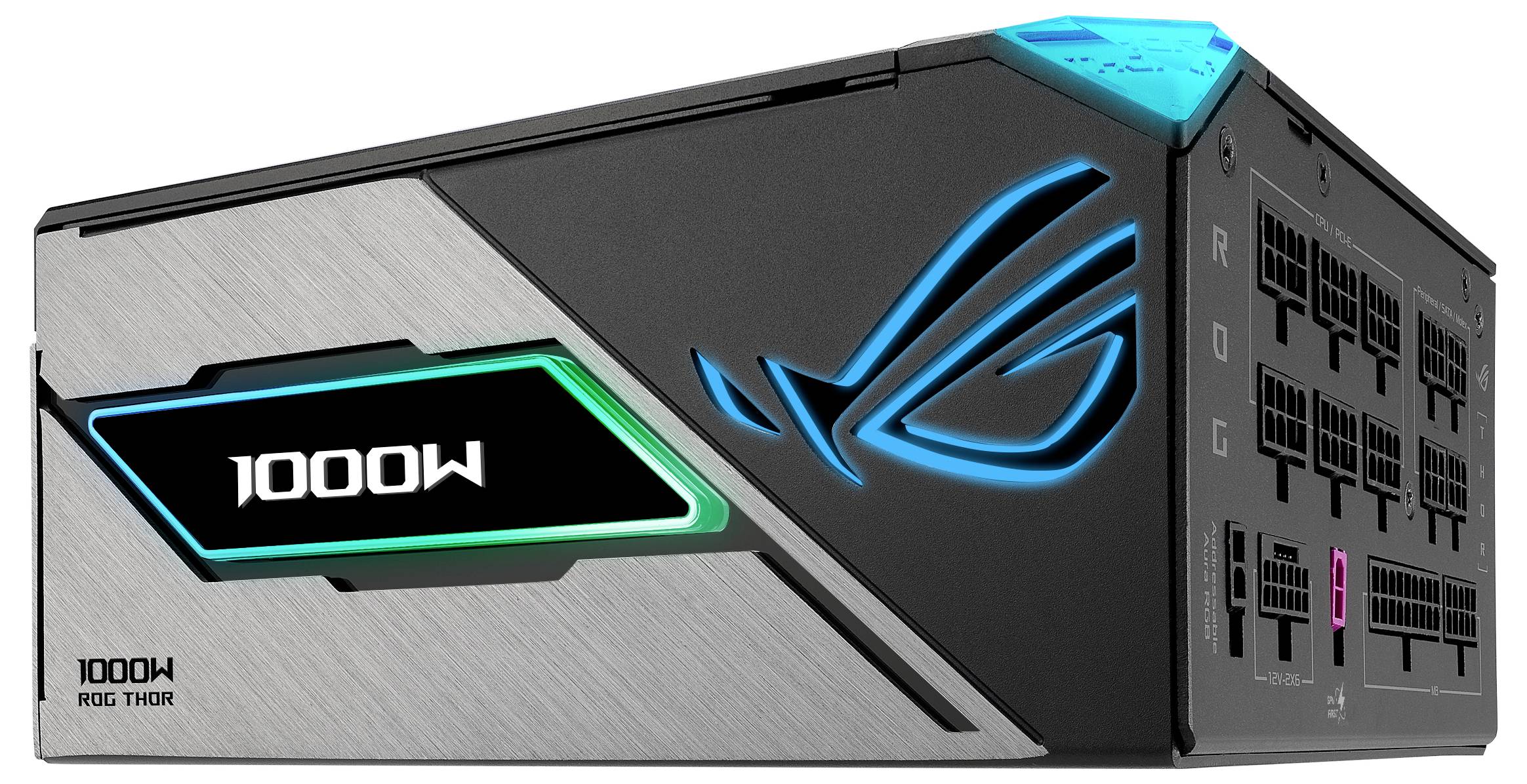

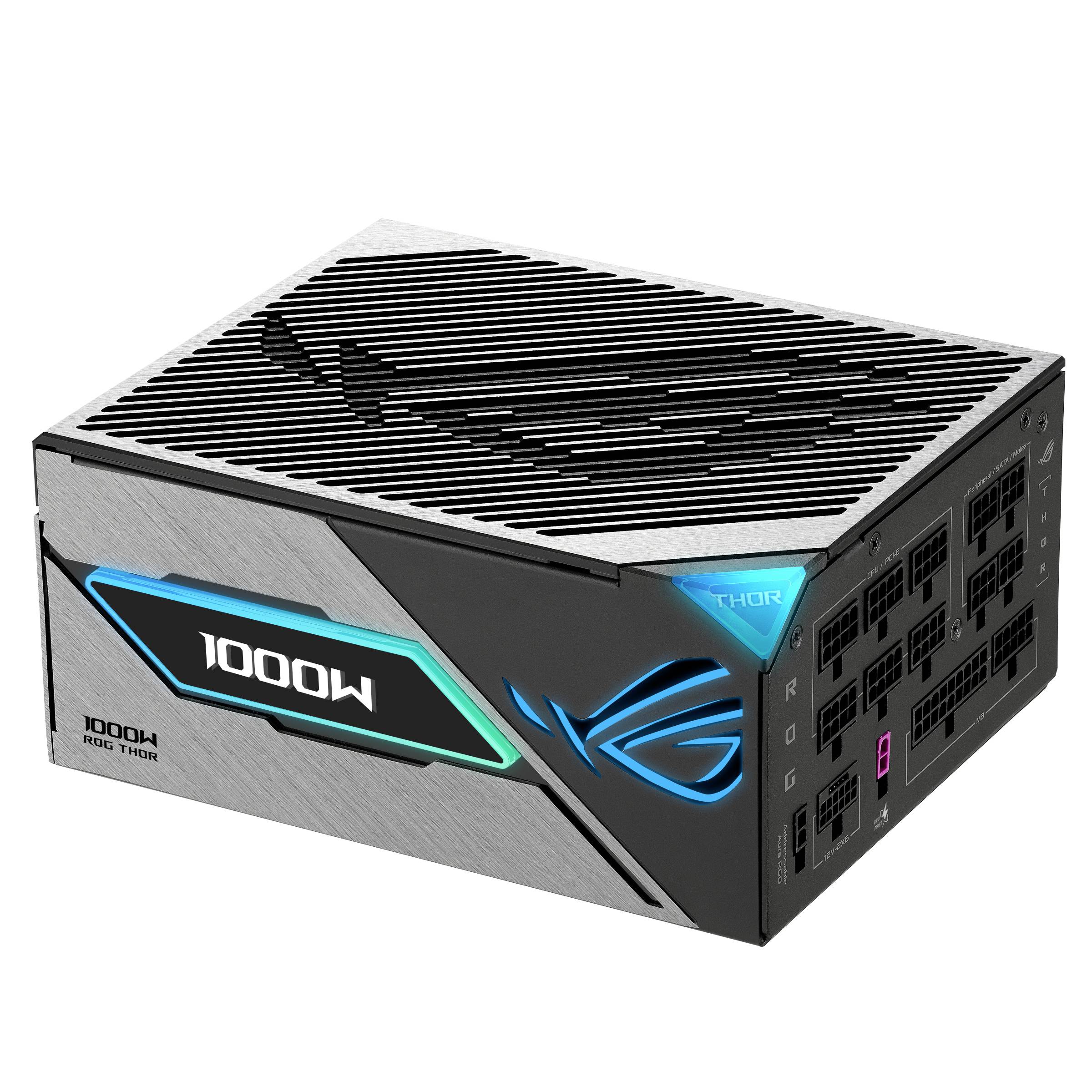

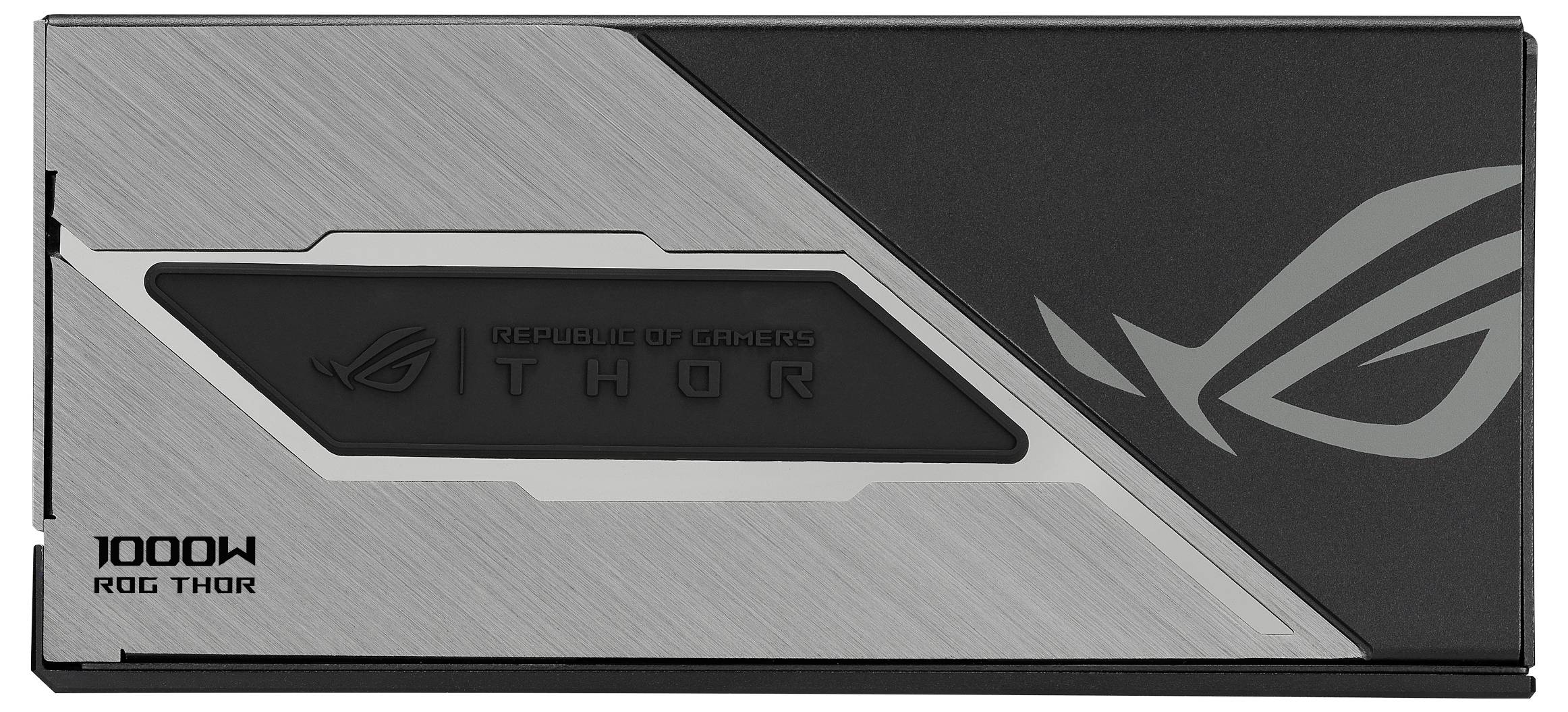

1000W ROG Thor computer power supply unit with black and silver casing, cyan lighting, and multiple cable ports on the side.

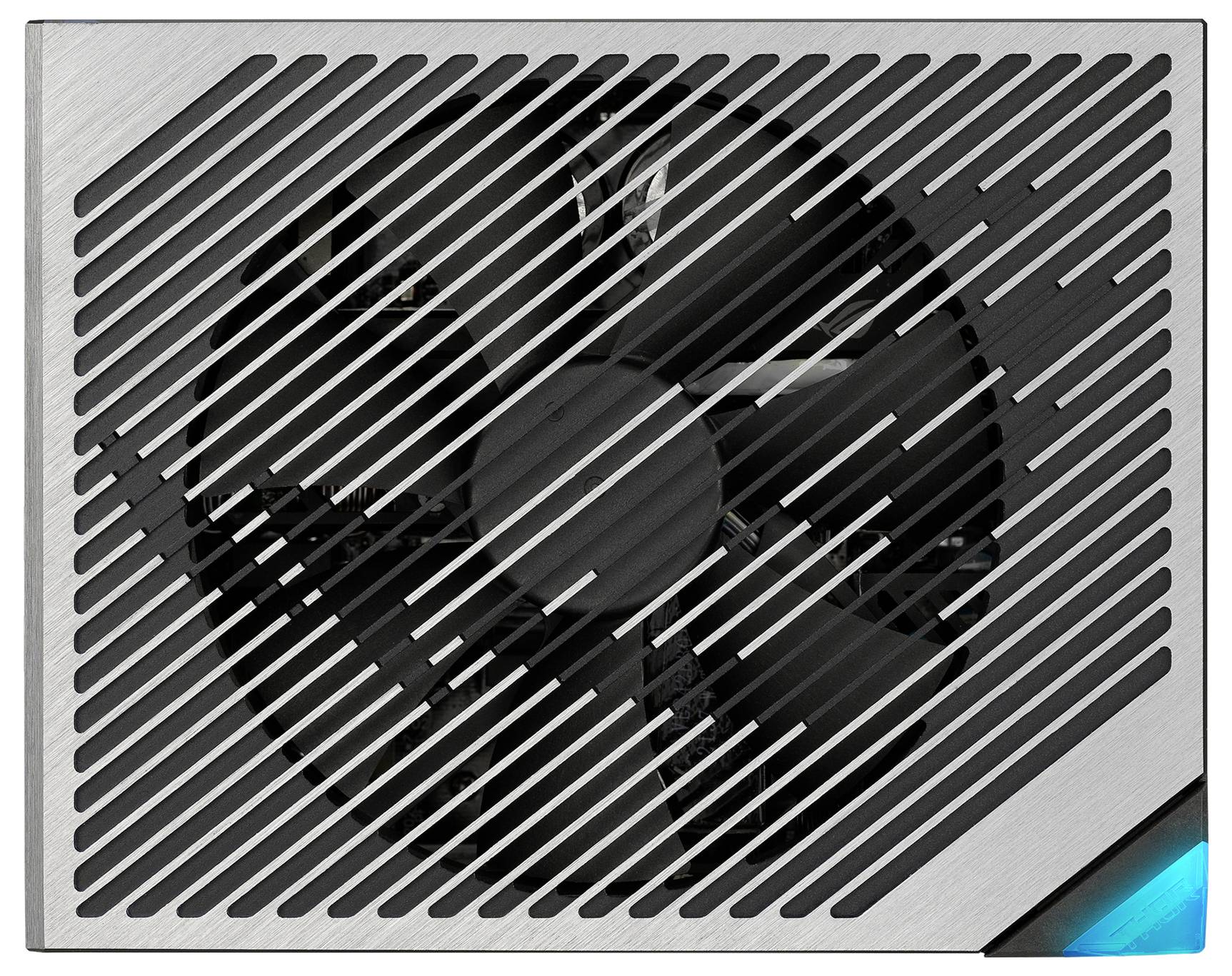

Close-up of a computer cooling fan behind a vented metal grille, with a blue-lit corner accent.

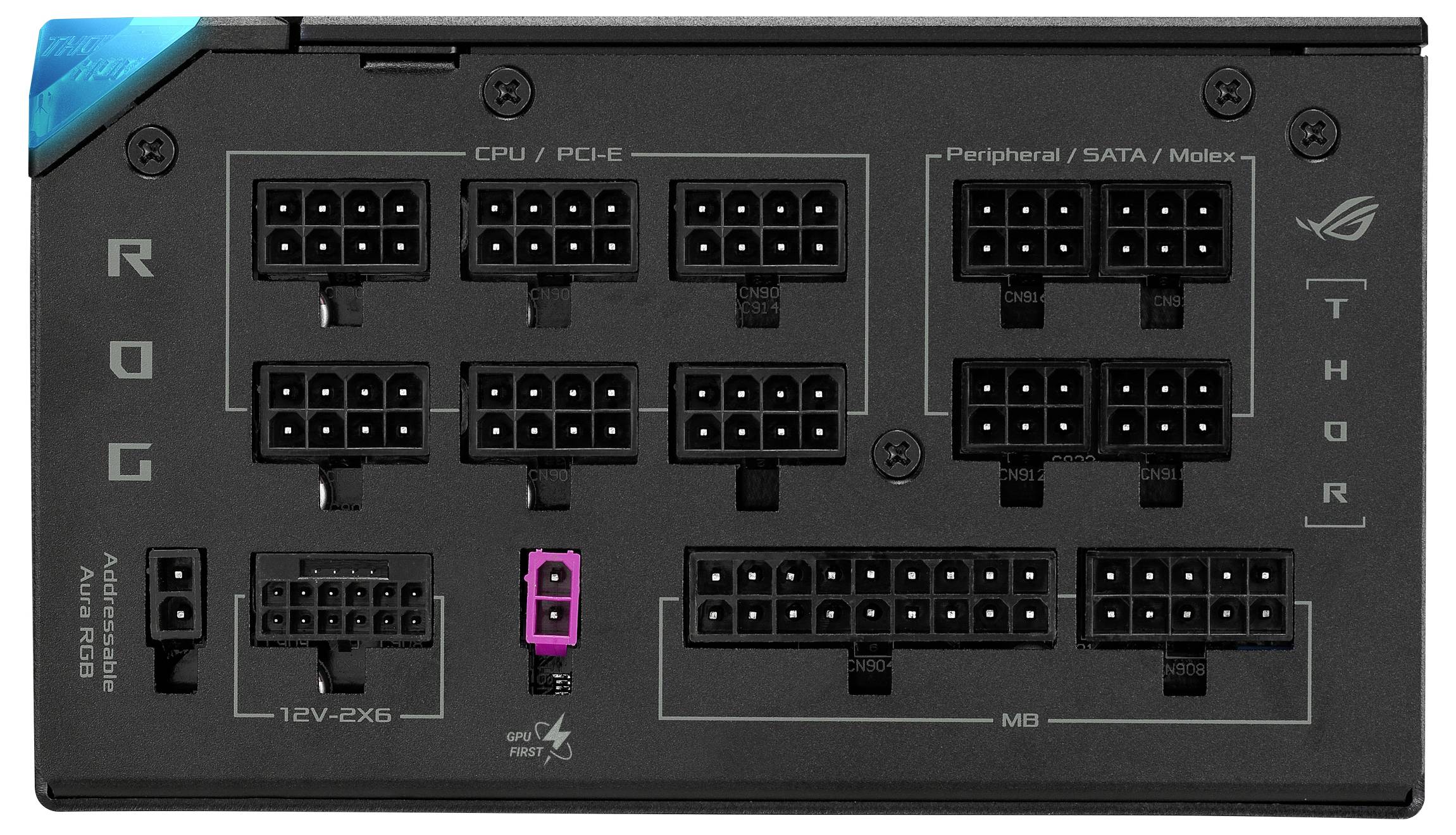

Computer power supply modular cable ports labeled CPU/PCI-E, Peripheral/SATA/Molex, and MB, with a highlighted pink GPU 12V-2x6 connector.

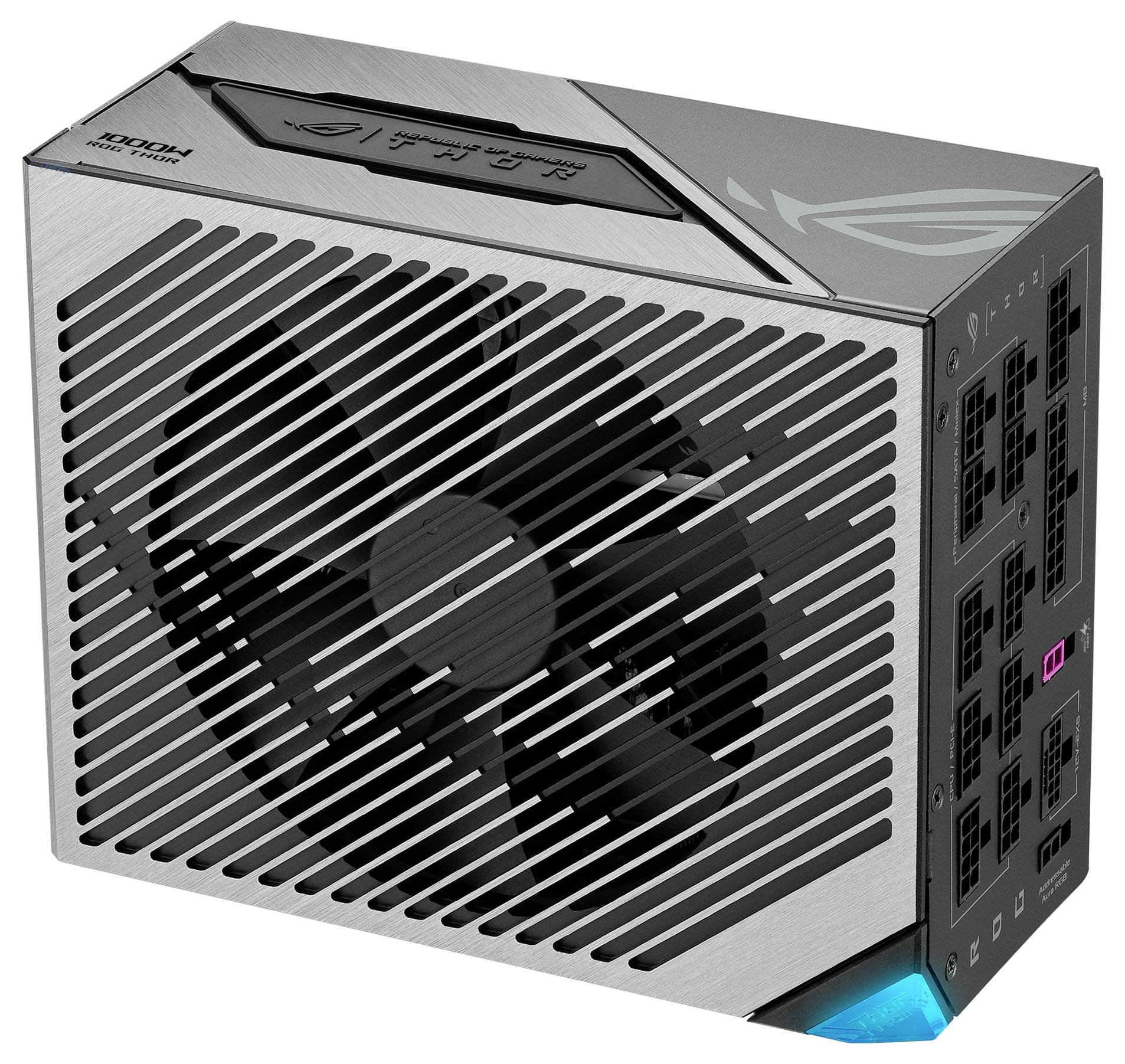

Silver ASUS ROG computer power supply unit with large fan grille, modular cable ports, and blue illuminated corner<br>

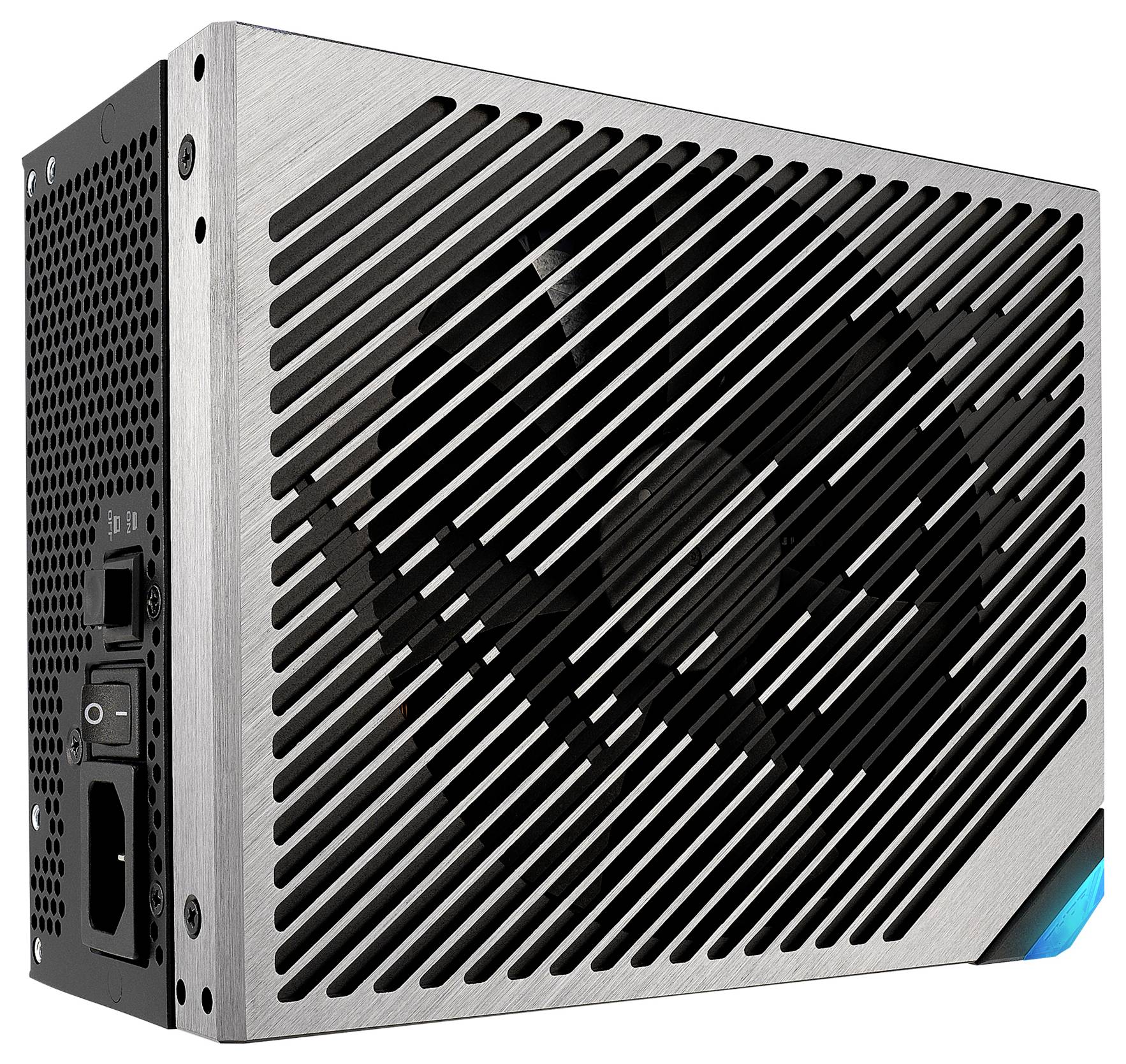

Small brushed-metal computer power supply unit with a large cooling fan grille and rear power switch.

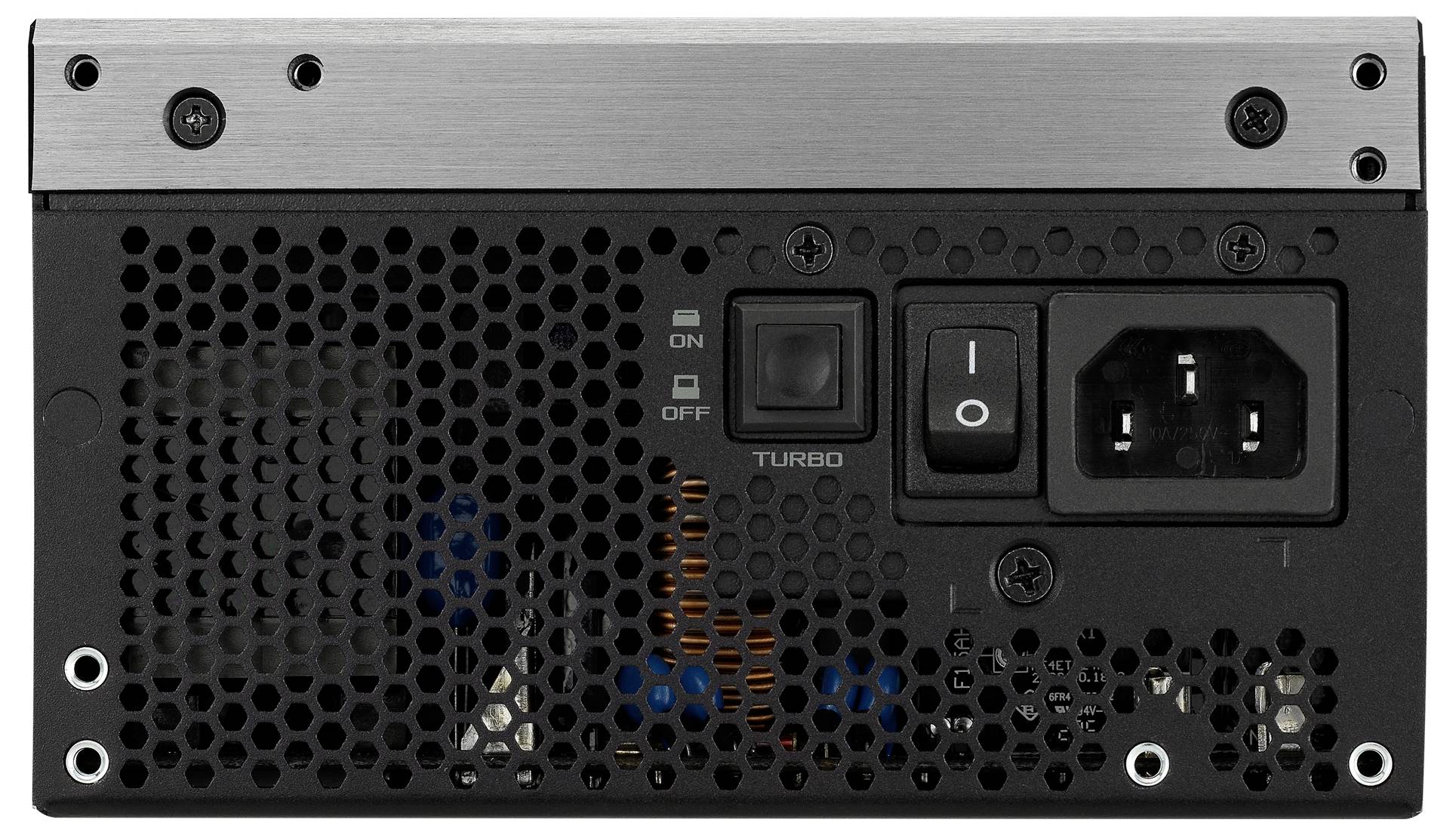

Rear panel of a computer power supply with fan grille, turbo switch, on/off rocker switch, and AC power inlet.<br>

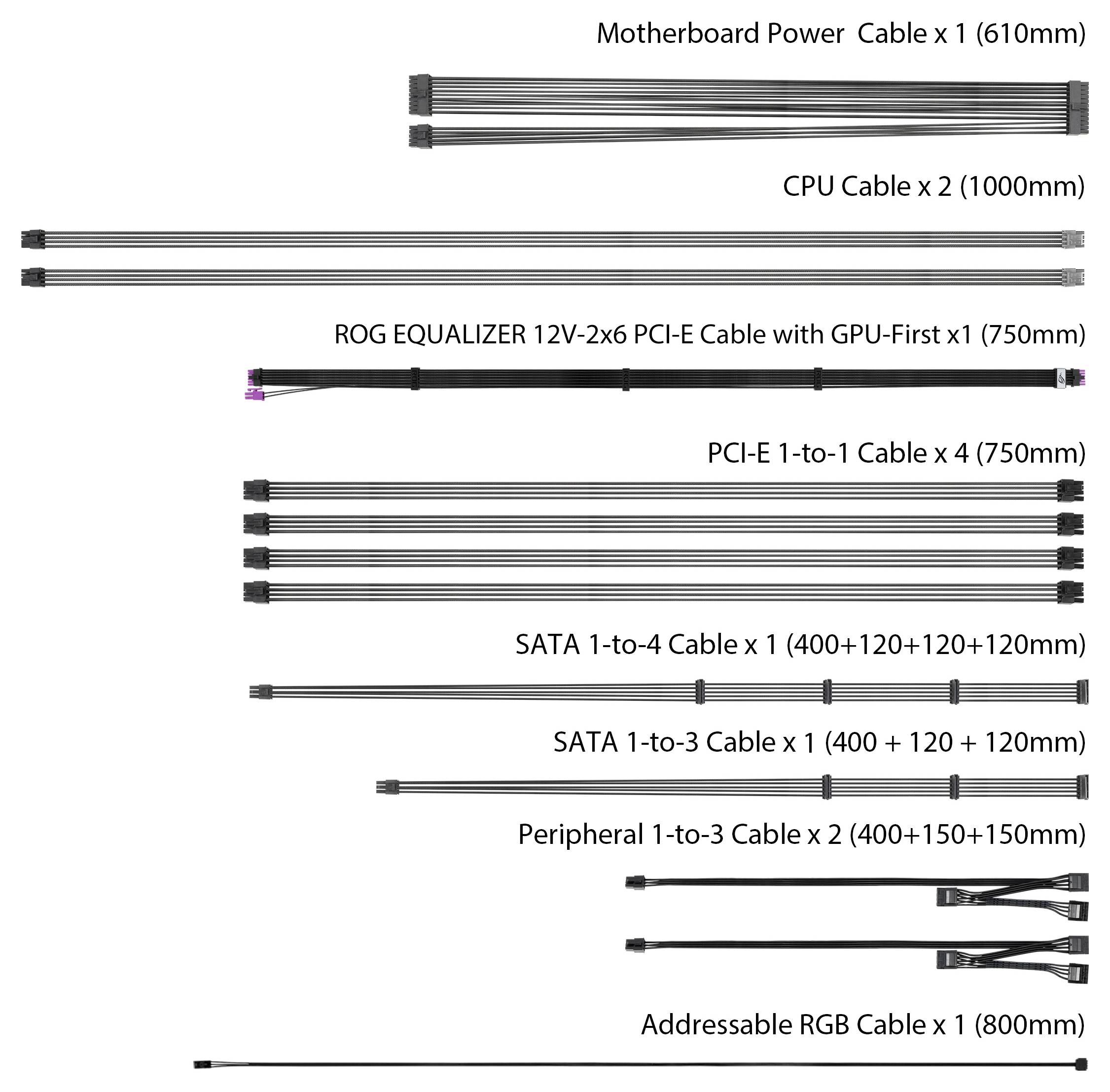

Illustration of PC power supply cables and quantities: motherboard power, CPU, 12V-2x6 PCI-E, PCI-E 1-to-1, SATA, peripheral, and addressable RGB cables with listed lengths.

ROG Thor 1000W Platinum III ASUS power supply box, showing the product image and key features like 1000W output and 80 Plus efficiency.

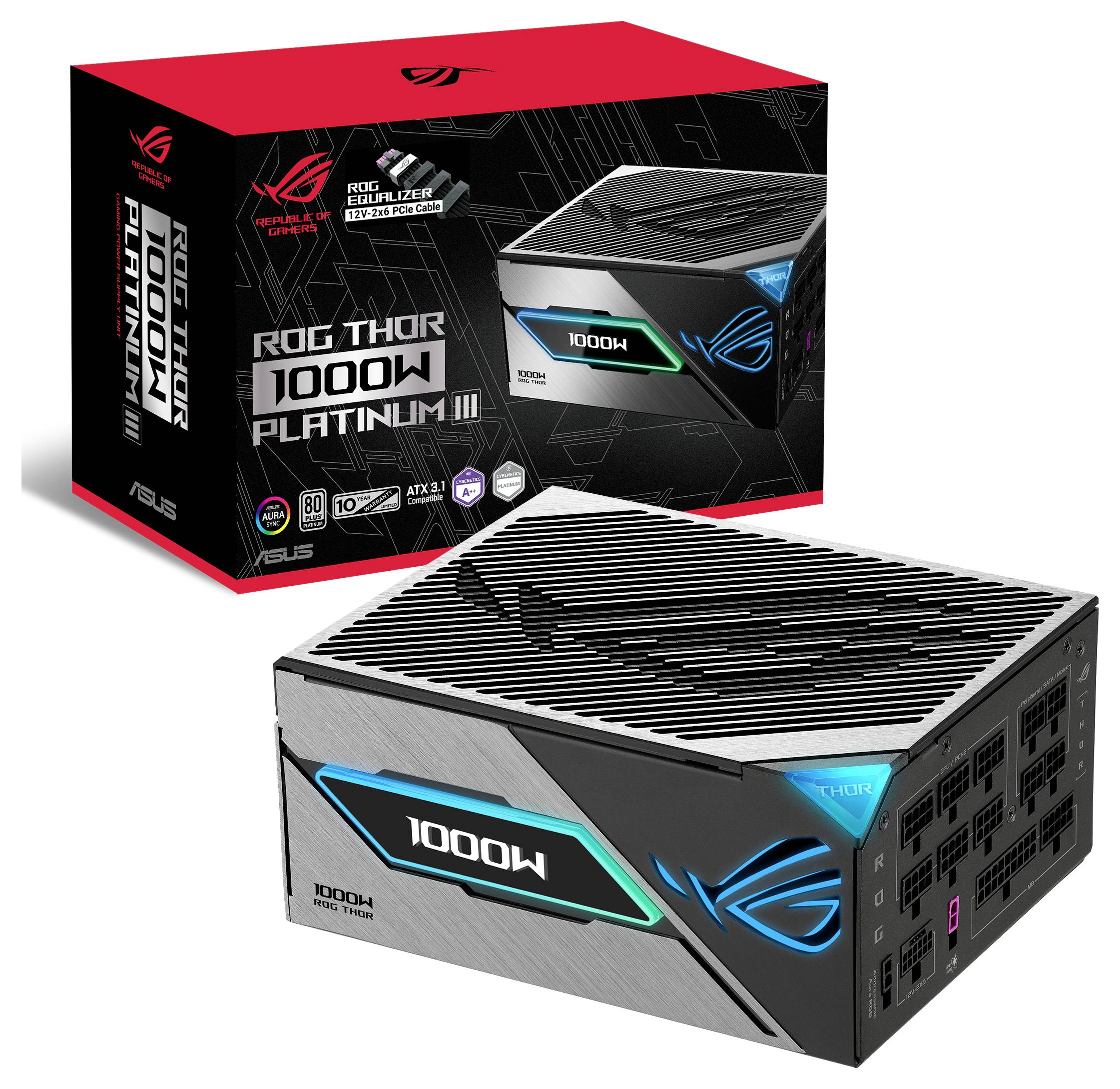

ROG Thor 1000W Platinum power supply with its retail box, showing a black-and-silver PSU with blue lighting accents and 1000W label.

1/13

Product type

PC power supply unit

PSU output power

1000 W

Certification

80 PLUS Platinum

Form factor

ATX

Factory colour

Black

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Asus ROG THOR PC power supply unit

Power supply unit output 1000 W
PCI-Express (6+2-Pin) 4x
Cable management
80 PLUS Platinum

Technical specifications

80 Plus certification: 80 PLUS Platinum
Number of fans: 1 fans

Product type: PC power supply unit

PSU output power: 1000 W

Certification: 80 PLUS Platinum

Form factor: ATX

Factory colour: Black

Dim: (L x W x H) 379 cm x 190 mm x 86 mm

Depth: 150 mm

Height: 86 mm

Width: 190 mm

Weight: 2.37 kg

-12V / DC: 0.3 A

+12 V/DC (1): 83.33 A

5 V DC: 25 A

+5V / DC SB: 3 A

4-pin Molex: 6

6-pin PCIe: 4

5-pin SATA: 7

Power rating: 751 W -

Cable length: 0 cm

Length: 379 cm

Keyboard layout: German, QWERTZ

Cooling: Active

3.3V DC: 30 A

Power supply (details): 100 - 240 V

UKCA: yes

Illumination: yes

Motherboard power cable length: 61 cm

CPU power cable length: 100 cm

PCI Express power cable length: 75 cm

PCI Express connector: yes

PCI Express power connectors (16-pin): 1

Mean time between failures (MTBF): 120000 h

On/off switch: yes

CPU power connector (4+4 pin): yes

Package weight: 5.17 kg

Combined power (+3.3V): 125 W

Combined power (+12V): 1000 W

Combined power (+5V): 125 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 15 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3788053 Asus ROG THOR PC power supply unit 1000 W ATX 80 PLUS Platinum

Features

GaN MOSFET: Offers up to 30% more energy efficiency than standard MOSFETs and a better organized internal layout for a cooler operation
Patented GPU-First intelligent voltage stabilizer: Improves the power supply of your graphics card by up to 45% for fluent games and constant power.
ROG Equalizer 12V-2×6 PCIe power cable included: Redefines power protection by reducing heat stress and maintaining cable and plug temperatures well to protect the graphics card.
Magnetic OLED display: Displays real-time power consumption and can be pushed on either side of the unit to allow installation of the power supply with or without fans.
Turbo Mode: Enables premium components and fine-tuned fan curve to provide support for extended power peaks.
The 80PLUS, Cybenetics Platinum and Lambda A++ certification: Achieved by low ESR capacitors and premium components for industry-leading performance efficiency and certified low noise levels below 15 dB.
The ATX 3.1 standard: Provides improved voltage and current control for the latest hardware.
ROG heat sink and a fully aluminum-made enclosure: Syncing high-end cooling and control the thermal properties of your system.
Fans with double ball bearings : Maintain up to twice as long as plain bearing constructions.
Certified modular cables: With a flexible premium material for effortless cable management and exceptional safety.
