Name: Asus STRIX X870E-H Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® X870E
Brand: Asus
SKU: 3443611

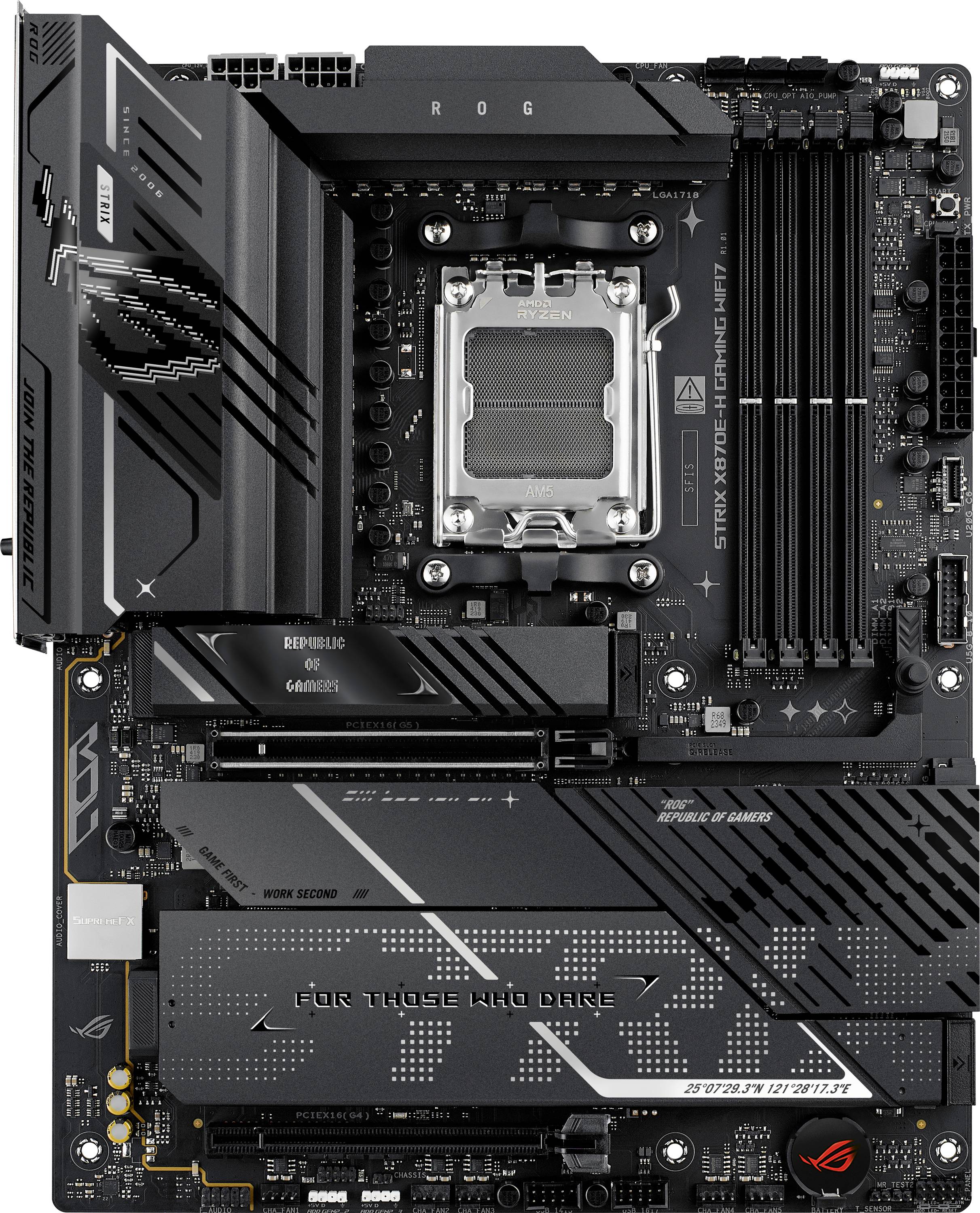

A close-up view of a computer motherboard featuring multiple slots, ports, and components, labeled 'ROG' and 'FOR THOSE WHO DARE.'

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Asus STRIX X870E-H Motherboard

Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity required for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
Robust power supply: 16+2+1 80 A per tier power supply solution with two ProCool II power connectors, high-quality alloy reactors, and durable capacitors to support multi-core processors
Intelligent control: Asus-exclusive AI Advisor, AI Cache Boost, AI Networking II and AEMP to simplify setup and improve performance
Optimized cooling design: Massive heat sink with integrated I/O cover and high-conductive heat conductive pad
Latest M.2 support: Two onboard PCIe® 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with comprehensive cooling solutions
Versatile connectivity: Two USB4® Type-C ports, front USB 20Gbps Type-C® connector, rear USB 10Gbps Type-C® connector with PD 3.0 up to 30W and USB Wattage Watcher, three additional USB 10Gbps connectors, PCIe 5.0 x16 SafeSlots, HDMI™ connector
High-performance networks: Built-in Wi-Fi 7 (802.11b) with Realtek® 5 GB Ethernet
DIY-friendly design: M.2 Q-release on all M.2 slots, PCIe slot Q-release, M.2 Q-latch, Q-antenna, Q-Dashboard, Q-LED, BIOS Flashback™ key, Clear CMOS key and pre-mounted I/O shield
Immersive Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* with Savitech SV3H712 AMP
Renowned software: Asus DriverHub, Asus GlideX, hwinfo, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
This text is machine translated.

Pre-contractual information under the EU Data Act

Technical specifications

Supports Windows operating systems: Windows 11
Width 305 mm
Depth: 244 mm
Number of HDMI connections: 1
WiFi-AP antenna socket 1
Number of M.2 (M) slots: 4
1. M.2 Largest key size: 2280
1. M.2 highest PCI Express generation: 5.0
2. M.2 Largest key size: 22110
2. M.2 highest PCI Express generation: 5.0
3. M.2 Largest key size: 2280
3. M.2 highest PCI Express generation: 4.0
4. M.2 Largest key size: 2280
4. M.2 highest PCI Express generation: 4.0
Front Panel audio connector: Yes
Front panel connector: Yes
ATX power plug (24-pin): Yes
CPU fan connector: Yes
RGB LED pin strip: Yes
Number of RGB LED pin strips: 3
Chassis intrusion connector: Yes
Number of chassis fan connectors: 5
12 V power connection: Yes
EPS Power Connector (8-pin): Yes
Number of temperature sensors: 1
Audio chip: Realtek ALC1220P
Antenna included: Yes
Memory channels: Two-channel
Motherboard Chipset family: AMD
Bluetooth version: 5.4
Ethernet interface type 5 Gigabit Ethernet
RAM type DIMM
ECC compatibility: Non-ECC
Unbuffered memory: Yes
Supported drive interfaces: M.2, SATA III.
Number of supported storage drives: 8
RAID support: Yes
Supported drives: HDD & SSD
Maximum number of HDD supported: 4

Product type: Motherboard

Chipset: AMD® X870E

: #####AMD AM5

Form factor: ATX

Processor/type: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

RAM type: DDR5 RAM

RAM / Max. upgrade: 256 GB

Interfaces: HDMI™
USB C® (USB4®)
USB C®
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
Wi-Fi
Microphone input
S/PDIF
Wi-Fi 7 (IEEE 802.11be)
Bluetooth
