Buy Asus TUF Gaming 1200W Gold Power supply unit 1200 W ATX 80 PLUS Gold

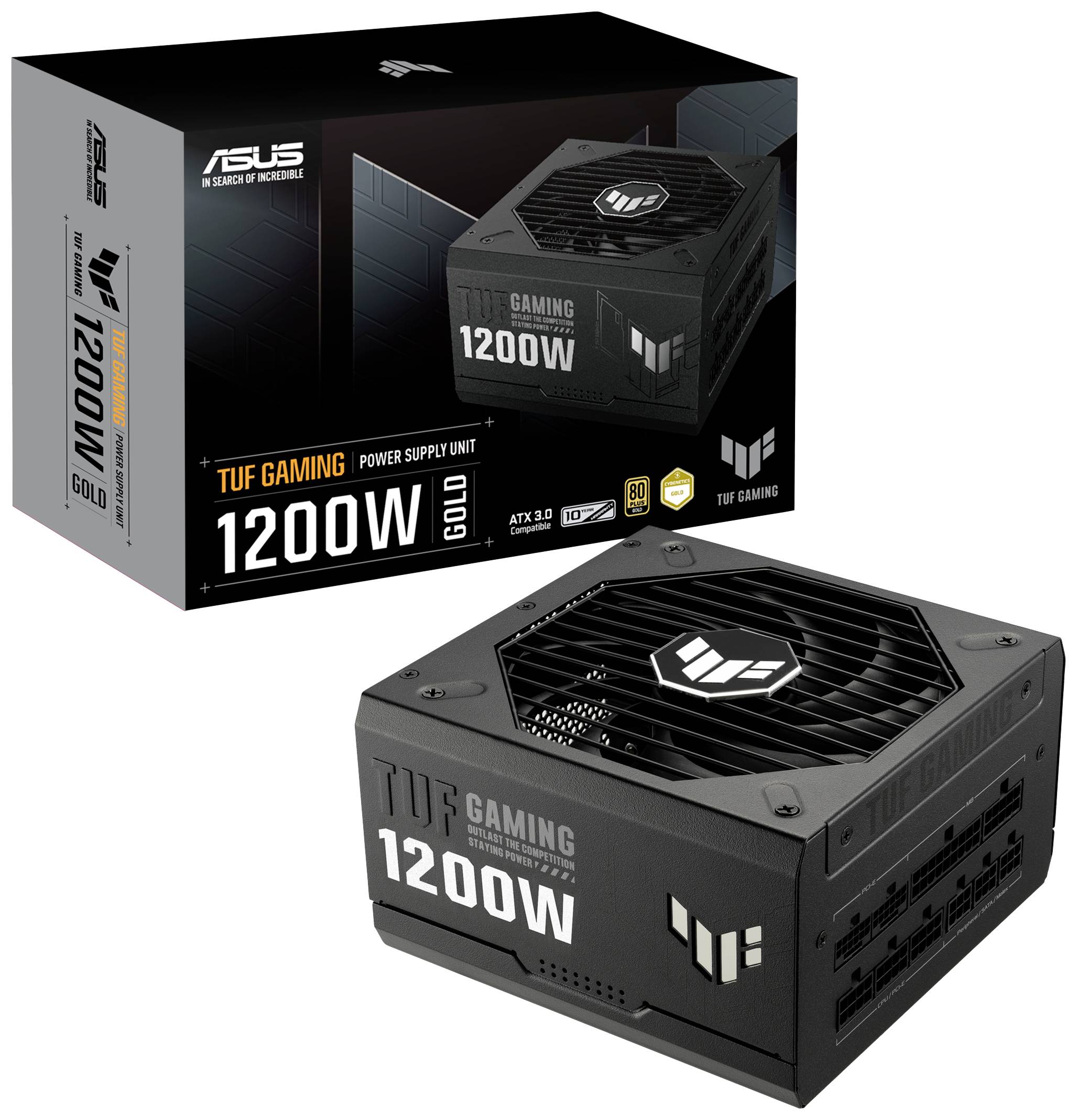

'Pictured is an ASUS TUF Gaming 1200W Gold power supply packaging and the power supply itself. Suitable for ATX 3.0 with 80 PLUS Gold certification.'

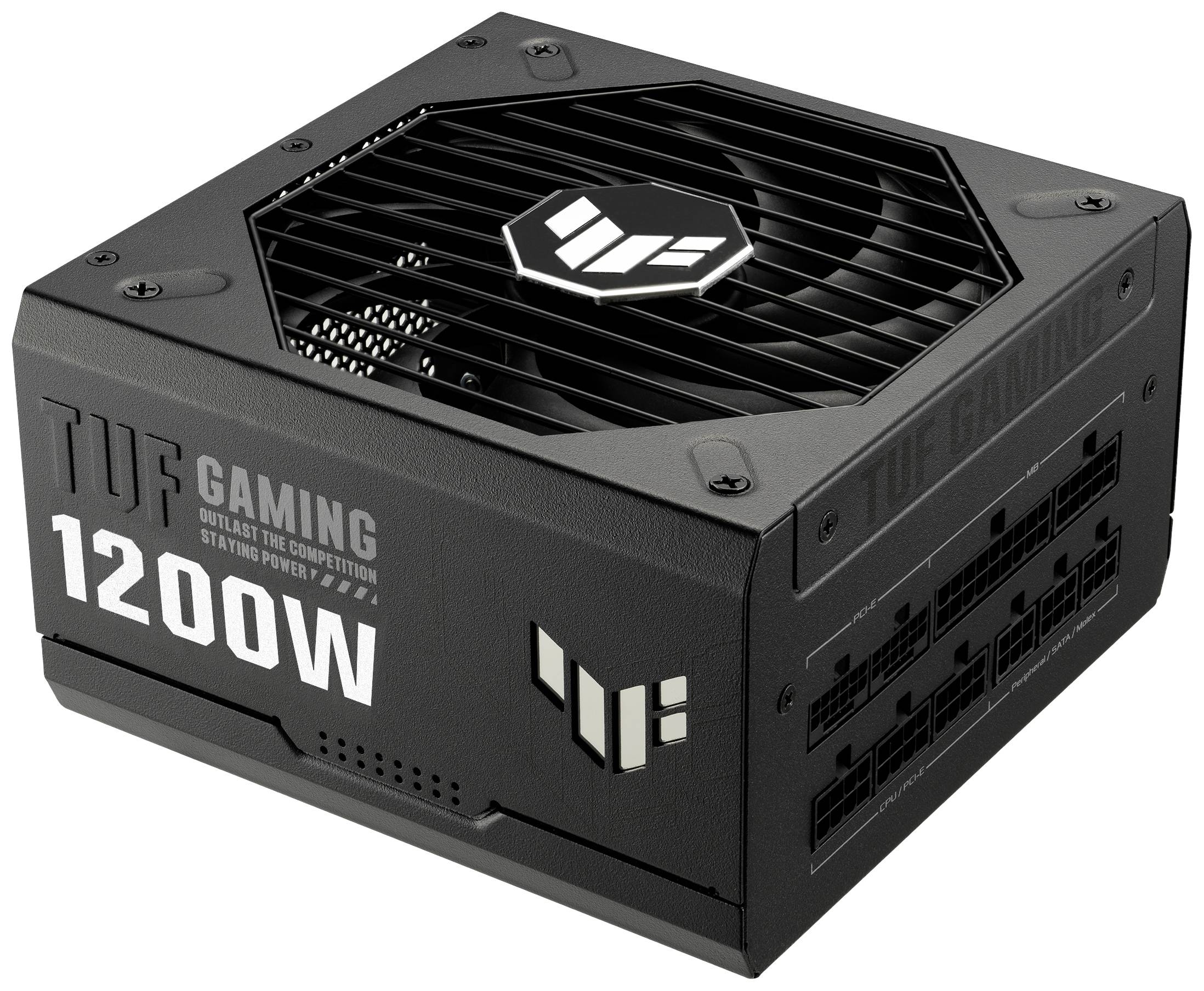

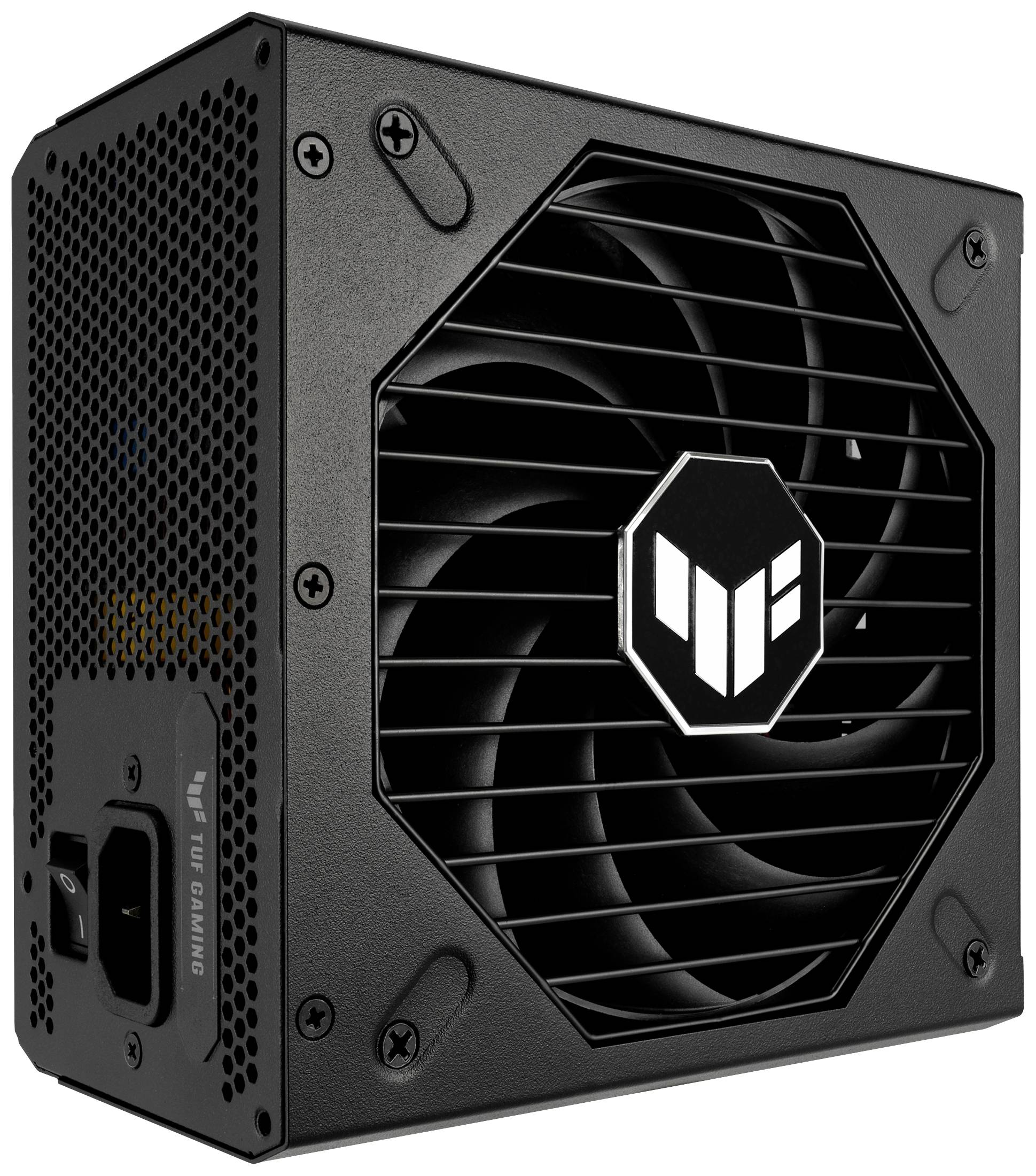

A black PC power supply with 'TUF Gaming' and '1200W' printed on it. Fan grille and multiple connection points visible.

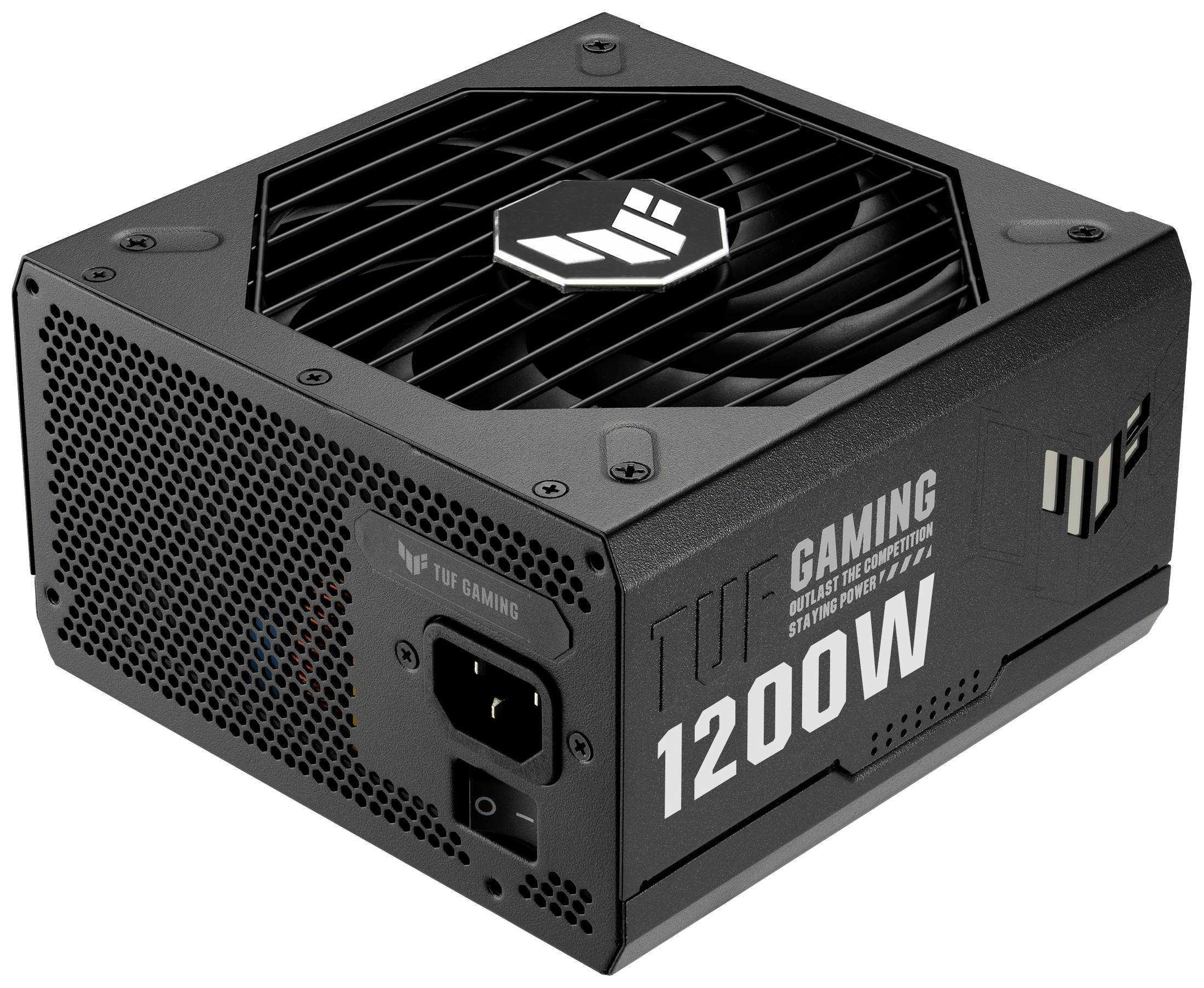

Black gaming power supply with 'TUF Gaming 1200W' printed on it, fan visible at the top, connection socket and power switch in view.

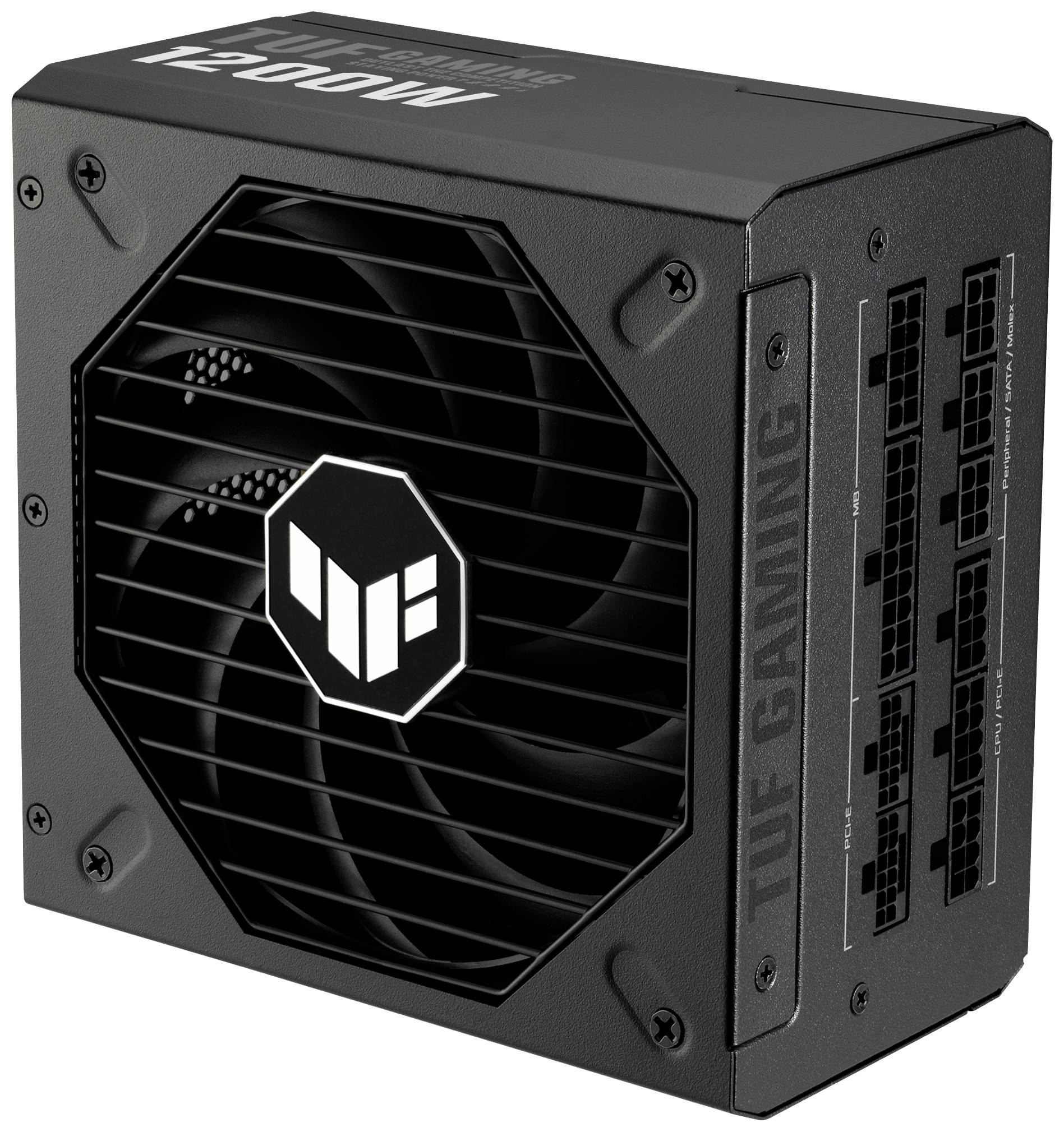

Black 'TUF Gaming' 1200W power supply with fan and multiple connection options on the side.

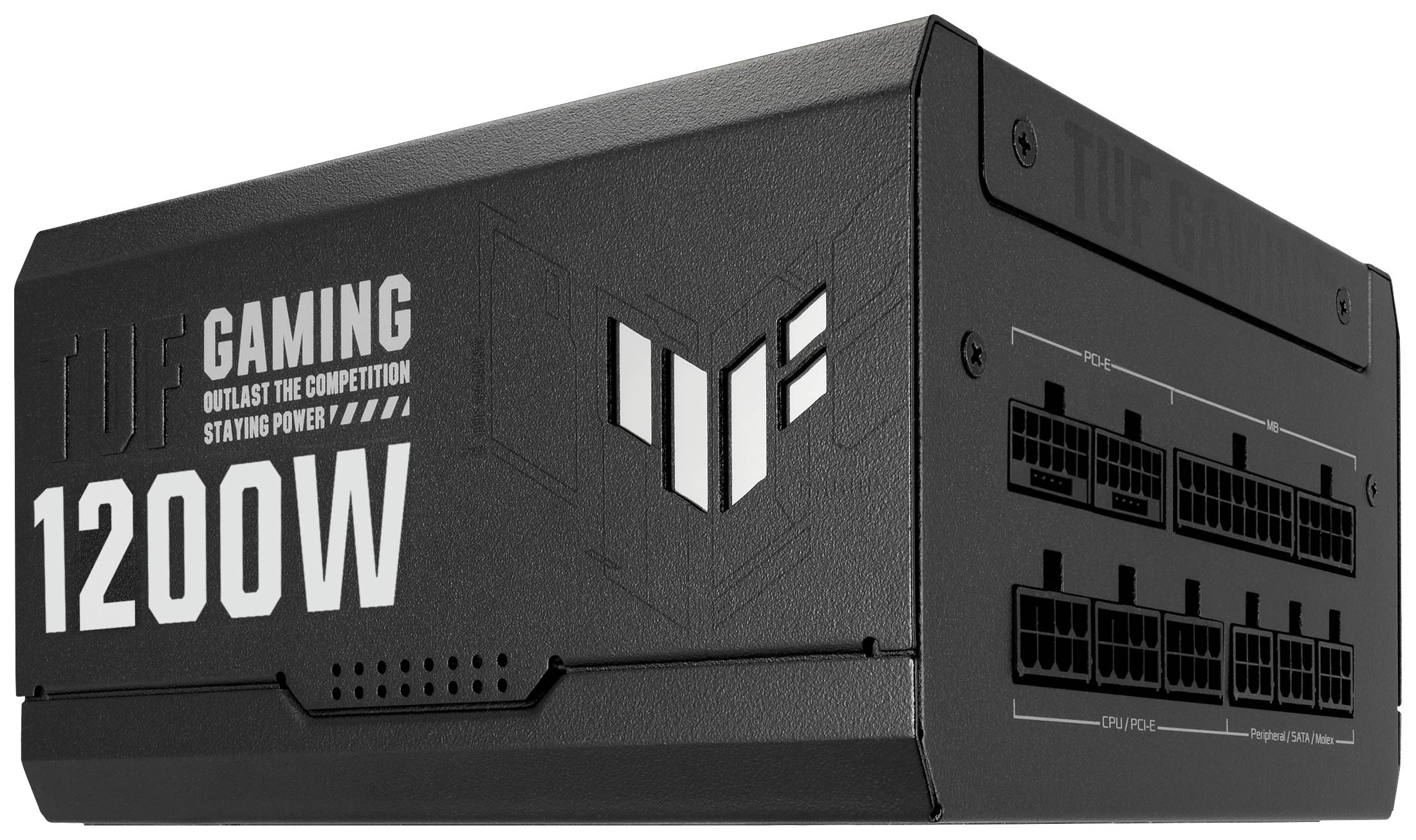

Black gaming power supply with 'TUF GAMING 1200W' printed on it. It has multiple connection ports on the right side.

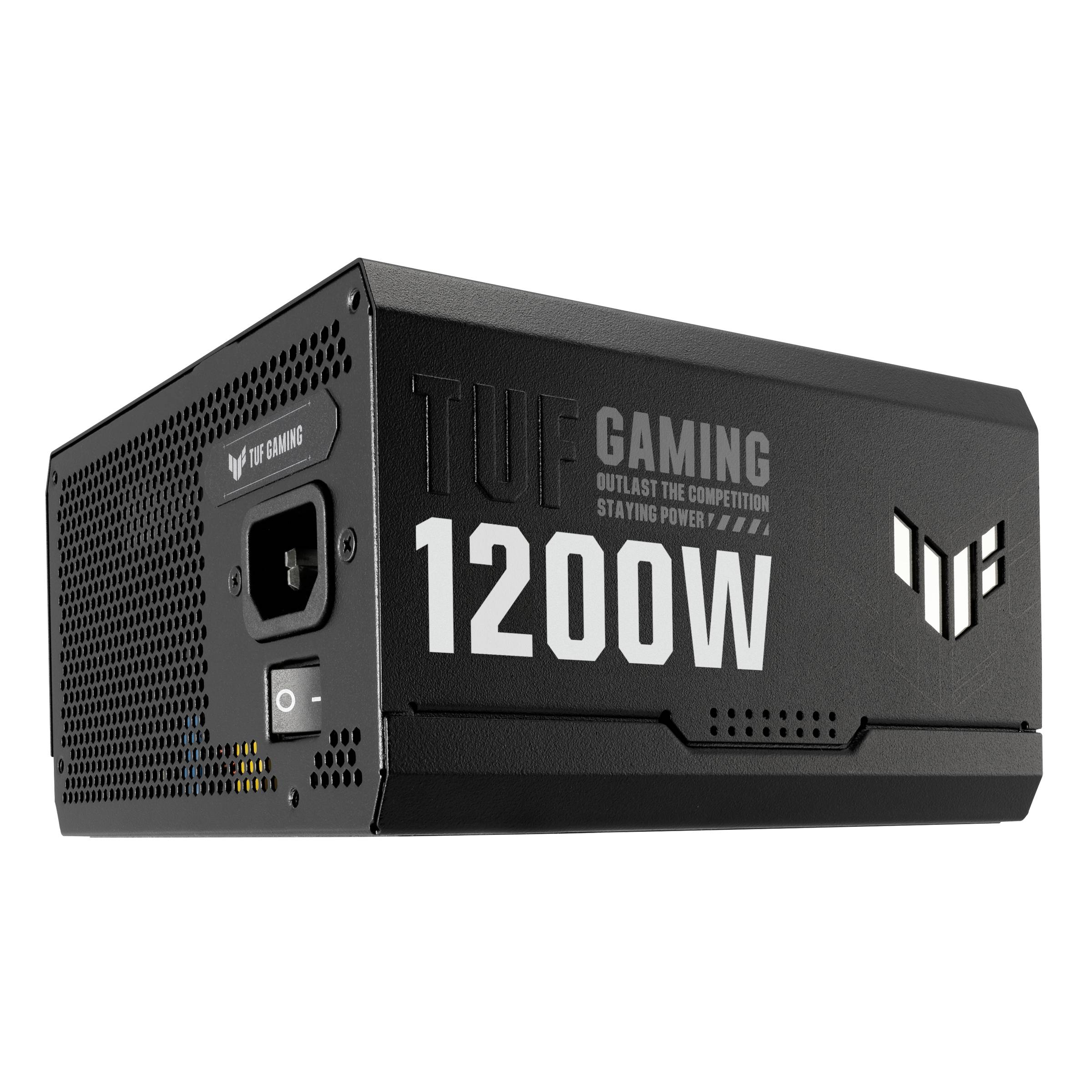

Black PC power supply unit with 'TUF Gaming 1200W' inscription, ventilation grille, and power connector.

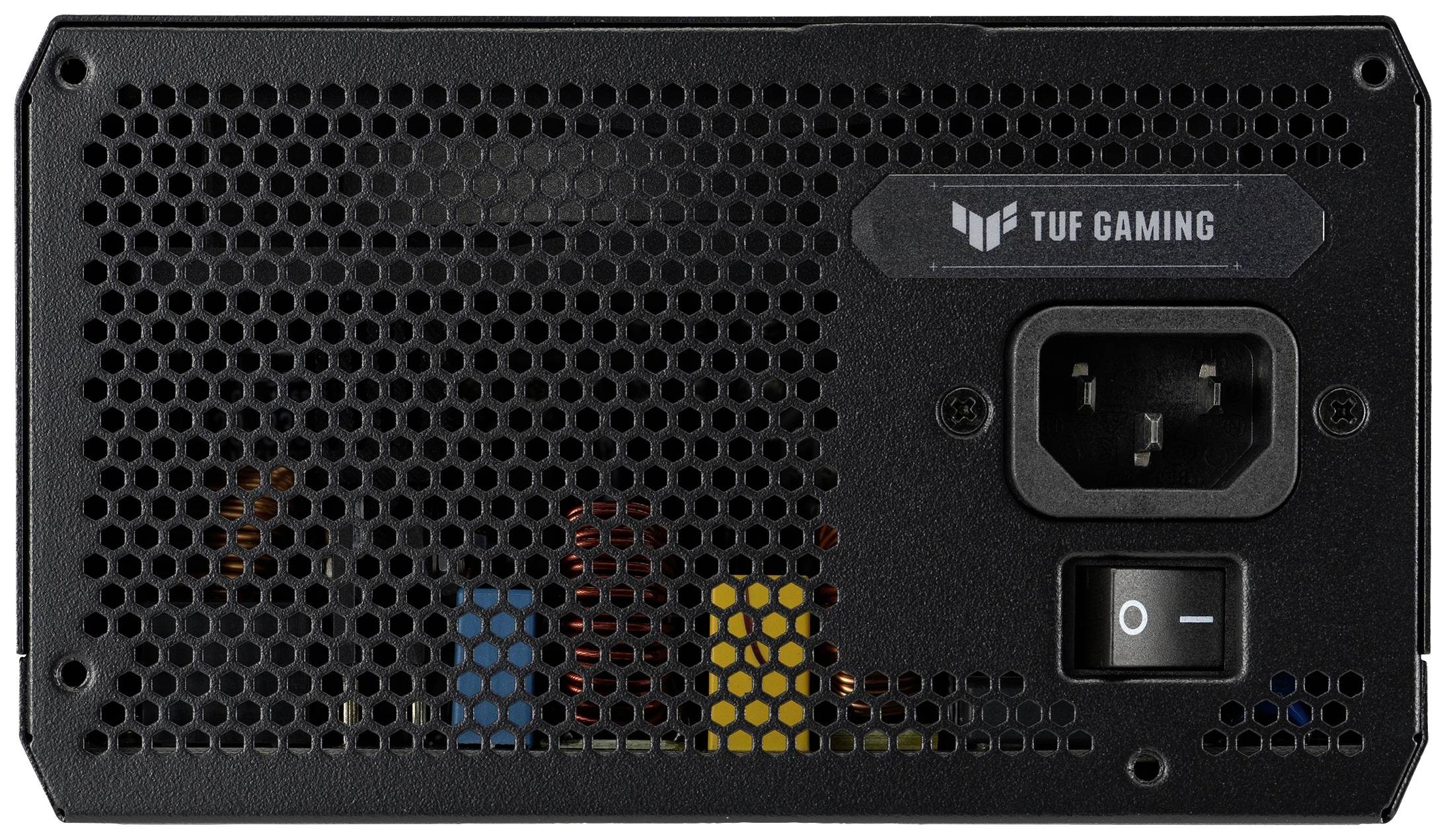

Black computer power supply with ventilation grille on the left, power switch and power connector on the right. 'TUF Gaming' is written on the top.

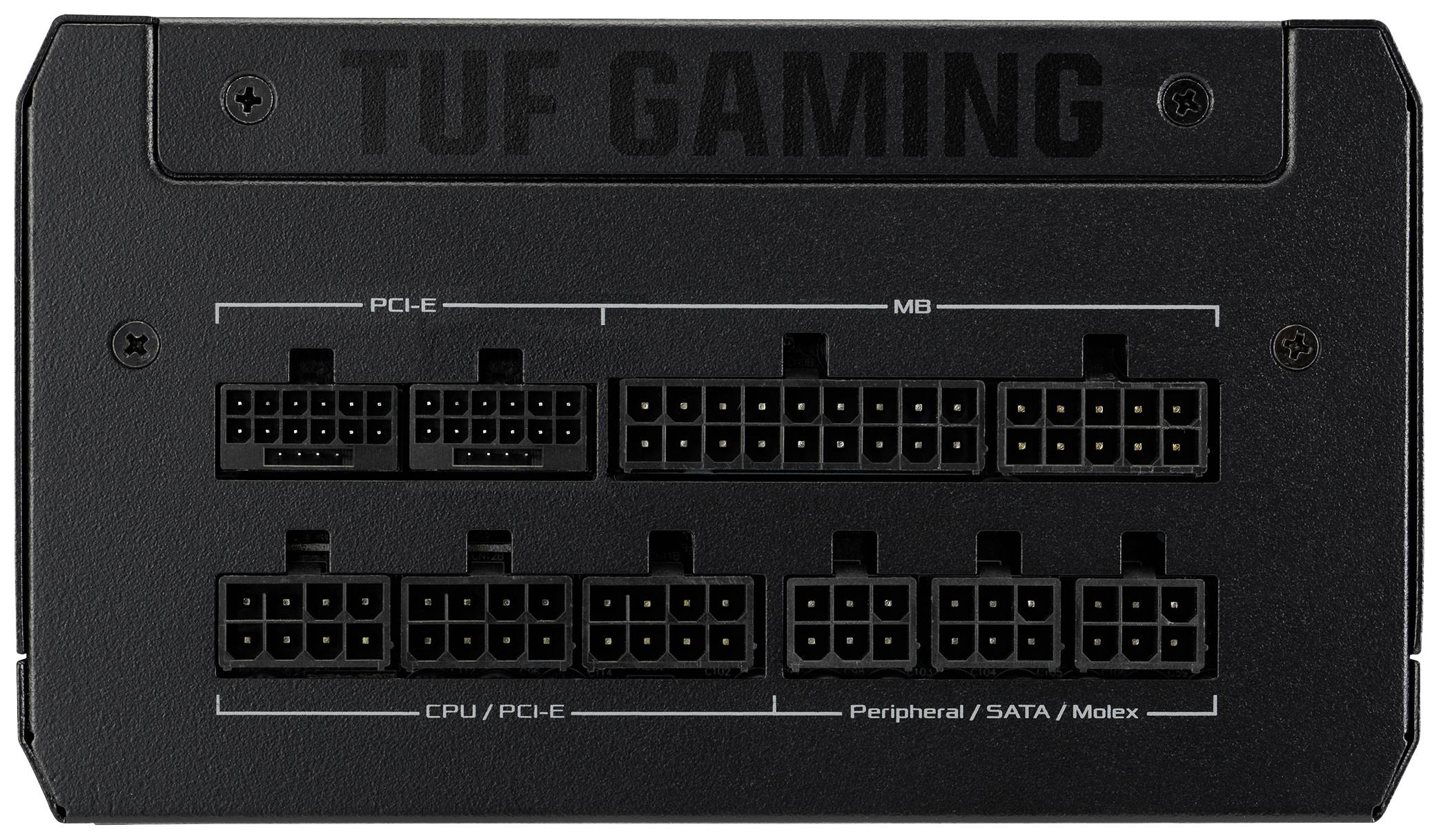

Back of a modular power supply with various connectors, labelled for PCI-E, CPU/PCI-E, Motherboard and Peripherals/SATA/Molex.

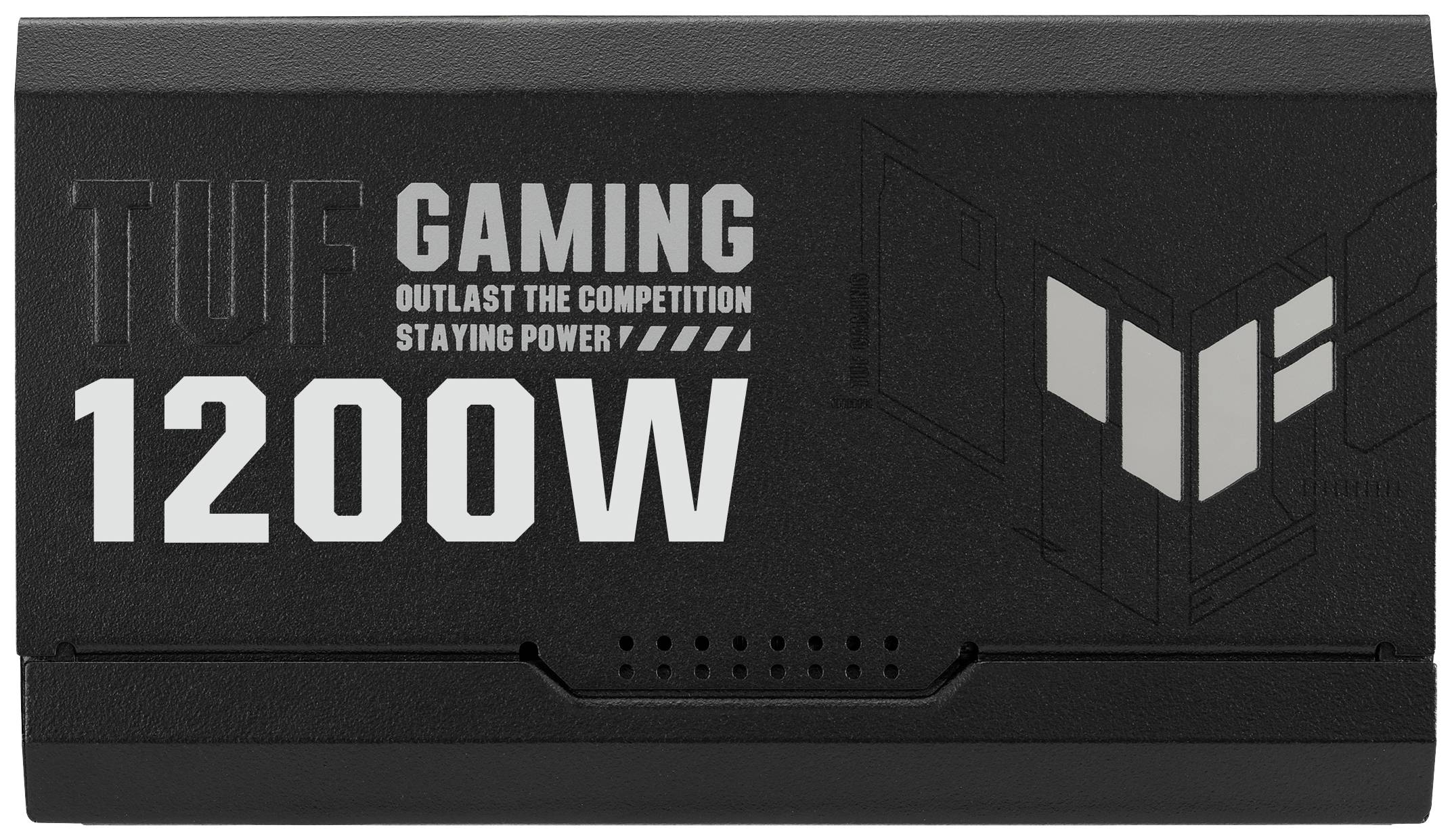

Black casing of a gaming power supply with the inscription 'TUF Gaming 1200W' and 'Outlast the Competition, Staying Power'.

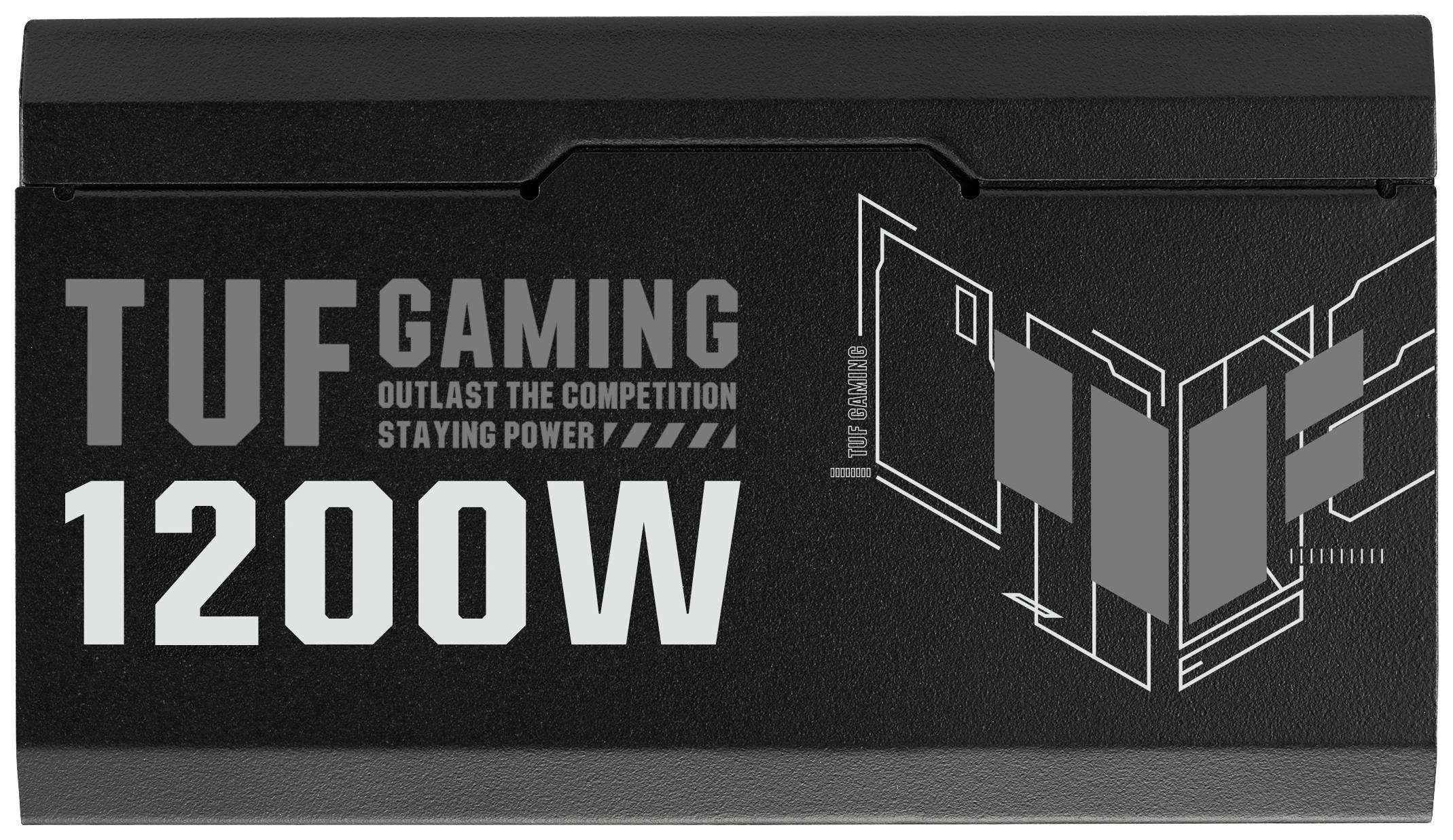

Black power supply unit with 'TUF Gaming 1200W' printed on it. Graphic patterns on the right. Used for high-performance computers.

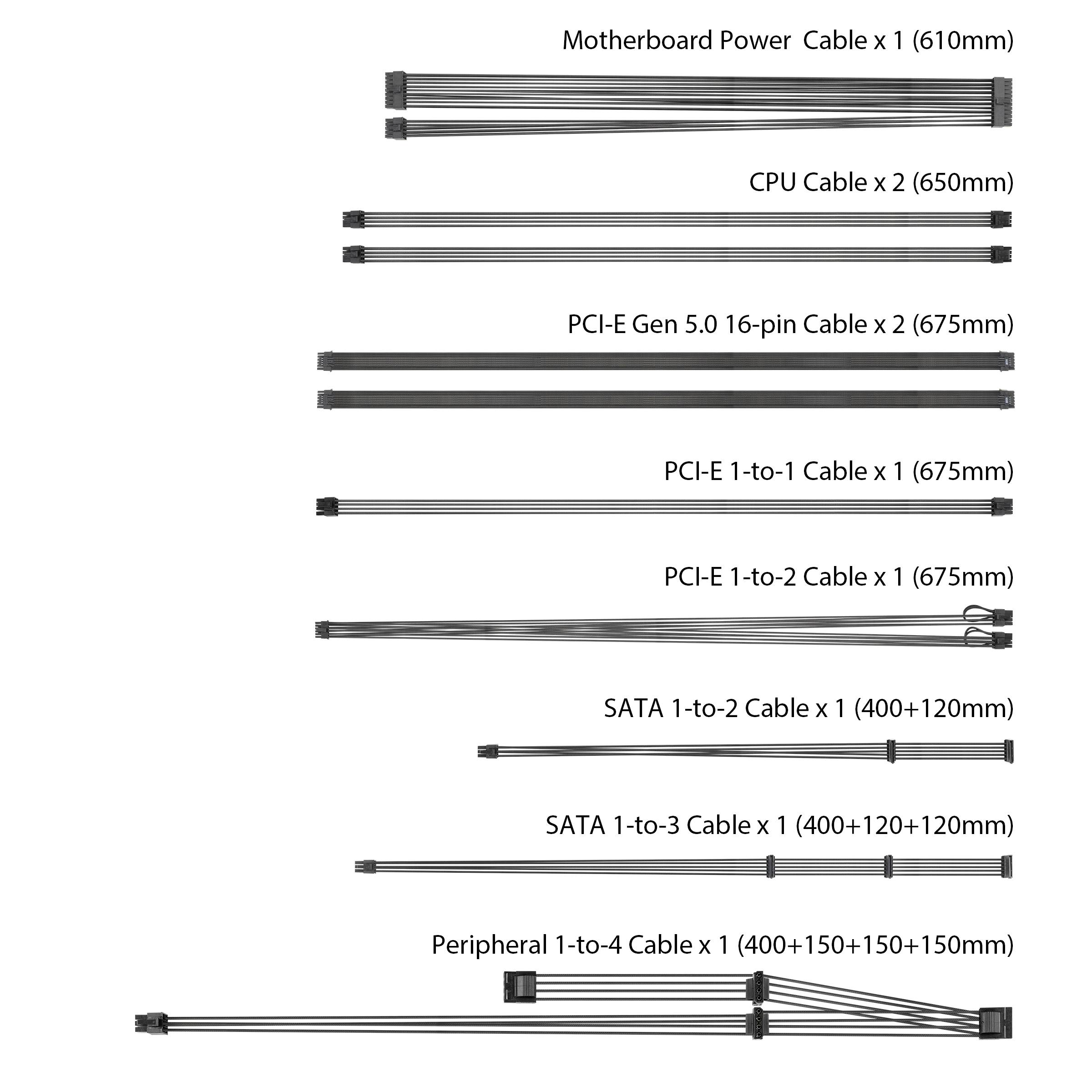

Asus TUF Gaming 1200W Gold Power supply unit 1200 W ATX 80 PLUS Gold-13

1/14

Product type

Power supply unit

PSU output power

1200 W

Modular

Yes

Certification

80 PLUS Gold

Form factor

ATX

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Asus TUF Gaming 1200W Gold Power supply unit

Highlights & Details

Power supply unit output 1200 W
PCI-Express (6+2-Pin) x
Cable management Yes
80 PLUS Gold

Technical specifications

Connections and interfaces: Motherboard connector plug: 20+4 pin ATX; number of Molex ports 4 pin: 4; power cable length Motherboard: 61 cm; number of SATA power plugs: 5; SATA network cable length: 120.400 mm; peripheral (Molex) power cable length: 2 mm; number of PCI Express power plugs 8-pin: 67.5; PCI Express power connections (16-pin): 150.400; PCI Express power cable length: 3 cm; CPU plug (4+4 pin): yes; CPU-power cable length: 65 cm; ATX power plug (20+4 pin): yes; cable type: modular
Power: Total power: 1200 W; AC input voltage: 100 – 240 V; combined current (+3.3V): 130 W; combined current (+12V): 1188 W; combined current (+5V): 130 W; combined current (-12V): 9.6 W; combined current (+5Vsb): 15 W; Max. Output current (+3.3V): 25 A; Max. Output current (+12V): 99 A; Max. Output current (+5V): 25 A; Max. Output current (-12V) 0.8 A; max. Output current (+5Vsb): 3 A; Efficiency: 92%; Energy protection properties: Overloading, over-voltage, overload, Overheating, short-circuit, Under current, Under voltage
Design: Cooling: Active; fan diameter: 13.5 cm; number of fans: 1 fans; on/off switch: Yes
ATX version: 3.0

Product type: Power supply unit

PSU output power: 1200 W

Modular: Yes

Certification: 80 PLUS Gold

Form factor: ATX

Factory colour: Black

Dim: (W x H x D) 150 x 86 x 150 mm

Depth: 150 mm

Height: 86 mm

Width: 150 mm

Weight: 2.66 kg

-12V / DC: 0.8 A

+12 V/DC (1): 99 A

5 V DC: 25 A

+5V / DC SB: 3 A

8-pin 12 V: 3

20+4-pin.: 1

4-pin Molex: 4

5-pin SATA: 4

Power rating: 751 W -

3.3V DC: 25 A

Operating voltage: 100 - 240 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886040 Asus TUF Gaming 1200W Gold Power supply unit 1200 W ATX 80 PLUS Gold

Description

BUILT FOR LONG DURABILITY
The Asus TUF gaming 1200W gold offers military strength, a flagship fan design and PCB protection for an efficient, durable power supply. The result is a power supply that provides reliable energy to your system over the years.

LONG LIFETUF-COMPONENTSTOP MARKS
The Asus TUF gaming 1200W Gold features military-grade components, including capacitors designed to operate at 105°C and last up to 170,000 hours.

DOUBLE BALL BEARING FANS2x longer life span

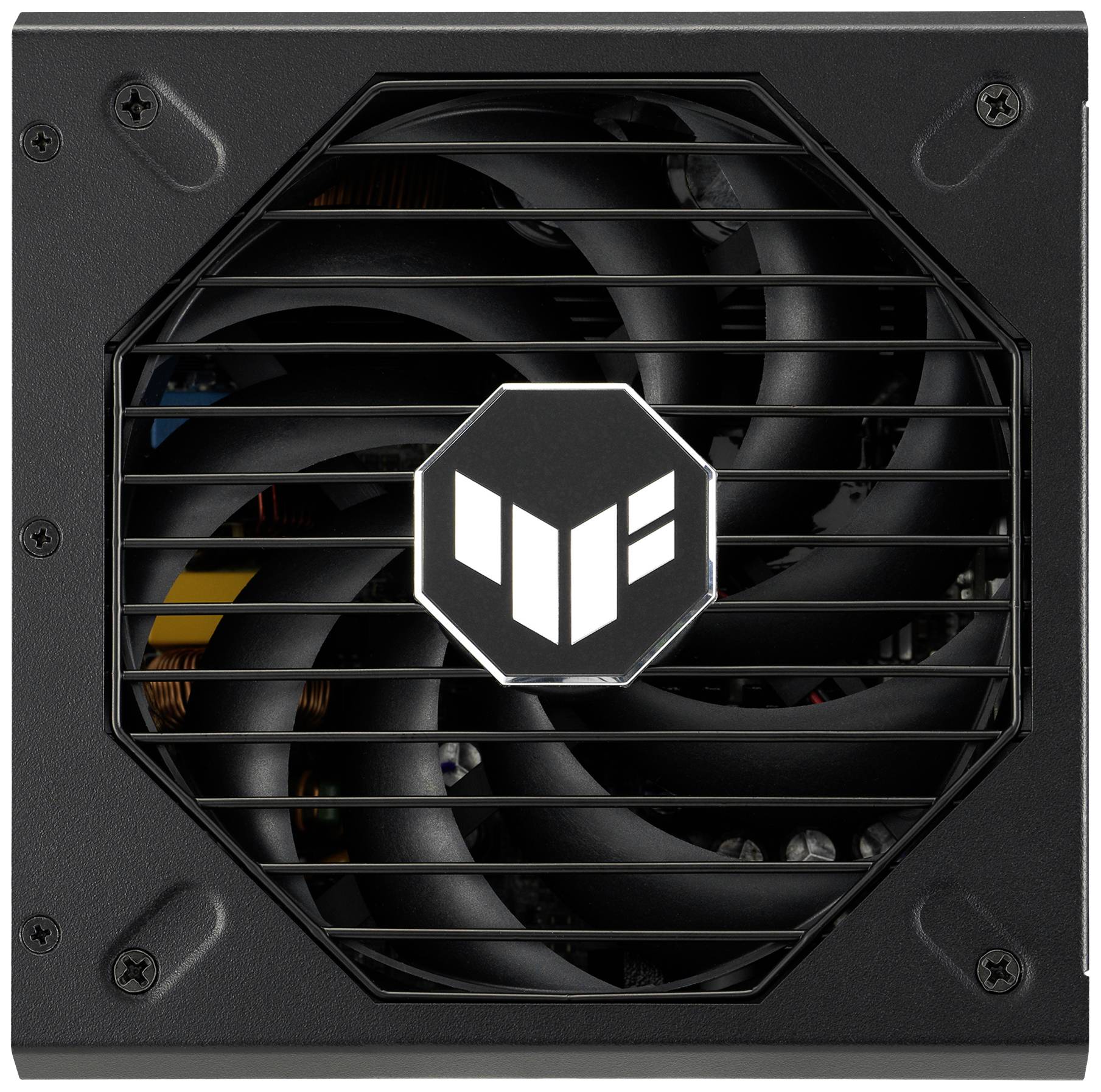

An excellent cooling is provided by a 135-mm fan, which is equipped with a double ball-bearing, which holds up to twice as long as a slide-bearing design.

PCB PROTECTIVE COATINGCompletely covered
A conforming protective layer surrounds the printed circuit board and protects it against short-circuits, which are caused by moisture, dust and dirt.

ENGINEERING80 PLUS GOLD CERTIFICATIONHeart of Gold
The TUF Gaming 1200W Gold is equipped with efficient Japanese low ESR capacitors to ensure efficient operation, giving it 80 PLUS® Gold status. That means that it has an efficiency degree of up to 92%, WAS leads to less heat, less fan noise and higher reliability.

ATX 3.0 COMPATIBLEOne step into the future
The latest performance data updates are here. ATX 3.0 introduces stricter voltage and current regulation guidelines for next generation hardware - and the TUF Gaming 1200W Gold is one step ahead of this development as it fully meets the guidelines. The power supply comes with a 16-pin PCIe cable that delivers up to 600 W of power to PCIe Gen 5.0 graphics cards, while WAS delivers great performance.

AXIAL-TECH FAN DESIGNBetter, faster, stronger
The axial-tech fan design is characterized by a smaller fan hub, which enables longer wings, and a locking ring, which increases the air pressure directed downwards. For the power supplies of the TUF gaming series, Asus have scaled the design to 135 mm, so that it remains cool even at low speeds and generates less noise.

EXPERIENCEFULLY MODULAR ETCHED CABLES SMOOTHposition
The fully modular cable set supplied is etched to offer a similar aesthetic to sleeved cables, but a touch of more flexibility in confined spaces.
