Asus TUF GAMING B760M-PLUS II Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®
EAN:
Part number:
Item no:

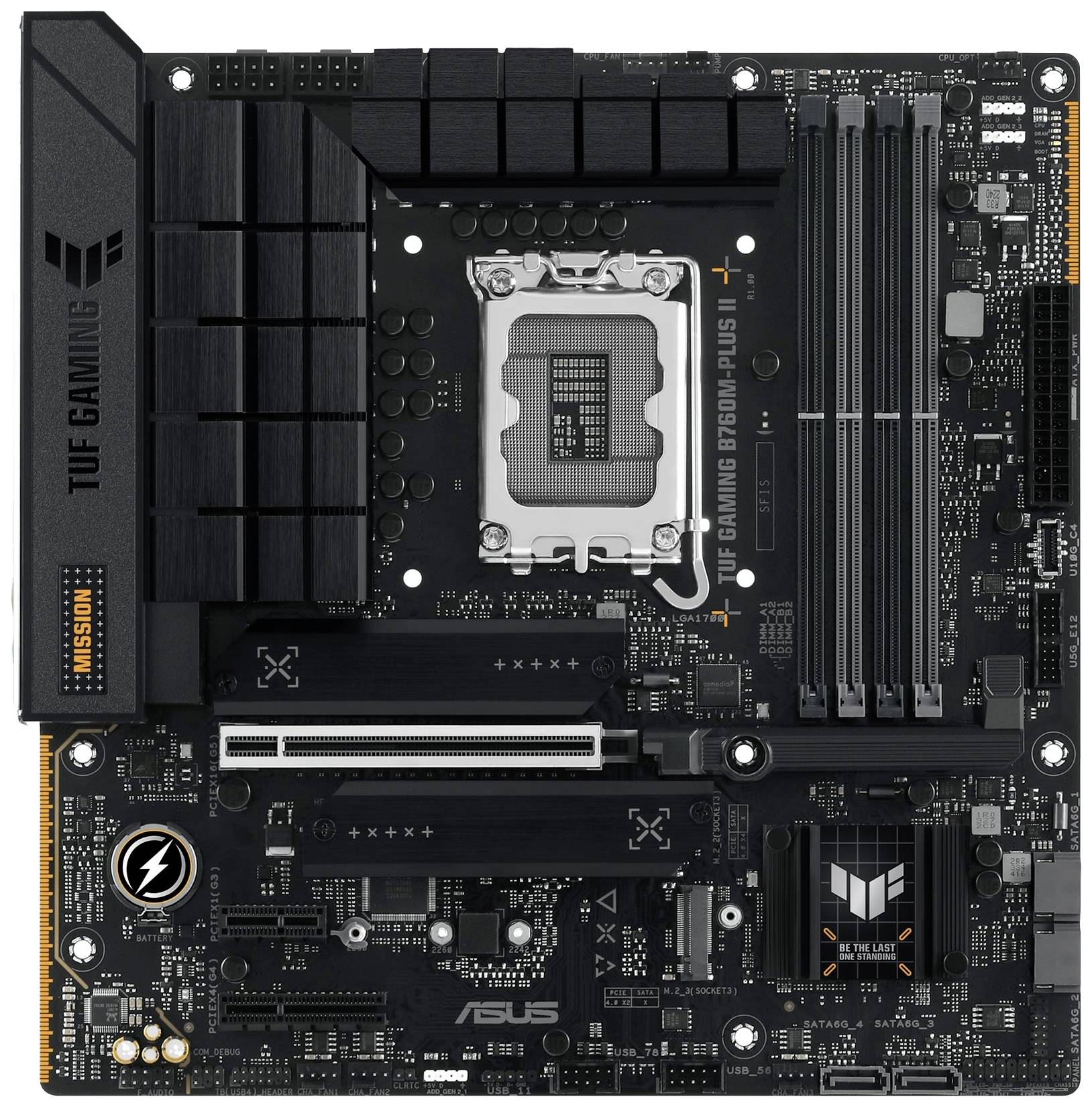

Asus TUF GAMING B760M-PLUS II Motherboard
Technical specifications
- Supported RAM integrity check: Non-ECC, on-the-ECC
- RAM - Registered or buffered: Unbuffered
- RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP)
- Audio type: HD audio (8-channel)
- Audio compatibility: Digital Theater Systems (DTS), High Definition Audio
- Network interfaces 2.5 Gigabit Ethernet
- Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x4; 1 x PCIe 3.0 x1; 3 x M.2 socket (2242/2260/2280 M.2 slot with key M)
- PCIe 4.0 port 3 x M.2; SATA-600 port points: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
- RAID features: Intel Rapid storage technology
- External interfaces: 1 x DisplayPort; 1 x HDMI; 1 x USB-C 3.2 Gen2; 2 x USB 3.2 Gen 2; 1 x USB 3.2 Gen 1; 4 x USB 2.0; 1 x LAN (2.5Gigabit Ethernet); 1 x SPDIF output; 1 x Audio Line-In - Mini jack plug; 1 x microphone - Mini jack plug; 1 x audio line-out/headphone - Mini jack plug; 1 x audio line-out (rear) - Mini jack plug; 1 x audio line-out (middle/subwoofer) - Mini jack plug
- Internal interfaces: 1 x USB-C 3.2 Gen 2 - multi-pin connector; 5 x USB 3.2 Gen 1 - multi-pin connector; 2 x USB 2.0 - multi-pin connector; 1 x audio - multi-pin connector; 1 x Thunderbolt multi-pin connector
- Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
- BIOS type: AMI
- BIOS features: UEFI BIOS, Asus EZ Flash 3, Asus UEFI BIOS EZ Mode
- Sleep / Wake-up: Wake-On-LAN (WOL), Wake On PME
- Asus Q design, ESD guards, Q-DIMM, Asus EZ DIY, Q-LED, Q-slot, crash-free BIOS 3, Intel turbo boost technology 2.0, Asus DIGI+ VRM, preboot execution environment (PXE), Asus stainless steel back I/O, 6 layer PCB, TUF LANguard, surge protection, AURA RGB lighting control, M.2 heat sink, Asus ProCool, Asus turbo boost Max technology 3.0, Asus TUF protection, Asus Aura Sync, Intel OptiMem II, Asus SafeSlot Core+, M.2 Q-Latch, SafeDIMM, lever protection for CPU sockets, VRM heat-sink design, 12+1 DrMOS power stages, TUF Chokes in military quality, TUF 5K black metal capacitors
- Product type
Motherboard
- Chipset
Intel® B760
Intel® 1700
- Form factor
Micro-ATX
- Processor/type
unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation
- RAM type
DDR5 RAM
- Clock speed
5800 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
7000 MHz
6800 MHz
7200 MHz
5200 MHz
Show more
- RAM / Max. upgrade
192 GB
- Interfaces
DisplayPort
HDMI™
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Gigabit LAN (1/2.5 Gbps)
S/PDIF
Audio line in
Audio line out
Show more
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x4
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
9 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB 3.2
4 x
- No. of USB 3.0 ports
2 x
- Depth
300 mm
- Height
100 mm
- Width
300 mm
- Weight
5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045597 Asus TUF GAMING B760M-PLUS II Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®
Description
Scope of delivery
- 1 x M.2 Rubber pack
- 2 x M.2 SSD screw set
- TUF-certification card
- TUF GAMING sticker
- 2 x Serial ATA cable
