Asus TUF GAMING B850M-PLUS II Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD®
EAN:
Part number:
Item no:

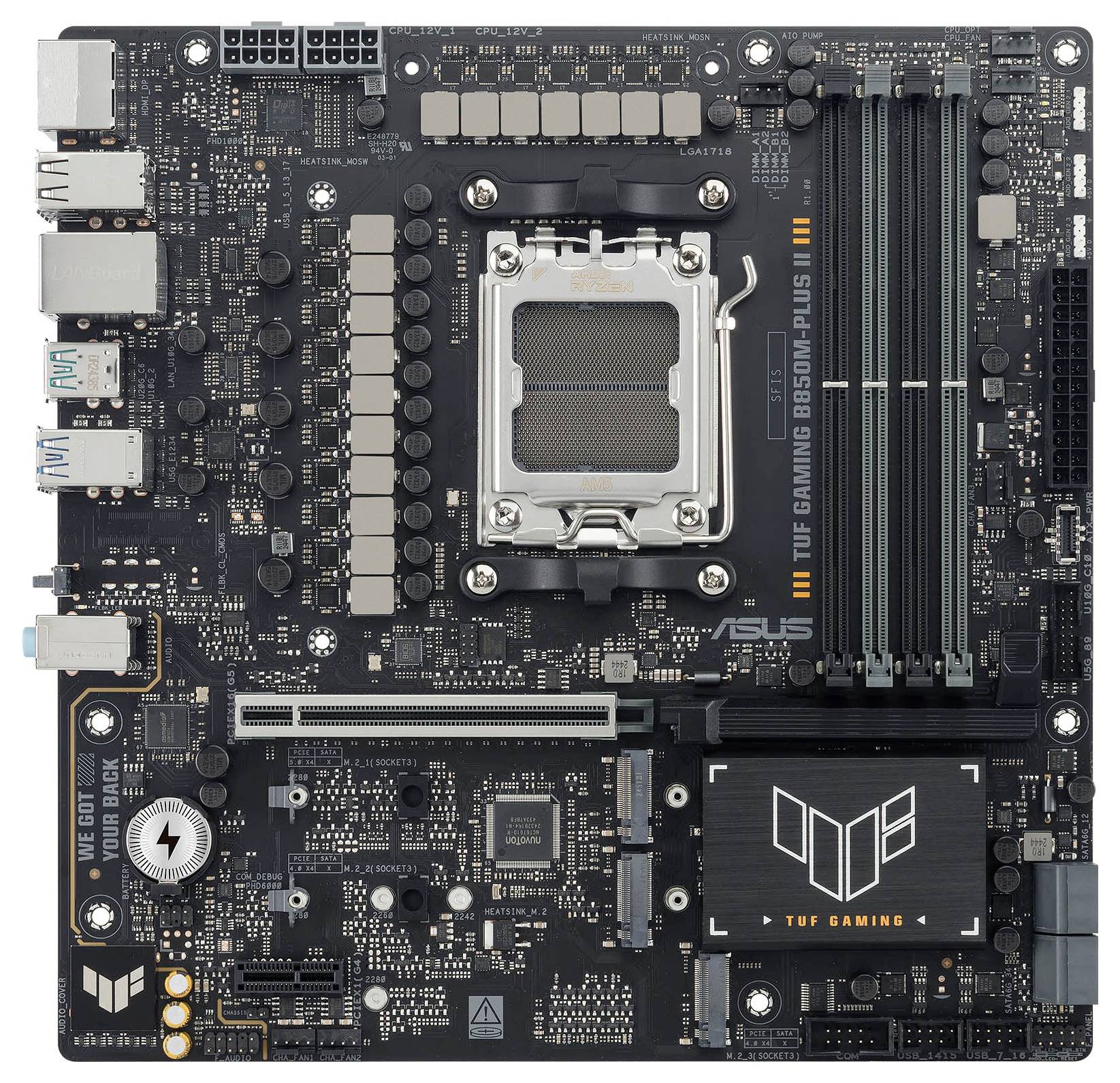

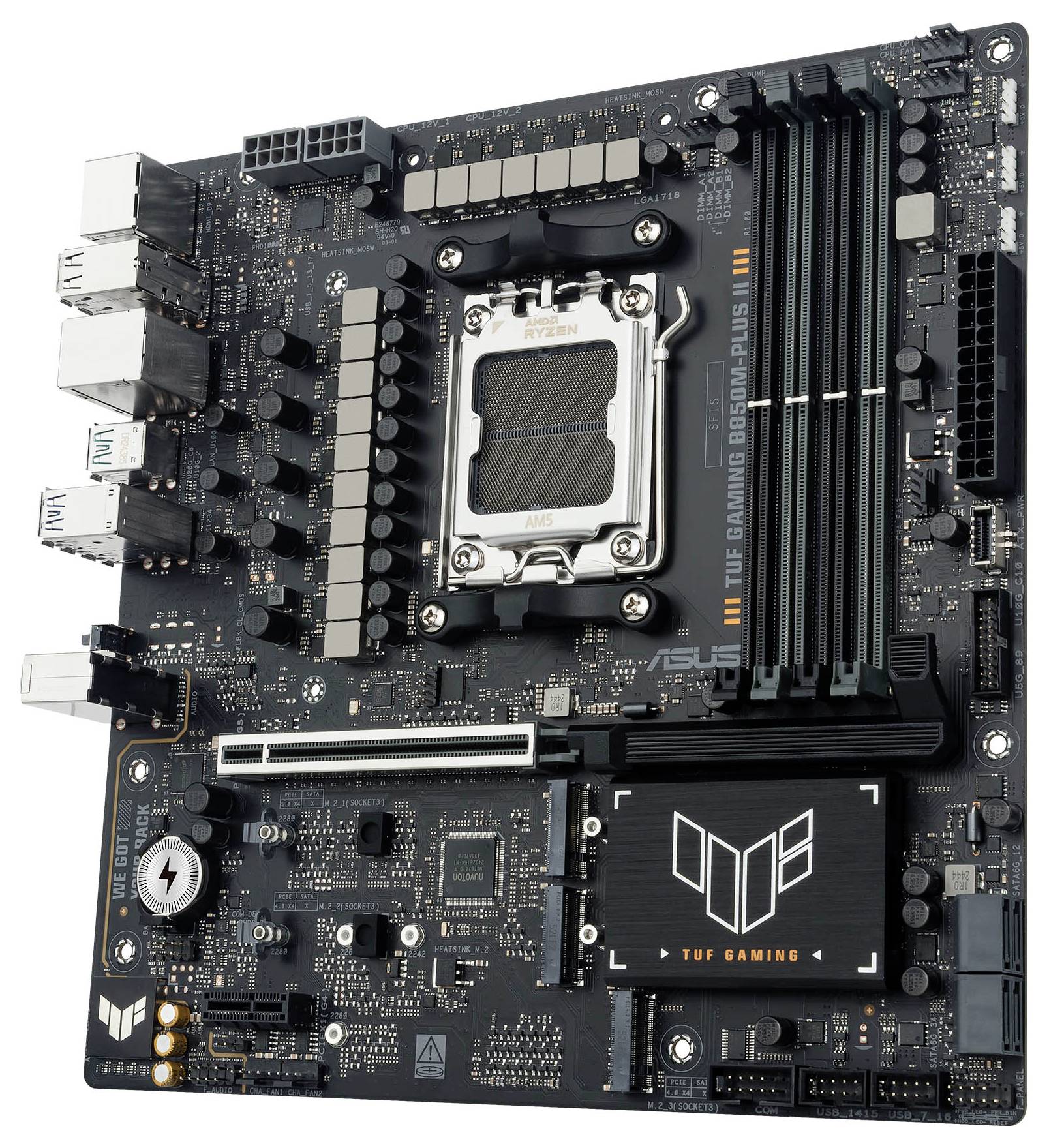

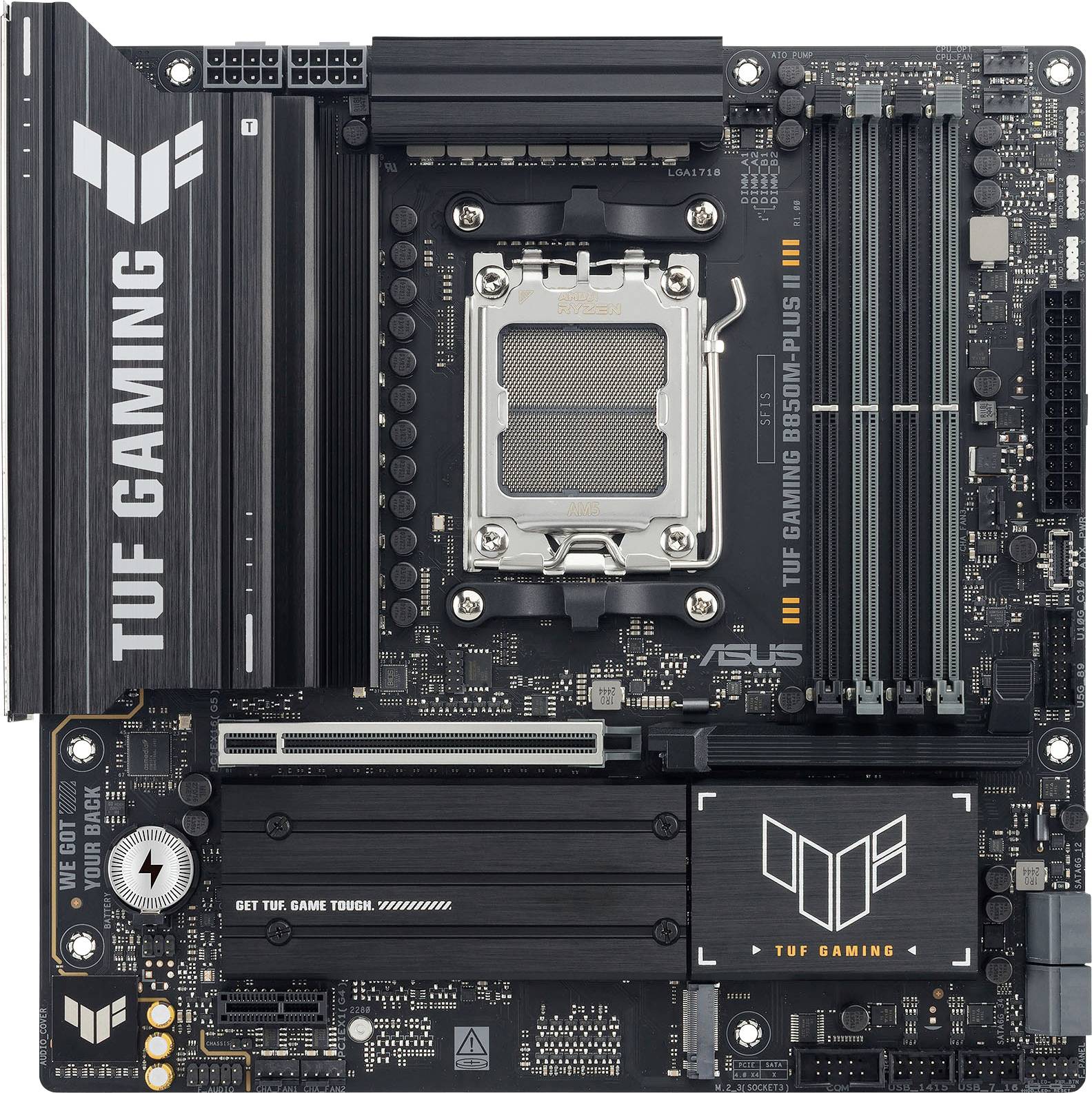

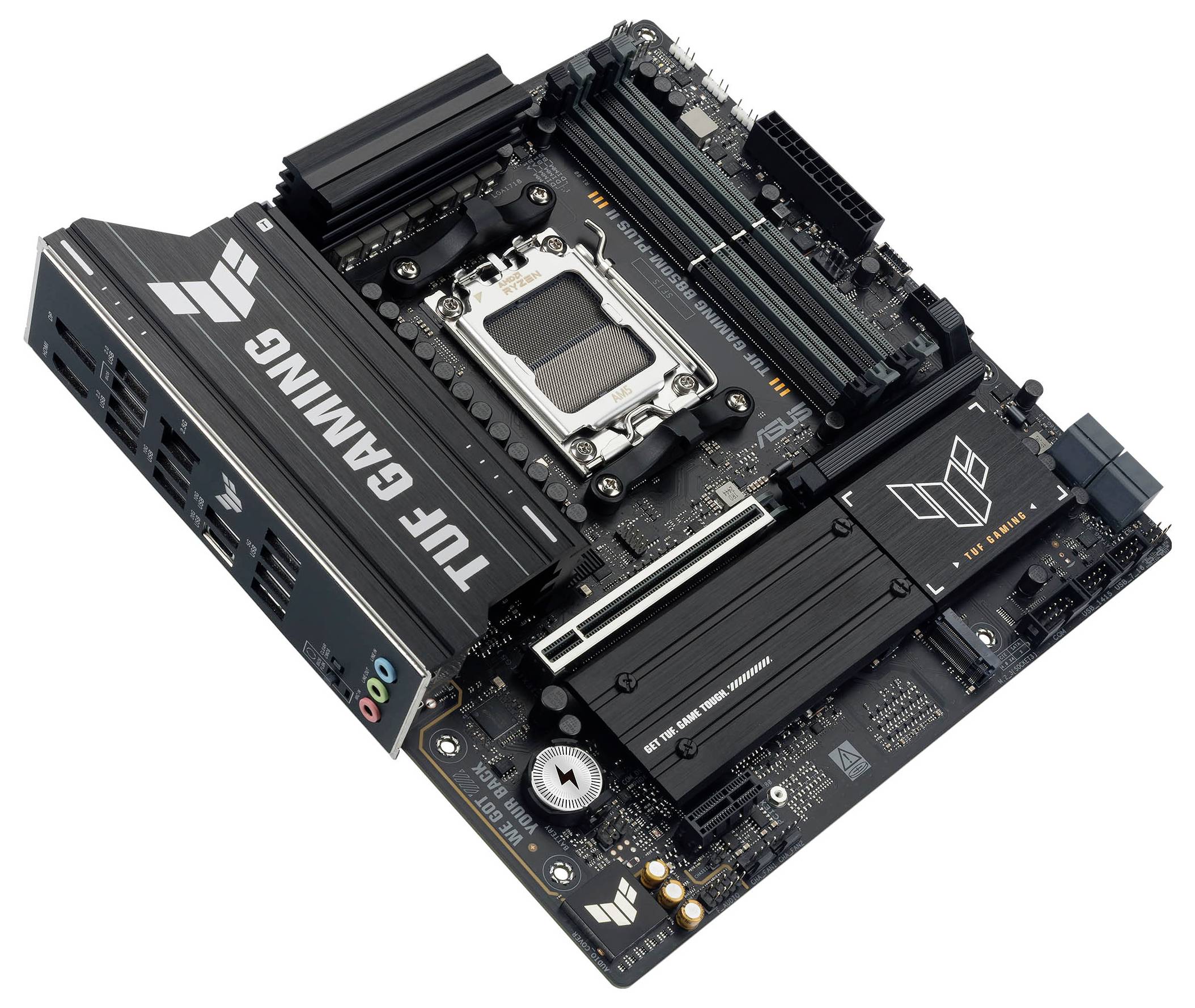

Asus TUF GAMING B850M-PLUS II Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC micro ATX AMD B850 Realtek ALC1220P 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 7
- UEFI AMI 256 Mbit BIOS type
- 2.5 Gigabit Ethernet
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- Supported memory: DDR5 SDRAM
- ECC compatibility: ECC and non-ECC
- Number of RGB LED pin strips: 3
- AMD B850 motherboard chipset
- Motherboard form factor: Micro ATX
- 1. M.2 Largest key size: 2280
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 2280
- 2. M.2 highest PCI Express generation: 4.0
- 3. M.2 Largest key size: 2280
- 3. M.2 highest PCI Express generation: 4.0
- Product type
Motherboard
- Chipset
AMD® B850
#####AMD AM5
- Form factor
Micro-ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB

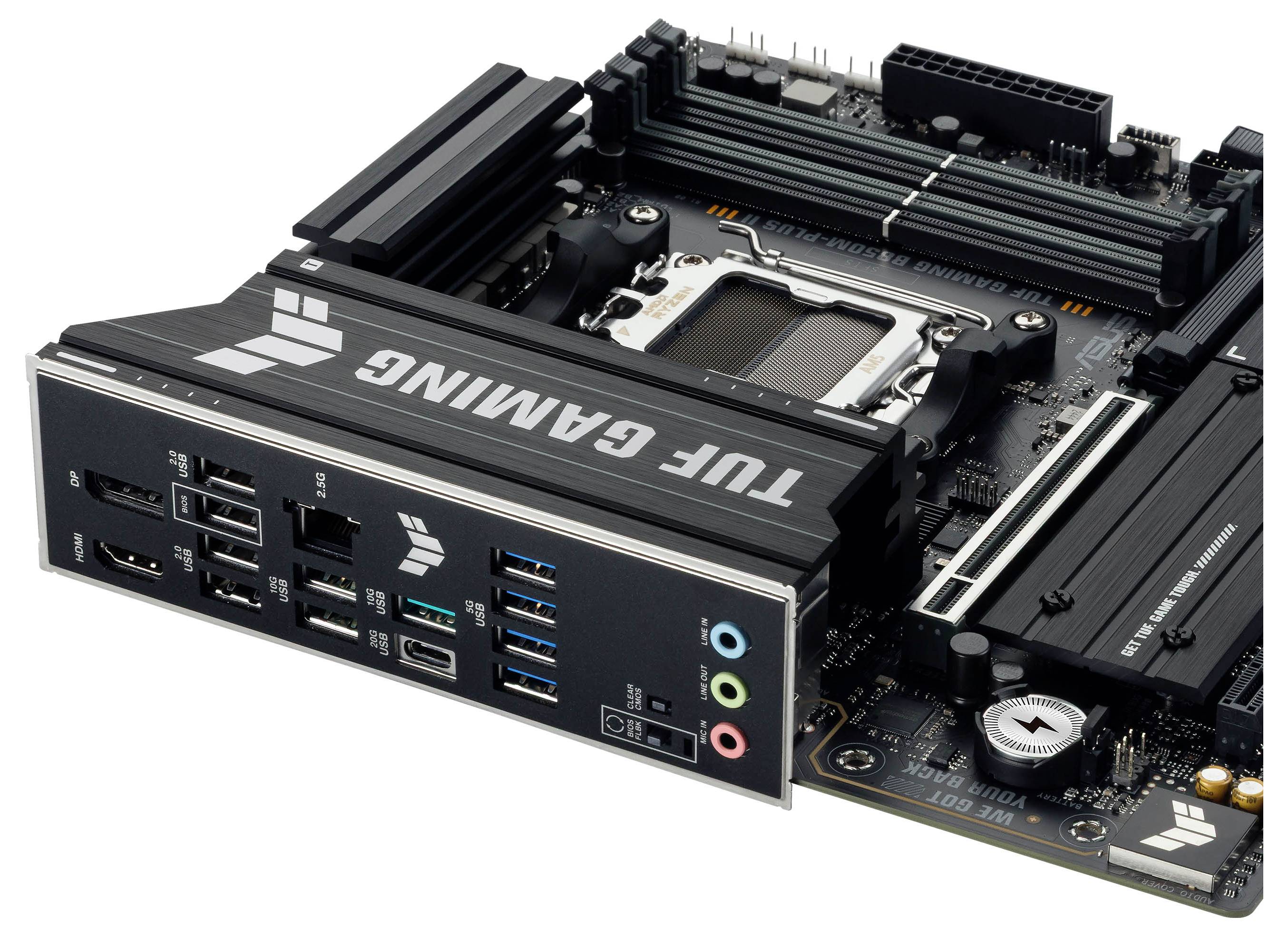

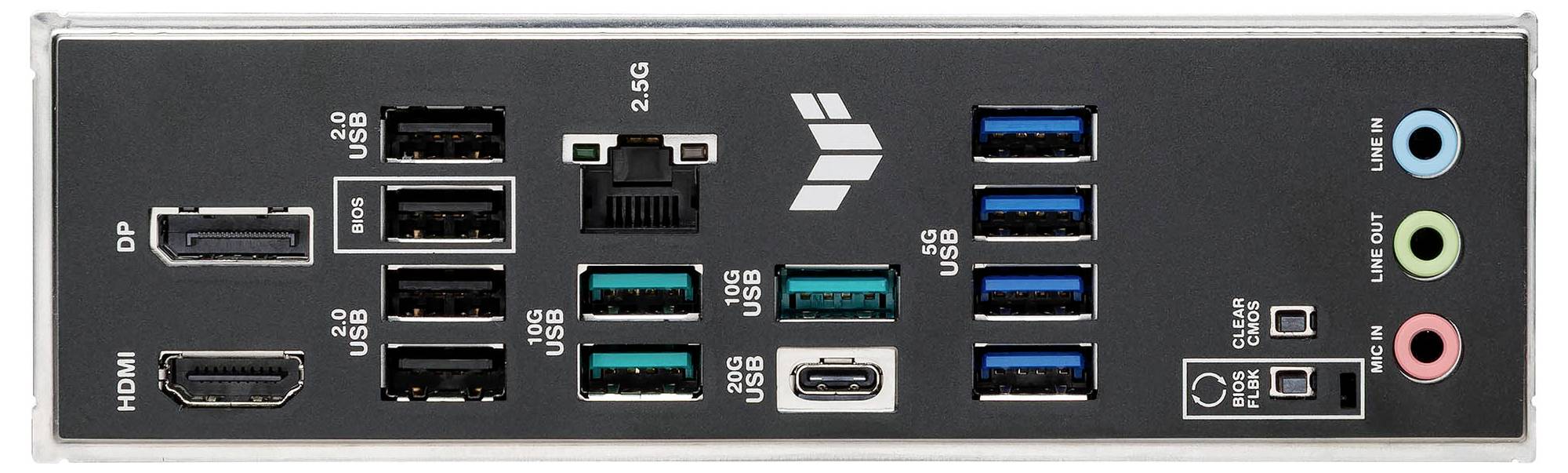

- Interfaces
USB A (USB 2.0)
USB A (USB 3.1 1st gen)
USB A (USB 3.1 2nd gen)
HDMI™
USB C®
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Depth
244 mm
- Height
100 mm
- Width
244 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- Range of use
PC
- Wi-Fi
No
- UKCA
yes
- BIOS memory size
256 Mbit
- Screws included
yes
- Ethernet LAN
yes
- Number of memory slots
4
- Number of M.2 (M) slots
3
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Front panel connector
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- RGB LED pin header
yes
- PCI Express x1 (Gen 4.x) slots
1
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
1.65 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Number of storage drives supported
7
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3454899 Asus TUF GAMING B850M-PLUS II Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD®
Description
TUF GAMING
B850M PLUS II
The Asus TUF GAMING B850M-PLUS II incorporates all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. With military-grade components, an improved power supply solution and a comprehensive cooling system, this motherboard exceeds all expectations and offers rock-solid and stable performance for gaming marathons. TUF GAMING boards are also subjected to rigorous endurance tests to ensure that they can withstand conditions where others may fail. This platform provides the performance and connectivity that advanced AI PC applications require.
This text is machine translated.
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the performance and connectivity required for demanding AI applications
- AMD socket: Ready for AMD socket AM5 for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Improved power supply solution: 14+2+1 80-A DrMOS power levels, 8-layer printed circuit board, 8+8-pin ProCool power connections, alloy reactors and long-life capacitors for a stable power supply
- Latest M.2 support: One integrated PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots
- Ultra-fast connectivity: PCIe 5.0 x16 slot, Realtek 2.5 GB Ethernet, USB 20 Gb/s Type C® connector on the back panel, USB 10 Gb/s Type C® connector on the front panel

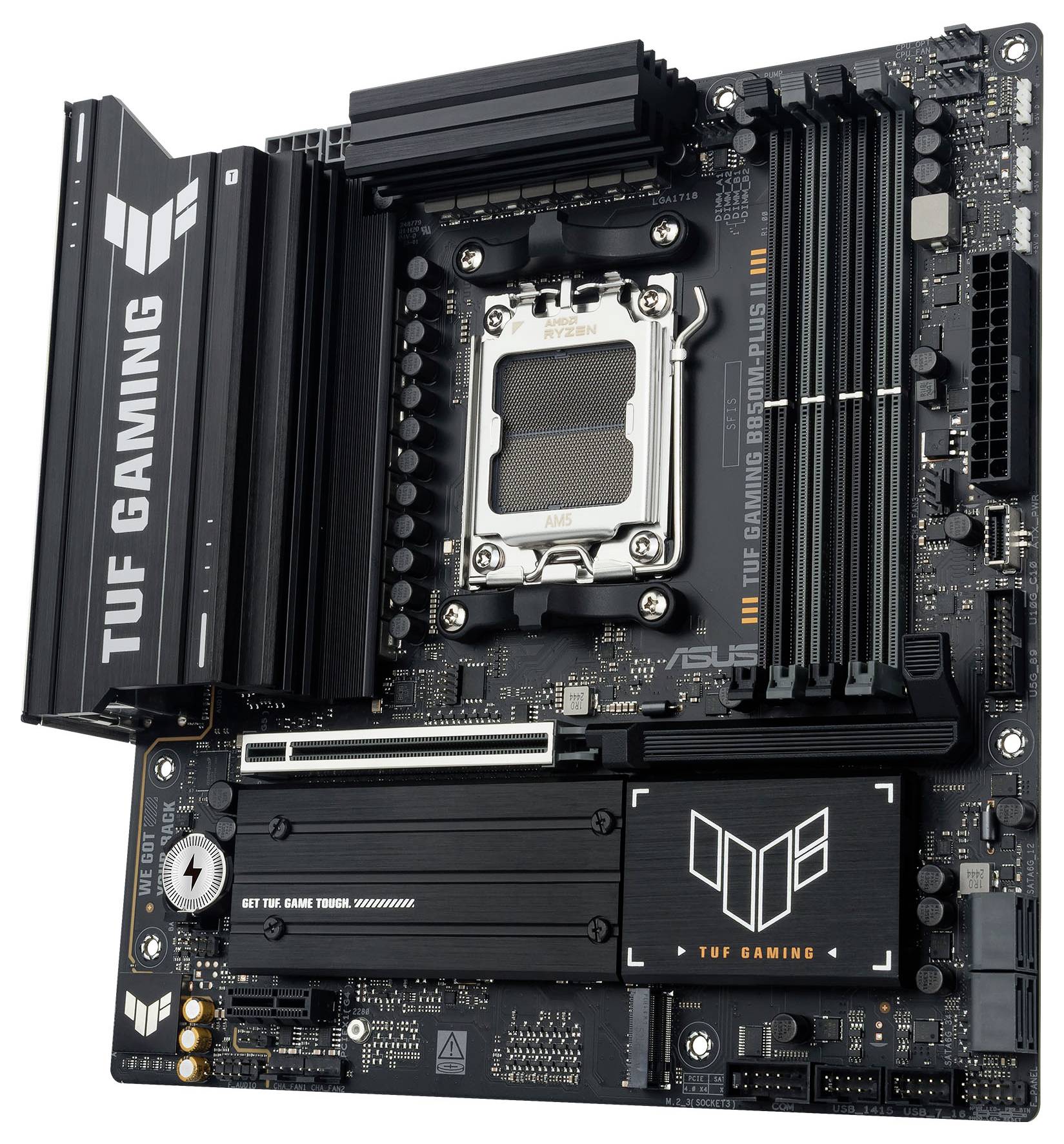

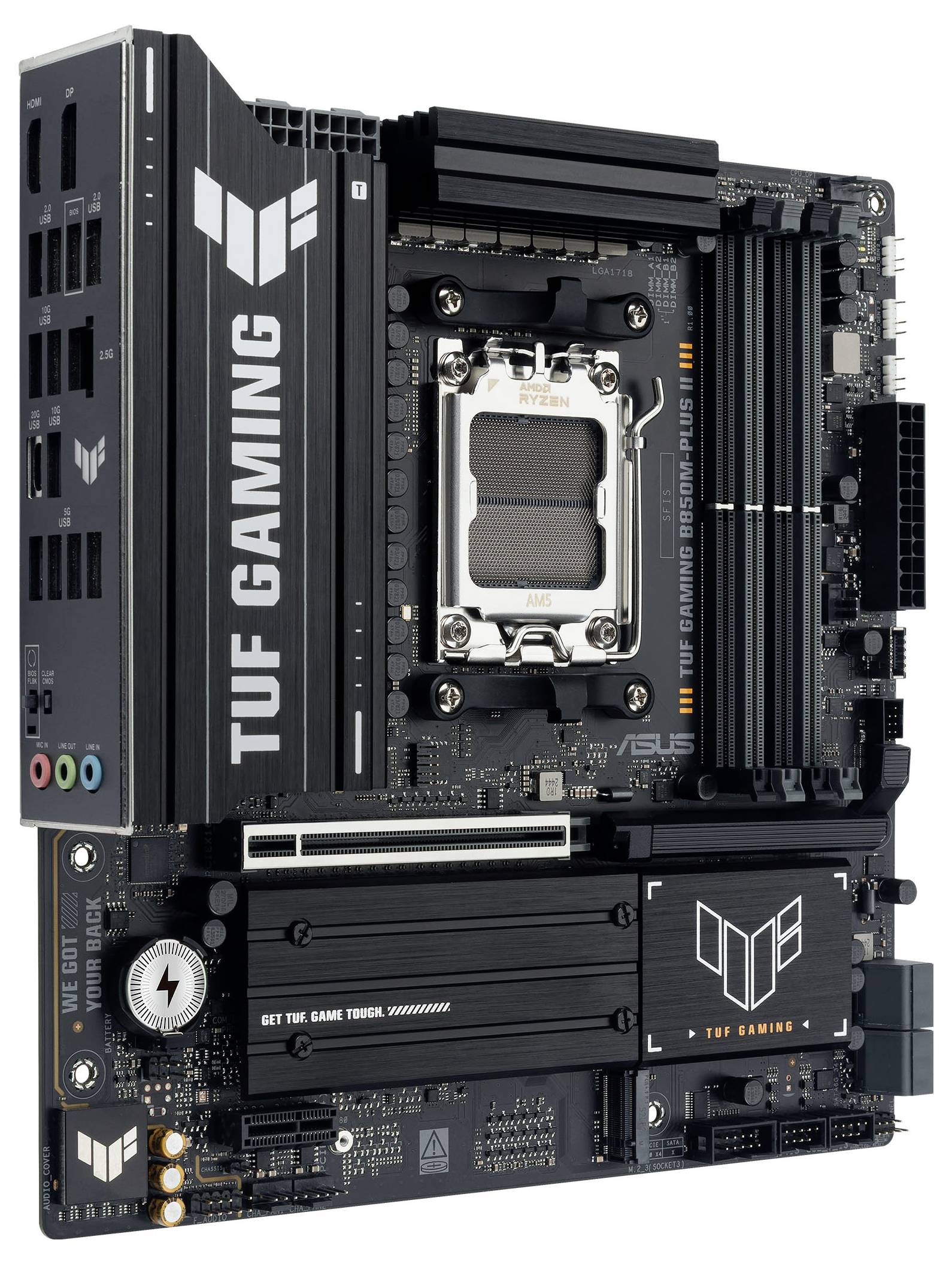

- Comprehensive cooling: Enlarged VRM heat sink, M.2-heat sink, PCH-heat sink, hybrid fan connections and fan Xpert 2+
- DIY-friendly design: PCIe slot Q-release, new M.2-Q-latch, Q-antenna, Q-Dashboard, Q-LED, BIOS Flashback™, Clear CMOS button and pre-mounted I/O cover
- Unmatched personalization: Three addressable RGB-Gen-2 headers, all configurable with Asus's exclusive Aura Sync RGB lighting
- Renowned software: Asus DriverHub, Asus AI Advisor, DTS audio processing
