Asus TUF GAMING B850M-PLUS Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B85
EAN:
Part number:
Item no:

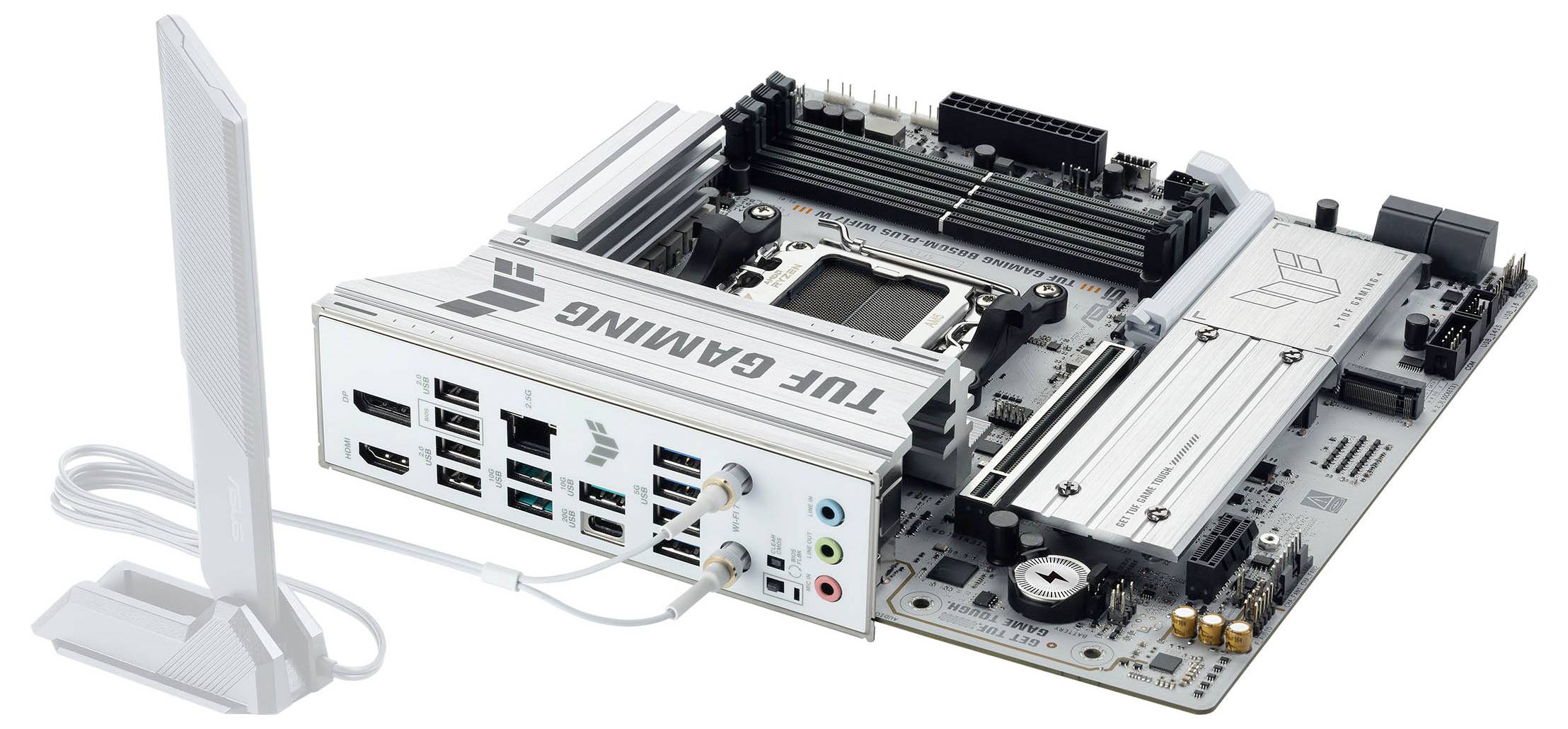

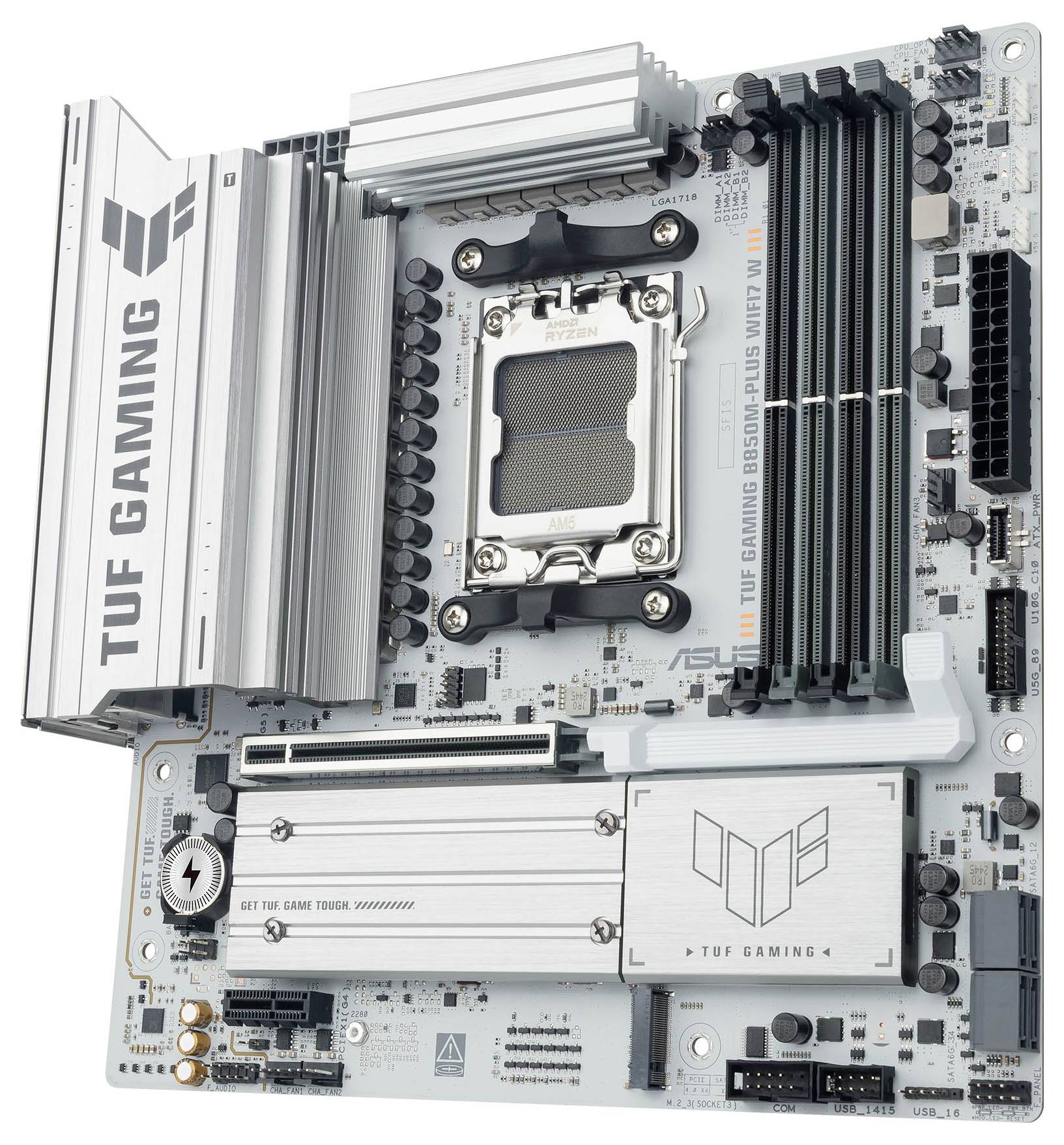

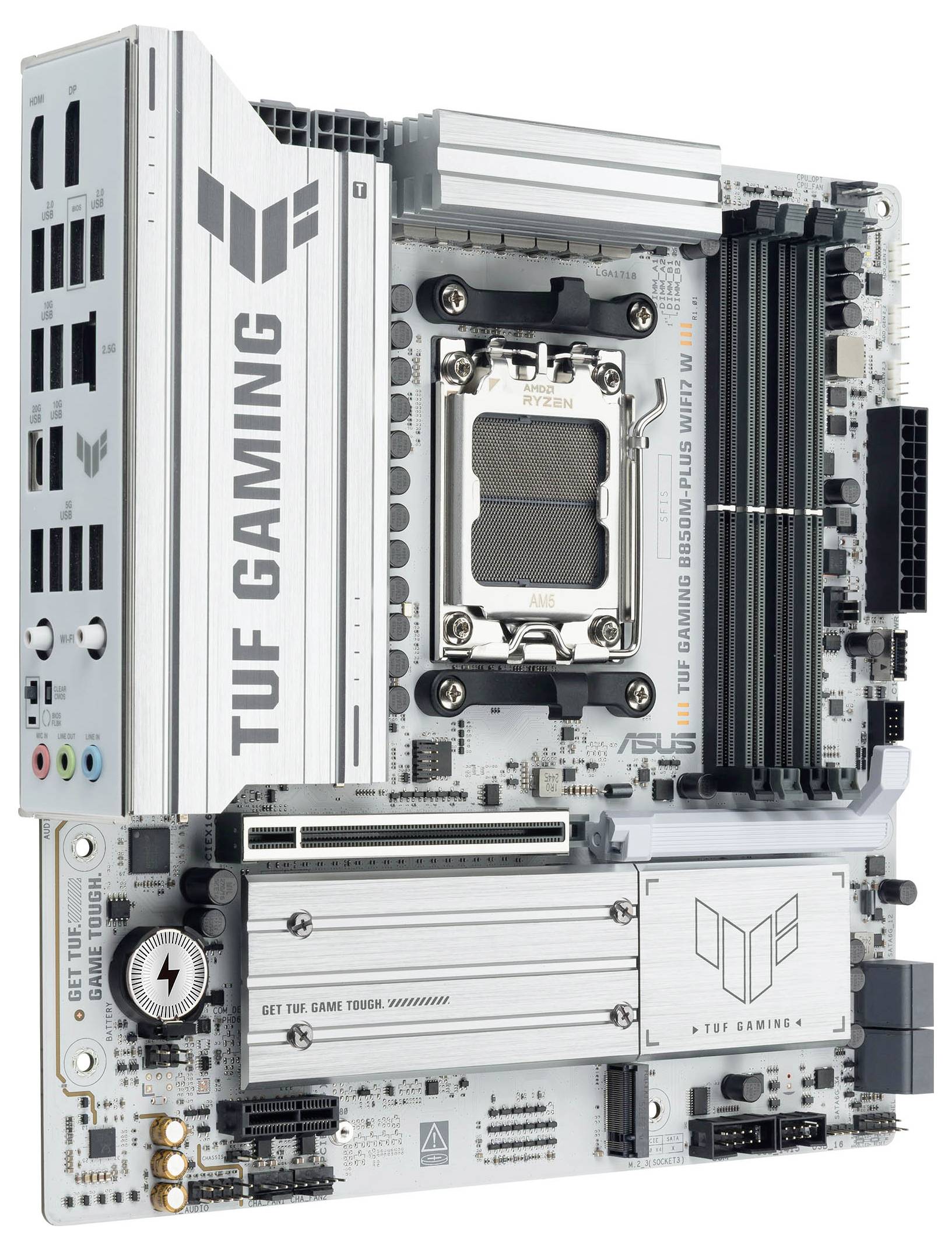

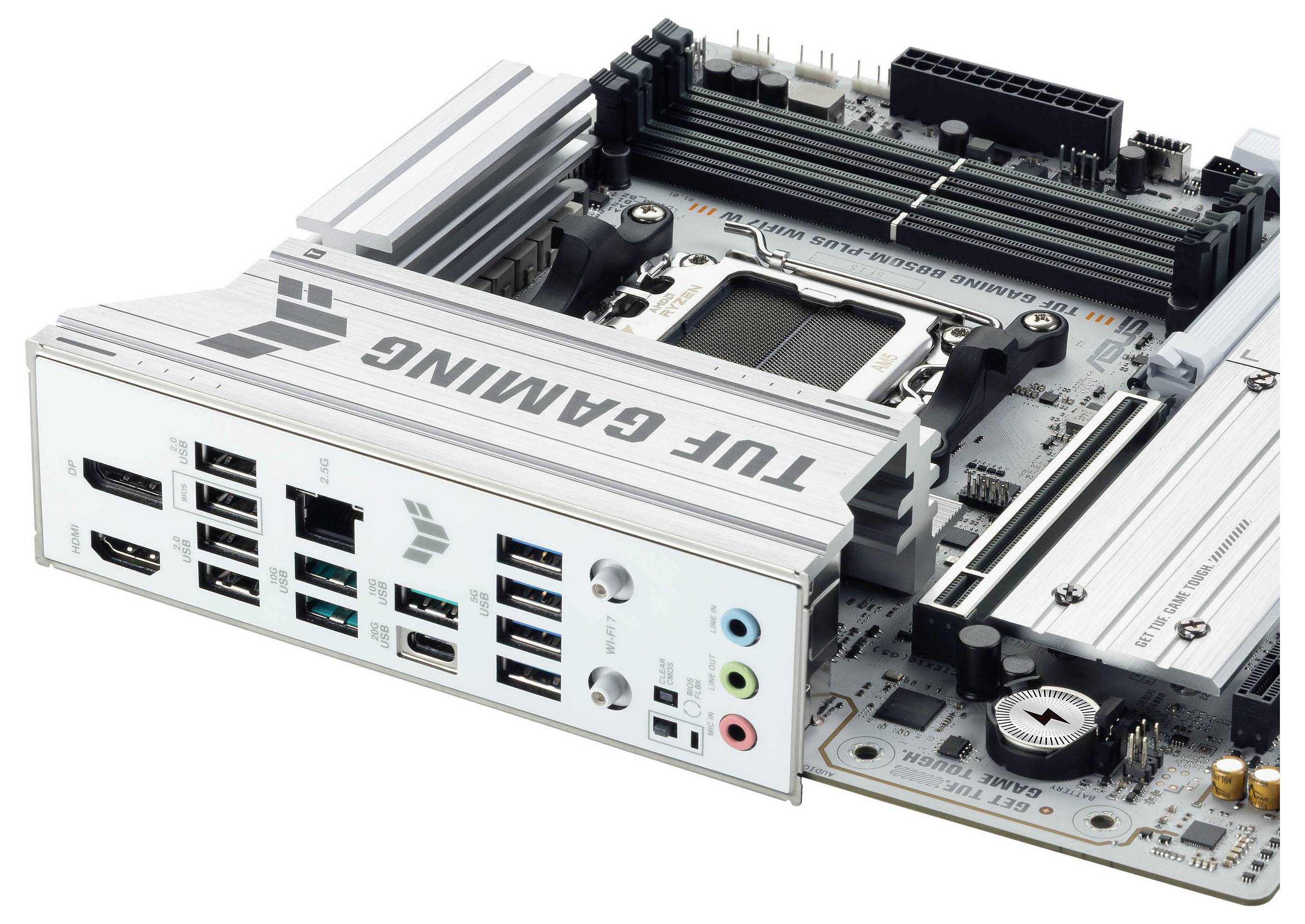

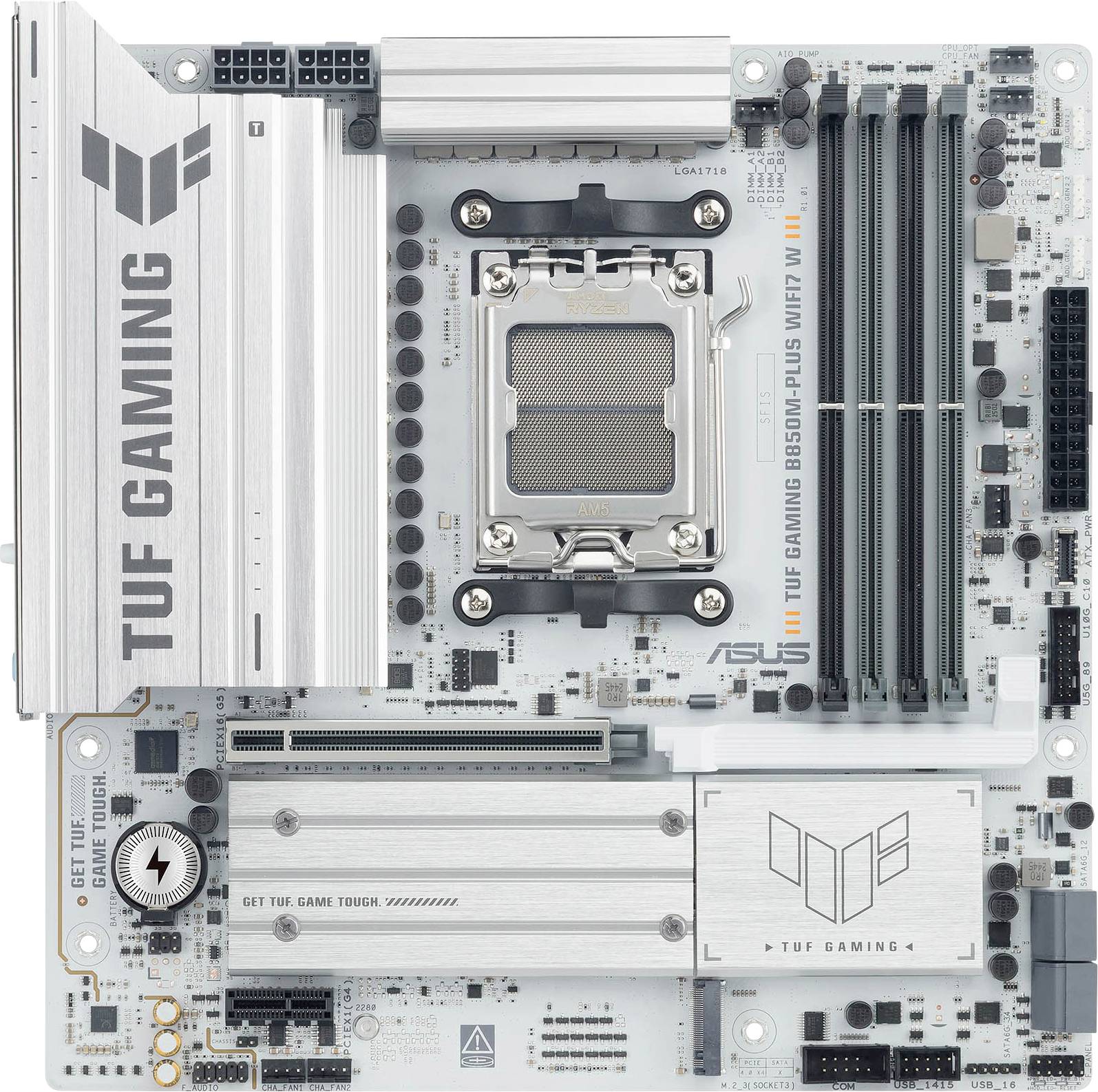

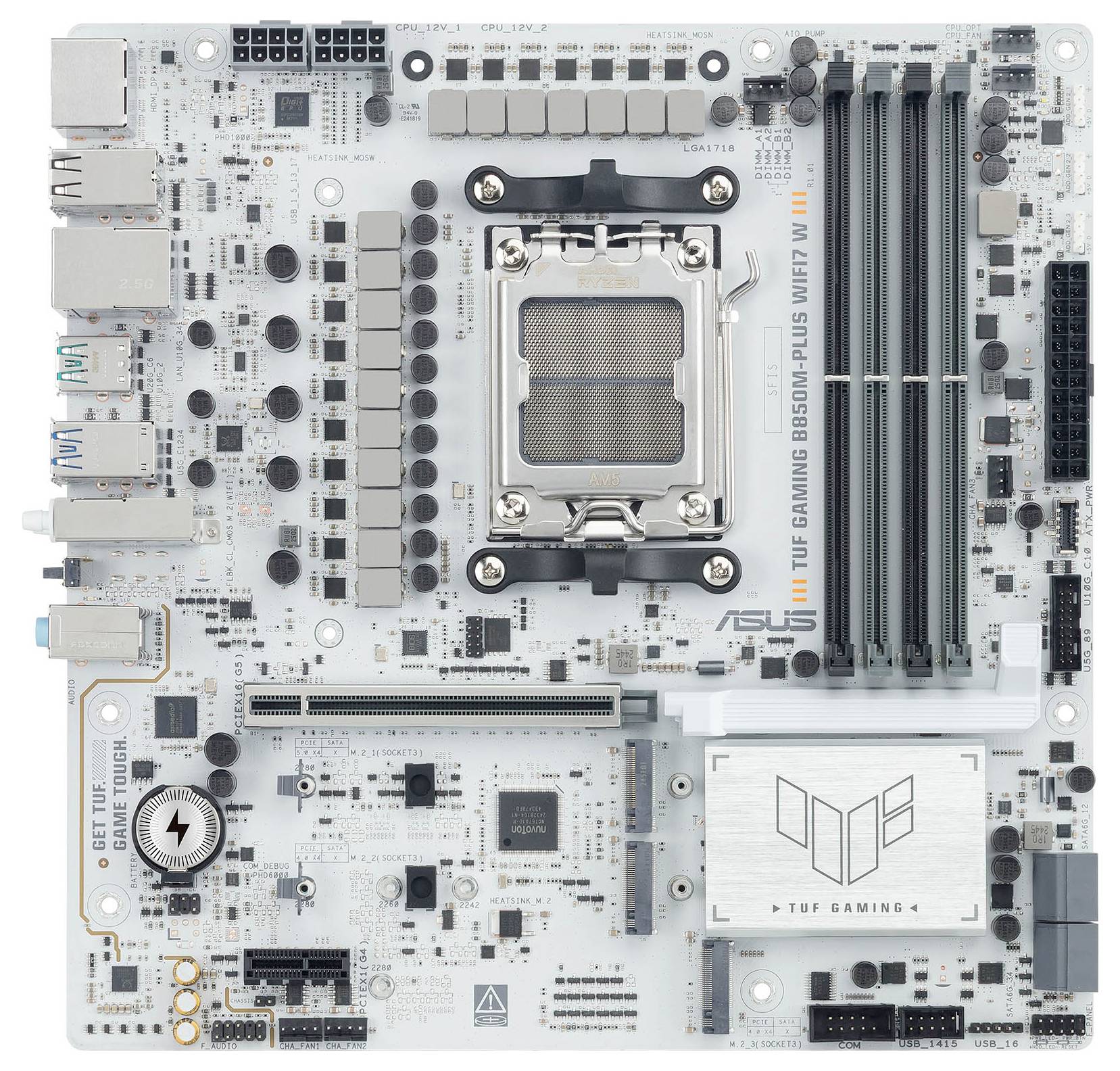

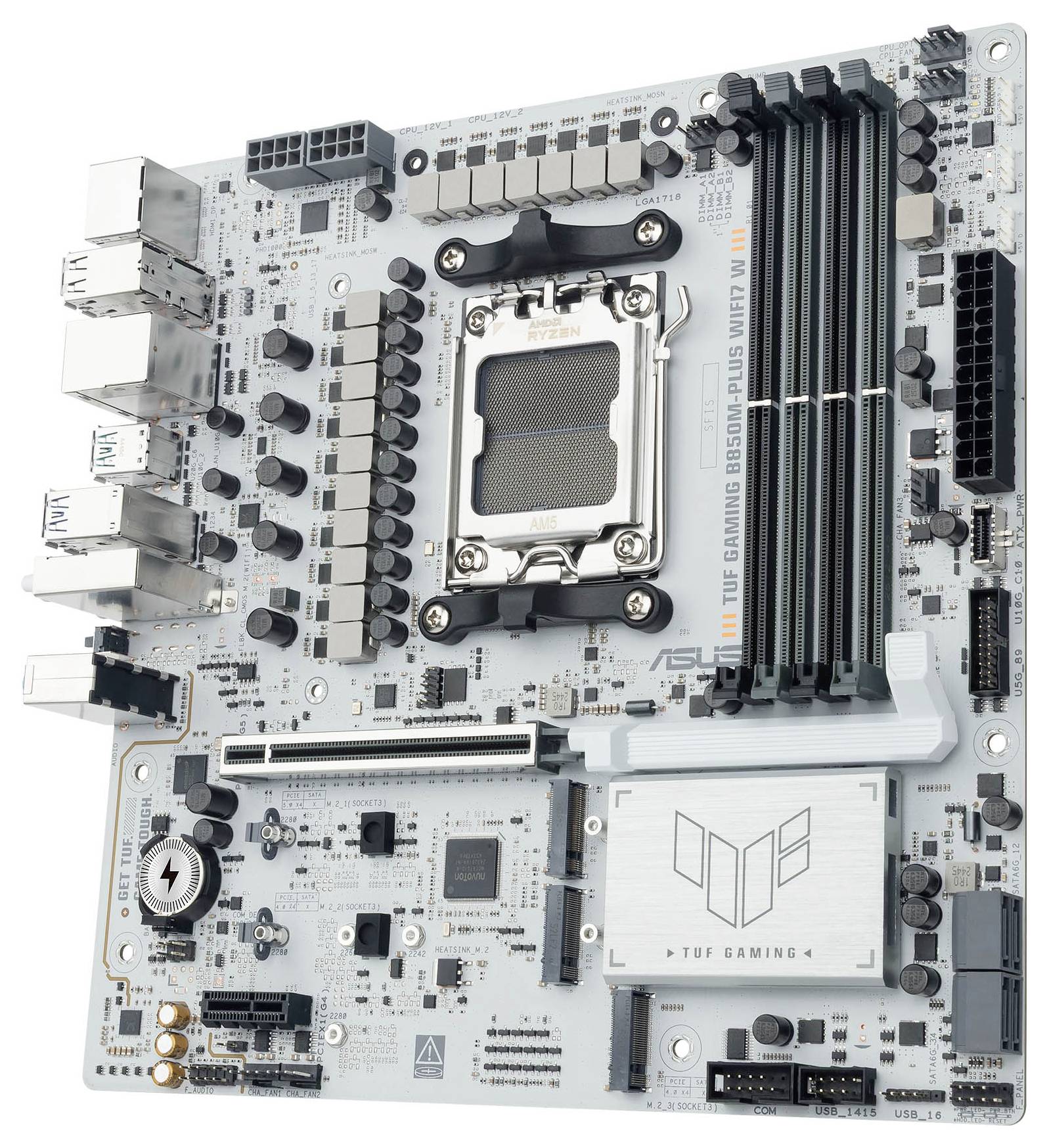

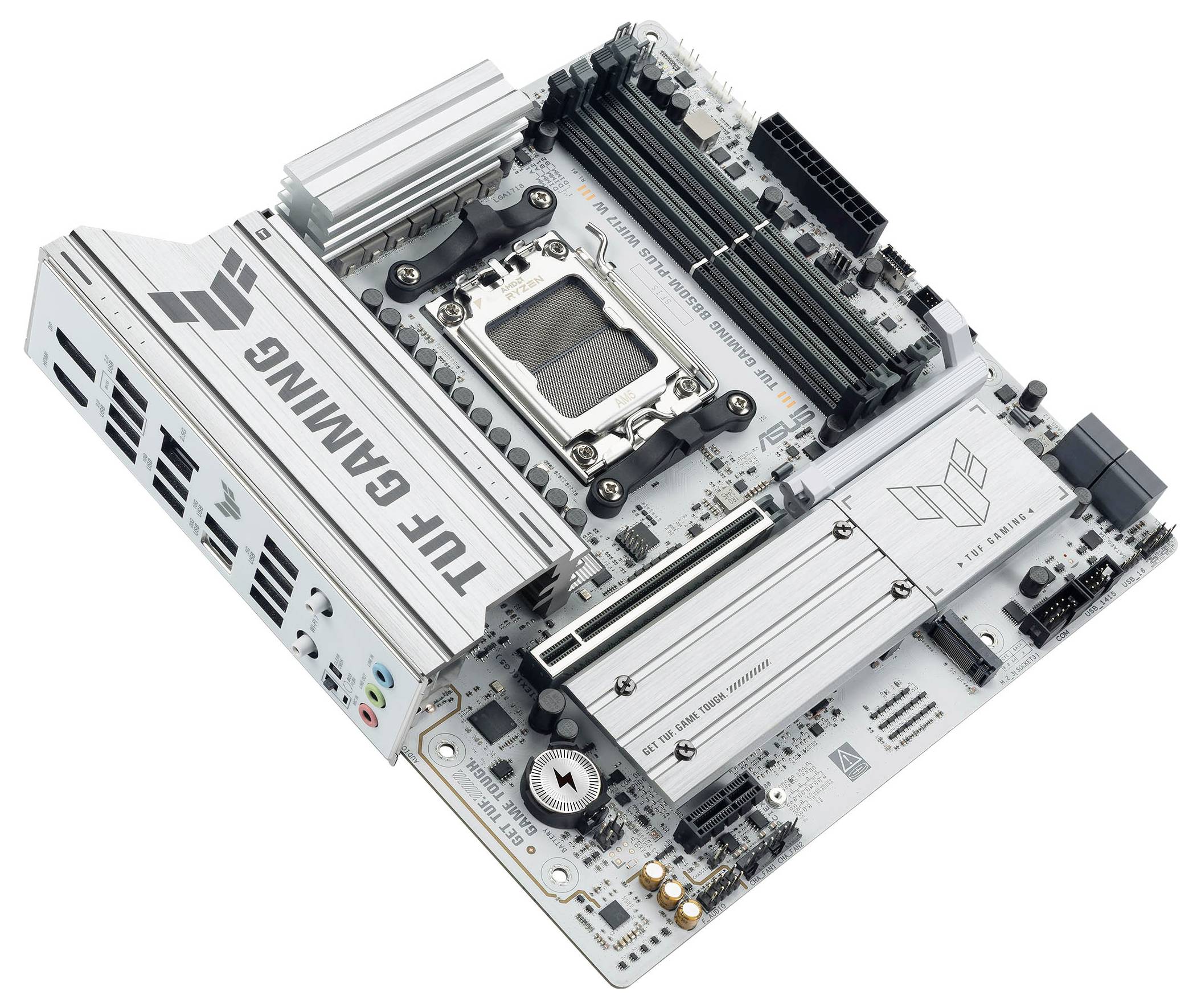

Asus TUF GAMING B850M-PLUS Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC micro ATX AMD B850 Realtek ALC1220P 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 7
- UEFI AMI 256 Mbit BIOS type
- 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
- This text is machine translated.
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- Supported memory: DDR5 SDRAM
- ECC compatibility: ECC and non-ECC
- Number of RGB LED pin strips: 3
- WLAN-standards Wi-Fi 7 (802.11b)
- AMD B850 motherboard chipset
- Motherboard form factor: Micro ATX
- 1. M.2 Largest key size: 2280
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 2280
- 2. M.2 highest PCI Express generation: 4.0
- 3. M.2 Largest key size: 2280
- 3. M.2 highest PCI Express generation: 4.0
- Product type
Motherboard
- Chipset
AMD® B850
#####AMD AM5
- Form factor
Micro-ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB

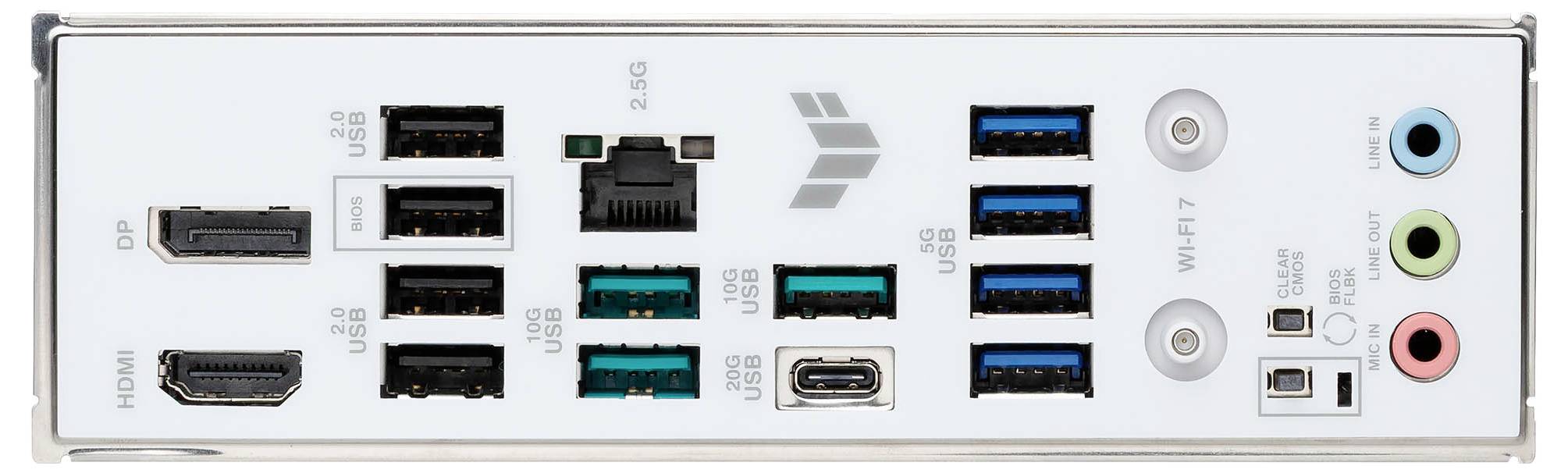

- Interfaces
USB A (USB 2.0)
USB A (USB 3.1 1st gen)
USB A (USB 3.1 2nd gen)
HDMI™
USB C®
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
White
- Depth
244 mm
- Width
244 mm
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- Range of use
PC
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Screws included
yes
- Ethernet LAN
yes
- Antenna included
yes
- Number of memory slots
4
- Number of M.2 (M) slots
3
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Front panel connector
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Chassis intrusion connector
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- WiFi-AP antenna jack
1
- RGB LED pin header
yes
- PCI Express x1 (Gen 4.x) slots
1
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
1.65 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
- Unbuffered memory
yes
- Number of storage drives supported
7
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3454897 Asus TUF GAMING B850M-PLUS Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B85
Description
Features
- Ready for advanced AI PCs: Designed for the future of AI computing, with the performance and connectivity required for demanding AI applications
- AMD socket: Ready for AMD socket AM5 for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Improved power supply: 14+2+1 80-A DrMOS power levels, 8-layer printed circuit board, 8+8-pin ProCool power connections, alloy reactors and long-life capacitors for a stable power supply
- Latest M.2 support: One integrated PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots
- Ultra-fast connectivity: Wi-Fi 7, PCIe 5.0 x16 slot, Realtek 2.5 GB Ethernet, Rear USB 20 Gbps Type C® connector, Front USB 10 Gbps Type C® connector
- Comprehensive cooling: Enlarged VRM heat sink, M.2-heat sink, PCH-heat sink, hybrid fan connections and fan Xpert 2+
- DIY-friendly design: PCIe slot Q-release, new M.2-Q-latch, Q-antenna, Q-Dashboard, Q-LED, BIOS Flashback™, Clear CMOS button and pre-mounted I/O cover
- Unmatched personalization: Three addressable RGB-Gen-2 headers, all configurable with Asus's exclusive Aura Sync RGB lighting
- Renowned software: Asus DriverHub, Asus AI Advisor, DTS Audio Processing"
