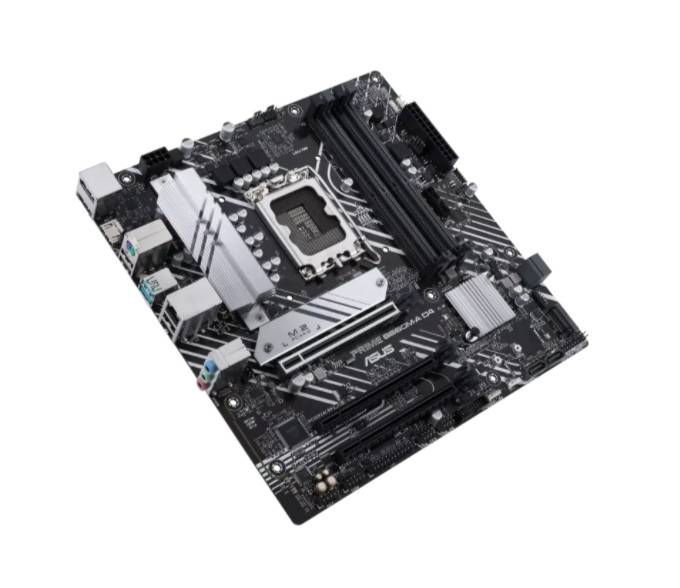

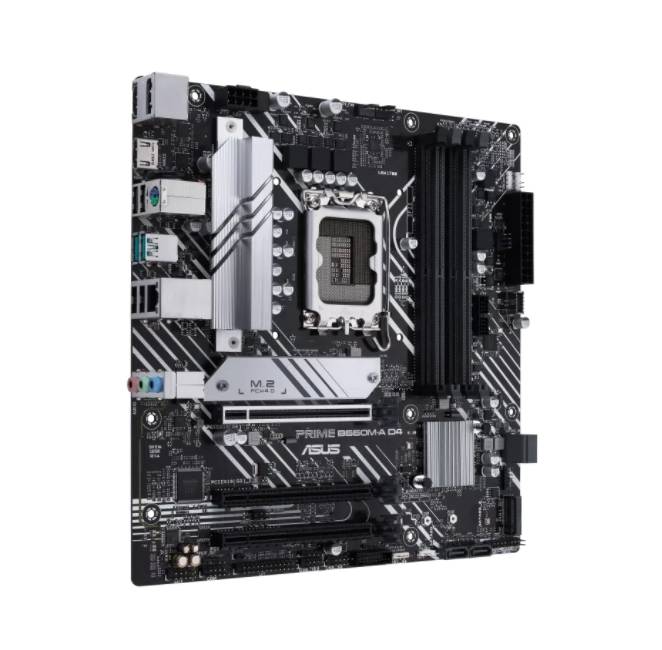

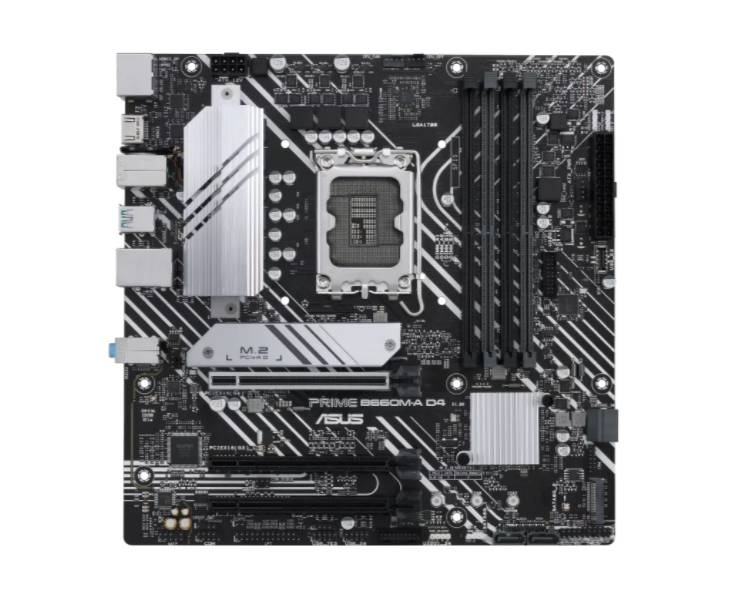

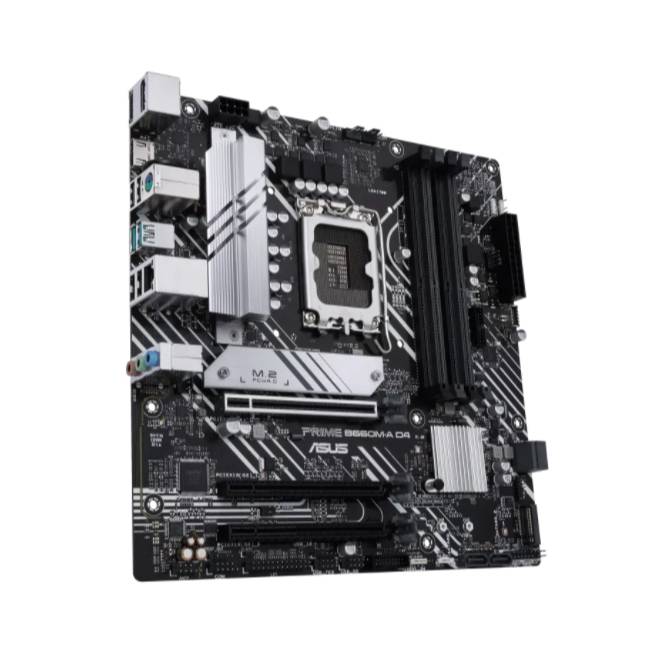

Asustek Computer PRIME B660M-A D4-CSM Motherboard
Technical specifications
- Product type
Motherboard
- Chipset
Intel® B660
Intel® 1700
- Form factor
Micro-ATX
- Processor/type
Core / Pentium Gold / Celeron
- RAM type
DDR4 SDRAM
- RAM / Max. upgrade
128 GB
- Interfaces
USB C® (USB 3.2 1st gen)
- No. of DDR4 slots
4 x
- No. of LAN ports
1 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
2 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
3 x
- No. of USB type A 3.0 ports
8 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Onboard audio
7.1
- No. of PS/2 ports
1 x
- Depth
244 mm
- Height
100 mm
- Width
244 mm
- No. of 10 Gb LAN ports
1 x
- No. of DisplayPort
1 x
- No. of HDMI ports
2 x
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2842762 Asustek Computer PRIME B660M-A D4-CSM Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipse
Description
Features
- Processor manufacturer: IntelLGA 1700 processor socketCompatible processors: Intel® Celeron®Intel® Core™ i3Intel® Core™ i5Intel® Core™ i7Intel® Core™ i9, Supported memory: DDR4 SDRAMRAM maximum: 128 GBRAM type DIMM. Supported drive interfaces: M.2SATA IIISupported drives: HDD & SSD. Ethernet interfaces, type Gigabit Ethernet. Component for: PCMotherboard form factor: Micro ATXMotherboard Chipset family: Intel
- This text is machine translated.
