ATEN 1-Port RS-232/422/485 Secure Device Server
EAN:
Part number:
Item no:
ATEN 1-ports RS-232/422/485 secure device server
Highlights & Details
- 1 serial RS-232/422/485 port for secure serial data transfer via Ethernet
- Software configurable termination (120 Ω) and pull high/low resistance (1K ohm or 150K ohm) integrated in the RS-485 mode to prevent signal reflections
- Secure Real COM, Secure TCP Server/Client, Secure Serial Tunneling Server/Client, Console Management (SSH), and Direct Console Management (SSH)
- Standard operating modes – Real COM, TCP Server/Client, Serial Tunneling Server/Client, UDP, Console Management (Telnet) and Console Management Direct (Telnet)
- Real COM-, Real TTY- and Fixed TTY-drivers for Windows, Linux and UNIX
- Convenient console management access via Java Viewer (SSH / Telnet) or third-party clients such as PuTTY
- Simple console port access via Java Viewer and SUN Solaris ready ("break-safe")
- Multiple users can access the same port simultaneously - up to 16 connections per port
- Supports Modbus Gateway for conversion between Modbus TCP and Modbus RTU/ASCII protocols
Technical specifications
- Product type
Secure Device Server
- Rack mount option
Yes
- Distributor/switch features
PC-controlled
- Factory colour
Black
- Weight
200 g
- Length
117 mm
- Width
98 mm
- Height
26 mm
- Dim
(L x W x H) 117 x 98 x 26 mm
- No. of 10 Gb LAN ports
1 x
- Power consumption (ON)
1.18 W
- No. of serial ports
1 x
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2887634 ATEN 1-Port RS-232/422/485 Secure Device Server
Description

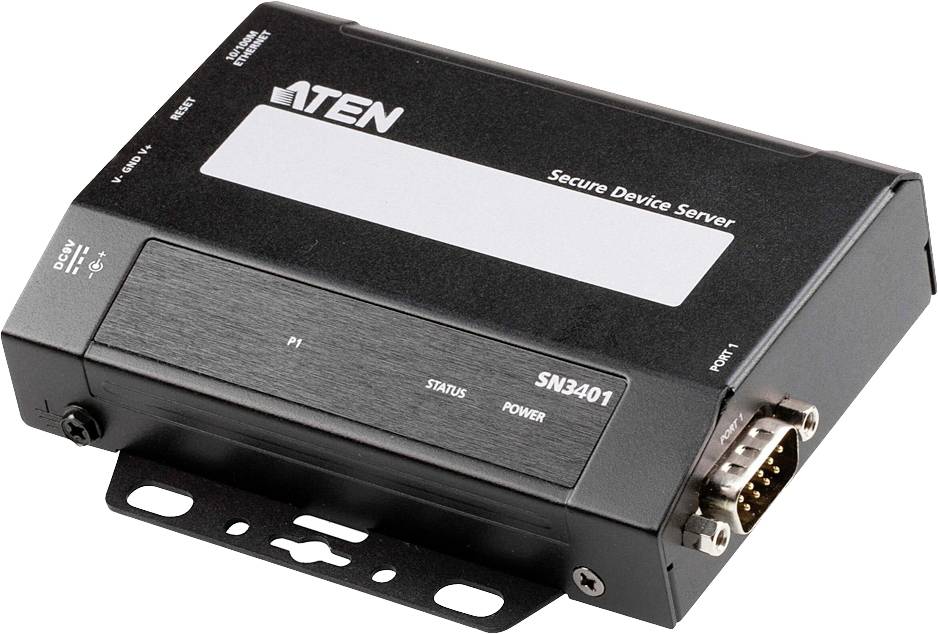

The Secure Device Server SN3401 is an external IP-based network device that securely connects older RS-232/422/485 serial devices to an Ethernet network and allows remote access from any computer.
The SN3401 is particularly suitable for industrial process control applications, as supervisory control and data acquisition (SCADA) systems are widely used in many industries to collect data from PLCs, measuring devices and sensors via serial interfaces. The SN3401 translates data bi-directional between serial and Ethernet formats, allowing access to data from all data collection devices from local and remote sites over an Ethernet network.
The SN3401 has a number of useful operating modes. It supports secure TCP server/client, secure serial tunneling server/client, secure real-COM and console management modes for security-critical applications such as Telecommunications, access control and remote site management.
The SN3401 can be used as a standard Modbus gateway to convert between Modbus TCP and Modbus RTU/ASCII protocols. It can seamlessly integrate serial Modbus slave devices into an existing Modbus TCP network and thus make them accessible to serial master devices.
This text is machine translated.
The SN3401 is particularly suitable for industrial process control applications, as supervisory control and data acquisition (SCADA) systems are widely used in many industries to collect data from PLCs, measuring devices and sensors via serial interfaces. The SN3401 translates data bi-directional between serial and Ethernet formats, allowing access to data from all data collection devices from local and remote sites over an Ethernet network.
The SN3401 has a number of useful operating modes. It supports secure TCP server/client, secure serial tunneling server/client, secure real-COM and console management modes for security-critical applications such as Telecommunications, access control and remote site management.
The SN3401 can be used as a standard Modbus gateway to convert between Modbus TCP and Modbus RTU/ASCII protocols. It can seamlessly integrate serial Modbus slave devices into an existing Modbus TCP network and thus make them accessible to serial master devices.
This text is machine translated.
Features
- Power source: Direct current
- Max. power consumption: 1.3 W
- Power consumption (standard mode) 1.18 W. LED indicators: Power
- Status Width 117 mm
- Depth: 98 mm
- Height 26 mm. Product color: Black
- Case material: metal
- Safety UL 60950-1
- UL 62368-1 Number of foot pads: 4 pieces(s)
Scope of delivery
- 1x Secure Device Server SN3401
- 1 x mains adaptor
- 1x terminal strip
- 1x foot pad set (4 pieces)
- 1x mounting kit for DIN rail
- 1x user manual
